Description
GTGH Overview
The GTGH card is 16-port GPON interface cards, which provides GPON access and could be applied to the ZTE OLT ZXA10 C300/C320/C350.
The GTGH card will come with C+ module, but you could also choose come with C++(D) level module also.

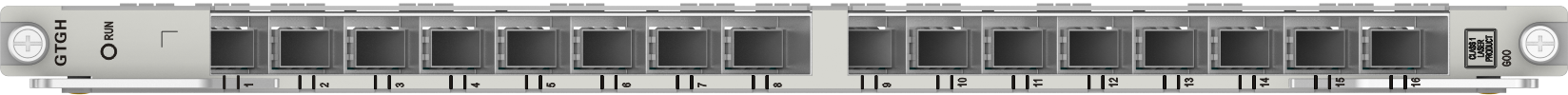

The GTGH Panel
The Indicator Description for GTGH GPON Interface Card
| Indicator | Status | Description | ||
| RUN | OFF | The card is not powered ON. | ||
| Green LED flashes slowly (1 Hz). | The card works properly (INSERVICE). | |||
| Green LED flashes quickly (2 Hz). | • | The card is in configuration process. | ||
| • | The card is in BOOT writing process. Do Not pull out the card. | |||
| Green LED is ON. | • | The card is in version starting process. | ||
| • | The card is in BOOTROM program. | |||
| • | The card is in PLD upgrading process. | |||
| Red LED is ON. | The card is seriously faulty, such as hardware fault. | |||
| Yellow LED flashes slowly (1 Hz). | The card type is inconsistent with configuration (TYPEMISMATCH). | |||
| ACTi (i = 1–16) | OFF | The PON interface has no configuration. | ||
| Green LED flashes. | The PON interface has no configuration and discovers new ONU. | |||
| Green LED is ON | ONUs are registered on the PON port and work properly. | |||
| Red LED is ON. | The GPON interface has LOS alarms. | |||
The Principle Diagram of GTGH Card
Galaz –
I bought GTGH for my OLT C320, with good price.
Pilar –
Esta es la primera vez que compro algo aquí, la calidad es buena y la entrega es rápida.
Andrés –
My engineer specified the GTGHK version, and the product they provided to me is compatible with my chassis, which is satisfactory.
Marcos –
At first I was worried about its compatibility with my system. Telecomte.com tested it very carefully. After receiving the goods, I found out that the initial worry was unnecessary.Haha
Robert –
GTGH has G and K two version, the appearance of the two is different. In fact, they are the same as Huawei H805 and H806 GPFD. They have different hardware versions and the same functions.
Lukasz –
Telecomate.com sent GTGH G version to me as i required.
David –
I requested GTGH G version, then i got correct version finally.
Lorne –
GTGH board has G22 version and K00 version, V1 software can only recognize G22 version, V2 software can only recognize K00 version
Jorge –
muy nuevo, y el precio es muy razonable
Wipul –
GTGH has G and K two versions, K is a new version, it is necessary to consider whether the main control supports the new version.
V1 software can only recognize G22 version, V2 software can only recognize K00 version.
Diego –
Good-condition, and fast delivery.
Neuda –
Although the price is higher than before, the quality is indeed much better than the previous supplier
