$0.00 Original price was: $0.00.Current price is: $0.00.

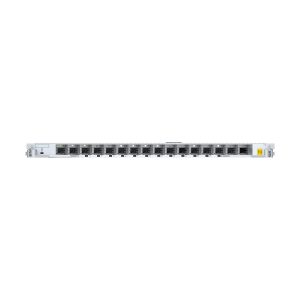

ZTE GFBH ZXA10 C600/C650/C680 16-port XG-PON and GPON Combo OLT interface board with N1/B+/N2a/C+module
ZTE GFCH ZXA10 C600/C650/C680 16-port XGS-PON and GPON Combo OLT interface board with N1/B+/N2a/C+module
Apply to ZTE ZXA10 C600/C650/C680 GPON OLT
Supports 16 XG-PON & GPON SFP+ hybrid interfaces
Maximum optical split ratio of GPON: 1:128
Maximum optical split ratio of XG-PON: 1:128
Support optical power monitoring
Support the ALS function of optical modules.
Support hot swapping
| Item | GFBH | |||
| Port | 16 | |||
| Type | XGS-PON N1 | GPON B+ | XGS-PON N2a | GPON C+ |
| Operating wavelength | Tx: 1577 nm | Tx: 1490 nm | Tx: 1577 nm | Tx: 1490 nm |
| Rx: 1270 nm | Rx: 1310 nm | Rx: 1270 nm | Rx: 1310 nm | |
| Package type | SFP+ | SFP+ | ||
| Bandwidth | Tx: 9.953 Gbit/s | Tx: 2.488 Gbit/s | Tx: 9.953 Gbit/s | Tx: 2.488 Gbit/s |
| Rx: 2.488 Gbit/s | Rx: 1.244 Gbit/s | Rx: 2.488 Gbit/s | Rx: 1.244 Gbit/s | |
| Minimum output optical power | 2 dBm | 1.5 dBm | 4 dBm | 3.0 dBm |
| Maximum output optical power | 6 dBm | 5.0 dBm | 8 dBm | 7.0 dBm |
| Maximum receiver sensitivity | –27.5 dBm | –28.0 dBm | –29.5 dBm | –32.0 dBm |
| Optical connector type | SC/UPC | SC/UPC | ||
| Optical fiber type | Single mode | Single mode | ||
| Transmission distance | 20 km | 20 km | ||
| Saturation optical power | –7 dBm | –8.0 dBm | –9 dBm | –12.0 dBm |
| Extinction ratio | 8.2 dB | 8.2 dB | 8.2 dB | 8.2 dB |
| Dimensions | 393.1 mm(H)× 23.9 mm(W) × 214 mm(D) | |||
| Weight | 1.72kg | |||
| Brand | ZTE |
|---|---|
| Lead Time | 3-5 days |
| Ship From | Shenzhen Warehouse |
| Item | GFBH | |||
| Port | 16 | |||
| Type | XGS-PON N1 | GPON B+ | XGS-PON N2a | GPON C+ |
| Operating wavelength | Tx: 1577 nm | Tx: 1490 nm | Tx: 1577 nm | Tx: 1490 nm |
| Rx: 1270 nm | Rx: 1310 nm | Rx: 1270 nm | Rx: 1310 nm | |
| Package type | SFP+ | SFP+ | ||
| Bandwidth | Tx: 9.953 Gbit/s | Tx: 2.488 Gbit/s | Tx: 9.953 Gbit/s | Tx: 2.488 Gbit/s |
| Rx: 2.488 Gbit/s | Rx: 1.244 Gbit/s | Rx: 2.488 Gbit/s | Rx: 1.244 Gbit/s | |
| Minimum output optical power | 2 dBm | 1.5 dBm | 4 dBm | 3.0 dBm |
| Maximum output optical power | 6 dBm | 5.0 dBm | 8 dBm | 7.0 dBm |
| Maximum receiver sensitivity | –27.5 dBm | –28.0 dBm | –29.5 dBm | –32.0 dBm |
| Optical connector type | SC/UPC | SC/UPC | ||
| Optical fiber type | Single mode | Single mode | ||
| Transmission distance | 20 km | 20 km | ||
| Saturation optical power | –7 dBm | –8.0 dBm | –9 dBm | –12.0 dBm |
| Extinction ratio | 8.2 dB | 8.2 dB | 8.2 dB | 8.2 dB |
| Dimensions | 393.1 mm(H)× 23.9 mm(W) × 214 mm(D) | |||
| Weight | 1.72kg | |||
