FAN-180E-B

Name: FAN-180E-B
SKU: 2017300
Rating: 5.00 (1 reviews)

Rated 5.00 out of 5 based on 1 customer rating

1 Review Write a review

PN02354KXY

AvailabilityIn Stock

WarrantyUp to 36 months

HuaWei FAN-180E-B Fan Module

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

FAN-180E-B Overview

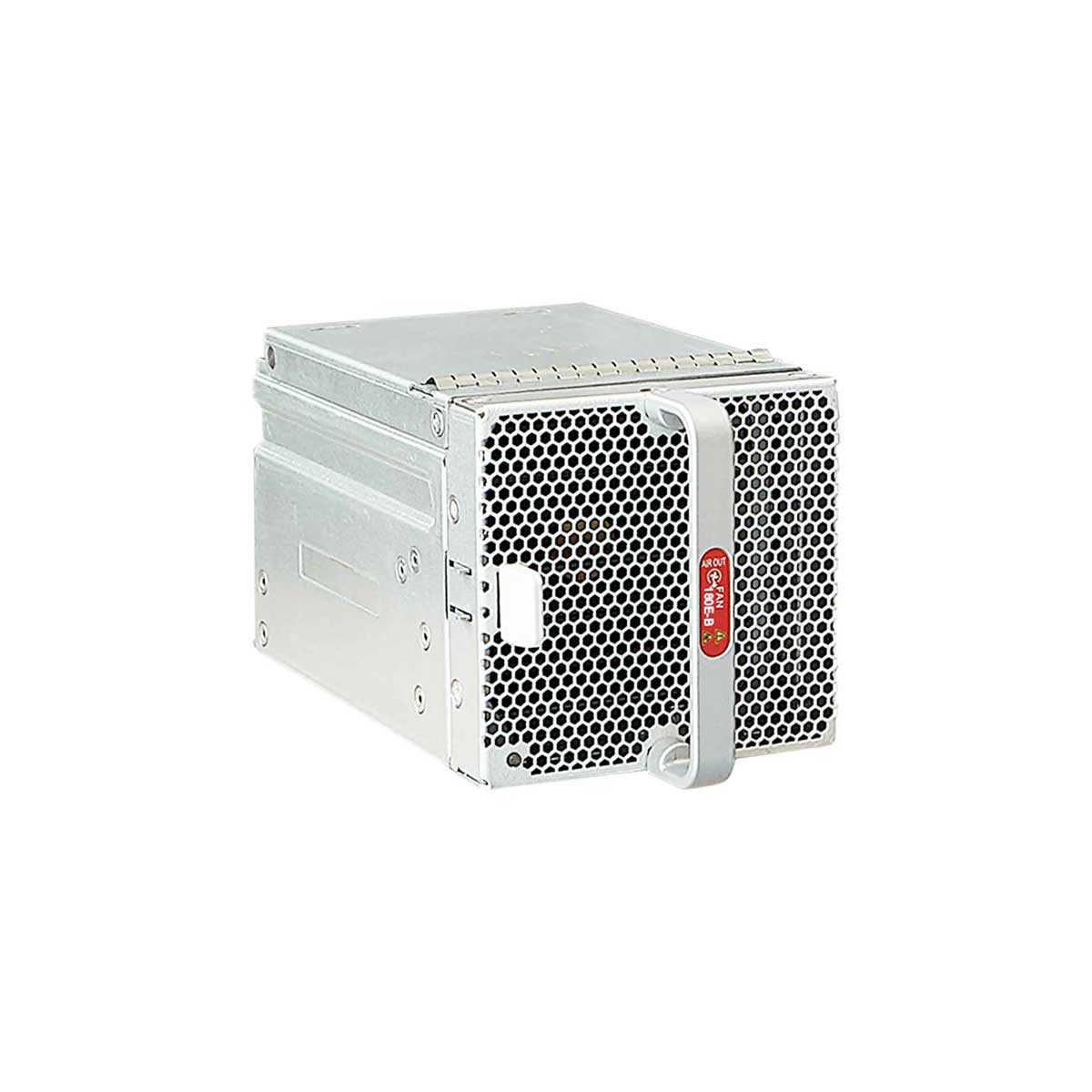

HuaWei FAN-180E-B Fan Module

Panel of the FAN-180E-B

1. Lock	2. Indicator	3. Fan air vent
4. Handle	5. Airflow flag : back-to-front airflow : front-to-back airflow	–

Mappings between FAN-180E-B and product models

Product	Product Model	First Supported Version	Limitations
CloudEngine 8800	CE8850-64CQ-EI (02351RFF)	V200R021C10SPC600	–
CloudEngine 8800	CE8850-64CQ-EI (02351RFF-001)	V200R021C10SPC600	–
CloudEngine 8800	CE8850-64CQ-EI (02351RFF-004)	V200R022C00	–
CloudEngine 8800	CE8850-64CQ-EI (02351RFJ-001)	V200R021C10SPC600	–
CloudEngine 8800	CE8850-64CQ-EI (02351RFH-001)	V200R021C10SPC600	–
CloudEngine 8800	CE8850-64CQ-EI (02351RFH-004)	V200R022C00	–
CloudEngine 8800	CE8850-64CQ-EI (02351RFJ-004)	V200R022C00	–

Item	FAN-180E-B
Number of fans	Two counter-rotating fans with each containing two fan blades
Typical power consumption	75
Maximum power consumption [W]	86 W
Operating voltage range [V]	7 V to 15 V
Maximum fan speed [RPM]	13200RPM (Front), 11340RPM (Rear)
Maximum airflow [CFM]	180 CFM
Maximum noise level [dB(A)]	80 dB(A)
Maximum wind pressure [Pa]	1050 Pa
Airflow direction	Back-to-front airflow
Dimensions without packaging (H x W x D) [mm (in.)]	82.0 mm x 82.0 mm x 169.3 mm (3.23 in. x 3.23 in. x 6.67 in.)
Dimensions with packaging (H x W x D) [mm (in.)]	130.0 mm x 170.0 mm x 390.0 mm (5.12 in. x 6.69 in. x 15.35 in.)
Weight without packaging [kg (lb)]	0.846 kg (1.87 lb)
Weight with packaging [kg (lb)]	1.246 kg (2.75 lb)

Item	FAN-180E-B
Number of fans	Two counter-rotating fans with each containing two fan blades
Typical power consumption	75
Maximum power consumption [W]	86 W
Operating voltage range [V]	7 V to 15 V
Maximum fan speed [RPM]	13200RPM (Front), 11340RPM (Rear)
Maximum airflow [CFM]	180 CFM
Maximum noise level [dB(A)]	80 dB(A)
Maximum wind pressure [Pa]	1050 Pa
Airflow direction	Back-to-front airflow
Dimensions without packaging (H x W x D) [mm (in.)]	82.0 mm x 82.0 mm x 169.3 mm (3.23 in. x 3.23 in. x 6.67 in.)
Dimensions with packaging (H x W x D) [mm (in.)]	130.0 mm x 170.0 mm x 390.0 mm (5.12 in. x 6.69 in. x 15.35 in.)
Weight without packaging [kg (lb)]	0.846 kg (1.87 lb)
Weight with packaging [kg (lb)]	1.246 kg (2.75 lb)
