Categories:CloudEngine XH8000 Series

FAN-040B-B

0 Reviews Write a review

PN02314FWL

AvailabilityIn Stock

WarrantyUp to 36 months

HuaWei FAN-040B-B Fan Module (FAN panel side exhaust)

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

FAN-040B-B Overview

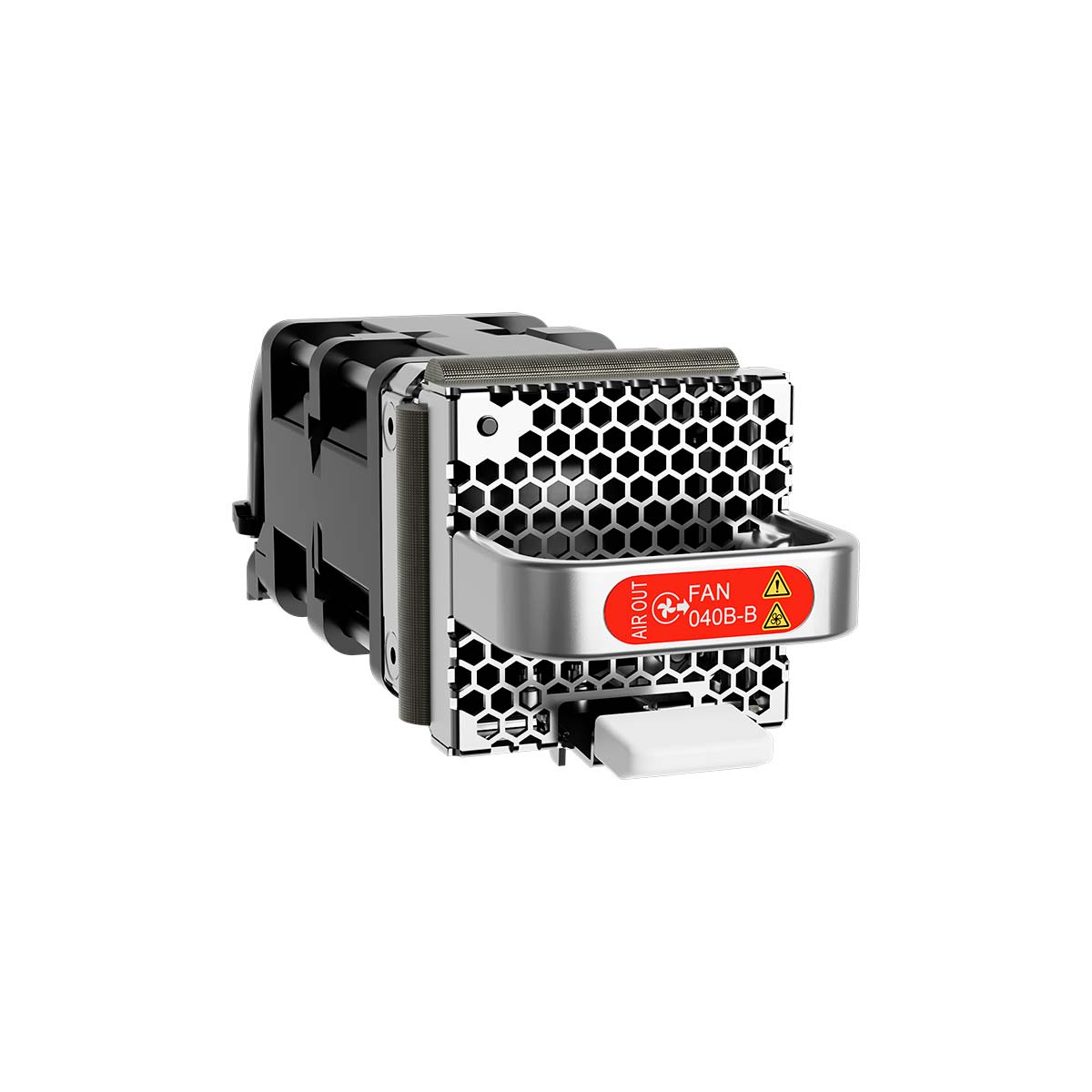

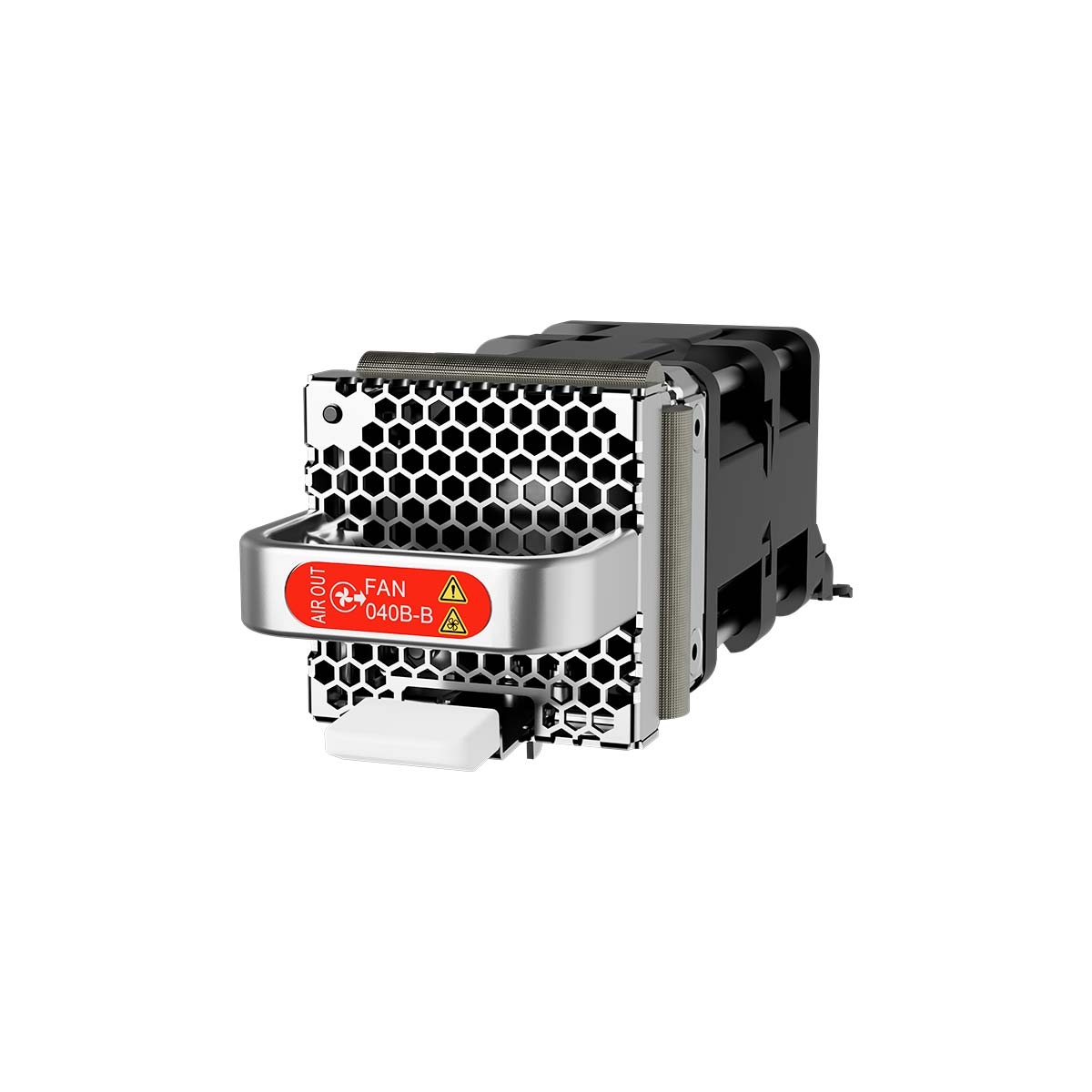

HuaWei FAN-040B-B Fan Module (FAN panel side exhaust)

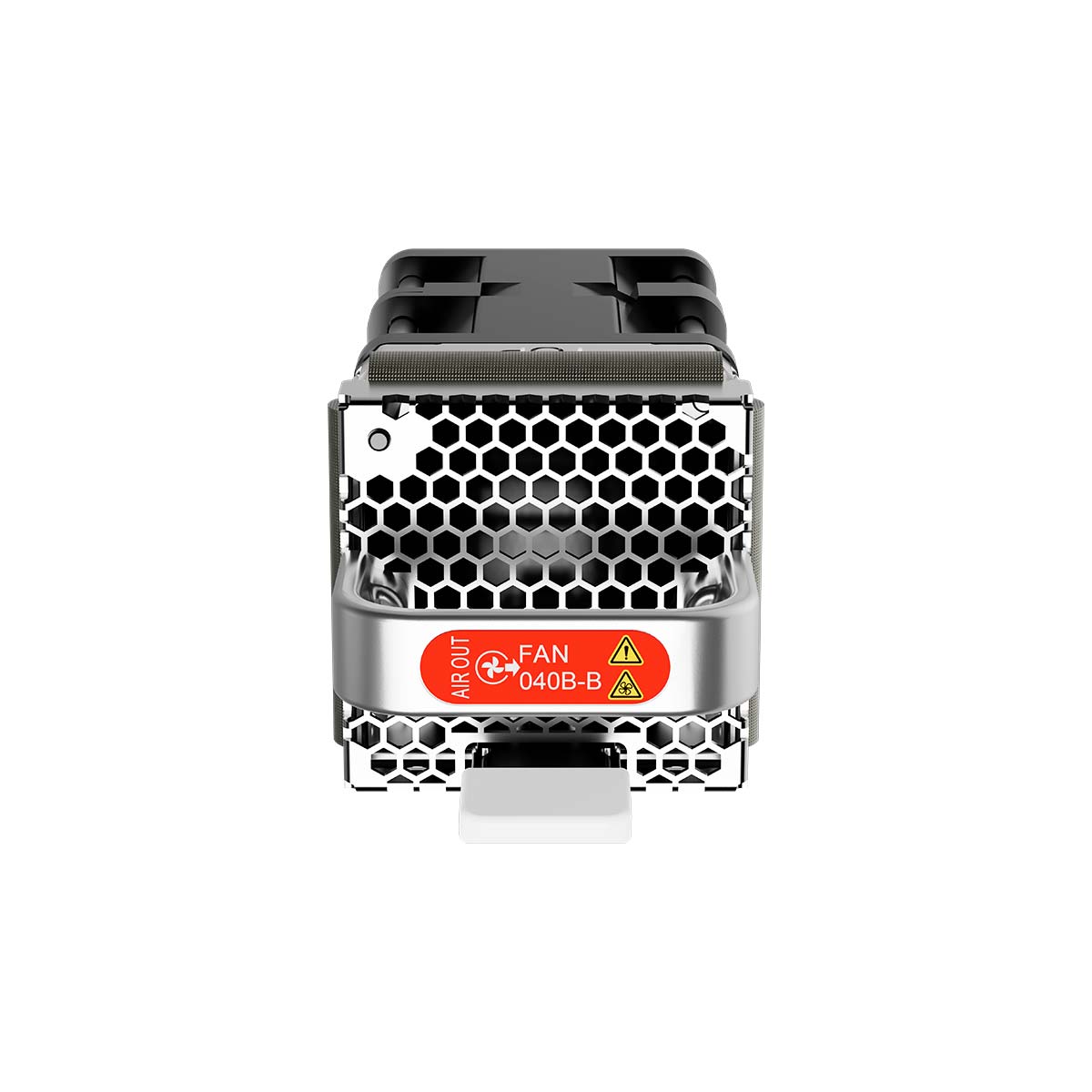

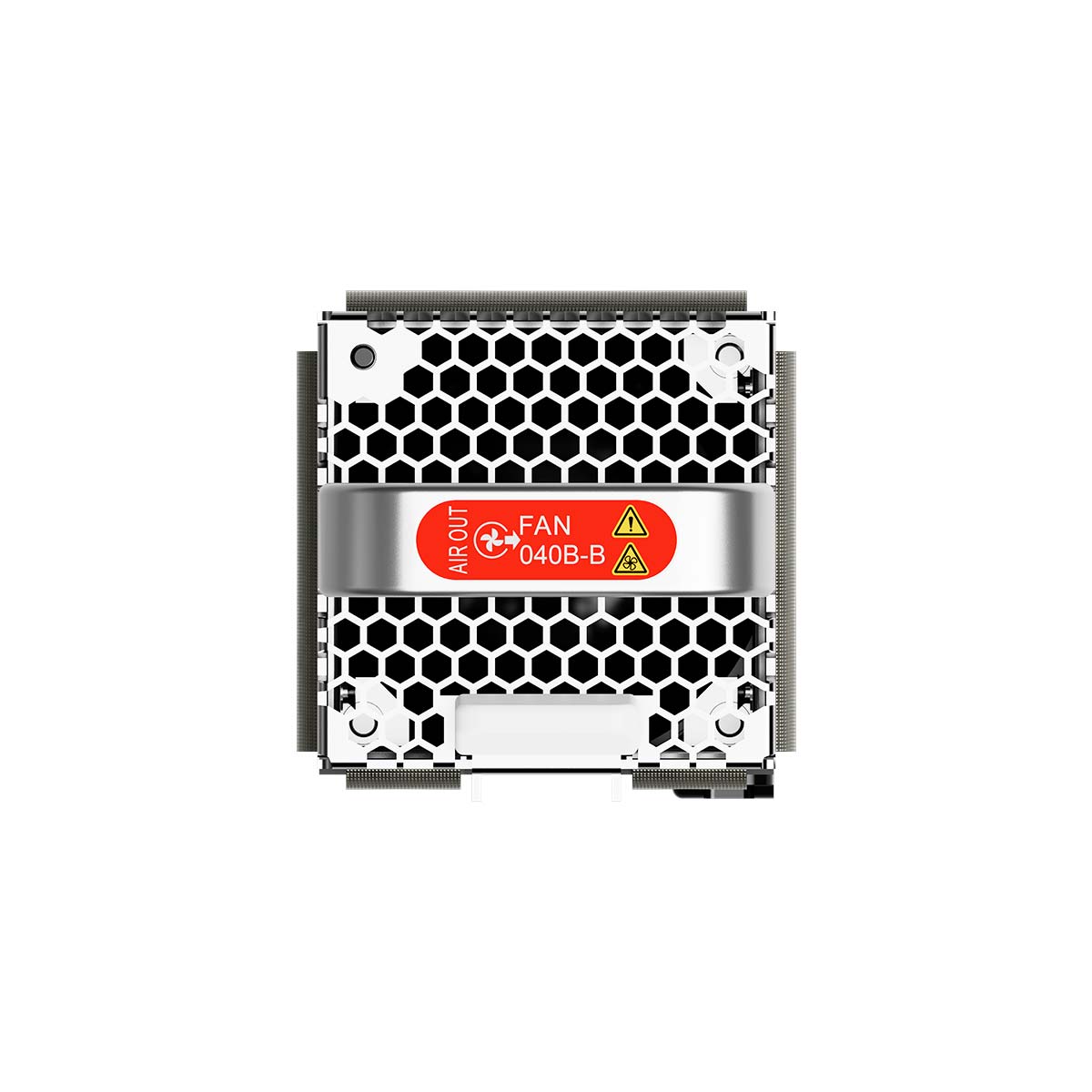

Panel of the FAN-040B-B

1. Lock	2. Indicator	3. Fan air vent
4. Handle	5. Airflow flag : back-to-front airflow : front-to-back airflow	–

Mappings between FAN-040B-B and product models

Product	Product Model	First Supported Version	Limitations
CloudEngine XH8000	XH8110-24BQ8DQ (02355YSK)	V300R023C10	–
CloudEngine XH8000	XH8110-24BQ8DQ (02355YSL)	V300R023C10	–
CloudEngine XH8000	XH8110-24BQ8DQ (02355YSJ)	V300R023C10	–
CloudEngine XH9000	XH9110-24BQ8DQ (02355YSP)	V300R023C10	–
CloudEngine XH9000	XH9110-24BQ8DQ (02355YSM)	V300R023C10	–
CloudEngine XH9000	XH9110-24BQ8DQ (02355YSN)	V300R023C10	–

Item	FAN-040B-B
Number of fans	1
Maximum power consumption [W]	30 W
Operating voltage range [V]	7 V to 15 V
Maximum fan speed [RPM]	32000±10%
Maximum airflow [CFM]	40 CFM
Maximum noise level [dB(A)]	73 dB(A)
Maximum wind pressure [Pa]	1500 Pa
Airflow direction	FAN panel side exhaust
Automatic fan speed adjustment	After the fan module communicates normally with the switch, the switch controls the speed of the fan based on temperature of the chassis.
Hot swapping	Supported
Heat dissipation	Front-to-back airflow
Dimensions without packaging (H x W x D) [mm (in.)]	40.0 mm x 40.0 mm x 100.3 mm (1.57 in. x 1.57 in. x 3.95 in.)
Weight without packaging [kg (lb)]	0.1 kg (0.22 lb)

Brand
Lead Time
Ship From
Warranty

Item	FAN-040B-B
Number of fans	1
Maximum power consumption [W]	30 W
Operating voltage range [V]	7 V to 15 V
Maximum fan speed [RPM]	32000±10%
Maximum airflow [CFM]	40 CFM
Maximum noise level [dB(A)]	73 dB(A)
Maximum wind pressure [Pa]	1500 Pa
Airflow direction	FAN panel side exhaust
Automatic fan speed adjustment	After the fan module communicates normally with the switch, the switch controls the speed of the fan based on temperature of the chassis.
Hot swapping	Supported
Heat dissipation	Front-to-back airflow
Dimensions without packaging (H x W x D) [mm (in.)]	40.0 mm x 40.0 mm x 100.3 mm (1.57 in. x 1.57 in. x 3.95 in.)
Weight without packaging [kg (lb)]	0.1 kg (0.22 lb)
