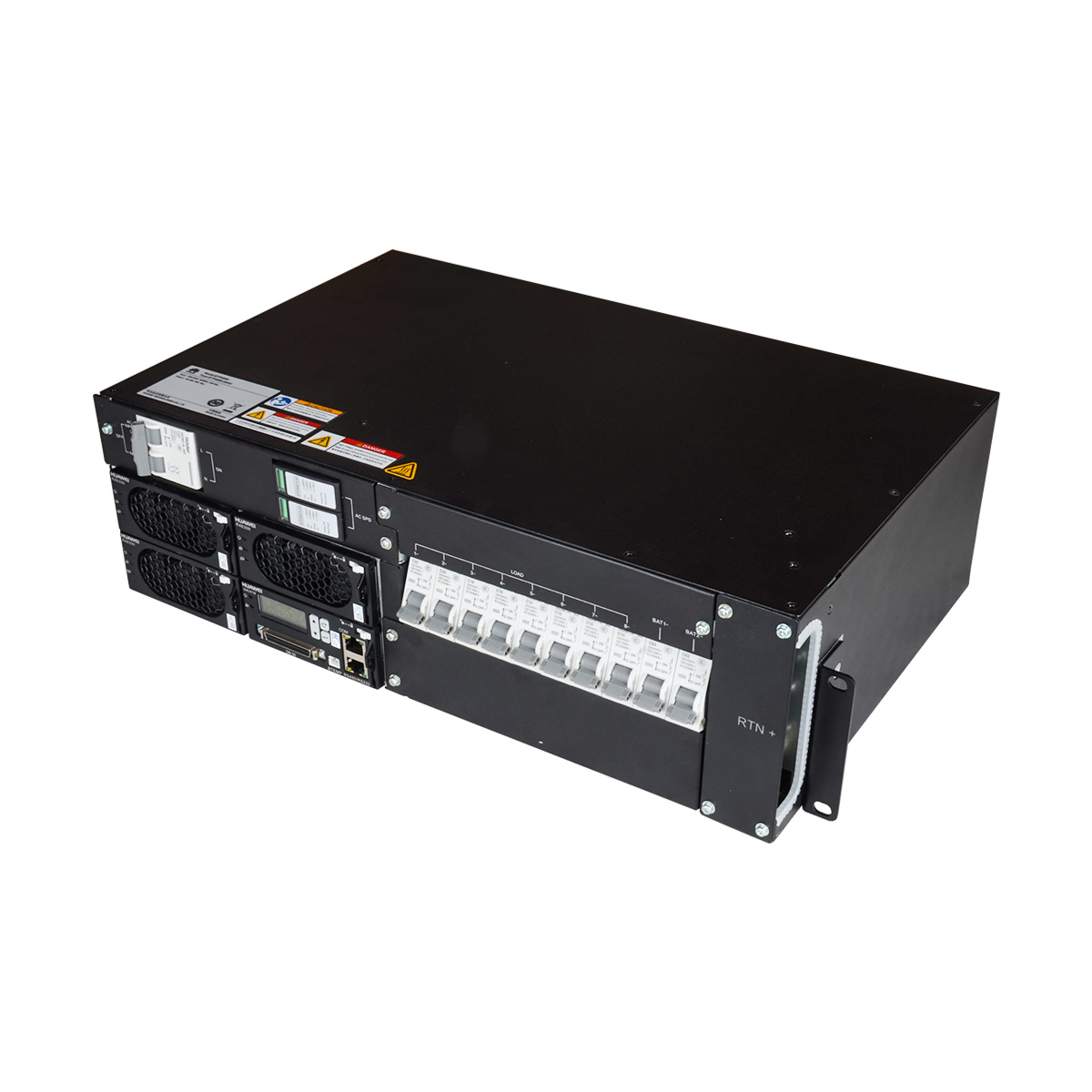

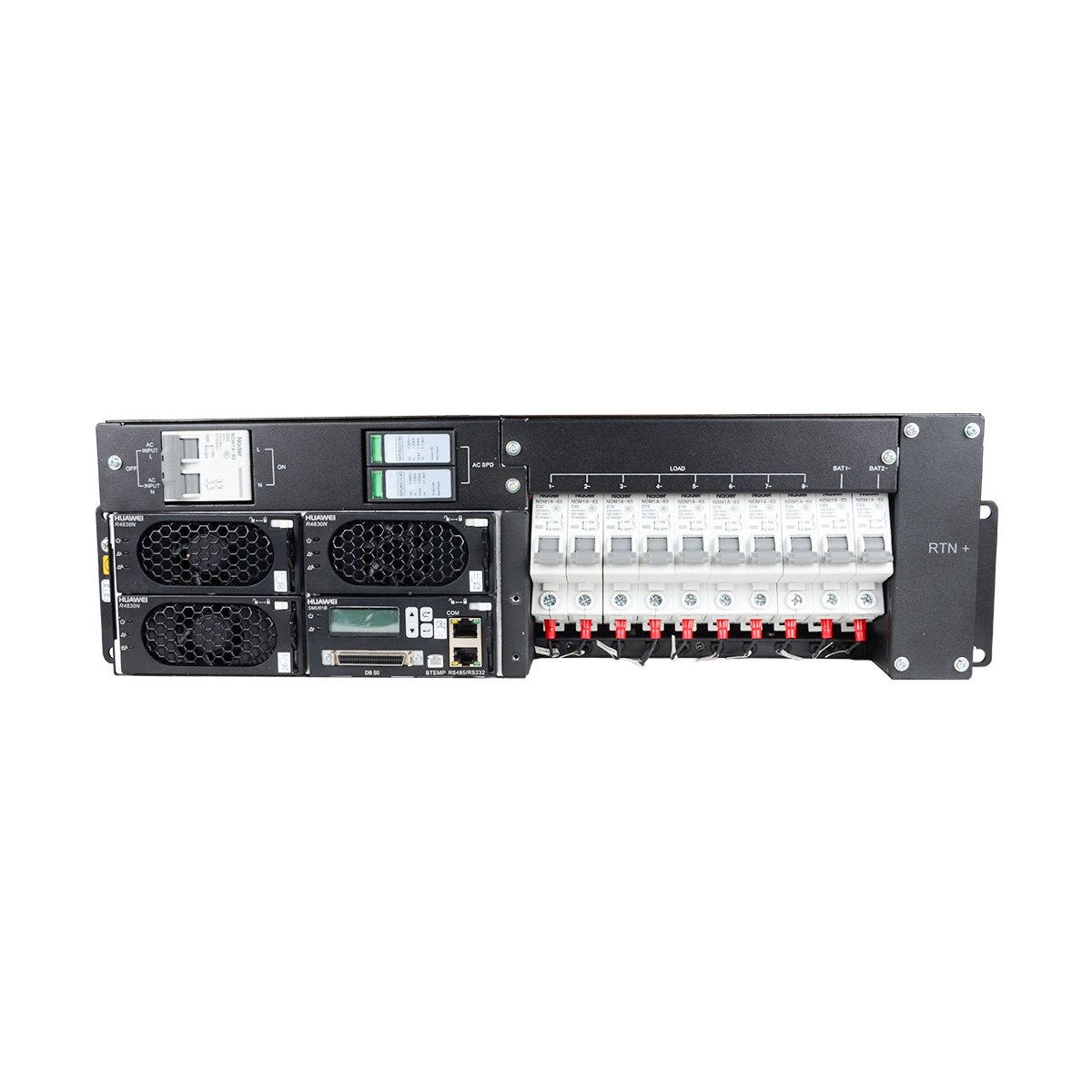

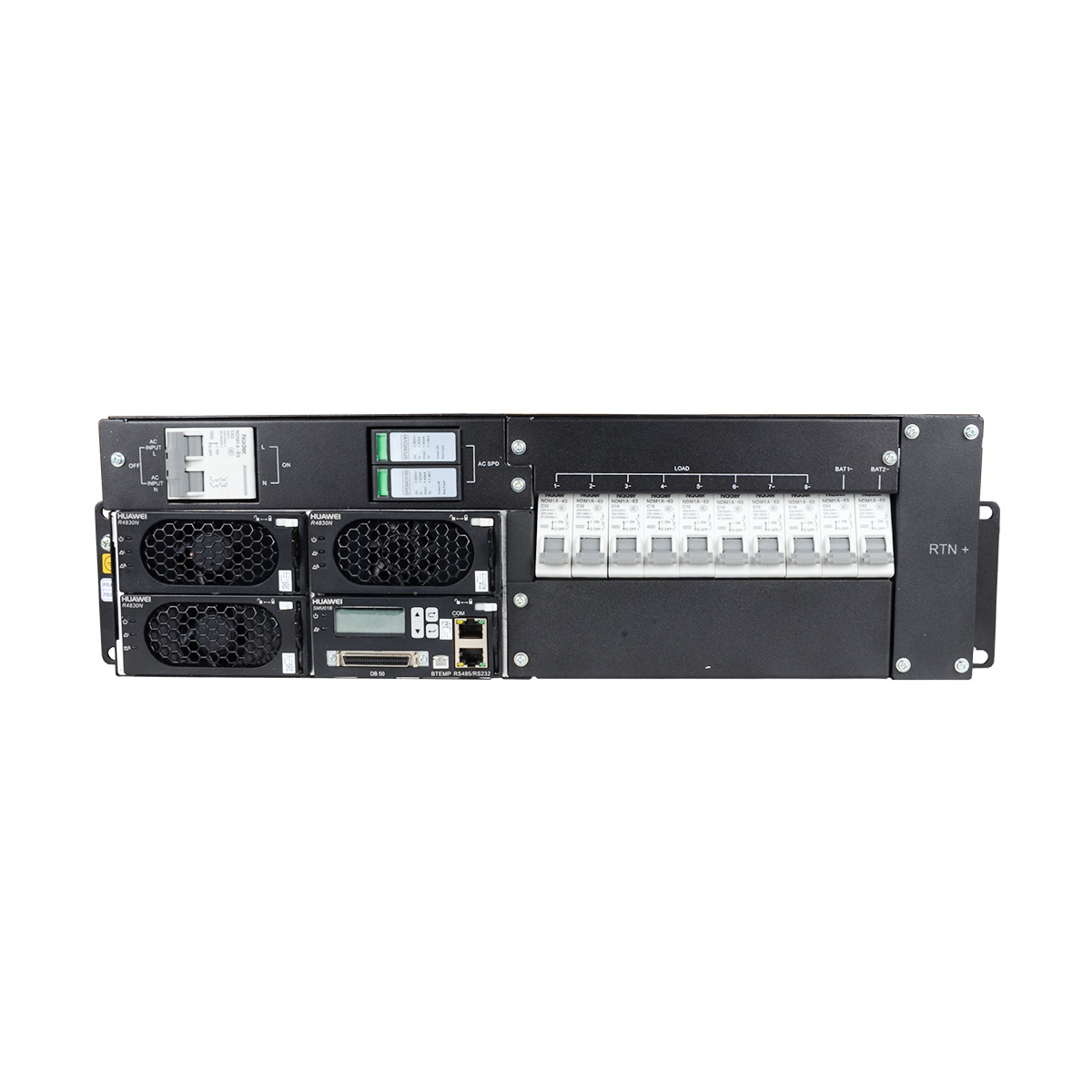

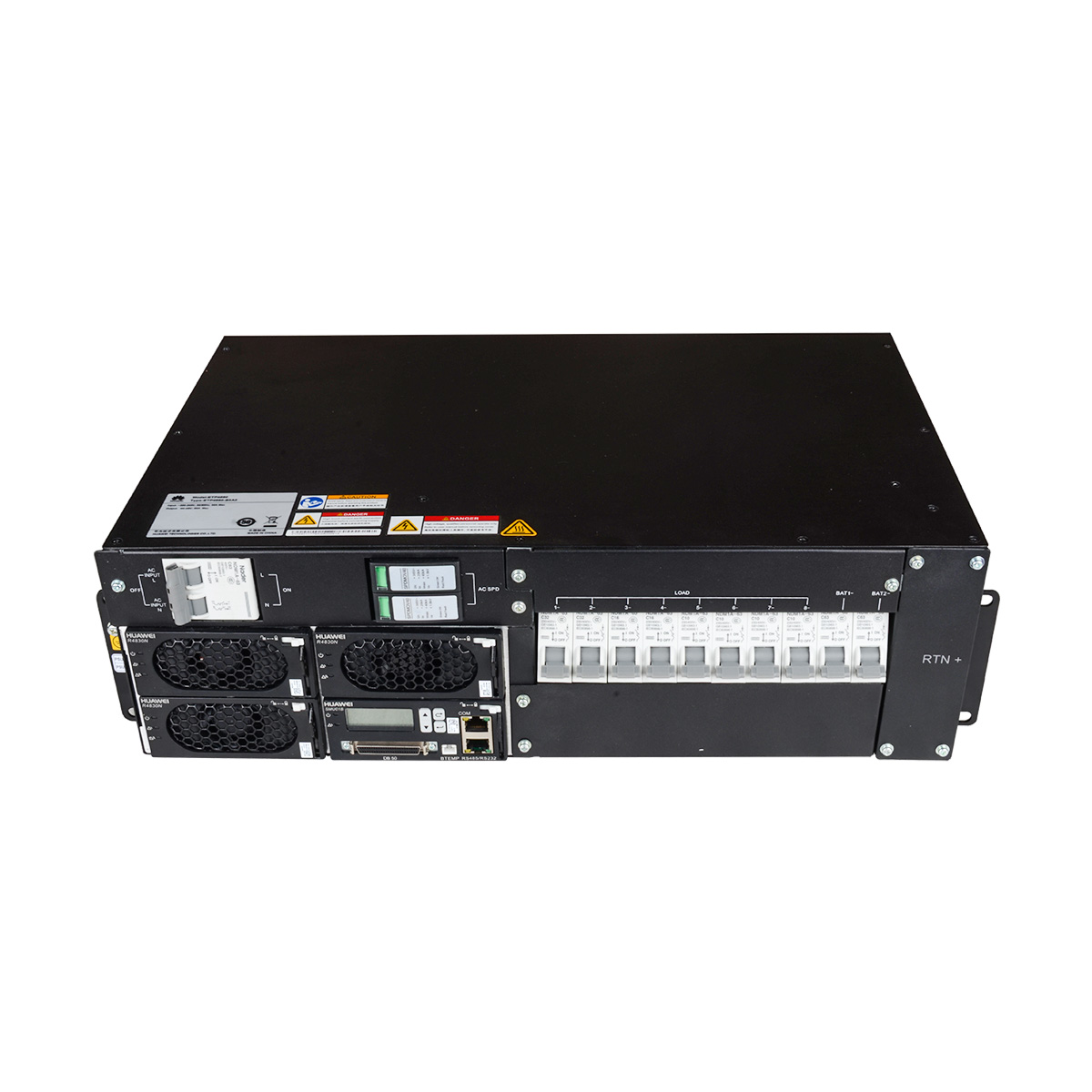

ETP4890-B3A2

ETP4890-B3A2 Overview

ETP4890-B3A2 subrack composed by 3xR4830N 1xSMU01B apply for Huawei OLT, Huawei OSN, Huawei Router and Huawei Switch.

Input: ~200~240V, 50/60Hz, 30A Max

Output: -48V, 90A Max

Maximum output power: 4815W

3U height With 8 load ports, 2 port BATT

Provides comprehensive battery management.

Supports SMU01A, SMU01B, SMU01C Monitor module.

SMU01A supports WebUI remote management and SNMP.

SMU01B can connect to the U2000 over Huawei master/slave protocols.

Displays information on a LCD and provides buttons for operations.

Supports electronic labels.

Rectifiers and the site monitoring unit (SMU) are hot-swappable.

Allows high-efficiency and standard-efficiency rectifiers with the same capacity to coexist.

Apply for Huawei OLT, Huawei OSN, Huawei Router and Huawei Switch.
