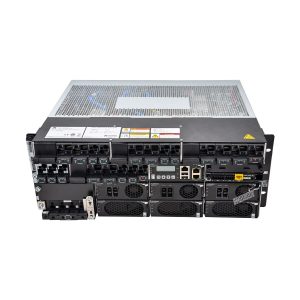

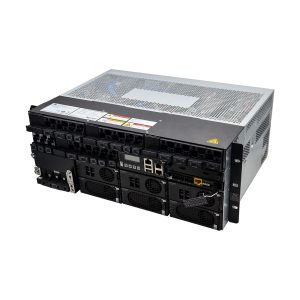

Huawei ETP48400-C4A1 AC/DC embedded power system 24kw for 5G sites

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

The ETP48400-C4A1 is an embedded power system that converts AC power into DC power. It outputs –48 V and –57 V constant voltages for equipment. Its maximum capacity is 24 kW. The applicable scenarios include 5G sites and capacity expansion and reconstruction of existing sites. It can disconnect each secondary load separately and supports precise metering of the power consumption of each user.

  • ETP48400-C4A1: C4 means 4U chassis
  • 220/380 V AC three-phase four-wire
  • Can be installed on a 19-inch rack
  • Site monitoring unit: SMU02C
  • User interface module: UIM05B1
  • (Optional) Communications expansion module: NIM01C3 or CIM02C
  • Rectifier: R4875G1 75A; R4850G1/R4850G2 50A for choice, R4875G (maximum configure 6)
  • SSU: S4850G1 (maximum configure 5)



ETP48400-C4A1 (01074762/01075024)

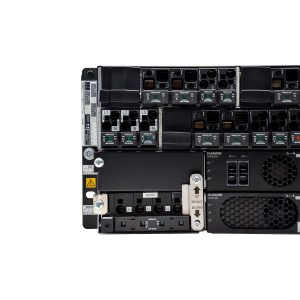

ETP48400-C4A1 front panel

(1) User 1: LLVD power distribution (2) Power distribution label (3) AC output circuit breakers
(4) Ground screw (5) Standby AC input module (6) AC input module
(7) User 3: LLVD power distribution (8) User 3: BLVD power distribution (9) Common load circuit breaker
(10) SMU02C (11) Space for rectifiers/Space for installing the SSU (12) UIM05B1
(13) Reserved slot for communications expansion module CIM02C/NIM01C3 (14) Battery circuit breakers (15) User 2: BLVD power distribution
(16) User 2: LLVD power distribution (17) User 1: BLVD power distribution



ETP48400-C4A1 (01075024-002)

ETP48400-C4B1 front panel-2

(1) User wiring screws (2) AC output circuit breakers (3) Ground screw
(4) Standby AC input module (5) AC input module (6) User 3: LLVD power distribution
(7) User 3: BLVD power distribution (8) Common load circuit breaker (9) SMU02C
(10) Space for rectifiers/Space for installing the SSU (11) UIM05B1 (12) Reserved slot for communications expansion module CIM02C/NIM01C3
(13) Power distribution label (14) Battery circuit breakers (15) User 2: BLVD power distribution
(16) User 2: LLVD power distribution (17) User 1: BLVD power distribution (18) User 1: LLVD power distribution



ETP48400-C4A1 (01074762-004/01075024-003)

ETP48400-C4A1 front panel-3

(1) User 1: LLVD power distribution (2) Power distribution label (3) AC output circuit breakers
(4) Ground screw (5) Standby AC input module (6) AC input module
(7) User 3: LLVD power distribution (8) User 3: BLVD power distribution (9) Common load circuit breaker
(10) SMU02C (11) Space for rectifiers/Space for installing the SSU (12) UIM05B1
(13) Reserved slot for communications expansion module CIM02C/NIM01C3 (14) Battery circuit breakers (15) User 2: BLVD power distribution
(16) User 2: LLVD power distribution (17) User 1: BLVD power distribution





ETP48400-C4A1 Datasheet
Item ETP48400-C4A1 (01074762/01075024) ETP48400-C4A1 (01075024-002) ETP48400-C4A1 (01074762-004/01075024-003)
AC input system 220/380 V AC three-phase four-wire
AC power distribution AC input: one 4-pole 63 A circuit breaker, one 4-pole 63 A circuit breaker (backup, manual switch, mechanical interlock)
AC output: three 1-pole 16 A circuit breakers
DC power distribution Three users in total, each of which includes: LLVD: two 1-pole 125 A circuit breakers; one 1-pole 125 A circuit breaker can be added. BLVD: two 1-pole 63 A circuit breakers Common load circuit breaker: one 1-pole 32 A circuit breaker Battery: four 1-pole 125 A circuit breakers; one 1-pole 125 A circuit breaker can be added. Three users in total, each of which includes: LLVD: two 1-pole 100 A circuit breakers; one 1-pole 40 A circuit breaker BLVD: two 1-pole 40 A circuit breakers Common load circuit breaker: one 1-pole 32 A circuit breaker Battery: four 1-pole 125 A circuit breakers; one 1-pole 125 A circuit breaker can be added. Three users in total, each of which includes: LLVD: two 1-pole 100 A circuit breakers; one 1-pole 40 A circuit breaker BLVD: two 1-pole 40 A circuit breakers Common load circuit breaker:one 1-pole 32 A circuit
Components
  • Site monitoring unit: SMU02C
  • User interface module: UIM05B1
  • (Optional) Communications expansion module: NIM01C3 or CIM02C
  • Recitifier R4875G (maximum configure 6)
  • SSU: S4850G1 (maximum configure 5)
AC surge protection Nominal surge discharge current: 30 kA (8/20 µs), fivž times respectively in the positive and negative directions
Operating temperature –40°C to +65°C (When the ambient temperature ranges from –33°C to +55°C, this product works properly. When the ambient temperature ranges from 55–65°C, the output power linearly derates by 20%. When the ambient temperature is –40°C, this product starts properly after the AC power supply is connected. There is no requirement for the output voltage waveform at startup.)
Operating humidity 5%–90% RH (non-condensing)
Dimensions (H xW x D) 175 mm x 482.6 mm x 330 mm
Weight ≤ 25 kg (excluding rectifiers)

Additional information

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
ETP48400-C4A1 Datasheet
Item ETP48400-C4A1 (01074762/01075024) ETP48400-C4A1 (01075024-002) ETP48400-C4A1 (01074762-004/01075024-003)
AC input system 220/380 V AC three-phase four-wire
AC power distribution AC input: one 4-pole 63 A circuit breaker, one 4-pole 63 A circuit breaker (backup, manual switch, mechanical interlock)
AC output: three 1-pole 16 A circuit breakers
DC power distribution Three users in total, each of which includes: LLVD: two 1-pole 125 A circuit breakers; one 1-pole 125 A circuit breaker can be added. BLVD: two 1-pole 63 A circuit breakers Common load circuit breaker: one 1-pole 32 A circuit breaker Battery: four 1-pole 125 A circuit breakers; one 1-pole 125 A circuit breaker can be added. Three users in total, each of which includes: LLVD: two 1-pole 100 A circuit breakers; one 1-pole 40 A circuit breaker BLVD: two 1-pole 40 A circuit breakers Common load circuit breaker: one 1-pole 32 A circuit breaker Battery: four 1-pole 125 A circuit breakers; one 1-pole 125 A circuit breaker can be added. Three users in total, each of which includes: LLVD: two 1-pole 100 A circuit breakers; one 1-pole 40 A circuit breaker BLVD: two 1-pole 40 A circuit breakers Common load circuit breaker:one 1-pole 32 A circuit
Components
  • Site monitoring unit: SMU02C
  • User interface module: UIM05B1
  • (Optional) Communications expansion module: NIM01C3 or CIM02C
  • Recitifier R4875G (maximum configure 6)
  • SSU: S4850G1 (maximum configure 5)
AC surge protection Nominal surge discharge current: 30 kA (8/20 µs), fivž times respectively in the positive and negative directions
Operating temperature –40°C to +65°C (When the ambient temperature ranges from –33°C to +55°C, this product works properly. When the ambient temperature ranges from 55–65°C, the output power linearly derates by 20%. When the ambient temperature is –40°C, this product starts properly after the AC power supply is connected. There is no requirement for the output voltage waveform at startup.)
Operating humidity 5%–90% RH (non-condensing)
Dimensions (H xW x D) 175 mm x 482.6 mm x 330 mm
Weight ≤ 25 kg (excluding rectifiers)
