ETP23012-C2A1

0 Reviews Write a review 9 Solds
SKU2027357
Brands
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

The Huawei ETP23012-C2A1 can convert –48 V DC power into 220 V AC or 230 V AC power and provide high-performance power for AC devices

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

Overview

The ETP23012-C2A1 can convert –48 V DC power into 220 V AC or 230 V AC power and provide high-performance power for AC devices.

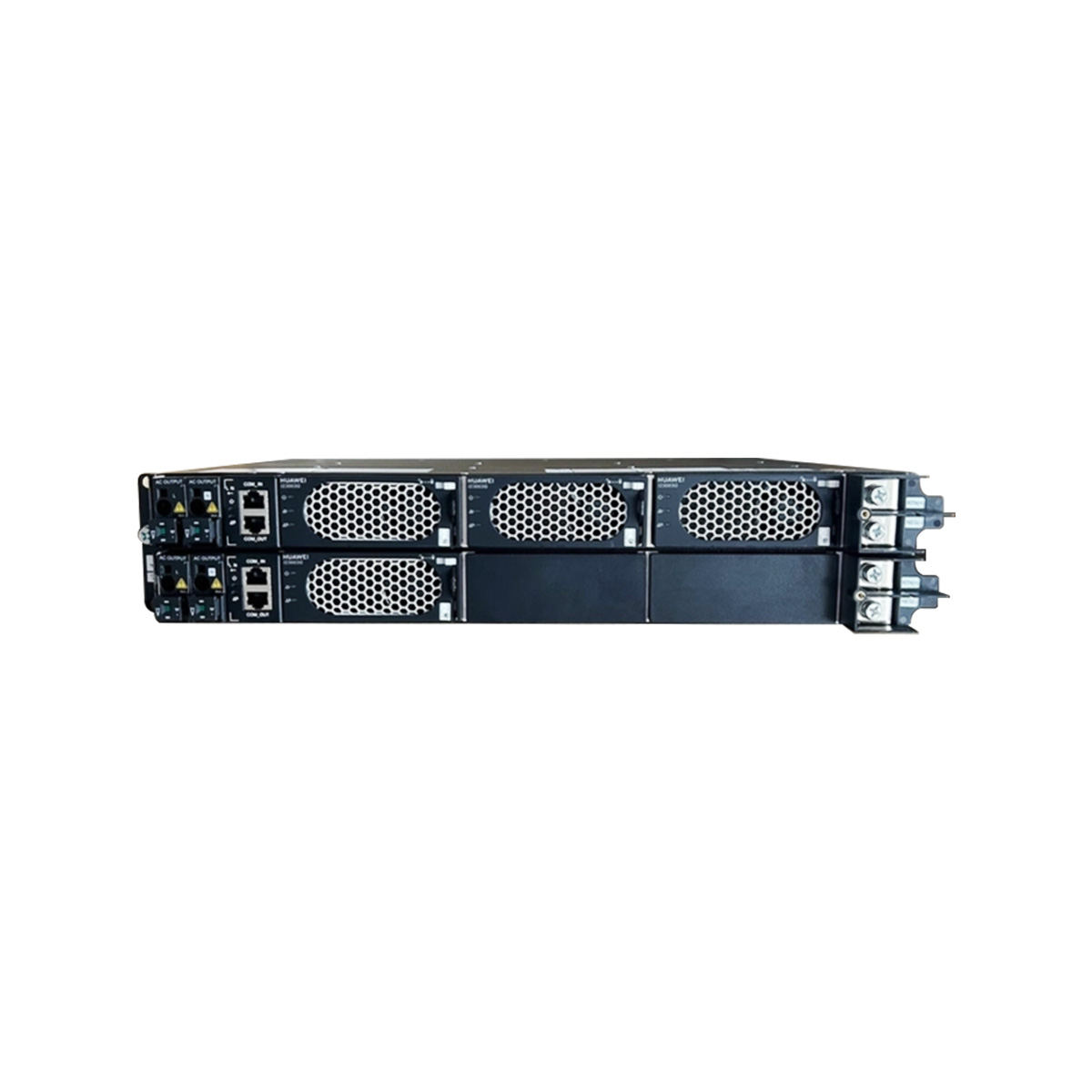

ETP23012-C2A1 appearance

ETP23012 C2A1



ETP23012-C2A1 Features:
  • Reliable: AC modules support N+1 backup.
  • Intelligent: Supports remote management over CAN communications.
  • Easy maintenance: The inverter module is hot-swappable and can be replaced with power on.

Environmental specifications

Item ETP23012-C2A1

Operating temperature

–40°C to +75°C

Transportation temperature

–40°C to +75°C

Storage temperature

–40°C to +75°C

Humidity

5%–95% RH

Altitude

0–5000 m

(When the altitude ranges from 2000 m to 5000 m, the operating temperature decreases by 1°C for each additional 200 m.)

Noise level

≤ 55 dBa (acoustic pressure)

Operating environment

Class B1 environment

Other requirements
  • There is no conductive dust, corrosive gas, or explosion hazard.
  • Dust, corrosive substances, pests, molds, and other indicators should be controlled in accordance with Class 4.1 requirements in ETSI EN 300 019-1-4 (V2.2.1).

Inverter module (I23002G1/I23003G1) specifications

Item ETP23012-C2A1

Input

Operating voltage

42–58 V DC (rated voltage: 53.5 V DC)

Input current
  • I23002G1: 55A max
  • I23003G1: 75A max

Output

Load power factor

≥ 0.8

Output voltage range

200–230 V AC (rated voltage: 220 V AC or 230 V AC)

Output frequency

50 Hz/60 Hz

Output regulated voltage precision

≤ ±1%

Stability of output frequency

≤ ±0.2%

Output voltage DC component

≤ ±200 mV (rated input, rated output)

Total harmonic distortion of output voltage (THDv)

≤ ±3% (rated output, resistive load)

≤ ±6% (rated output, non-resistive load)

Output current peak factor

≥ 3:1 (@1800 VA)

Output overload capacity

105% ≤ Load power ≤ 125%; T > 10 min

125% < Load power ≤ 150%; T > 10s

Load power > 150%; T ≤ 1s

Dynamic voltage transient recovery time

≤ 60 ms

Dynamic voltage transient

≤ ±5%

Delayed shutdown time upon fan faults

15s±1s

Output discharge time

≤ 1s

Standby power consumption

≤ 5 W

Protection

Input overvoltage protection threshold

59–61 V DC

Input overvoltage recovery threshold

57–59 V DC

Input undervoltage protection threshold

40–42 V DC

Input undervoltage recovery threshold

45–47 V DC

Input reverse connection protection threshold

The inverter module is not damaged if positive and negative terminals are reversely connected.

Overtemperature protection

Supported

Dimensions (H x W x D)

40.8 mm x 105 mm x 269 mm

Weight

2 kg

IP rating

IP20

 Inverter specifications

Item

ETP23012-C2A1

DC input

Input voltage range

43.2–58 V DC

Input protection

Undervoltage protection threshold

41 V, recovery threshold: 46 V

Overvoltage protection threshold

60 V, recovery threshold: 58 V

AC output

Output voltage

230 V AC±3%

Output frequency

50 Hz±1%

Output power factor

0.8

Communications port

CAN

Efficiency

Peak efficiency

≥ 94%

Certification

CE

Cooling mode

Natural cooling

Cabling

Connected from the left and right

IP rating

IP20


EMC specifications

Item

Specifications

Inverter

Inverter Module

Electromagnetic interference (EMI)

Conducted emission (CE)
  • AC port: Class A
  • DC port: Class A1

Radiated emission (RE)

Class B

Electromagnetic susceptibility (EMS)

Electrostatic discharge (ESD)
  • Enclosure: 6 kV contact discharge, 8 kV air discharge (criterion B)
  • Signal port: 2 kV contact discharge (criterion R)
  • Enclosure: ±6 kV contact discharge, 8 kV air discharge (criterion B) ; ±8 kV contact discharge, ±15 kV air discharge (criterion R)
  • Conductor in the signal port: ±2 kV contact discharge (criterion R)

Electrical fast transient (EFT)
  • Power port: 2 kV/5 kHz (criterion B)
  • Signal port: 1 kV/5 kHz (criterion B)
  • Power port: ±2 kV (criterion B)
  • Signal port: ±1 kV (criterion B)

Radiated susceptibility (RS)

The test frequency ranges from 80 MHz to 6 GHz, and 80% AM (1 kHz) modulation is used.

The test frequency ranges from 80 MHz to 6 GHz, and 80% AM (1 kHz) modulation (criterion A) is used.

Conducted susceptibility (CS)

0.15–80 MHz, 10 V 80% AM (1 kHz)

0.15–80 MHz: 10 V, 80% AM (1 kHz), criterion A

Surge susceptibility
  • AC power port: 6 kV in both horizontal and vertical directions (criterion B)
  • DC power port: 2 kV in differential mode, 4 kV in common mode (criterion B)
  • Network port: northbound, southbound (criterion B)
  • Dry contact (unbalanced line): 1 kV in differential mode, 1 kV in common mode (criterion B)
  • AC power port: ±2 kV in differential mode, ±4 kV in common mode, 1.2/50 μs (criterion B); ±2.5 kV in horizontal direction, ±2.5 kV in vertical direction, 1.2/50 μs (criterion B)
  • DC power port: ± 2 kV in differential mode, ± 4 kV in common mode, 1.2/50 μs (criterion B)
  • Network port: 0.5 kV in differential mode, 1 kV in common mode, 1.2/50 μs (criterion B)

Surge protection

AC power port: 30 kA in differential mode, 30 kA in common mode, 8/20 μs (criterion C)
  • AC power port: 5 kA in differential mode, 5 kA in common mode (criterion B)
  • DC power port: 3 kA in differential mode

Additional information

Brand

Huawei

Inverter module (I23002G1/I23003G1) specifications

Item ETP23012-C2A1

Input

Operating voltage

42–58 V DC (rated voltage: 53.5 V DC)

Input current
  • I23002G1: 55A max
  • I23003G1: 75A max

Output

Load power factor

≥ 0.8

Output voltage range

200–230 V AC (rated voltage: 220 V AC or 230 V AC)

Output frequency

50 Hz/60 Hz

Output regulated voltage precision

≤ ±1%

Stability of output frequency

≤ ±0.2%

Output voltage DC component

≤ ±200 mV (rated input, rated output)

Total harmonic distortion of output voltage (THDv)

≤ ±3% (rated output, resistive load)

≤ ±6% (rated output, non-resistive load)

Output current peak factor

≥ 3:1 (@1800 VA)

Output overload capacity

105% ≤ Load power ≤ 125%; T > 10 min

125% < Load power ≤ 150%; T > 10s

Load power > 150%; T ≤ 1s

Dynamic voltage transient recovery time

≤ 60 ms

Dynamic voltage transient

≤ ±5%

Delayed shutdown time upon fan faults

15s±1s

Output discharge time

≤ 1s

Standby power consumption

≤ 5 W

Protection

Input overvoltage protection threshold

59–61 V DC

Input overvoltage recovery threshold

57–59 V DC

Input undervoltage protection threshold

40–42 V DC

Input undervoltage recovery threshold

45–47 V DC

Input reverse connection protection threshold

The inverter module is not damaged if positive and negative terminals are reversely connected.

Overtemperature protection

Supported

Dimensions (H x W x D)

40.8 mm x 105 mm x 269 mm

Weight

2 kg

IP rating

IP20

 Inverter specifications

Item

ETP23012-C2A1

DC input

Input voltage range

43.2–58 V DC

Input protection

Undervoltage protection threshold

41 V, recovery threshold: 46 V

Overvoltage protection threshold

60 V, recovery threshold: 58 V

AC output

Output voltage

230 V AC±3%

Output frequency

50 Hz±1%

Output power factor

0.8

Communications port

CAN

Efficiency

Peak efficiency

≥ 94%

Certification

CE

Cooling mode

Natural cooling

Cabling

Connected from the left and right

IP rating

IP20


EMC specifications

Item

Specifications

Inverter

Inverter Module

Electromagnetic interference (EMI)

Conducted emission (CE)
  • AC port: Class A
  • DC port: Class A1

Radiated emission (RE)

Class B

Electromagnetic susceptibility (EMS)

Electrostatic discharge (ESD)
  • Enclosure: 6 kV contact discharge, 8 kV air discharge (criterion B)
  • Signal port: 2 kV contact discharge (criterion R)
  • Enclosure: ±6 kV contact discharge, 8 kV air discharge (criterion B) ; ±8 kV contact discharge, ±15 kV air discharge (criterion R)
  • Conductor in the signal port: ±2 kV contact discharge (criterion R)

Electrical fast transient (EFT)
  • Power port: 2 kV/5 kHz (criterion B)
  • Signal port: 1 kV/5 kHz (criterion B)
  • Power port: ±2 kV (criterion B)
  • Signal port: ±1 kV (criterion B)

Radiated susceptibility (RS)

The test frequency ranges from 80 MHz to 6 GHz, and 80% AM (1 kHz) modulation is used.

The test frequency ranges from 80 MHz to 6 GHz, and 80% AM (1 kHz) modulation (criterion A) is used.

Conducted susceptibility (CS)

0.15–80 MHz, 10 V 80% AM (1 kHz)

0.15–80 MHz: 10 V, 80% AM (1 kHz), criterion A

Surge susceptibility
  • AC power port: 6 kV in both horizontal and vertical directions (criterion B)
  • DC power port: 2 kV in differential mode, 4 kV in common mode (criterion B)
  • Network port: northbound, southbound (criterion B)
  • Dry contact (unbalanced line): 1 kV in differential mode, 1 kV in common mode (criterion B)
  • AC power port: ±2 kV in differential mode, ±4 kV in common mode, 1.2/50 μs (criterion B); ±2.5 kV in horizontal direction, ±2.5 kV in vertical direction, 1.2/50 μs (criterion B)
  • DC power port: ± 2 kV in differential mode, ± 4 kV in common mode, 1.2/50 μs (criterion B)
  • Network port: 0.5 kV in differential mode, 1 kV in common mode, 1.2/50 μs (criterion B)

Surge protection

AC power port: 30 kA in differential mode, 30 kA in common mode, 8/20 μs (criterion C)
  • AC power port: 5 kA in differential mode, 5 kA in common mode (criterion B)
  • DC power port: 3 kA in differential mode
