ET1D2X48SX2S overview

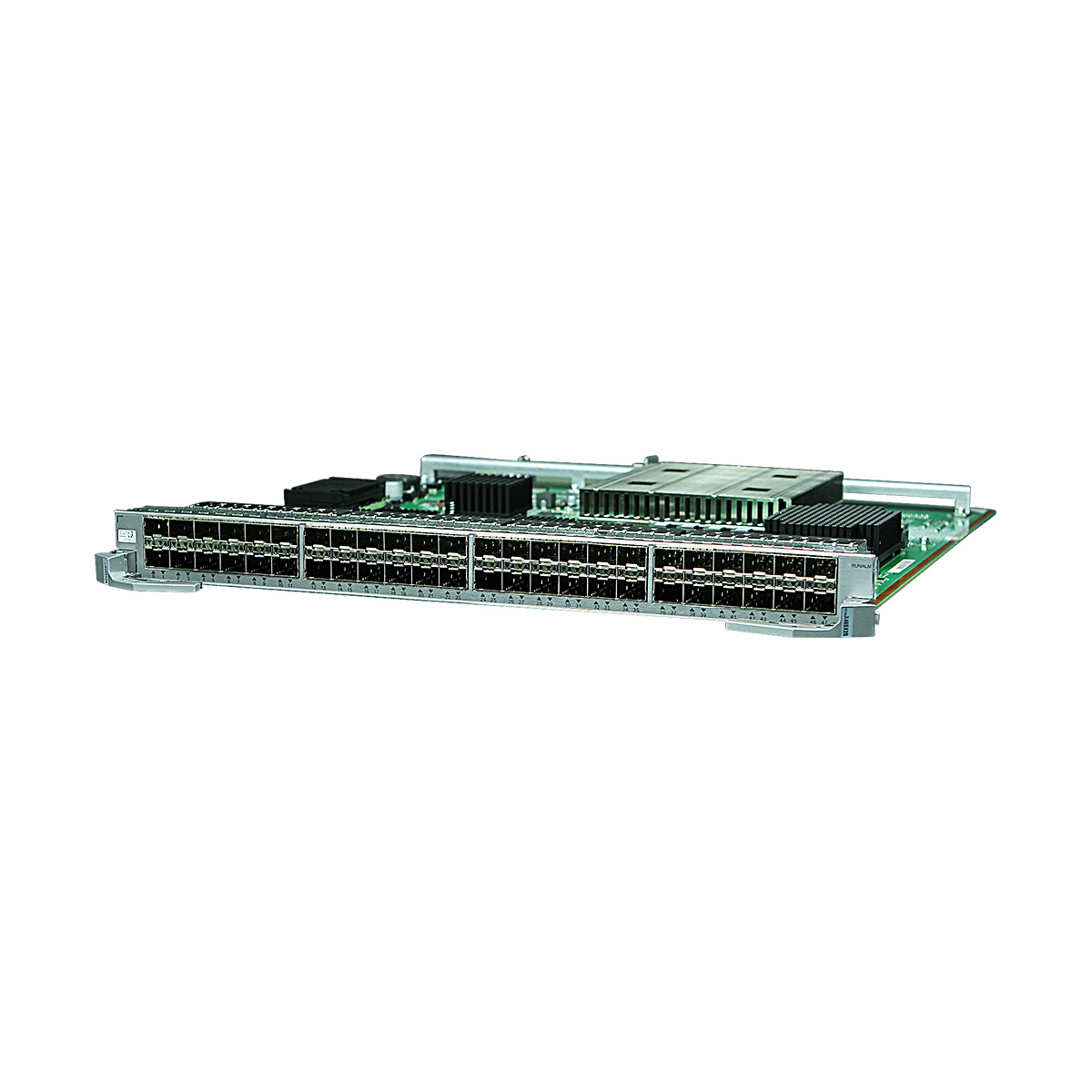

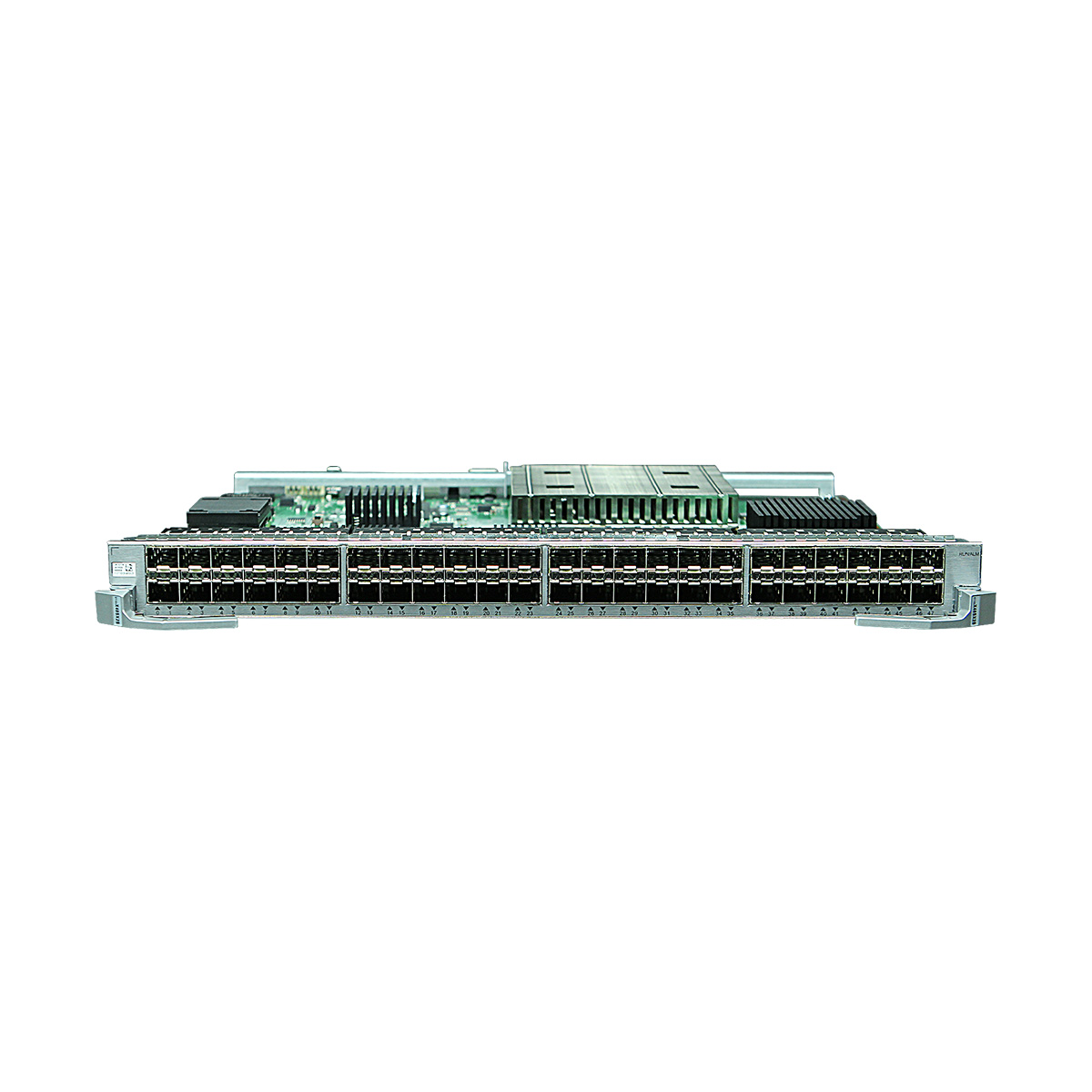

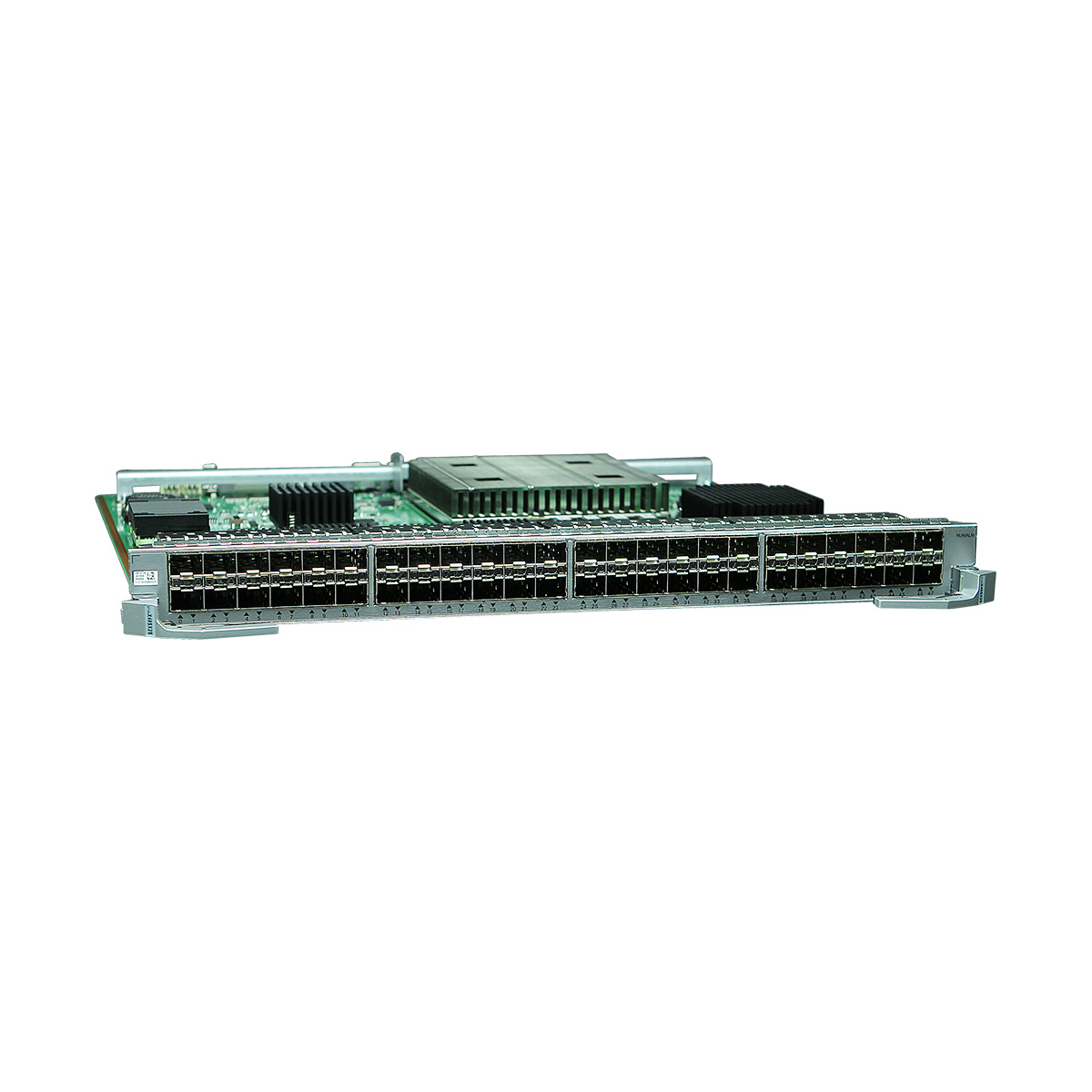

ET1D2X48SX2S Huawei S12700 switch 48-port 10GBASE-X interface card (X2S, SFP+)
Switch chassis and software versions matching the card (S12700)
| Card Name | S12700 Chassis |
|---|---|
| ET1D2X48SX2S | Supported in V200R010C00 and later versions |
Switch chassis and software versions matching the card (S12700E)
| Card Name | S12700E Chassis |
|---|---|
| ET1D2X48SX2S | Not supported |
This card can be installed in:
- Slots 01 to 04 in an S12704 chassis.
- Slots 01 to 08 in an S12708 chassis.
- Slots 01 to 10 in an S12710 chassis.
- Slots 01 to 12 in an S12712 chassis.
Front panel
| 1 | Forty-eight 10GBASE SFP+/1000BASE-X ports |
10GBASE SFP+/1000BASE-X port
Optical port attributes (GE optical module)
| Attribute | Description |
|---|---|
| Connector type | SFP+ |
| Optical port attributes | Depend on the SFP optical module used. For the SFP optical modules supported by the ET1D2X48SX2S and their attributes, see GE eSFP Optical Modules, GE-CWDM eSFP Optical Modules, and GE-DWDM eSFP Optical Modules. |
| Standards compliance | IEEE802.3z |
| Frame format | Ethernet_II, Ethernet_SAP, Ethernet_SNAP |
| Network protocol | IP |
Optical port attributes (10GE optical module, high-speed cable or SFP+ optical cable)
| Attribute | Description |
|---|---|
| Connector type | SFP+ |
| Optical port attributes | Depend on the SFP+ to SFP+ high-speed cable (1 m, 3 m, 5 m, 10 m), QSFP+ to 4*SFP+ high-speed cable (1 m, 3 m, 5 m), SFP+ optical module, or SFP+ optical cable used.
For the optical modules supported by the ET1D2X48SX2S and their attributes, see 10GE SFP+ Optical Modules (OSXD22N00 not supported), 10GE-CWDM SFP+ Optical Modules and 10GE-DWDM SFP+ Optical Modules. |
| Standards compliance | IEEE 802.3ae |
| Frame format | Ethernet_II, Ethernet_SAP, Ethernet_SNAP |
| Network protocol | IP |
Optical port attributes (copper module)
|
Attribute |
Description |
|---|---|
|
Connector type |
SFP+ |
|
Optical port attributes |
Depend on the SFP copper module used.
For details on the copper modules supported by the cards and attributes of the copper modules, see GE SFP Copper Modules (100 Mbit/s and 1000 Mbit/s rates). |
|
Applicable cable |
SFP copper module and Ethernet cable |
Functions
The ET1D2X48SX2S provides the following functions:
- Communicates with the MPU and works under the control of the MPU.
- Searches for routes and destination addresses of data packets for forwarding.
- Forwards data packets.
