Description

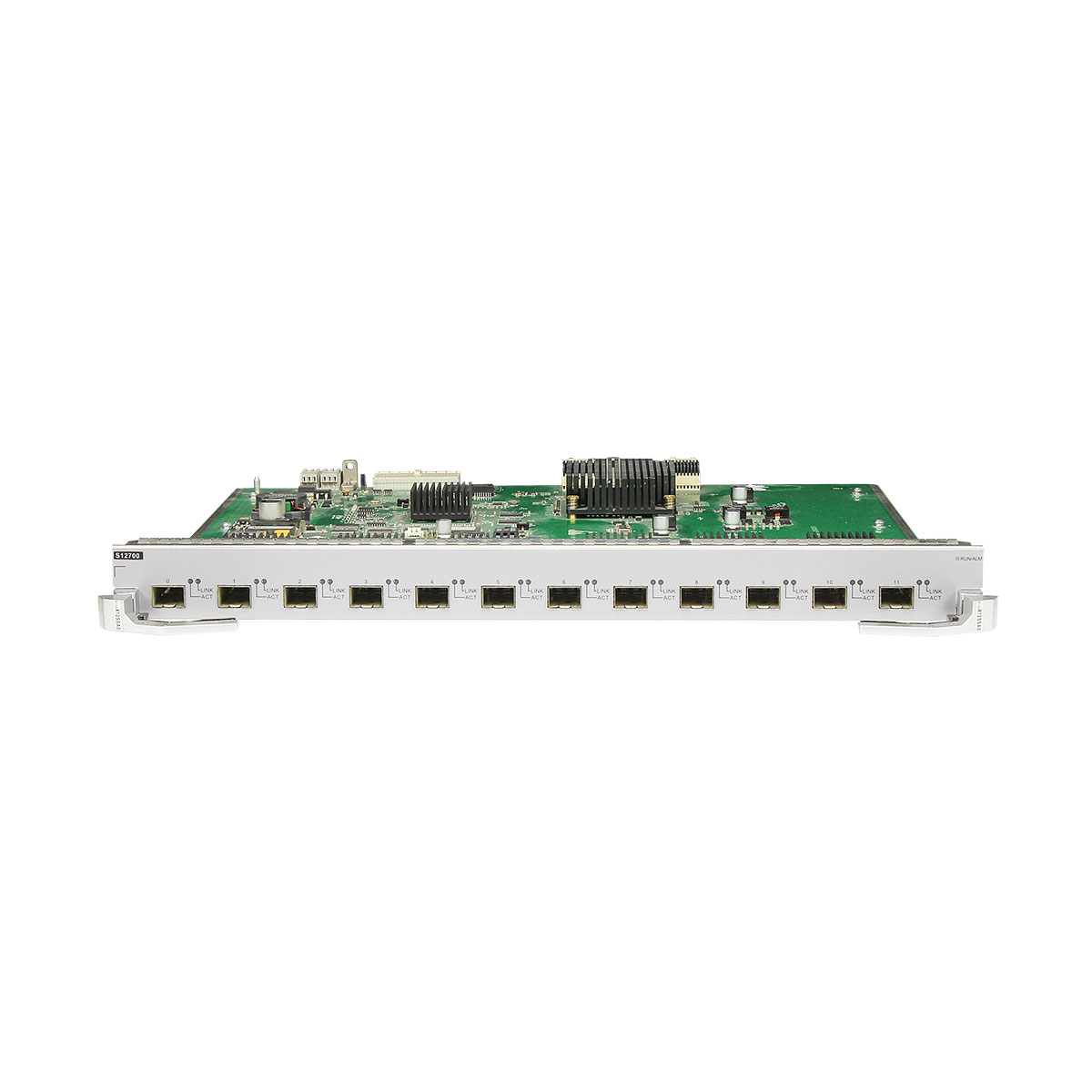

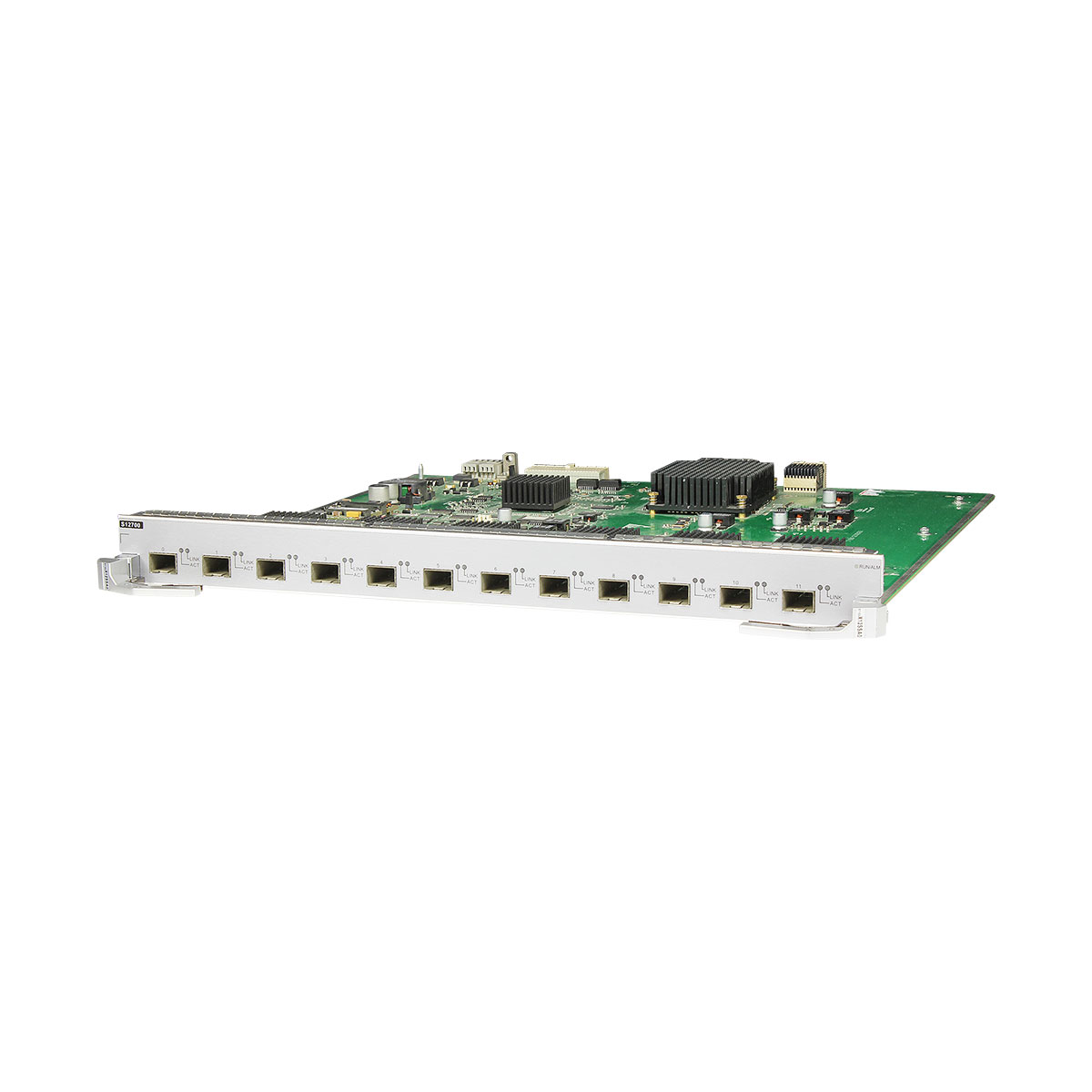

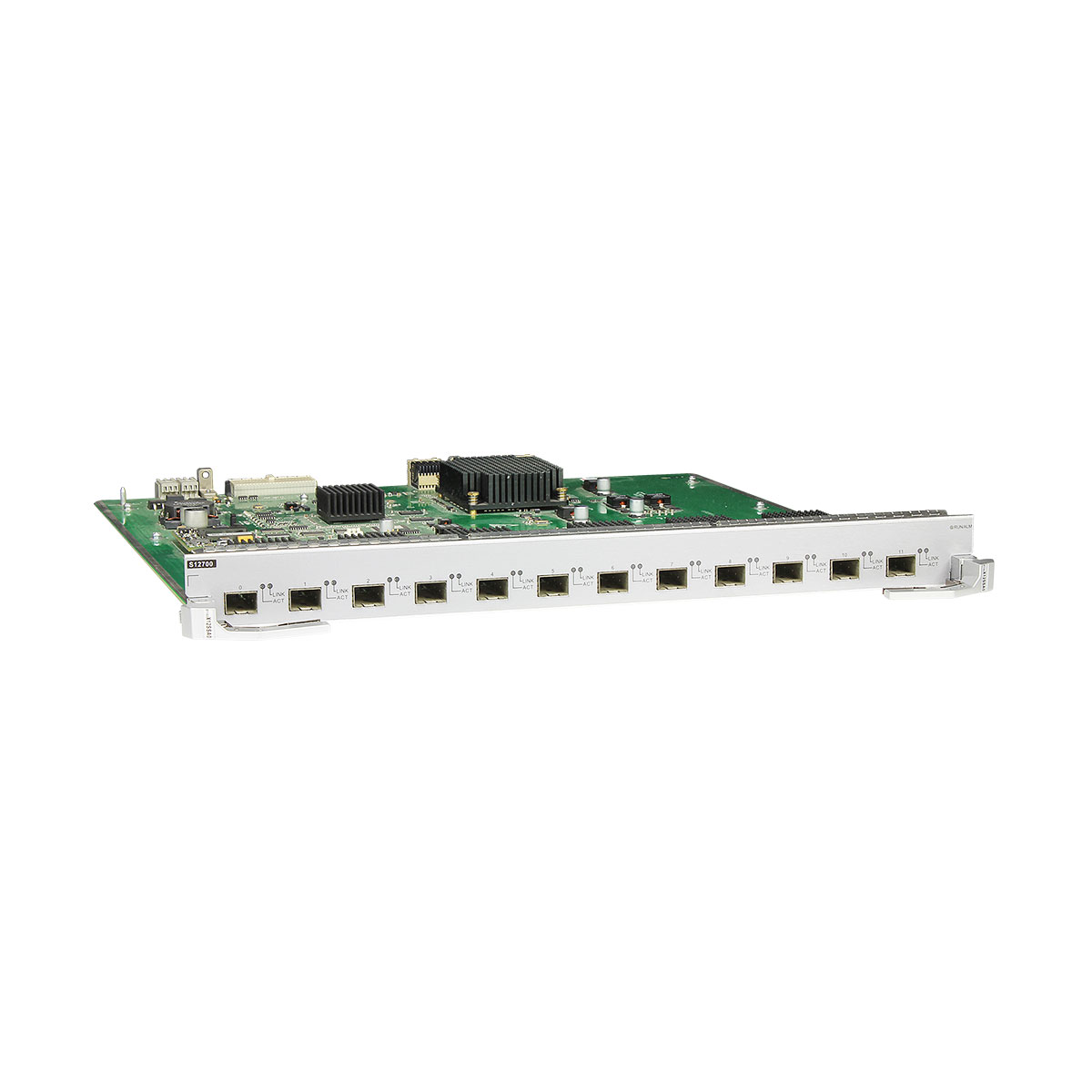

ET1D2X12SSA0 overview
ET1D2X12SSA0 Huawei S9700/12700 switch 12-Port 10GBASE-X Interface Card (SA, SFP+)
Switch chassis and software versions matching the card (S12700)
| Card Name | S12704 Chassis | S12708 and S12712 Chassis | S12710 Chassis |
|---|---|---|---|
| ET1D2X12SSA0 | Supported in V200R008C00 and later versions | Supported in V200R005C00 and later versions | Supported in V200R010C00 and later versions |
Switch chassis and software versions matching the card (S12700E)
| Card Name | S12700E Chassis |
|---|---|
| ET1D2X12SSA0 | Not supported |
This card can be installed in:
- Slots 01 to 04 in an S12704 chassis.
- Slots 01 to 08 in an S12708 chassis.
- Slots 01 to 10 in an S12710 chassis.
- Slots 01 to 12 in an S12712 chassis.

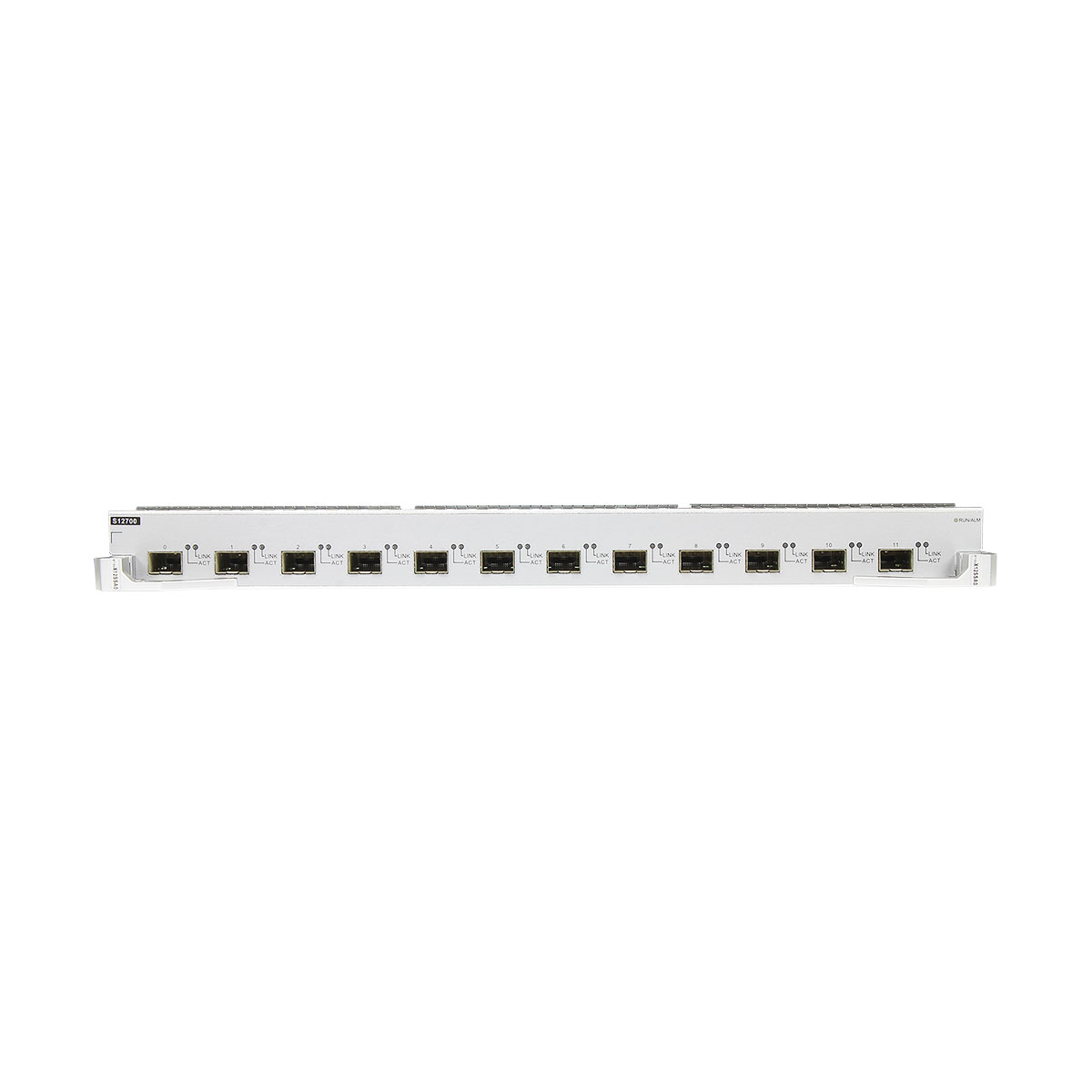

Front panel
| 1 | Twelve 10GBASE SFP+ optical ports |
10GBASE SFP+ optical port
10GBASE SFP+ optical port attributes
| Attribute | Description |
|---|---|
| Connector type | SFP+ |
| Optical port attributes | Depend on the SFP+ to SFP+ high-speed cable (1 m or 10 m), SFP+ optical module, or SFP+ optical cable used.
For the optical modules supported by the ET1D2X12SSA0 and their attributes, see 10GE SFP+ Optical Modules (OSXD22N00 not supported), 10GE-CWDM SFP+ Optical Modules and 10GE-DWDM SFP+ Optical Modules. |
| Standards compliance | IEEE 802.3ae |
| Frame format | Ethernet_II, Ethernet_SAP, Ethernet_SNAP |
| Network protocol | IP |
