ET1D2X04XEC1 overview

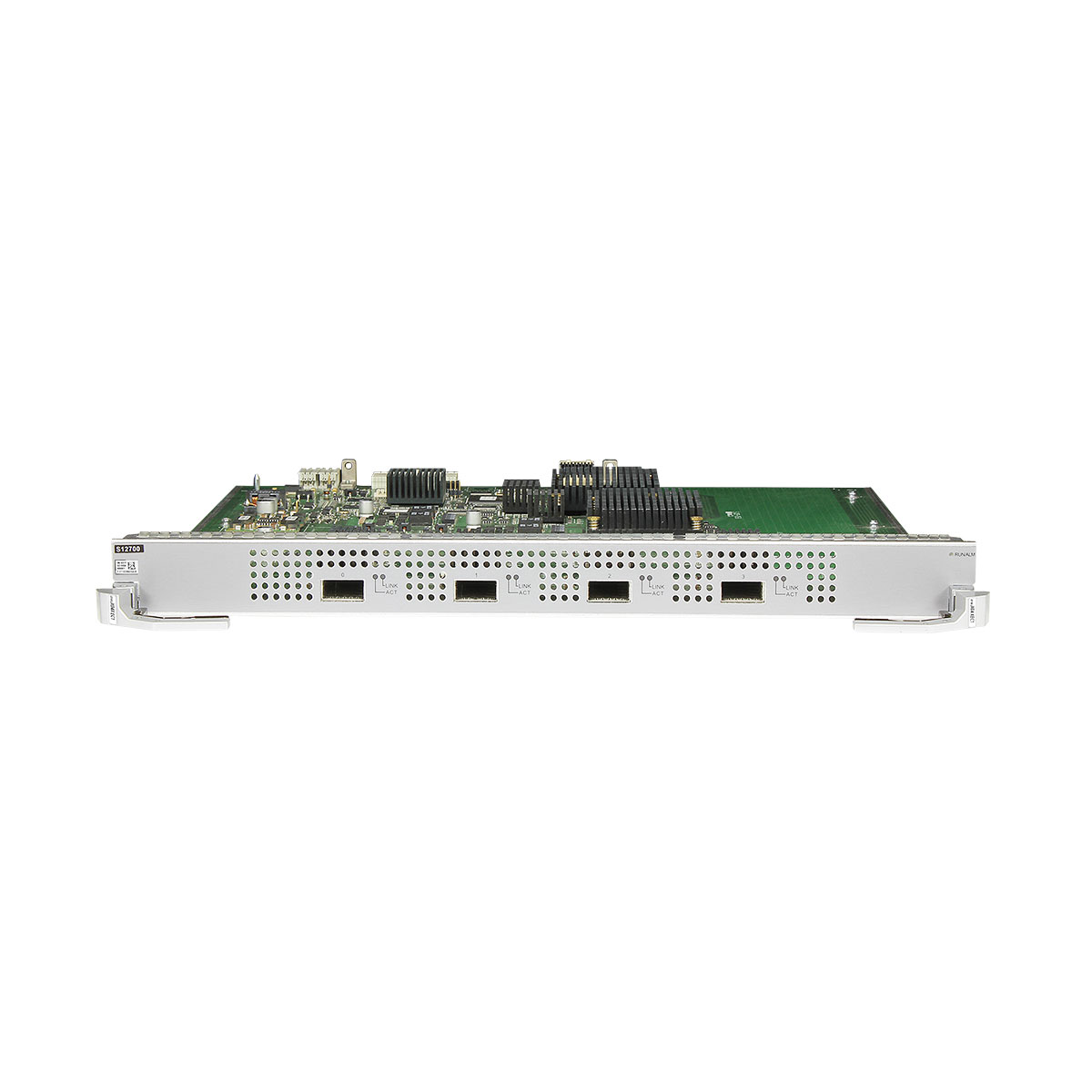

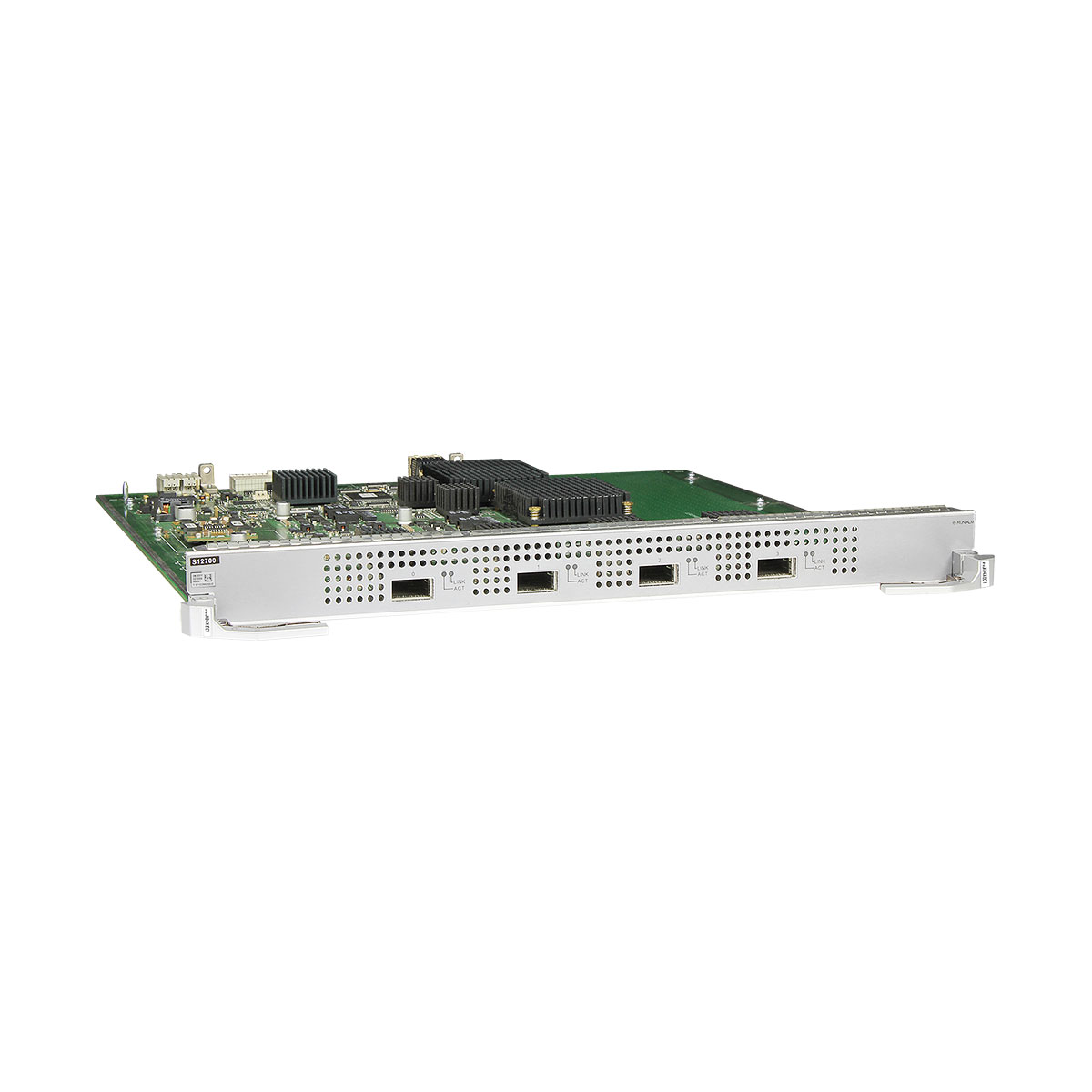

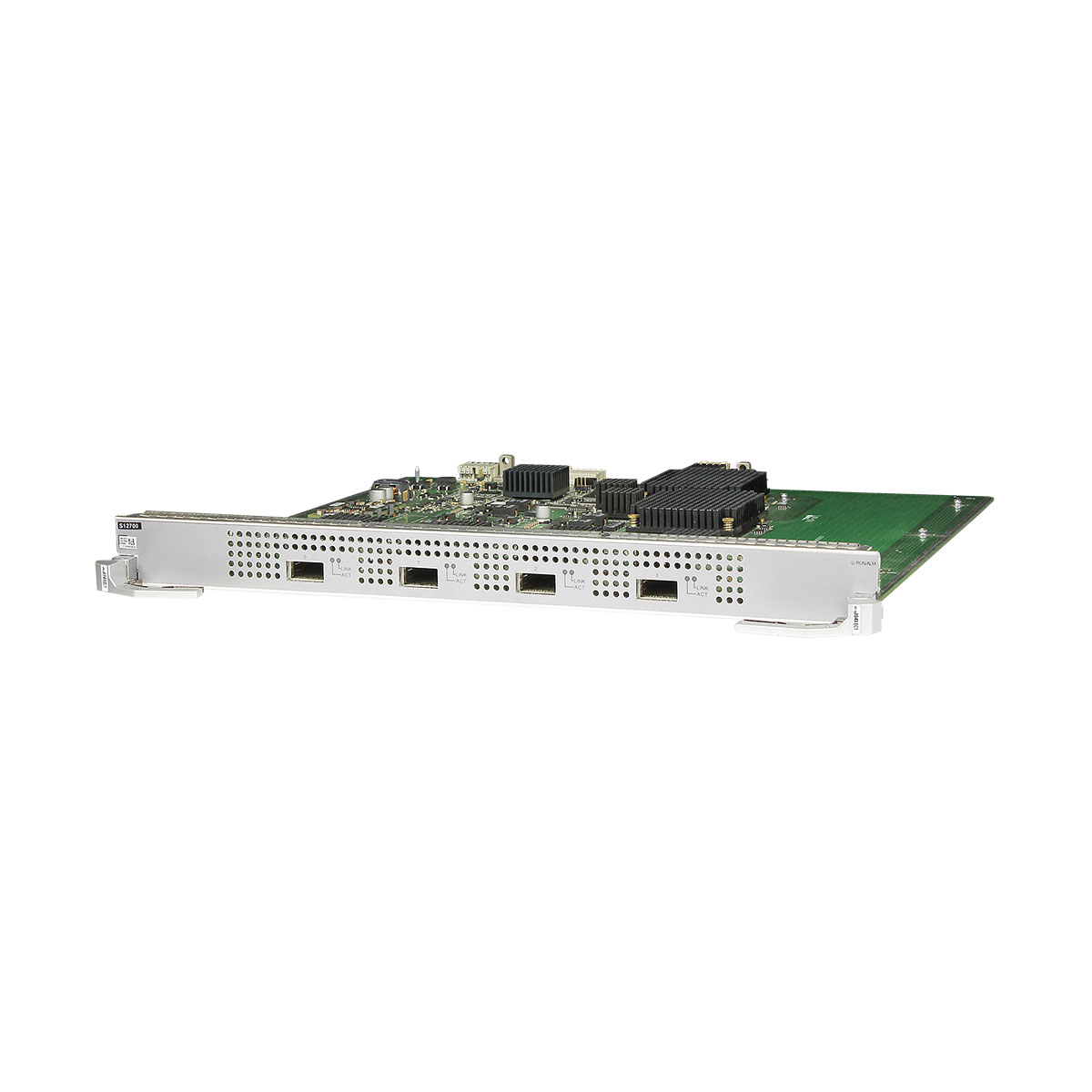

ET1D2X04XEC1 Huawei S970/S12700 switch 4-Port 10GBASE-X Interface Card (EC, XFP)
Switch chassis and software versions matching the card (S12700)
Card Name | S12704 Chassis | S12708 and S12712 Chassis | S12710 Chassis |
---|---|---|---|
ET1D2X04XEC1 | Supported in V200R008C00 and later versions | Supported in V200R005C00 and later versions | Supported in V200R010C00 and later versions |
Switch chassis and software versions matching the card (S12700E)
Card Name | S12700E Chassis |
---|---|
ET1D2X04XEC1 | Not supported |
The ET1D2X04XEC1 can be installed in:
- Slots 01 to 04 in an S12704 chassis.
- Slots 01 to 08 in an S12708 chassis.
- Slots 01 to 10 in an S12710 chassis.
- Slots 01 to 12 in an S12712 chassis.

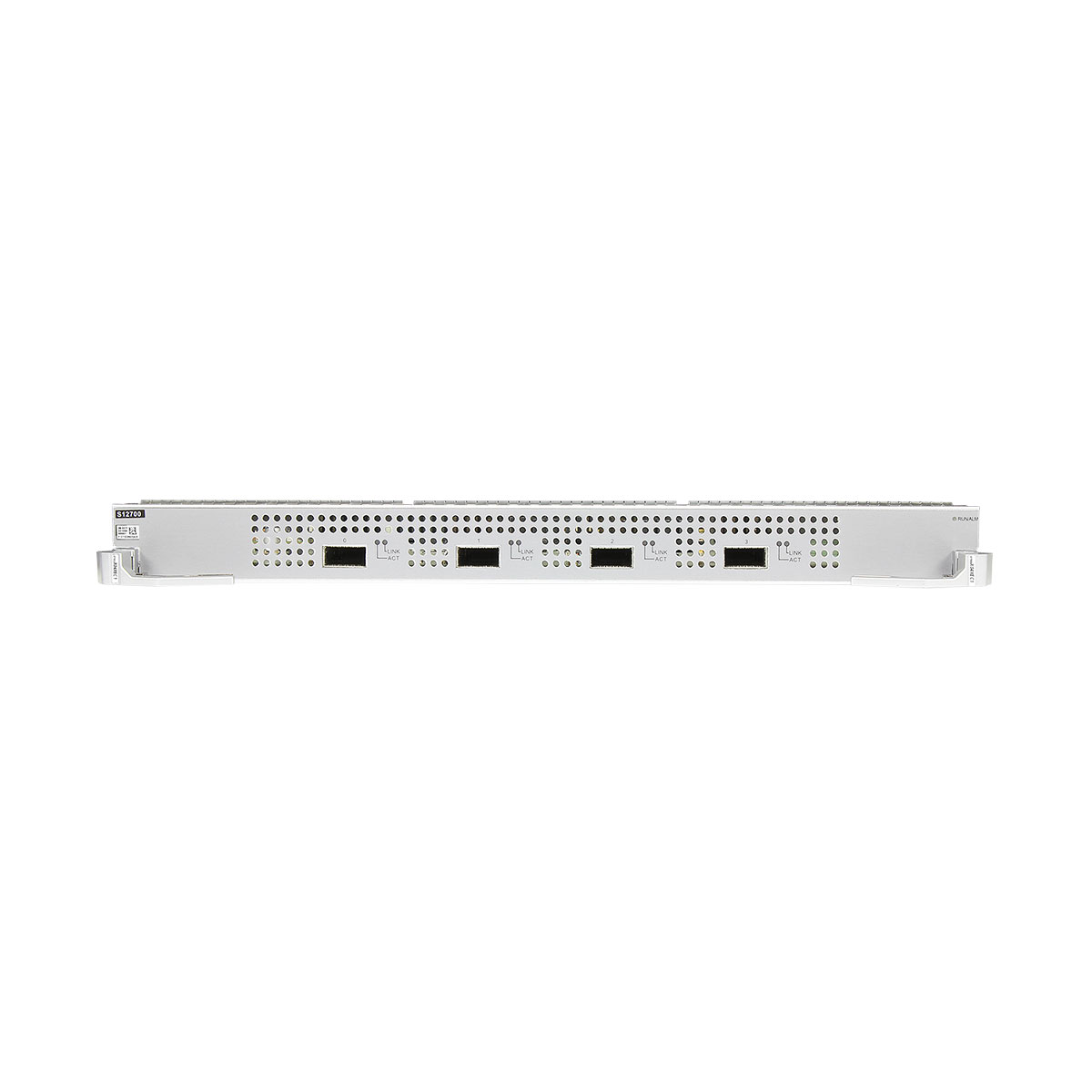

Ports on the ET1D2X04XEC1 panel
1 | Four 10GBASE XFP optical ports |
10GBASE XFP optical port
10GBASE XFP optical port attributes
Attribute | Description |
---|---|
Connector type | XFP |
Optical port attributes | Depend on the XFP optical module used.
For details about the optical modules supported by the ET1D2X04XEC1 and their attributes, see 10GE XFP Optical Modules, 10GE-CWDM XFP Optical Modules, and 10GE-DWDM XFP Optical Modules. |
Standards compliance | IEEE 802.3ae |
Frame format | Ethernet_II, Ethernet_SAP, Ethernet_SNAP |
Network protocol | IP |
