Description
ET1D2X04XEA0 overview

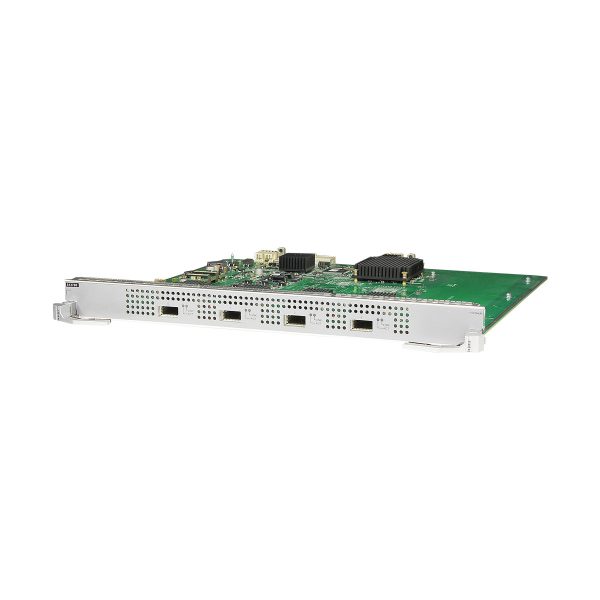

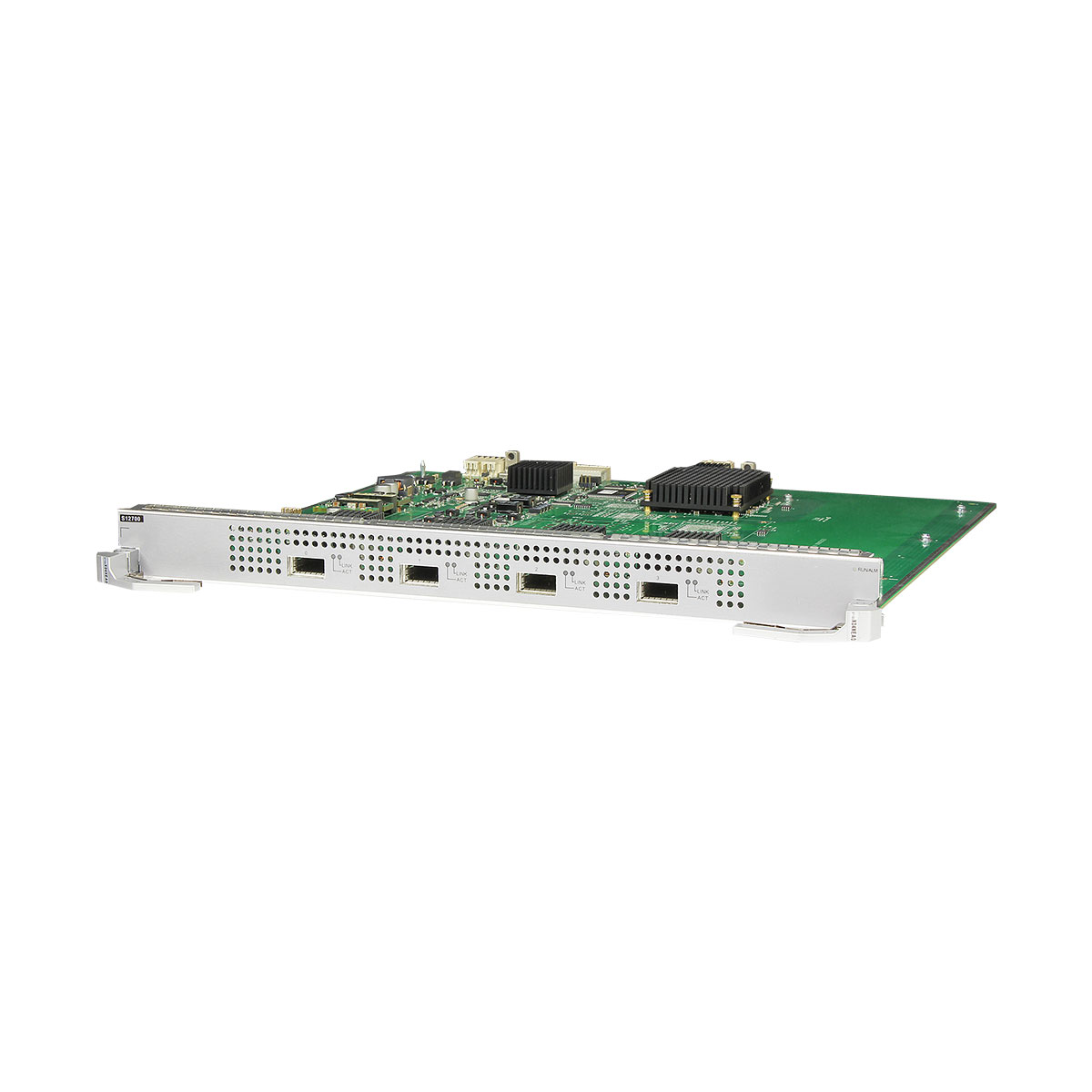

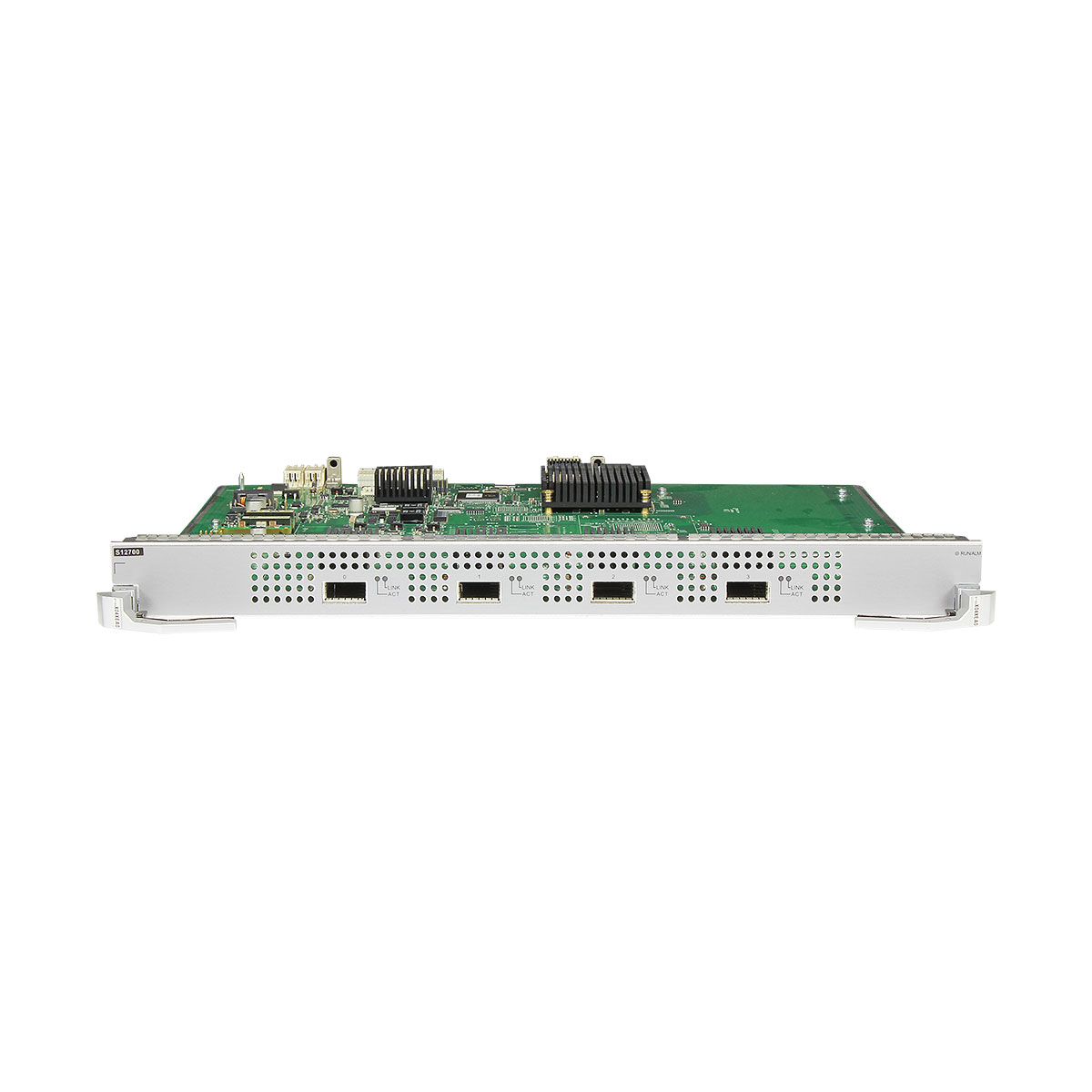

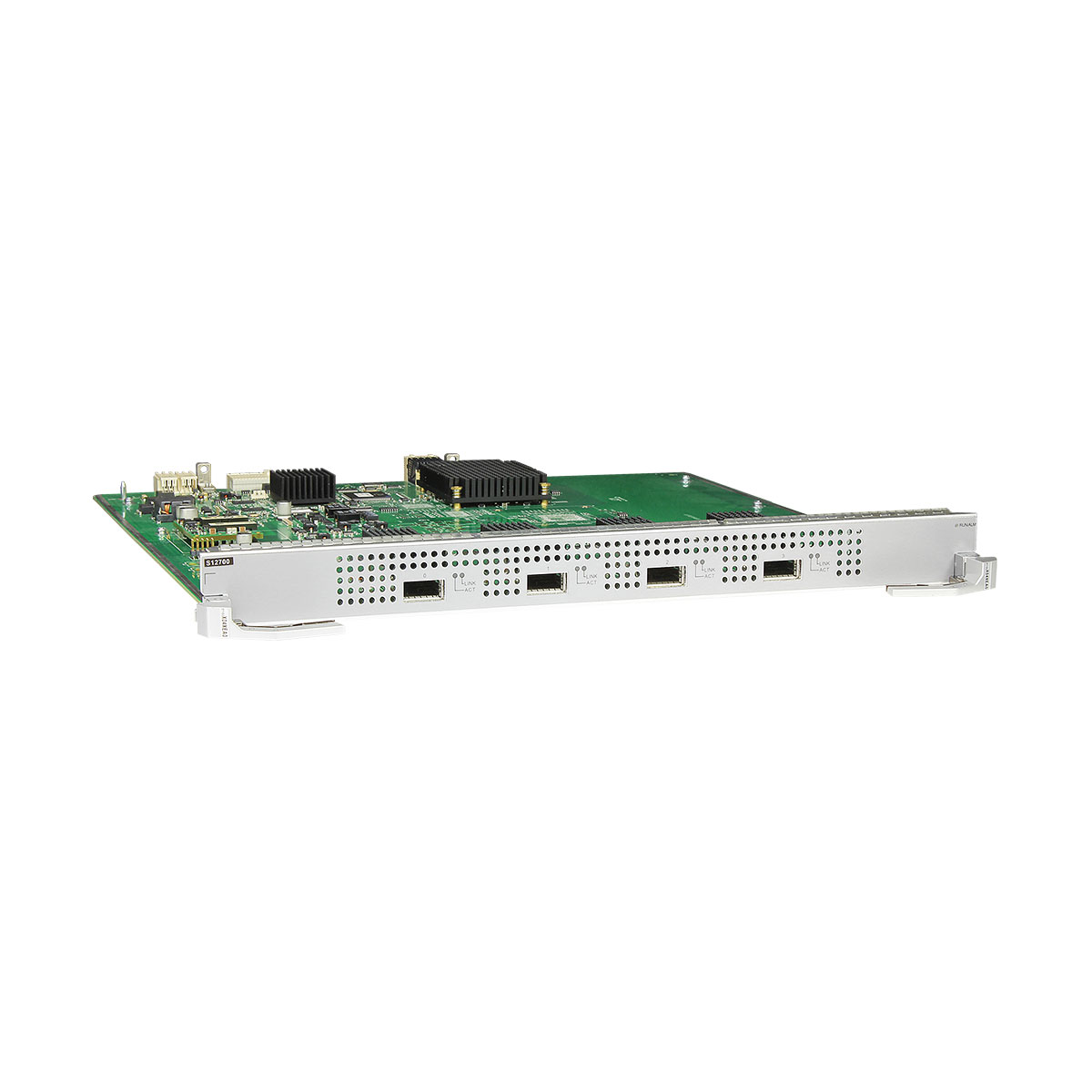

ET1D2X04XEA0 Huawei S9700/S12700 switch 4-Port 10GBASE-X Interface Card (EA, XFP).
Switch chassis and software versions matching the card (S12700)
| Card Name | S12704 Chassis | S12708 and S12712 Chassis | S12710 Chassis |
|---|---|---|---|
| ET1D2X04XEA0 | Supported in V200R008C00 and later versions | Supported in V200R005C00 and later versions | Supported in V200R010C00 and later versions |
Switch chassis and software versions matching the card (S12700E)
| Card Name | S12700E Chassis |
|---|---|
| ET1D2X04XEA0 | Not supported |
This card can be installed in:
Slots 01 to 04 in an S12704 chassis.
Slots 01 to 08 in an S12708 chassis.
Slots 01 to 10 in an S12710 chassis.
Slots 01 to 12 in an S12712 chassis.

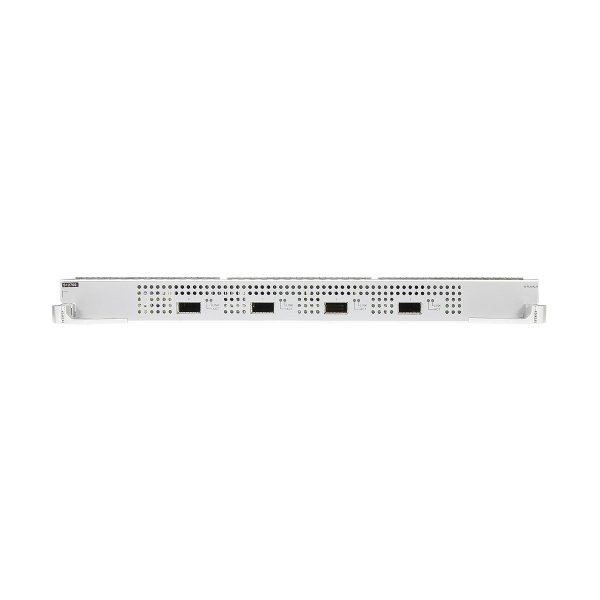

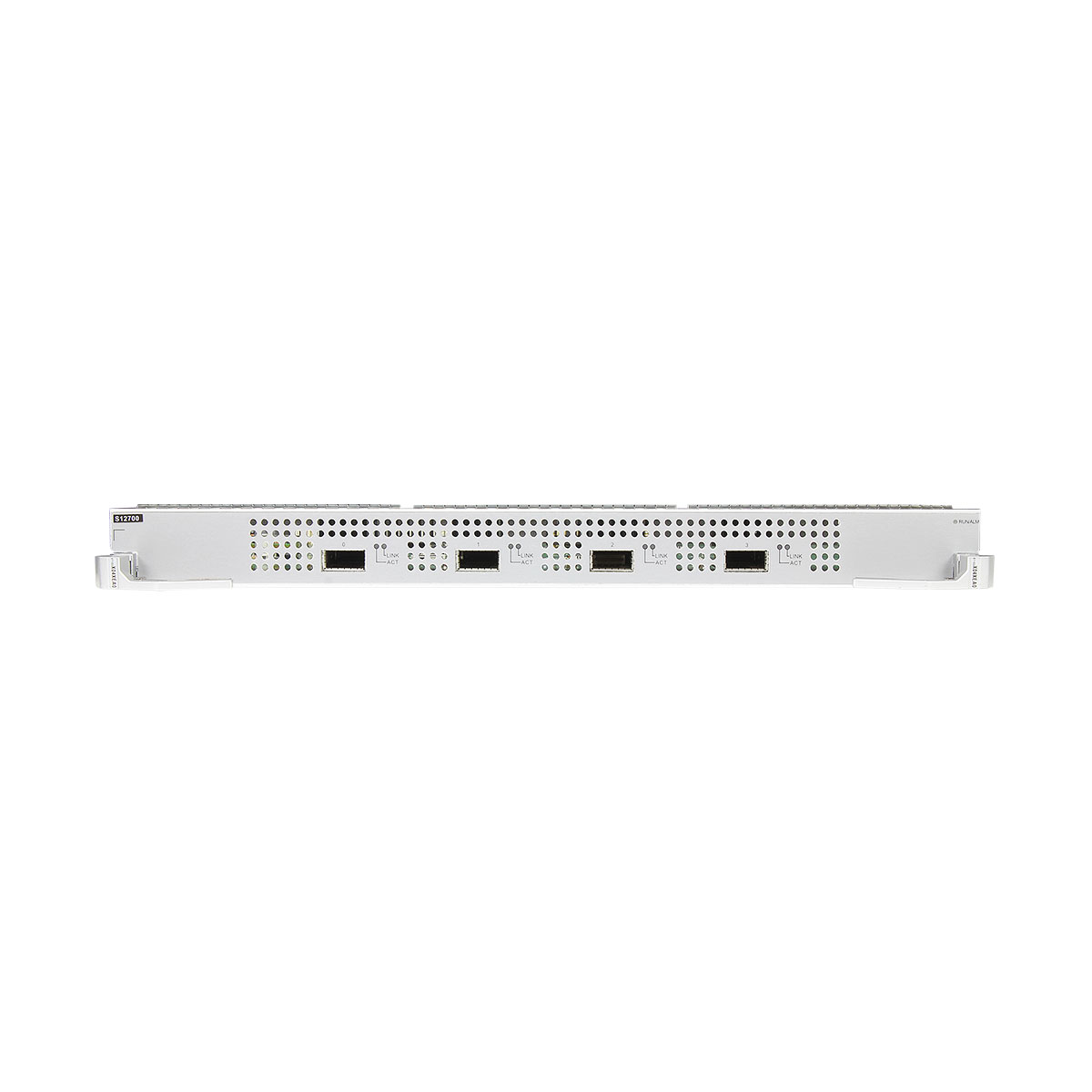

Front panel
| 1 | Four 10GBASE XFP optical ports |
10GBASE XFP optical port
10GBASE XFP optical port attributes
| Attribute | Description |
|---|---|
| Connector type | XFP |
| Optical port attributes | Depend on the XFP optical module used.
For details about the optical modules supported by the ET1D2X04XEA0 and their attributes, see 10GE XFP Optical Modules, 10GE-CWDM XFP Optical Modules, and 10GE-DWDM XFP Optical Modules. |
| Standards compliance | IEEE 802.3ae |
| Frame format | Ethernet_II, Ethernet_SAP, Ethernet_SNAP |
| Network protocol | IP |
