Description

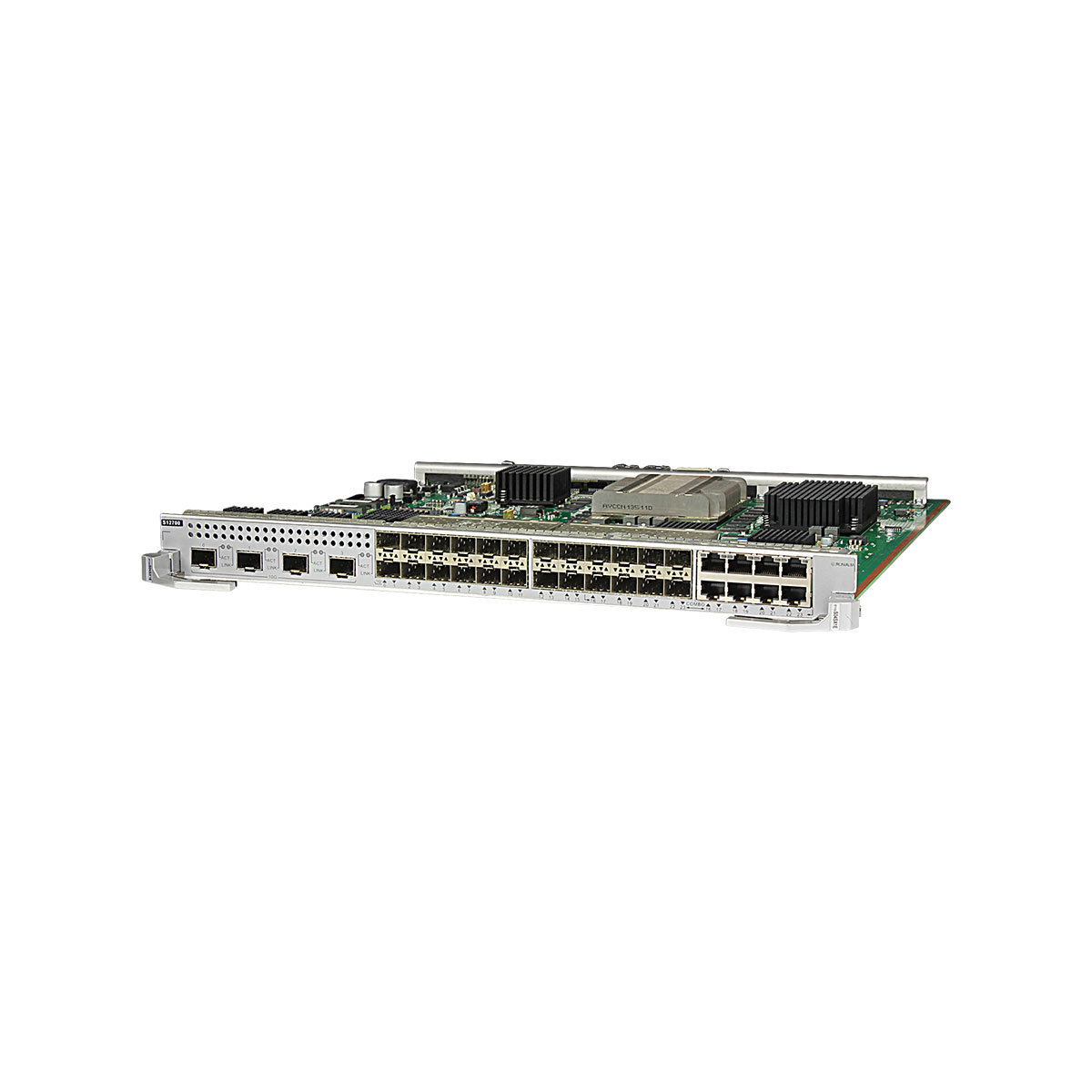

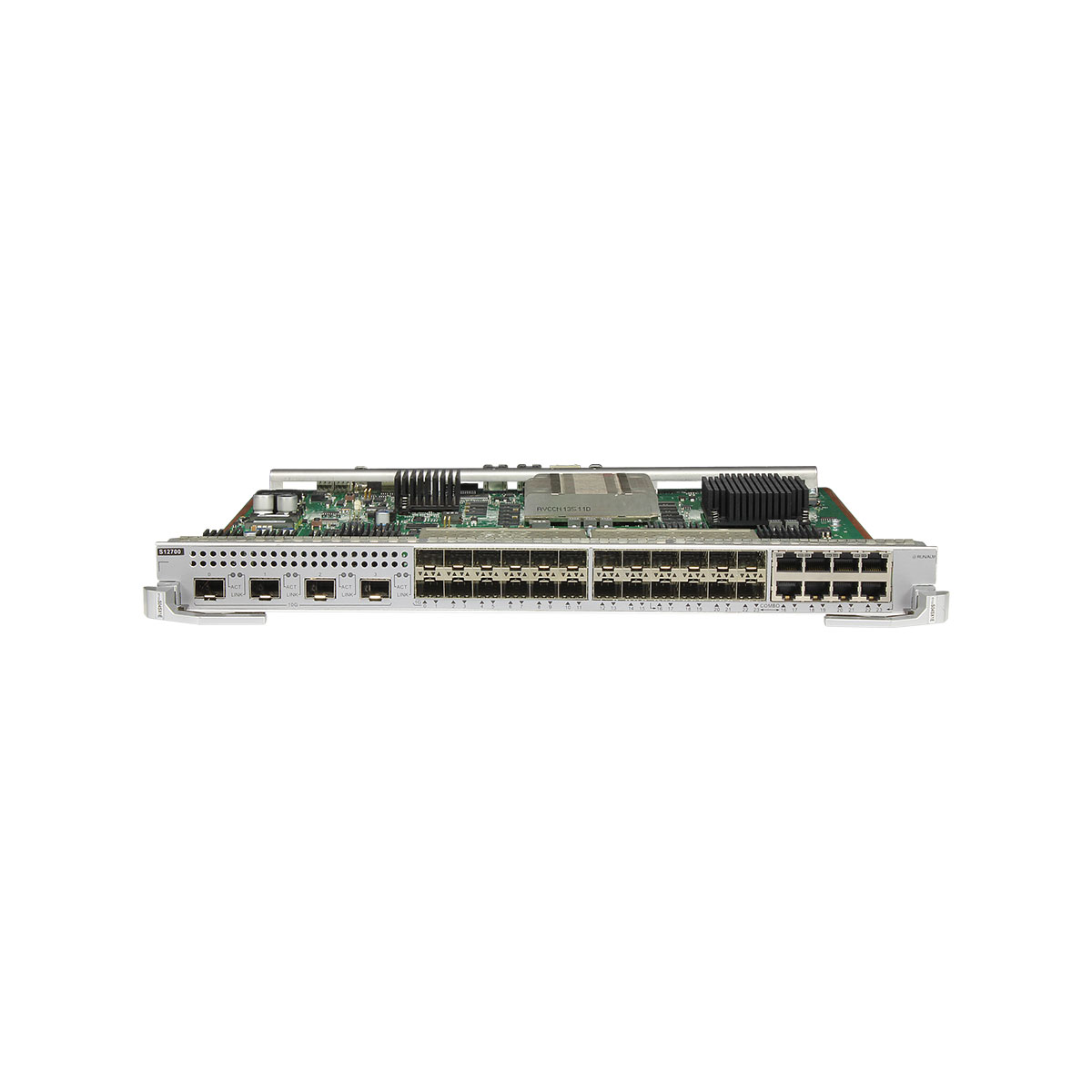

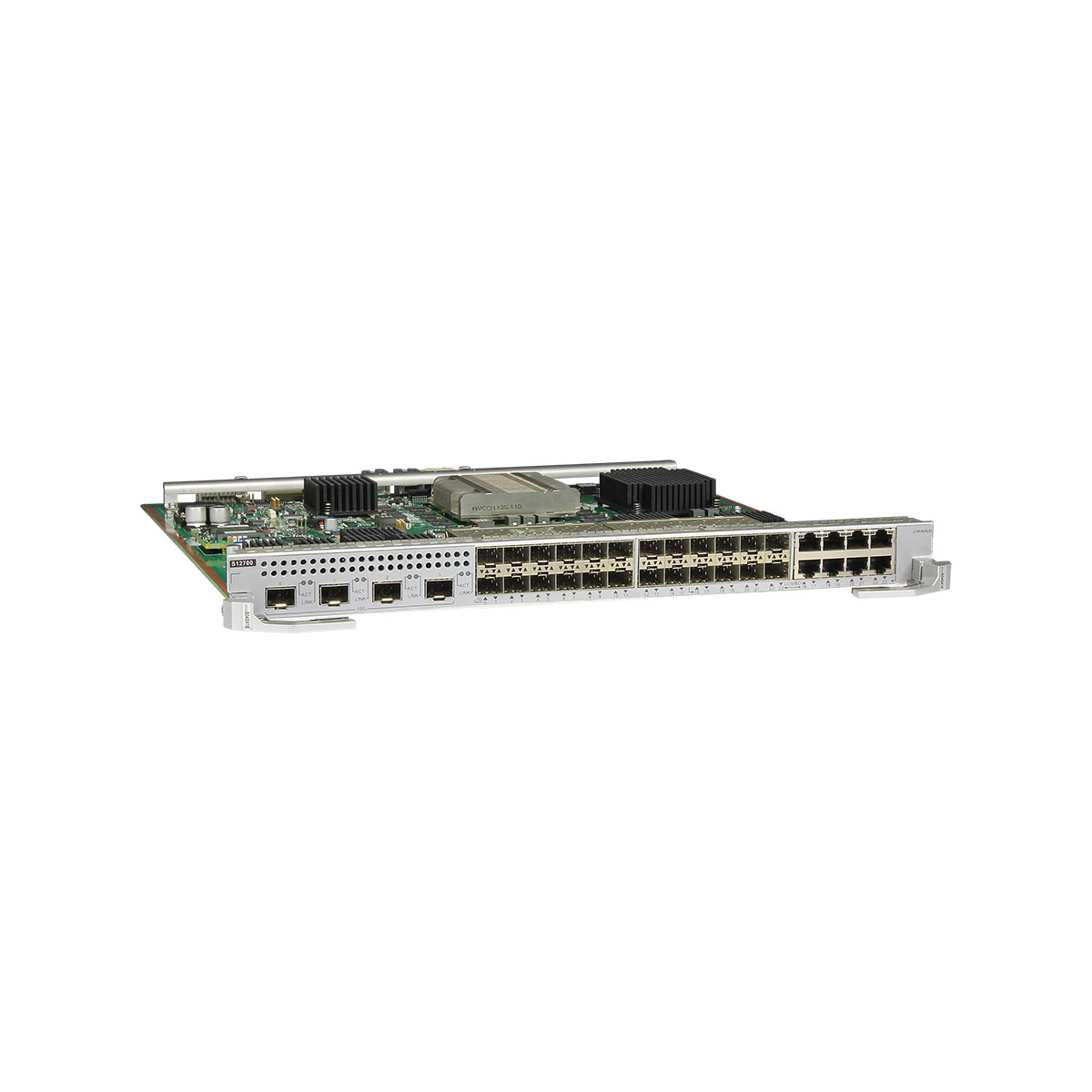

ET1D2S04SX1E Overview
4-Port 10GBASE-X and 24-Port 100/1000BASE-X and 8-Port 10/100/1000BASE-T Combo Interface Card (X1E, RJ45/SFP/SFP+) apply for Huawei S9700/S12700 series switches.
Switch chassis and software versions matching the card (S12700)
| Card Name | S12704 Chassis | S12708 and S12712 Chassis | S9700/S12710 Chassis |
|---|---|---|---|
| ET1D2S04SX1E | Supported in V200R008C00 and later versions | Supported in V200R005C00 and later versions | Supported in V200R010C00 and later versions |
The ET1D2S04SX1E can be installed in:
Slots 01 to 04 in an S12704 chassis.
Slots 01 to 08 in an S12708 chassis.
Slots 01 to 10 in an S12710 chassis.
Slots 01 to 12 in an S12712 chassis.

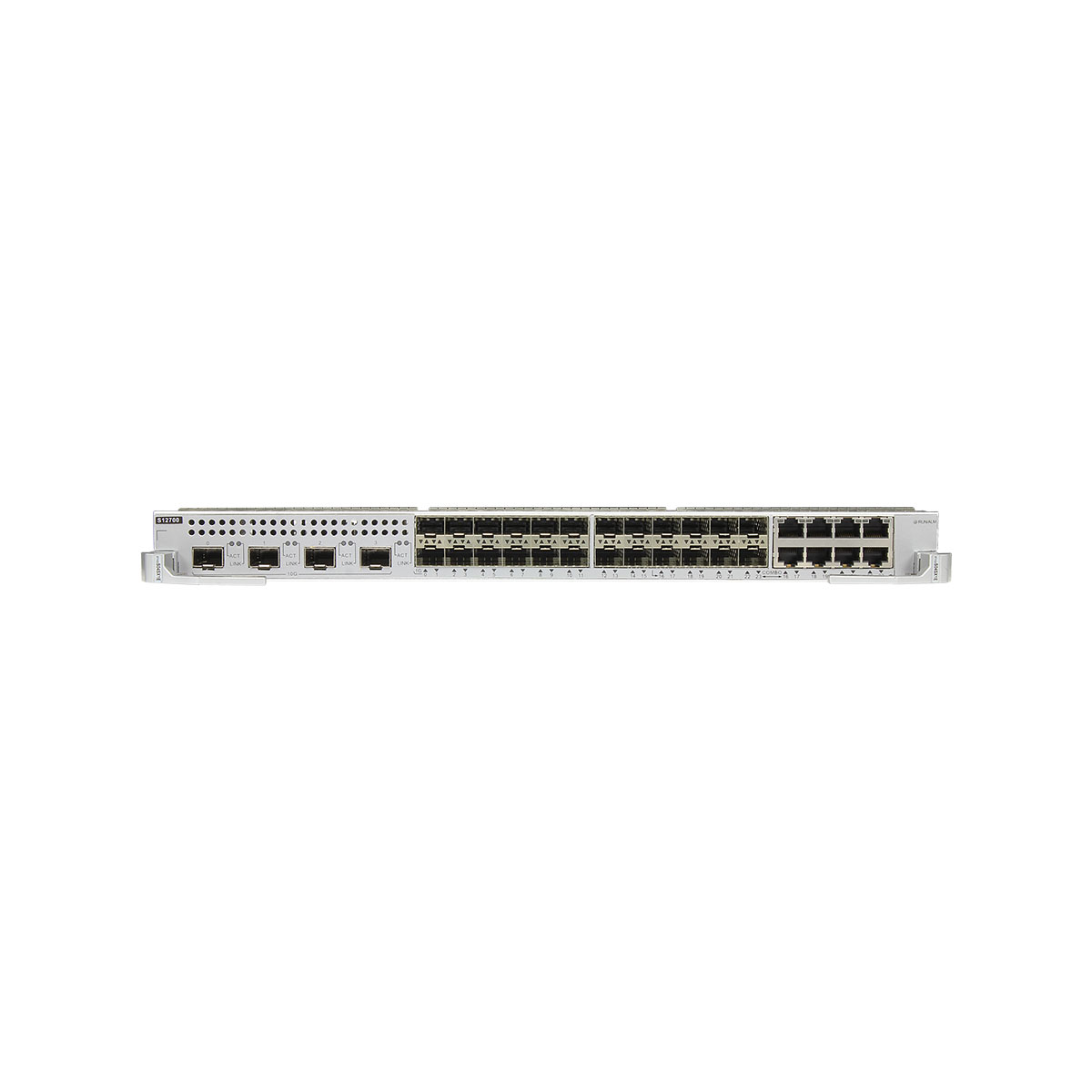

Front panel
| 1 | Four 10GBASE SFP+ ports |
| 2 | Sixteen 100/1000BASE-X ports |
| 3 | Eight combo ports. Each combo port consists of a 10/100/1000BASE-T port and a 100/1000BASE-X port. |
10GBASE SFP+ port
Attributes of a 10GBASE SFP+ port
| Attribute | Description |
| Connector type | SFP+ |
| Optical port attributes | Depend on the SFP+ to SFP+ high-speed cable (1 m, 3 m, 5 m, 10 m), QSFP+ to 4*SFP+ high-speed cable (1 m, 3 m, 5 m), SFP+ optical module, or SFP+ optical cable used.
For the optical modules supported by the ET1D2S04SX1E and their attributes, see 10GE SFP+ Optical Modules, 10GE-CWDM SFP+ Optical Modules, and 10GE-DWDM SFP+ Optical Modules. |
| Standards compliance | IEEE 802.3ae |
| Frame format | Ethernet_II, Ethernet_SAP, Ethernet_SNAP |
| Network protocol | IP |
100/1000BASE-X port
Optical port attributes (optical module)
| Attribute | Description |
|---|---|
| Connector type | SFP |
| Optical port attributes | Depend on the SFP optical module used.
For optical modules supported by the ET1D2S04SX1E and their attributes, see FE SFP/eSFP Optical Modules, GE eSFP Optical Modules, GE-CWDM eSFP Optical Modules, and GE-DWDM eSFP Optical Modules. |
| Standards compliance | IEEE 802.3z |
| Frame format | Ethernet_II, Ethernet_SAP, Ethernet_SNAP |
| Network protocol | IP |
Optical port attributes (copper module)
|
Attribute |
Description |
|---|---|
|
Connector type |
SFP |
|
Optical port attributes |
Depend on the SFP copper module used.
For details on the copper modules supported by the cards and attributes of the copper modules, see GE SFP Copper Modules (10 Mbit/s, 100 Mbit/s and 1000 Mbit/s rates). |
|
Standards compliance |
IEEE 802.3ab |
|
Frame format |
Ethernet_II, Ethernet_SAP, Ethernet_SNAP |
|
Network protocol |
IP |
Combo Port
A combo port is a dual-purpose port consisting of an Ethernet optical port and an Ethernet electrical port. The electrical and optical ports of a combo port are multiplexed, and only one of them can work at a time.
Attributes of a 10/100/1000BASE-T port
| Attribute | Description |
|---|---|
| Connector type | RJ45 |
| Standards compliance | IEEE 802.3ab |
| Frame format | Ethernet_II, Ethernet_SAP, Ethernet_SNAP |
| Network protocol | IP |
Attributes of a 100/1000BASE-X port
| Attribute | Description |
|---|---|
| Connector type | SFP |
| Optical port attributes | Depend on the SFP optical module used.
For optical modules supported by the ET1D2S04SX1E and their attributes, see FE SFP/eSFP Optical Modules, GE eSFP Optical Modules, GE-CWDM eSFP Optical Modules, and GE-DWDM eSFP Optical Modules. |
| Standards compliance | IEEE 802.3z |
| Frame format | Ethernet_II, Ethernet_SAP, Ethernet_SNAP |
| Network protocol | IP |
