$0.00 Original price was: $0.00.Current price is: $0.00.

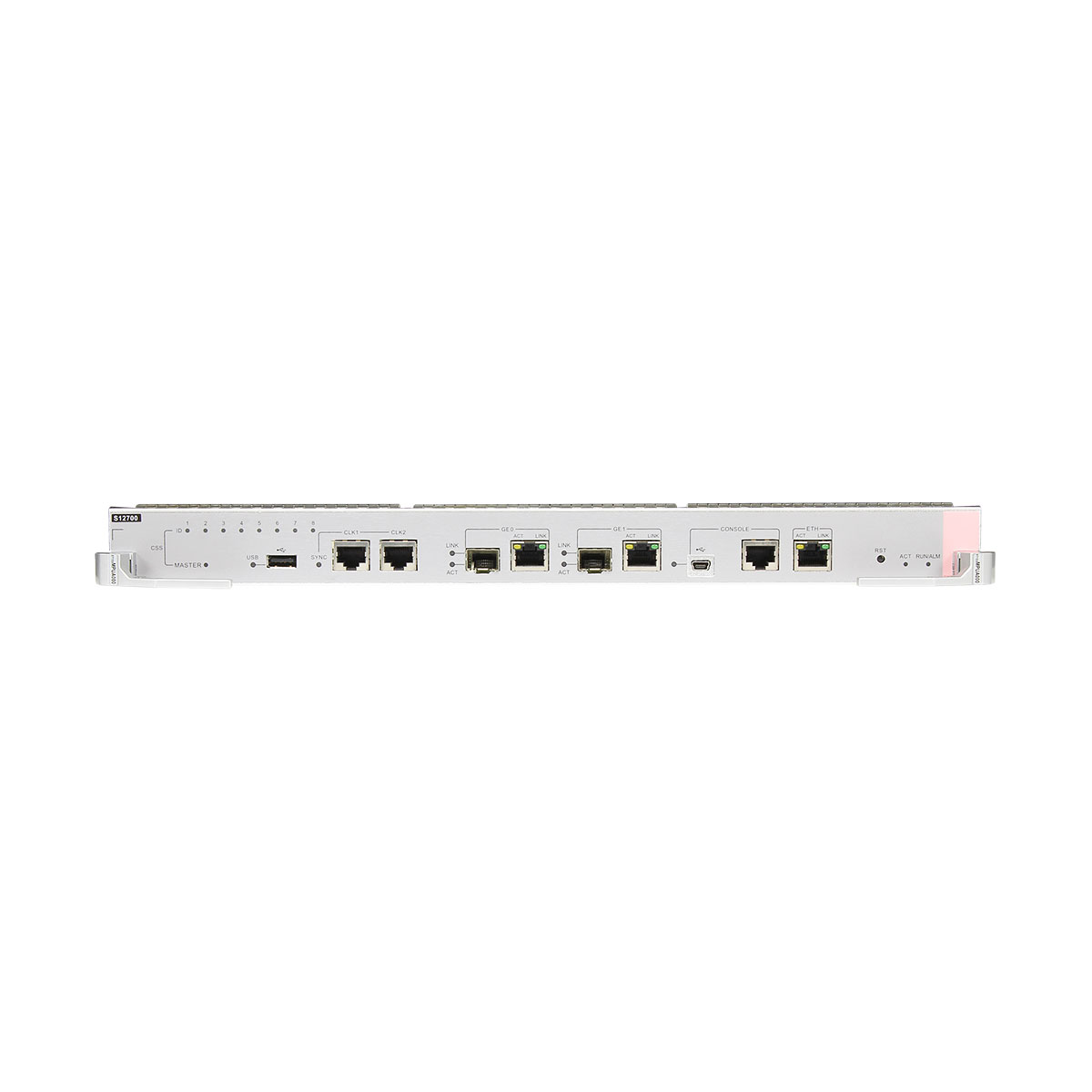

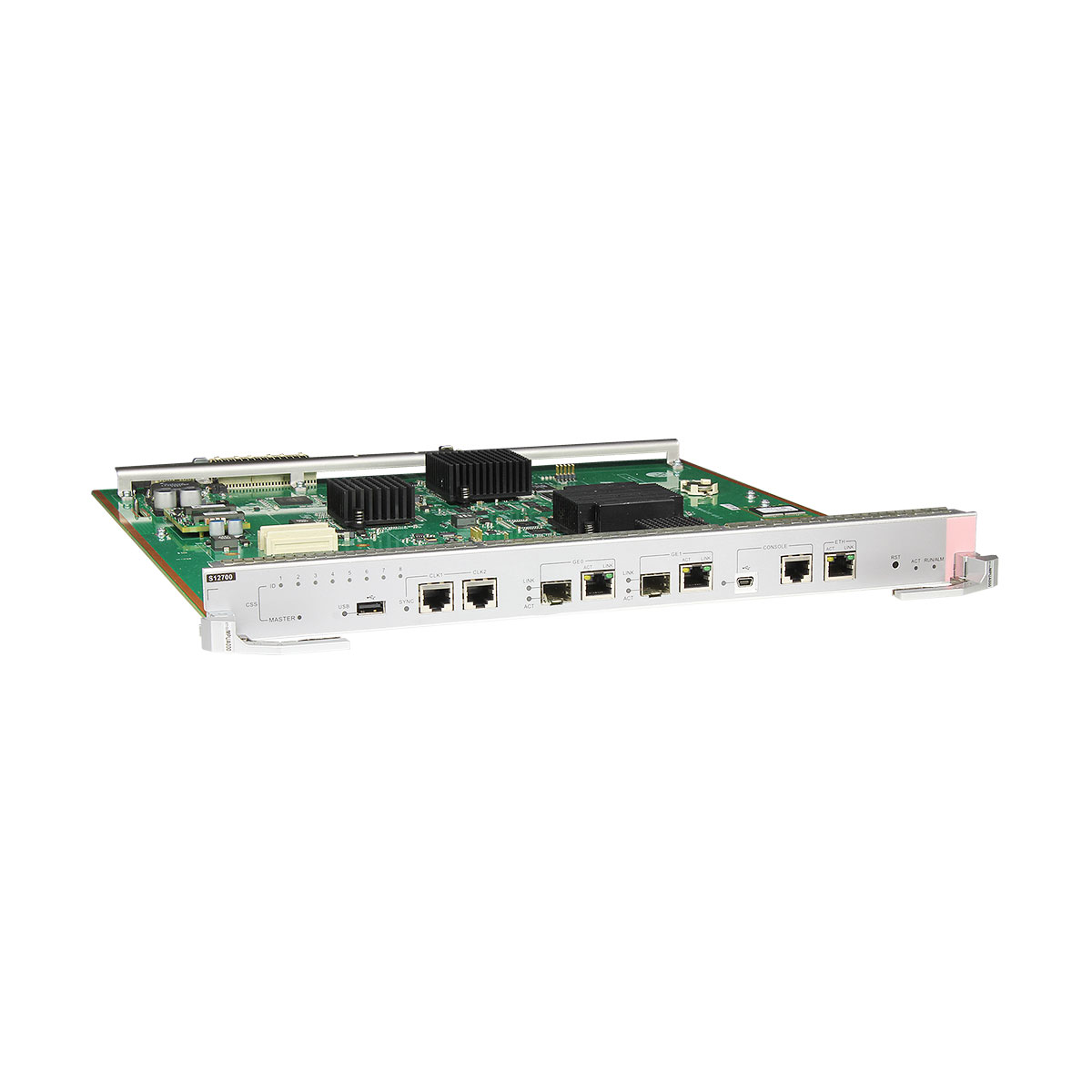

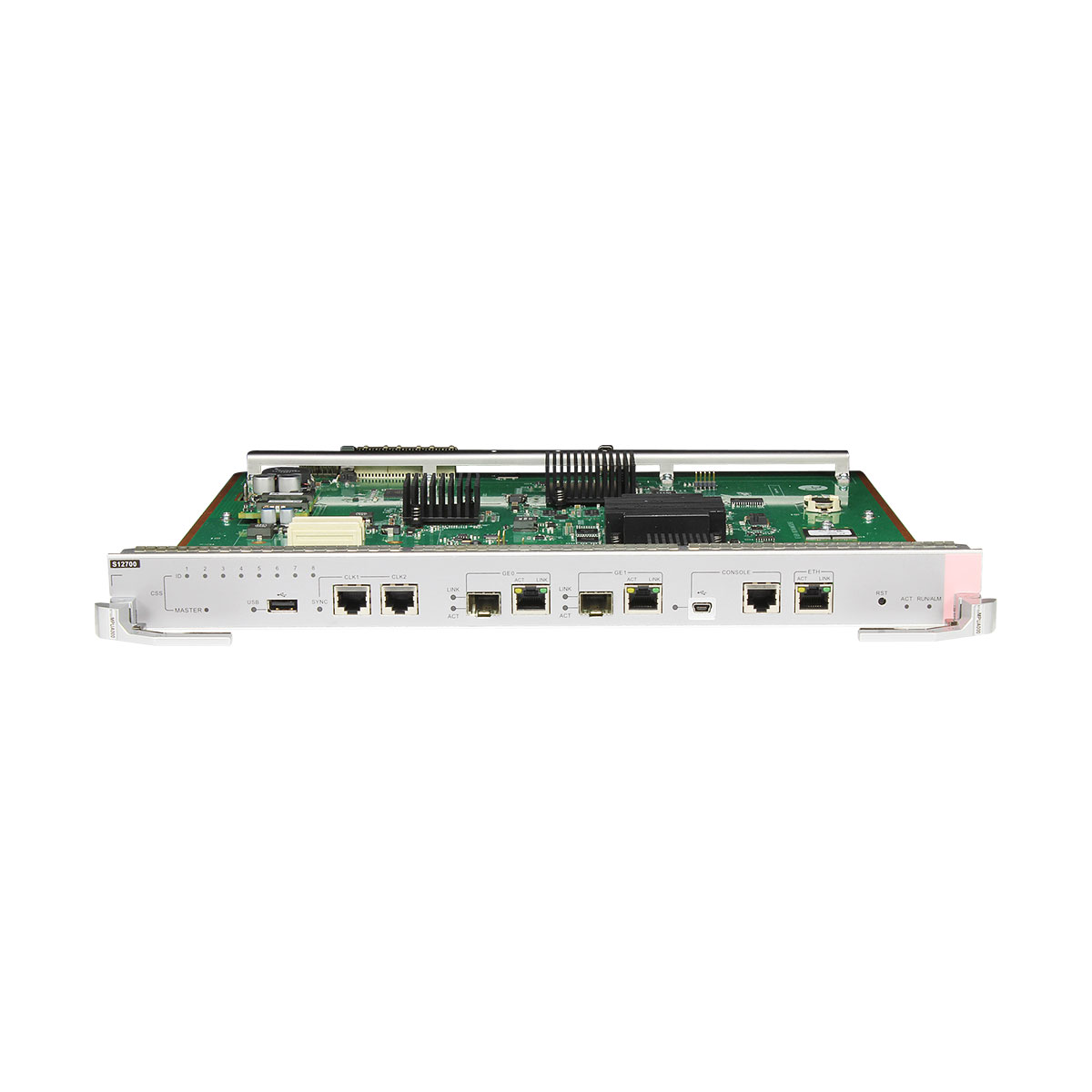

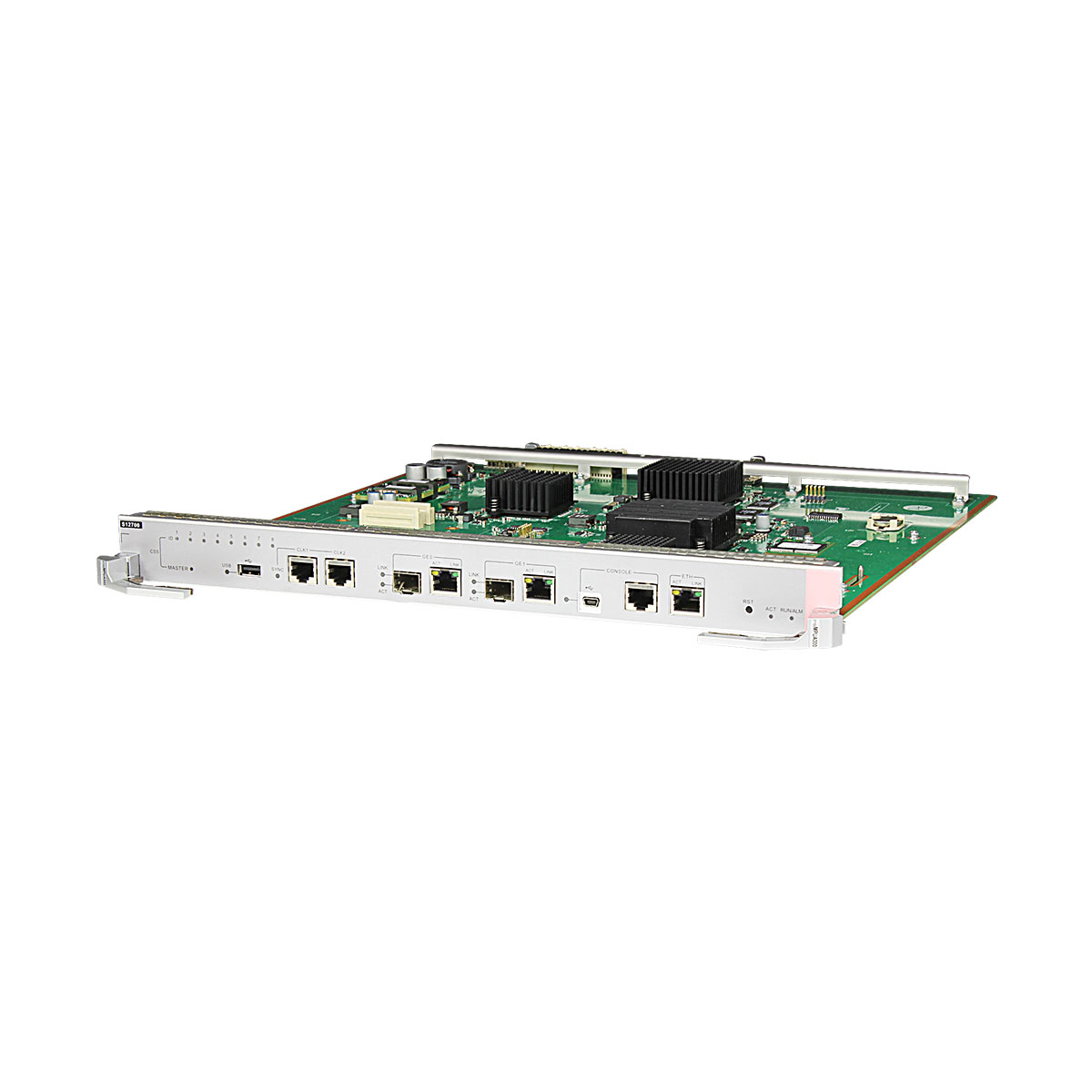

Main Processing Unit A for S12704, S12708, S12712
The ET1D2MPUA000 is the main control unit for the S12704, S12708 and S12712. It provides the control plane and management plane for the entire system and reserves a slot for clock daughter card.
The ET1D2MPUA000 can be installed in:
| Front Panel | |
USB port
BITS port
GE port
combo console port
ETH management port |
|
| The attribute of a ETH management port | |
| Connector type | RJ45 |
| Standards compliance | IEEE802.3 |
| Working mode | 10/100 Mbit/s auto-sensing Full-duplex |
| Maximum transmission distance | 100m |
| The attribute of a console management port | |
| Connector type | RJ45 |
| Working mode | Duplex Universal Asynchronous Receiver/Transmitter (UART) |
| Standards compliance | RS232 |
| Baud rate | 9600 bit/s to 115200 bit/s Default value: 9600 bit/s |
| The attribute of BITS port | |
| Connector type | RJ45 |
| Working mode | Clock synchronization mode: full-duplex Time synchronization mode: half-duplex |
| Frame format | 1 PPS + Time of Day (ToD) DC Level Shifter (DCLS) 2 MHz 2 Mbit/s: HDB3 code 1.544 Mbit/s: B8ZS code |
| Standards compliance | 1 PPS + ToD NMEA-0183 ToD standard of China Mobile DCLS: standard of DCLS signals 2 MHz: G.703 2 Mbit/s: G.703 1.544 Mbit/s: G.703 |
| Cable used | Time synchronization mode: straight-through network cable (RS422 signal) Clock synchronization mode: E1/T1 cable (120-ohm balanced cable) |
| Version Mapping | |
| Supported in V200R008C00 and later versions | |
| Physical specification | |
| Dimensions (mm) | 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.) |
| Weight (kg) | 2.74 kg |
| Maximum power consumption | 46 W |
| Environment parameters | |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Operating relative humidity | 5% RH to 95% RH (noncondensing) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Storage relative humidity | 5% RH to 95% RH (noncondensing) |
| Weight | 2.8800 kg |
|---|---|
| Dimensions | 43.0400 × 39.7200 × 3.5100 cm |
| Front Panel | |
|
USB port
BITS port
GE port
combo console port
ETH management port |
|
| The attribute of a ETH management port | |
| Connector type | RJ45 |
| Standards compliance | IEEE802.3 |
| Working mode | 10/100 Mbit/s auto-sensing Full-duplex |
| Maximum transmission distance | 100m |
| The attribute of a console management port | |
| Connector type | RJ45 |
| Working mode | Duplex Universal Asynchronous Receiver/Transmitter (UART) |
| Standards compliance | RS232 |
| Baud rate | 9600 bit/s to 115200 bit/s Default value: 9600 bit/s |
| The attribute of BITS port | |
| Connector type | RJ45 |
| Working mode | Clock synchronization mode: full-duplex Time synchronization mode: half-duplex |
| Frame format | 1 PPS + Time of Day (ToD) DC Level Shifter (DCLS) 2 MHz 2 Mbit/s: HDB3 code 1.544 Mbit/s: B8ZS code |
| Standards compliance | 1 PPS + ToD NMEA-0183 ToD standard of China Mobile DCLS: standard of DCLS signals 2 MHz: G.703 2 Mbit/s: G.703 1.544 Mbit/s: G.703 |
| Cable used | Time synchronization mode: straight-through network cable (RS422 signal) Clock synchronization mode: E1/T1 cable (120-ohm balanced cable) |
| Version Mapping | |
| Supported in V200R008C00 and later versions | |
| Physical specification | |
| Dimensions (mm) | 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.) |
| Weight (kg) | 2.74 kg |
| Maximum power consumption | 46 W |
| Environment parameters | |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Operating relative humidity | 5% RH to 95% RH (noncondensing) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Storage relative humidity | 5% RH to 95% RH (noncondensing) |
