Description
ET1D2L02QSC0 0verview

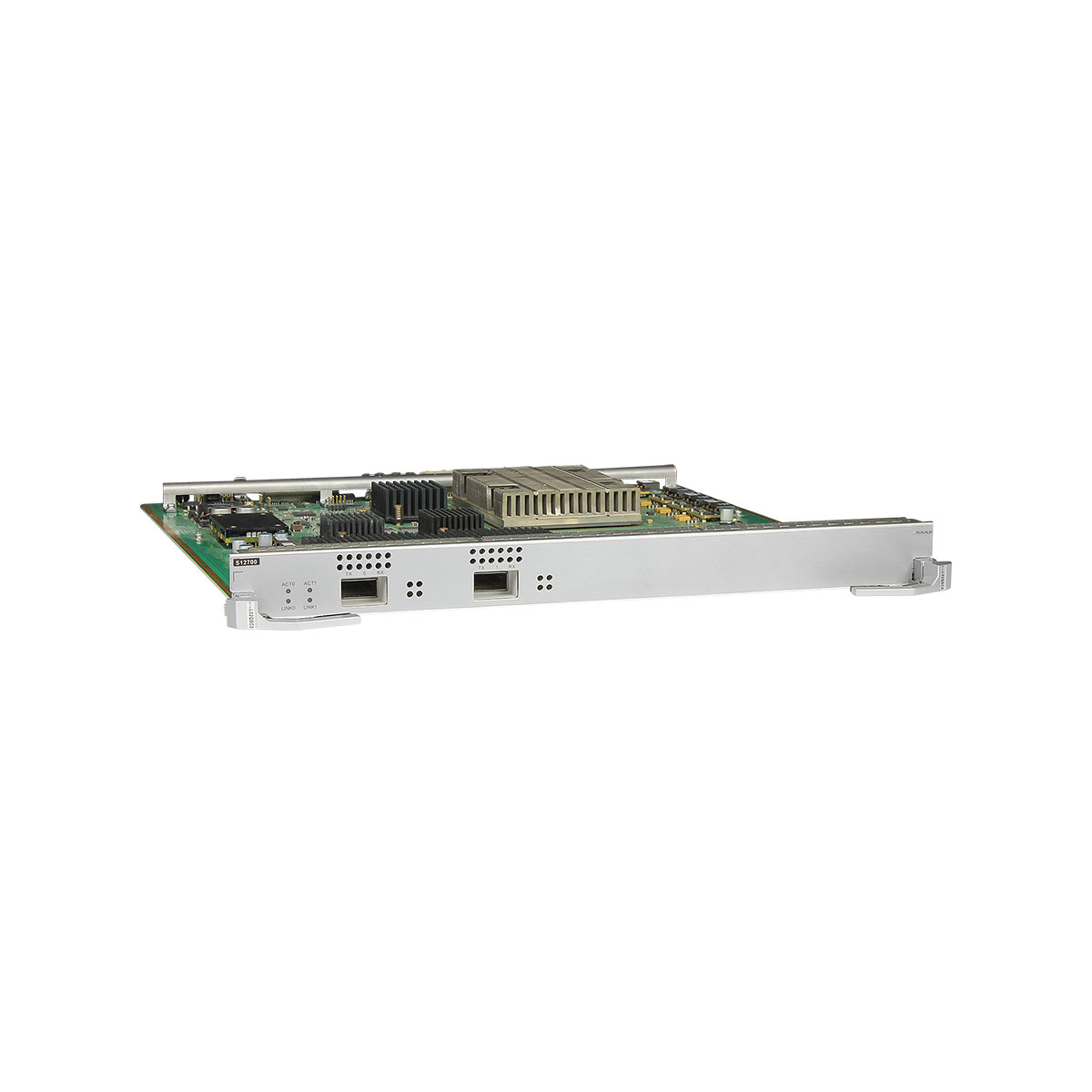

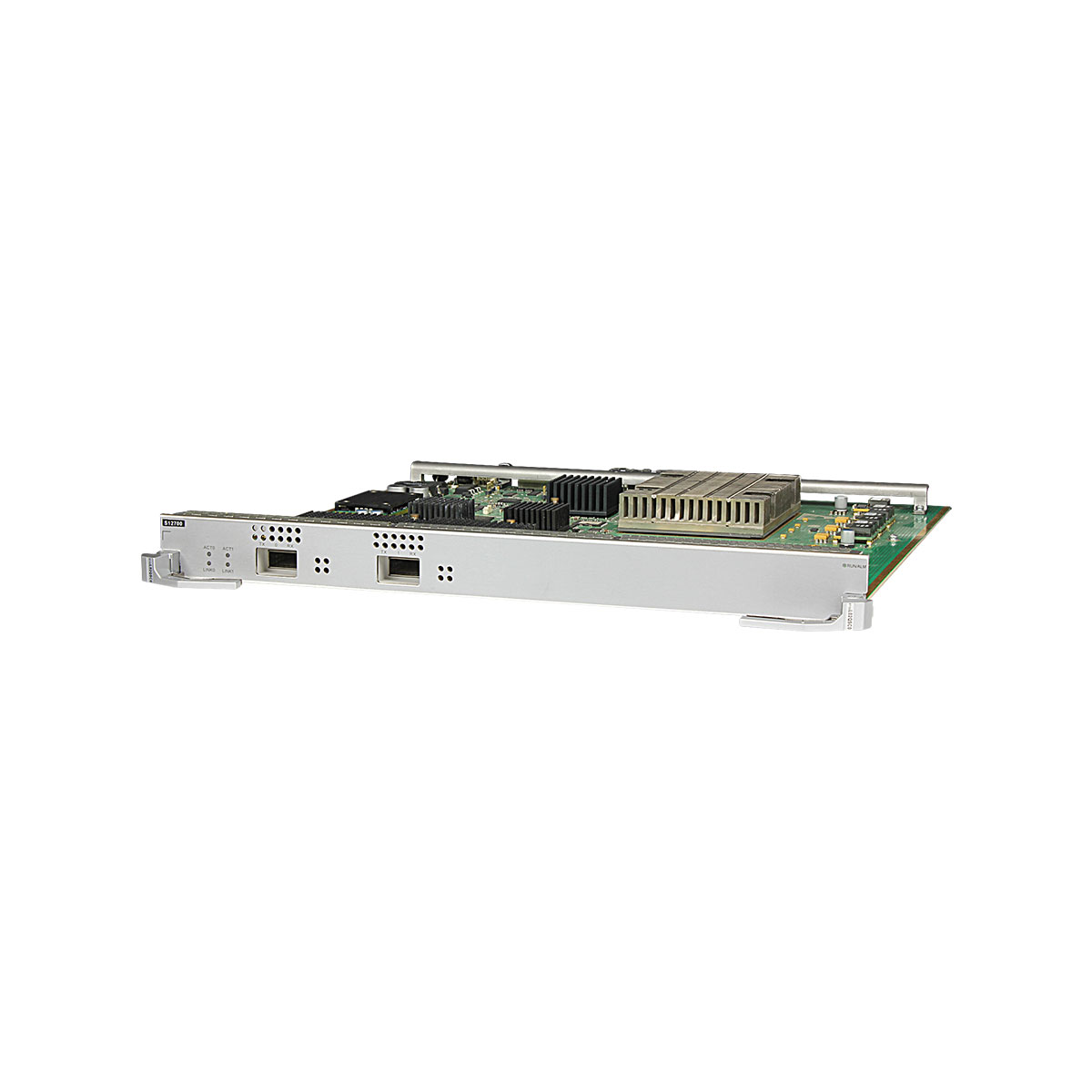

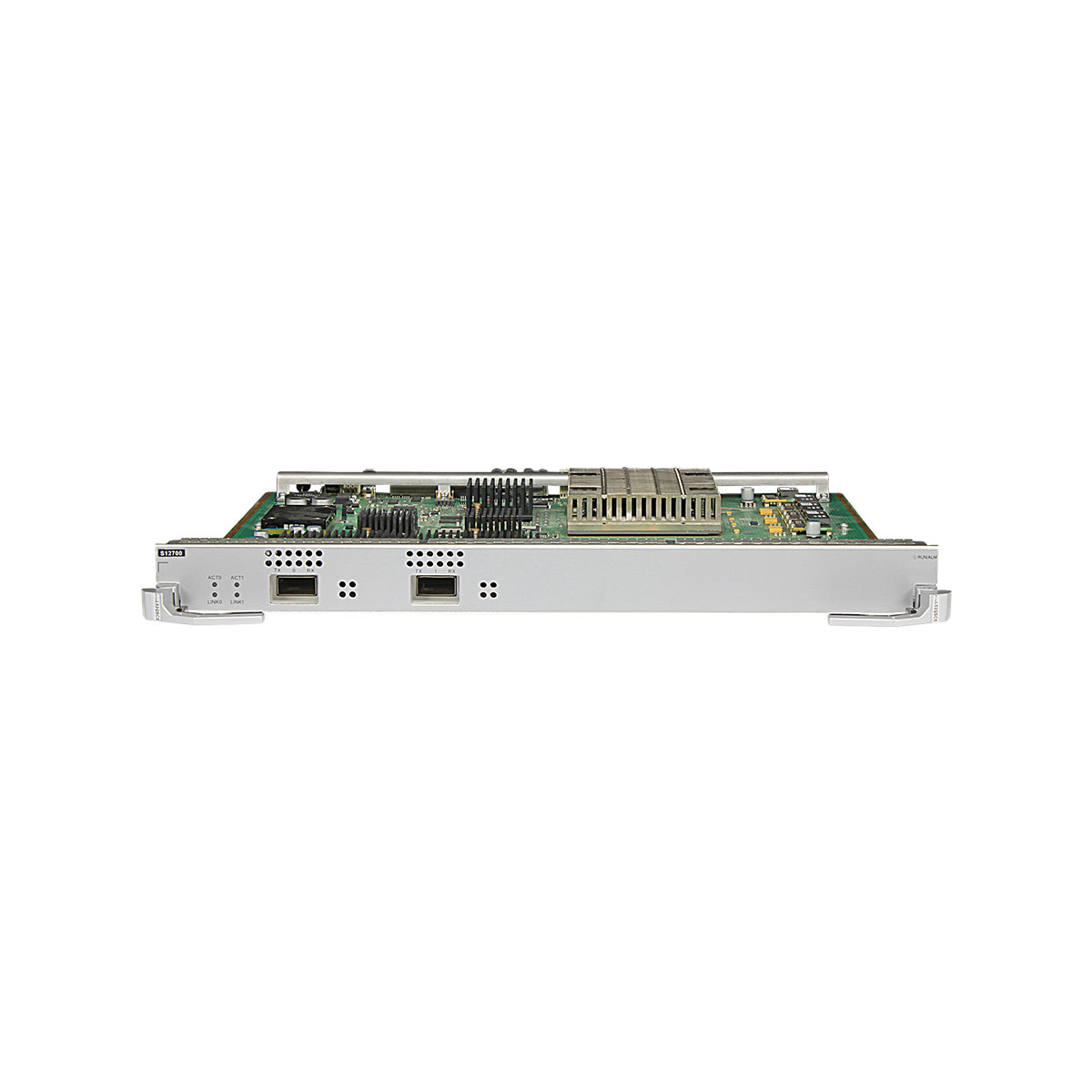

ET1D2L02QSC0 Huawei S9700/S12700 switch 2-port 40GBASE-X interface card (SC, QSFP+)
This card can be installed in:
- Slots 01 to 04 in an S12704 chassis.
- Slots 01 to 08 in an S12708 chassis.
- Slots 01 to 10 in an S12710 chassis.
- Slots 01 to 12 in an S12712 chassis.
Switch chassis and software versions matching the card (S12700)
| Card Name | S12704 Chassis | S12708 and S12712 Chassis | S12710 Chassis |
| ET1D2L02QSC0 | Supported in V200R008C00 and later versions | Supported in V200R005C00 and later versions | Supported in V200R010C00 and later versions |

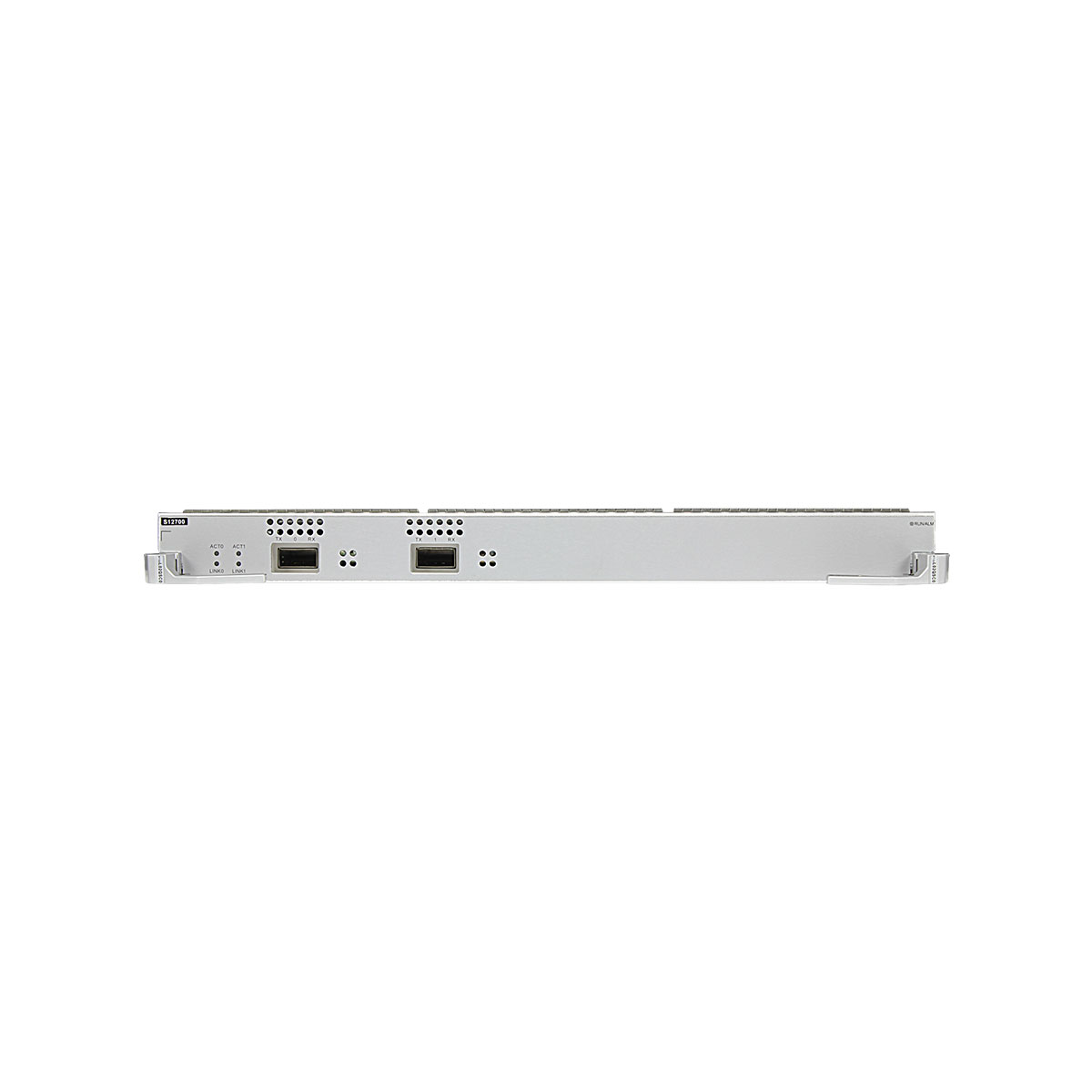

ET1D2L02QSC0 Front Panel
| 1 | Two 40GE BASE-X optical ports |
40GE BASE-X optical port
40GE BASE-X optical port attributes
| Attribute | Description |
| Connector type | QSFP+ |
| Optical port attributes | Depend on the QSFP+ high-speed cable (1 m, 3 m, 5 m), QSFP+ AOC cable, or 40GE QSFP+ Optical Modules used. |
| Applicable cable |
QSFP+ optical module and LC optical fiber QSFP+ optical module and MPO optical fiber (MPO-MPO or MPO-4*DLC optical fiber) QSFP+ high-speed copper cable (QSFP+ to QSFP+ or QSFP+ to 4*SFP+) QSFP+ AOC cable (QSFP+ to QSFP+ or QSFP+ to 4*SFP+) |
