Description

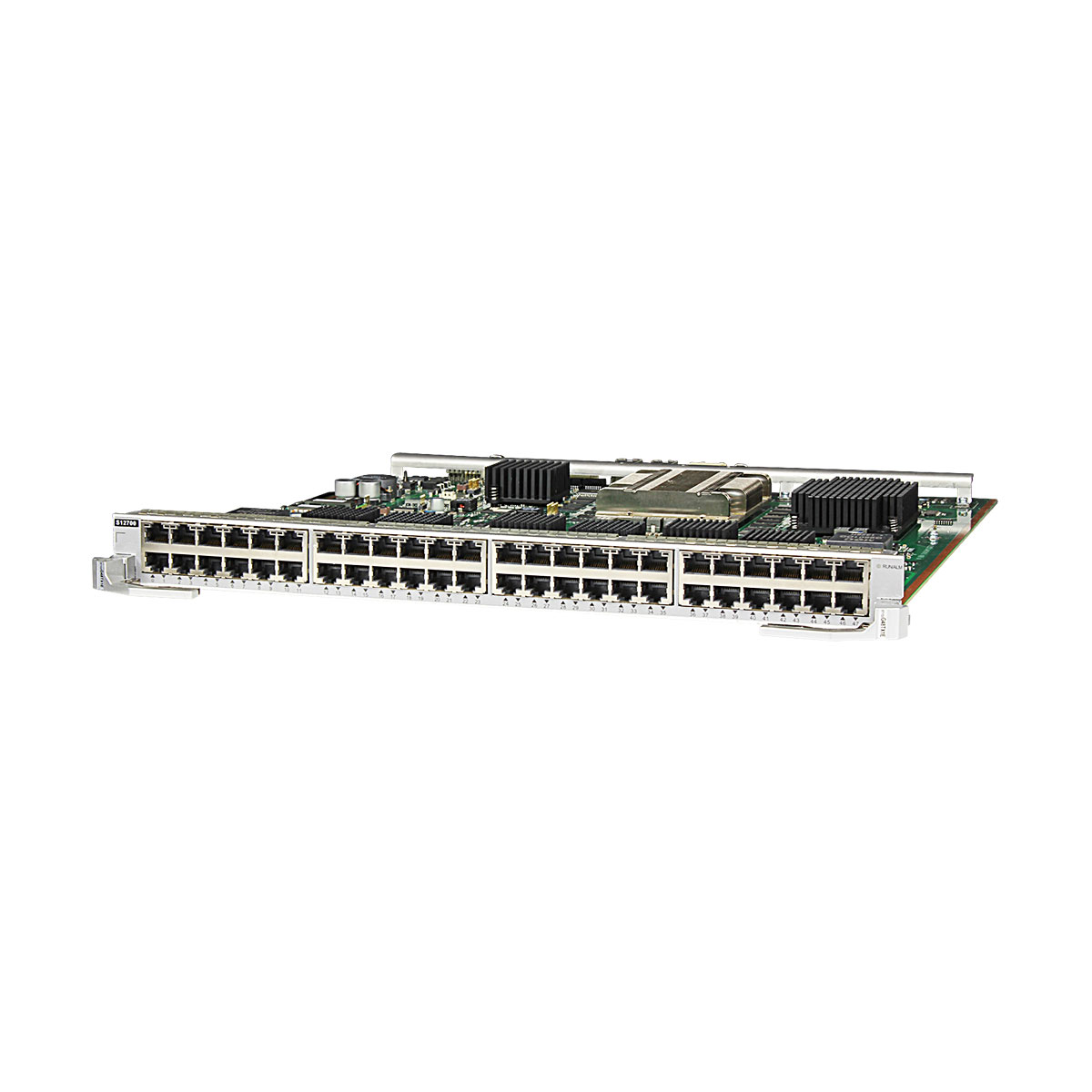

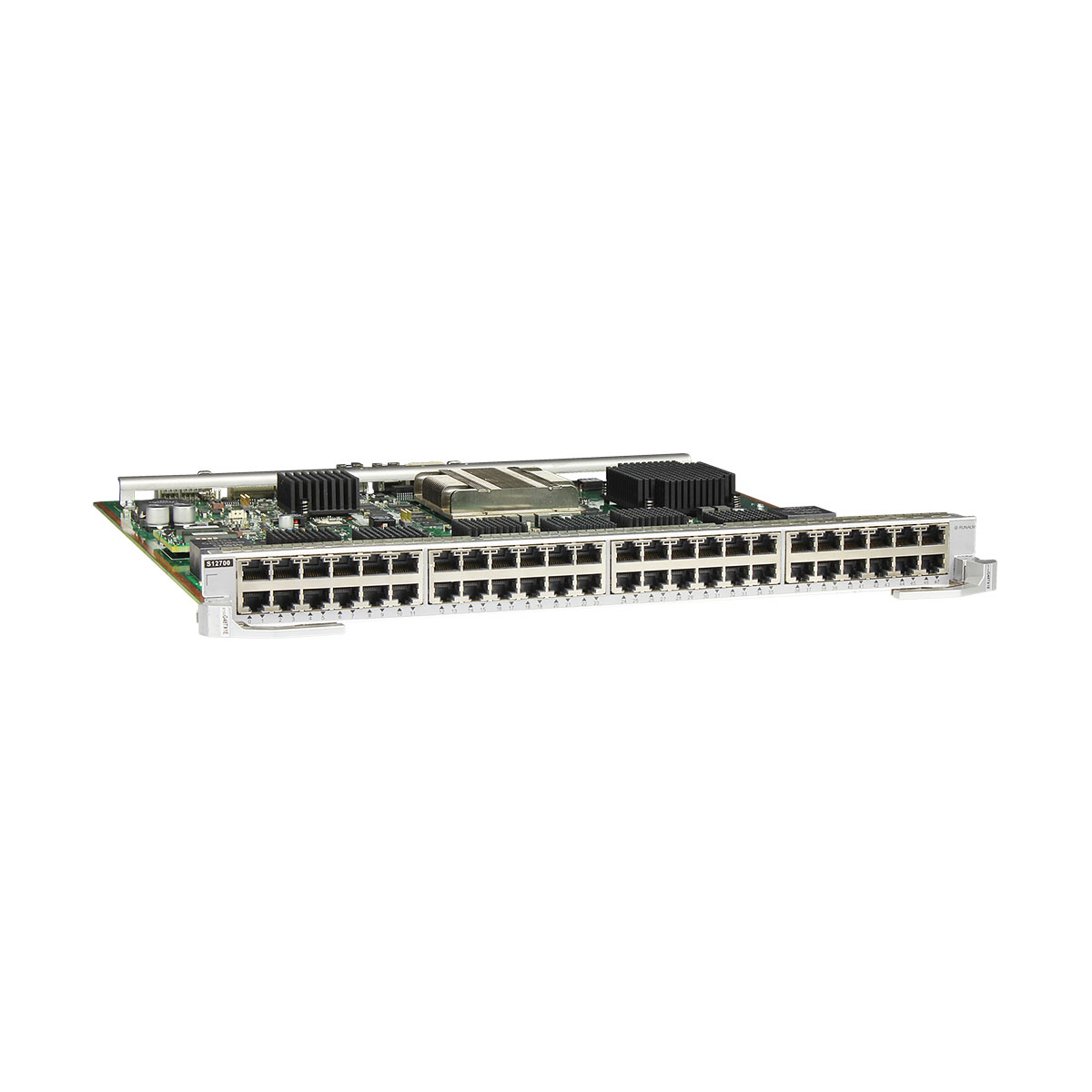

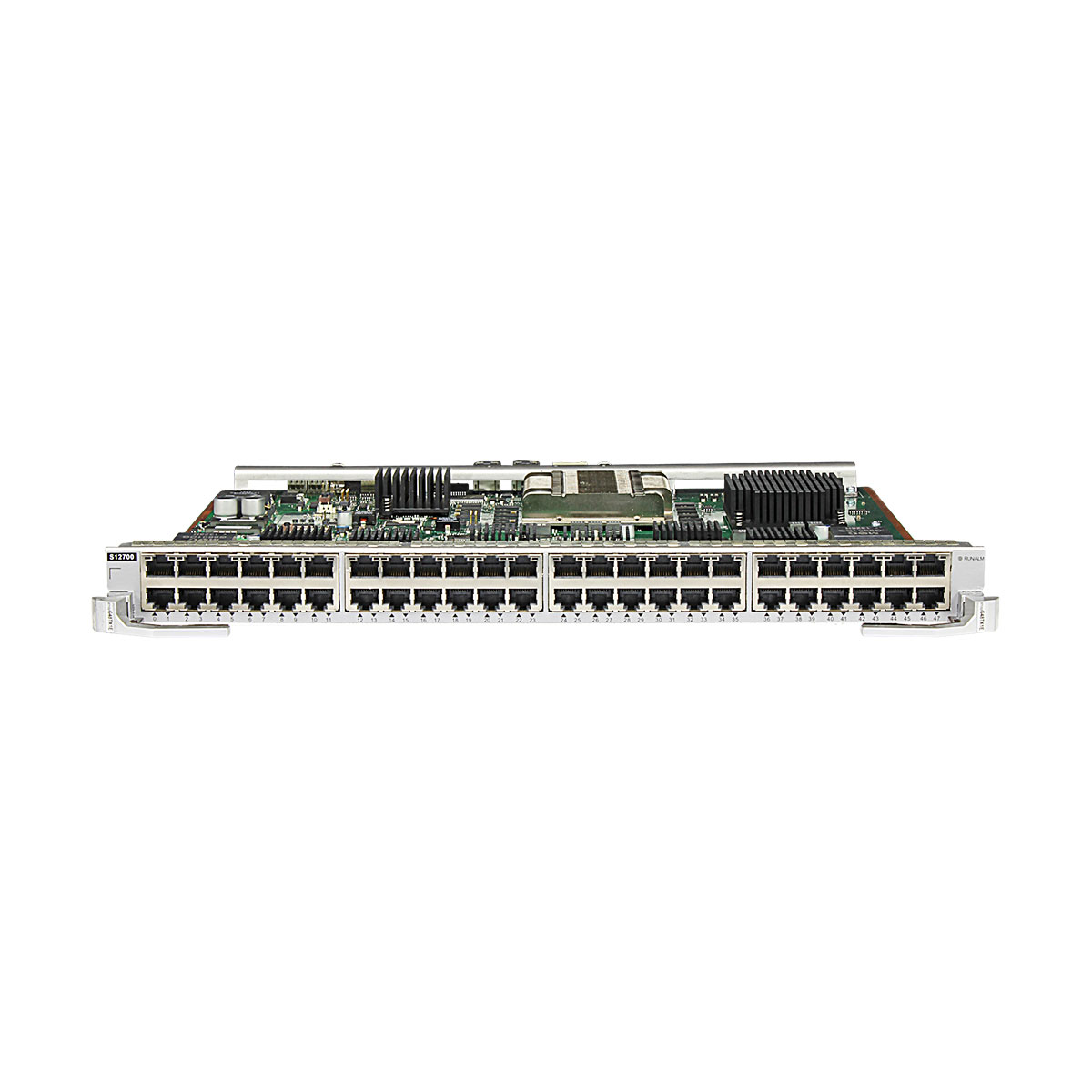

ET1D2G48TX1E Overview
Huawei ET1D2G48TX1E with 48 ports 10/100/1000BASE-T Interface Card apply to Huawei S12704/S12708/S12710/S12712 Switches.
The ET1D2G48TX1E provides high performance, large entry sizes, and a large buffer for data switching. This card is highly integrated and has a large port density.
The ET1D2G24SX5E can be installed in:
- Slots 01 to 04 in an S12704 chassis.
- Slots 01 to 08 in an S12708 chassis.
- Slots 01 to 10 in an S12710 chassis.
- Slots 01 to 12 in an S12712 chassis.
Switch chassis and software versions matching the card
| Card Name | S12704 Chassis | S12708 and S12712 Chassis | S12710 Chassis |
|---|---|---|---|
| ET1D2G48TX1E | Supported in V200R008C00 and later versions | Supported in V200R005C00 and later versions | Supported in V200R010C00 and later versions |

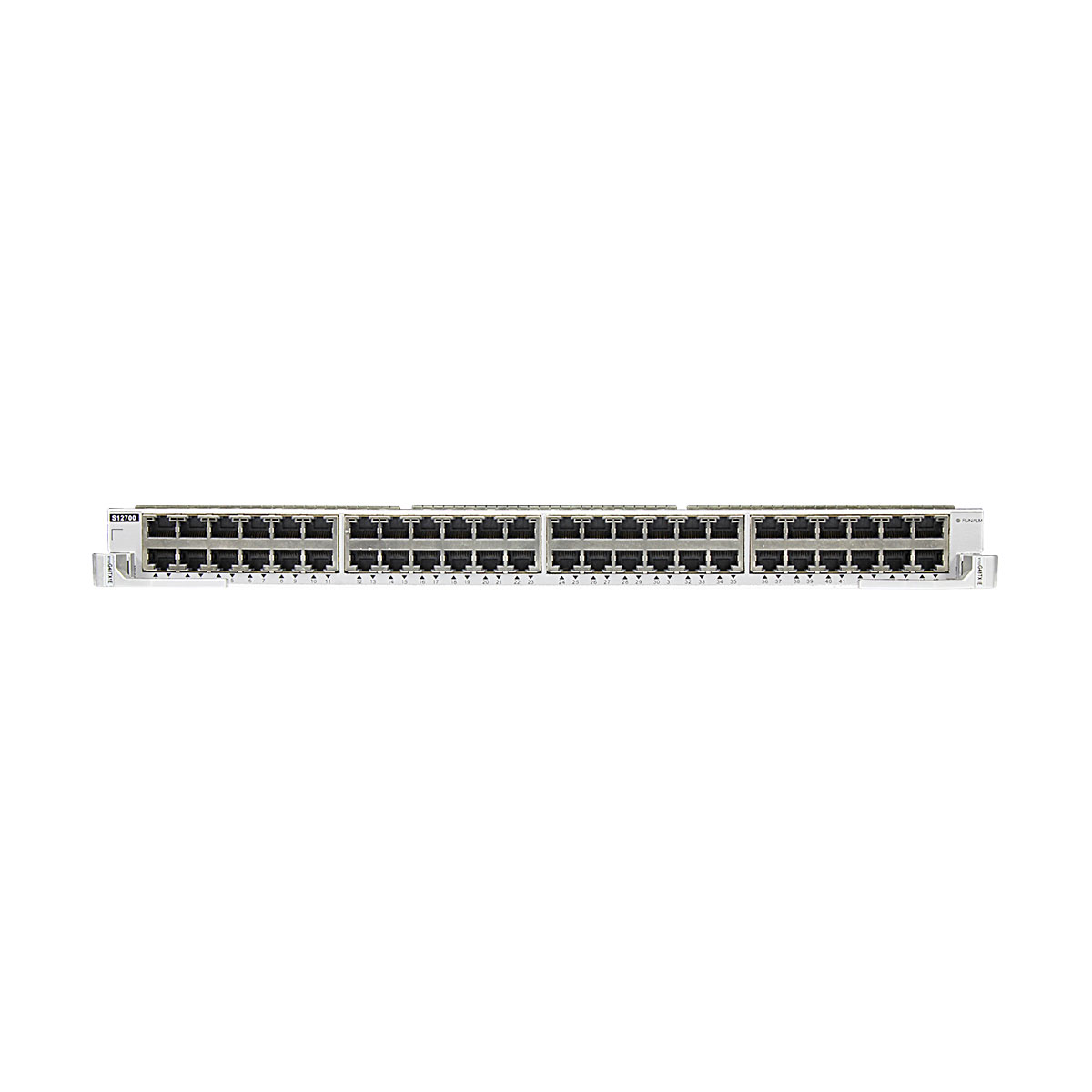

Ports on the ET1D2G48TX1E panel
| 1 | Forty-eight 10/100/1000BASE-T ports |
Functions
| Function | Description |
| Basic function | Provides forty-eight GE electrical ports for data access and switching. |
| Distributed forwarding | Performs concurrent data forwarding using a distributed data plane. |
| Hot swapping | The ET1D2G48TX1E is hot swappable. |
