Description

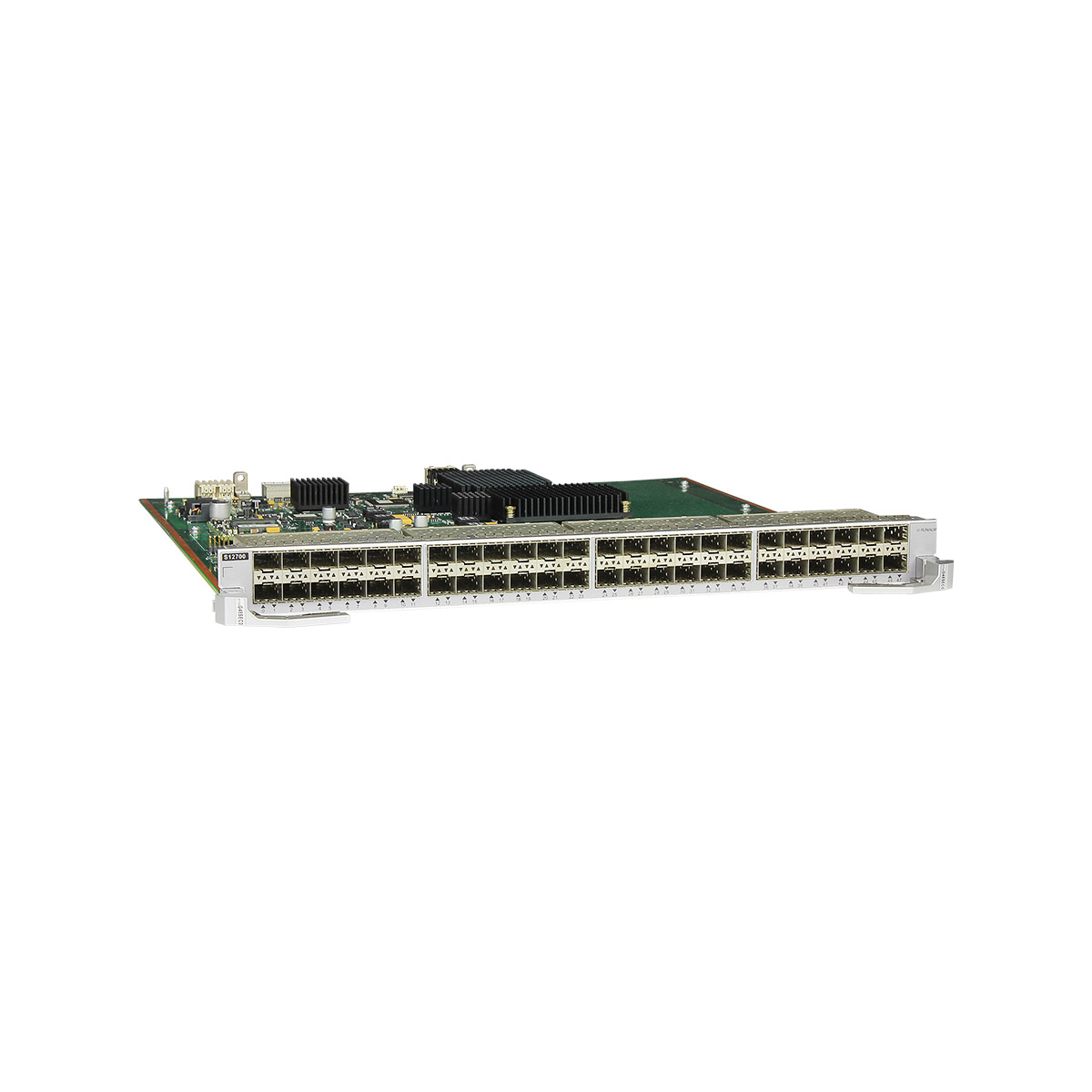

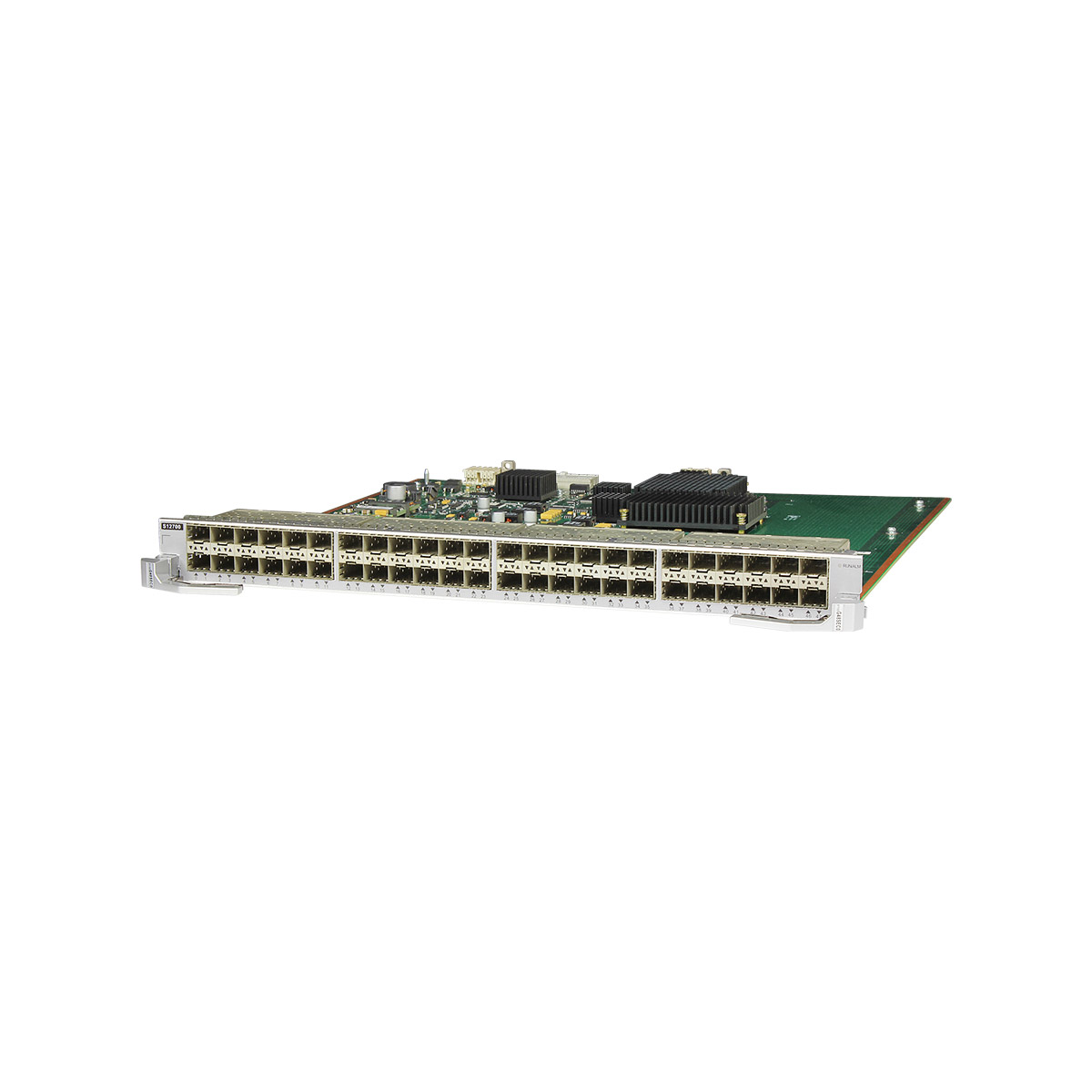

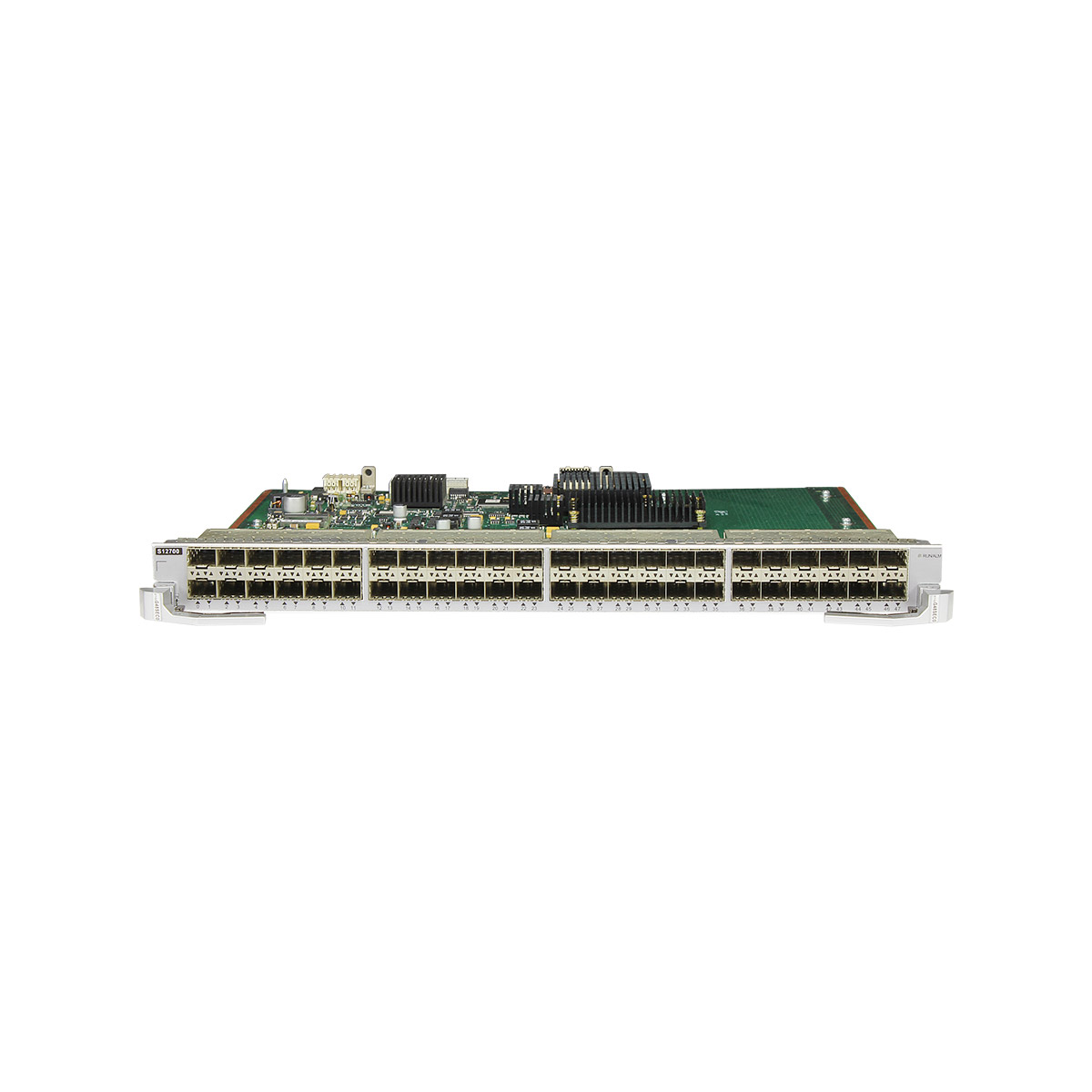

ET1D2G48SEC0 Overview
ET1D2G48SEC0 is 48-Port 100/1000BASE-X Interface Card (EC, SFP) apply for Huawei S9700/S12700 series switches.
Switch chassis and software versions matching the card (S12700)
| Card Name | S12704 Chassis | S12708 and S12712 Chassis | S12710 Chassis |
|---|---|---|---|
| ET1D2G48SEC0 | Supported in V200R008C00 and later versions | Supported in V200R005C00 and later versions | Supported in V200R010C00 and later versions |
The ET1D2G48SEC0 can be installed in:
- Slots 01 to 04 in an S12704 chassis.
- Slots 01 to 08 in an S12708 chassis.
- Slots 01 to 10 in an S12710 chassis.
- Slots 01 to 12 in an S12712 chassis.

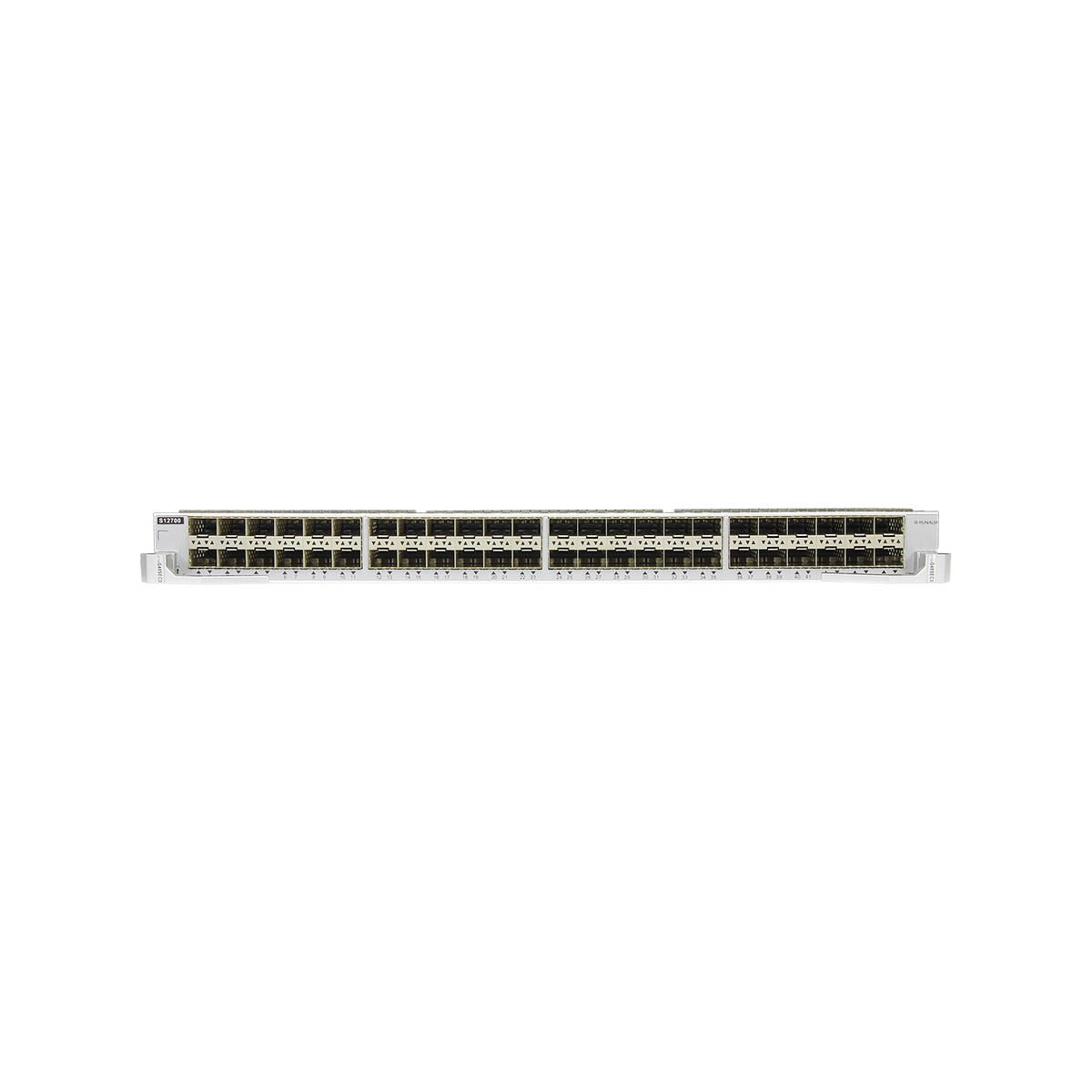

Front panel
| 1 | Forty-eight 100/1000BASE-X optical ports |
100/1000BASE-X optical ports
Optical port attributes (optical module)
| Attribute | Description |
| Connector type | SFP |
| Optical port attributes | Depend on the SFP optical module used.
For details about optical modules supported by the ET1D2G48SEC0 and their attributes, see FE SFP/eSFP Optical Modules, GE eSFP Optical Modules, GE-CWDM eSFP Optical Modules, and GE-DWDM eSFP Optical Modules. |
| Standards compliance | IEEE 802.3z |
| Frame format | Ethernet_II, Ethernet_SAP, Ethernet_SNAP |
| Network protocol | IP |
Optical port attributes (copper module)
| Attribute | Description |
| Connector type | SFP |
| Optical port attributes |
Depend on the SFP copper module used. For details on the copper modules supported by the cards and attributes of the copper modules, see GE SFP Copper Modules (10 Mbit/s, 100 Mbit/s and 1000 Mbit/s rates). |
| Standards compliance | IEEE 802.3ab |
| Frame format | Ethernet_II, Ethernet_SAP, Ethernet_SNAP |
| Network protocol | IP |
