Description

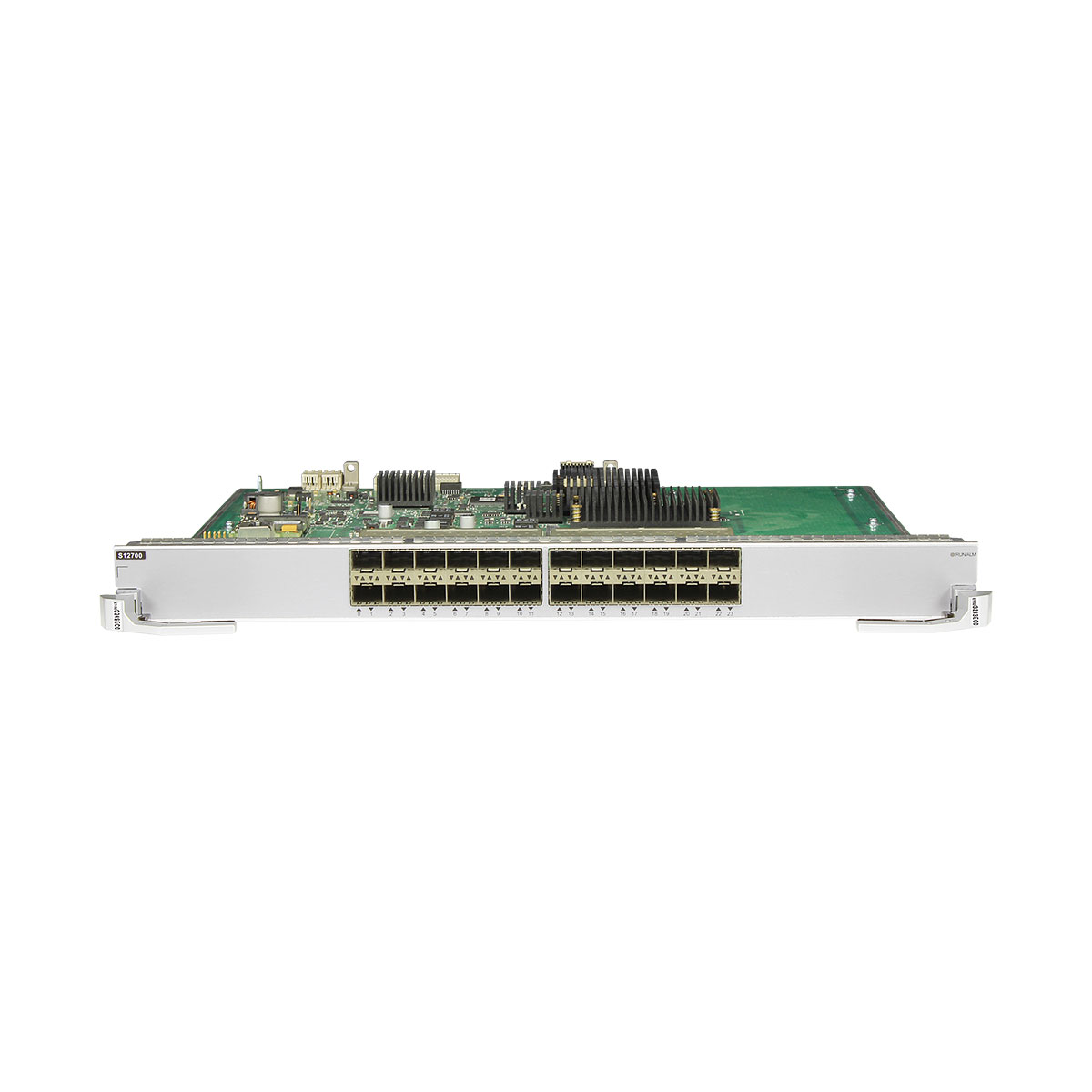

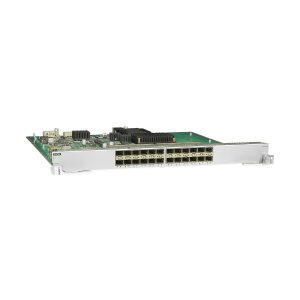

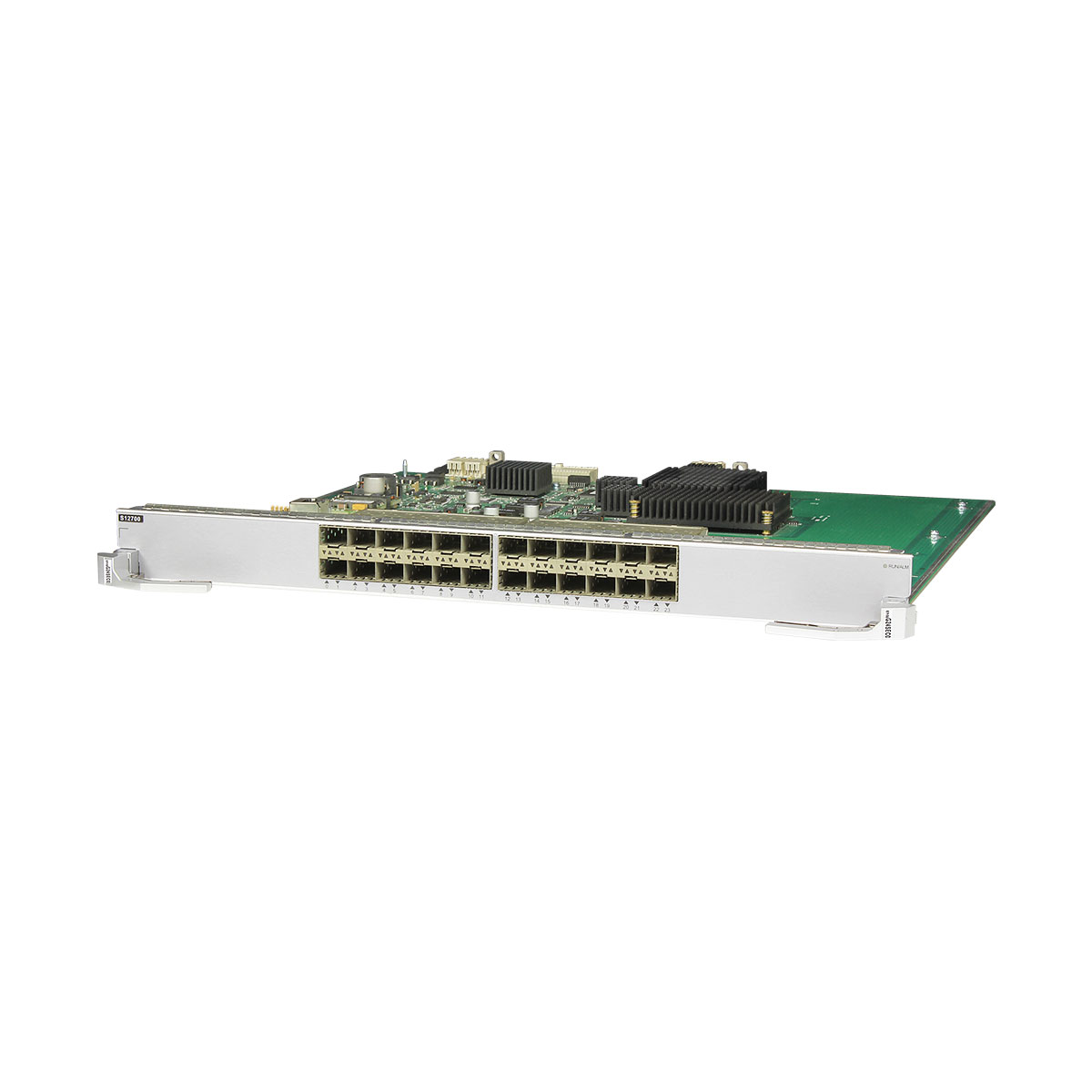

ET1D2G24SEC0 overview
ET1D2G24SEC0 Huawei S9700/S12700 switch 24-Port 100/1000BASE-X Interface Card (EC, SFP)
The ET1D2G48TX5E provides high performance, large entry sizes, and a large buffer for data switching. This card is highly integrated and has a large port density.
The ET1D2G48TX5E can be installed in:
- Slots 01 to 04 in an S12704 chassis.
- Slots 01 to 08 in an S12708 chassis.
- Slots 01 to 10 in an S12710 chassis.
- Slots 01 to 12 in an S12712 chassis.
Switch chassis and software versions matching the card
| Card Name | S12704 Chassis | S12708 and S12712 Chassis | S12710 Chassis |
|---|---|---|---|
| ET1D2G24SEC0 | Supported in V200R008C00 and later versions | Supported in V200R005C00 and later versions | Supported in V200R010C00 and later versions |

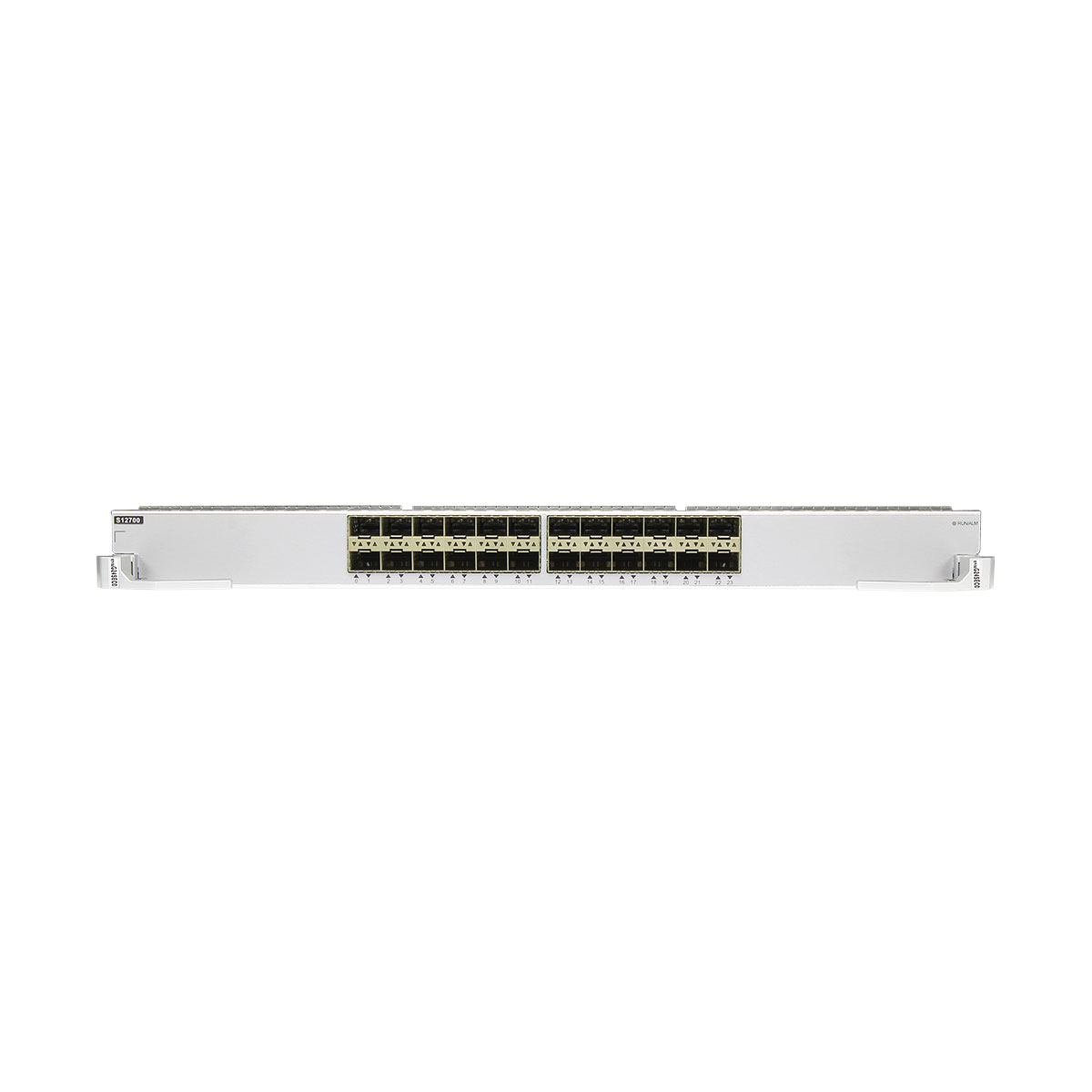

Front Panel
| 1 | Twenty-four 100/1000BASE-X optical ports |
Functions
| Function | Description |
| Basic function | Provides twenty-four GE optical ports for data transmission and switching. |
| Distributed forwarding | Performs concurrent data forwarding using a distributed data plane. |
| Hot swapping | The ET1D2G24SEC0 is hot swappable. |
