Description

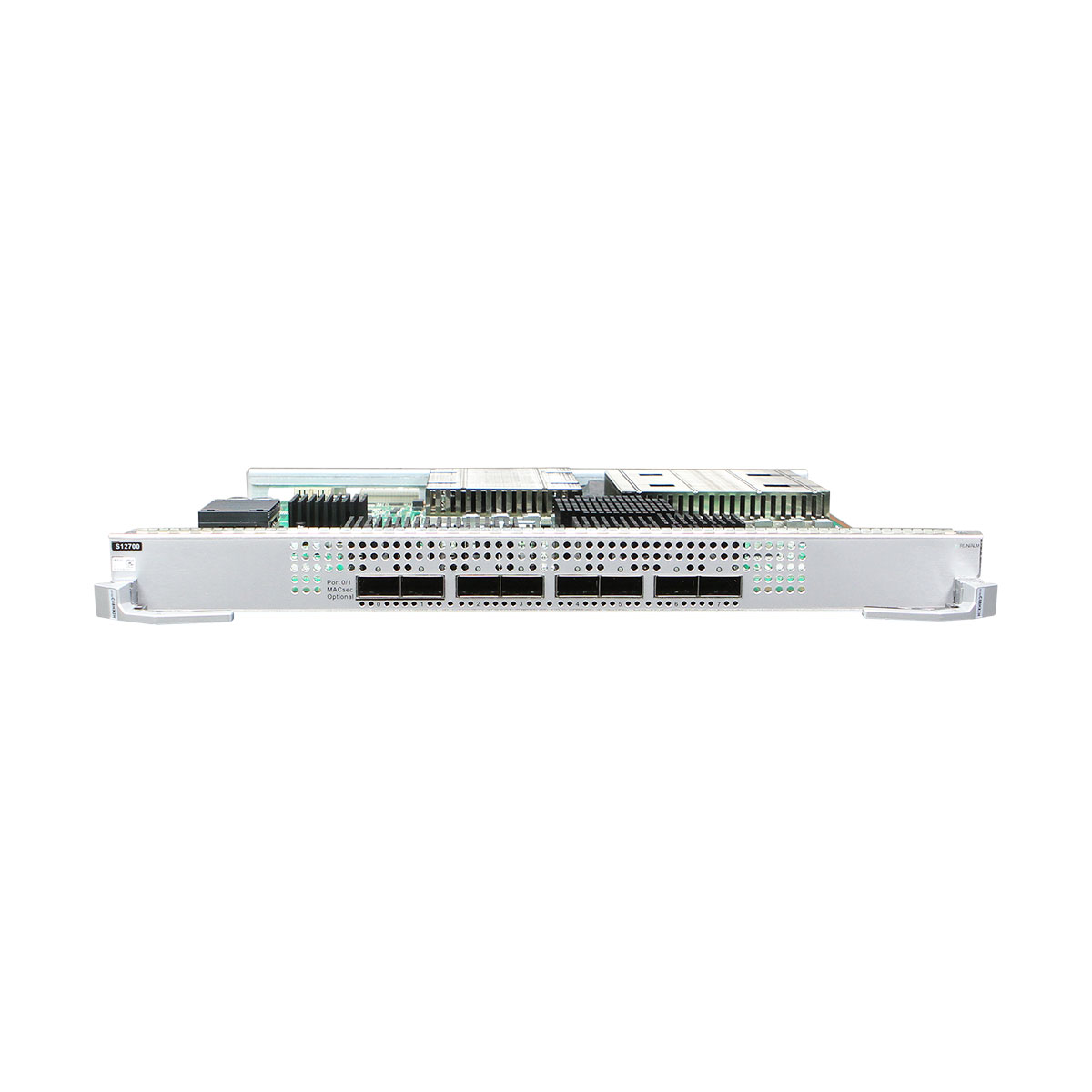

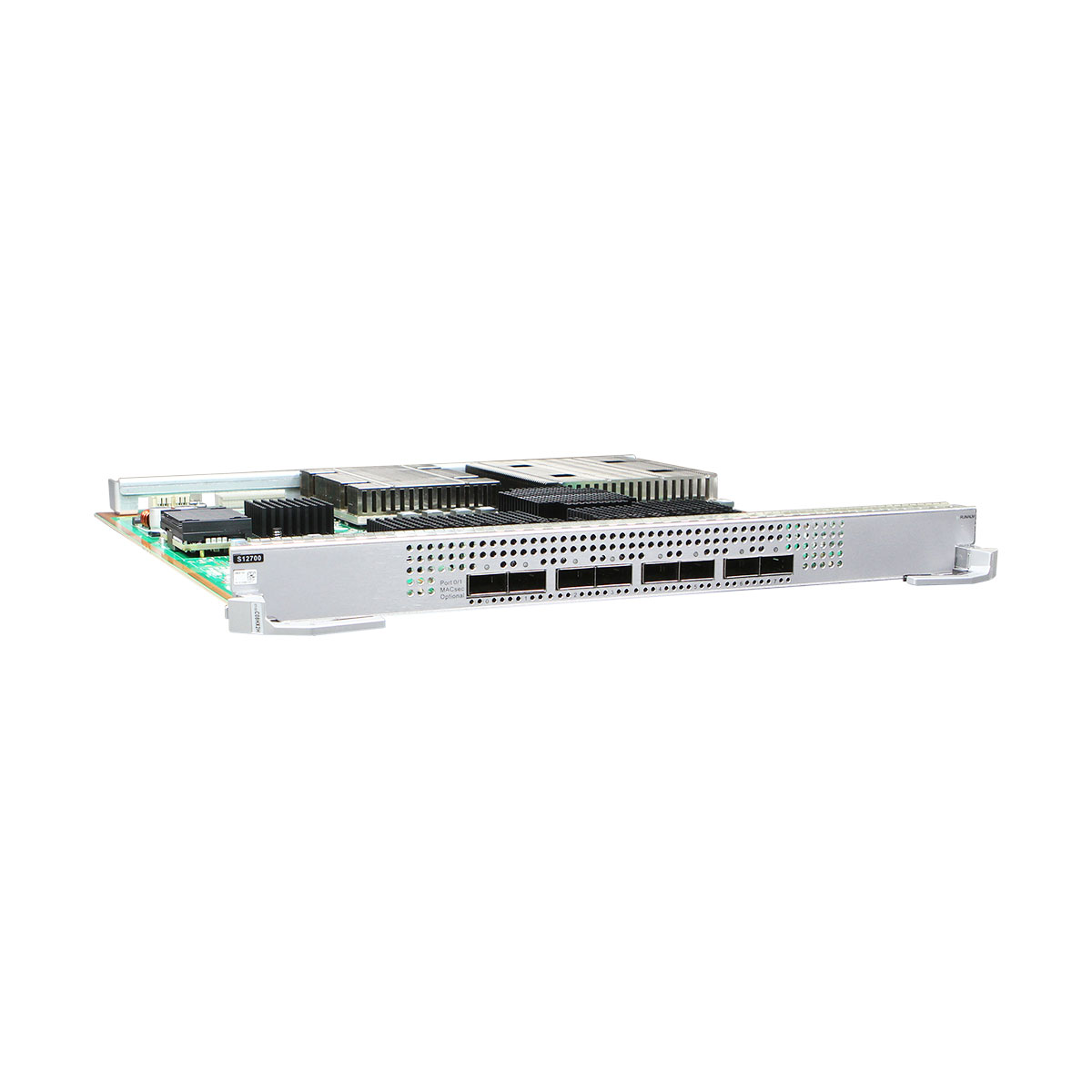

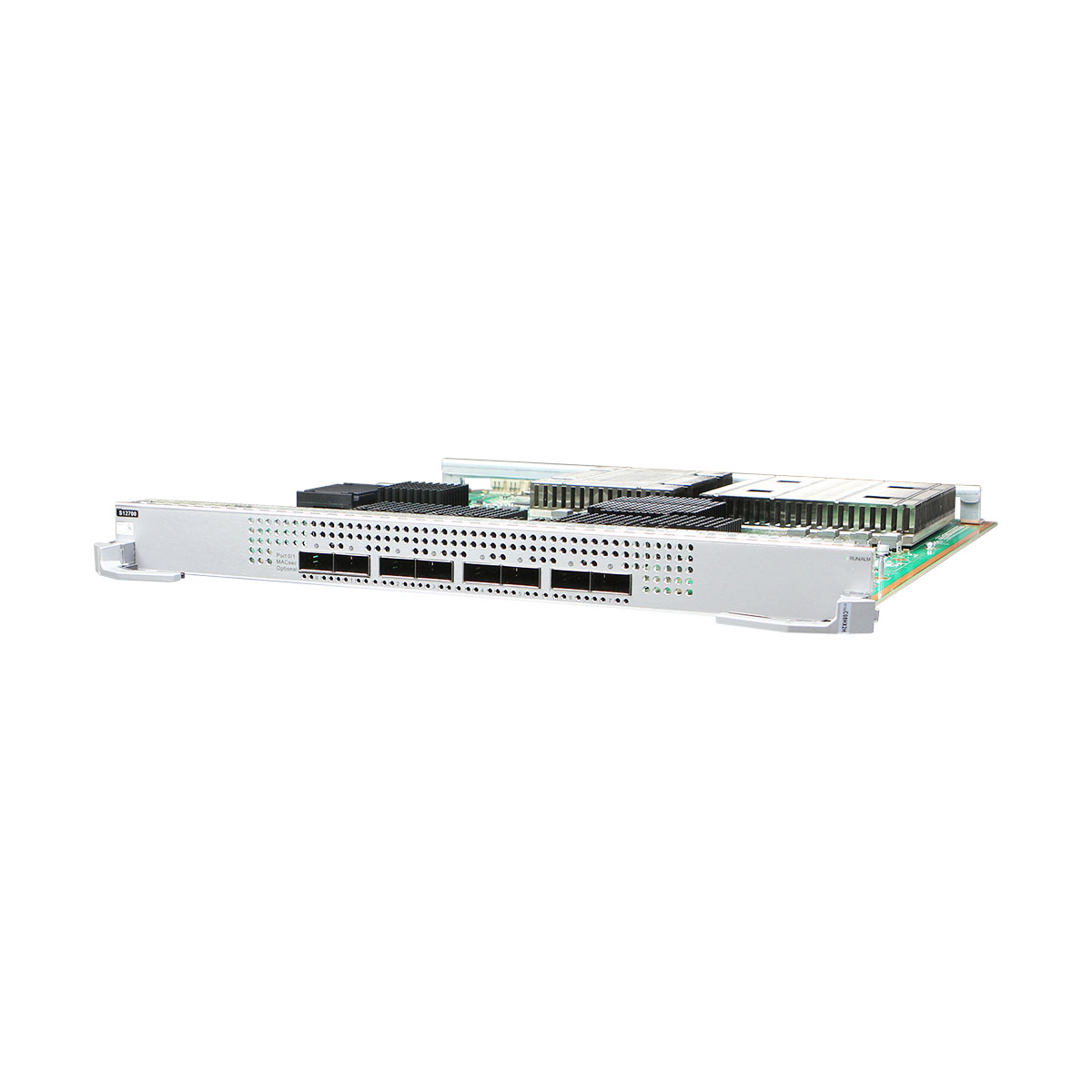

ET1D2C08HX2H Overview
ET1D2C08HX2H 8-Port 100GE QSFP28 Interface Card (X2H, QSFP28) apply for the Huawei S12700 series Switch.
Switch chassis and software versions matching the card (S12700)
| Card Name | S12700 Chassis |
|---|---|
| ET1D2C08HX2H | Supported in V200R012C00 and later versions |
Switch chassis and software versions matching the card (S12700E)
| Card Name | S12700E Chassis |
|---|---|
| ET1D2C08HX2H | Not supported |
The ET1D2C08HX2H can be installed in:
Slots 01 to 04 in an S12704 chassis.
Slots 01 to 08 in an S12708 chassis.
Slots 01 to 10 in an S12710 chassis.
Slots 01 to 12 in an S12712 chassis.

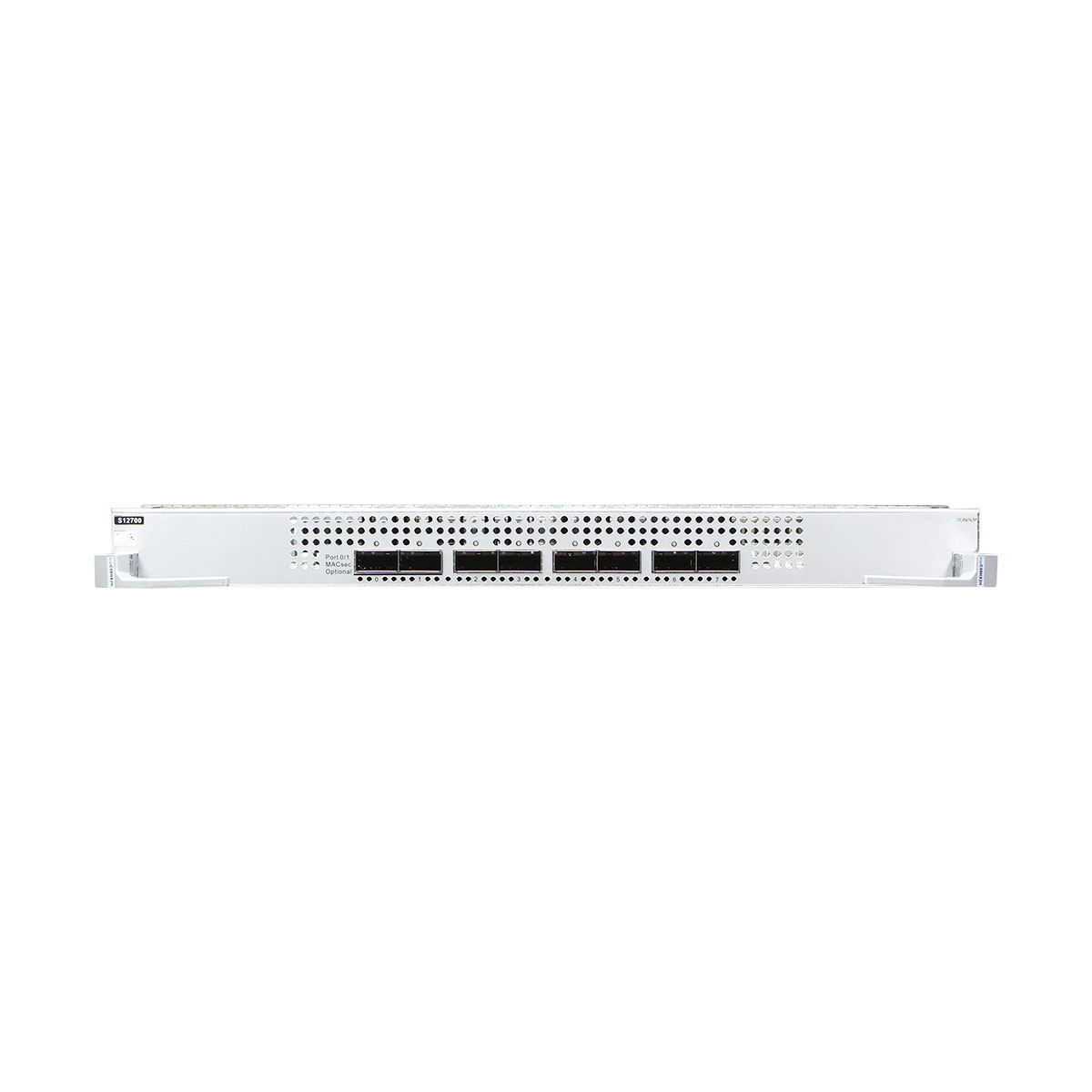

Front Panel
| 1 | Eight 100GE optical ports to transmit and receive service traffic at 40 Gbit/s or 100 Gbit/s |
100GE optical port
Attributes of a 100GE optical port
|
Attribute |
Description |
|---|---|
|
Connector type |
QSFP28 |
|
Optical port attributes |
Depend on the QSFP28 high-speed cable (1 m, 3 m, 5 m), QSFP+ high-speed cable (1 m, 3 m, 5 m), 40GE QSFP+ Optical Modules, 100GE QSFP28 Optical Modules or QSFP+ or QSFP28 AOC cable used.Daa |
|
Applicable cable |
QSFP+ optical module and LC optical fiber QSFP+ optical module and MPO optical fiber (MPO to MPO or MPO to 4*DLC optical fiber) QSFP+ high-speed copper cable (QSFP+ to QSFP+ or QSFP+ to 4*SFP+) QSFP+ AOC cable (QSFP+ to QSFP+ or QSFP+ to 4*SFP+) QSFP28 optical module and LC optical fiber QSFP28 optical module and MPO optical fiber (MPO to MPO) QSFP28 high-speed copper cable QSFP28 AOC cable |
