Description
ET1D2C04HX2S overview

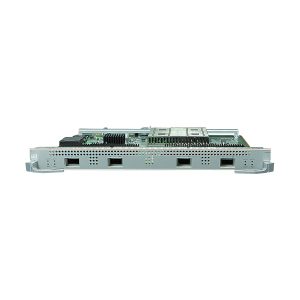

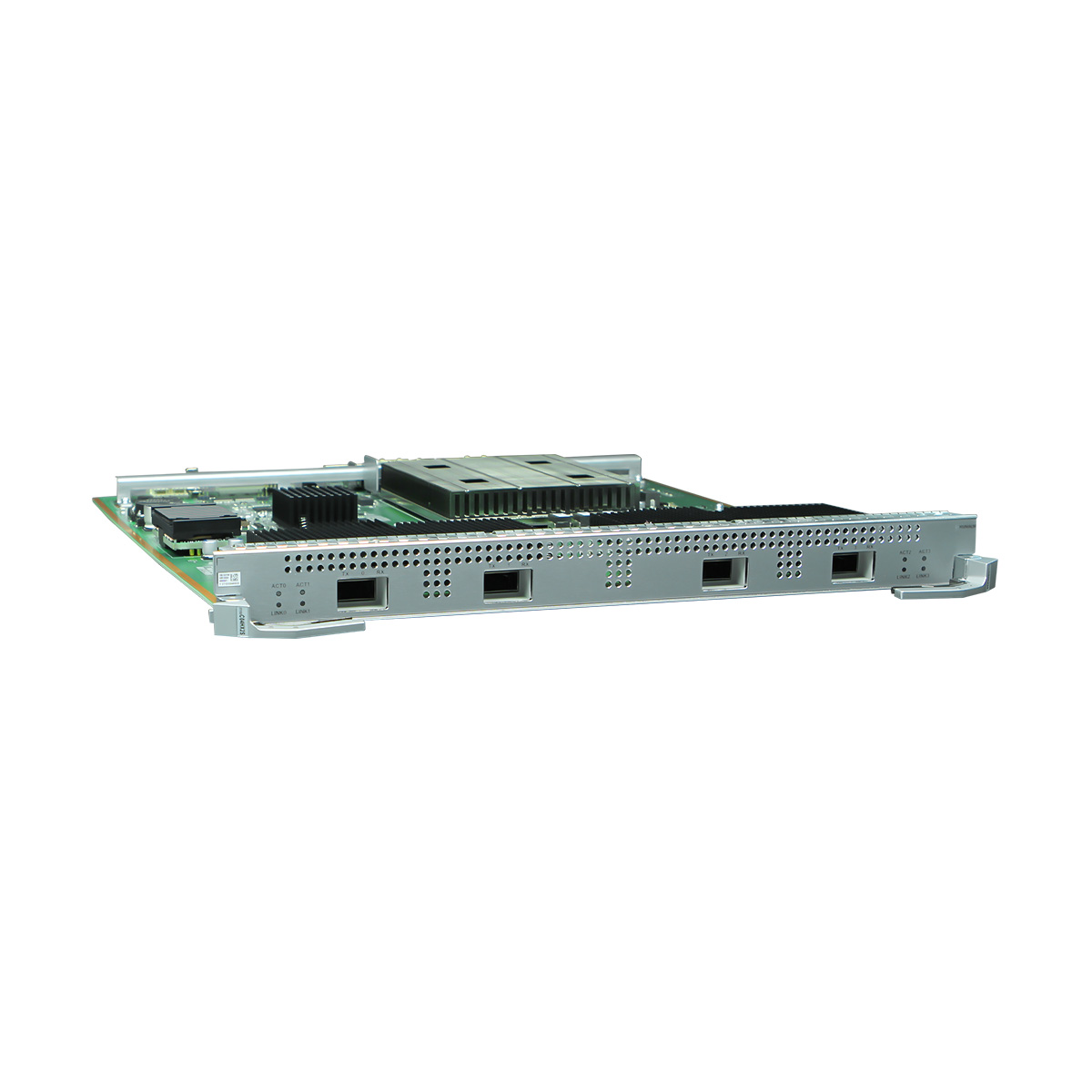

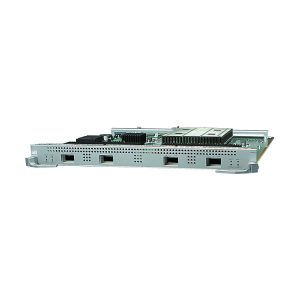

ET1D2C04HX2S Huawei S9700/S12700 switch 4-Port 100GE QSFP28 Interface Card (X2S, QSFP28)
Switch chassis and software versions matching the card (S12700)
| Card Name | S12700 Chassis |
|---|---|
| ET1D2C04HX2S | Supported in V200R010C00 and later versions |
Switch chassis and software versions matching the card (S12700E)
| Card Name | S12700E Chassis |
|---|---|
| ET1D2C04HX2S | Not supported |
This card can be installed in:
Slots 01 to 04 in an S12704 chassis.
Slots 01 to 08 in an S12708 chassis.
Slots 01 to 10 in an S12710 chassis.
Slots 01 to 12 in an S12712 chassis.

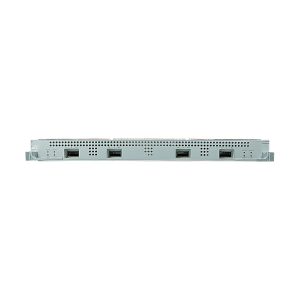

Front Panel
| 1 | Four 100GE optical ports to transmit and receive service traffic at 40 Gbit/s or 100 Gbit/s |
100GE optical port
Attributes of a 100GE optical port
|
Attribute |
Description |
|---|---|
|
Connector type |
QSFP28 |
|
Optical port attributes |
Depend on the QSFP28 high-speed cable (1 m, 3 m, 5 m), QSFP+ high-speed cable (1 m, 3 m, 5 m), 40GE QSFP+ Optical Modules, 100GE QSFP28 Optical Modules or QSFP+ or QSFP28 AOC cable used. |
|
Applicable cable |
QSFP+ optical module and LC optical fiber QSFP+ optical module and MPO optical fiber (MPO to MPO or MPO to 4*DLC optical fiber) QSFP+ high-speed copper cable (QSFP+ to QSFP+ or QSFP+ to 4*SFP+) QSFP+ AOC cable (QSFP+ to QSFP+ or QSFP+ to 4*SFP+) QSFP28 optical module and LC optical fiber QSFP28 optical module and MPO optical fiber (MPO to MPO) QSFP28 high-speed copper cable QSFP28 AOC cable |
