Description

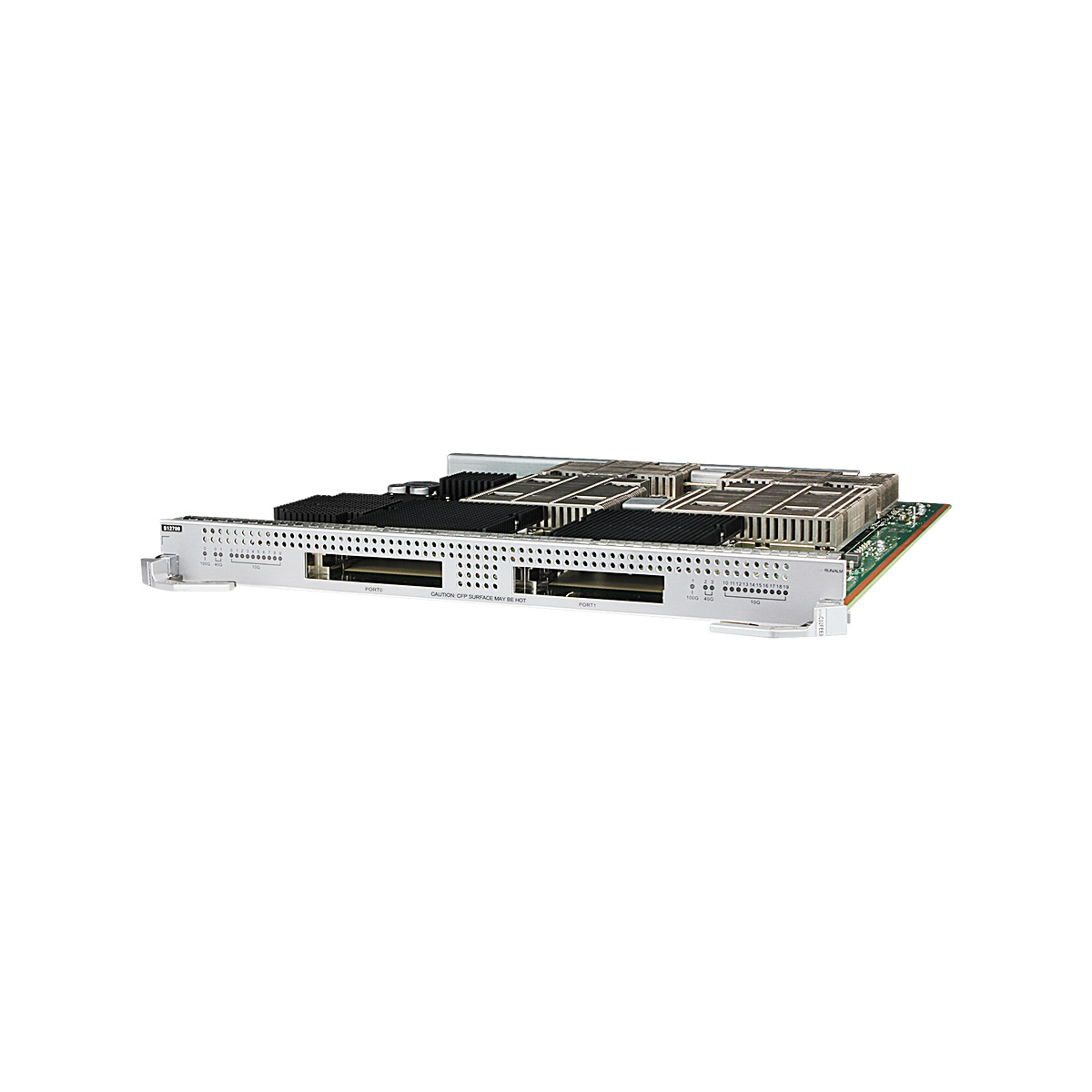

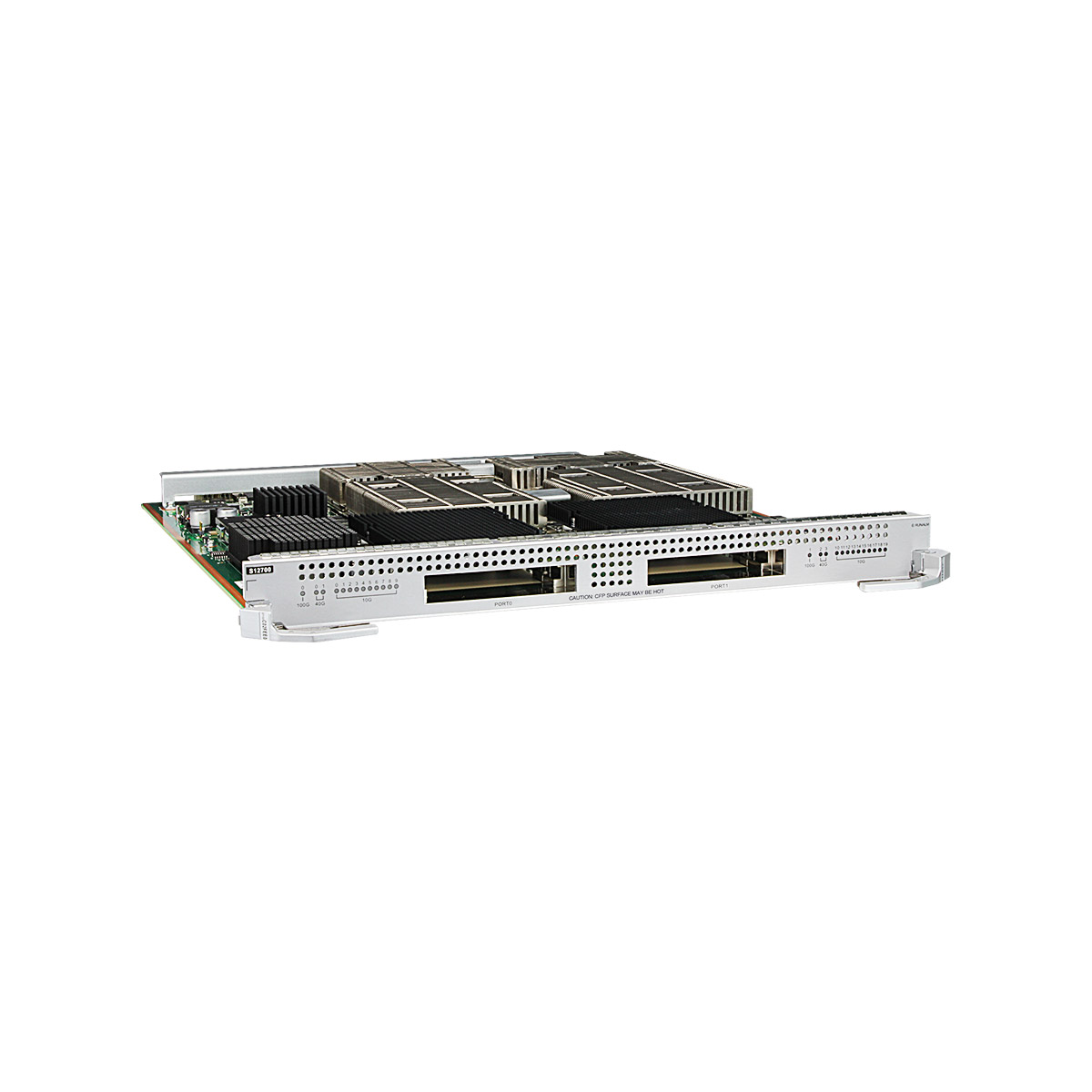

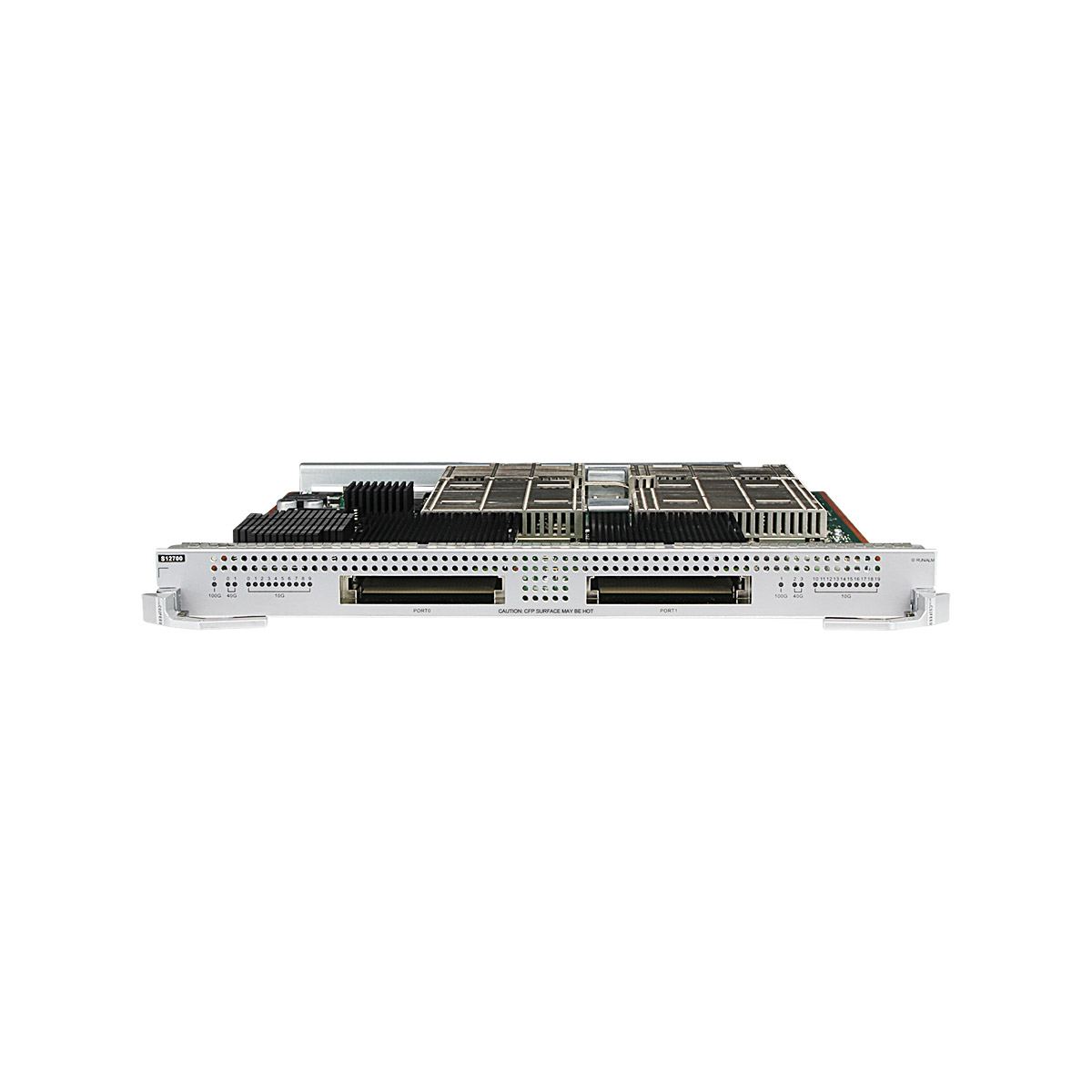

ET1D2C02FEE0 overview
ET1D2C02FEE0 Huawei S9700/S12700 switch 2-Port 100GBASE-X Interface Card (EE, CFP)
Switch chassis and software versions matching the card (S12700)
| Card Name | S12704, S12708 and S12712 Chassis | S12710 Chassis |
|---|---|---|
| ET1D2C02FEE0 | Supported in V200R008C00 and later versions | Supported in V200R010C00 and later versions |
Switch chassis and software versions matching the card (S12700E)
| Card Name | S12700E Chassis |
|---|---|
| ET1D2C02FEE0 | Not supported |
This card can be installed in:
Slots 01 to 04 in an S12704 chassis.
Slots 01 to 08 in an S12708 chassis.
Slots 01 to 10 in an S12710 chassis.
Slots 01 to 12 in an S12712 chassis.

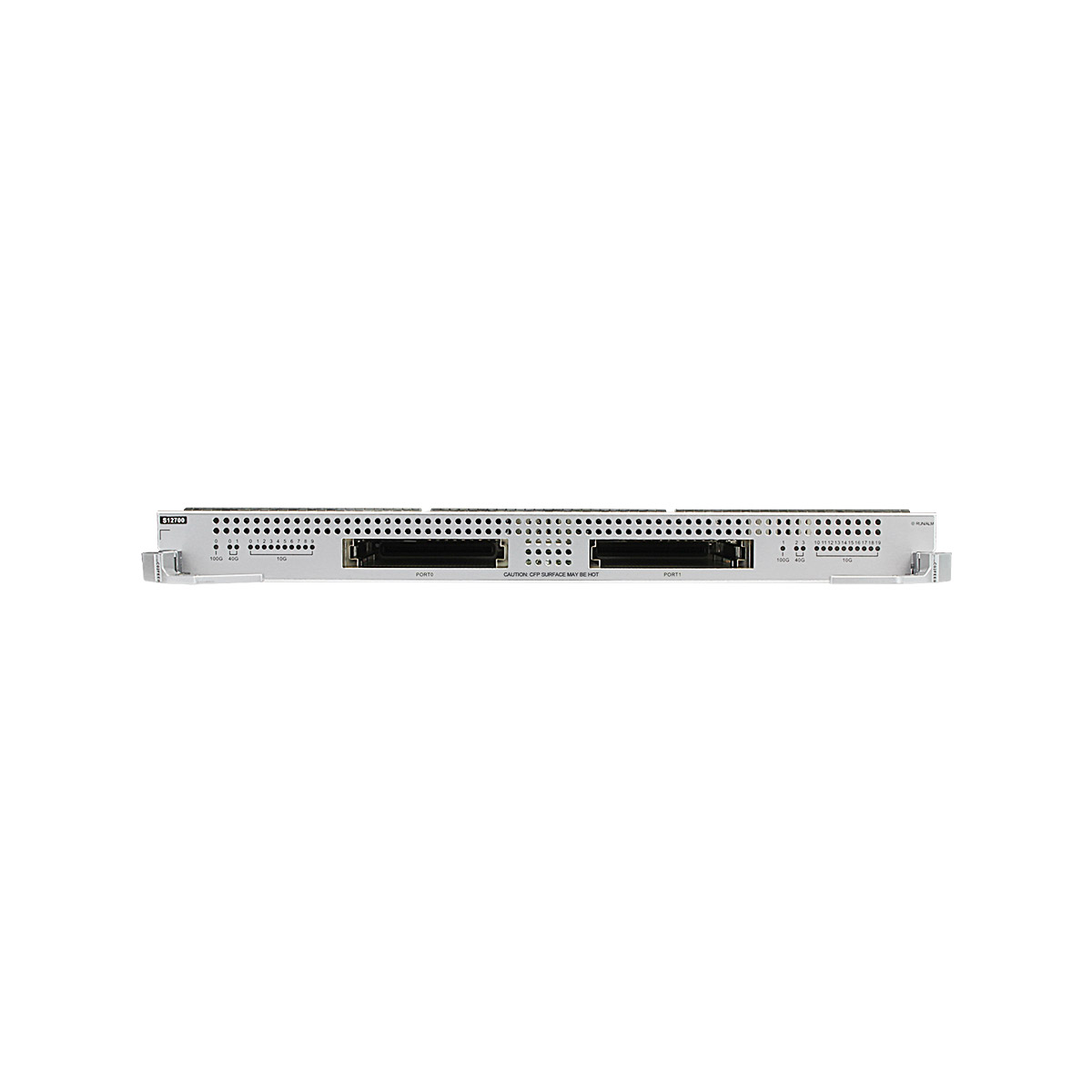

Front Panel
| 1 | Two 100GE optical ports |
100GE optical port
Attributes of a 100GE optical port
| Attribute | Description |
|---|---|
| Connector type | CFP |
| Optical port attributes | Depend on the 40GE CFP Optical Modules and 100GE CFP Optical Modules used |
| Applicable cable | CFP optical module and LC optical fiber
CFP optical module and MPO optical fiber (MPO-MPO, MPO-2*MPO, or MPO-10*DLC optical fiber) |
