Categories:S7700/S9700 Series

ES1D2X32SSC0

0 Reviews Write a review

PN03031FSQ

BrandsHuawei

AvailabilityIn Stock

S7700 10GE Card

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

ES1D2X32SSC0 Huawei S7700 switch 32 Port 10GBASE-X Interface Card (SC, SFP+)

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

ES1D2X32SSC0 overview

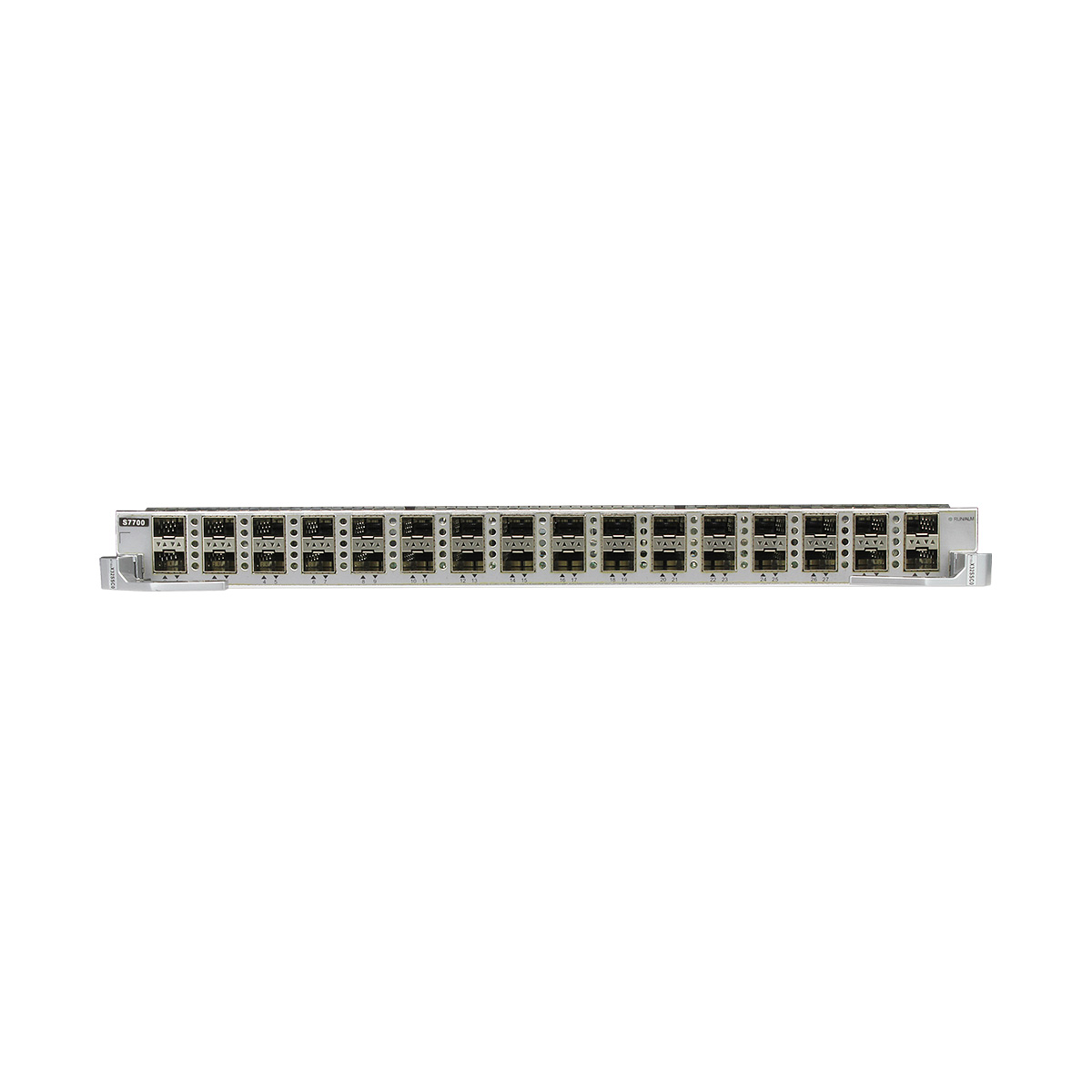

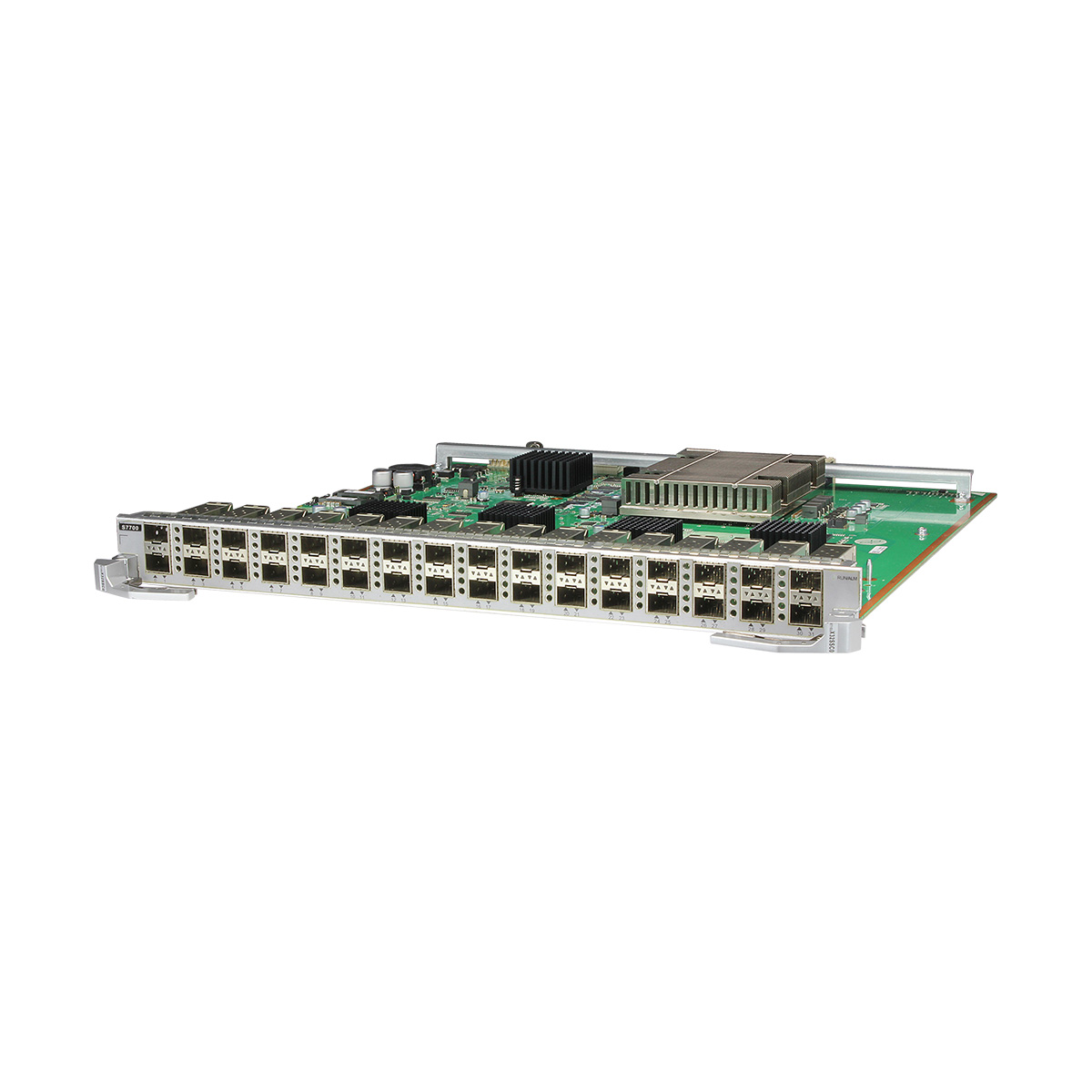

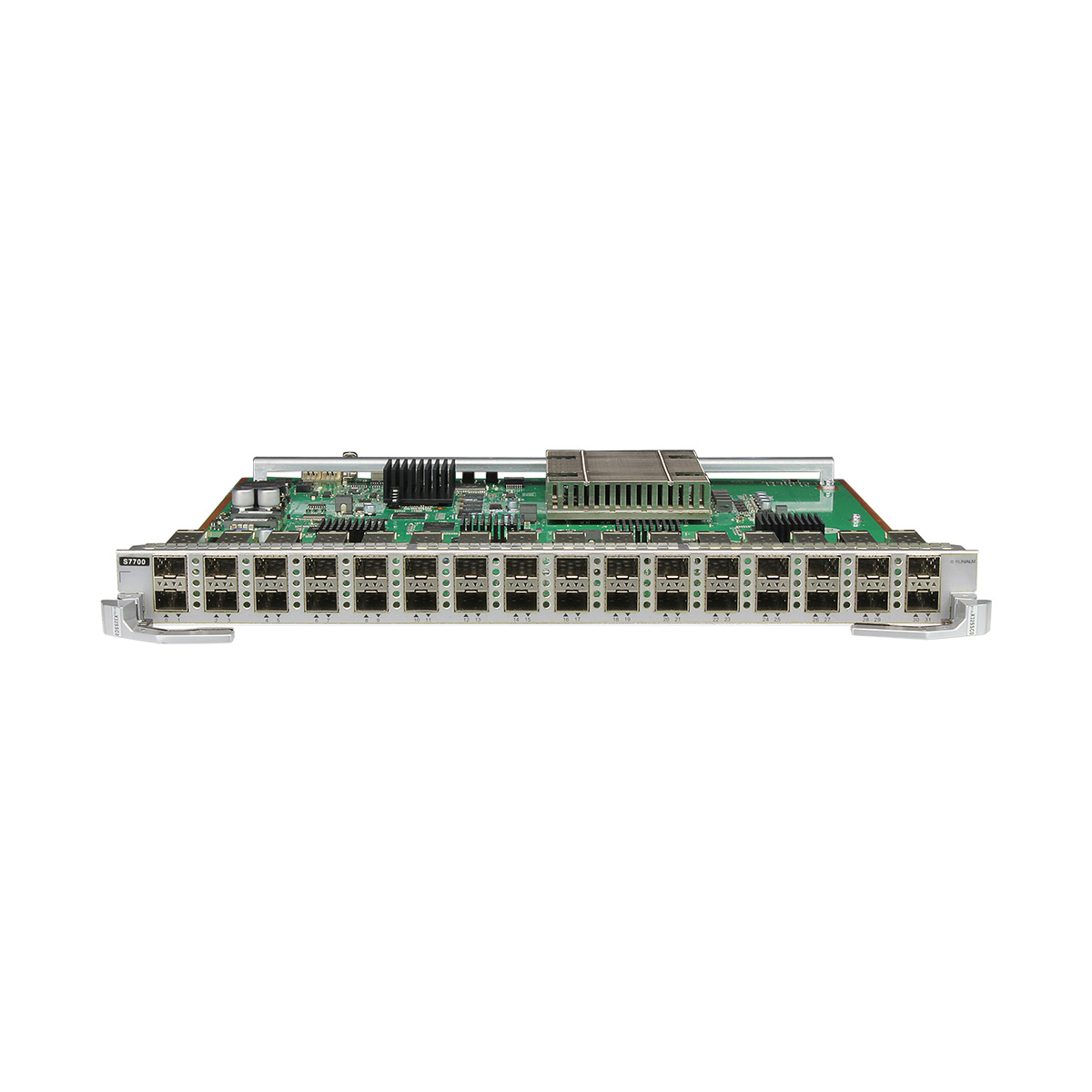

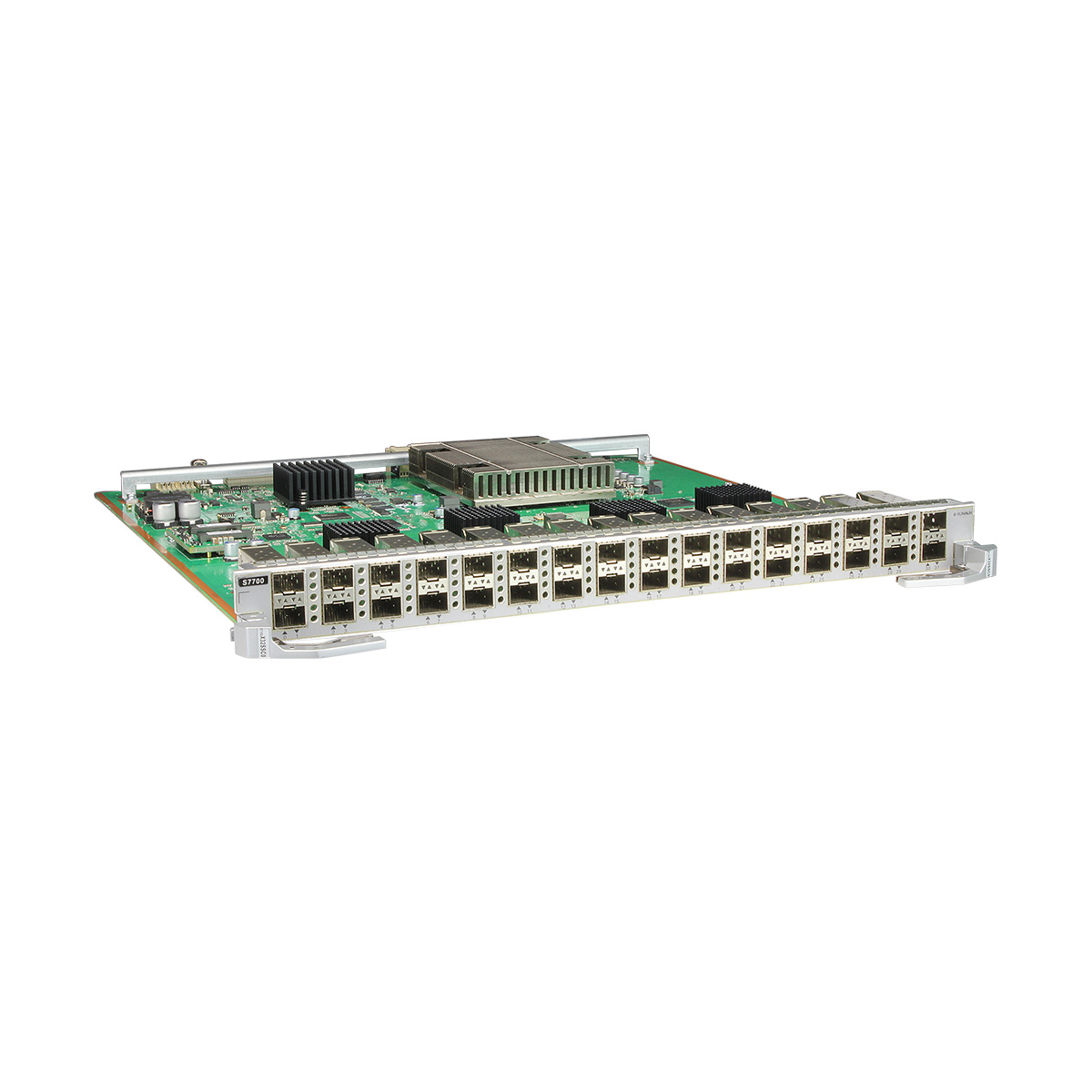

ES1D2X32SSC0 Huawei S7700 switch 32 Port 10GBASE-X Interface Card (SC, SFP+)

ES1D2X32SSC0 application

Card Name

S7700 Chassis

ES1D2X16SSC2

S7703, S7706 and S7712 chassis: supported in V200R008C00 and later versions

S7703 PoE and S7706 PoE chassis: supported in V200R013C00 and later versions

ES1D2X32SSC0 functions and features

Function	Description
Basic functions	Provides thirty-two 10GE optical ports for data transmission and switching.
Distributed forwarding	Performs concurrent data forwarding using a distributed data plane.
Hot swapping	Supported

Item	ES1D2X32SSC0
Apply to S7700 Switch
Attributes of a 1000BASE-X port
Connector type	SFP
Optical port attributes	Depend on the SFP optical module used
Standards compliance	IEEE 802.3ab
Frame format	Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol	IP
Attributes of GE optical modules
eSFP-GE-SX-MM850	≤ 0.22		1000base-SX	Fiber mode: multimode Modal Bandwidth: 160 MHz*km Core diameter: 62.5 μm Connector type: LC
	≤ 0.275			Fiber mode: multimode (OM1) Connector type: LC
	≤ 0.5			Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC
	≤ 0.55			Fiber mode: multimode (OM2) Connector type: LC
	≤ 1			Fiber mode: multimode (OM3) Connector type: LC
SFP-GE-LX-SM1310	≤ 10		1000base-LX/LH	Fiber mode: single-mode Connector type: LC
S-SFP-GE-LH40-SM1310	≤ 40
S-SFP-GE-LH40-SM1550
S-SFP-GE-LH80-SM1550	≤ 80		1000base-ZX
eSFP-GE-ZX100-SM1550	≤ 100
SFP-GE-LX-SM1310-BIDI (Single-fiber bidirectional)	≤ 10		1000base-BX
SFP-GE-LX-SM1490-BIDI (Single-fiber bidirectional)
LE2MGSC40DE0 (Single-fiber bidirectional)	≤ 40
LE2MGSC40ED0 (Single-fiber bidirectional)
SFP-GE-ZBXD1 (Single-fiber bidirectional)can only be used on switch running V200R008C00 or later version.	≤ 80		1000base-BX
SFP-GE-ZBXU1 (Single-fiber bidirectional)can only be used on switch running V200R008C00 or later version.
SFP-GE-BXU1-SC (Single-fiber bidirectional)	≤ 10		1000base-BX	Fiber mode: single-mode Connector type: SC
Attributes of eSFP CWDM optical modules
Center Wavelength (nm), Model
1471, CWDM-SFPGE-1471	1491, CWDM-SFPGE-1491		1511, CWDM-SFPGE-1511	1531, CWDM-SFPGE-1531
1551, CWDM-SFPGE-1551	1571, CWDM-SFPGE-1571		1591, CWDM-SFPGE-1591	1611, CWDM-SFPGE-1611
Specifications	Encapsulation type: eSFP
	Transmission distance: ≤ 80 km
	Fiber type: single-mode, LC
	Standard: CWDM
	Operating temperature: 0°C to 70°C (32°F to 158°F)
	Transmit power: 0 dBm to 5.0 dBm Receiver sensitivity: ≤ -28.0 dBm Overload optical power: -9.0 dBm Extinction ratio: ≥ 8.5 dB
Attributes of eSFP DWDM optical modules
Center Wavelength (nm), Model
1529.55, DWDM-SFPGE-1529-55	1530.33, DWDM-SFPGE-1530-33		1531.12, DWDM-SFPGE-1531-12	1531.90, DWDM-SFPGE-1531-90
1532.68, DWDM-SFPGE-1532-68	1533.47, DWDM-SFPGE-1533-47		1534.25, DWDM-SFPGE-1534-25	1535.04, DWDM-SFPGE-1535-04
1535.82, DWDM-SFPGE-1535-82	1536.61, DWDM-SFPGE-1536-61		1537.40, DWDM-SFPGE-1537-40	1538.19, DWDM-SFPGE-1538-19
1538.98, DWDM-SFPGE-1538-98	1539.77, DWDM-SFPGE-1539-77		1540.56, DWDM-SFPGE-1540-56	1541.35, DWDM-SFPGE-1541-35
1542.14, DWDM-SFPGE-1542-14	1542.94, DWDM-SFPGE-1542-94		1543.73, DWDM-SFPGE-1543-73	1544.53, DWDM-SFPGE-1544-53
1545.32, DWDM-SFPGE-1545-32	1546.12, DWDM-SFPGE-1546-12		1546.92, DWDM-SFPGE-1546-92	1547.72, DWDM-SFPGE-1547-72
1548.51, DWDM-SFPGE-1548-51	1549.32, DWDM-SFPGE-1549-32		1550.12, DWDM-SFPGE-1550-12	1550.92, DWDM-SFPGE-1550-92
1551.72, DWDM-SFPGE-1551-72	1552.52, DWDM-SFPGE-1552-52		1553.33, DWDM-SFPGE-1553-33	1554.13, DWDM-SFPGE-1554-13
1554.94, DWDM-SFPGE-1554-94	1555.75, DWDM-SFPGE-1555-75		1556.55, DWDM-SFPGE-1556-55	1557.36, DWDM-SFPGE-1557-36
1558.17, DWDM-SFPGE-1558-17	1558.98, DWDM-SFPGE-1558-98		1559.79, DWDM-SFPGE-1559-79	1560.61, DWDM-SFPGE-1560-61
Specifications	Encapsulation type: eSFP
	Transmission distance: ≤ 120 km
	Fiber type: single-mode, LC
	Standard: DWDM
	Operating temperature: 0°C to 45°C (32°F to 113°F)
	Transmit power: 0 dBm to 4.0 dBm Receiver sensitivity: ≤ -28.0 dBm Overload optical power: -8.0 dBm Extinction ratio: ≥ 8.2 dB
Attributes of a GE SFP copper module
Model	Transmission Distance (km)		Standard	Connector Type
SFP-1000BaseT	≤ 0.1		1000Base-T	RJ45
Attributes of a 10GBASE SFP+ port
Connector type	SFP+
Optical port attributes	Depend on the SFP+ - SFP+ high-speed cable (1 m, 3 m, 5 m, 10 m), QSFP+ - 4*SFP+ high-speed cable (1 m, 3 m, 5 m), SFP+ optical module, or SFP+ optical cable used
Standards compliance	IEEE 802.3ae
Frame format	Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol	IP
Attributes of 10GE optical modules
Operating Temperature	0°C to 70°C (32°F to 158°F)
Model	Transmission Distance (km)	Standard	Interface Optical Parameters	Fiber Type
SFP-10G-USR	≤ 0.1	10Gbase-USR	Center wavelength: 850 nm Transmit power: -7.3 to -1 dBm Receiver sensitivity: ≤ -10.7 dBmOverload optical power: 0.5 dBm Extinction ratio: ≥ 3.0 dB	Fiber mode: multimode (OM3) Connector type: LC
OMXD30000	≤ 0.026	10Gbase-SR	Center wavelength: 850 nm Transmit power: -7.3 to -1.0 dBm Receiver sensitivity: ≤-11.1 dBm Overload optical power: -1.0 dBm Extinction ratio: ≥ 3.0 dB	Fiber mode: multimode Modal Bandwidth: 160 MHz*km Core diameter: 62.5 μm Connector type: LC
	≤ 0.033			Fiber mode: multimode (OM1) Connector type: LC
	≤ 0.066			Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC
	≤ 0.082			Fiber mode: multimode (OM2) Connector type: LC
	≤ 0.3			Fiber mode: multimode (OM3) Connector type: LC
	≤ 0.4			Fiber mode: multimode (OM4) Connector type: LC
OSX010000	≤ 10	10Gbase-LR	Center wavelength: 1310 nm Transmit power: -8.2 to 0.5 dBm Receiver sensitivity: ≤ -12.6 dBm Overload optical power: 0.5 dBm Extinction ratio: ≥ 3.5 dB	Fiber mode: single-mode Connector type: LC
SFP-10G-iLR	≤ 1.4	10GBASE-iLR	Center wavelength: 1310 nm Transmit power: -8.2 to 0.5 dBm Receiver sensitivity: ≤ -14.4 dBm Overload optical power: 0.5 dBm Extinction ratio: ≥ 3.5 dB	Fiber mode: single-mode Connector type: LC
OSXD22N00(linear)	≤ 0.1	10Gbase-LRM	Center wavelength: 1310 nm Transmit power: -6.5 to 0.5 dBm Receiver sensitivity: ≤ -6.5 dBm Overload optical power: 1.5 dBm Extinction ratio: ≥ 3.5 dB	Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC
	≤ 0.22	10Gbase-LRM	Center wavelength: 1310 nm Transmit power: -6.5 to 0.5 dBm Receiver sensitivity: ≤ -6.5 dBm Overload optical power: 1.5 dBm Extinction ratio: ≥ 3.5 dB	Fiber mode: multimode Modal Bandwidth: 500 MHz*km Core diameter: 62.5 μm Connector type: LC
				Fiber mode: multimode (OM1, OM2, OM3) Connector type: LC
OSX040N01	≤ 40	10Gbase-ER	Center wavelength: 1550 nm Transmit power: -4.7 to 4.0 dBm Receiver sensitivity: ≤ -14.1 dBm Overload optical power: -1.0 dBm Extinction ratio: ≥ 3 dB	Fiber mode: single-mode Connector type: LC
SFP-10G-ZR(limiting)	≤ 80	10Gbase-ZR	Center wavelength: 1550 nm Transmit power: 0 dBm to 4.0 dBm Receiver sensitivity: ≤ -24.0 dBmOverload optical power: -7.0 dBm Extinction ratio: ≥ 9 dB
SFP-10G-ZDWT	≤ 80	DWDM	Center wavelength: 1529.16 to 1560.61 nm Transmit power: -1 to 3 dBm Receiver sensitivity: ≤ -24 dBm Overload optical power: -1 dBm Extinction ratio: ≥ 8.2 dB
LE2MXSC80FF0(linear)	≤ 80	10Gbase-ZR	Center wavelength: 1550 nm Transmit power: 0 to 4.0 dBm Receiver sensitivity: ≤ -24.0 dBmOverload optical power: -7.0 dBm Extinction ratio: ≥ 9 dB	Fiber mode: single-mode Connector type: LC
SFP-10G-BXU1 (Single-fiber bidirectional optical module)	≤ 10	10Gbase-BX	Center wavelength: Tx1270/Rx1330 nm Transmit power: -8.2 dBm to 0.5 dBm Receiver sensitivity: ≤ -14.4 dBm Overload optical power: 0.5 dBm Extinction ratio: ≥ 3.5 dB	Fiber mode: single-mode Connector type: LC
SFP-10G-BXD1 (Single-fiber bidirectional optical module)			Center wavelength: Tx1330/Rx1270 nm Transmit power: -8.2 dBm to 0.5 dBm Receiver sensitivity: ≤ -14.4 dBm Overload optical power: 0.5 dBm Extinction ratio: ≥ 3.5 dB
SFP-10G-ER-SM1330-BIDI (single-fiber bidirectional)	≤ 40	10Gbase-BX	Center wavelength: Tx1330/Rx1270 nm Transmit power: 0 dBm to 5 dBm Receiver sensitivity: ≤ -18 dBmOverload optical power: -9 dBm Extinction ratio: ≥ 3.5 dB
SFP-10G-ER-SM1270-BIDI (single-fiber bidirectional)			Center wavelength: Tx1270/Rx1330 nm Transmit power: 0 dBm to 5 dBm Receiver sensitivity: ≤ -18 dBm Overload optical power: -9 dBm Extinction ratio: ≥ 3.5 dB
Attributes of SFP+ CWDM optical modules
Center Wavelength (nm), Model
1471, SFP-10G-ZCW1471	1491, SFP-10G-ZCW1491		1511, SFP-10G-ZCW1511	1531, SFP-10G-ZCW1531
1551, SFP-10G-ZCW1551	1571, SFP-10G-ZCW1571		1591, SFP-10G-ZCW1591	1611, SFP-10G-ZCW1611
Specifications	Encapsulation type: SFP+
	Transmission distance: ≤ 70 km
	Fiber type: single-mode, LC
	Standard: CWDM
	Operating temperature: 0°C to 70°C (32°F to 158°F)
	Transmit power: 0 dBm to 4.0 dBm Receiver sensitivity: ≤ -23.0 dBm Overload optical power: -7.0 dBm Extinction ratio: ≥ 8.2 dB
Physical specifications
Dimensions(W x D x H):	394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight:	3.02 kg (6.66 lb)
Maximum power consumption:	207 W
Environment parameters
Operating temperature	0°C to 45°C (32°F to 113°F)
Operating relative humidity	5% RH to 95% RH (noncondensing)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Storage relative humidity	5% RH to 95% RH (noncondensing)

Item	ES1D2X32SSC0
Apply to S7700 Switch
Attributes of a 1000BASE-X port
Connector type	SFP
Optical port attributes	Depend on the SFP optical module used
Standards compliance	IEEE 802.3ab
Frame format	Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol	IP
Attributes of GE optical modules
eSFP-GE-SX-MM850	≤ 0.22		1000base-SX	Fiber mode: multimode Modal Bandwidth: 160 MHz*km Core diameter: 62.5 μm Connector type: LC
	≤ 0.275			Fiber mode: multimode (OM1) Connector type: LC
	≤ 0.5			Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC
	≤ 0.55			Fiber mode: multimode (OM2) Connector type: LC
	≤ 1			Fiber mode: multimode (OM3) Connector type: LC
SFP-GE-LX-SM1310	≤ 10		1000base-LX/LH	Fiber mode: single-mode Connector type: LC
S-SFP-GE-LH40-SM1310	≤ 40
S-SFP-GE-LH40-SM1550
S-SFP-GE-LH80-SM1550	≤ 80		1000base-ZX
eSFP-GE-ZX100-SM1550	≤ 100
SFP-GE-LX-SM1310-BIDI (Single-fiber bidirectional)	≤ 10		1000base-BX
SFP-GE-LX-SM1490-BIDI (Single-fiber bidirectional)
LE2MGSC40DE0 (Single-fiber bidirectional)	≤ 40
LE2MGSC40ED0 (Single-fiber bidirectional)
SFP-GE-ZBXD1 (Single-fiber bidirectional)can only be used on switch running V200R008C00 or later version.	≤ 80		1000base-BX
SFP-GE-ZBXU1 (Single-fiber bidirectional)can only be used on switch running V200R008C00 or later version.
SFP-GE-BXU1-SC (Single-fiber bidirectional)	≤ 10		1000base-BX	Fiber mode: single-mode Connector type: SC
Attributes of eSFP CWDM optical modules
Center Wavelength (nm), Model
1471, CWDM-SFPGE-1471	1491, CWDM-SFPGE-1491		1511, CWDM-SFPGE-1511	1531, CWDM-SFPGE-1531
1551, CWDM-SFPGE-1551	1571, CWDM-SFPGE-1571		1591, CWDM-SFPGE-1591	1611, CWDM-SFPGE-1611
Specifications	Encapsulation type: eSFP
	Transmission distance: ≤ 80 km
	Fiber type: single-mode, LC
	Standard: CWDM
	Operating temperature: 0°C to 70°C (32°F to 158°F)
	Transmit power: 0 dBm to 5.0 dBm Receiver sensitivity: ≤ -28.0 dBm Overload optical power: -9.0 dBm Extinction ratio: ≥ 8.5 dB
Attributes of eSFP DWDM optical modules
Center Wavelength (nm), Model
1529.55, DWDM-SFPGE-1529-55	1530.33, DWDM-SFPGE-1530-33		1531.12, DWDM-SFPGE-1531-12	1531.90, DWDM-SFPGE-1531-90
1532.68, DWDM-SFPGE-1532-68	1533.47, DWDM-SFPGE-1533-47		1534.25, DWDM-SFPGE-1534-25	1535.04, DWDM-SFPGE-1535-04
1535.82, DWDM-SFPGE-1535-82	1536.61, DWDM-SFPGE-1536-61		1537.40, DWDM-SFPGE-1537-40	1538.19, DWDM-SFPGE-1538-19
1538.98, DWDM-SFPGE-1538-98	1539.77, DWDM-SFPGE-1539-77		1540.56, DWDM-SFPGE-1540-56	1541.35, DWDM-SFPGE-1541-35
1542.14, DWDM-SFPGE-1542-14	1542.94, DWDM-SFPGE-1542-94		1543.73, DWDM-SFPGE-1543-73	1544.53, DWDM-SFPGE-1544-53
1545.32, DWDM-SFPGE-1545-32	1546.12, DWDM-SFPGE-1546-12		1546.92, DWDM-SFPGE-1546-92	1547.72, DWDM-SFPGE-1547-72
1548.51, DWDM-SFPGE-1548-51	1549.32, DWDM-SFPGE-1549-32		1550.12, DWDM-SFPGE-1550-12	1550.92, DWDM-SFPGE-1550-92
1551.72, DWDM-SFPGE-1551-72	1552.52, DWDM-SFPGE-1552-52		1553.33, DWDM-SFPGE-1553-33	1554.13, DWDM-SFPGE-1554-13
1554.94, DWDM-SFPGE-1554-94	1555.75, DWDM-SFPGE-1555-75		1556.55, DWDM-SFPGE-1556-55	1557.36, DWDM-SFPGE-1557-36
1558.17, DWDM-SFPGE-1558-17	1558.98, DWDM-SFPGE-1558-98		1559.79, DWDM-SFPGE-1559-79	1560.61, DWDM-SFPGE-1560-61
Specifications	Encapsulation type: eSFP
	Transmission distance: ≤ 120 km
	Fiber type: single-mode, LC
	Standard: DWDM
	Operating temperature: 0°C to 45°C (32°F to 113°F)
	Transmit power: 0 dBm to 4.0 dBm Receiver sensitivity: ≤ -28.0 dBm Overload optical power: -8.0 dBm Extinction ratio: ≥ 8.2 dB
Attributes of a GE SFP copper module
Model	Transmission Distance (km)		Standard	Connector Type
SFP-1000BaseT	≤ 0.1		1000Base-T	RJ45
Attributes of a 10GBASE SFP+ port
Connector type	SFP+
Optical port attributes	Depend on the SFP+ - SFP+ high-speed cable (1 m, 3 m, 5 m, 10 m), QSFP+ - 4*SFP+ high-speed cable (1 m, 3 m, 5 m), SFP+ optical module, or SFP+ optical cable used
Standards compliance	IEEE 802.3ae
Frame format	Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol	IP
Attributes of 10GE optical modules
Operating Temperature	0°C to 70°C (32°F to 158°F)
Model	Transmission Distance (km)	Standard	Interface Optical Parameters	Fiber Type
SFP-10G-USR	≤ 0.1	10Gbase-USR	Center wavelength: 850 nm Transmit power: -7.3 to -1 dBm Receiver sensitivity: ≤ -10.7 dBmOverload optical power: 0.5 dBm Extinction ratio: ≥ 3.0 dB	Fiber mode: multimode (OM3) Connector type: LC
OMXD30000	≤ 0.026	10Gbase-SR	Center wavelength: 850 nm Transmit power: -7.3 to -1.0 dBm Receiver sensitivity: ≤-11.1 dBm Overload optical power: -1.0 dBm Extinction ratio: ≥ 3.0 dB	Fiber mode: multimode Modal Bandwidth: 160 MHz*km Core diameter: 62.5 μm Connector type: LC
	≤ 0.033			Fiber mode: multimode (OM1) Connector type: LC
	≤ 0.066			Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC
	≤ 0.082			Fiber mode: multimode (OM2) Connector type: LC
	≤ 0.3			Fiber mode: multimode (OM3) Connector type: LC
	≤ 0.4			Fiber mode: multimode (OM4) Connector type: LC
OSX010000	≤ 10	10Gbase-LR	Center wavelength: 1310 nm Transmit power: -8.2 to 0.5 dBm Receiver sensitivity: ≤ -12.6 dBm Overload optical power: 0.5 dBm Extinction ratio: ≥ 3.5 dB	Fiber mode: single-mode Connector type: LC
SFP-10G-iLR	≤ 1.4	10GBASE-iLR	Center wavelength: 1310 nm Transmit power: -8.2 to 0.5 dBm Receiver sensitivity: ≤ -14.4 dBm Overload optical power: 0.5 dBm Extinction ratio: ≥ 3.5 dB	Fiber mode: single-mode Connector type: LC
OSXD22N00(linear)	≤ 0.1	10Gbase-LRM	Center wavelength: 1310 nm Transmit power: -6.5 to 0.5 dBm Receiver sensitivity: ≤ -6.5 dBm Overload optical power: 1.5 dBm Extinction ratio: ≥ 3.5 dB	Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC
	≤ 0.22	10Gbase-LRM	Center wavelength: 1310 nm Transmit power: -6.5 to 0.5 dBm Receiver sensitivity: ≤ -6.5 dBm Overload optical power: 1.5 dBm Extinction ratio: ≥ 3.5 dB	Fiber mode: multimode Modal Bandwidth: 500 MHz*km Core diameter: 62.5 μm Connector type: LC
				Fiber mode: multimode (OM1, OM2, OM3) Connector type: LC
OSX040N01	≤ 40	10Gbase-ER	Center wavelength: 1550 nm Transmit power: -4.7 to 4.0 dBm Receiver sensitivity: ≤ -14.1 dBm Overload optical power: -1.0 dBm Extinction ratio: ≥ 3 dB	Fiber mode: single-mode Connector type: LC
SFP-10G-ZR(limiting)	≤ 80	10Gbase-ZR	Center wavelength: 1550 nm Transmit power: 0 dBm to 4.0 dBm Receiver sensitivity: ≤ -24.0 dBmOverload optical power: -7.0 dBm Extinction ratio: ≥ 9 dB
SFP-10G-ZDWT	≤ 80	DWDM	Center wavelength: 1529.16 to 1560.61 nm Transmit power: -1 to 3 dBm Receiver sensitivity: ≤ -24 dBm Overload optical power: -1 dBm Extinction ratio: ≥ 8.2 dB
LE2MXSC80FF0(linear)	≤ 80	10Gbase-ZR	Center wavelength: 1550 nm Transmit power: 0 to 4.0 dBm Receiver sensitivity: ≤ -24.0 dBmOverload optical power: -7.0 dBm Extinction ratio: ≥ 9 dB	Fiber mode: single-mode Connector type: LC
SFP-10G-BXU1 (Single-fiber bidirectional optical module)	≤ 10	10Gbase-BX	Center wavelength: Tx1270/Rx1330 nm Transmit power: -8.2 dBm to 0.5 dBm Receiver sensitivity: ≤ -14.4 dBm Overload optical power: 0.5 dBm Extinction ratio: ≥ 3.5 dB	Fiber mode: single-mode Connector type: LC
SFP-10G-BXD1 (Single-fiber bidirectional optical module)			Center wavelength: Tx1330/Rx1270 nm Transmit power: -8.2 dBm to 0.5 dBm Receiver sensitivity: ≤ -14.4 dBm Overload optical power: 0.5 dBm Extinction ratio: ≥ 3.5 dB
SFP-10G-ER-SM1330-BIDI (single-fiber bidirectional)	≤ 40	10Gbase-BX	Center wavelength: Tx1330/Rx1270 nm Transmit power: 0 dBm to 5 dBm Receiver sensitivity: ≤ -18 dBmOverload optical power: -9 dBm Extinction ratio: ≥ 3.5 dB
SFP-10G-ER-SM1270-BIDI (single-fiber bidirectional)			Center wavelength: Tx1270/Rx1330 nm Transmit power: 0 dBm to 5 dBm Receiver sensitivity: ≤ -18 dBm Overload optical power: -9 dBm Extinction ratio: ≥ 3.5 dB
Attributes of SFP+ CWDM optical modules
Center Wavelength (nm), Model
1471, SFP-10G-ZCW1471	1491, SFP-10G-ZCW1491		1511, SFP-10G-ZCW1511	1531, SFP-10G-ZCW1531
1551, SFP-10G-ZCW1551	1571, SFP-10G-ZCW1571		1591, SFP-10G-ZCW1591	1611, SFP-10G-ZCW1611
Specifications	Encapsulation type: SFP+
	Transmission distance: ≤ 70 km
	Fiber type: single-mode, LC
	Standard: CWDM
	Operating temperature: 0°C to 70°C (32°F to 158°F)
	Transmit power: 0 dBm to 4.0 dBm Receiver sensitivity: ≤ -23.0 dBm Overload optical power: -7.0 dBm Extinction ratio: ≥ 8.2 dB
Physical specifications
Dimensions(W x D x H):	394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight:	3.02 kg (6.66 lb)
Maximum power consumption:	207 W
Environment parameters
Operating temperature	0°C to 45°C (32°F to 113°F)
Operating relative humidity	5% RH to 95% RH (noncondensing)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Storage relative humidity	5% RH to 95% RH (noncondensing)

S7700	10GE Card
Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse

Huawei Datacenter Switch

ZTE Switch

Cisco Switch

Aruba Switch

H3C Switch

Juniper Swtich

ZTE GPON

FiberHome GPON

Alcatel & Lucent GPON

Huawei Transport Network

OSN 9800 Series

OSN 8800 Series

Selected models

OSN 8800 Series

Up to 6.4 Tbit/s cross-connect capacity

Huawei Router

NE8000 Series

ZTE Router

Juniper Router

Selected models

H3C Router

NE 8000 Series

Designed for the cloud era

ME60 Series

Full service, large capacity, high reliability

Huawei Optical Transceiver

Huawei Embeded Power

ZTE telecom Power

Energy Storage

Emerson Vertiv Power

ES1D2X32SSC0

Description

ES1D2X32SSC0 overview

ES1D2X32SSC0 application

ES1D2X32SSC0 functions and features

Additional information

Reviews

Related products

Main Menu

Huawei Datacenter Switch

ZTE Switch

Cisco Switch

Aruba Switch

H3C Switch

Juniper Swtich

ZTE GPON

FiberHome GPON

Alcatel & Lucent GPON

Huawei Transport Network

OSN 9800 Series

OSN 8800 Series

Selected models

OSN 8800 Series

Up to 6.4 Tbit/s cross-connect capacity

Huawei Router

NE8000 Series

ZTE Router

Juniper Router

Selected models

H3C Router

NE 8000 Series

Designed for the cloud era

ME60 Series

Full service, large capacity, high reliability

Huawei Optical Transceiver

Huawei Embeded Power

ZTE telecom Power

Energy Storage

Emerson Vertiv Power

Search For Products

Popular

Up to 6.4 Tbit/s
cross-connect capacity

Full service, large capacity,
high reliability

Up to 6.4 Tbit/s
cross-connect capacity

Full service, large capacity,
high reliability
