Description

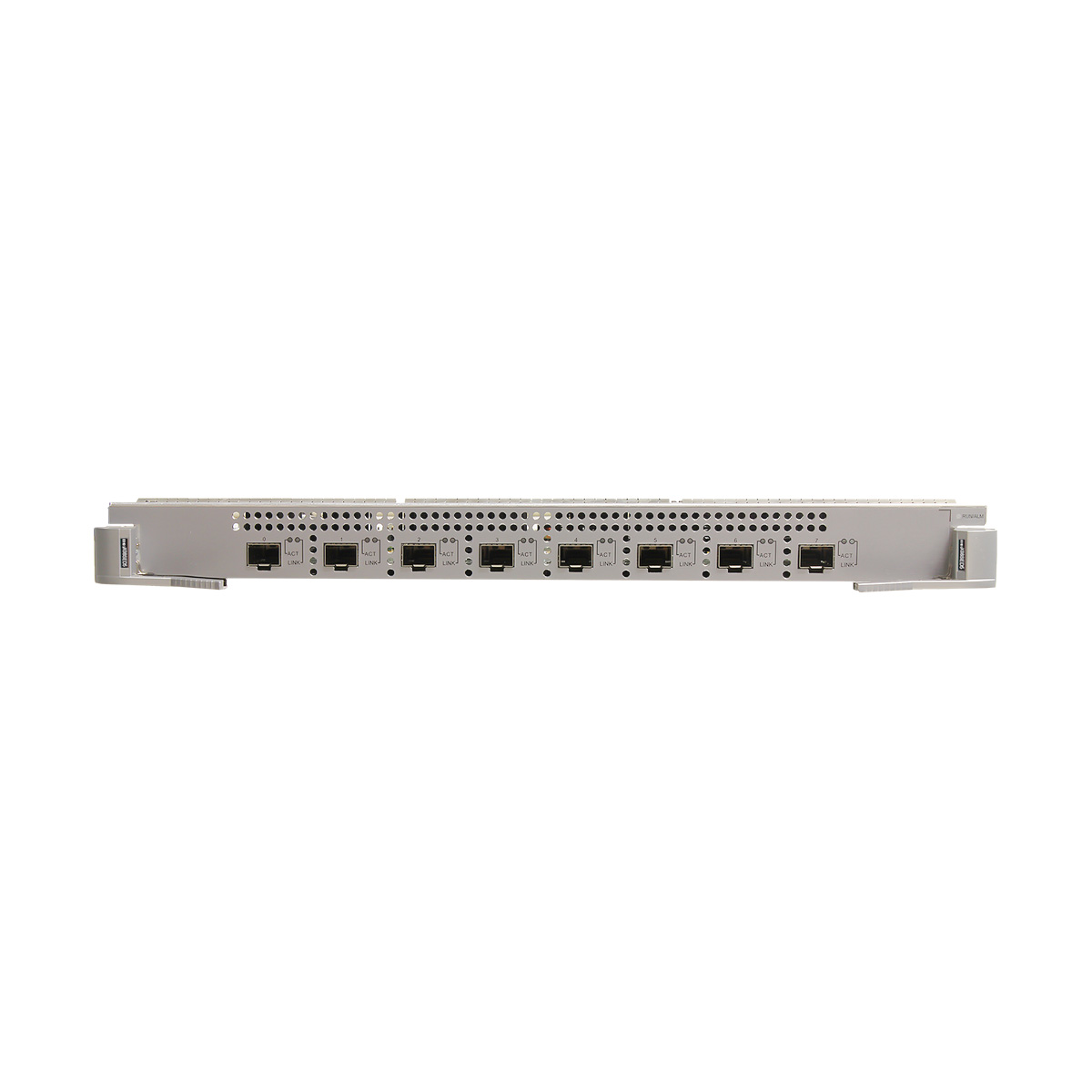

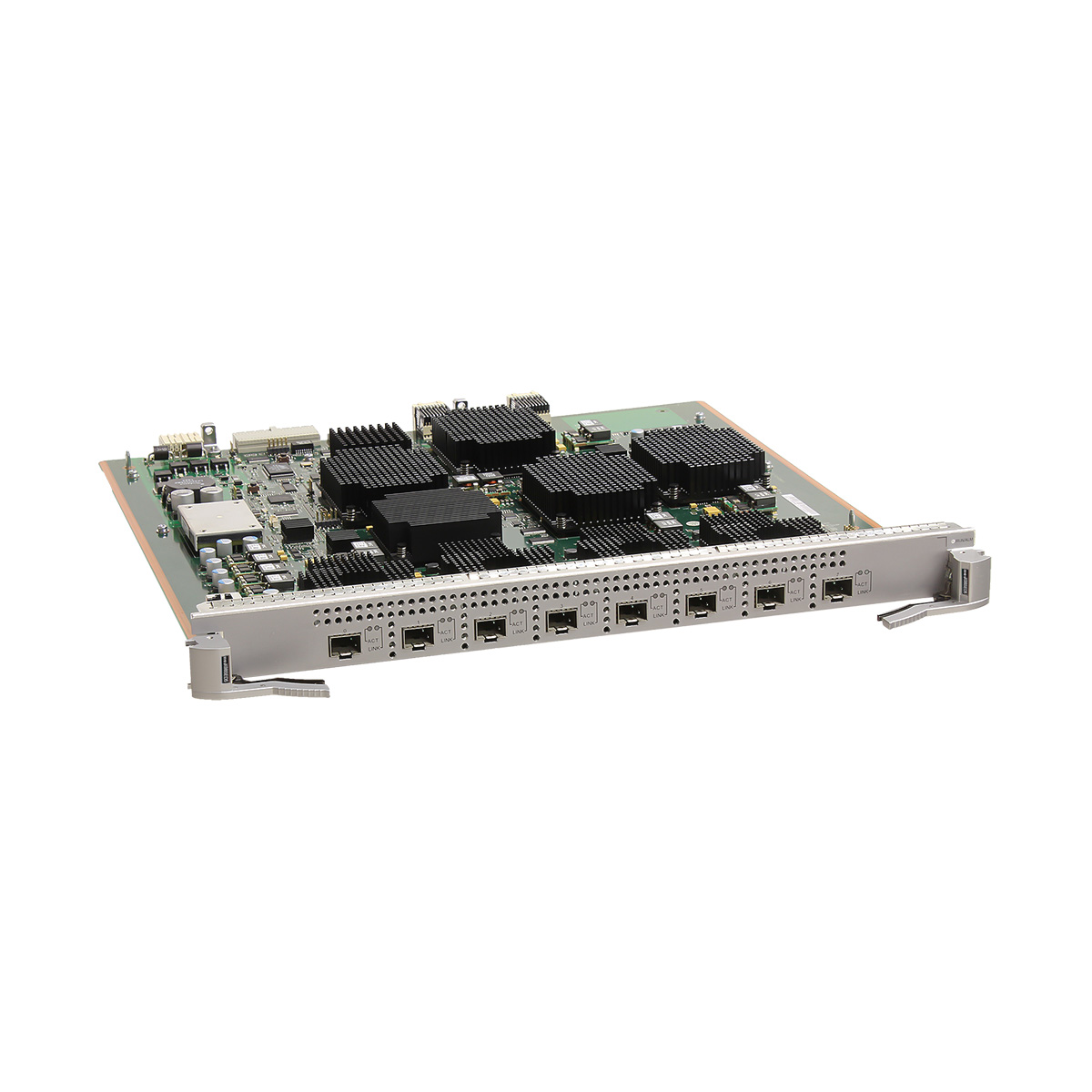

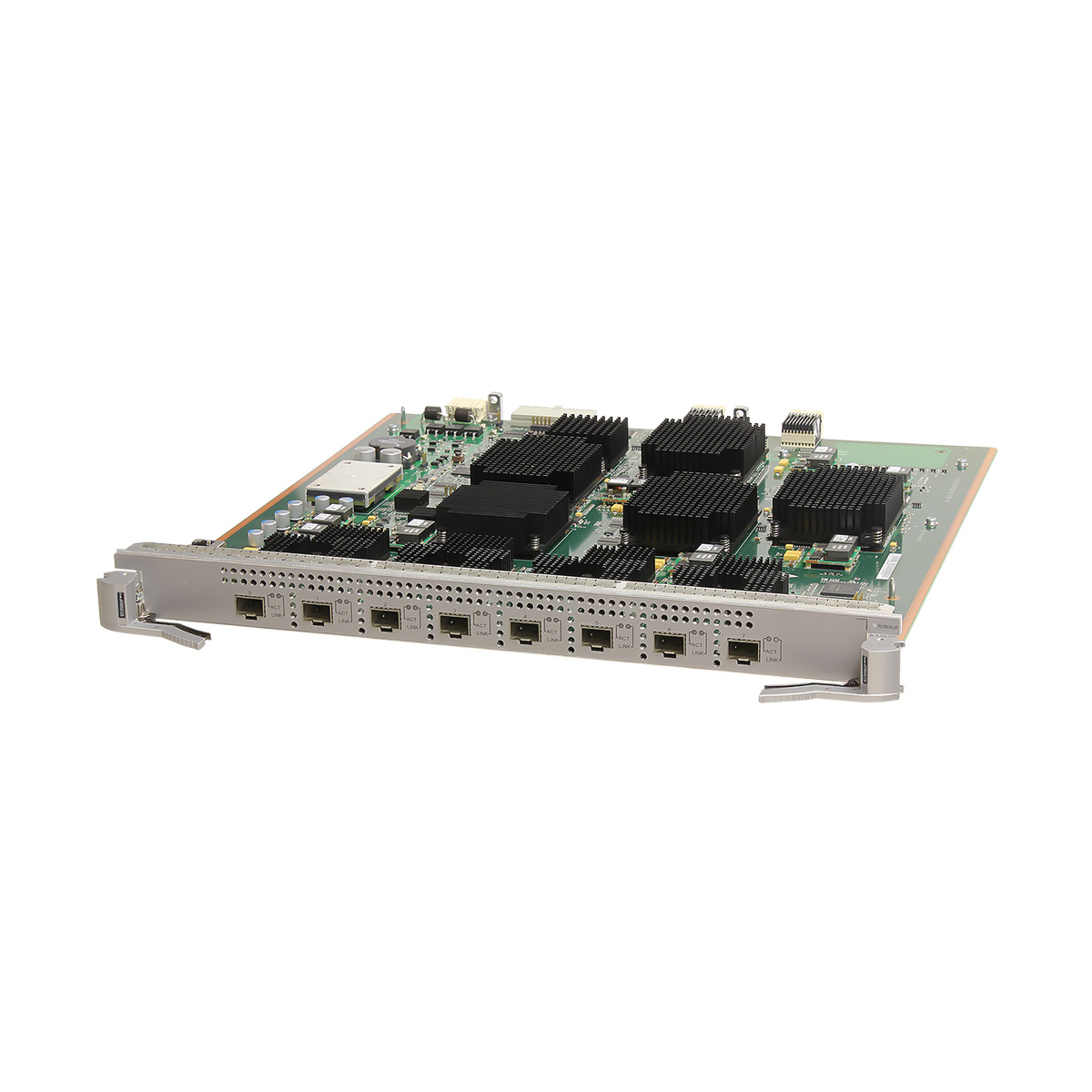

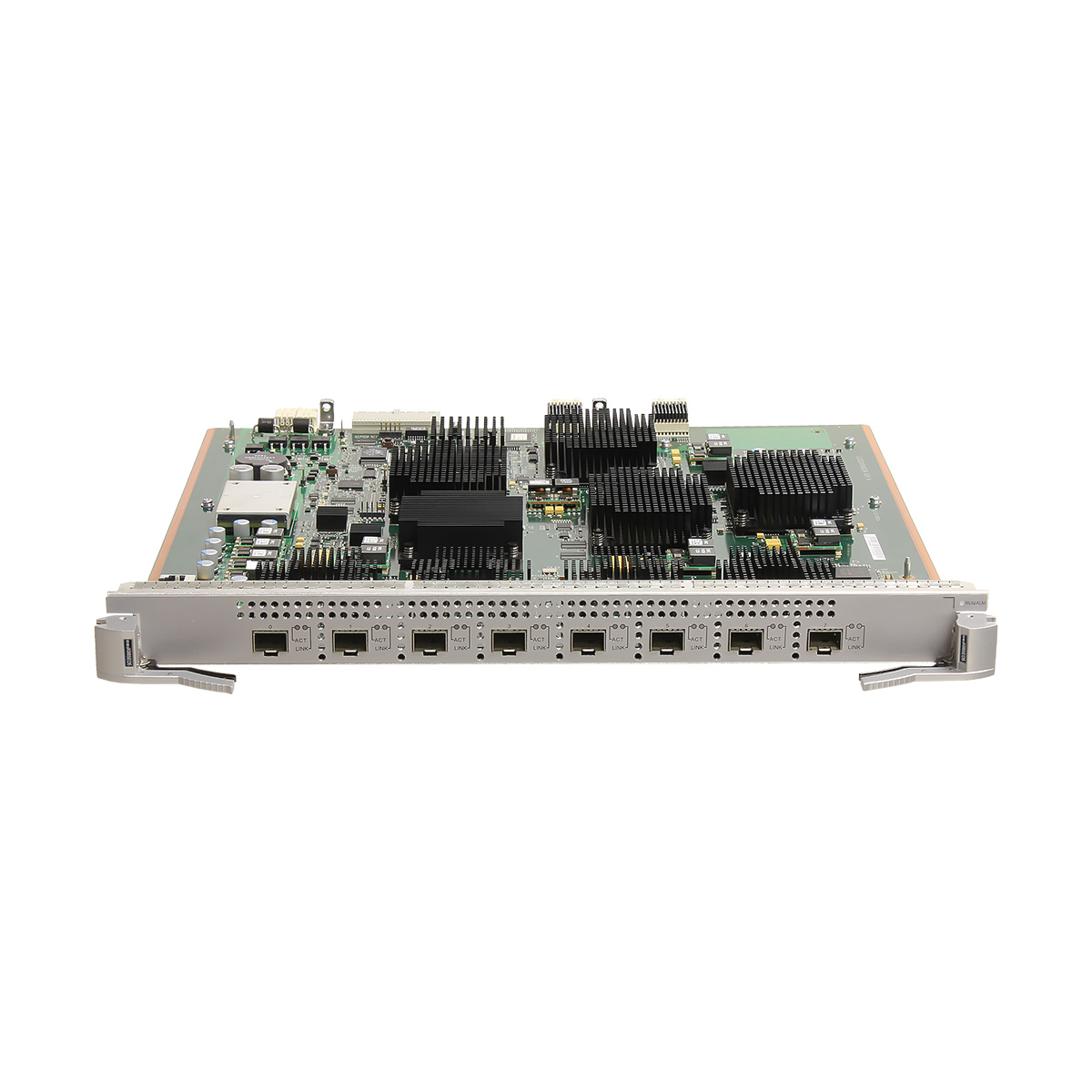

| Item | ES1D2X08SED5 | |||
| Apply to S7700 Switch | ||||
| Attributes of a 10GBASE SFP+ port | ||||
| Connector type | SFP+ | |||
| Optical port attributes | Depend on the SFP+ – SFP+ high-speed cable (1 m, 3 m, 5 m, 10 m), QSFP+ – 4*SFP+ high-speed cable (1 m, 3 m, 5 m), SFP+ optical module, or SFP+ optical cable used | |||
| Standards compliance | IEEE 802.3ae | |||
| Frame format | Ethernet_II, Ethernet_SAP, Ethernet_SNAP | |||
| Network protocol | IP | |||
| Attributes of 10GE optical modules | ||||
| Operating Temperature | 0°C to 70°C (32°F to 158°F) | |||
| Model | Transmission Distance (km) | Standard | Interface Optical Parameters | Fiber Type |
| SFP-10G-USR | ≤ 0.1 | 10Gbase-USR | Center wavelength: 850 nm Transmit power: -7.3 to -1 dBm Receiver sensitivity: ≤ -10.7 dBmOverload optical power: 0.5 dBm Extinction ratio: ≥ 3.0 dB |
Fiber mode: multimode (OM3) Connector type: LC |
| OMXD30000 | ≤ 0.026 | 10Gbase-SR | Center wavelength: 850 nm Transmit power: -7.3 to -1.0 dBm Receiver sensitivity: ≤-11.1 dBm Overload optical power: -1.0 dBm Extinction ratio: ≥ 3.0 dB |
Fiber mode: multimode Modal Bandwidth: 160 MHz*km Core diameter: 62.5 μm Connector type: LC |
| ≤ 0.033 | Fiber mode: multimode (OM1) Connector type: LC |
|||
| ≤ 0.066 | Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC |
|||
| ≤ 0.082 | Fiber mode: multimode (OM2) Connector type: LC |
|||
| ≤ 0.3 | Fiber mode: multimode (OM3) Connector type: LC |
|||
| ≤ 0.4 | Fiber mode: multimode (OM4) Connector type: LC |
|||
| OSX010000 | ≤ 10 | 10Gbase-LR | Center wavelength: 1310 nm Transmit power: -8.2 to 0.5 dBm Receiver sensitivity: ≤ -12.6 dBm Overload optical power: 0.5 dBm Extinction ratio: ≥ 3.5 dB |
Fiber mode: single-mode Connector type: LC |
| SFP-10G-iLR | ≤ 1.4 | 10GBASE-iLR | Center wavelength: 1310 nm Transmit power: -8.2 to 0.5 dBm Receiver sensitivity: ≤ -14.4 dBm Overload optical power: 0.5 dBm Extinction ratio: ≥ 3.5 dB |
Fiber mode: single-mode Connector type: LC |
| OSXD22N00(linear) | ≤ 0.1 | 10Gbase-LRM | Center wavelength: 1310 nm Transmit power: -6.5 to 0.5 dBm Receiver sensitivity: ≤ -6.5 dBm Overload optical power: 1.5 dBm Extinction ratio: ≥ 3.5 dB |
Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC |
| ≤ 0.22 | 10Gbase-LRM | Center wavelength: 1310 nm Transmit power: -6.5 to 0.5 dBm Receiver sensitivity: ≤ -6.5 dBm Overload optical power: 1.5 dBm Extinction ratio: ≥ 3.5 dB |
Fiber mode: multimode Modal Bandwidth: 500 MHz*km Core diameter: 62.5 μm Connector type: LC |
|
| Fiber mode: multimode (OM1, OM2, OM3) Connector type: LC |
||||
| OSX040N01 | ≤ 40 | 10Gbase-ER | Center wavelength: 1550 nm Transmit power: -4.7 to 4.0 dBm Receiver sensitivity: ≤ -14.1 dBm Overload optical power: -1.0 dBm Extinction ratio: ≥ 3 dB |
Fiber mode: single-mode Connector type: LC |
| SFP-10G-ZR(limiting) | ≤ 80 | 10Gbase-ZR | Center wavelength: 1550 nm Transmit power: 0 dBm to 4.0 dBm Receiver sensitivity: ≤ -24.0 dBm Overload optical power: -7.0 dBm |
|
| SFP-10G-ZDWT | ≤ 80 | DWDM | Center wavelength: 1529.16 to 1560.61 nm Transmit power: -1 to 3 dBm Receiver sensitivity: ≤ -24 dBm Overload optical power: -1 dBm Extinction ratio: ≥ 8.2 dB |
|
| LE2MXSC80FF0(linear) | ≤ 80 | 10Gbase-ZR | Center wavelength: 1550 nm Transmit power: 0 to 4.0 dBm Receiver sensitivity: ≤ -24.0 dBm Overload optical power: -7.0 dBm |
Fiber mode: single-mode Connector type: LC |
| SFP-10G-BXU1 (Single-fiber bidirectional optical module) |
≤ 10 | 10Gbase-BX | Center wavelength: Tx1270/Rx1330 nm Transmit power: -8.2 dBm to 0.5 dBm Receiver sensitivity: ≤ -14.4 dBm Overload optical power: 0.5 dBm Extinction ratio: ≥ 3.5 dB |
Fiber mode: single-mode Connector type: LC |
| SFP-10G-BXD1 (Single-fiber bidirectional optical module) |
Center wavelength: Tx1330/Rx1270 nm Transmit power: -8.2 dBm to 0.5 dBm Receiver sensitivity: ≤ -14.4 dBm Overload optical power: 0.5 dBm Extinction ratio: ≥ 3.5 dB |
|||
| SFP-10G-ER-SM1330-BIDI (single-fiber bidirectional) | ≤ 40 | 10Gbase-BX | Center wavelength: Tx1330/Rx1270 nm Transmit power: 0 dBm to 5 dBm Receiver sensitivity: ≤ -18 dBmOverload optical power: -9 dBm Extinction ratio: ≥ 3.5 dB |
|
| SFP-10G-ER-SM1270-BIDI (single-fiber bidirectional) | Center wavelength: Tx1270/Rx1330 nm Transmit power: 0 dBm to 5 dBm Receiver sensitivity: ≤ -18 dBm Overload optical power: -9 dBm Extinction ratio: ≥ 3.5 dB |
|||
| Attributes of SFP+ CWDM optical modules | ||||
| Center Wavelength (nm), Model | ||||
| 1471, SFP-10G-ZCW1471 | 1491, SFP-10G-ZCW1491 | 1511, SFP-10G-ZCW1511 | 1531, SFP-10G-ZCW1531 | |
| 1551, SFP-10G-ZCW1551 | 1571, SFP-10G-ZCW1571 | 1591, SFP-10G-ZCW1591 | 1611, SFP-10G-ZCW1611 | |
| Specifications | Encapsulation type: SFP+ | |||
| Transmission distance: ≤ 70 km | ||||
| Fiber type: single-mode, LC | ||||
| Standard: CWDM | ||||
| Operating temperature: 0°C to 70°C (32°F to 158°F) | ||||
| Transmit power: 0 dBm to 4.0 dBm Receiver sensitivity: ≤ -23.0 dBm Overload optical power: -7.0 dBm Extinction ratio: ≥ 8.2 dB |
||||
| Physical specifications | ||||
| Dimensions(W x D x H): | 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.) | |||
| Weight: | 2.50 kg (5.51 lb) | |||
| Maximum power consumption: | 198.1 W | |||
| Environment parameters | ||||
| Operating temperature | 0°C to 45°C (32°F to 113°F) | |||
| Operating relative humidity | 5% RH to 95% RH (noncondensing) | |||
| Storage temperature | -40°C to +70°C (-40°F to +158°F) | |||
| Storage relative humidity | 5% RH to 95% RH (noncondensing) | |||
