ES1D2X08SED4 Huawei S7700 switch 8 port 10GBASE-X interface card (ED, SFP+)

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

ES1D2X08SED4 overview

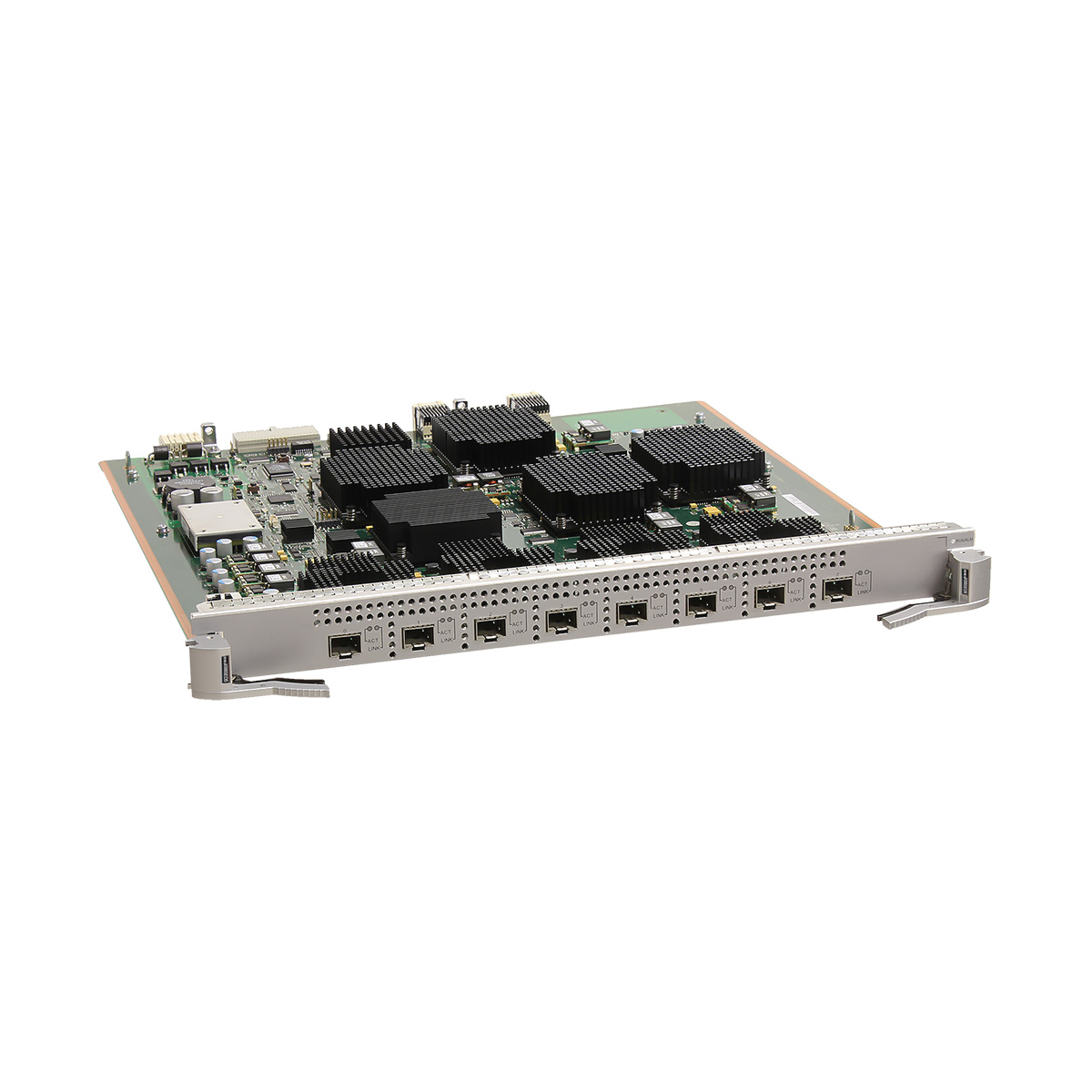

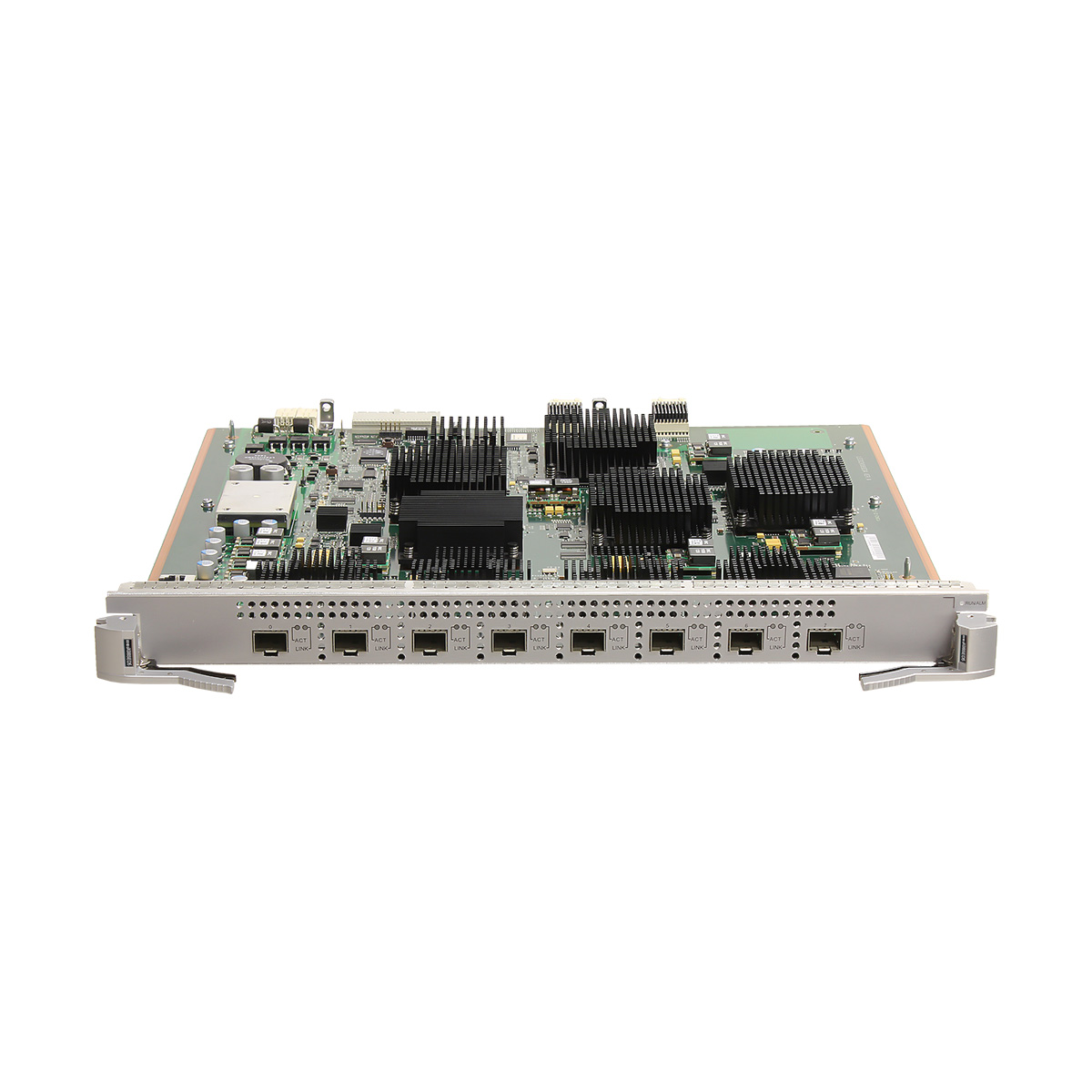

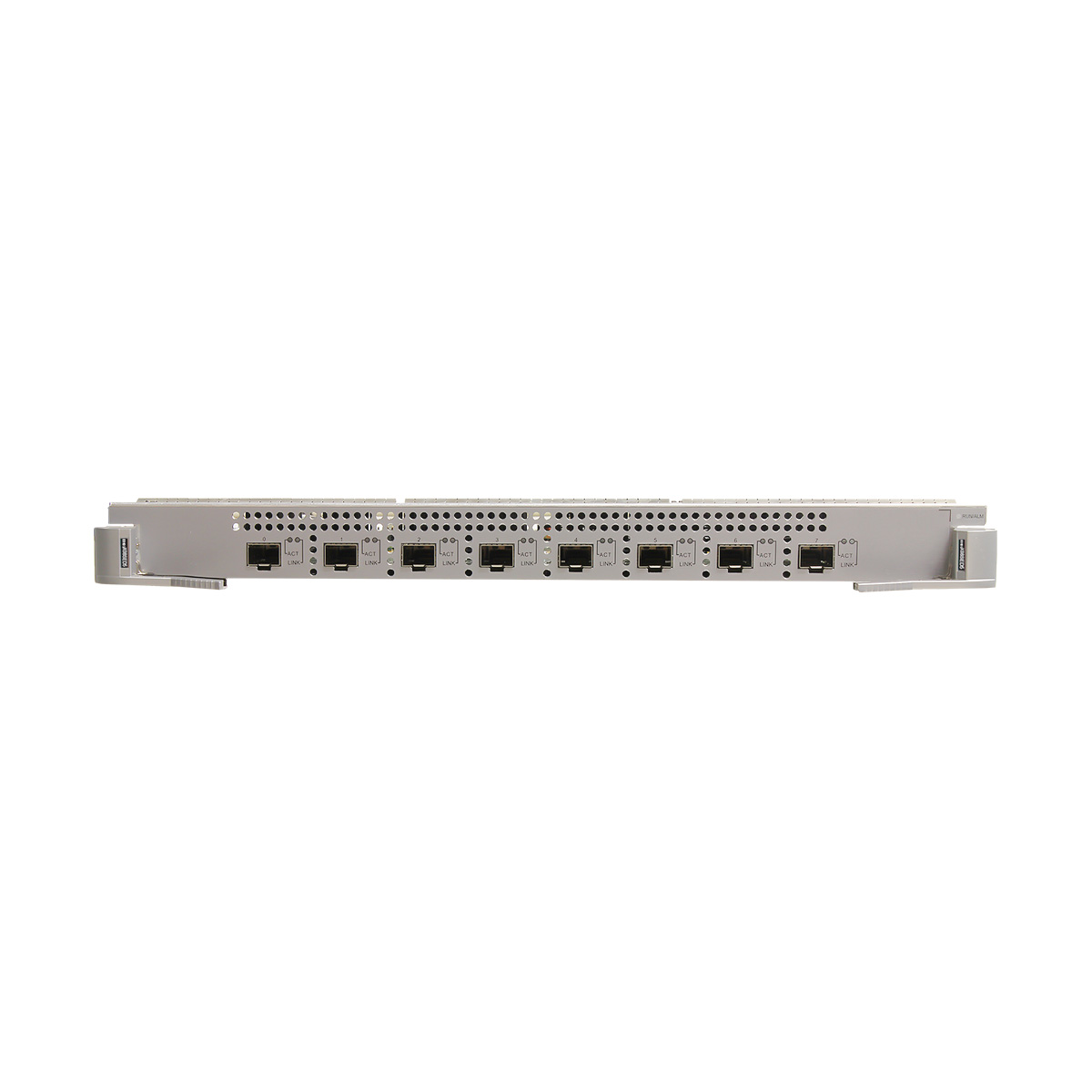

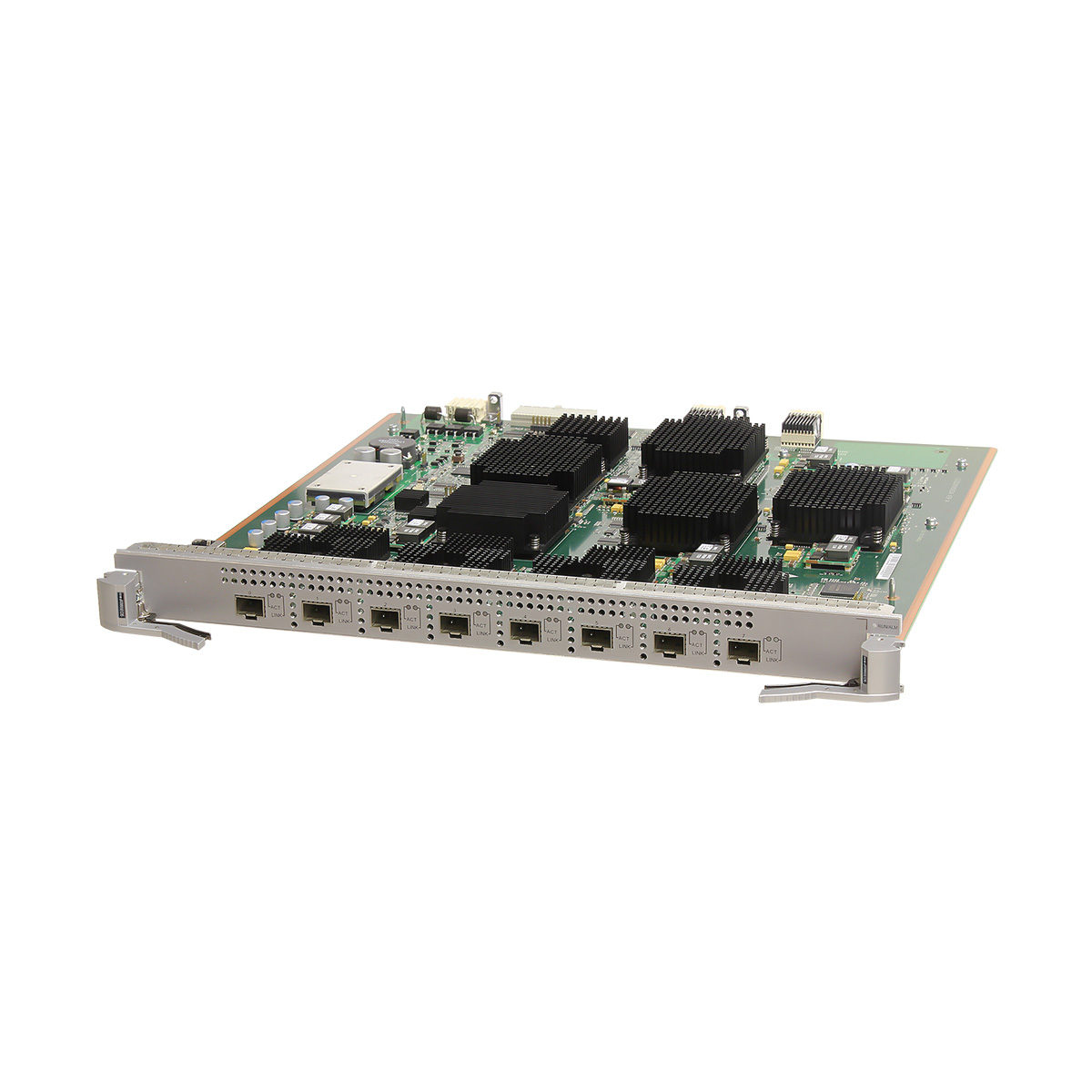

ES1D2X08SED4 Huawei S7700 switch 8 port 10GBASE-X interface card (ED, SFP+)

ES1D2X08SED4 application

Card Name	S7700 Chassis
ES1D2X08SED4	S7703, S7706 and S7712 Chassis: Supported in V200R002C00 and later versions S7703 PoE and S7706 PoE chassis: supported in V200R013C00 and later versions

ES1D2X08SED4 function and feature

Function	Description
Basic function	Provides eight 10GE BASE-X optical ports for data transmission and switching.
Distributed forwarding	Performs concurrent data forwarding using a distributed data plane.
Hot swapping	The ES1D2X08SED4 is hot swappable.

Item	ES1D2X08SED4
Apply to S7700 Switch
Attributes of a 10GBASE SFP+ port
Connector type	SFP+
Optical port attributes	Depend on the SFP+ - SFP+ high-speed cable (1 m, 3 m, 5 m, 10 m), QSFP+ - 4*SFP+ high-speed cable (1 m, 3 m, 5 m), SFP+ optical module, or SFP+ optical cable used
Standards compliance	IEEE 802.3ae
Frame format	Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol	IP
Attributes of 10GE optical modules
Operating Temperature	0°C to 70°C (32°F to 158°F)
Model	Transmission Distance (km)	Standard	Interface Optical Parameters	Fiber Type
SFP-10G-USR	≤ 0.1	10Gbase-USR	Center wavelength: 850 nm Transmit power: -7.3 to -1 dBm Receiver sensitivity: ≤ -10.7 dBmOverload optical power: 0.5 dBm Extinction ratio: ≥ 3.0 dB	Fiber mode: multimode (OM3) Connector type: LC
OMXD30000	≤ 0.026	10Gbase-SR	Center wavelength: 850 nm Transmit power: -7.3 to -1.0 dBm Receiver sensitivity: ≤-11.1 dBm Overload optical power: -1.0 dBm Extinction ratio: ≥ 3.0 dB	Fiber mode: multimode Modal Bandwidth: 160 MHz*km Core diameter: 62.5 μm Connector type: LC
	≤ 0.033			Fiber mode: multimode (OM1) Connector type: LC
	≤ 0.066			Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC
	≤ 0.082			Fiber mode: multimode (OM2) Connector type: LC
	≤ 0.3			Fiber mode: multimode (OM3) Connector type: LC
	≤ 0.4			Fiber mode: multimode (OM4) Connector type: LC
OSX010000	≤ 10	10Gbase-LR	Center wavelength: 1310 nm Transmit power: -8.2 to 0.5 dBm Receiver sensitivity: ≤ -12.6 dBm Overload optical power: 0.5 dBm Extinction ratio: ≥ 3.5 dB	Fiber mode: single-mode Connector type: LC
SFP-10G-iLR	≤ 1.4	10GBASE-iLR	Center wavelength: 1310 nm Transmit power: -8.2 to 0.5 dBm Receiver sensitivity: ≤ -14.4 dBm Overload optical power: 0.5 dBm Extinction ratio: ≥ 3.5 dB	Fiber mode: single-mode Connector type: LC
OSXD22N00(linear)	≤ 0.1	10Gbase-LRM	Center wavelength: 1310 nm Transmit power: -6.5 to 0.5 dBm Receiver sensitivity: ≤ -6.5 dBm Overload optical power: 1.5 dBm Extinction ratio: ≥ 3.5 dB	Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC
	≤ 0.22	10Gbase-LRM	Center wavelength: 1310 nm Transmit power: -6.5 to 0.5 dBm Receiver sensitivity: ≤ -6.5 dBm Overload optical power: 1.5 dBm Extinction ratio: ≥ 3.5 dB	Fiber mode: multimode Modal Bandwidth: 500 MHz*km Core diameter: 62.5 μm Connector type: LC
				Fiber mode: multimode (OM1, OM2, OM3) Connector type: LC
OSX040N01	≤ 40	10Gbase-ER	Center wavelength: 1550 nm Transmit power: -4.7 to 4.0 dBm Receiver sensitivity: ≤ -14.1 dBm Overload optical power: -1.0 dBm Extinction ratio: ≥ 3 dB	Fiber mode: single-mode Connector type: LC
SFP-10G-ZR(limiting)	≤ 80	10Gbase-ZR	Center wavelength: 1550 nm Transmit power: 0 dBm to 4.0 dBm Receiver sensitivity: ≤ -24.0 dBmOverload optical power: -7.0 dBm Extinction ratio: ≥ 9 dB
SFP-10G-ZDWT	≤ 80	DWDM	Center wavelength: 1529.16 to 1560.61 nm Transmit power: -1 to 3 dBm Receiver sensitivity: ≤ -24 dBm Overload optical power: -1 dBm Extinction ratio: ≥ 8.2 dB
LE2MXSC80FF0(linear)	≤ 80	10Gbase-ZR	Center wavelength: 1550 nm Transmit power: 0 to 4.0 dBm Receiver sensitivity: ≤ -24.0 dBmOverload optical power: -7.0 dBm Extinction ratio: ≥ 9 dB	Fiber mode: single-mode Connector type: LC
SFP-10G-BXU1 (Single-fiber bidirectional optical module)	≤ 10	10Gbase-BX	Center wavelength: Tx1270/Rx1330 nm Transmit power: -8.2 dBm to 0.5 dBm Receiver sensitivity: ≤ -14.4 dBm Overload optical power: 0.5 dBm Extinction ratio: ≥ 3.5 dB	Fiber mode: single-mode Connector type: LC
SFP-10G-BXD1 (Single-fiber bidirectional optical module)			Center wavelength: Tx1330/Rx1270 nm Transmit power: -8.2 dBm to 0.5 dBm Receiver sensitivity: ≤ -14.4 dBm Overload optical power: 0.5 dBm Extinction ratio: ≥ 3.5 dB
SFP-10G-ER-SM1330-BIDI (single-fiber bidirectional)	≤ 40	10Gbase-BX	Center wavelength: Tx1330/Rx1270 nm Transmit power: 0 dBm to 5 dBm Receiver sensitivity: ≤ -18 dBmOverload optical power: -9 dBm Extinction ratio: ≥ 3.5 dB
SFP-10G-ER-SM1270-BIDI (single-fiber bidirectional)			Center wavelength: Tx1270/Rx1330 nm Transmit power: 0 dBm to 5 dBm Receiver sensitivity: ≤ -18 dBm Overload optical power: -9 dBm Extinction ratio: ≥ 3.5 dB
Attributes of SFP+ CWDM optical modules
Center Wavelength (nm), Model
1471, SFP-10G-ZCW1471	1491, SFP-10G-ZCW1491		1511, SFP-10G-ZCW1511	1531, SFP-10G-ZCW1531
1551, SFP-10G-ZCW1551	1571, SFP-10G-ZCW1571		1591, SFP-10G-ZCW1591	1611, SFP-10G-ZCW1611
Specifications	Encapsulation type: SFP+
	Transmission distance: ≤ 70 km
	Fiber type: single-mode, LC
	Standard: CWDM
	Operating temperature: 0°C to 70°C (32°F to 158°F)
	Transmit power: 0 dBm to 4.0 dBm Receiver sensitivity: ≤ -23.0 dBm Overload optical power: -7.0 dBm Extinction ratio: ≥ 8.2 dB
Physical specifications
Dimensions(W x D x H):	394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight:	2.50 kg (5.51 lb)
Maximum power consumption:	198.1 W
Environment parameters
Operating temperature	0°C to 45°C (32°F to 113°F)
Operating relative humidity	5% RH to 95% RH (noncondensing)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Storage relative humidity	5% RH to 95% RH (noncondensing)

Item	ES1D2X08SED4
Apply to S7700 Switch
Attributes of a 10GBASE SFP+ port
Connector type	SFP+
Optical port attributes	Depend on the SFP+ - SFP+ high-speed cable (1 m, 3 m, 5 m, 10 m), QSFP+ - 4*SFP+ high-speed cable (1 m, 3 m, 5 m), SFP+ optical module, or SFP+ optical cable used
Standards compliance	IEEE 802.3ae
Frame format	Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol	IP
Attributes of 10GE optical modules
Operating Temperature	0°C to 70°C (32°F to 158°F)
Model	Transmission Distance (km)	Standard	Interface Optical Parameters	Fiber Type
SFP-10G-USR	≤ 0.1	10Gbase-USR	Center wavelength: 850 nm Transmit power: -7.3 to -1 dBm Receiver sensitivity: ≤ -10.7 dBmOverload optical power: 0.5 dBm Extinction ratio: ≥ 3.0 dB	Fiber mode: multimode (OM3) Connector type: LC
OMXD30000	≤ 0.026	10Gbase-SR	Center wavelength: 850 nm Transmit power: -7.3 to -1.0 dBm Receiver sensitivity: ≤-11.1 dBm Overload optical power: -1.0 dBm Extinction ratio: ≥ 3.0 dB	Fiber mode: multimode Modal Bandwidth: 160 MHz*km Core diameter: 62.5 μm Connector type: LC
	≤ 0.033			Fiber mode: multimode (OM1) Connector type: LC
	≤ 0.066			Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC
	≤ 0.082			Fiber mode: multimode (OM2) Connector type: LC
	≤ 0.3			Fiber mode: multimode (OM3) Connector type: LC
	≤ 0.4			Fiber mode: multimode (OM4) Connector type: LC
OSX010000	≤ 10	10Gbase-LR	Center wavelength: 1310 nm Transmit power: -8.2 to 0.5 dBm Receiver sensitivity: ≤ -12.6 dBm Overload optical power: 0.5 dBm Extinction ratio: ≥ 3.5 dB	Fiber mode: single-mode Connector type: LC
SFP-10G-iLR	≤ 1.4	10GBASE-iLR	Center wavelength: 1310 nm Transmit power: -8.2 to 0.5 dBm Receiver sensitivity: ≤ -14.4 dBm Overload optical power: 0.5 dBm Extinction ratio: ≥ 3.5 dB	Fiber mode: single-mode Connector type: LC
OSXD22N00(linear)	≤ 0.1	10Gbase-LRM	Center wavelength: 1310 nm Transmit power: -6.5 to 0.5 dBm Receiver sensitivity: ≤ -6.5 dBm Overload optical power: 1.5 dBm Extinction ratio: ≥ 3.5 dB	Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC
	≤ 0.22	10Gbase-LRM	Center wavelength: 1310 nm Transmit power: -6.5 to 0.5 dBm Receiver sensitivity: ≤ -6.5 dBm Overload optical power: 1.5 dBm Extinction ratio: ≥ 3.5 dB	Fiber mode: multimode Modal Bandwidth: 500 MHz*km Core diameter: 62.5 μm Connector type: LC
				Fiber mode: multimode (OM1, OM2, OM3) Connector type: LC
OSX040N01	≤ 40	10Gbase-ER	Center wavelength: 1550 nm Transmit power: -4.7 to 4.0 dBm Receiver sensitivity: ≤ -14.1 dBm Overload optical power: -1.0 dBm Extinction ratio: ≥ 3 dB	Fiber mode: single-mode Connector type: LC
SFP-10G-ZR(limiting)	≤ 80	10Gbase-ZR	Center wavelength: 1550 nm Transmit power: 0 dBm to 4.0 dBm Receiver sensitivity: ≤ -24.0 dBmOverload optical power: -7.0 dBm Extinction ratio: ≥ 9 dB
SFP-10G-ZDWT	≤ 80	DWDM	Center wavelength: 1529.16 to 1560.61 nm Transmit power: -1 to 3 dBm Receiver sensitivity: ≤ -24 dBm Overload optical power: -1 dBm Extinction ratio: ≥ 8.2 dB
LE2MXSC80FF0(linear)	≤ 80	10Gbase-ZR	Center wavelength: 1550 nm Transmit power: 0 to 4.0 dBm Receiver sensitivity: ≤ -24.0 dBmOverload optical power: -7.0 dBm Extinction ratio: ≥ 9 dB	Fiber mode: single-mode Connector type: LC
SFP-10G-BXU1 (Single-fiber bidirectional optical module)	≤ 10	10Gbase-BX	Center wavelength: Tx1270/Rx1330 nm Transmit power: -8.2 dBm to 0.5 dBm Receiver sensitivity: ≤ -14.4 dBm Overload optical power: 0.5 dBm Extinction ratio: ≥ 3.5 dB	Fiber mode: single-mode Connector type: LC
SFP-10G-BXD1 (Single-fiber bidirectional optical module)			Center wavelength: Tx1330/Rx1270 nm Transmit power: -8.2 dBm to 0.5 dBm Receiver sensitivity: ≤ -14.4 dBm Overload optical power: 0.5 dBm Extinction ratio: ≥ 3.5 dB
SFP-10G-ER-SM1330-BIDI (single-fiber bidirectional)	≤ 40	10Gbase-BX	Center wavelength: Tx1330/Rx1270 nm Transmit power: 0 dBm to 5 dBm Receiver sensitivity: ≤ -18 dBmOverload optical power: -9 dBm Extinction ratio: ≥ 3.5 dB
SFP-10G-ER-SM1270-BIDI (single-fiber bidirectional)			Center wavelength: Tx1270/Rx1330 nm Transmit power: 0 dBm to 5 dBm Receiver sensitivity: ≤ -18 dBm Overload optical power: -9 dBm Extinction ratio: ≥ 3.5 dB
Attributes of SFP+ CWDM optical modules
Center Wavelength (nm), Model
1471, SFP-10G-ZCW1471	1491, SFP-10G-ZCW1491		1511, SFP-10G-ZCW1511	1531, SFP-10G-ZCW1531
1551, SFP-10G-ZCW1551	1571, SFP-10G-ZCW1571		1591, SFP-10G-ZCW1591	1611, SFP-10G-ZCW1611
Specifications	Encapsulation type: SFP+
	Transmission distance: ≤ 70 km
	Fiber type: single-mode, LC
	Standard: CWDM
	Operating temperature: 0°C to 70°C (32°F to 158°F)
	Transmit power: 0 dBm to 4.0 dBm Receiver sensitivity: ≤ -23.0 dBm Overload optical power: -7.0 dBm Extinction ratio: ≥ 8.2 dB
Physical specifications
Dimensions(W x D x H):	394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight:	2.50 kg (5.51 lb)
Maximum power consumption:	198.1 W
Environment parameters
Operating temperature	0°C to 45°C (32°F to 113°F)
Operating relative humidity	5% RH to 95% RH (noncondensing)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Storage relative humidity	5% RH to 95% RH (noncondensing)

Weight	6.0000 kg
Dimensions	50.2000 × 46.8000 × 11.8000 cm
S7700	10GE Card
Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse
