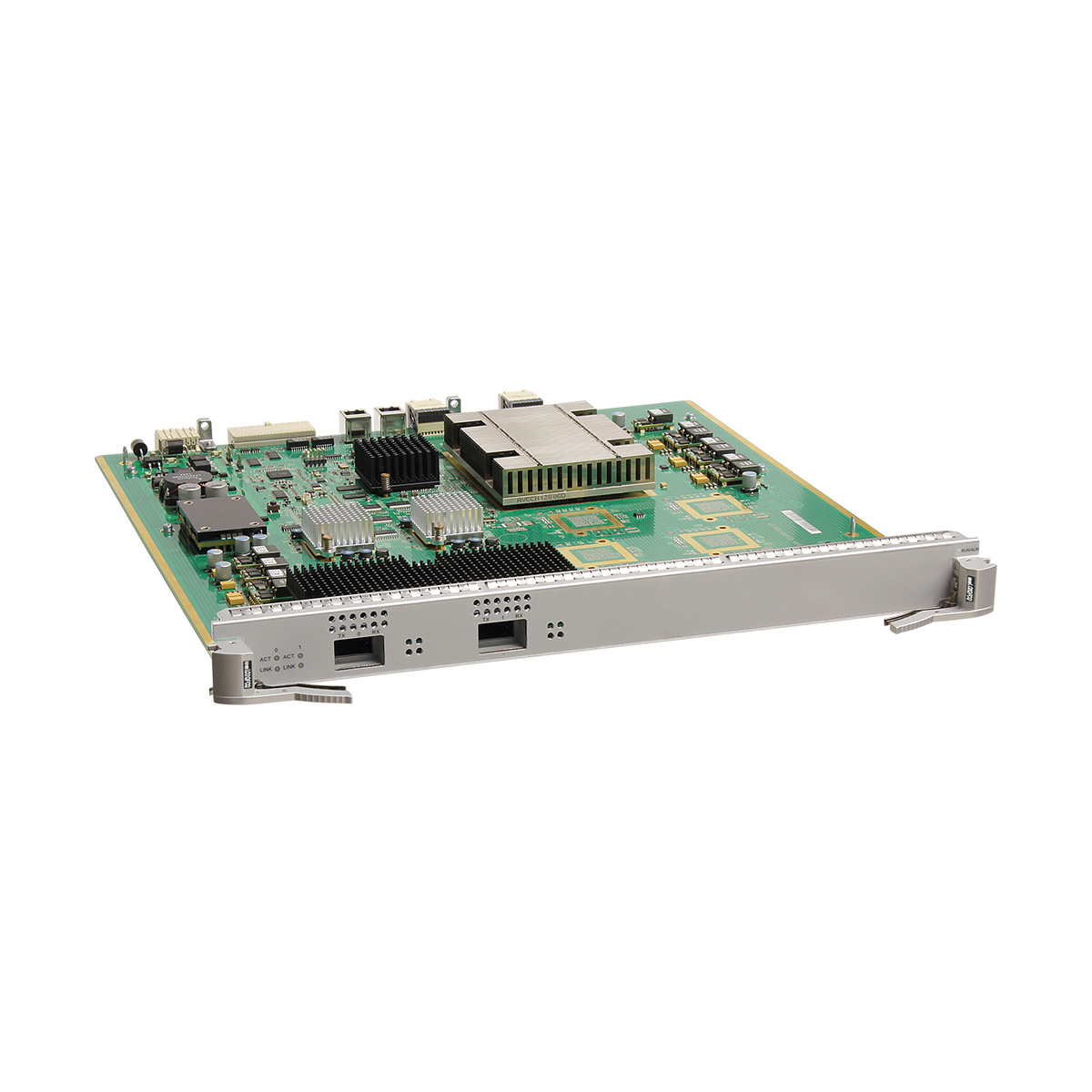

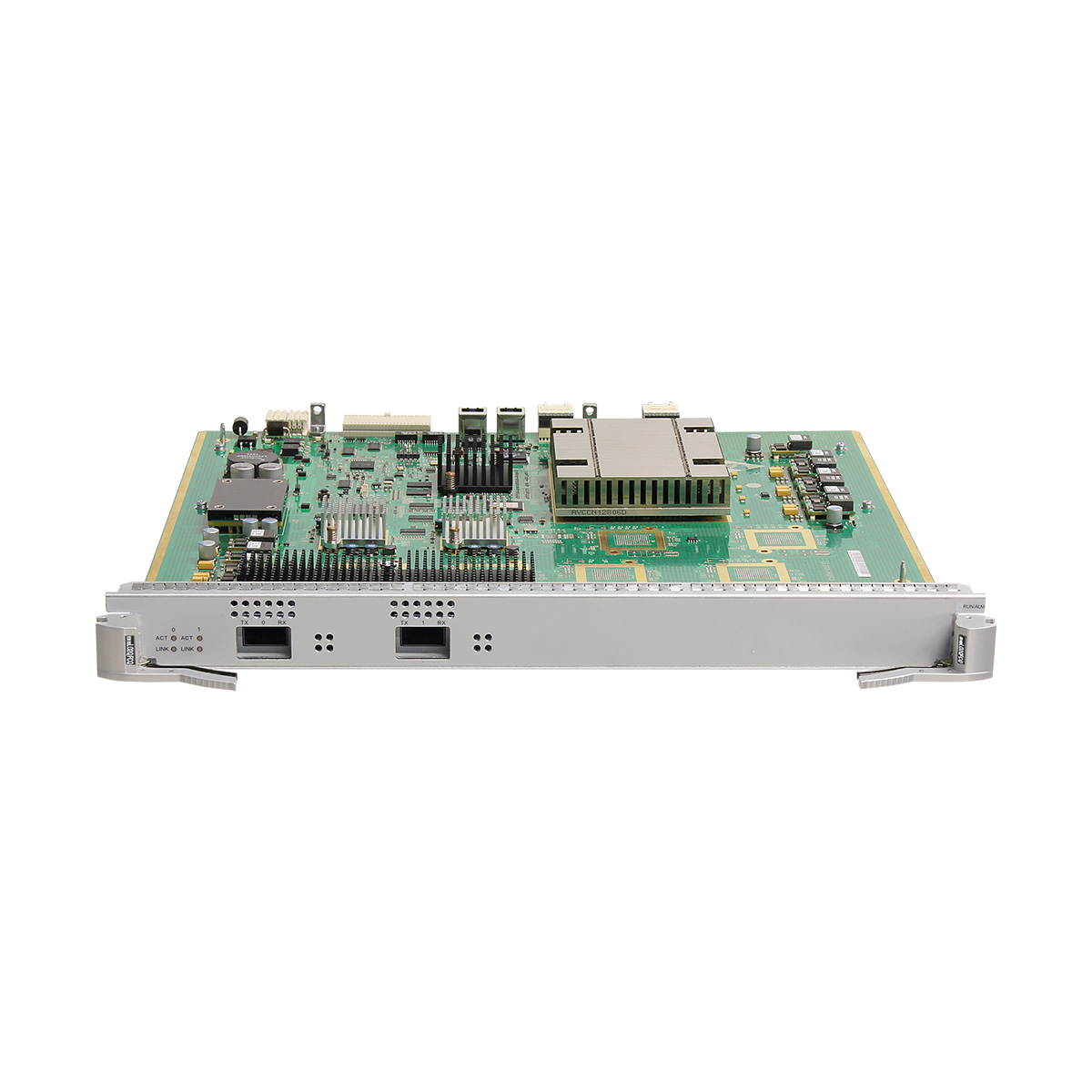

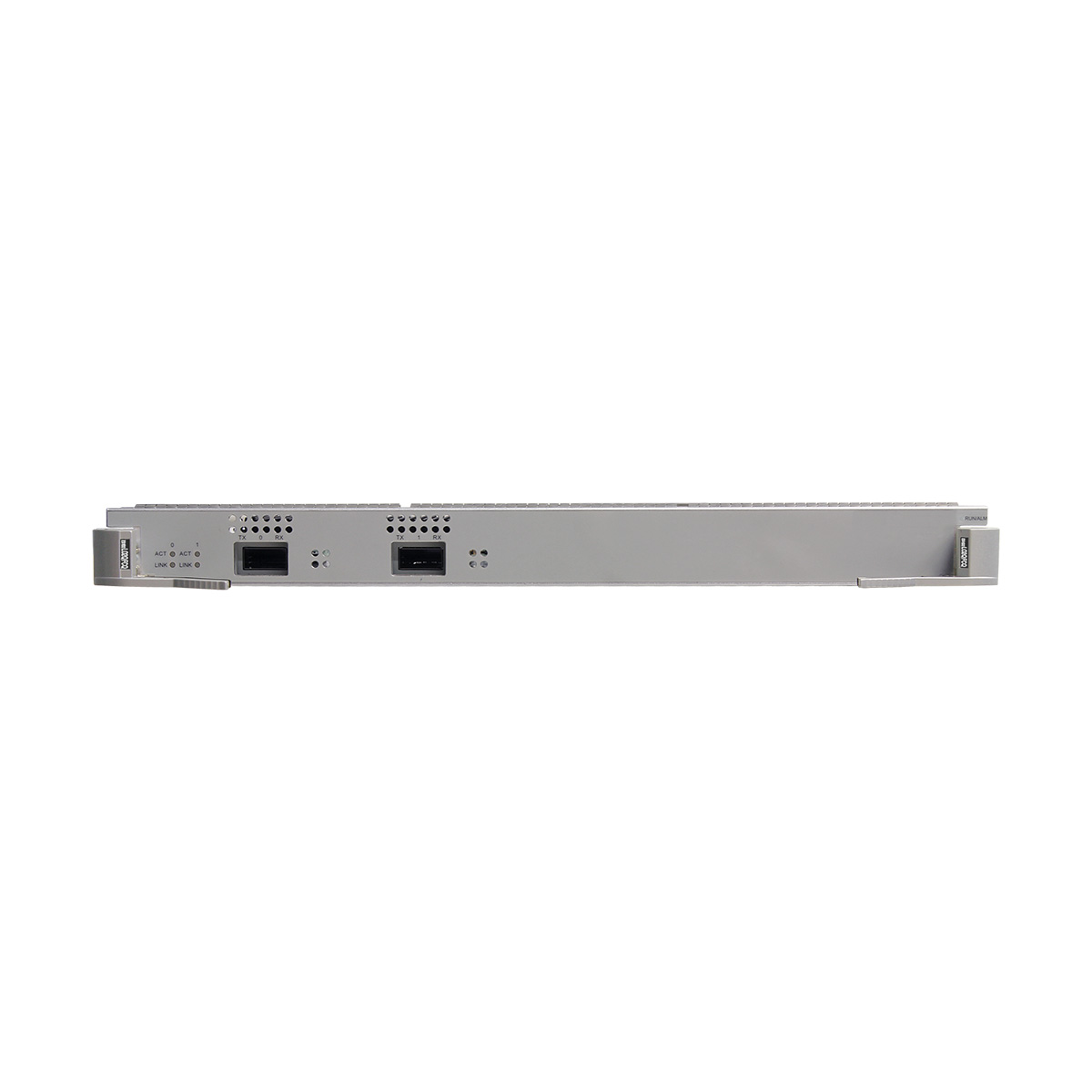

ES1D2L02QFC0 Huawei S7700 switch 2 Port 40GBASE-X Interface Card (FC, QSFP+)

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

ES1D2L02QFC0 overview

ES1D2L02QFC0 Huawei S7700 switch 2 Port 40GBASE-X Interface Card (FC, QSFP+)

ES1D2L02QFC0 application

Card Name	S7700 Chassis
ES1D2L02QFC0	S7703, S7706 and S7712 chassis: supported in V200R002C00 and later versions S7703 PoE and S7706 PoE chassis: supported in V200R013C00 and later versions

ES1D2L02QFC0 function and feature

Function	Description
Basic function	Provides two 40GE optical ports for data transmission and switching. Allows a 40GE port to split into four 10GE ports.
Distributed forwarding	Performs concurrent data forwarding using a distributed data plane.
Hot swapping	The ES1D2L02QFC0 is hot swappable.

Item		ES1D2L02QFC0
Apply to S7700 Switch
Attributes of a 40GE BASE-X optical port
Connector type		QSFP+
Optical port attributes		Depend on the QSFP+ optical module,
Standards compliance		IEEE802.3ba
Frame format		Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol		IP
Attributes of QSFP+ 40GE optical modules
Operating Temperature	0°C to 70°C (32°F to 158°F)
Model	Transmission Distance (km)	Standard	Fiber Type
QSFP-40G-SR4	≤ 0.1	40Gbase-SR4	Fiber mode: multimode (OM3) Connector type: MPO
	≤ 0.15		Fiber mode: multimode (OM4) Connector type: MPO
QSFP-40G-iSR4 (Supports 4*10G)	≤ 0.1	40Gbase-iSR4	Fiber mode: multimode (OM3) Connector type: MPO
	≤ 0.15		Fiber mode: multimode (OM4) Connector type: MPO
QSFP-40G-eSR4 (Supports 4*10G)	≤ 0.026	40Gbase-eSR4	Fiber mode: multimode Modal Bandwidth: 160 MHz*kmCore diameter: 62.5 μm Connector type: MPO
	≤ 0.033		Fiber mode: multimode (OM1) Connector type: MPO
	≤ 0.066		Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: MPO
	≤ 0.082		Fiber mode: multimode (OM2) Connector type: MPO
	≤ 0.3		Fiber mode: multimode (OM3) Connector type: MPO
	≤ 0.4		Fiber mode: multimode (OM4) Connector type: MPO
QSFP-40G-LR4	≤ 10	40Gbase-LR4	Fiber mode: single-mode Connector type: LC
QSFP-40G-ER4	≤ 40	40GBASE-ER4	Fiber mode: single-mode Connector type: LC
QSFP-40G-iSM4	≤ 1.4	40GBASE-iSM4	Fiber mode: single-mode Connector type: MPO
Physical specifications
Dimensions(W x D x H):		394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight:		2.50 kg (5.51 lb)
Maximum power consumption:		88 W
Environment parameters
Operating temperature		0°C to 45°C (32°F to 113°F)
Operating relative humidity		5% RH to 95% RH (noncondensing)
Storage temperature		-40°C to +70°C (-40°F to +158°F)
Storage relative humidity		5% RH to 95% RH (noncondensing)

Item		ES1D2L02QFC0
Apply to S7700 Switch
Attributes of a 40GE BASE-X optical port
Connector type		QSFP+
Optical port attributes		Depend on the QSFP+ optical module,
Standards compliance		IEEE802.3ba
Frame format		Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol		IP
Attributes of QSFP+ 40GE optical modules
Operating Temperature	0°C to 70°C (32°F to 158°F)
Model	Transmission Distance (km)	Standard	Fiber Type
QSFP-40G-SR4	≤ 0.1	40Gbase-SR4	Fiber mode: multimode (OM3) Connector type: MPO
	≤ 0.15		Fiber mode: multimode (OM4) Connector type: MPO
QSFP-40G-iSR4 (Supports 4*10G)	≤ 0.1	40Gbase-iSR4	Fiber mode: multimode (OM3) Connector type: MPO
	≤ 0.15		Fiber mode: multimode (OM4) Connector type: MPO
QSFP-40G-eSR4 (Supports 4*10G)	≤ 0.026	40Gbase-eSR4	Fiber mode: multimode Modal Bandwidth: 160 MHz*kmCore diameter: 62.5 μm Connector type: MPO
	≤ 0.033		Fiber mode: multimode (OM1) Connector type: MPO
	≤ 0.066		Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: MPO
	≤ 0.082		Fiber mode: multimode (OM2) Connector type: MPO
	≤ 0.3		Fiber mode: multimode (OM3) Connector type: MPO
	≤ 0.4		Fiber mode: multimode (OM4) Connector type: MPO
QSFP-40G-LR4	≤ 10	40Gbase-LR4	Fiber mode: single-mode Connector type: LC
QSFP-40G-ER4	≤ 40	40GBASE-ER4	Fiber mode: single-mode Connector type: LC
QSFP-40G-iSM4	≤ 1.4	40GBASE-iSM4	Fiber mode: single-mode Connector type: MPO
Physical specifications
Dimensions(W x D x H):		394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight:		2.50 kg (5.51 lb)
Maximum power consumption:		88 W
Environment parameters
Operating temperature		0°C to 45°C (32°F to 113°F)
Operating relative humidity		5% RH to 95% RH (noncondensing)
Storage temperature		-40°C to +70°C (-40°F to +158°F)
Storage relative humidity		5% RH to 95% RH (noncondensing)
