ES1D2G24SED0

0 Reviews Write a review

PN03030QJQ

BrandsHuawei

AvailabilityIn Stock

S7700 1000M Card

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

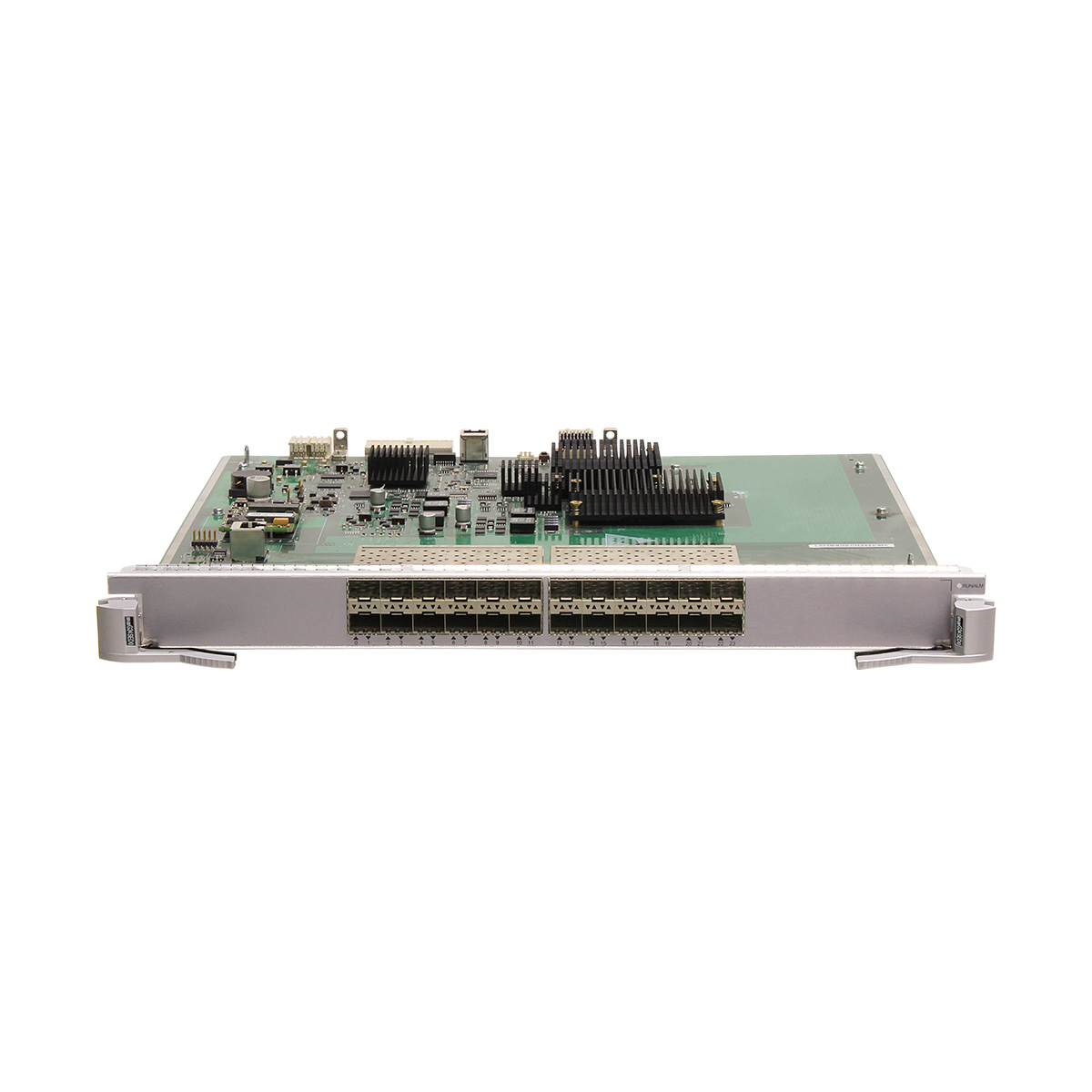

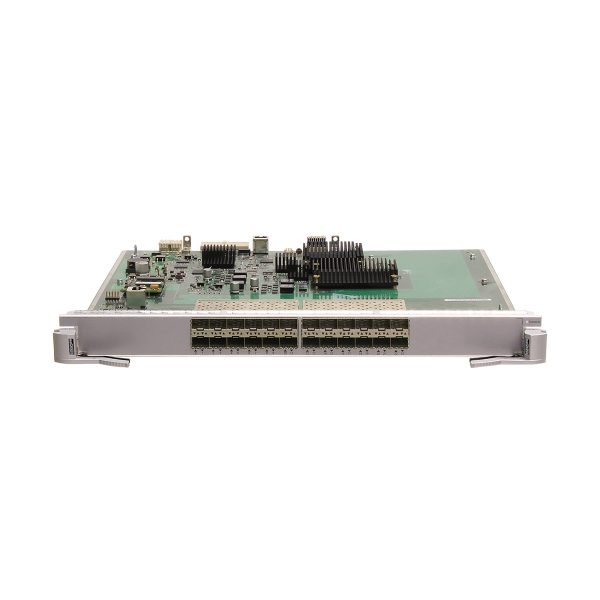

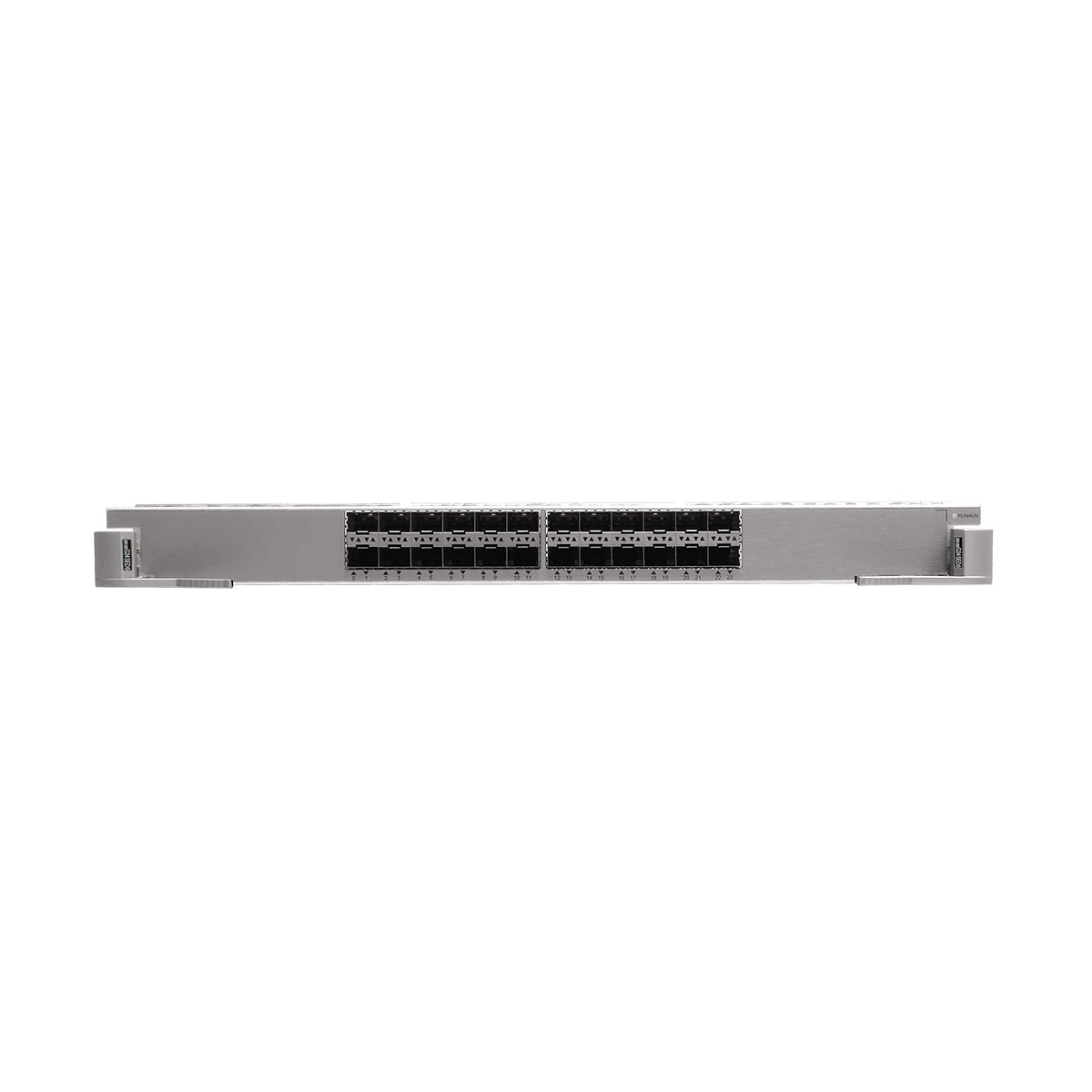

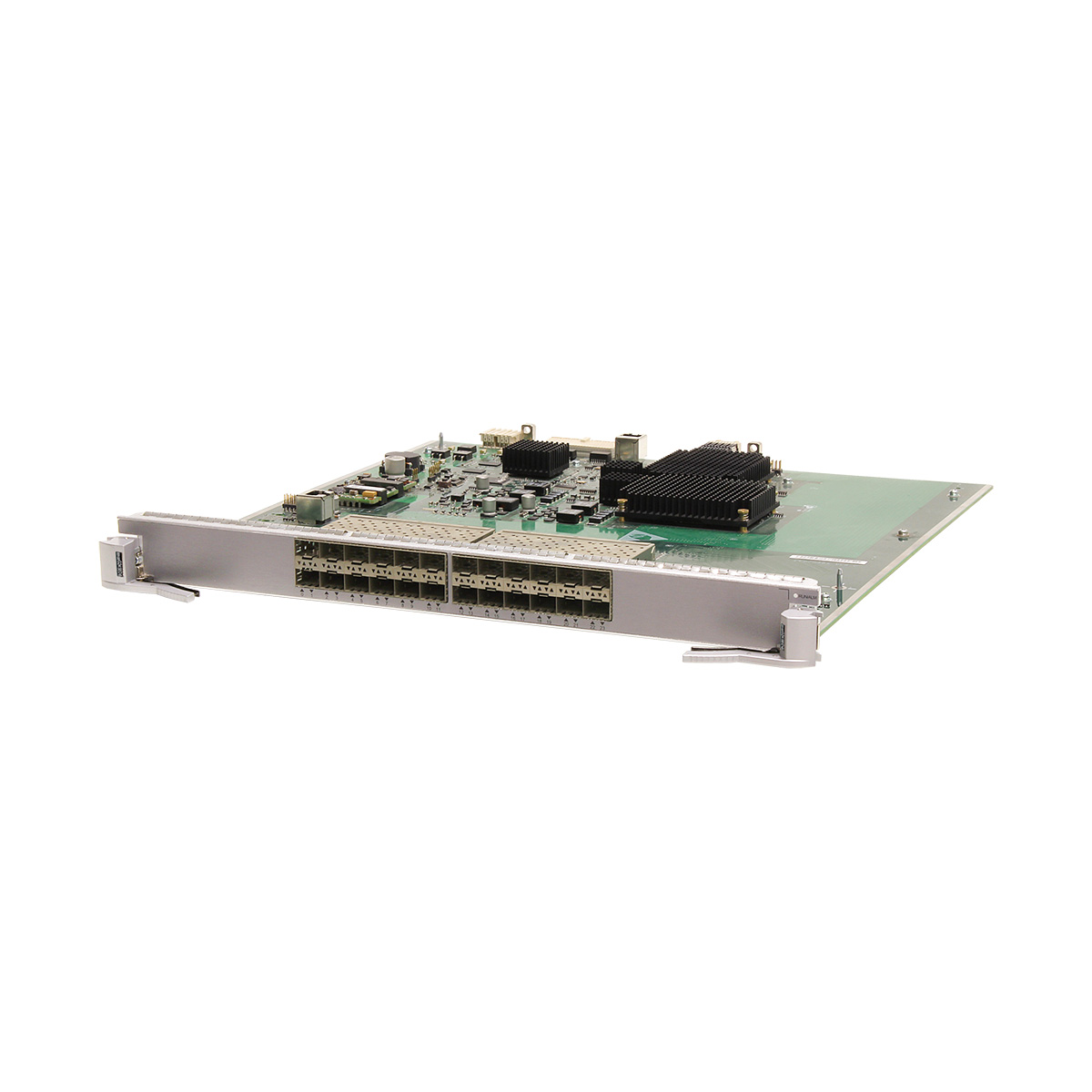

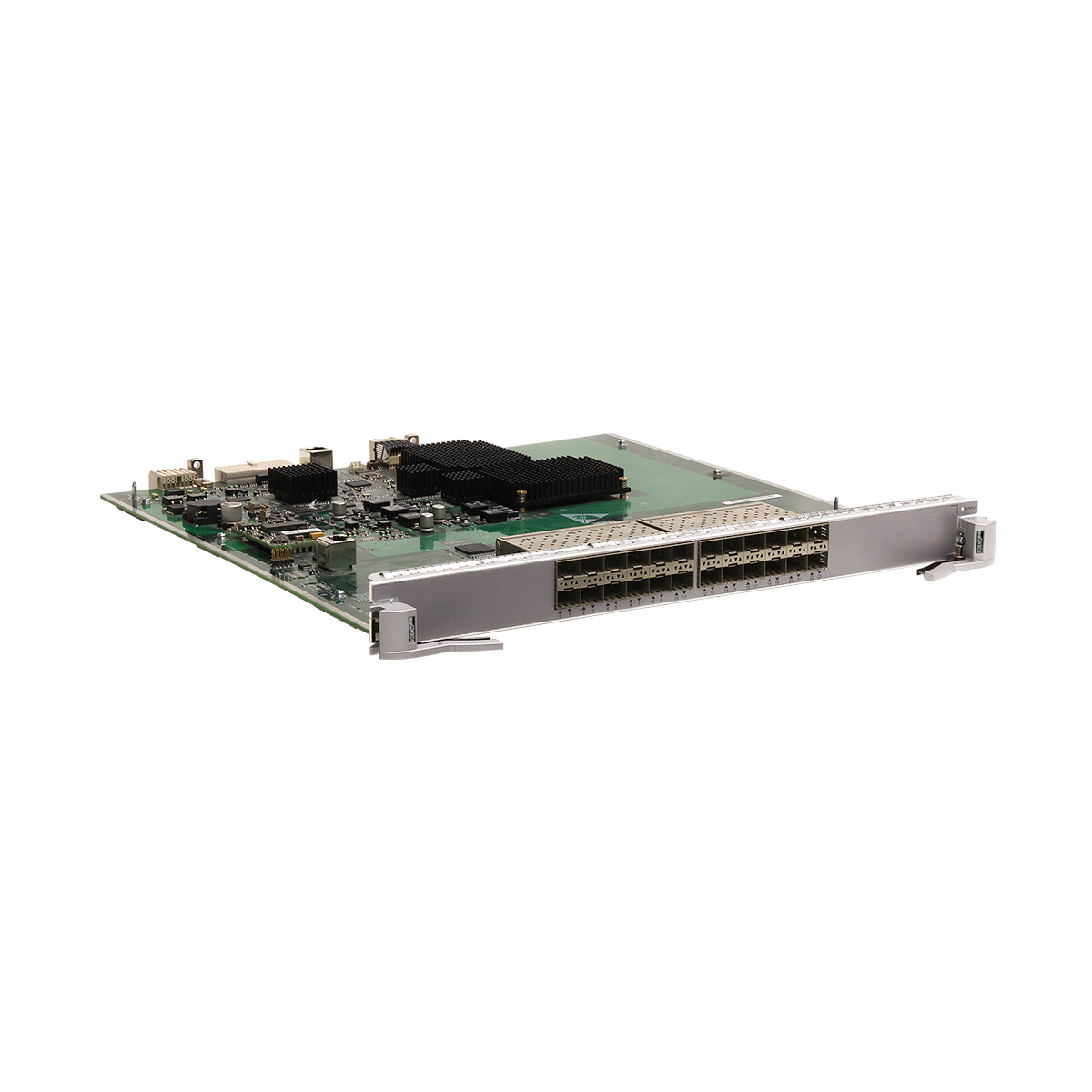

ES1D2G24SED0 Huawei S7700 switch 24 port 100/1000BASE-X interface card (ED, SFP)

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

ES1D2G24SED0 overview

ES1D2G24SED0 Huawei S7700 switch 24 port 100/1000BASE-X interface card (ED, SFP)

ES1D2G24SED0 application

Card Name	S7700 Chassis
ES1D2G24SED0	S7703, S7706 and S7712 chassis: supported in V100R003C01 and later versions
ES1D2G24SED0	S7703 PoE and S7706 PoE chassis: supported in V200R013C00 and later versions

ES1D2G24SED0 functions and features

Function	Description
Basic function	Provides twenty-four GE optical ports for data transmission and switching.
Distributed forwarding	Performs concurrent data forwarding using a distributed data plane.
Hot swapping	The ES1D2G24SED0 is hot swappable.

Item	ES1D2G24SED0
Apply to S7700 Switch
Optical port attributes
Connector type	SFP
Optical port attributes	Depend on the SFP optical module used
Standards compliance	IEEE 802.3z
Frame format	Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol	IP
Attributes of FE optical modules
Operating Temperature	0°C to 70°C (32°F to 158°F)
Model	Transmission Distance (km)	Standard	Fiber Type
SFP-FE-SX-MM1310 (SFP optical module)	≤ 2	100base-FX	Fiber mode: multimode Core diameter: 50 μm or 62.5 μm Connector type: LC
eSFP-FE-LX-SM1310	≤ 15	100base-LX	Fiber mode: single-mode Connector type: LC
S-SFP-FE-LH40-SM1310	≤ 40
S-SFP-FE-LH80-SM1550	≤ 80
SFP-FE-LX-SM1310-BIDI (Single-fiber bidirectional)	≤ 15	100base-BX
SFP-FE-LX-SM1550-BIDI (Single-fiber bidirectional)
Attributes of GE optical modules
eSFP-GE-SX-MM850	≤ 0.22	1000base-SX	Fiber mode: multimode Modal Bandwidth: 160 MHz*km Core diameter: 62.5 μm Connector type: LC
	≤ 0.275		Fiber mode: multimode (OM1) Connector type: LC
	≤ 0.5		Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC
	≤ 0.55		Fiber mode: multimode (OM2) Connector type: LC
	≤ 1		Fiber mode: multimode (OM3) Connector type: LC
SFP-GE-LX-SM1310	≤ 10	1000base-LX/LH	Fiber mode: single-mode Connector type: LC
S-SFP-GE-LH40-SM1310	≤ 40
S-SFP-GE-LH40-SM1550
S-SFP-GE-LH80-SM1550	≤ 80	1000base-ZX
eSFP-GE-ZX100-SM1550	≤ 100
SFP-GE-LX-SM1310-BIDI (Single-fiber bidirectional)	≤ 10	1000base-BX
SFP-GE-LX-SM1490-BIDI (Single-fiber bidirectional)
LE2MGSC40DE0 (Single-fiber bidirectional)	≤ 40
LE2MGSC40ED0 (Single-fiber bidirectional)
SFP-GE-ZBXD1 (Single-fiber bidirectional)can only be used on switch running V200R008C00 or later version.	≤ 80	1000base-BX
SFP-GE-ZBXU1 (Single-fiber bidirectional)can only be used on switch running V200R008C00 or later version.
SFP-GE-BXU1-SC (Single-fiber bidirectional)	≤ 10	1000base-BX	Fiber mode: single-mode Connector type: SC
Attributes of eSFP CWDM optical modules
Center Wavelength (nm), Model
1471, CWDM-SFPGE-1471	1491, CWDM-SFPGE-1491	1511, CWDM-SFPGE-1511	1531, CWDM-SFPGE-1531
1551, CWDM-SFPGE-1551	1571, CWDM-SFPGE-1571	1591, CWDM-SFPGE-1591	1611, CWDM-SFPGE-1611
Specifications	Encapsulation type: eSFP
	Transmission distance: ≤ 80 km
	Fiber type: single-mode, LC
	Standard: CWDM
	Operating temperature: 0°C to 70°C (32°F to 158°F)
	Transmit power: 0 dBm to 5.0 dBm Receiver sensitivity: ≤ -28.0 dBm Overload optical power: -9.0 dBm Extinction ratio: ≥ 8.5 dB
Attributes of eSFP DWDM optical modules
Center Wavelength (nm), Model
1529.55, DWDM-SFPGE-1529-55	1530.33, DWDM-SFPGE-1530-33	1531.12, DWDM-SFPGE-1531-12	1531.90, DWDM-SFPGE-1531-90
1532.68, DWDM-SFPGE-1532-68	1533.47, DWDM-SFPGE-1533-47	1534.25, DWDM-SFPGE-1534-25	1535.04, DWDM-SFPGE-1535-04
1535.82, DWDM-SFPGE-1535-82	1536.61, DWDM-SFPGE-1536-61	1537.40, DWDM-SFPGE-1537-40	1538.19, DWDM-SFPGE-1538-19
1538.98, DWDM-SFPGE-1538-98	1539.77, DWDM-SFPGE-1539-77	1540.56, DWDM-SFPGE-1540-56	1541.35, DWDM-SFPGE-1541-35
1542.14, DWDM-SFPGE-1542-14	1542.94, DWDM-SFPGE-1542-94	1543.73, DWDM-SFPGE-1543-73	1544.53, DWDM-SFPGE-1544-53
1545.32, DWDM-SFPGE-1545-32	1546.12, DWDM-SFPGE-1546-12	1546.92, DWDM-SFPGE-1546-92	1547.72, DWDM-SFPGE-1547-72
1548.51, DWDM-SFPGE-1548-51	1549.32, DWDM-SFPGE-1549-32	1550.12, DWDM-SFPGE-1550-12	1550.92, DWDM-SFPGE-1550-92
1551.72, DWDM-SFPGE-1551-72	1552.52, DWDM-SFPGE-1552-52	1553.33, DWDM-SFPGE-1553-33	1554.13, DWDM-SFPGE-1554-13
1554.94, DWDM-SFPGE-1554-94	1555.75, DWDM-SFPGE-1555-75	1556.55, DWDM-SFPGE-1556-55	1557.36, DWDM-SFPGE-1557-36
1558.17, DWDM-SFPGE-1558-17	1558.98, DWDM-SFPGE-1558-98	1559.79, DWDM-SFPGE-1559-79	1560.61, DWDM-SFPGE-1560-61
Specifications	Encapsulation type: eSFP
	Transmission distance: ≤ 120 km
	Fiber type: single-mode, LC
	Standard: DWDM
	Operating temperature: 0°C to 45°C (32°F to 113°F)
	Transmit power: 0 dBm to 4.0 dBm Receiver sensitivity: ≤ -28.0 dBm Overload optical power: -8.0 dBm Extinction ratio: ≥ 8.2 dB
Physical specifications
Dimensions(W x D x H):	394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight:	2.66 kg (5.86 lb)
Maximum power consumption:	75 W
Environment parameters
Operating temperature	0°C to 45°C (32°F to 113°F)
Operating relative humidity	5% RH to 95% RH (noncondensing)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Storage relative humidity	5% RH to 95% RH (noncondensing)

Item	ES1D2G24SED0
Apply to S7700 Switch
Optical port attributes
Connector type	SFP
Optical port attributes	Depend on the SFP optical module used
Standards compliance	IEEE 802.3z
Frame format	Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol	IP
Attributes of FE optical modules
Operating Temperature	0°C to 70°C (32°F to 158°F)
Model	Transmission Distance (km)	Standard	Fiber Type
SFP-FE-SX-MM1310 (SFP optical module)	≤ 2	100base-FX	Fiber mode: multimode Core diameter: 50 μm or 62.5 μm Connector type: LC
eSFP-FE-LX-SM1310	≤ 15	100base-LX	Fiber mode: single-mode Connector type: LC
S-SFP-FE-LH40-SM1310	≤ 40
S-SFP-FE-LH80-SM1550	≤ 80
SFP-FE-LX-SM1310-BIDI (Single-fiber bidirectional)	≤ 15	100base-BX
SFP-FE-LX-SM1550-BIDI (Single-fiber bidirectional)
Attributes of GE optical modules
eSFP-GE-SX-MM850	≤ 0.22	1000base-SX	Fiber mode: multimode Modal Bandwidth: 160 MHz*km Core diameter: 62.5 μm Connector type: LC
	≤ 0.275		Fiber mode: multimode (OM1) Connector type: LC
	≤ 0.5		Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC
	≤ 0.55		Fiber mode: multimode (OM2) Connector type: LC
	≤ 1		Fiber mode: multimode (OM3) Connector type: LC
SFP-GE-LX-SM1310	≤ 10	1000base-LX/LH	Fiber mode: single-mode Connector type: LC
S-SFP-GE-LH40-SM1310	≤ 40
S-SFP-GE-LH40-SM1550
S-SFP-GE-LH80-SM1550	≤ 80	1000base-ZX
eSFP-GE-ZX100-SM1550	≤ 100
SFP-GE-LX-SM1310-BIDI (Single-fiber bidirectional)	≤ 10	1000base-BX
SFP-GE-LX-SM1490-BIDI (Single-fiber bidirectional)
LE2MGSC40DE0 (Single-fiber bidirectional)	≤ 40
LE2MGSC40ED0 (Single-fiber bidirectional)
SFP-GE-ZBXD1 (Single-fiber bidirectional)can only be used on switch running V200R008C00 or later version.	≤ 80	1000base-BX
SFP-GE-ZBXU1 (Single-fiber bidirectional)can only be used on switch running V200R008C00 or later version.
SFP-GE-BXU1-SC (Single-fiber bidirectional)	≤ 10	1000base-BX	Fiber mode: single-mode Connector type: SC
Attributes of eSFP CWDM optical modules
Center Wavelength (nm), Model
1471, CWDM-SFPGE-1471	1491, CWDM-SFPGE-1491	1511, CWDM-SFPGE-1511	1531, CWDM-SFPGE-1531
1551, CWDM-SFPGE-1551	1571, CWDM-SFPGE-1571	1591, CWDM-SFPGE-1591	1611, CWDM-SFPGE-1611
Specifications	Encapsulation type: eSFP
	Transmission distance: ≤ 80 km
	Fiber type: single-mode, LC
	Standard: CWDM
	Operating temperature: 0°C to 70°C (32°F to 158°F)
	Transmit power: 0 dBm to 5.0 dBm Receiver sensitivity: ≤ -28.0 dBm Overload optical power: -9.0 dBm Extinction ratio: ≥ 8.5 dB
Attributes of eSFP DWDM optical modules
Center Wavelength (nm), Model
1529.55, DWDM-SFPGE-1529-55	1530.33, DWDM-SFPGE-1530-33	1531.12, DWDM-SFPGE-1531-12	1531.90, DWDM-SFPGE-1531-90
1532.68, DWDM-SFPGE-1532-68	1533.47, DWDM-SFPGE-1533-47	1534.25, DWDM-SFPGE-1534-25	1535.04, DWDM-SFPGE-1535-04
1535.82, DWDM-SFPGE-1535-82	1536.61, DWDM-SFPGE-1536-61	1537.40, DWDM-SFPGE-1537-40	1538.19, DWDM-SFPGE-1538-19
1538.98, DWDM-SFPGE-1538-98	1539.77, DWDM-SFPGE-1539-77	1540.56, DWDM-SFPGE-1540-56	1541.35, DWDM-SFPGE-1541-35
1542.14, DWDM-SFPGE-1542-14	1542.94, DWDM-SFPGE-1542-94	1543.73, DWDM-SFPGE-1543-73	1544.53, DWDM-SFPGE-1544-53
1545.32, DWDM-SFPGE-1545-32	1546.12, DWDM-SFPGE-1546-12	1546.92, DWDM-SFPGE-1546-92	1547.72, DWDM-SFPGE-1547-72
1548.51, DWDM-SFPGE-1548-51	1549.32, DWDM-SFPGE-1549-32	1550.12, DWDM-SFPGE-1550-12	1550.92, DWDM-SFPGE-1550-92
1551.72, DWDM-SFPGE-1551-72	1552.52, DWDM-SFPGE-1552-52	1553.33, DWDM-SFPGE-1553-33	1554.13, DWDM-SFPGE-1554-13
1554.94, DWDM-SFPGE-1554-94	1555.75, DWDM-SFPGE-1555-75	1556.55, DWDM-SFPGE-1556-55	1557.36, DWDM-SFPGE-1557-36
1558.17, DWDM-SFPGE-1558-17	1558.98, DWDM-SFPGE-1558-98	1559.79, DWDM-SFPGE-1559-79	1560.61, DWDM-SFPGE-1560-61
Specifications	Encapsulation type: eSFP
	Transmission distance: ≤ 120 km
	Fiber type: single-mode, LC
	Standard: DWDM
	Operating temperature: 0°C to 45°C (32°F to 113°F)
	Transmit power: 0 dBm to 4.0 dBm Receiver sensitivity: ≤ -28.0 dBm Overload optical power: -8.0 dBm Extinction ratio: ≥ 8.2 dB
Physical specifications
Dimensions(W x D x H):	394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight:	2.66 kg (5.86 lb)
Maximum power consumption:	75 W
Environment parameters
Operating temperature	0°C to 45°C (32°F to 113°F)
Operating relative humidity	5% RH to 95% RH (noncondensing)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Storage relative humidity	5% RH to 95% RH (noncondensing)

Weight	6.0000 kg
Dimensions	50.2000 × 46.8000 × 11.8000 cm
S7700	1000M Card
Brand	Huawei
Lead Time	3-5 days
