Categories:S7700/S9700 Series

ES1D2C02FEE0

0 Reviews Write a review

PN03030XJN

BrandsHuawei

AvailabilityIn Stock

S7700 100GE Card

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

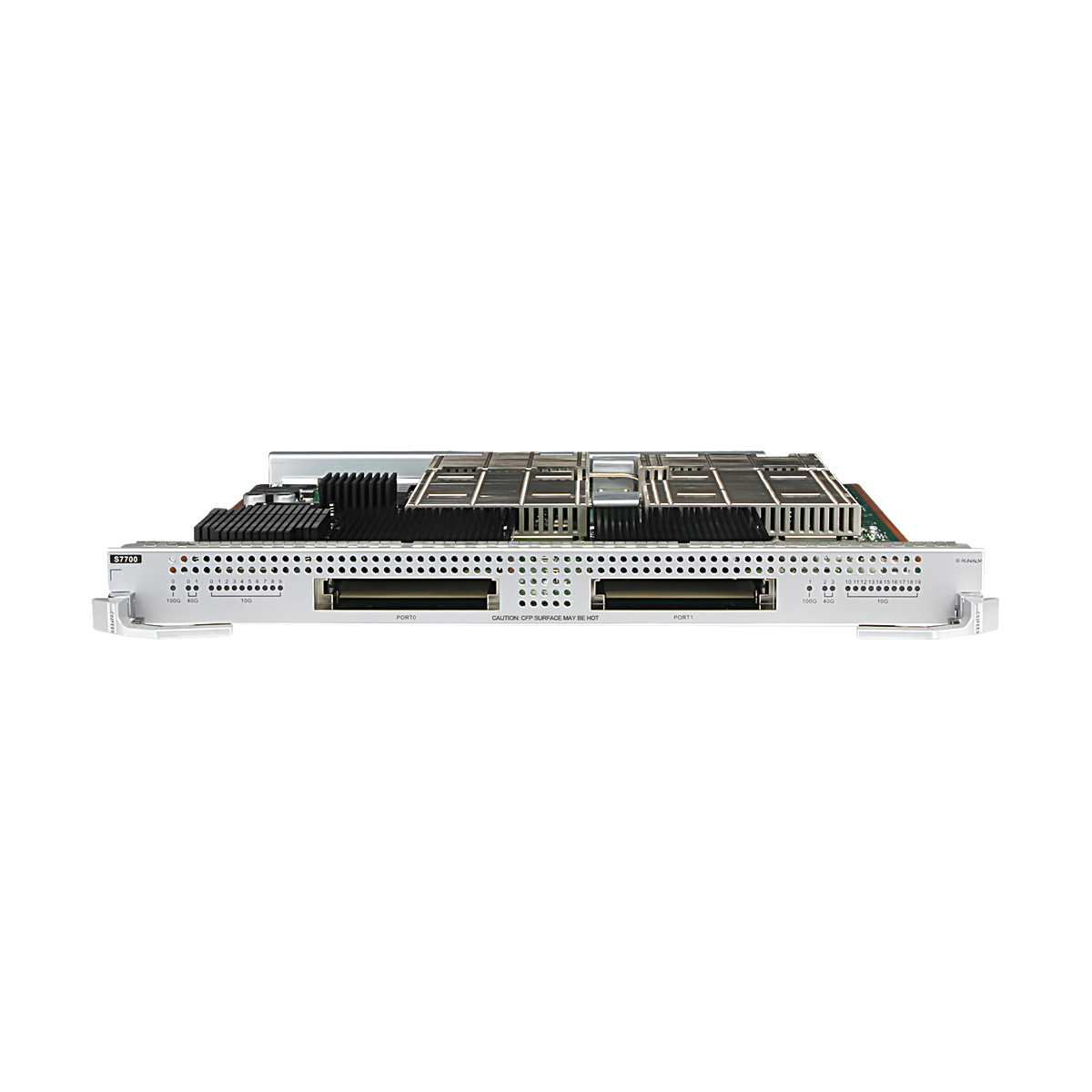

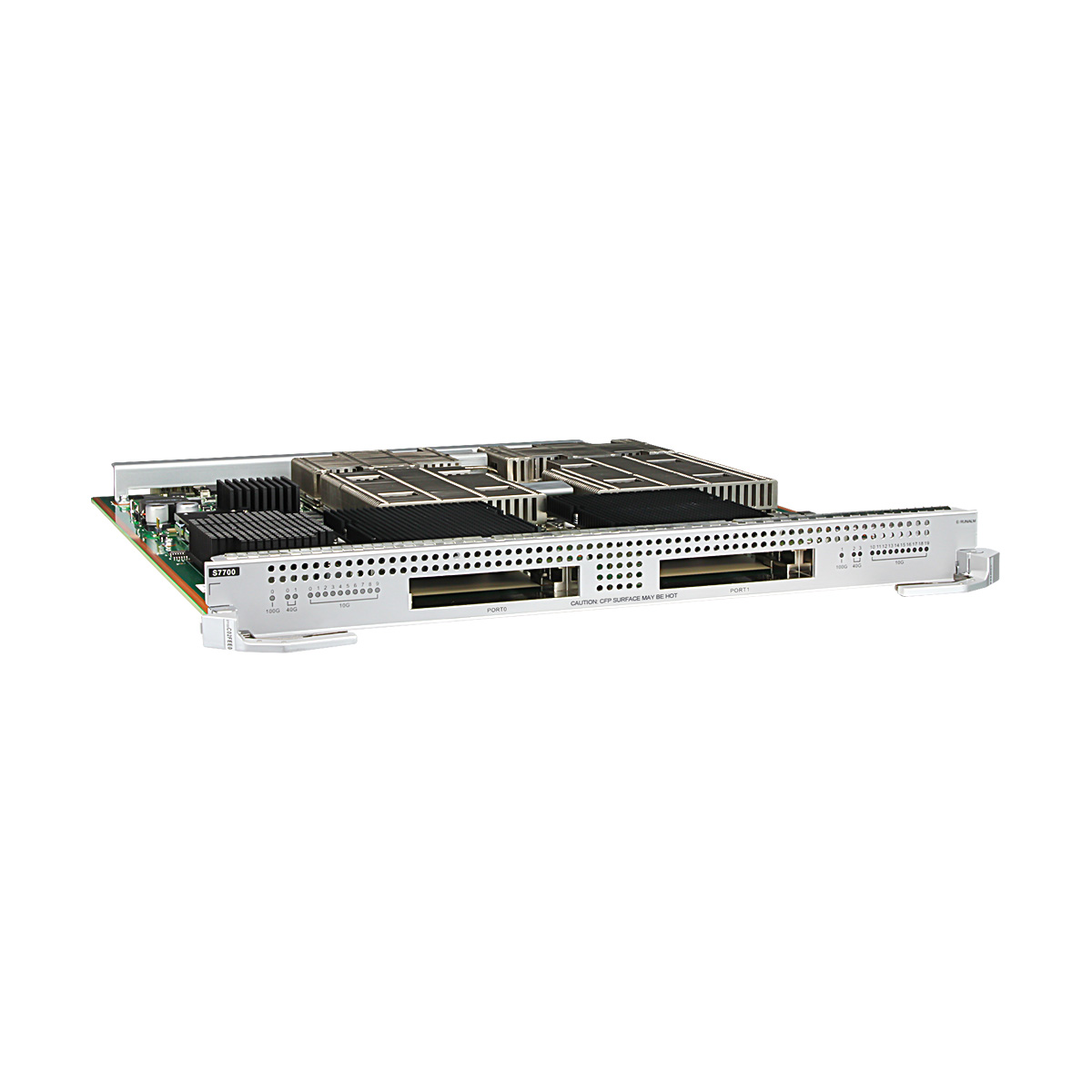

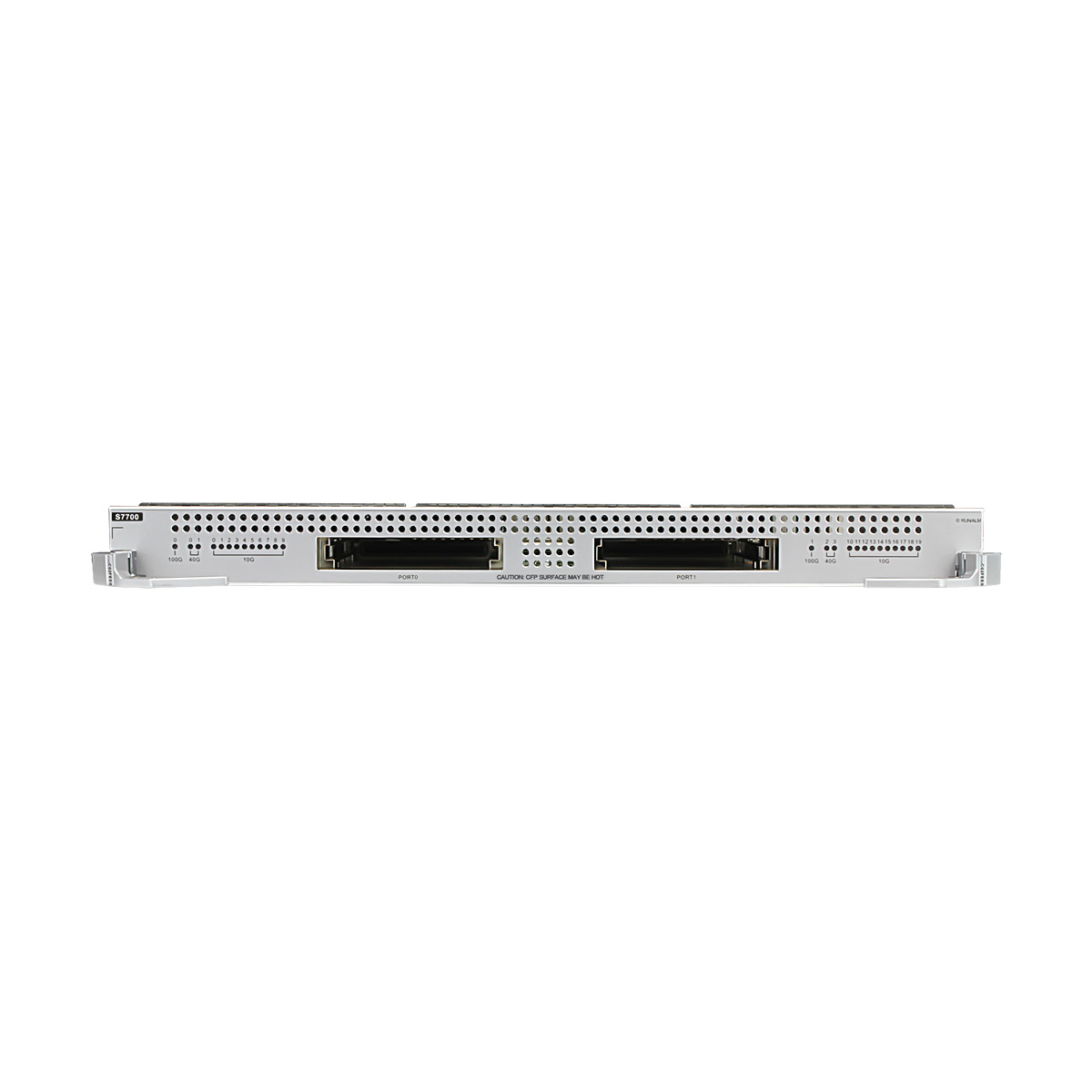

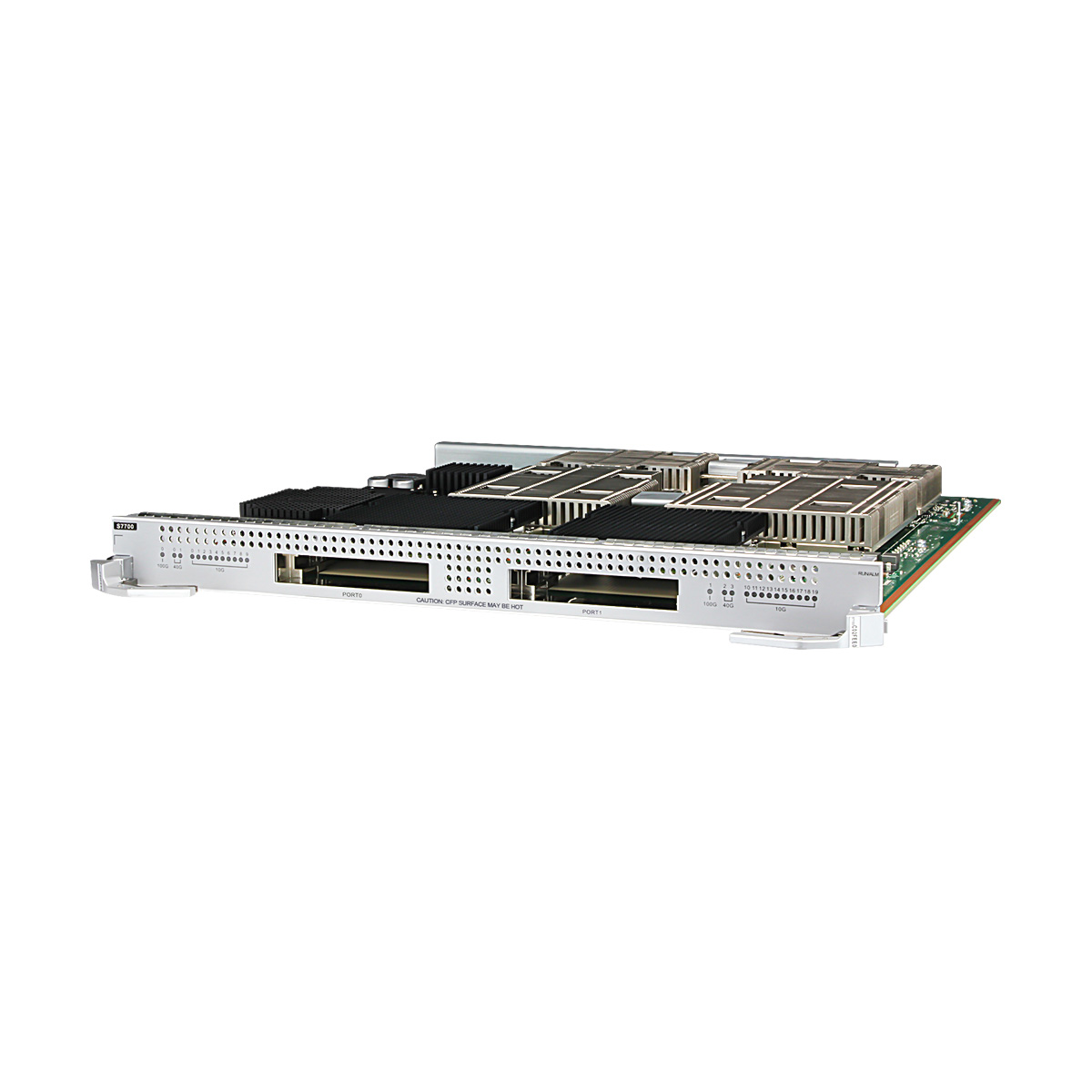

ES1D2C02FEE0 Huawei S7700 switch 2-Port 100GBASE-X Interface Card (EE, CFP)

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

ES1D2C02FEE0 overview

ES0DG48TFA00 Huawei S7700 switch 2-Port 100GBASE-X Interface Card (EE, CFP)

ES1D2C02FEE0 application

Card Name

S7700 Chassis

ES1D2C02FEE0

S7703, S7706 and S7712 chassis: supported in V200R008C00 and later versions

S7703 PoE and S7706 PoE chassis: supported in V200R013C00 and later versions

ES1D2C02FEE0 functions and features

Function	Description
Basic functions	Provides two 100GE optical ports for data transmission and switching.
Distributed forwarding	Performs concurrent data forwarding using a distributed data plane.
Hot swapping	Supported

Item		ES1D2C02FEE0
Apply to S7700 Switch
Attributes of a 100GE optical port
Connector type		CFP
Optical port attributes		Depend on the CFP optical module used
Applicable cable		CFP optical module and LC optical fiber CFP optical module and MPO optical fiber (MPO-MPO, MPO-2MPO, or MPO-10DLC optical fiber)
Attributes of 100GE optical modules
Operating Temperature	0°C to 70°C (32°F to 158°F)
Model	Standard	Transmission Distance (km)	Fiber Type
CFP-100G-SR10	100GBASE-SR10	≤ 0.03	Fiber mode: multimode (OM2) Connector type: MPO
		≤ 0.1	Fiber mode: multimode (OM3) Connector type: MPO
		≤ 0.15	Fiber mode: multimode (OM4) Connector type: MPO
CFP-100G-LR4	100GBASE-LR4	≤ 10	Fiber mode: single-mode Core diameter: 9 μm Connector type: LC
CFP-100G-ER4	100GBASE-ER4	≤ 40	Fiber mode: single-mode Core diameter: 9 μm Connector type: LC
CFP-100G-ZR4	100GBASE-ZR4	≤ 80	Fiber mode: single-mode Core diameter: 9 μm Connector type: LC

Physical specifications
Dimensions(W x D x H):		394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight:		4.20 kg (9.26 lb)
Maximum power consumption:		339W
Environment parameters
Operating temperature		0°C to 40°C (32°F to 104°F), when the ambient temperature exceeds 40°C(104°F), the bandwidth on port 1 will decrease to 60 Gbit/s. When the ambient temperature falls within the range of 0°C to 40°C (32°F to 104°F), the bandwidth on port 1 will restore to 100 Gbit/s.0°C to 45°C (32°F to 113°F)
Operating relative humidity		5% RH to 95% RH (noncondensing)
Storage temperature		-40°C to +70°C (-40°F to +158°F)
Storage relative humidity		5% RH to 95% RH (noncondensing)

Weight	10.0000 kg
Dimensions	57.0000 × 51.0000 × 16.0000 cm
S7700	100GE Card
Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse

Item		ES1D2C02FEE0
Apply to S7700 Switch
Attributes of a 100GE optical port
Connector type		CFP
Optical port attributes		Depend on the CFP optical module used
Applicable cable		CFP optical module and LC optical fiber CFP optical module and MPO optical fiber (MPO-MPO, MPO-2MPO, or MPO-10DLC optical fiber)
Attributes of 100GE optical modules
Operating Temperature	0°C to 70°C (32°F to 158°F)
Model	Standard	Transmission Distance (km)	Fiber Type
CFP-100G-SR10	100GBASE-SR10	≤ 0.03	Fiber mode: multimode (OM2) Connector type: MPO
		≤ 0.1	Fiber mode: multimode (OM3) Connector type: MPO
		≤ 0.15	Fiber mode: multimode (OM4) Connector type: MPO
CFP-100G-LR4	100GBASE-LR4	≤ 10	Fiber mode: single-mode Core diameter: 9 μm Connector type: LC
CFP-100G-ER4	100GBASE-ER4	≤ 40	Fiber mode: single-mode Core diameter: 9 μm Connector type: LC
CFP-100G-ZR4	100GBASE-ZR4	≤ 80	Fiber mode: single-mode Core diameter: 9 μm Connector type: LC

Physical specifications
Dimensions(W x D x H):		394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight:		4.20 kg (9.26 lb)
Maximum power consumption:		339W
Environment parameters
Operating temperature		0°C to 40°C (32°F to 104°F), when the ambient temperature exceeds 40°C(104°F), the bandwidth on port 1 will decrease to 60 Gbit/s. When the ambient temperature falls within the range of 0°C to 40°C (32°F to 104°F), the bandwidth on port 1 will restore to 100 Gbit/s.0°C to 45°C (32°F to 113°F)
Operating relative humidity		5% RH to 95% RH (noncondensing)
Storage temperature		-40°C to +70°C (-40°F to +158°F)
Storage relative humidity		5% RH to 95% RH (noncondensing)
