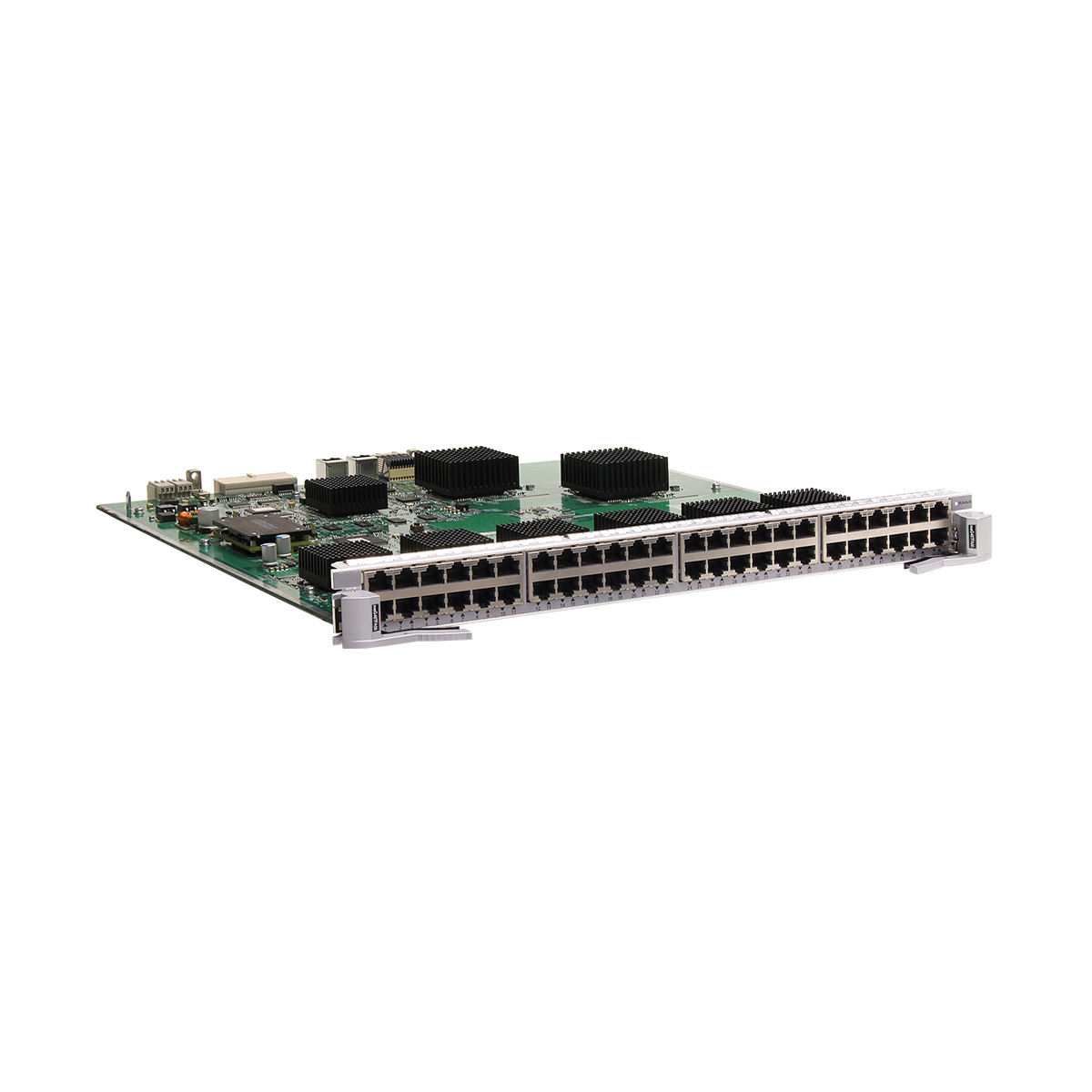

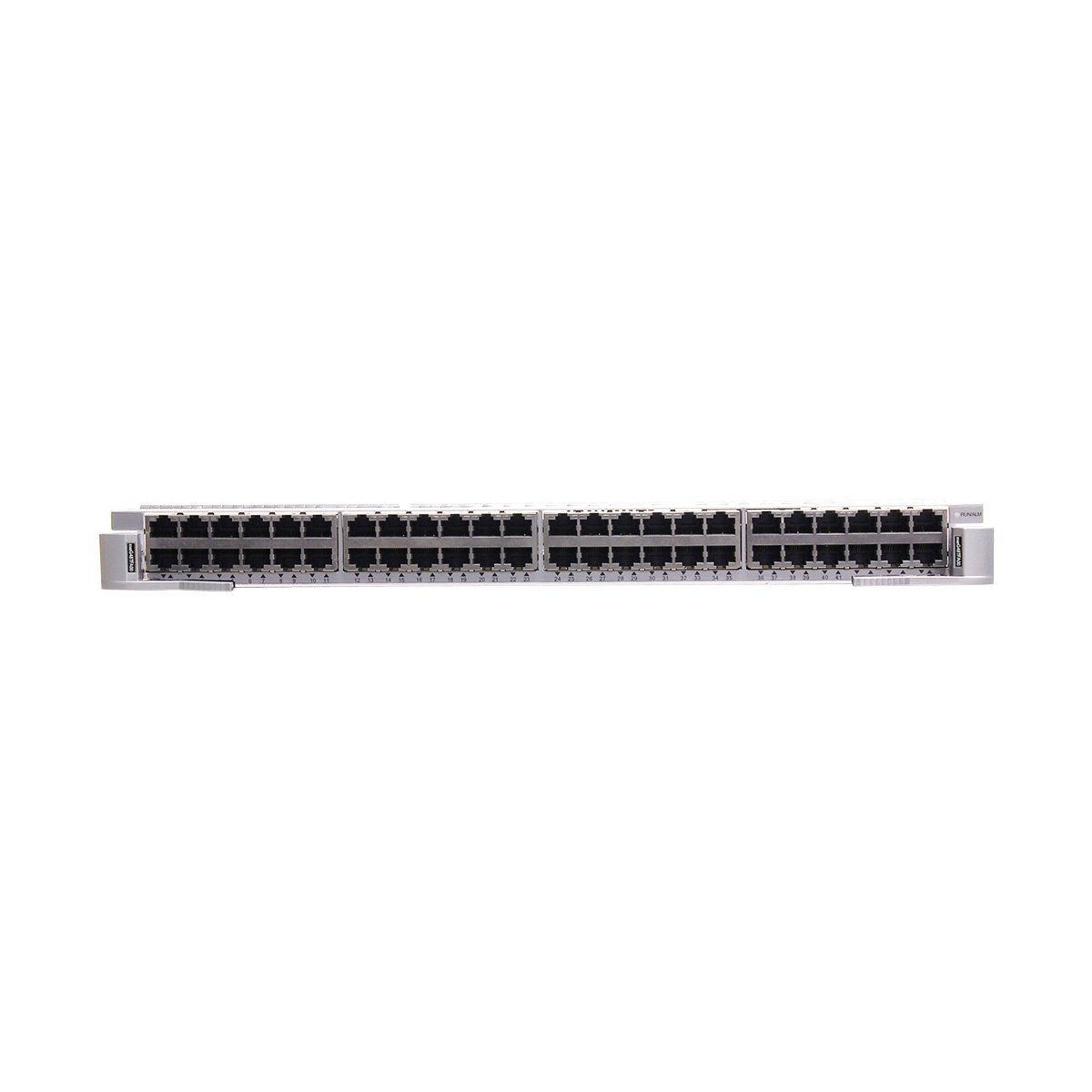

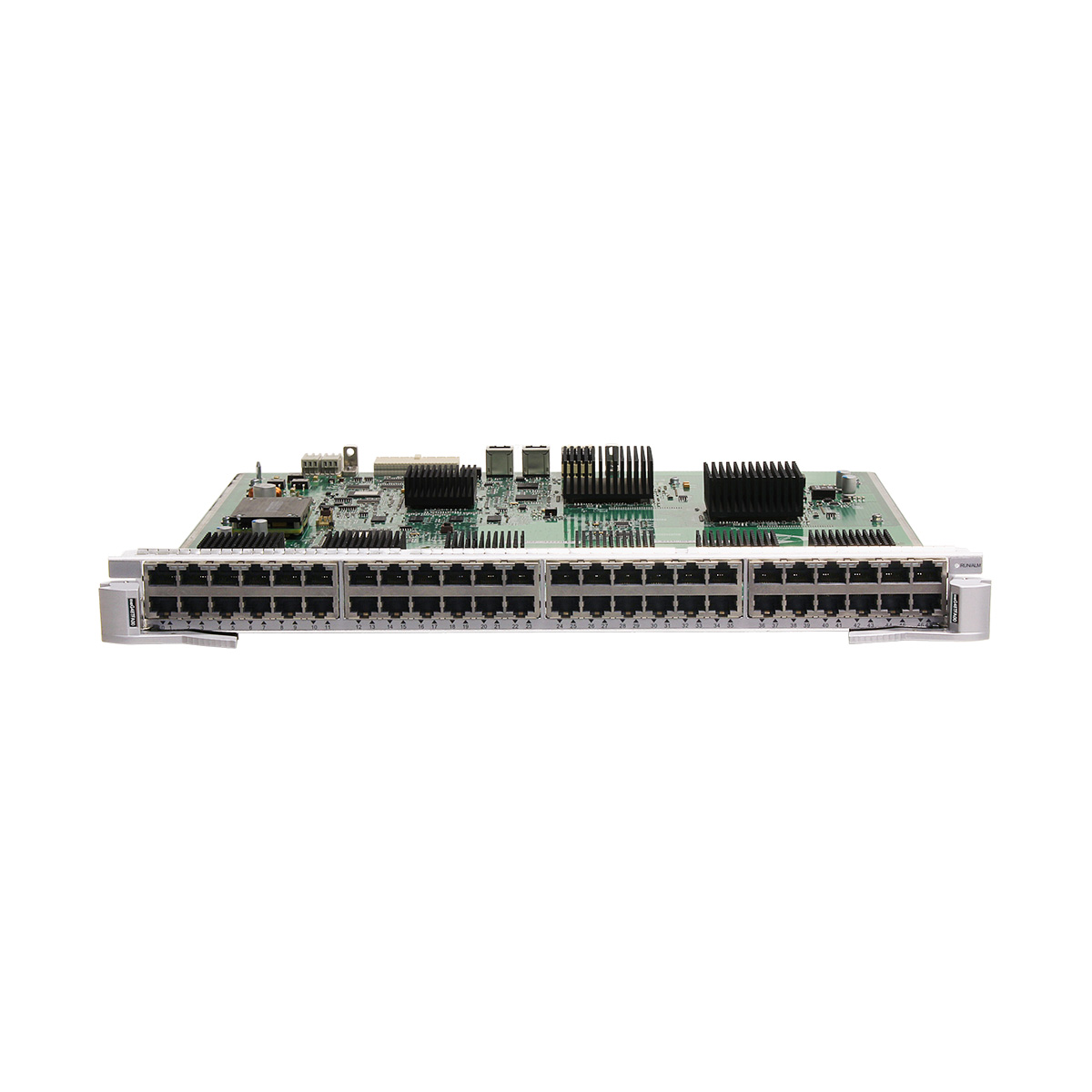

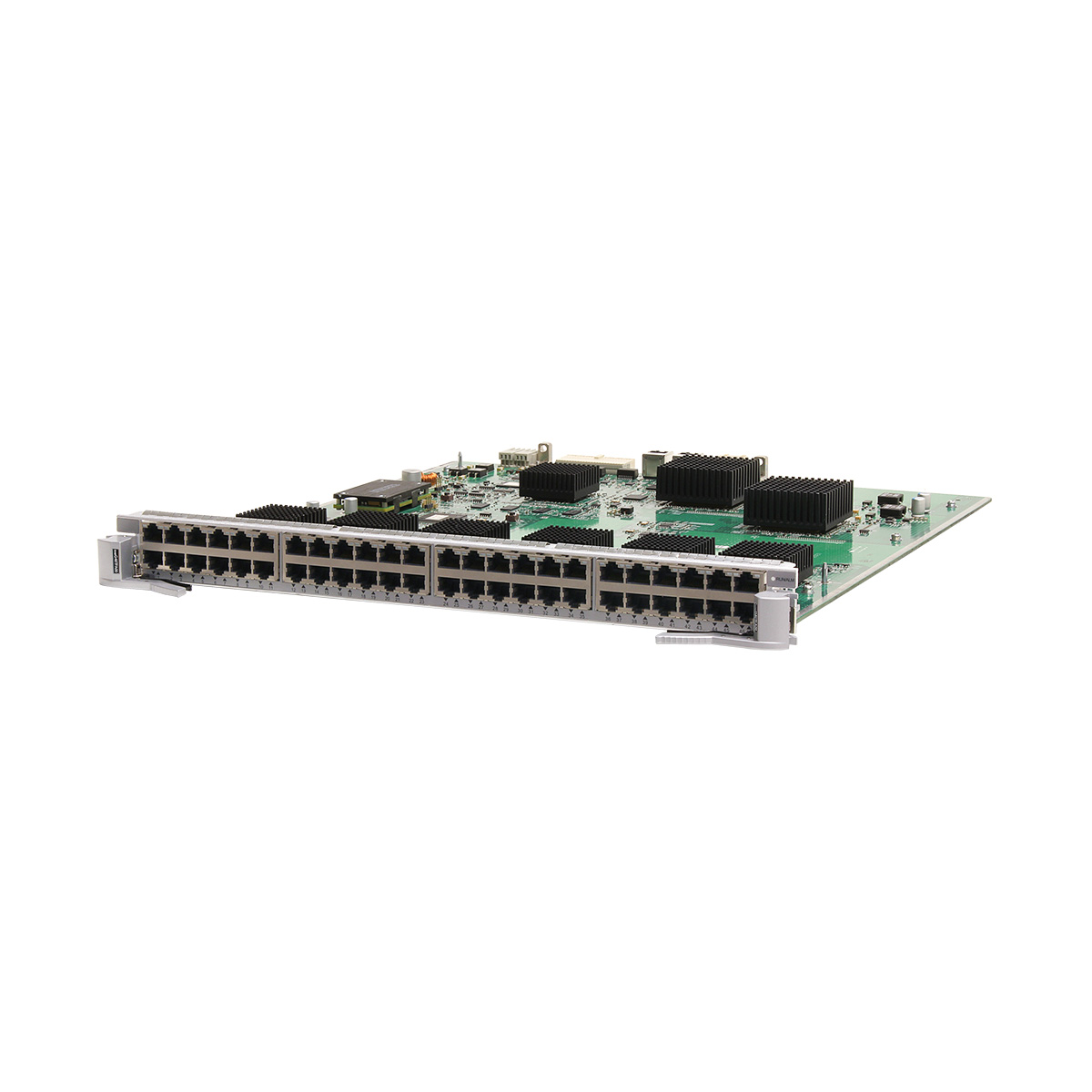

ES0DG48TFA00 Huawei S7700 switch 48 port 10/100/1000BASE-T interface card (FA, RJ45)

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

ES0DG48TFA00 overview

ES0DG48TFA00 Huawei S7700 switch 48 port 10/100/1000BASE-T interface card (FA, RJ45)

ES0DG48TFA00 application

Card Name

S7700 Chassis

ES0DG48TFA00

S7703, S7706 and S7712 chassis: supported in V200R002C00 and later versions

S7703 PoE and S7706 PoE chassis: supported in V200R013C00 and later versions
ES0DG48TFA00 functions and features

Function

Description

Basic function

Provides forty-eight GE electrical ports for data transmission and switching.

Distributed forwarding

Performs concurrent data forwarding using a distributed data plane.

Hot swapping

The ES0DG48TFA00 is hot swappable.
Item ES0DG48TFA00
Apply to S7700 Switch
Attributes of a 10/100/1000BASE-T port
Connector type RJ45
Standards compliance IEEE802.3ab and IEEE802.3az
Frame format Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol IP
Version Mapping
ES0DG48TFA00 is supported in V100R003C01 and later versions
Physical specifications
Dimensions (W x D x H) 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight 2.50 kg (5.51 lb)
Maximum power consumption (W) 48
Environment parameters
Operating temperature 0°C to 45°C
Relative humidity 5% RH to 95% RH
Storage temperature -40°C to +70°C
Storage relative humidity 5% RH to 95% RH

Additional information

S7700

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item ES0DG48TFA00
Apply to S7700 Switch
Attributes of a 10/100/1000BASE-T port
Connector type RJ45
Standards compliance IEEE802.3ab and IEEE802.3az
Frame format Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol IP
Version Mapping
ES0DG48TFA00 is supported in V100R003C01 and later versions
Physical specifications
Dimensions (W x D x H) 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight 2.50 kg (5.51 lb)
Maximum power consumption (W) 48
Environment parameters
Operating temperature 0°C to 45°C
Relative humidity 5% RH to 95% RH
Storage temperature -40°C to +70°C
Storage relative humidity 5% RH to 95% RH
