Categories:S7700/S9700 Series

ES0DG48CEAT0

0 Reviews Write a review

PN03030JFH

BrandsHuawei

AvailabilityIn Stock

S7700 1000M Card

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

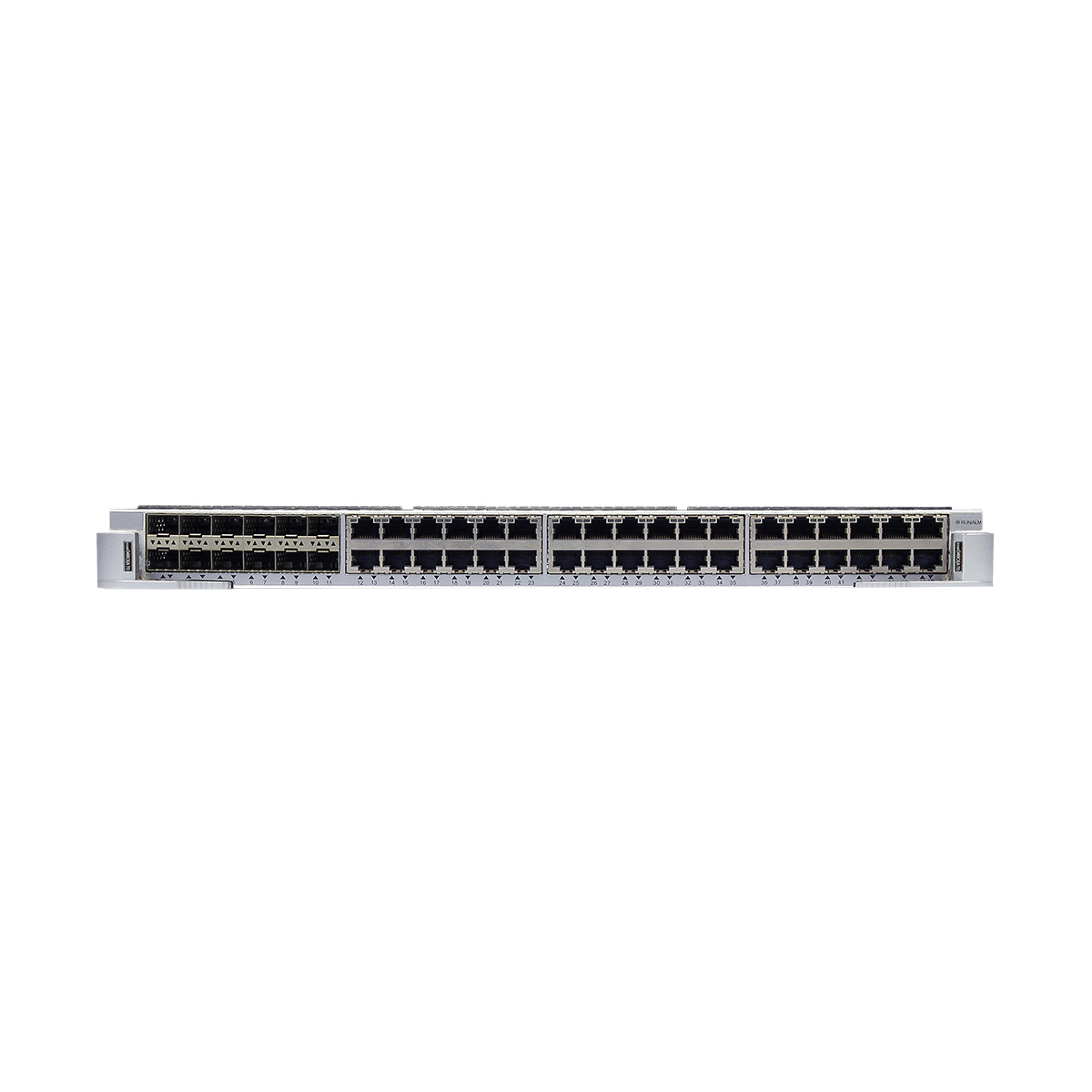

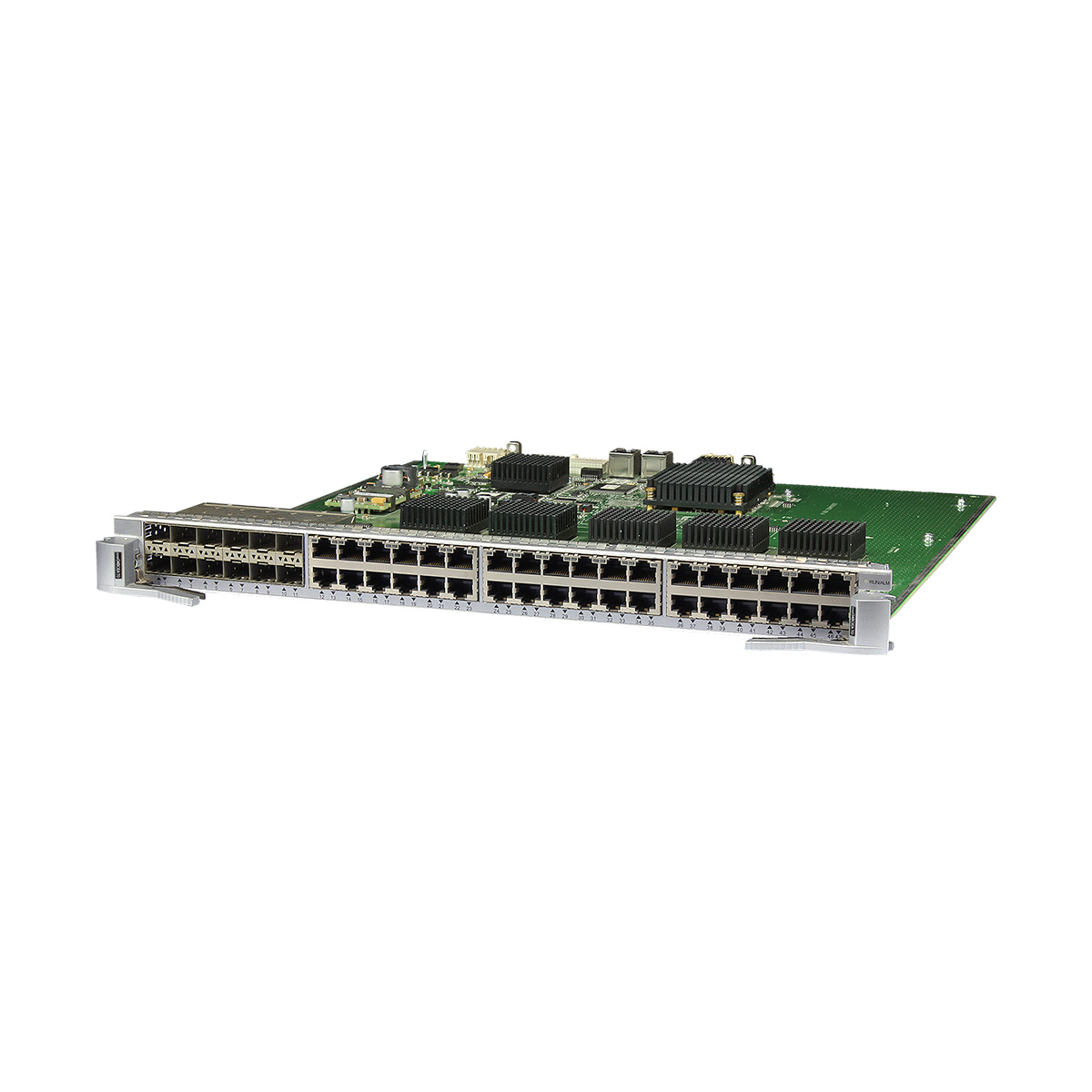

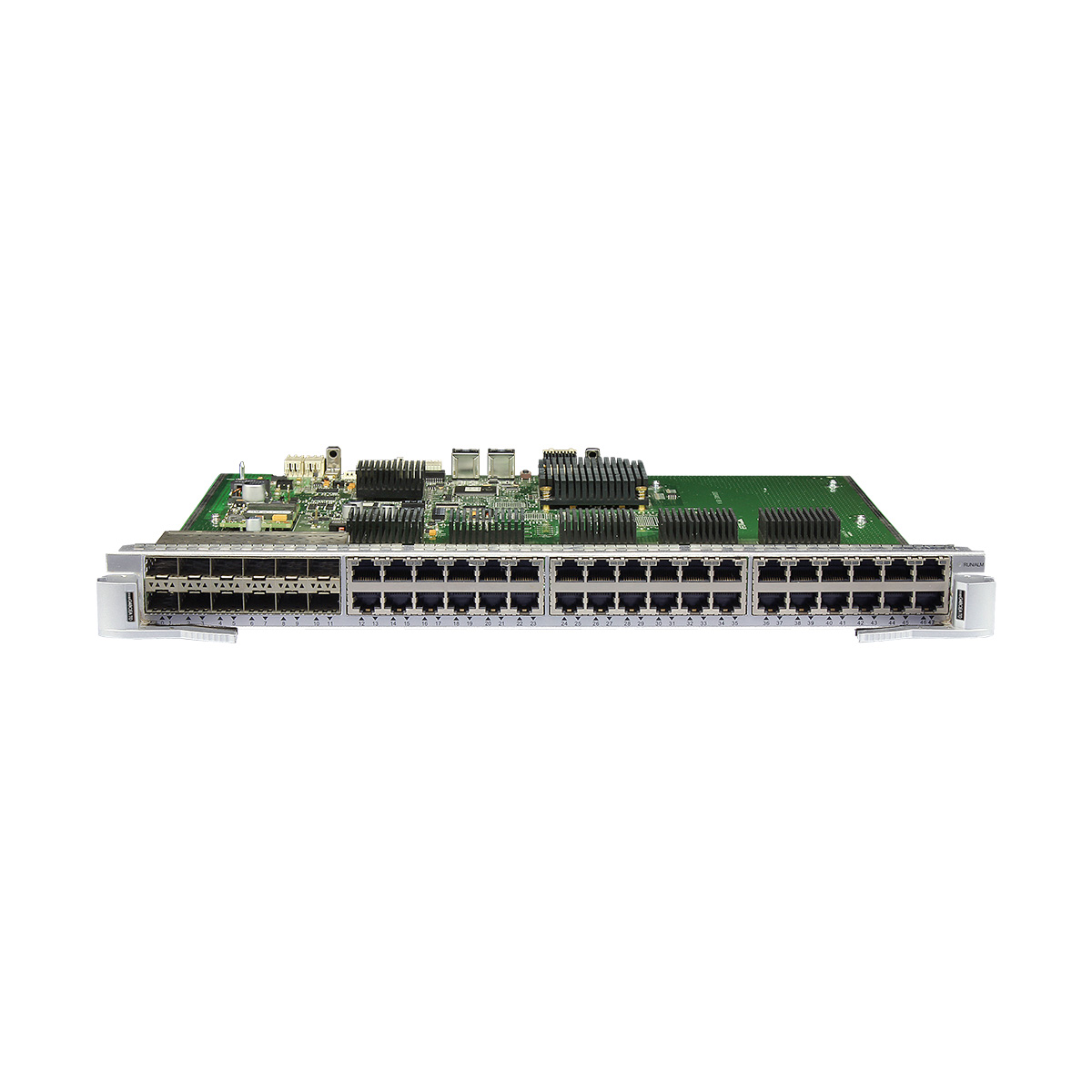

ES0DG48CEAT0 Huawei S7700 switch 36 Port 10/100/1000BASE-T and 12 Port 100/1000BASE-X Interface Card (EA, RJ45/SFP)

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

ES0DG48CEAT0 overview

ES0DG48CEAT0 Huawei S7700 switch 36 Port 10/100/1000BASE-T and 12 Port 100/1000BASE-X Interface Card (EA, RJ45/SFP)

ES0DG48CEAT0 application

Card Name	S7700 Chassis
ES0DG48CEAT0	S7703, S7706 and S7712 chassis: supported in V100R003C01 and later versions
ES0DG48CEAT0	S7703 PoE and S7706 PoE chassis: supported in V200R013C00 and later versions

ES0DG48CEAT0 functions and features

Function	Description
Basic function	Provides thirty-six 10M/100M/1000M Ethernet electrical ports and twelve 100M/1000M Ethernet optical ports for data transmission and switching.
Distributed forwarding	Performs concurrent data forwarding using a distributed data plane.
Hot swapping	The ES0DG48CEAT0 is hot swappable.

Item	ES0DG48CEAT0
Apply to S7700 Switch
10/100/1000BASE-T electrical port attributes
Connector type	RJ45
Standards compliance	IEEE 802.3z
Frame format	Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol	IP
Attributes of FE optical modules
Operating Temperature	0°C to 70°C (32°F to 158°F)
Model	Transmission Distance (km)	Standard	Fiber Type
SFP-FE-SX-MM1310 (SFP optical module)	≤ 2	100base-FX	Fiber mode: multimode Core diameter: 50 μm or 62.5 μm Connector type: LC
eSFP-FE-LX-SM1310	≤ 15	100base-LX	Fiber mode: single-mode Connector type: LC
S-SFP-FE-LH40-SM1310	≤ 40
S-SFP-FE-LH80-SM1550	≤ 80
SFP-FE-LX-SM1310-BIDI (Single-fiber bidirectional)	≤ 15	100base-BX
SFP-FE-LX-SM1550-BIDI (Single-fiber bidirectional)
Attributes of GE optical modules
eSFP-GE-SX-MM850	≤ 0.22	1000base-SX	Fiber mode: multimode Modal Bandwidth: 160 MHz*km Core diameter: 62.5 μm Connector type: LC
	≤ 0.275		Fiber mode: multimode (OM1) Connector type: LC
	≤ 0.5		Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC
	≤ 0.55		Fiber mode: multimode (OM2) Connector type: LC
	≤ 1		Fiber mode: multimode (OM3) Connector type: LC
SFP-GE-LX-SM1310	≤ 10	1000base-LX/LH	Fiber mode: single-mode Connector type: LC
S-SFP-GE-LH40-SM1310	≤ 40
S-SFP-GE-LH40-SM1550
S-SFP-GE-LH80-SM1550	≤ 80	1000base-ZX
eSFP-GE-ZX100-SM1550	≤ 100
SFP-GE-LX-SM1310-BIDI (Single-fiber bidirectional)	≤ 10	1000base-BX
SFP-GE-LX-SM1490-BIDI (Single-fiber bidirectional)
LE2MGSC40DE0 (Single-fiber bidirectional)	≤ 40
LE2MGSC40ED0 (Single-fiber bidirectional)
SFP-GE-ZBXD1 (Single-fiber bidirectional)can only be used on switch running V200R008C00 or later version.	≤ 80	1000base-BX
SFP-GE-ZBXU1 (Single-fiber bidirectional)can only be used on switch running V200R008C00 or later version.
SFP-GE-BXU1-SC (Single-fiber bidirectional)	≤ 10	1000base-BX	Fiber mode: single-mode Connector type: SC
Attributes of eSFP CWDM optical modules
Center Wavelength (nm), Model
1471, CWDM-SFPGE-1471	1491, CWDM-SFPGE-1491	1511, CWDM-SFPGE-1511	1531, CWDM-SFPGE-1531
1551, CWDM-SFPGE-1551	1571, CWDM-SFPGE-1571	1591, CWDM-SFPGE-1591	1611, CWDM-SFPGE-1611
Specifications	Encapsulation type: eSFP
	Transmission distance: ≤ 80 km
	Fiber type: single-mode, LC
	Standard: CWDM
	Operating temperature: 0°C to 70°C (32°F to 158°F)
	Transmit power: 0 dBm to 5.0 dBm Receiver sensitivity: ≤ -28.0 dBm Overload optical power: -9.0 dBm Extinction ratio: ≥ 8.5 dB
Attributes of eSFP DWDM optical modules
Center Wavelength (nm), Model
1529.55, DWDM-SFPGE-1529-55	1530.33, DWDM-SFPGE-1530-33	1531.12, DWDM-SFPGE-1531-12	1531.90, DWDM-SFPGE-1531-90
1532.68, DWDM-SFPGE-1532-68	1533.47, DWDM-SFPGE-1533-47	1534.25, DWDM-SFPGE-1534-25	1535.04, DWDM-SFPGE-1535-04
1535.82, DWDM-SFPGE-1535-82	1536.61, DWDM-SFPGE-1536-61	1537.40, DWDM-SFPGE-1537-40	1538.19, DWDM-SFPGE-1538-19
1538.98, DWDM-SFPGE-1538-98	1539.77, DWDM-SFPGE-1539-77	1540.56, DWDM-SFPGE-1540-56	1541.35, DWDM-SFPGE-1541-35
1542.14, DWDM-SFPGE-1542-14	1542.94, DWDM-SFPGE-1542-94	1543.73, DWDM-SFPGE-1543-73	1544.53, DWDM-SFPGE-1544-53
1545.32, DWDM-SFPGE-1545-32	1546.12, DWDM-SFPGE-1546-12	1546.92, DWDM-SFPGE-1546-92	1547.72, DWDM-SFPGE-1547-72
1548.51, DWDM-SFPGE-1548-51	1549.32, DWDM-SFPGE-1549-32	1550.12, DWDM-SFPGE-1550-12	1550.92, DWDM-SFPGE-1550-92
1551.72, DWDM-SFPGE-1551-72	1552.52, DWDM-SFPGE-1552-52	1553.33, DWDM-SFPGE-1553-33	1554.13, DWDM-SFPGE-1554-13
1554.94, DWDM-SFPGE-1554-94	1555.75, DWDM-SFPGE-1555-75	1556.55, DWDM-SFPGE-1556-55	1557.36, DWDM-SFPGE-1557-36
1558.17, DWDM-SFPGE-1558-17	1558.98, DWDM-SFPGE-1558-98	1559.79, DWDM-SFPGE-1559-79	1560.61, DWDM-SFPGE-1560-61
Specifications	Encapsulation type: eSFP
	Transmission distance: ≤ 120 km
	Fiber type: single-mode, LC
	Standard: DWDM
	Operating temperature: 0°C to 45°C (32°F to 113°F)
	Transmit power: 0 dBm to 4.0 dBm Receiver sensitivity: ≤ -28.0 dBm Overload optical power: -8.0 dBm Extinction ratio: ≥ 8.2 dB
Attributes of a GE SFP copper module
Model	Transmission Distance (km)	Standard	Connector Type
SFP-1000BaseT	≤ 0.1	1000Base-T	RJ45
Physical specifications
Dimensions(W x D x H):	394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight:	2.50 kg (5.51 lb)
Maximum power consumption:	62 W
Environment parameters
Operating temperature	0°C to 45°C (32°F to 113°F)
Operating relative humidity	5% RH to 95% RH (noncondensing)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Storage relative humidity	5% RH to 95% RH (noncondensing)

Item	ES0DG48CEAT0
Apply to S7700 Switch
10/100/1000BASE-T electrical port attributes
Connector type	RJ45
Standards compliance	IEEE 802.3z
Frame format	Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol	IP
Attributes of FE optical modules
Operating Temperature	0°C to 70°C (32°F to 158°F)
Model	Transmission Distance (km)	Standard	Fiber Type
SFP-FE-SX-MM1310 (SFP optical module)	≤ 2	100base-FX	Fiber mode: multimode Core diameter: 50 μm or 62.5 μm Connector type: LC
eSFP-FE-LX-SM1310	≤ 15	100base-LX	Fiber mode: single-mode Connector type: LC
S-SFP-FE-LH40-SM1310	≤ 40
S-SFP-FE-LH80-SM1550	≤ 80
SFP-FE-LX-SM1310-BIDI (Single-fiber bidirectional)	≤ 15	100base-BX
SFP-FE-LX-SM1550-BIDI (Single-fiber bidirectional)
Attributes of GE optical modules
eSFP-GE-SX-MM850	≤ 0.22	1000base-SX	Fiber mode: multimode Modal Bandwidth: 160 MHz*km Core diameter: 62.5 μm Connector type: LC
	≤ 0.275		Fiber mode: multimode (OM1) Connector type: LC
	≤ 0.5		Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC
	≤ 0.55		Fiber mode: multimode (OM2) Connector type: LC
	≤ 1		Fiber mode: multimode (OM3) Connector type: LC
SFP-GE-LX-SM1310	≤ 10	1000base-LX/LH	Fiber mode: single-mode Connector type: LC
S-SFP-GE-LH40-SM1310	≤ 40
S-SFP-GE-LH40-SM1550
S-SFP-GE-LH80-SM1550	≤ 80	1000base-ZX
eSFP-GE-ZX100-SM1550	≤ 100
SFP-GE-LX-SM1310-BIDI (Single-fiber bidirectional)	≤ 10	1000base-BX
SFP-GE-LX-SM1490-BIDI (Single-fiber bidirectional)
LE2MGSC40DE0 (Single-fiber bidirectional)	≤ 40
LE2MGSC40ED0 (Single-fiber bidirectional)
SFP-GE-ZBXD1 (Single-fiber bidirectional)can only be used on switch running V200R008C00 or later version.	≤ 80	1000base-BX
SFP-GE-ZBXU1 (Single-fiber bidirectional)can only be used on switch running V200R008C00 or later version.
SFP-GE-BXU1-SC (Single-fiber bidirectional)	≤ 10	1000base-BX	Fiber mode: single-mode Connector type: SC
Attributes of eSFP CWDM optical modules
Center Wavelength (nm), Model
1471, CWDM-SFPGE-1471	1491, CWDM-SFPGE-1491	1511, CWDM-SFPGE-1511	1531, CWDM-SFPGE-1531
1551, CWDM-SFPGE-1551	1571, CWDM-SFPGE-1571	1591, CWDM-SFPGE-1591	1611, CWDM-SFPGE-1611
Specifications	Encapsulation type: eSFP
	Transmission distance: ≤ 80 km
	Fiber type: single-mode, LC
	Standard: CWDM
	Operating temperature: 0°C to 70°C (32°F to 158°F)
	Transmit power: 0 dBm to 5.0 dBm Receiver sensitivity: ≤ -28.0 dBm Overload optical power: -9.0 dBm Extinction ratio: ≥ 8.5 dB
Attributes of eSFP DWDM optical modules
Center Wavelength (nm), Model
1529.55, DWDM-SFPGE-1529-55	1530.33, DWDM-SFPGE-1530-33	1531.12, DWDM-SFPGE-1531-12	1531.90, DWDM-SFPGE-1531-90
1532.68, DWDM-SFPGE-1532-68	1533.47, DWDM-SFPGE-1533-47	1534.25, DWDM-SFPGE-1534-25	1535.04, DWDM-SFPGE-1535-04
1535.82, DWDM-SFPGE-1535-82	1536.61, DWDM-SFPGE-1536-61	1537.40, DWDM-SFPGE-1537-40	1538.19, DWDM-SFPGE-1538-19
1538.98, DWDM-SFPGE-1538-98	1539.77, DWDM-SFPGE-1539-77	1540.56, DWDM-SFPGE-1540-56	1541.35, DWDM-SFPGE-1541-35
1542.14, DWDM-SFPGE-1542-14	1542.94, DWDM-SFPGE-1542-94	1543.73, DWDM-SFPGE-1543-73	1544.53, DWDM-SFPGE-1544-53
1545.32, DWDM-SFPGE-1545-32	1546.12, DWDM-SFPGE-1546-12	1546.92, DWDM-SFPGE-1546-92	1547.72, DWDM-SFPGE-1547-72
1548.51, DWDM-SFPGE-1548-51	1549.32, DWDM-SFPGE-1549-32	1550.12, DWDM-SFPGE-1550-12	1550.92, DWDM-SFPGE-1550-92
1551.72, DWDM-SFPGE-1551-72	1552.52, DWDM-SFPGE-1552-52	1553.33, DWDM-SFPGE-1553-33	1554.13, DWDM-SFPGE-1554-13
1554.94, DWDM-SFPGE-1554-94	1555.75, DWDM-SFPGE-1555-75	1556.55, DWDM-SFPGE-1556-55	1557.36, DWDM-SFPGE-1557-36
1558.17, DWDM-SFPGE-1558-17	1558.98, DWDM-SFPGE-1558-98	1559.79, DWDM-SFPGE-1559-79	1560.61, DWDM-SFPGE-1560-61
Specifications	Encapsulation type: eSFP
	Transmission distance: ≤ 120 km
	Fiber type: single-mode, LC
	Standard: DWDM
	Operating temperature: 0°C to 45°C (32°F to 113°F)
	Transmit power: 0 dBm to 4.0 dBm Receiver sensitivity: ≤ -28.0 dBm Overload optical power: -8.0 dBm Extinction ratio: ≥ 8.2 dB
Attributes of a GE SFP copper module
Model	Transmission Distance (km)	Standard	Connector Type
SFP-1000BaseT	≤ 0.1	1000Base-T	RJ45
Physical specifications
Dimensions(W x D x H):	394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight:	2.50 kg (5.51 lb)
Maximum power consumption:	62 W
Environment parameters
Operating temperature	0°C to 45°C (32°F to 113°F)
Operating relative humidity	5% RH to 95% RH (noncondensing)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Storage relative humidity	5% RH to 95% RH (noncondensing)

S7700	1000M Card
Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse
