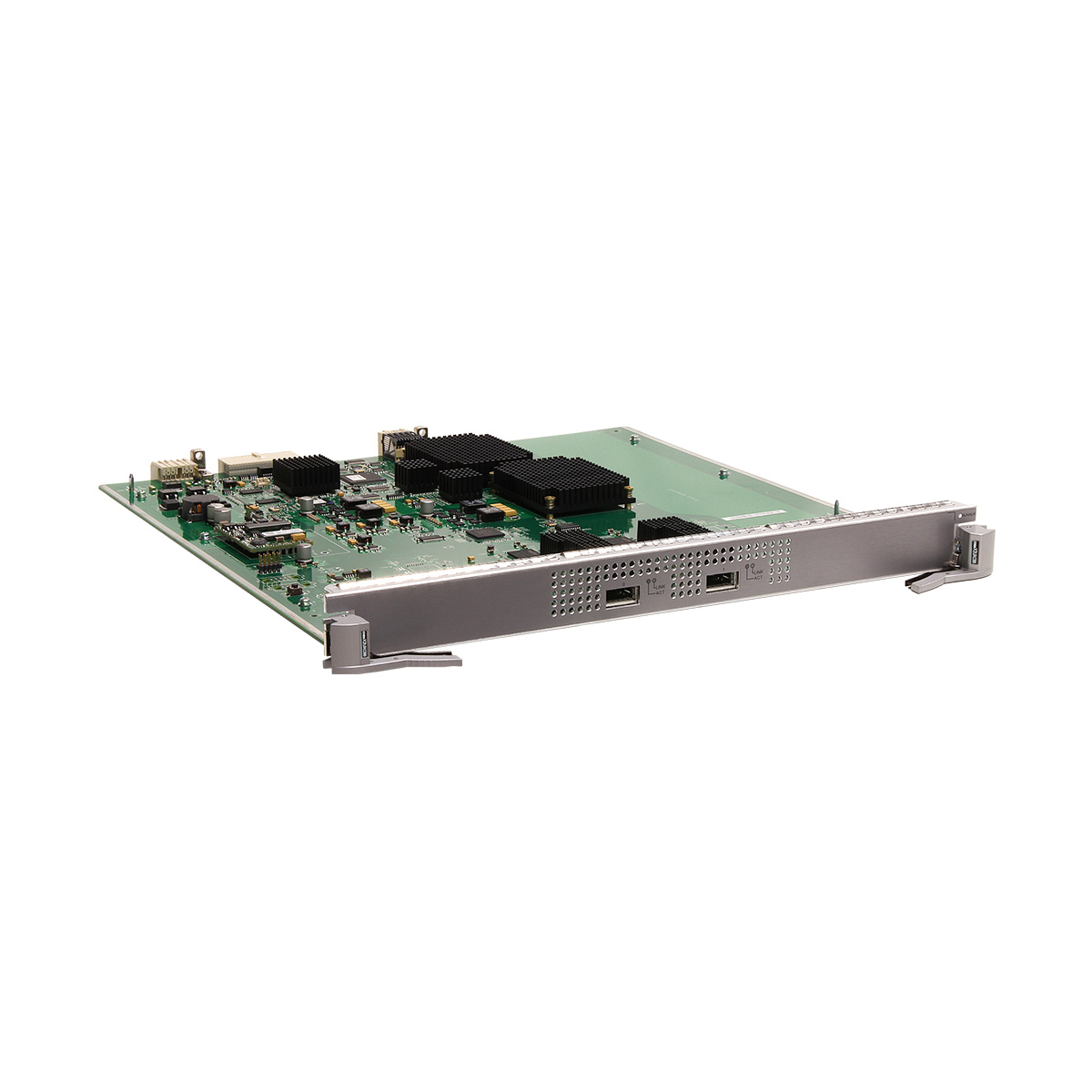

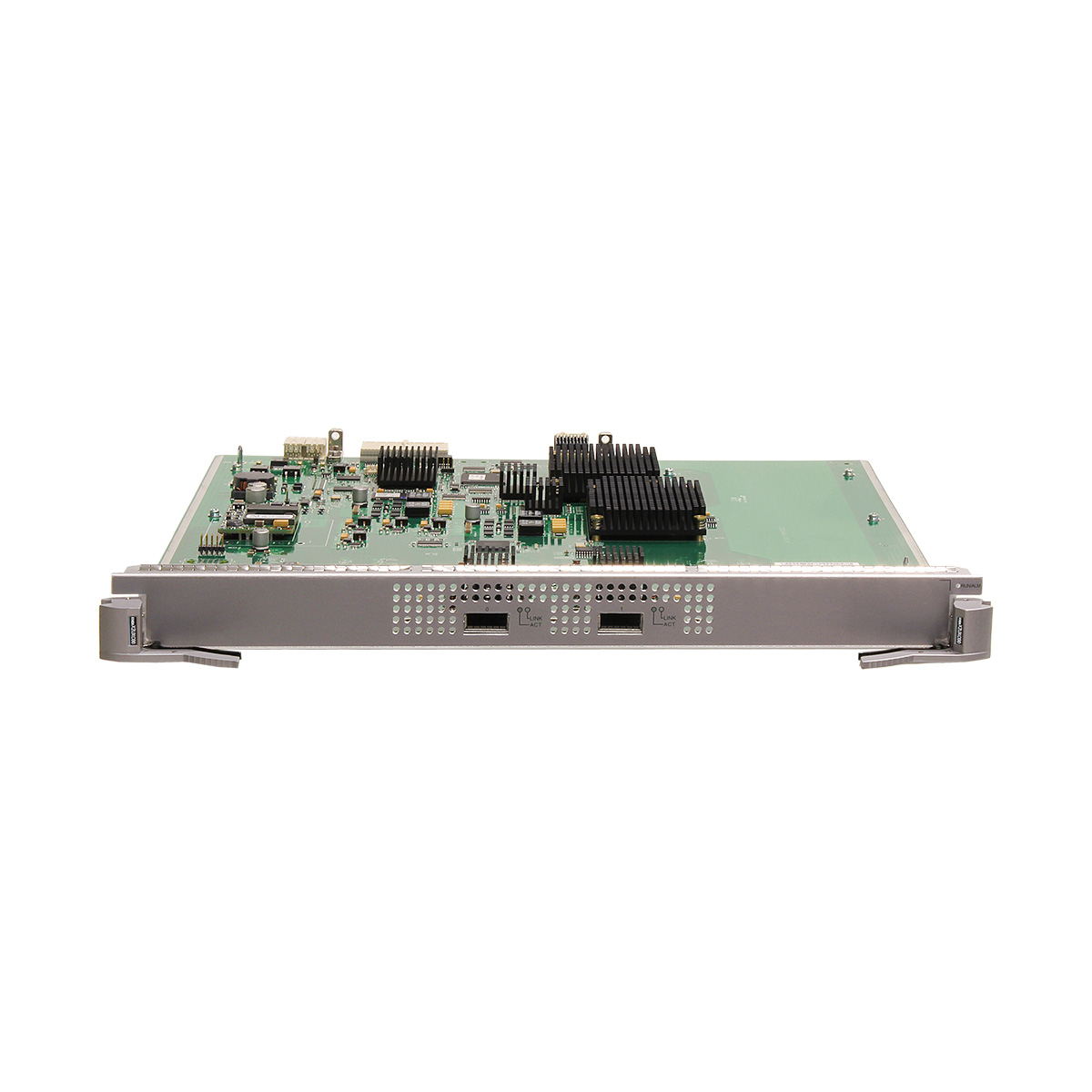

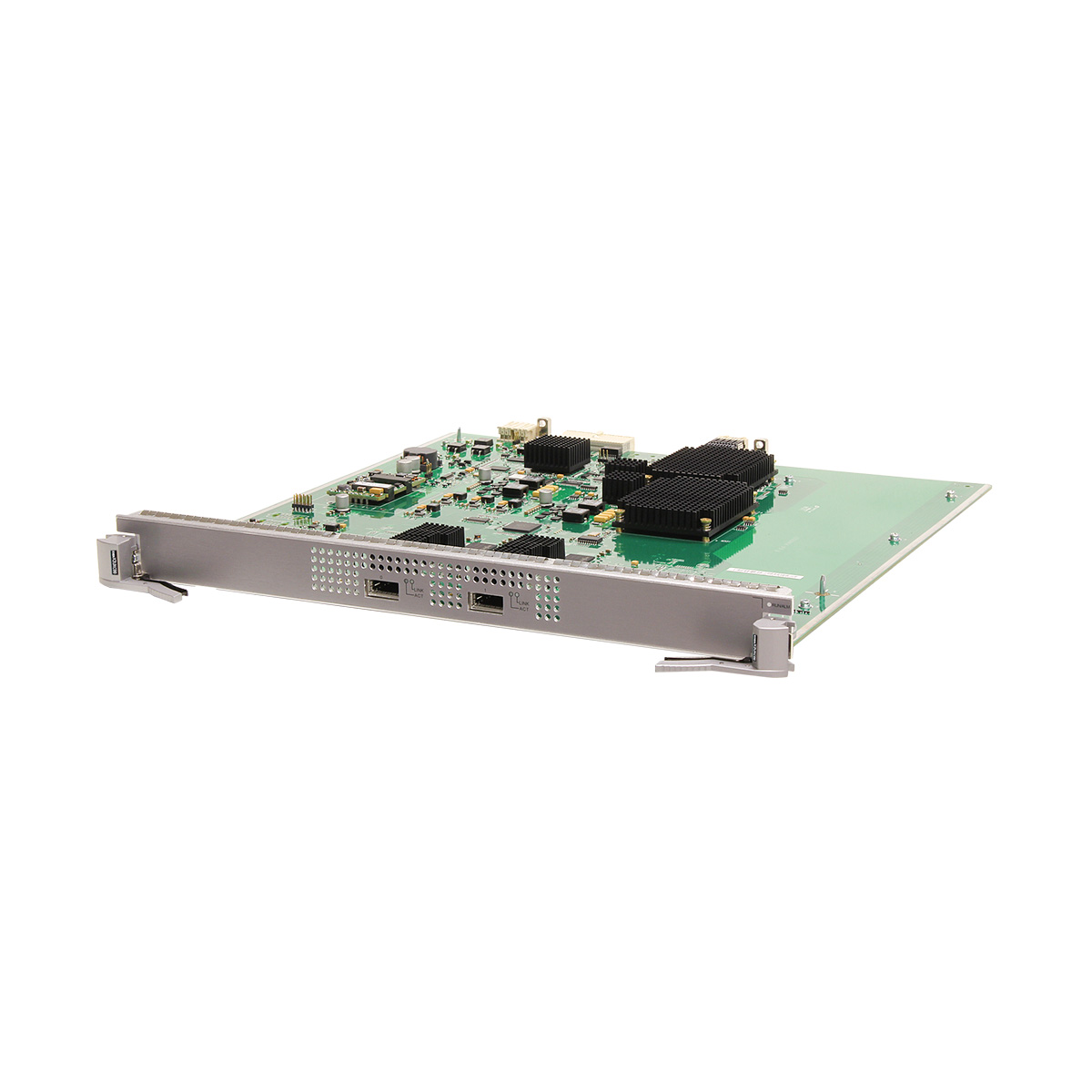

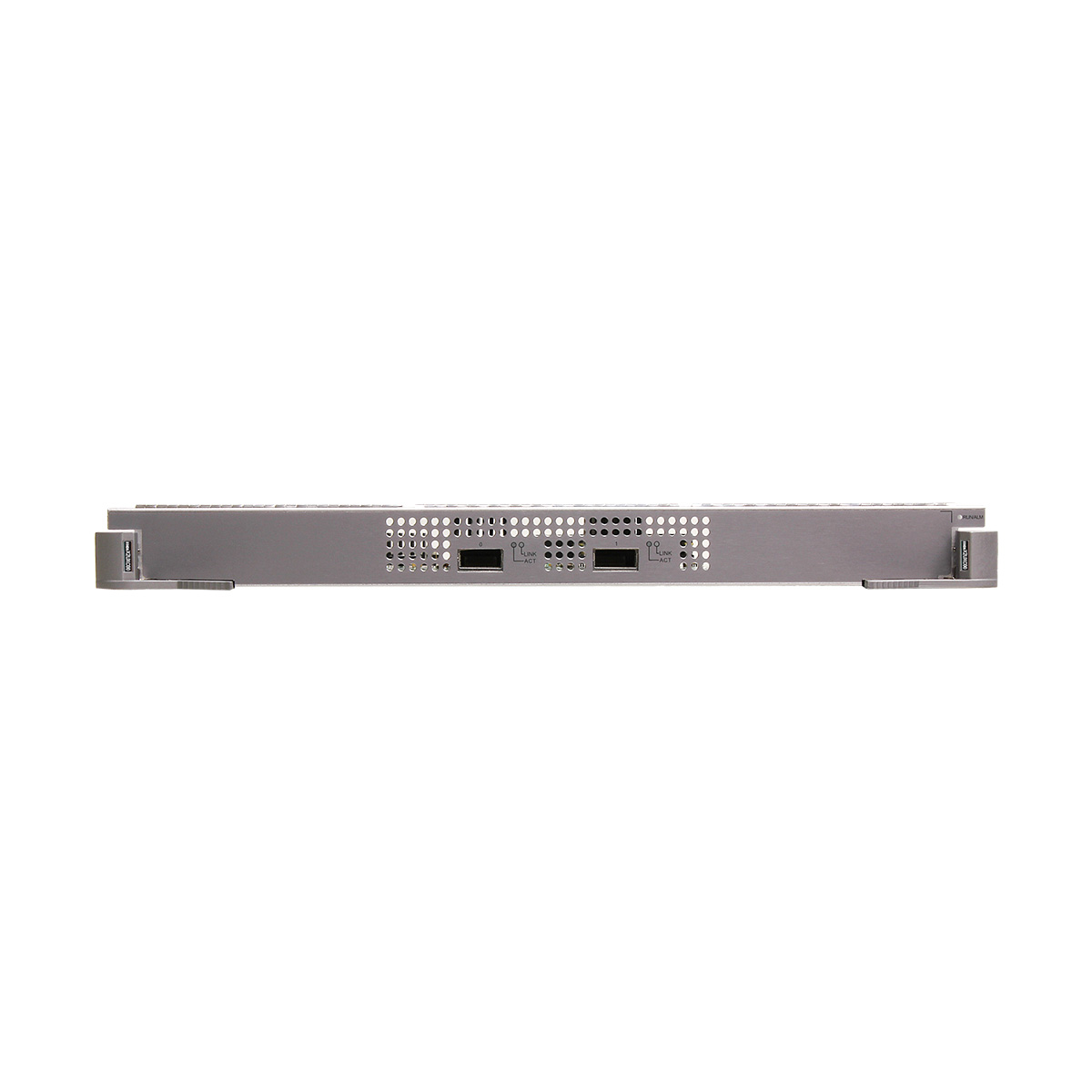

ES0D0X2UXC00 Huawei S7700 switch 2 port 10GBASE-X interface card (EC, XFP)

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

ES0D0X2UXC00 overview

ES0D0X2UXC00 Huawei S7700 switch 2 port 10GBASE-X interface card (EC, XFP)



ES0D0X2UXC00 application
Card Name S7700 Chassis
ES0D0X2UXC00 S7703, S7706 and S7712 Chassis: Supported in V100R003C01 and later versions S7703 PoE and S7706 PoE chassis: supported in V200R013C00 and later versions
ES0D0X2UXC00 function and feature
Function Description
Basic function Provides two 10GE optical ports for data transmission and switching.
Distributed forwarding Performs concurrent data forwarding using a distributed data plane.
Hot swapping The ES0D0X2UXC00 is hot swappable.
Item ES0D0X2UXC00
Apply to S7700 Switch
10GBASE XFP optical port attributes
Connector type XFP
Optical port attributes Depend on the XFP optical module used.
Standards compliance IEEE 802.3ae
Frame format Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol IP
Attributes of 10GE optical modules
Operating Temperature 0°C to 70°C (32°F to 158°F)
Model Transmission Distance (km) Standard Fiber Type
XFP-SX-MM850 ≤ 0.026 10Gbase-SR Fiber mode: multimode Modal Bandwidth: 160 MHz*km Core diameter: 62.5 μm Connector type: LC
≤ 0.033 Fiber mode: multimode (OM1) Connector type: LC
≤ 0.066 Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC
≤ 0.082 Fiber mode: multimode (OM2) Connector type: LC
≤ 0.3 Fiber mode: multimode (OM3) Connector type: LC
≤ 0.4 Fiber mode: multimode (OM4) Connector type: LC
XFP-STM64-LX-SM1310 ≤ 10 10Gbase-LR Fiber mode: single-mode Connector type: LC
XFP-STM64-LH40-SM1550 ≤ 40 10Gbase-ER
XFP-STM64-SM1550-80km ≤ 80 10Gbase-ZR
Attributes of CWDM optical modules
Center Wavelength (nm), Model
1471,CWDMXFP10G 1471 1491, CWDM-XFP10G-1491 1511, CWDM-XFP10G-1511 1531, CWDM-XFP10G-1531
1551, CWDM-XFP10G-1551 1571, CWDM-XFP10G-1571 1591, CWDM-XFP10G-1591 1611, CWDM-XFP10G-1611
Specifications Encapsulation type: XFP
Transmission distance: ≤ 70 km
Fiber type: single-mode, LC
Standard: CWDM
Operating temperature: 0°C to 70°C (32°F to 158°F)
Transmit power: 0 dBm to 3.0 dBm Receiver sensitivity: ≤ -21.0 dBm Overload optical power: -9.0 dBm Extinction ratio: ≥ 8.2 dB
Attributes of DWDM optical modules
Center Wavelength (nm), Model
1533.47, DWDM-XFP10G-1533-47 1534.25, DWDM-XFP10G-1534-25 1535.04, DWDM-XFP10G-1535-04 1552.52, DWDM-XFP10G-1552-52
1553.33, DWDM-XFP10G-1553-33 1554.13, DWDM-XFP10G-1554-13 1530.33, DWDM-XFP10G-1530-33 1549.32, DWDM-XFP10G-1549-32
1531.12, DWDM-XFP10G-1531-12 1531.90, DWDM-XFP10G-1531-90 1550.12, DWDM-XFP10G-1550-12 1550.92, DWDM-XFP10G-1550-92
1532.68, DWDM-XFP10G-1532-68 1551.72, DWDM-XFP10G-1551-72 1529.55, DWDM-XFP10G-1529-55 1548.51, DWDM-XFP10G-1548-51
Specifications Encapsulation type: XFP
Transmission distance: ≤ 80 km
Fiber type: single-mode, LC
Standard: DWDM
Operating temperature: 0°C to 70°C (32°F to 158°F)
Transmit power: -1.0 dBm to +3.0 dBm Receiver sensitivity: ≤ -24.0 dBm Overload optical power: -9.0 dBm Extinction ratio: ≥ 8.2 dB
Physical specifications
Dimensions(W x D x H): 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight: 2.26 kg (4.98 lb)
Maximum power consumption: 61 W
Environment parameters
Operating temperature: 0°C to 45°C (32°F to 113°F)
Operating relative humidity: 5% RH to 95% RH (noncondensing)
Storage temperature: -40°C to +70°C (-40°F to +158°F)
Storage relative humidity: 5% RH to 95% RH (noncondensing)
