ES0D0X12SA00 Huawei S7700 switch 12 port 10GBASE-X interface card (SA, SFP+)

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

ES0D0X12SA00 overview

ES0D0X12SA00 Huawei S7700 switch 12 port 10GBASE-X interface card (SA, SFP+)

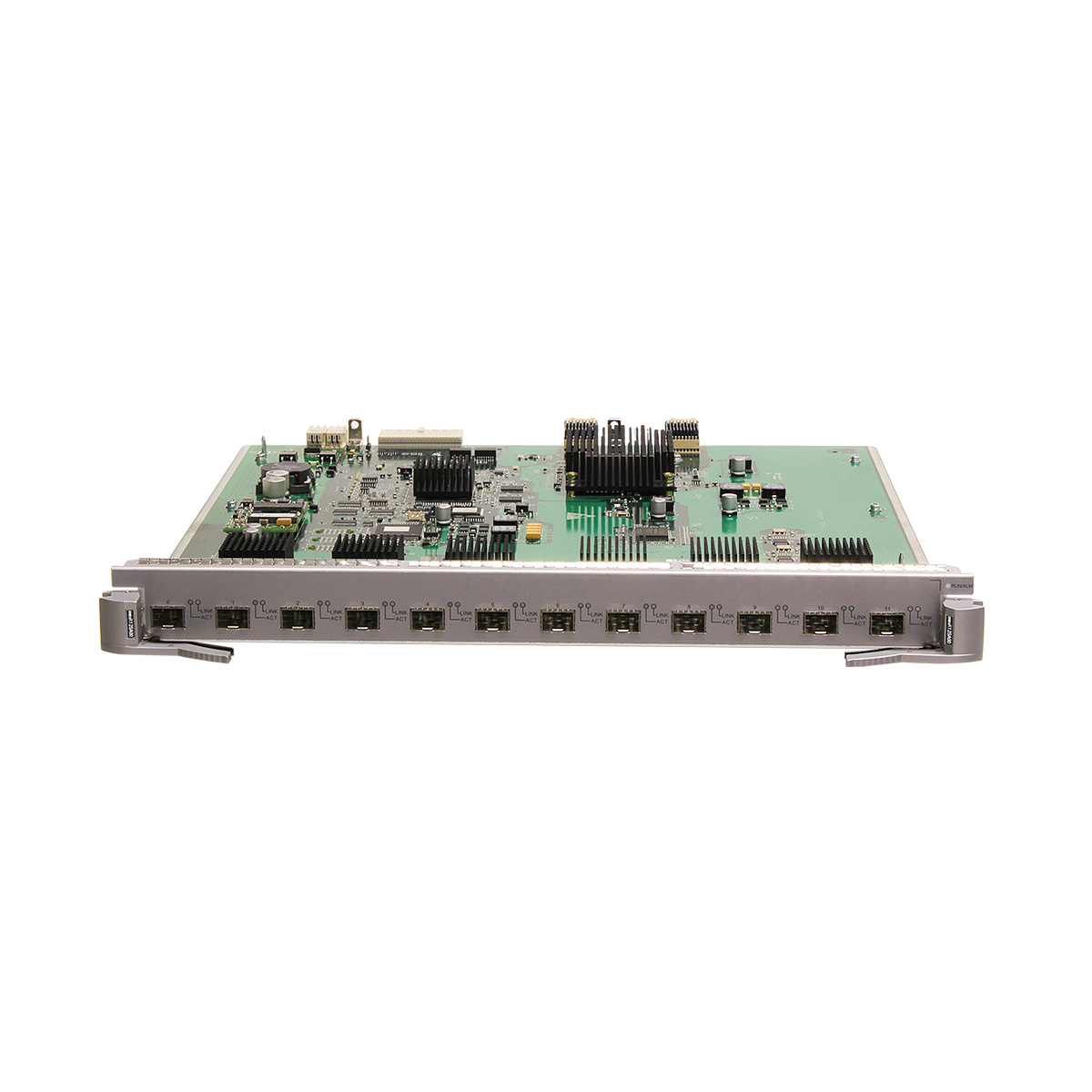

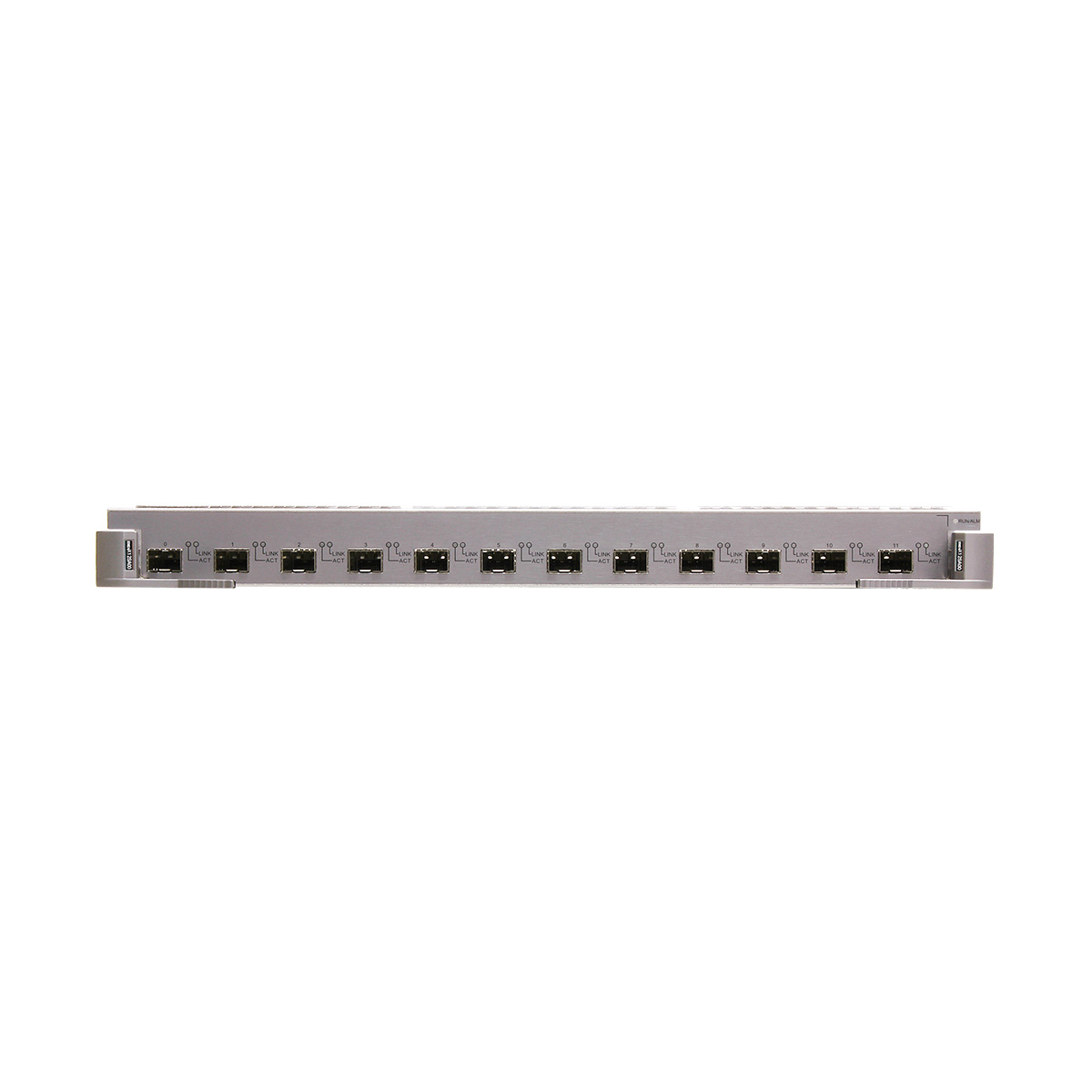

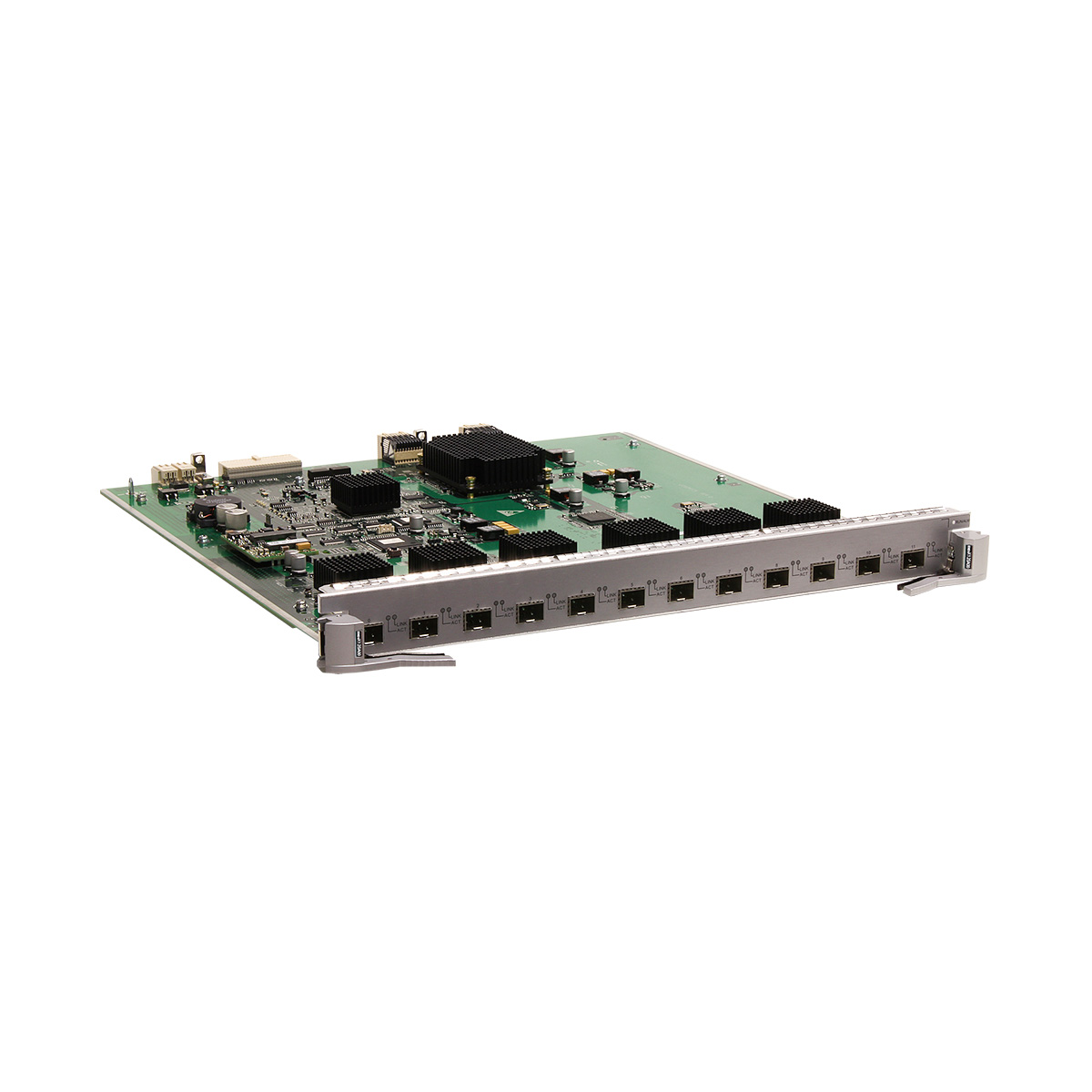

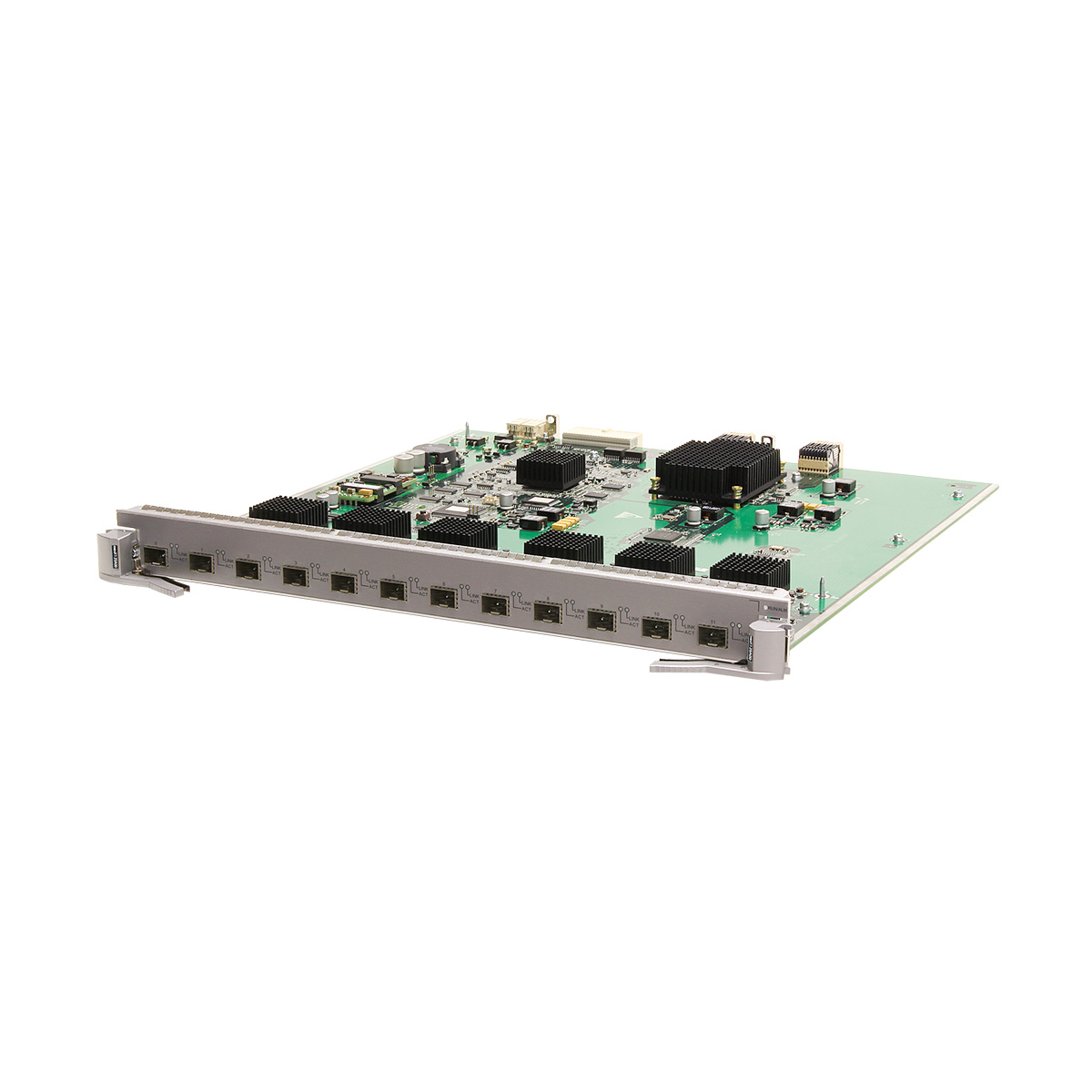

ES0D0X12SA00 appearance

ES0D0X12SA00 application

Card Name

S7700 Chassis

ES0D0X12SA00

S7703, S7706 and S7712 chassis: supported in V100R006C00 and later versions

S7703 PoE and S7706 PoE chassis: supported in V200R013C00 and later versions

ES0D0X12SA00 functions and features

Function	Description
Basic function	Provides twelve 10GE optical ports for data transmission and switching.
Distributed forwarding	Performs concurrent data forwarding using a distributed data plane.
Hot swapping	The ES0D0X12SA00 is hot swappable.

Item	ES0D0X12SA00
Apply to S7700 Switch
Attributes of a 10GBASE SFP+ port
Connector type	SFP+
Optical port attributes	Depend on the SFP+ - SFP+ high-speed cable (1 m, 3 m, 5 m, 10 m), QSFP+ - 4*SFP+ high-speed cable (1 m, 3 m, 5 m), SFP+ optical module, or SFP+ optical cable used
Standards compliance	IEEE 802.3ae
Frame format	Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol	IP
Attributes of 10GE optical modules
Operating Temperature	0°C to 70°C (32°F to 158°F)
Model	Transmission Distance (km)	Standard	Interface Optical Parameters	Fiber Type
SFP-10G-USR	≤ 0.1	10Gbase-USR	Center wavelength: 850 nm Transmit power: -7.3 to -1 dBm Receiver sensitivity: ≤ -10.7 dBmOverload optical power: 0.5 dBm Extinction ratio: ≥ 3.0 dB	Fiber mode: multimode (OM3) Connector type: LC
OMXD30000	≤ 0.026	10Gbase-SR	Center wavelength: 850 nm Transmit power: -7.3 to -1.0 dBm Receiver sensitivity: ≤-11.1 dBm Overload optical power: -1.0 dBm Extinction ratio: ≥ 3.0 dB	Fiber mode: multimode Modal Bandwidth: 160 MHz*km Core diameter: 62.5 μm Connector type: LC
	≤ 0.033			Fiber mode: multimode (OM1) Connector type: LC
	≤ 0.066			Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC
	≤ 0.082			Fiber mode: multimode (OM2) Connector type: LC
	≤ 0.3			Fiber mode: multimode (OM3) Connector type: LC
	≤ 0.4			Fiber mode: multimode (OM4) Connector type: LC
OSX010000	≤ 10	10Gbase-LR	Center wavelength: 1310 nm Transmit power: -8.2 to 0.5 dBm Receiver sensitivity: ≤ -12.6 dBm Overload optical power: 0.5 dBm Extinction ratio: ≥ 3.5 dB	Fiber mode: single-mode Connector type: LC
SFP-10G-iLR	≤ 1.4	10GBASE-iLR	Center wavelength: 1310 nm Transmit power: -8.2 to 0.5 dBm Receiver sensitivity: ≤ -14.4 dBm Overload optical power: 0.5 dBm Extinction ratio: ≥ 3.5 dB	Fiber mode: single-mode Connector type: LC
OSXD22N00(linear)	≤ 0.1	10Gbase-LRM	Center wavelength: 1310 nm Transmit power: -6.5 to 0.5 dBm Receiver sensitivity: ≤ -6.5 dBm Overload optical power: 1.5 dBm Extinction ratio: ≥ 3.5 dB	Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC
	≤ 0.22	10Gbase-LRM	Center wavelength: 1310 nm Transmit power: -6.5 to 0.5 dBm Receiver sensitivity: ≤ -6.5 dBm Overload optical power: 1.5 dBm Extinction ratio: ≥ 3.5 dB	Fiber mode: multimode Modal Bandwidth: 500 MHz*km Core diameter: 62.5 μm Connector type: LC
				Fiber mode: multimode (OM1, OM2, OM3) Connector type: LC
OSX040N01	≤ 40	10Gbase-ER	Center wavelength: 1550 nm Transmit power: -4.7 to 4.0 dBm Receiver sensitivity: ≤ -14.1 dBm Overload optical power: -1.0 dBm Extinction ratio: ≥ 3 dB	Fiber mode: single-mode Connector type: LC
SFP-10G-ZR(limiting)	≤ 80	10Gbase-ZR	Center wavelength: 1550 nm Transmit power: 0 dBm to 4.0 dBm Receiver sensitivity: ≤ -24.0 dBmOverload optical power: -7.0 dBm Extinction ratio: ≥ 9 dB
SFP-10G-ZDWT	≤ 80	DWDM	Center wavelength: 1529.16 to 1560.61 nm Transmit power: -1 to 3 dBm Receiver sensitivity: ≤ -24 dBm Overload optical power: -1 dBm Extinction ratio: ≥ 8.2 dB
LE2MXSC80FF0(linear)	≤ 80	10Gbase-ZR	Center wavelength: 1550 nm Transmit power: 0 to 4.0 dBm Receiver sensitivity: ≤ -24.0 dBmOverload optical power: -7.0 dBm Extinction ratio: ≥ 9 dB	Fiber mode: single-mode Connector type: LC
SFP-10G-BXU1 (Single-fiber bidirectional optical module)	≤ 10	10Gbase-BX	Center wavelength: Tx1270/Rx1330 nm Transmit power: -8.2 dBm to 0.5 dBm Receiver sensitivity: ≤ -14.4 dBm Overload optical power: 0.5 dBm Extinction ratio: ≥ 3.5 dB	Fiber mode: single-mode Connector type: LC
SFP-10G-BXD1 (Single-fiber bidirectional optical module)			Center wavelength: Tx1330/Rx1270 nm Transmit power: -8.2 dBm to 0.5 dBm Receiver sensitivity: ≤ -14.4 dBm Overload optical power: 0.5 dBm Extinction ratio: ≥ 3.5 dB
SFP-10G-ER-SM1330-BIDI (single-fiber bidirectional)	≤ 40	10Gbase-BX	Center wavelength: Tx1330/Rx1270 nm Transmit power: 0 dBm to 5 dBm Receiver sensitivity: ≤ -18 dBmOverload optical power: -9 dBm Extinction ratio: ≥ 3.5 dB
SFP-10G-ER-SM1270-BIDI (single-fiber bidirectional)			Center wavelength: Tx1270/Rx1330 nm Transmit power: 0 dBm to 5 dBm Receiver sensitivity: ≤ -18 dBm Overload optical power: -9 dBm Extinction ratio: ≥ 3.5 dB
Attributes of SFP+ CWDM optical modules
Center Wavelength (nm), Model
1471, SFP-10G-ZCW1471	1491, SFP-10G-ZCW1491		1511, SFP-10G-ZCW1511	1531, SFP-10G-ZCW1531
1551, SFP-10G-ZCW1551	1571, SFP-10G-ZCW1571		1591, SFP-10G-ZCW1591	1611, SFP-10G-ZCW1611
Specifications	Encapsulation type: SFP+
	Transmission distance: ≤ 70 km
	Fiber type: single-mode, LC
	Standard: CWDM
	Operating temperature: 0°C to 70°C (32°F to 158°F)
	Transmit power: 0 dBm to 4.0 dBm Receiver sensitivity: ≤ -23.0 dBm Overload optical power: -7.0 dBm Extinction ratio: ≥ 8.2 dB
Physical specifications
Dimensions(W x D x H):	394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight:	2.30 kg (5.07 lb))
Maximum power consumption:	85 W
Environment parameters
Operating temperature	0°C to 45°C (32°F to 113°F)
Operating relative humidity	5% RH to 95% RH (noncondensing)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Storage relative humidity	5% RH to 95% RH (noncondensing)

Item	ES0D0X12SA00
Apply to S7700 Switch
Attributes of a 10GBASE SFP+ port
Connector type	SFP+
Optical port attributes	Depend on the SFP+ - SFP+ high-speed cable (1 m, 3 m, 5 m, 10 m), QSFP+ - 4*SFP+ high-speed cable (1 m, 3 m, 5 m), SFP+ optical module, or SFP+ optical cable used
Standards compliance	IEEE 802.3ae
Frame format	Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol	IP
Attributes of 10GE optical modules
Operating Temperature	0°C to 70°C (32°F to 158°F)
Model	Transmission Distance (km)	Standard	Interface Optical Parameters	Fiber Type
SFP-10G-USR	≤ 0.1	10Gbase-USR	Center wavelength: 850 nm Transmit power: -7.3 to -1 dBm Receiver sensitivity: ≤ -10.7 dBmOverload optical power: 0.5 dBm Extinction ratio: ≥ 3.0 dB	Fiber mode: multimode (OM3) Connector type: LC
OMXD30000	≤ 0.026	10Gbase-SR	Center wavelength: 850 nm Transmit power: -7.3 to -1.0 dBm Receiver sensitivity: ≤-11.1 dBm Overload optical power: -1.0 dBm Extinction ratio: ≥ 3.0 dB	Fiber mode: multimode Modal Bandwidth: 160 MHz*km Core diameter: 62.5 μm Connector type: LC
	≤ 0.033			Fiber mode: multimode (OM1) Connector type: LC
	≤ 0.066			Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC
	≤ 0.082			Fiber mode: multimode (OM2) Connector type: LC
	≤ 0.3			Fiber mode: multimode (OM3) Connector type: LC
	≤ 0.4			Fiber mode: multimode (OM4) Connector type: LC
OSX010000	≤ 10	10Gbase-LR	Center wavelength: 1310 nm Transmit power: -8.2 to 0.5 dBm Receiver sensitivity: ≤ -12.6 dBm Overload optical power: 0.5 dBm Extinction ratio: ≥ 3.5 dB	Fiber mode: single-mode Connector type: LC
SFP-10G-iLR	≤ 1.4	10GBASE-iLR	Center wavelength: 1310 nm Transmit power: -8.2 to 0.5 dBm Receiver sensitivity: ≤ -14.4 dBm Overload optical power: 0.5 dBm Extinction ratio: ≥ 3.5 dB	Fiber mode: single-mode Connector type: LC
OSXD22N00(linear)	≤ 0.1	10Gbase-LRM	Center wavelength: 1310 nm Transmit power: -6.5 to 0.5 dBm Receiver sensitivity: ≤ -6.5 dBm Overload optical power: 1.5 dBm Extinction ratio: ≥ 3.5 dB	Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC
	≤ 0.22	10Gbase-LRM	Center wavelength: 1310 nm Transmit power: -6.5 to 0.5 dBm Receiver sensitivity: ≤ -6.5 dBm Overload optical power: 1.5 dBm Extinction ratio: ≥ 3.5 dB	Fiber mode: multimode Modal Bandwidth: 500 MHz*km Core diameter: 62.5 μm Connector type: LC
				Fiber mode: multimode (OM1, OM2, OM3) Connector type: LC
OSX040N01	≤ 40	10Gbase-ER	Center wavelength: 1550 nm Transmit power: -4.7 to 4.0 dBm Receiver sensitivity: ≤ -14.1 dBm Overload optical power: -1.0 dBm Extinction ratio: ≥ 3 dB	Fiber mode: single-mode Connector type: LC
SFP-10G-ZR(limiting)	≤ 80	10Gbase-ZR	Center wavelength: 1550 nm Transmit power: 0 dBm to 4.0 dBm Receiver sensitivity: ≤ -24.0 dBmOverload optical power: -7.0 dBm Extinction ratio: ≥ 9 dB
SFP-10G-ZDWT	≤ 80	DWDM	Center wavelength: 1529.16 to 1560.61 nm Transmit power: -1 to 3 dBm Receiver sensitivity: ≤ -24 dBm Overload optical power: -1 dBm Extinction ratio: ≥ 8.2 dB
LE2MXSC80FF0(linear)	≤ 80	10Gbase-ZR	Center wavelength: 1550 nm Transmit power: 0 to 4.0 dBm Receiver sensitivity: ≤ -24.0 dBmOverload optical power: -7.0 dBm Extinction ratio: ≥ 9 dB	Fiber mode: single-mode Connector type: LC
SFP-10G-BXU1 (Single-fiber bidirectional optical module)	≤ 10	10Gbase-BX	Center wavelength: Tx1270/Rx1330 nm Transmit power: -8.2 dBm to 0.5 dBm Receiver sensitivity: ≤ -14.4 dBm Overload optical power: 0.5 dBm Extinction ratio: ≥ 3.5 dB	Fiber mode: single-mode Connector type: LC
SFP-10G-BXD1 (Single-fiber bidirectional optical module)			Center wavelength: Tx1330/Rx1270 nm Transmit power: -8.2 dBm to 0.5 dBm Receiver sensitivity: ≤ -14.4 dBm Overload optical power: 0.5 dBm Extinction ratio: ≥ 3.5 dB
SFP-10G-ER-SM1330-BIDI (single-fiber bidirectional)	≤ 40	10Gbase-BX	Center wavelength: Tx1330/Rx1270 nm Transmit power: 0 dBm to 5 dBm Receiver sensitivity: ≤ -18 dBmOverload optical power: -9 dBm Extinction ratio: ≥ 3.5 dB
SFP-10G-ER-SM1270-BIDI (single-fiber bidirectional)			Center wavelength: Tx1270/Rx1330 nm Transmit power: 0 dBm to 5 dBm Receiver sensitivity: ≤ -18 dBm Overload optical power: -9 dBm Extinction ratio: ≥ 3.5 dB
Attributes of SFP+ CWDM optical modules
Center Wavelength (nm), Model
1471, SFP-10G-ZCW1471	1491, SFP-10G-ZCW1491		1511, SFP-10G-ZCW1511	1531, SFP-10G-ZCW1531
1551, SFP-10G-ZCW1551	1571, SFP-10G-ZCW1571		1591, SFP-10G-ZCW1591	1611, SFP-10G-ZCW1611
Specifications	Encapsulation type: SFP+
	Transmission distance: ≤ 70 km
	Fiber type: single-mode, LC
	Standard: CWDM
	Operating temperature: 0°C to 70°C (32°F to 158°F)
	Transmit power: 0 dBm to 4.0 dBm Receiver sensitivity: ≤ -23.0 dBm Overload optical power: -7.0 dBm Extinction ratio: ≥ 8.2 dB
Physical specifications
Dimensions(W x D x H):	394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight:	2.30 kg (5.07 lb))
Maximum power consumption:	85 W
Environment parameters
Operating temperature	0°C to 45°C (32°F to 113°F)
Operating relative humidity	5% RH to 95% RH (noncondensing)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Storage relative humidity	5% RH to 95% RH (noncondensing)
