Categories:S7700/S9700 Series

ES0D0S24XA00

0 Reviews Write a review

PN03030KAR

BrandsHuawei

AvailabilityIn Stock

S7700 GE/10GE Card

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

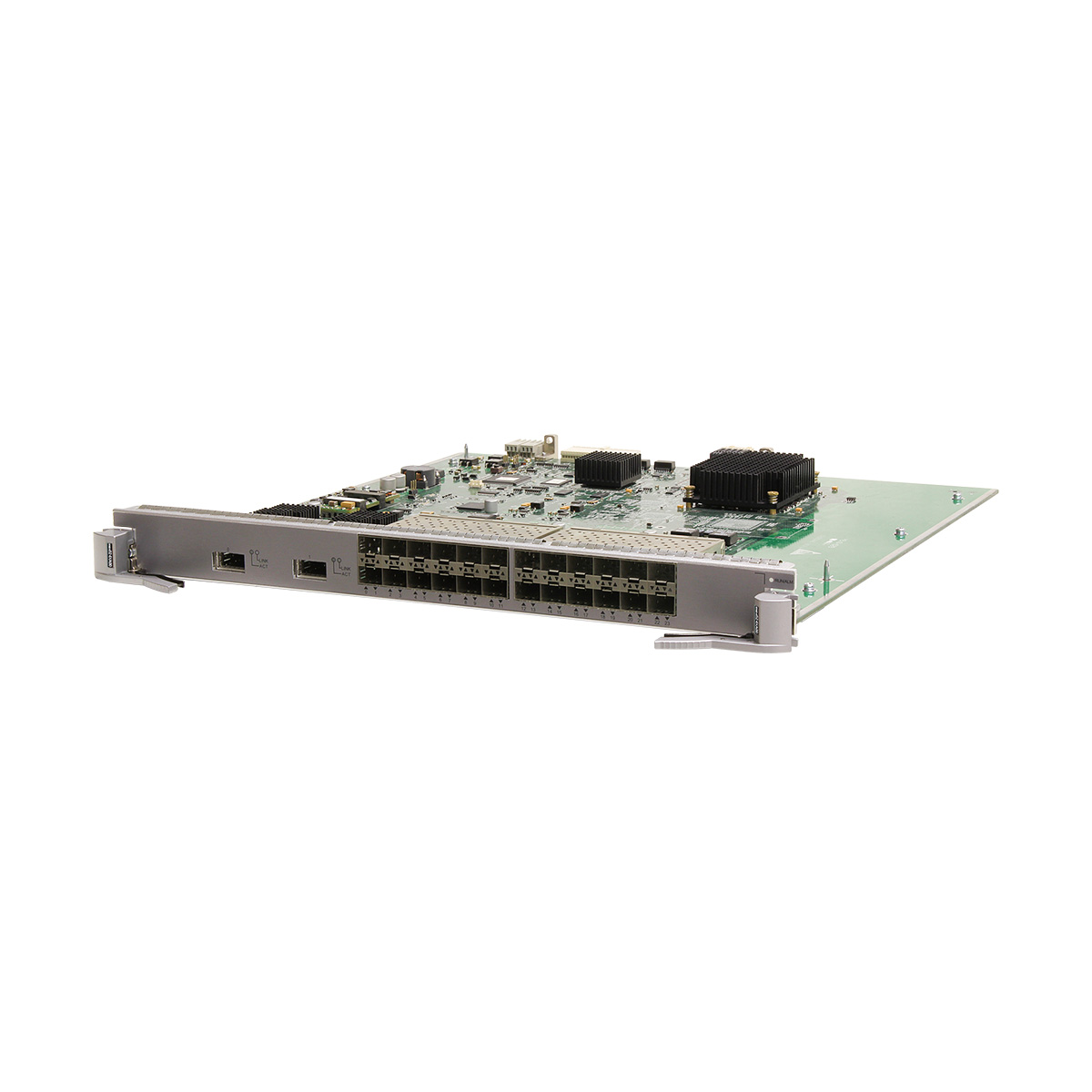

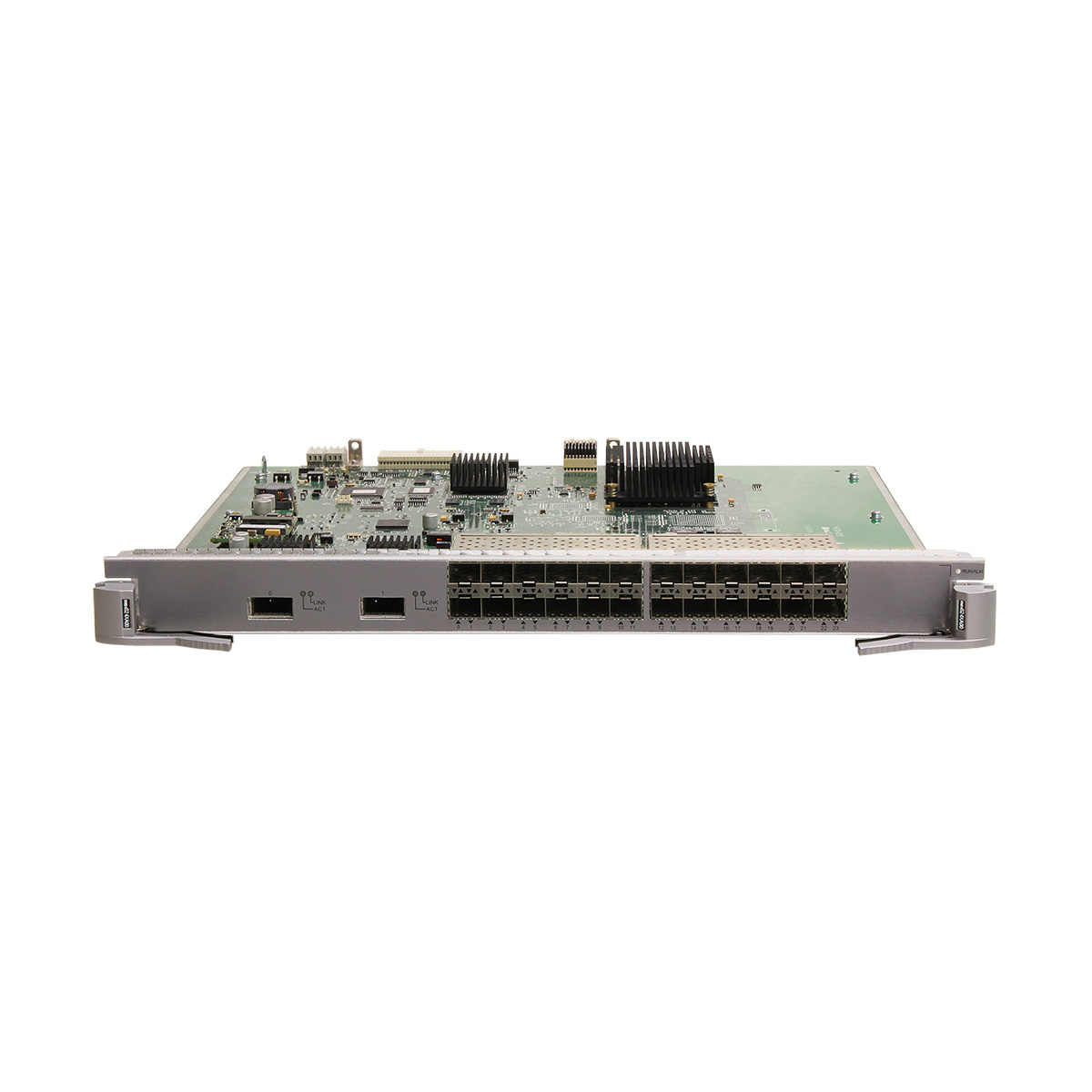

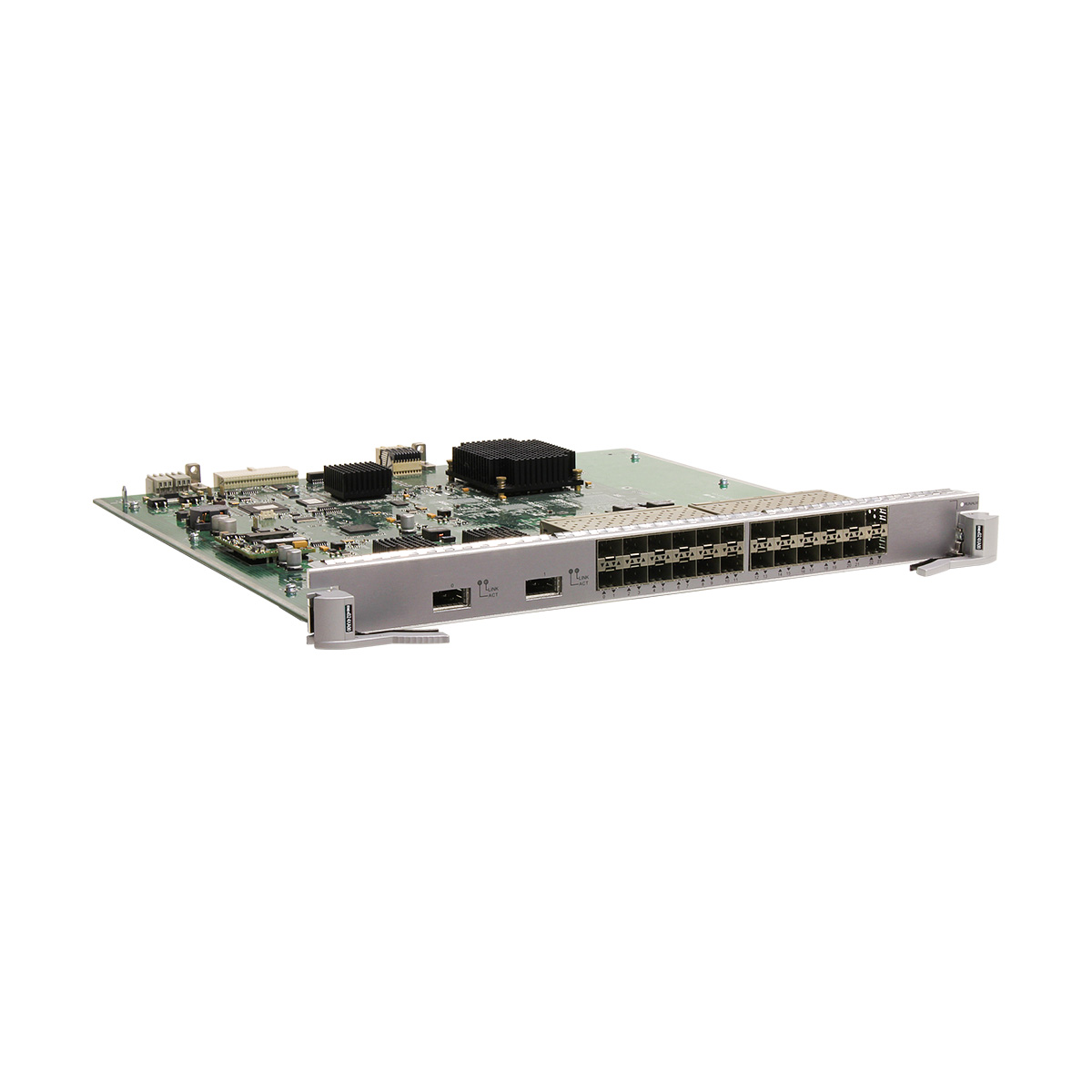

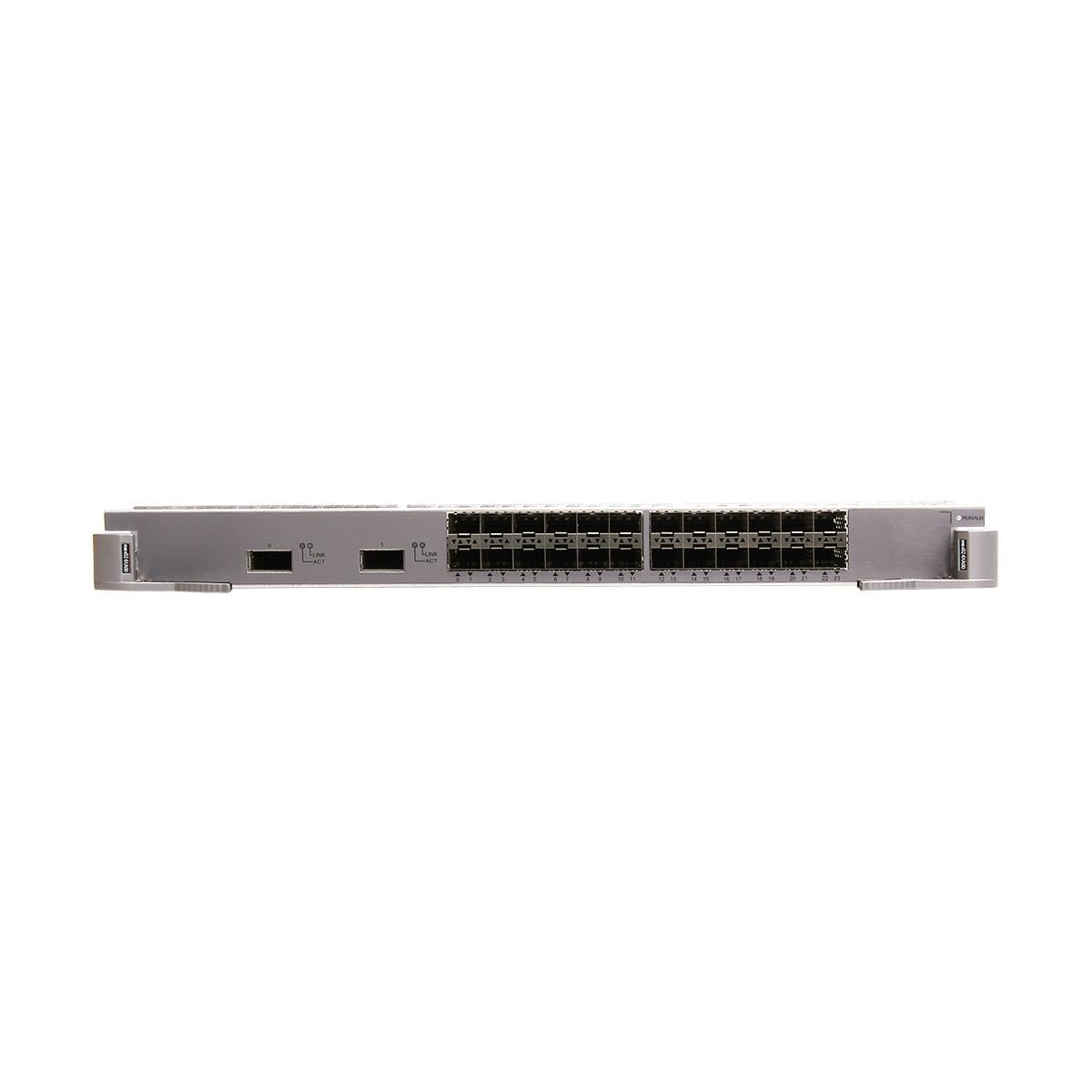

ES0D0S24XA00 Huawei S7700 switch 24 port 100/1000BASE-X and 2 port 10GBASE-X interface card (EA, SFP/XFP)

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

ES0D0S24XA00 overview

ES0D0S24XA00 Huawei S7700 switch 24 port 100/1000BASE-X and 2 port 10GBASE-X interface card (EA, SFP/XFP)

ES0D0S24XA00 application

Card Name

S7700 Chassis

ES0D0S24XA00

S7703, S7706 and S7712 chassis: supported in V100R003C01 and later versions

S7703 PoE and S7706 PoE chassis: supported in V200R013C00 and later versions

ES0D0S24XA00 functions and features

Function	Description
Basic function	Provides twenty-four GE optical ports and two 10GE optical ports for data transmission and switching.
Distributed forwarding	Performs concurrent data forwarding using a distributed data plane.
Software feature	LAN/WAN interface switching
Hot swapping	The ES0D0S24XA00 is hot swappable.

Item	ES0D0S24XA00
Apply to S7700 Switch
100/1000BASE-X optical port attributes
Connector type	SFP
Optical port attributes	Depend on the SFP optical module used.
Standards compliance	IEEE 802.3ab
Frame format	Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol	IP
Attributes of FE optical modules
Operating Temperature	0°C to 70°C (32°F to 158°F)
Model	Transmission Distance (km)	Standard	Fiber Type
SFP-FE-SX-MM1310 (SFP optical module)	≤ 2	100base-FX	Fiber mode: multimode Core diameter: 50 μm or 62.5 μm Connector type: LC
eSFP-FE-LX-SM1310	≤ 15	100base-LX	Fiber mode: single-mode Connector type: LC
S-SFP-FE-LH40-SM1310	≤ 40
S-SFP-FE-LH80-SM1550	≤ 80
SFP-FE-LX-SM1310-BIDI (Single-fiber bidirectional)	≤ 15	100base-BX
SFP-FE-LX-SM1550-BIDI (Single-fiber bidirectional)
Attributes of GE optical modules
eSFP-GE-SX-MM850	≤ 0.22	1000base-SX	Fiber mode: multimode Modal Bandwidth: 160 MHz*km Core diameter: 62.5 μm Connector type: LC
	≤ 0.275		Fiber mode: multimode (OM1) Connector type: LC
	≤ 0.5		Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC
	≤ 0.55		Fiber mode: multimode (OM2) Connector type: LC
	≤ 1		Fiber mode: multimode (OM3) Connector type: LC
SFP-GE-LX-SM1310	≤ 10	1000base-LX/LH	Fiber mode: single-mode Connector type: LC
S-SFP-GE-LH40-SM1310	≤ 40
S-SFP-GE-LH40-SM1550
S-SFP-GE-LH80-SM1550	≤ 80	1000base-ZX
eSFP-GE-ZX100-SM1550	≤ 100
SFP-GE-LX-SM1310-BIDI (Single-fiber bidirectional)	≤ 10	1000base-BX
SFP-GE-LX-SM1490-BIDI (Single-fiber bidirectional)
LE2MGSC40DE0 (Single-fiber bidirectional)	≤ 40
LE2MGSC40ED0 (Single-fiber bidirectional)
SFP-GE-ZBXD1 (Single-fiber bidirectional)can only be used on switch running V200R008C00 or later version.	≤ 80	1000base-BX
SFP-GE-ZBXU1 (Single-fiber bidirectional)can only be used on switch running V200R008C00 or later version.
SFP-GE-BXU1-SC (Single-fiber bidirectional)	≤ 10	1000base-BX	Fiber mode: single-mode Connector type: SC
Attributes of eSFP CWDM optical modules
Center Wavelength (nm), Model
1471, CWDM-SFPGE-1471	1491, CWDM-SFPGE-1491	1511, CWDM-SFPGE-1511	1531, CWDM-SFPGE-1531
1551, CWDM-SFPGE-1551	1571, CWDM-SFPGE-1571	1591, CWDM-SFPGE-1591	1611, CWDM-SFPGE-1611
Specifications	Encapsulation type: eSFP
	Transmission distance: ≤ 80 km
	Fiber type: single-mode, LC
	Standard: CWDM
	Operating temperature: 0°C to 70°C (32°F to 158°F)
	Transmit power: 0 dBm to 5.0 dBm Receiver sensitivity: ≤ -28.0 dBm Overload optical power: -9.0 dBm Extinction ratio: ≥ 8.5 dB
Attributes of eSFP DWDM optical modules
Center Wavelength (nm), Model
1529.55, DWDM-SFPGE-1529-55	1530.33, DWDM-SFPGE-1530-33	1531.12, DWDM-SFPGE-1531-12	1531.90, DWDM-SFPGE-1531-90
1532.68, DWDM-SFPGE-1532-68	1533.47, DWDM-SFPGE-1533-47	1534.25, DWDM-SFPGE-1534-25	1535.04, DWDM-SFPGE-1535-04
1535.82, DWDM-SFPGE-1535-82	1536.61, DWDM-SFPGE-1536-61	1537.40, DWDM-SFPGE-1537-40	1538.19, DWDM-SFPGE-1538-19
1538.98, DWDM-SFPGE-1538-98	1539.77, DWDM-SFPGE-1539-77	1540.56, DWDM-SFPGE-1540-56	1541.35, DWDM-SFPGE-1541-35
1542.14, DWDM-SFPGE-1542-14	1542.94, DWDM-SFPGE-1542-94	1543.73, DWDM-SFPGE-1543-73	1544.53, DWDM-SFPGE-1544-53
1545.32, DWDM-SFPGE-1545-32	1546.12, DWDM-SFPGE-1546-12	1546.92, DWDM-SFPGE-1546-92	1547.72, DWDM-SFPGE-1547-72
1548.51, DWDM-SFPGE-1548-51	1549.32, DWDM-SFPGE-1549-32	1550.12, DWDM-SFPGE-1550-12	1550.92, DWDM-SFPGE-1550-92
1551.72, DWDM-SFPGE-1551-72	1552.52, DWDM-SFPGE-1552-52	1553.33, DWDM-SFPGE-1553-33	1554.13, DWDM-SFPGE-1554-13
1554.94, DWDM-SFPGE-1554-94	1555.75, DWDM-SFPGE-1555-75	1556.55, DWDM-SFPGE-1556-55	1557.36, DWDM-SFPGE-1557-36
1558.17, DWDM-SFPGE-1558-17	1558.98, DWDM-SFPGE-1558-98	1559.79, DWDM-SFPGE-1559-79	1560.61, DWDM-SFPGE-1560-61
Specifications	Encapsulation type: eSFP
	Transmission distance: ≤ 120 km
	Fiber type: single-mode, LC
	Standard: DWDM
	Operating temperature: 0°C to 45°C (32°F to 113°F)
	Transmit power: 0 dBm to 4.0 dBm Receiver sensitivity: ≤ -28.0 dBm Overload optical power: -8.0 dBm Extinction ratio: ≥ 8.2 dB
Attributes of a GE SFP copper module
Model	Transmission Distance (km)	Standard	Connector Type
SFP-1000BaseT	≤ 0.1	1000Base-T	RJ45
10GBASE XFP optical port attributes
Connector type	XFP
Optical port attributes	Depend on the XFP optical module used
Standards compliance	IEEE 802.3ae
Frame format	Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol	IP
Attributes of 10GE optical modules
Operating Temperature	0°C to 70°C (32°F to 158°F)
Model	Transmission Distance (km)	Standard	Fiber Type
XFP-SX-MM850	≤ 0.026	10Gbase-SR	Fiber mode: multimode Modal Bandwidth: 160 MHz*km Core diameter: 62.5 μm Connector type: LC
	≤ 0.033		Fiber mode: multimode (OM1) Connector type: LC
	≤ 0.066		Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC
	≤ 0.082		Fiber mode: multimode (OM2) Connector type: LC
	≤ 0.3		Fiber mode: multimode (OM3) Connector type: LC
	≤ 0.4		Fiber mode: multimode (OM4) Connector type: LC
XFP-STM64-LX-SM1310	≤ 10	10Gbase-LR	Fiber mode: single-mode Connector type: LC
XFP-STM64-LH40-SM1550	≤ 40	10Gbase-ER
XFP-STM64-SM1550-80km	≤ 80	10Gbase-ZR
Attributes of CWDM optical modules
Center Wavelength (nm), Model
1471,CWDMXFP10G 1471	1491, CWDM-XFP10G-1491	1511, CWDM-XFP10G-1511	1531, CWDM-XFP10G-1531
1551, CWDM-XFP10G-1551	1571, CWDM-XFP10G-1571	1591, CWDM-XFP10G-1591	1611, CWDM-XFP10G-1611
Specifications	Encapsulation type: XFP
	Transmission distance: ≤ 70 km
	Fiber type: single-mode, LC
	Standard: CWDM
	Operating temperature: 0°C to 70°C (32°F to 158°F)
	Transmit power: 0 dBm to 3.0 dBm Receiver sensitivity: ≤ -21.0 dBm Overload optical power: -9.0 dBm Extinction ratio: ≥ 8.2 dB
Attributes of DWDM optical modules
Center Wavelength (nm), Model
1533.47, DWDM-XFP10G-1533-47	1534.25, DWDM-XFP10G-1534-25	1535.04, DWDM-XFP10G-1535-04	1552.52, DWDM-XFP10G-1552-52
1553.33, DWDM-XFP10G-1553-33	1554.13, DWDM-XFP10G-1554-13	1530.33, DWDM-XFP10G-1530-33	1549.32, DWDM-XFP10G-1549-32
1531.12, DWDM-XFP10G-1531-12	1531.90, DWDM-XFP10G-1531-90	1550.12, DWDM-XFP10G-1550-12	1550.92, DWDM-XFP10G-1550-92
1532.68, DWDM-XFP10G-1532-68	1551.72, DWDM-XFP10G-1551-72	1529.55, DWDM-XFP10G-1529-55	1548.51, DWDM-XFP10G-1548-51
Specifications	Encapsulation type: XFP
	Transmission distance: ≤ 80 km
	Fiber type: single-mode, LC
	Standard: DWDM
	Operating temperature: 0°C to 70°C (32°F to 158°F)
	Transmit power: -1.0 dBm to +3.0 dBm Receiver sensitivity: ≤ -24.0 dBm Overload optical power: -9.0 dBm Extinction ratio: ≥ 8.2 dB
Physical specifications
Dimensions(W x D x H):	394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight:	2.40 kg (5.29 lb)
Maximum power consumption:	65 W
Environment parameters
Operating temperature	0°C to 45°C (32°F to 113°F)
Operating relative humidity	5% RH to 95% RH (noncondensing)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Storage relative humidity	5% RH to 95% RH (noncondensing)

Item	ES0D0S24XA00
Apply to S7700 Switch
100/1000BASE-X optical port attributes
Connector type	SFP
Optical port attributes	Depend on the SFP optical module used.
Standards compliance	IEEE 802.3ab
Frame format	Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol	IP
Attributes of FE optical modules
Operating Temperature	0°C to 70°C (32°F to 158°F)
Model	Transmission Distance (km)	Standard	Fiber Type
SFP-FE-SX-MM1310 (SFP optical module)	≤ 2	100base-FX	Fiber mode: multimode Core diameter: 50 μm or 62.5 μm Connector type: LC
eSFP-FE-LX-SM1310	≤ 15	100base-LX	Fiber mode: single-mode Connector type: LC
S-SFP-FE-LH40-SM1310	≤ 40
S-SFP-FE-LH80-SM1550	≤ 80
SFP-FE-LX-SM1310-BIDI (Single-fiber bidirectional)	≤ 15	100base-BX
SFP-FE-LX-SM1550-BIDI (Single-fiber bidirectional)
Attributes of GE optical modules
eSFP-GE-SX-MM850	≤ 0.22	1000base-SX	Fiber mode: multimode Modal Bandwidth: 160 MHz*km Core diameter: 62.5 μm Connector type: LC
	≤ 0.275		Fiber mode: multimode (OM1) Connector type: LC
	≤ 0.5		Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC
	≤ 0.55		Fiber mode: multimode (OM2) Connector type: LC
	≤ 1		Fiber mode: multimode (OM3) Connector type: LC
SFP-GE-LX-SM1310	≤ 10	1000base-LX/LH	Fiber mode: single-mode Connector type: LC
S-SFP-GE-LH40-SM1310	≤ 40
S-SFP-GE-LH40-SM1550
S-SFP-GE-LH80-SM1550	≤ 80	1000base-ZX
eSFP-GE-ZX100-SM1550	≤ 100
SFP-GE-LX-SM1310-BIDI (Single-fiber bidirectional)	≤ 10	1000base-BX
SFP-GE-LX-SM1490-BIDI (Single-fiber bidirectional)
LE2MGSC40DE0 (Single-fiber bidirectional)	≤ 40
LE2MGSC40ED0 (Single-fiber bidirectional)
SFP-GE-ZBXD1 (Single-fiber bidirectional)can only be used on switch running V200R008C00 or later version.	≤ 80	1000base-BX
SFP-GE-ZBXU1 (Single-fiber bidirectional)can only be used on switch running V200R008C00 or later version.
SFP-GE-BXU1-SC (Single-fiber bidirectional)	≤ 10	1000base-BX	Fiber mode: single-mode Connector type: SC
Attributes of eSFP CWDM optical modules
Center Wavelength (nm), Model
1471, CWDM-SFPGE-1471	1491, CWDM-SFPGE-1491	1511, CWDM-SFPGE-1511	1531, CWDM-SFPGE-1531
1551, CWDM-SFPGE-1551	1571, CWDM-SFPGE-1571	1591, CWDM-SFPGE-1591	1611, CWDM-SFPGE-1611
Specifications	Encapsulation type: eSFP
	Transmission distance: ≤ 80 km
	Fiber type: single-mode, LC
	Standard: CWDM
	Operating temperature: 0°C to 70°C (32°F to 158°F)
	Transmit power: 0 dBm to 5.0 dBm Receiver sensitivity: ≤ -28.0 dBm Overload optical power: -9.0 dBm Extinction ratio: ≥ 8.5 dB
Attributes of eSFP DWDM optical modules
Center Wavelength (nm), Model
1529.55, DWDM-SFPGE-1529-55	1530.33, DWDM-SFPGE-1530-33	1531.12, DWDM-SFPGE-1531-12	1531.90, DWDM-SFPGE-1531-90
1532.68, DWDM-SFPGE-1532-68	1533.47, DWDM-SFPGE-1533-47	1534.25, DWDM-SFPGE-1534-25	1535.04, DWDM-SFPGE-1535-04
1535.82, DWDM-SFPGE-1535-82	1536.61, DWDM-SFPGE-1536-61	1537.40, DWDM-SFPGE-1537-40	1538.19, DWDM-SFPGE-1538-19
1538.98, DWDM-SFPGE-1538-98	1539.77, DWDM-SFPGE-1539-77	1540.56, DWDM-SFPGE-1540-56	1541.35, DWDM-SFPGE-1541-35
1542.14, DWDM-SFPGE-1542-14	1542.94, DWDM-SFPGE-1542-94	1543.73, DWDM-SFPGE-1543-73	1544.53, DWDM-SFPGE-1544-53
1545.32, DWDM-SFPGE-1545-32	1546.12, DWDM-SFPGE-1546-12	1546.92, DWDM-SFPGE-1546-92	1547.72, DWDM-SFPGE-1547-72
1548.51, DWDM-SFPGE-1548-51	1549.32, DWDM-SFPGE-1549-32	1550.12, DWDM-SFPGE-1550-12	1550.92, DWDM-SFPGE-1550-92
1551.72, DWDM-SFPGE-1551-72	1552.52, DWDM-SFPGE-1552-52	1553.33, DWDM-SFPGE-1553-33	1554.13, DWDM-SFPGE-1554-13
1554.94, DWDM-SFPGE-1554-94	1555.75, DWDM-SFPGE-1555-75	1556.55, DWDM-SFPGE-1556-55	1557.36, DWDM-SFPGE-1557-36
1558.17, DWDM-SFPGE-1558-17	1558.98, DWDM-SFPGE-1558-98	1559.79, DWDM-SFPGE-1559-79	1560.61, DWDM-SFPGE-1560-61
Specifications	Encapsulation type: eSFP
	Transmission distance: ≤ 120 km
	Fiber type: single-mode, LC
	Standard: DWDM
	Operating temperature: 0°C to 45°C (32°F to 113°F)
	Transmit power: 0 dBm to 4.0 dBm Receiver sensitivity: ≤ -28.0 dBm Overload optical power: -8.0 dBm Extinction ratio: ≥ 8.2 dB
Attributes of a GE SFP copper module
Model	Transmission Distance (km)	Standard	Connector Type
SFP-1000BaseT	≤ 0.1	1000Base-T	RJ45
10GBASE XFP optical port attributes
Connector type	XFP
Optical port attributes	Depend on the XFP optical module used
Standards compliance	IEEE 802.3ae
Frame format	Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol	IP
Attributes of 10GE optical modules
Operating Temperature	0°C to 70°C (32°F to 158°F)
Model	Transmission Distance (km)	Standard	Fiber Type
XFP-SX-MM850	≤ 0.026	10Gbase-SR	Fiber mode: multimode Modal Bandwidth: 160 MHz*km Core diameter: 62.5 μm Connector type: LC
	≤ 0.033		Fiber mode: multimode (OM1) Connector type: LC
	≤ 0.066		Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC
	≤ 0.082		Fiber mode: multimode (OM2) Connector type: LC
	≤ 0.3		Fiber mode: multimode (OM3) Connector type: LC
	≤ 0.4		Fiber mode: multimode (OM4) Connector type: LC
XFP-STM64-LX-SM1310	≤ 10	10Gbase-LR	Fiber mode: single-mode Connector type: LC
XFP-STM64-LH40-SM1550	≤ 40	10Gbase-ER
XFP-STM64-SM1550-80km	≤ 80	10Gbase-ZR
Attributes of CWDM optical modules
Center Wavelength (nm), Model
1471,CWDMXFP10G 1471	1491, CWDM-XFP10G-1491	1511, CWDM-XFP10G-1511	1531, CWDM-XFP10G-1531
1551, CWDM-XFP10G-1551	1571, CWDM-XFP10G-1571	1591, CWDM-XFP10G-1591	1611, CWDM-XFP10G-1611
Specifications	Encapsulation type: XFP
	Transmission distance: ≤ 70 km
	Fiber type: single-mode, LC
	Standard: CWDM
	Operating temperature: 0°C to 70°C (32°F to 158°F)
	Transmit power: 0 dBm to 3.0 dBm Receiver sensitivity: ≤ -21.0 dBm Overload optical power: -9.0 dBm Extinction ratio: ≥ 8.2 dB
Attributes of DWDM optical modules
Center Wavelength (nm), Model
1533.47, DWDM-XFP10G-1533-47	1534.25, DWDM-XFP10G-1534-25	1535.04, DWDM-XFP10G-1535-04	1552.52, DWDM-XFP10G-1552-52
1553.33, DWDM-XFP10G-1553-33	1554.13, DWDM-XFP10G-1554-13	1530.33, DWDM-XFP10G-1530-33	1549.32, DWDM-XFP10G-1549-32
1531.12, DWDM-XFP10G-1531-12	1531.90, DWDM-XFP10G-1531-90	1550.12, DWDM-XFP10G-1550-12	1550.92, DWDM-XFP10G-1550-92
1532.68, DWDM-XFP10G-1532-68	1551.72, DWDM-XFP10G-1551-72	1529.55, DWDM-XFP10G-1529-55	1548.51, DWDM-XFP10G-1548-51
Specifications	Encapsulation type: XFP
	Transmission distance: ≤ 80 km
	Fiber type: single-mode, LC
	Standard: DWDM
	Operating temperature: 0°C to 70°C (32°F to 158°F)
	Transmit power: -1.0 dBm to +3.0 dBm Receiver sensitivity: ≤ -24.0 dBm Overload optical power: -9.0 dBm Extinction ratio: ≥ 8.2 dB
Physical specifications
Dimensions(W x D x H):	394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight:	2.40 kg (5.29 lb)
Maximum power consumption:	65 W
Environment parameters
Operating temperature	0°C to 45°C (32°F to 113°F)
Operating relative humidity	5% RH to 95% RH (noncondensing)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Storage relative humidity	5% RH to 95% RH (noncondensing)

Weight	6.0000 kg
Dimensions	50.2000 × 46.8000 × 11.8000 cm
S7700	GE/10GE Card
Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse

Huawei Datacenter Switch

ZTE Switch

Cisco Switch

Aruba Switch

H3C Switch

Juniper Swtich

ZTE GPON

FiberHome GPON

Alcatel & Lucent GPON

Huawei Transport Network

OSN 9800 Series

OSN 8800 Series

Selected models

OSN 8800 Series

Up to 6.4 Tbit/s cross-connect capacity

Huawei Router

NE8000 Series

ZTE Router

Juniper Router

Selected models

H3C Router

NE 8000 Series

Designed for the cloud era

ME60 Series

Full service, large capacity, high reliability

Huawei Optical Transceiver

Huawei Embeded Power

ZTE telecom Power

Energy Storage

Emerson Vertiv Power

ES0D0S24XA00

Description

ES0D0S24XA00 overview

ES0D0S24XA00 application

ES0D0S24XA00 functions and features

Additional information

Reviews

Related products

Main Menu

Huawei Datacenter Switch

ZTE Switch

Cisco Switch

Aruba Switch

H3C Switch

Juniper Swtich

ZTE GPON

FiberHome GPON

Alcatel & Lucent GPON

Huawei Transport Network

OSN 9800 Series

OSN 8800 Series

Selected models

OSN 8800 Series

Up to 6.4 Tbit/s cross-connect capacity

Huawei Router

NE8000 Series

ZTE Router

Juniper Router

Selected models

H3C Router

NE 8000 Series

Designed for the cloud era

ME60 Series

Full service, large capacity, high reliability

Huawei Optical Transceiver

Huawei Embeded Power

ZTE telecom Power

Energy Storage

Emerson Vertiv Power

Search For Products

Popular

Up to 6.4 Tbit/s
cross-connect capacity

Full service, large capacity,
high reliability

Up to 6.4 Tbit/s
cross-connect capacity

Full service, large capacity,
high reliability
