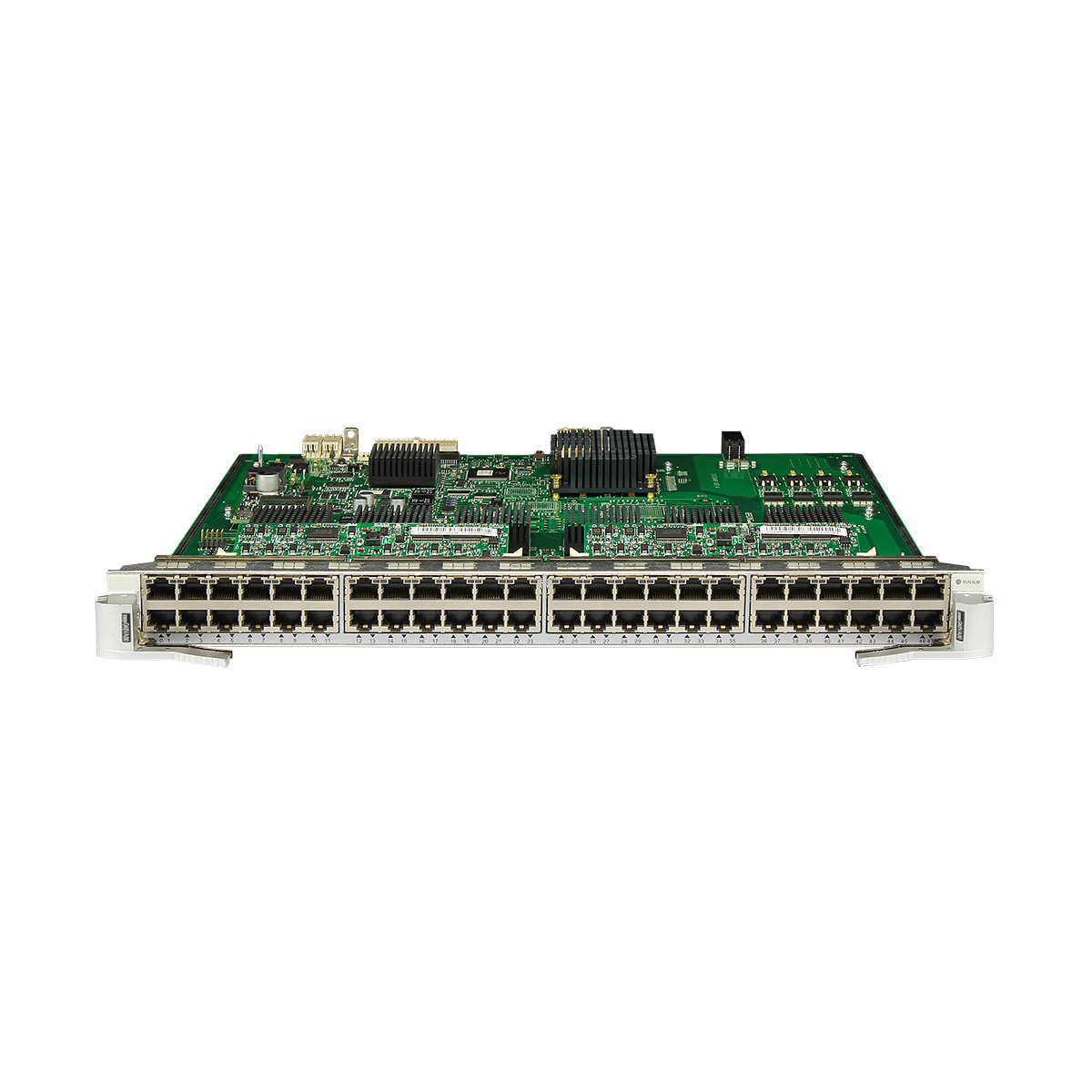

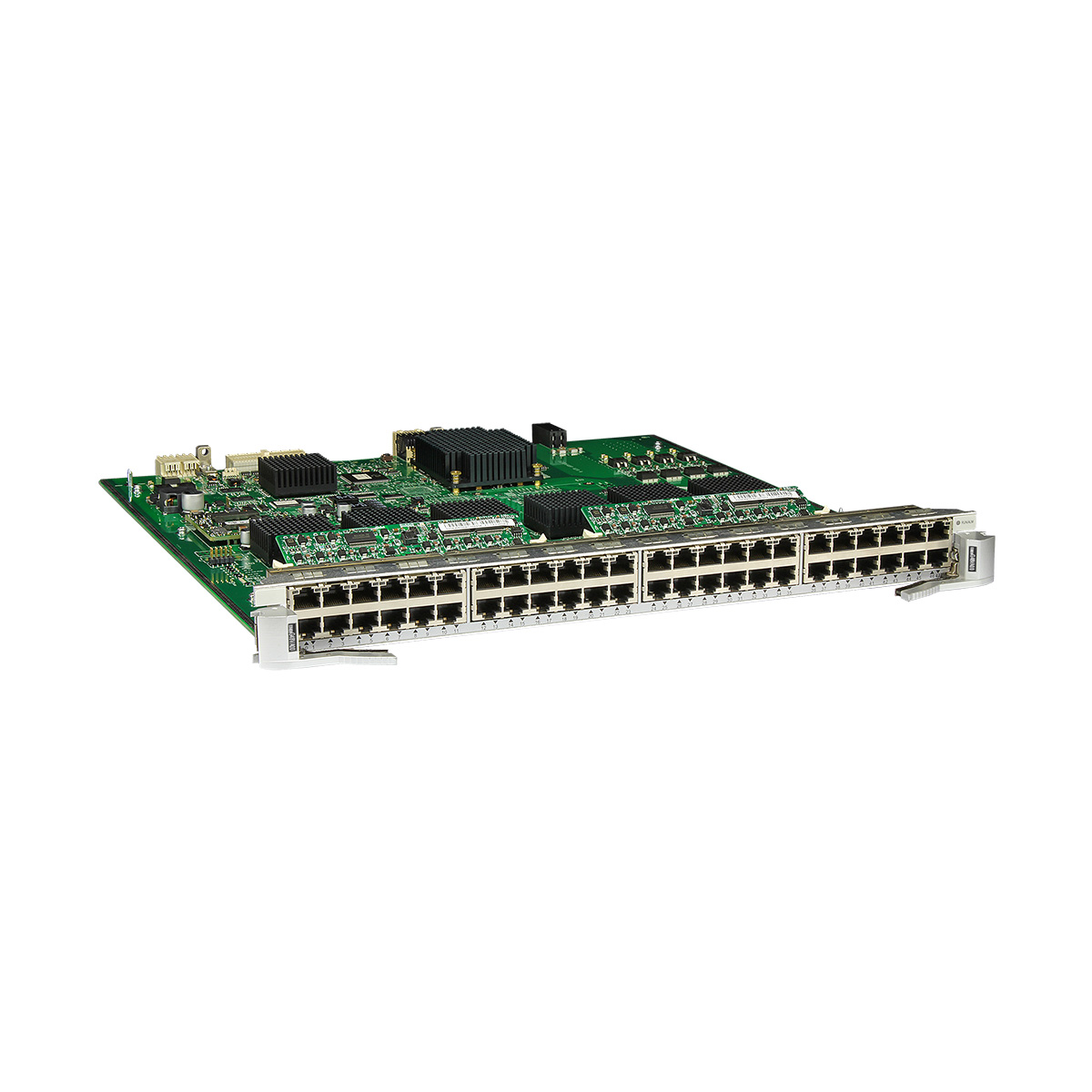

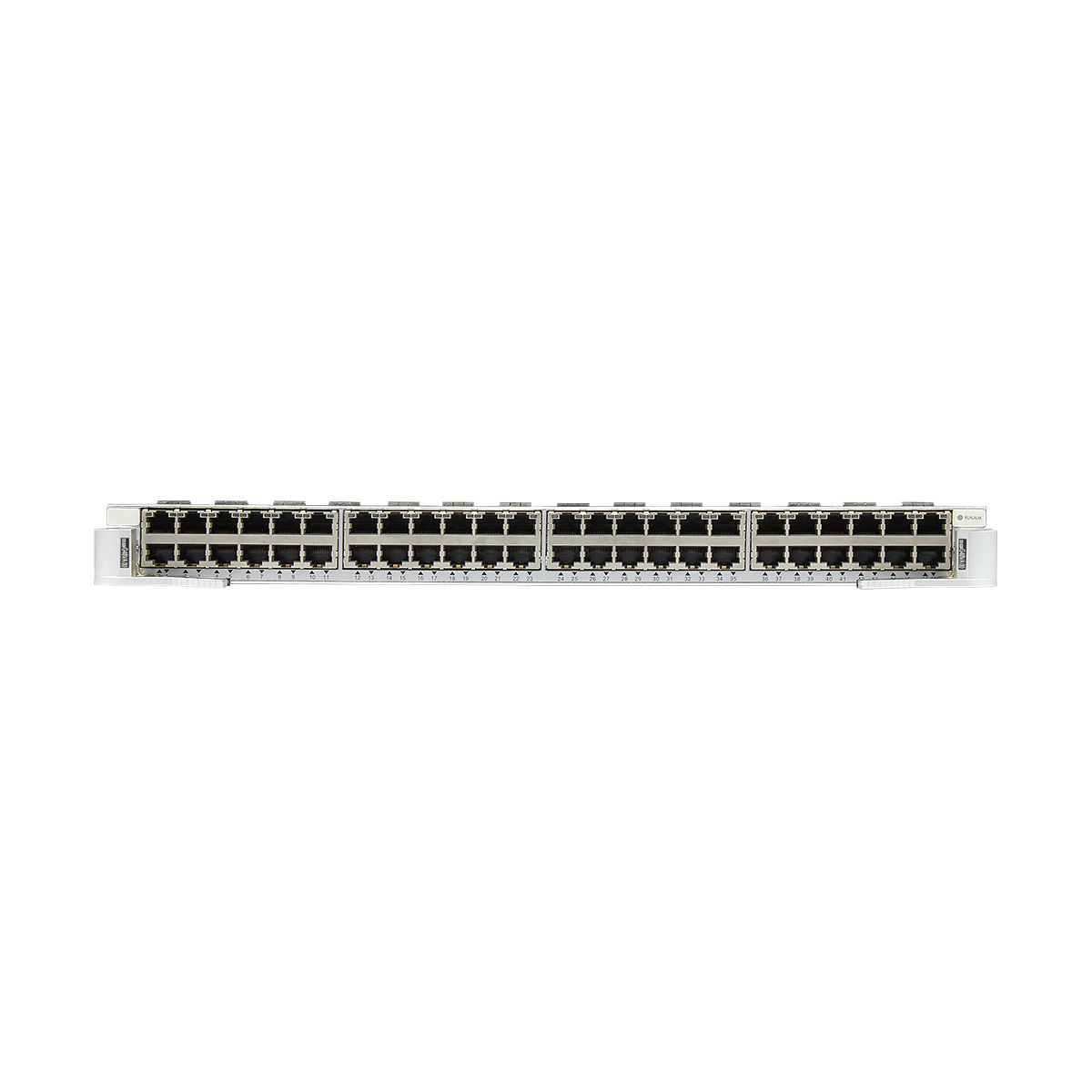

ES0D0G48VA00 Huawei S7700 switch 48 Port 10/100/1000BASE-T PoE Interface Card (EA, RJ45, POE)

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

ES0D0G48VA00 overview

ES0D0G48VA00 Huawei S7700 switch 48 Port 10/100/1000BASE-T PoE Interface Card (EA, RJ45, POE)

ES0D0G48VA00 application
Card Name S7700 Chassis
ES0D0G48VA00 S7703, S7706 and S7712 chassis: supported in V100R003C01 and later versions
S7703 PoE and S7706 PoE chassis: supported in V200R013C00 and later versions
ES0D0G48VA00 functions and features
Function Description
Basic function

The ES0D0G48VA00 has two units:

  • Data switching unit: consists of the CPU, switching chip, and physical layer (PHY).
  • PoE management unit: consists of the CPU and the Dual Inline Memory Module (DIMM).

The ES0D0G48VA00 provides:

  • Forty-eight GE electrical ports for data transmission and switching
  • Power over Ethernet (PoE) function
Distributed forwarding Performs concurrent data forwarding using a distributed data plane.
Hot swapping The ES0D0G48VA00 is hot swappable.



Item ES0D0G48VA00
Apply to S7700 Switch
Attributes of a 10M/100M BASE-T port
Connector type RJ45
Standards compliance IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
Frame format Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol IP
Physical specifications
Dimensions (W x D x H) 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight 2.60 kg (5.73 lb)
Maximum power consumption (W) 64 W (The PoE power supply is not included.) 30 W for each port and 1440 W for the whole card
Environment parameters
Operating temperature 0°C to 45°C
Relative humidity 5% RH to 95% RH
Storage temperature -40°C to +70°C
Storage relative humidity 5% RH to 95% RH

Additional information

S7700

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item ES0D0G48VA00
Apply to S7700 Switch
Attributes of a 10M/100M BASE-T port
Connector type RJ45
Standards compliance IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
Frame format Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol IP
Physical specifications
Dimensions (W x D x H) 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight 2.60 kg (5.73 lb)
Maximum power consumption (W) 64 W (The PoE power supply is not included.) 30 W for each port and 1440 W for the whole card
Environment parameters
Operating temperature 0°C to 45°C
Relative humidity 5% RH to 95% RH
Storage temperature -40°C to +70°C
Storage relative humidity 5% RH to 95% RH
