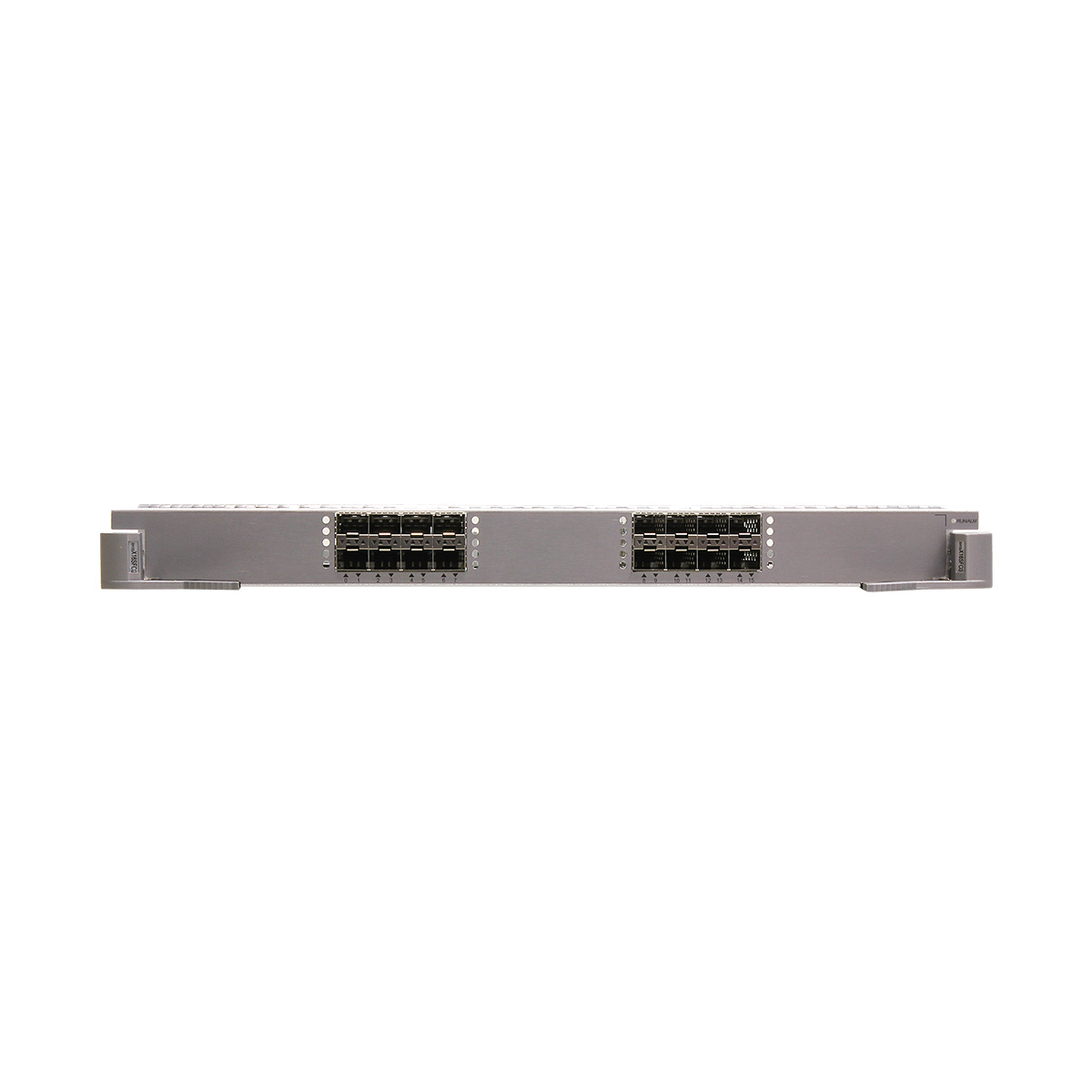

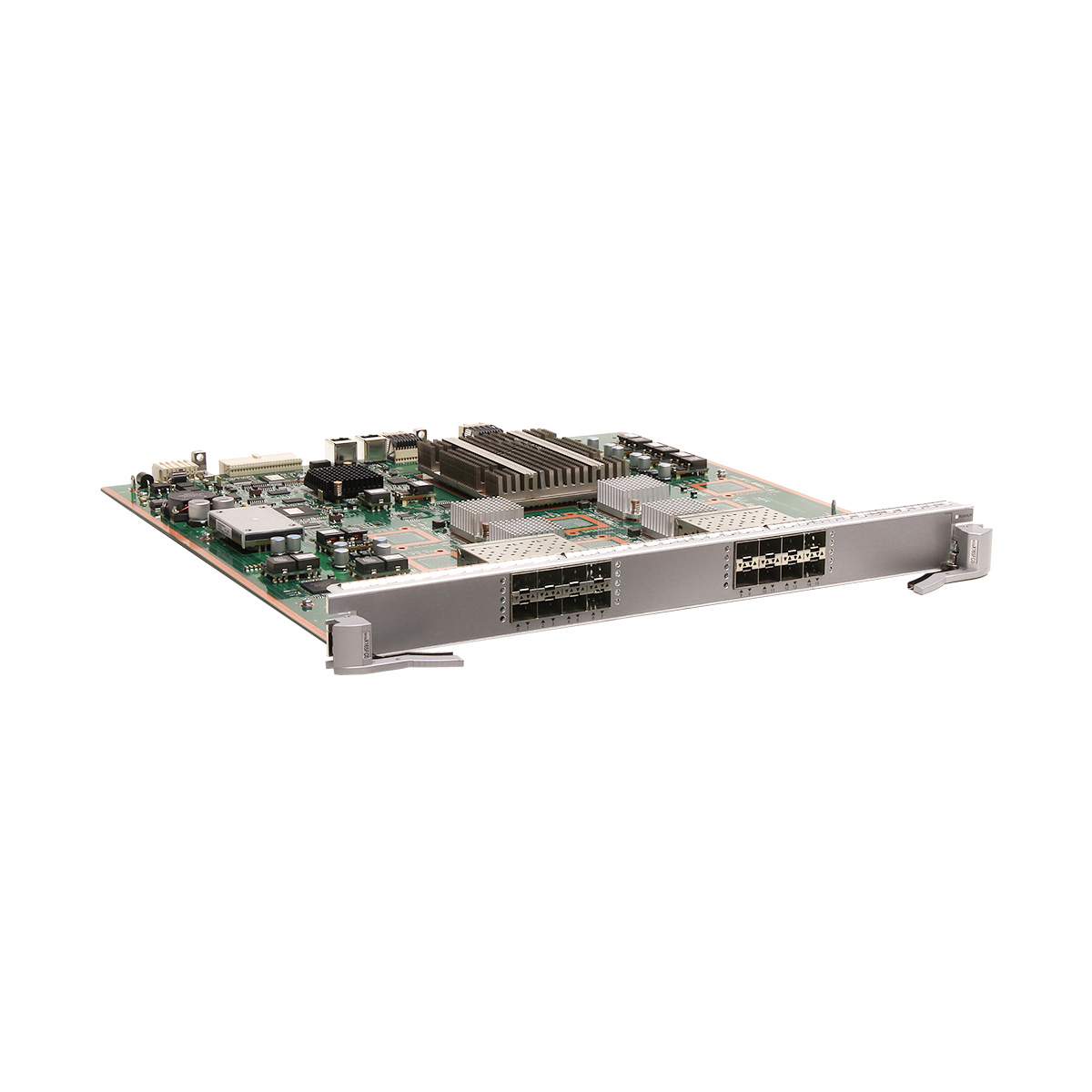

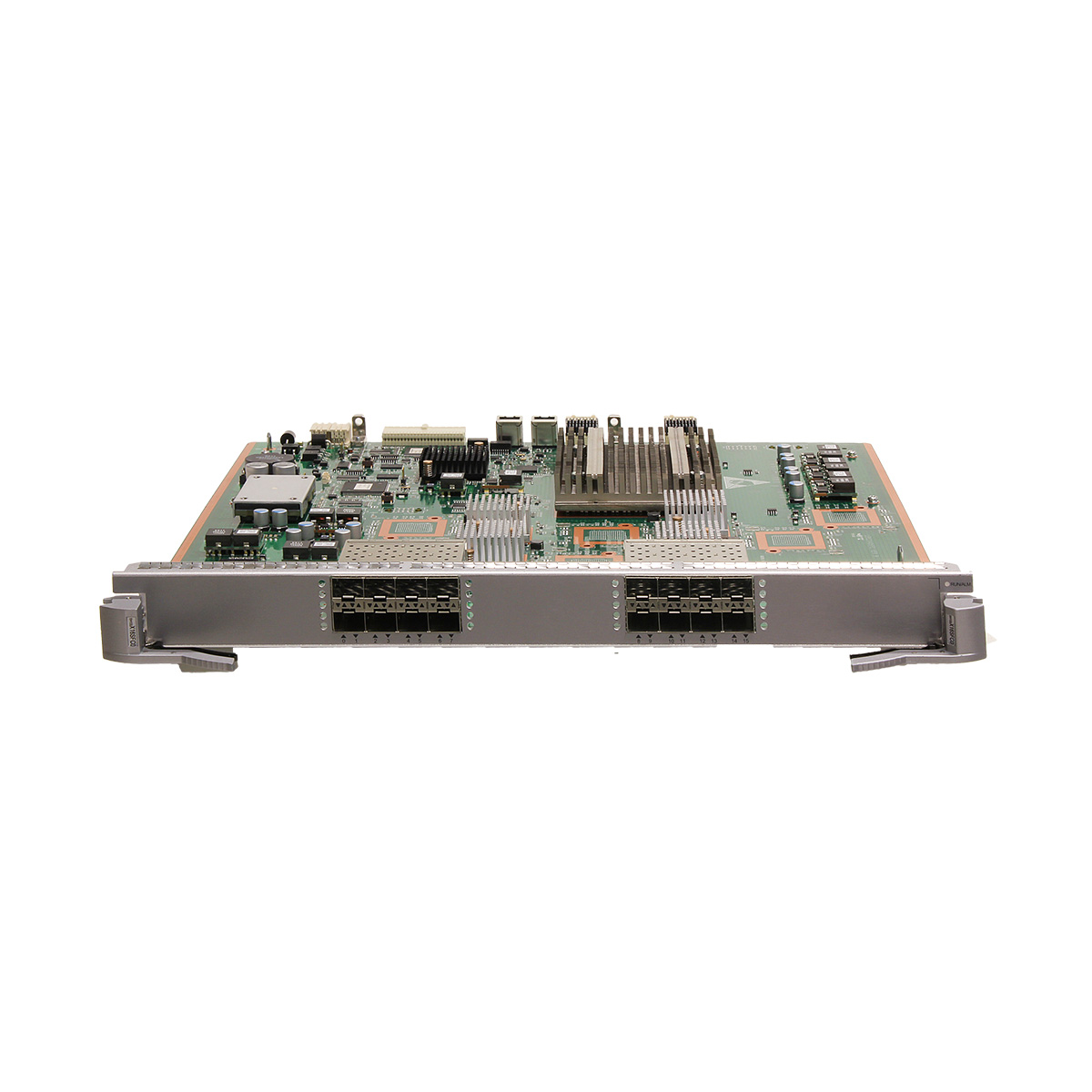

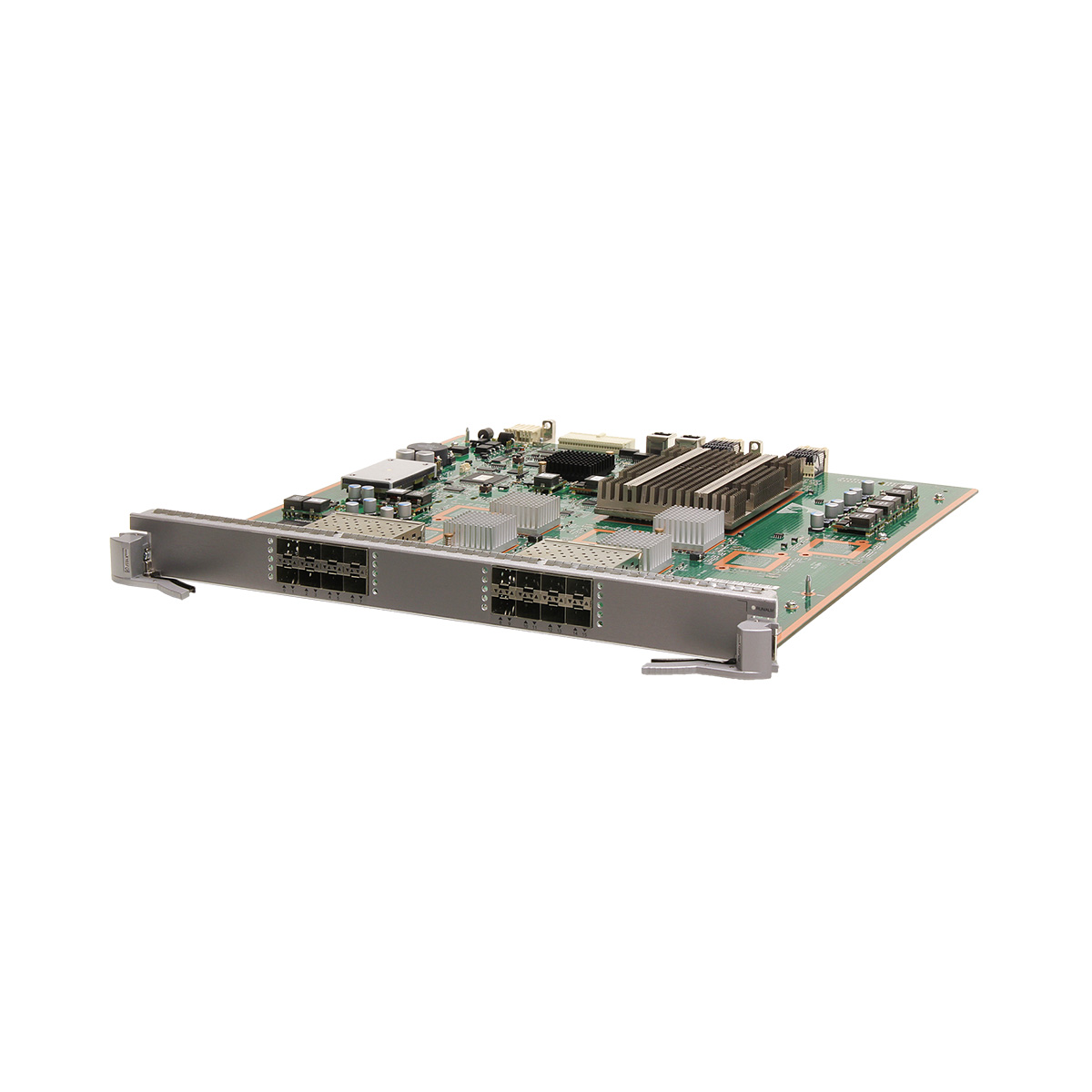

EH1D2X16SFC0 Huawei S7700 16 Port 10GBASE-X Interface Card (FC, SFP+)

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

EH1D2X16SFC0 overview

EH1D2X16SFC0 Huawei S7700 16 Port 10GBASE-X Interface Card (FC, SFP+)

EH1D2X16SFC0 application

Card Name	S9700 Chassis
EH1D2X16SFC0	Supported in V200R001C00 to V200R013C00

EH1D2X16SFC0 functions and features

Function	Description
Basic function	Provides sixteen 10GE BASE-X optical ports for data transmission and switching.
Distributed forwarding	Performs concurrent data forwarding using a distributed data plane.
Software feature	Service port clustering
Hot swapping	The EH1D2X16SFC0 is hot swappable.

Item		EH1D2X16SFC0
Apply to S9700 series
Attributes of 10GE Optical port
Connector type	SFP+
Optical port attributes	Depend on the XFP optical module used
Standards compliance	IEEE 802.3ae
Frame format	Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol	IP
Attributes of 10GE optical modules
Operating Temperature	0°C to 70°C (32°F to 158°F)
Model	Transmission Distance (km)	Standard	Fiber Type
SFP-10G-USR	≤ 0.1	10Gbase-USR	Fiber mode: multimode (OM3) Connector type: LC
OMXD30000	≤ 0.026	10Gbase-SR	Fiber mode: multimode Modal Bandwidth: 160 MHz*km Core diameter: 62.5 μm Connector type: LC
	≤ 0.033		Fiber mode: multimode (OM1) Connector type: LC
	≤ 0.066		Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC
	≤ 0.082		Fiber mode: multimode (OM2) Connector type: LC
	≤ 0.3		Fiber mode: multimode (OM3) Connector type: LC
	≤ 0.4		Fiber mode: multimode (OM4) Connector type: LC
OSX010000	≤ 10	10Gbase-LR	Fiber mode: single-mode Connector type: LC
SFP-10G-iLR	≤ 1.4	10GBASE-iLR	Fiber mode: single-mode Connector type: LC
Operating Temperature	0°C to 70°C (32°F to 158°F)
OSXD22N00(linear)	≤ 0.1	10Gbase-LRM	Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC
	≤ 0.02		Fiber mode: multimode Modal Bandwidth: 500 MHz*km Core diameter: 62.5 μm Connector type: LC
			Fiber mode: multimode (OM1, OM2, OM3) Connector type: LC
Operating Temperature	0°C to 70°C (32°F to 158°F)
OSX040N01	≤ 40	10Gbase-ER	Fiber mode: single-mode Connector type: LC
SFP-10G-ZR(limiting)	≤ 80	10Gbase-ZR
SFP-10G-ZDWT	≤ 80	DWDM
Operating Temperature	0°C to 70°C (32°F to 158°F)
LE2MXSC80FF0(linear)	≤ 40	10Gbase-ZR	Fiber mode: single-mode Connector type: LC
Attributes of 10GE bidirectional optical modules
SFP-10G-BXU1 (Single-fiber bidirectional optical module)	≤ 10	10Gbase-BX	Fiber mode: single-mode Connector type: LC
SFP-10G-BXD1 (Single-fiber bidirectional optical module)
SFP-10G-ER-SM1330-BIDI (single-fiber bidirectional)	≤ 40	10Gbase-BX
SFP-10G-ER-SM1270-BIDI (single-fiber bidirectional)
Attributes of SFP+ CWDM optical modules
Center Wavelength (nm), Model
1471, CWDM-SFPGE-1471	1491, CWDM-SFPGE-1491	1511, CWDM-SFPGE-1511	1531, CWDM-SFPGE-1531
1551, CWDM-SFPGE-1551	1571, CWDM-SFPGE-1571	1591, CWDM-SFPGE-1591	1611, CWDM-SFPGE-1611
Specifications	Encapsulation type: SFP+
	Transmission distance: ≤ 70 km
	Fiber type: single-mode, LC
	Standard: CWDM
	Operating temperature: 0°C to 70°C (32°F to 158°F)
	Transmit power: 0 dBm to 5.0 dBm Receiver sensitivity: ≤ -21.0 dBm Overload optical power: -9.0 dBm Extinction ratio: ≥ 8.2 dB
Physical specifications
Dimensions(W x D x H):	394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight:	2.30 kg (5.07 lb)
Maximum power consumption:	85W
Environment parameters
Operating temperature	0°C to 45°C (32°F to 113°F)
Operating relative humidity	5% RH to 95% RH (noncondensing)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Storage relative humidity	5% RH to 95% RH (noncondensing)

Item		EH1D2X16SFC0
Apply to S9700 series
Attributes of 10GE Optical port
Connector type	SFP+
Optical port attributes	Depend on the XFP optical module used
Standards compliance	IEEE 802.3ae
Frame format	Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol	IP
Attributes of 10GE optical modules
Operating Temperature	0°C to 70°C (32°F to 158°F)
Model	Transmission Distance (km)	Standard	Fiber Type
SFP-10G-USR	≤ 0.1	10Gbase-USR	Fiber mode: multimode (OM3) Connector type: LC
OMXD30000	≤ 0.026	10Gbase-SR	Fiber mode: multimode Modal Bandwidth: 160 MHz*km Core diameter: 62.5 μm Connector type: LC
	≤ 0.033		Fiber mode: multimode (OM1) Connector type: LC
	≤ 0.066		Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC
	≤ 0.082		Fiber mode: multimode (OM2) Connector type: LC
	≤ 0.3		Fiber mode: multimode (OM3) Connector type: LC
	≤ 0.4		Fiber mode: multimode (OM4) Connector type: LC
OSX010000	≤ 10	10Gbase-LR	Fiber mode: single-mode Connector type: LC
SFP-10G-iLR	≤ 1.4	10GBASE-iLR	Fiber mode: single-mode Connector type: LC
Operating Temperature	0°C to 70°C (32°F to 158°F)
OSXD22N00(linear)	≤ 0.1	10Gbase-LRM	Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC
	≤ 0.02		Fiber mode: multimode Modal Bandwidth: 500 MHz*km Core diameter: 62.5 μm Connector type: LC
			Fiber mode: multimode (OM1, OM2, OM3) Connector type: LC
Operating Temperature	0°C to 70°C (32°F to 158°F)
OSX040N01	≤ 40	10Gbase-ER	Fiber mode: single-mode Connector type: LC
SFP-10G-ZR(limiting)	≤ 80	10Gbase-ZR
SFP-10G-ZDWT	≤ 80	DWDM
Operating Temperature	0°C to 70°C (32°F to 158°F)
LE2MXSC80FF0(linear)	≤ 40	10Gbase-ZR	Fiber mode: single-mode Connector type: LC
Attributes of 10GE bidirectional optical modules
SFP-10G-BXU1 (Single-fiber bidirectional optical module)	≤ 10	10Gbase-BX	Fiber mode: single-mode Connector type: LC
SFP-10G-BXD1 (Single-fiber bidirectional optical module)
SFP-10G-ER-SM1330-BIDI (single-fiber bidirectional)	≤ 40	10Gbase-BX
SFP-10G-ER-SM1270-BIDI (single-fiber bidirectional)
Attributes of SFP+ CWDM optical modules
Center Wavelength (nm), Model
1471, CWDM-SFPGE-1471	1491, CWDM-SFPGE-1491	1511, CWDM-SFPGE-1511	1531, CWDM-SFPGE-1531
1551, CWDM-SFPGE-1551	1571, CWDM-SFPGE-1571	1591, CWDM-SFPGE-1591	1611, CWDM-SFPGE-1611
Specifications	Encapsulation type: SFP+
	Transmission distance: ≤ 70 km
	Fiber type: single-mode, LC
	Standard: CWDM
	Operating temperature: 0°C to 70°C (32°F to 158°F)
	Transmit power: 0 dBm to 5.0 dBm Receiver sensitivity: ≤ -21.0 dBm Overload optical power: -9.0 dBm Extinction ratio: ≥ 8.2 dB
Physical specifications
Dimensions(W x D x H):	394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight:	2.30 kg (5.07 lb)
Maximum power consumption:	85W
Environment parameters
Operating temperature	0°C to 45°C (32°F to 113°F)
Operating relative humidity	5% RH to 95% RH (noncondensing)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Storage relative humidity	5% RH to 95% RH (noncondensing)
