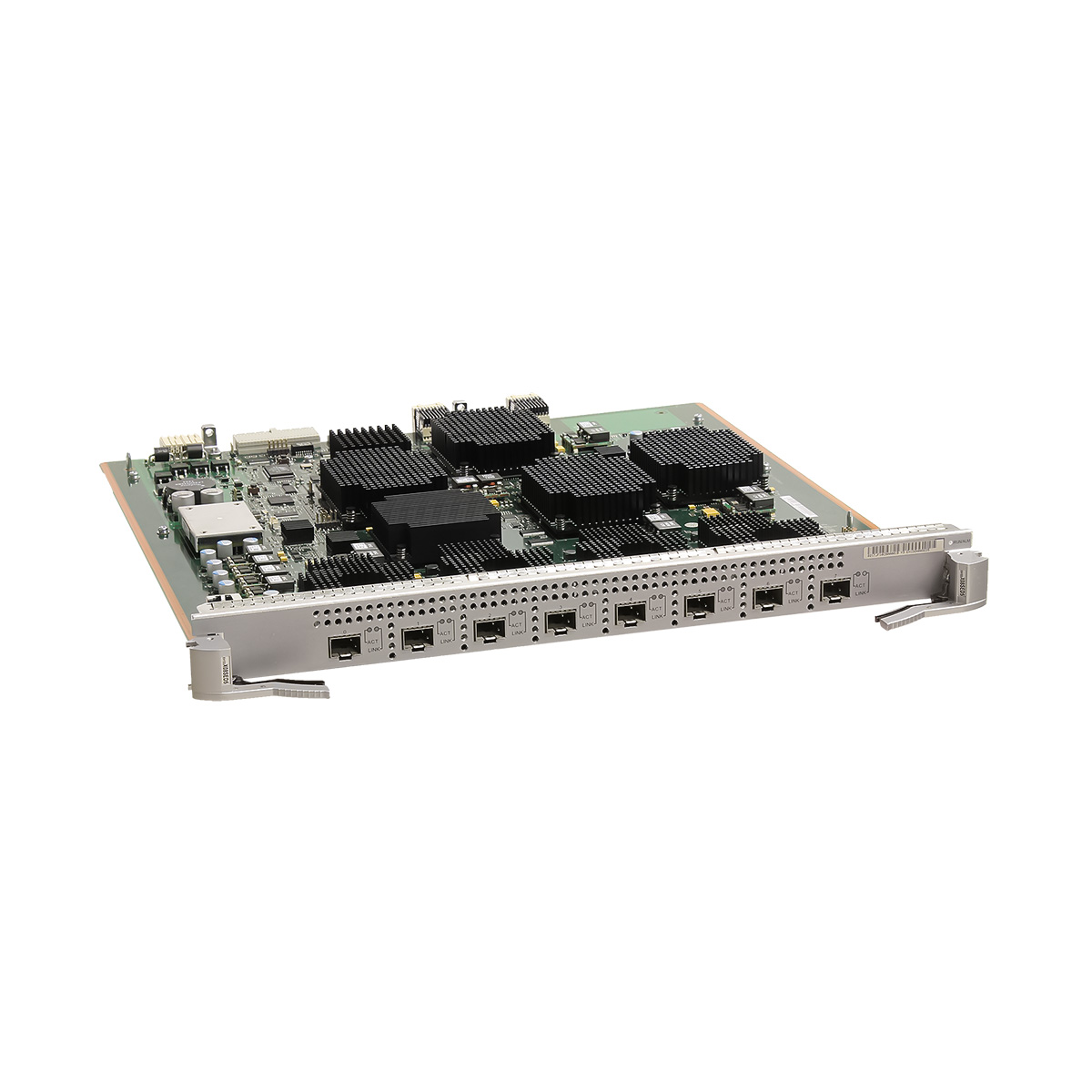

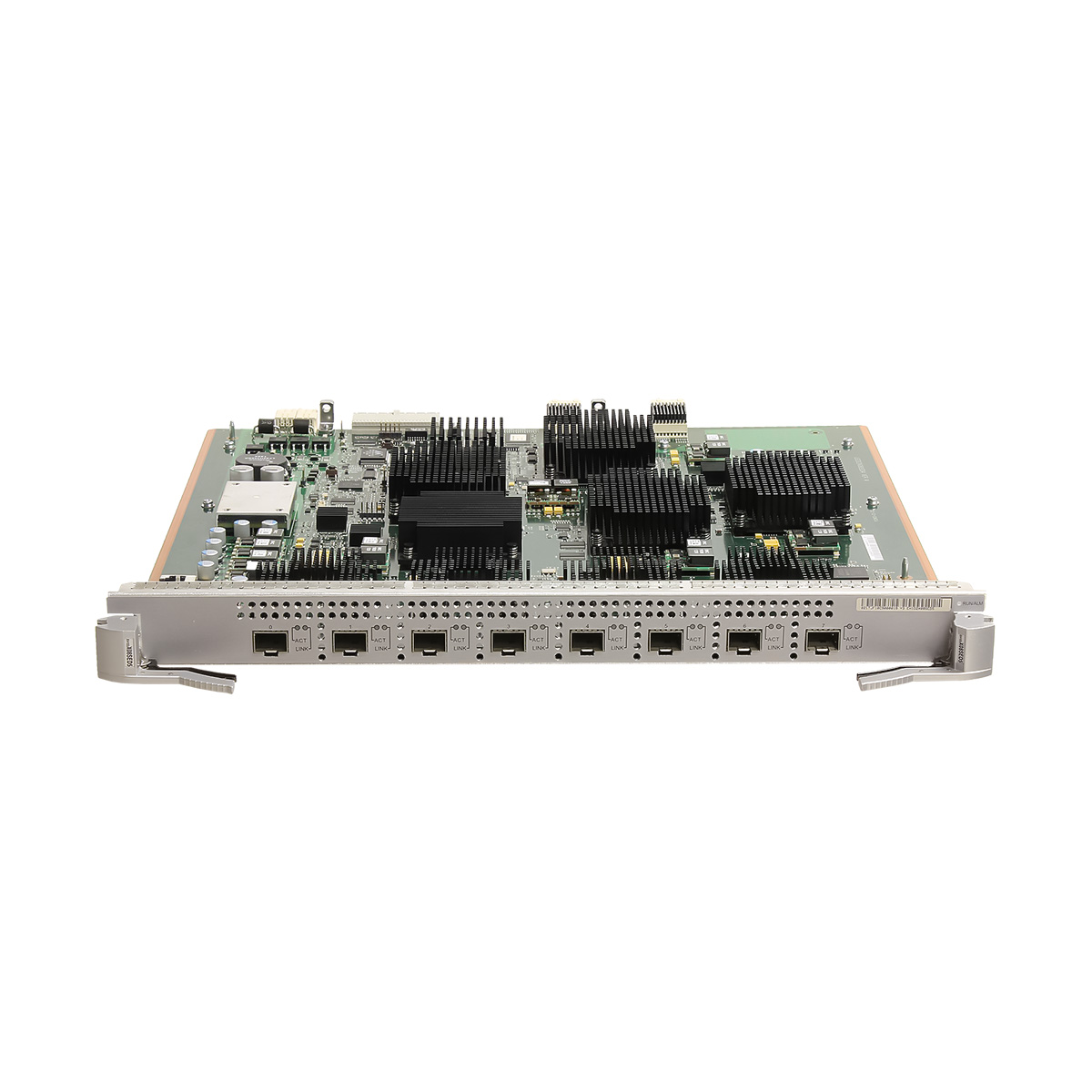

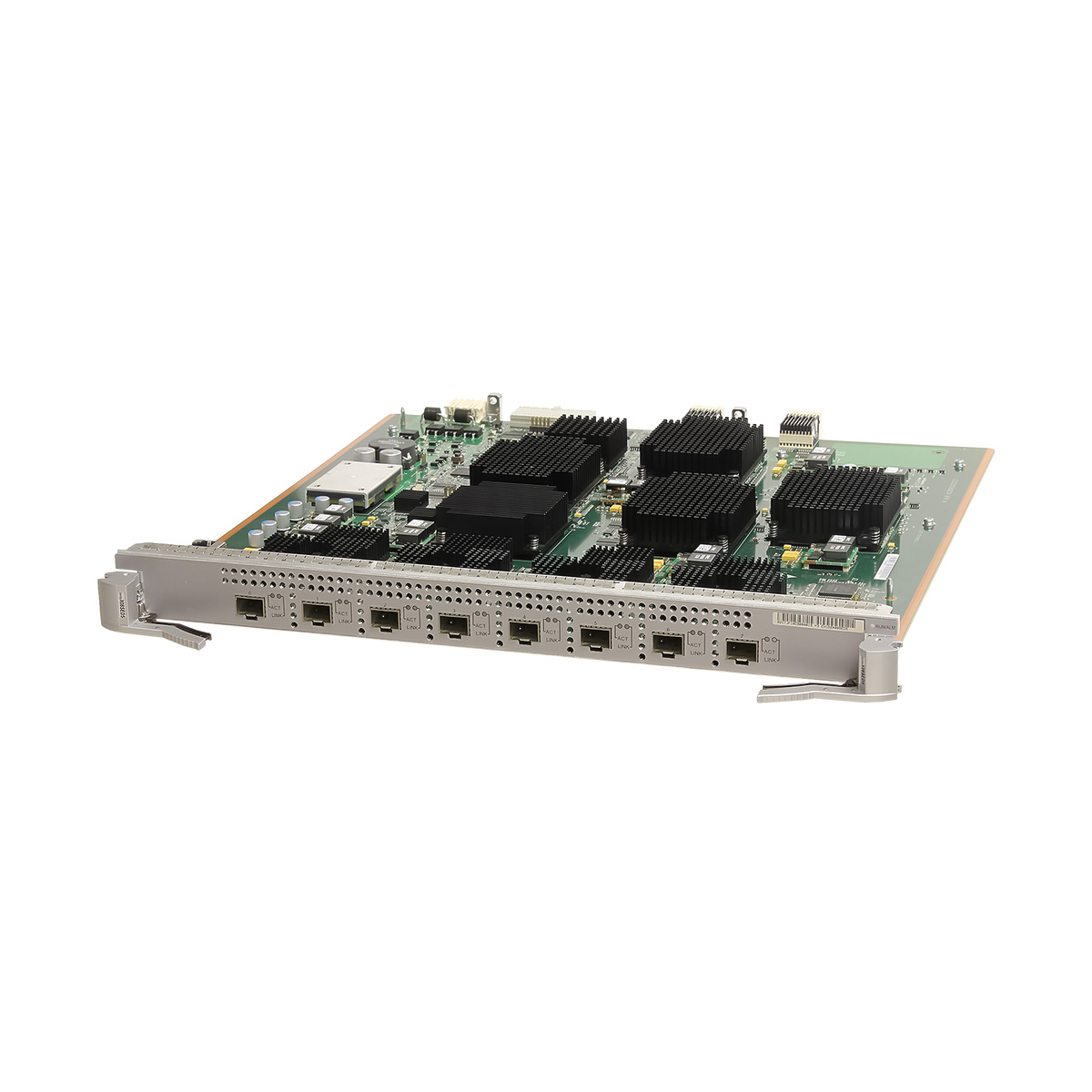

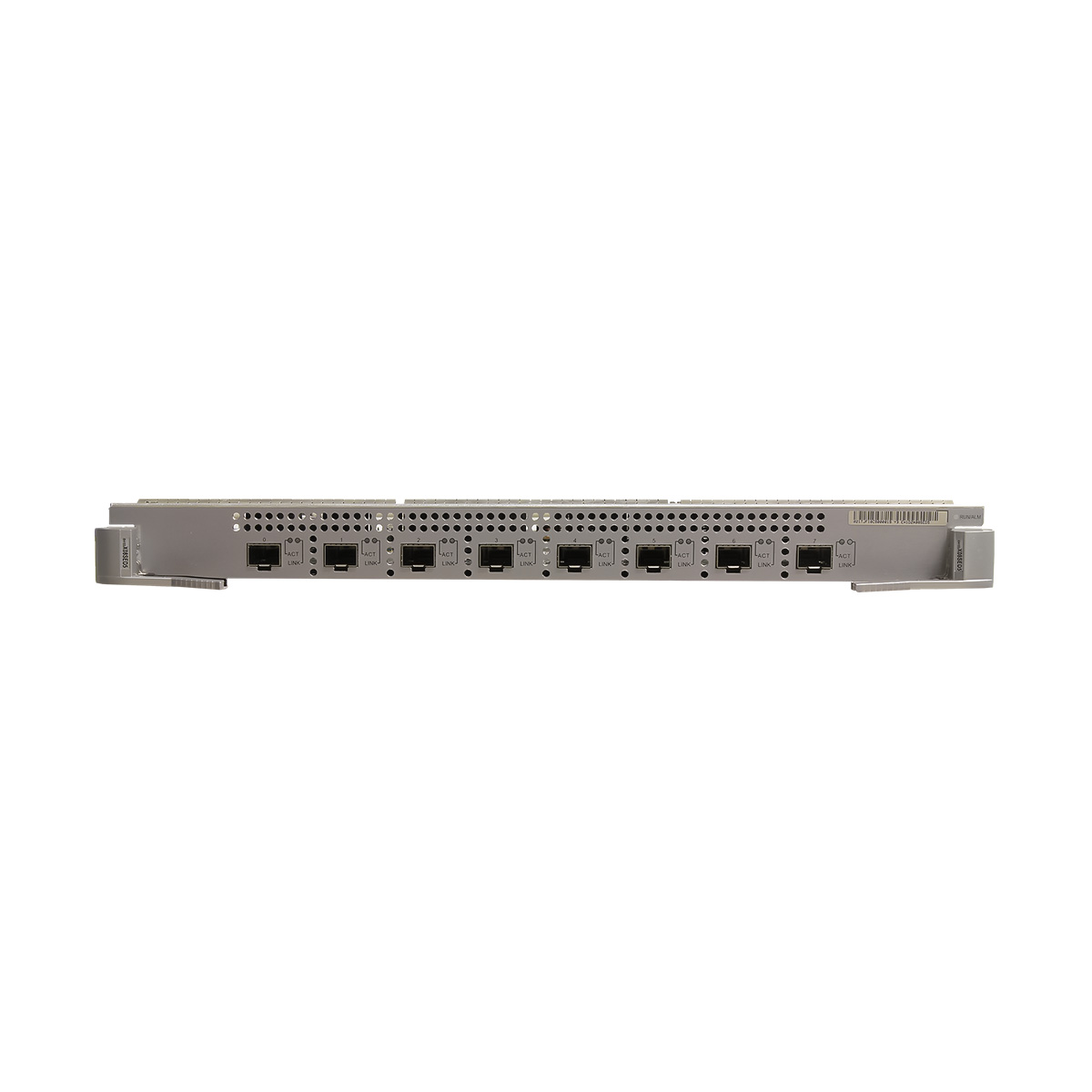

EH1D2X08SED5 Huawei S9700 switch 8-Port 10GBASE-X Interface Card (ED, SFP+)

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

EH1D2X08SED5 overview

EH1D2X08SED5 Huawei S9700 switch 8-Port 10GBASE-X Interface Card (ED, SFP+)



EH1D2X08SED5 application
Card Name S9700 Chassis
EH1D2X08SED5 Supported in V200R002C00 to V200R013C00
EH1D2X08SED5 function and feature
Function Description
Basic function Provides eight 10GE BASE-X optical ports for data transmission and line-rate switching.
Distributed forwarding Performs concurrent data forwarding using a distributed data plane.
Software feature Service port clustering
Hot swapping The EH1D2X08SED5 is hot swappable.
Item EH1D2X08SED5
Apply to S9703/S9706/S9712 Switch
Optical port attributes
Connector type SFP+
Optical port attributes Depend on the XFP optical module used
Standards compliance IEEE 802.3ae
Frame format Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol IP
Attributes of 10GE optical modules
Operating Temperature 0°C to 70°C (32°F to 158°F)
Model Transmission Distance (km) Standard Fiber Type
SFP-10G-USR ≤ 0.1 10Gbase-USR Fiber mode: multimode (OM3) Connector type: LC
OMXD30000 ≤ 0.026 10Gbase-SR Fiber mode: multimode Modal Bandwidth: 160 MHz*km Core diameter: 62.5 μm Connector type: LC
≤ 0.033 Fiber mode: multimode (OM1) Connector type: LC
≤ 0.066 Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC
≤ 0.082 Fiber mode: multimode (OM2) Connector type: LC
≤ 0.3 Fiber mode: multimode (OM3) Connector type: LC
≤ 0.4 Fiber mode: multimode (OM4) Connector type: LC
OSX010000 ≤ 10 10Gbase-LR Fiber mode: single-mode Connector type: LC
SFP-10G-iLR ≤ 1.4 10GBASE-iLR Fiber mode: single-mode Connector type: LC
Operating Temperature 0°C to 70°C (32°F to 158°F)
OSXD22N00(linear) ≤ 0.1 10Gbase-LRM Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC
≤ 0.02 Fiber mode: multimode Modal Bandwidth: 500 MHz*km Core diameter: 62.5 μm Connector type: LC
Fiber mode: multimode (OM1, OM2, OM3) Connector type: LC
Operating Temperature 0°C to 70°C (32°F to 158°F)
OSX040N01 ≤ 40 10Gbase-ER Fiber mode: single-mode Connector type: LC
SFP-10G-ZR(limiting) ≤ 80 10Gbase-ZR
SFP-10G-ZDWT ≤ 80 DWDM
Operating Temperature 0°C to 70°C (32°F to 158°F)
LE2MXSC80FF0(linear) ≤ 40 10Gbase-ZR Fiber mode: single-mode Connector type: LC
Attributes of 10GE bidirectional optical modules
SFP-10G-BXU1 (Single-fiber bidirectional optical module) ≤ 10 10Gbase-BX Fiber mode: single-mode Connector type: LC
SFP-10G-BXD1 (Single-fiber bidirectional optical module)
SFP-10G-ER-SM1330-BIDI (single-fiber bidirectional) ≤ 40 10Gbase-BX
SFP-10G-ER-SM1270-BIDI (single-fiber bidirectional)
Attributes of SFP+ CWDM optical modules
Center Wavelength (nm), Model
1471, CWDM-SFPGE-1471 1491, CWDM-SFPGE-1491 1511, CWDM-SFPGE-1511 1531, CWDM-SFPGE-1531
1551, CWDM-SFPGE-1551 1571, CWDM-SFPGE-1571 1591, CWDM-SFPGE-1591 1611, CWDM-SFPGE-1611
Specifications Encapsulation type: SFP+
Transmission distance: ≤ 70 km
Fiber type: single-mode, LC
Standard: CWDM
Operating temperature: 0°C to 70°C (32°F to 158°F)
Transmit power: 0 dBm to 5.0 dBm Receiver sensitivity: ≤ -21.0 dBm Overload optical power: -9.0 dBm Extinction ratio: ≥ 8.2 dB
Physical specifications
Dimensions(W x D x H): 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight: 2.50 kg (5.51 lb)
Maximum power consumption: 198.1W
Environment parameters
Operating temperature 0°C to 45°C (32°F to 113°F)
Operating relative humidity 5% RH to 95% RH (noncondensing)
Storage temperature -40°C to +70°C (-40°F to +158°F)
Storage relative humidity 5% RH to 95% RH (noncondensing)

Additional information

Brand

Huawei
S9700

Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item EH1D2X08SED5
Apply to S9703/S9706/S9712 Switch
Optical port attributes
Connector type SFP+
Optical port attributes Depend on the XFP optical module used
Standards compliance IEEE 802.3ae
Frame format Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol IP
Attributes of 10GE optical modules
Operating Temperature 0°C to 70°C (32°F to 158°F)
Model Transmission Distance (km) Standard Fiber Type
SFP-10G-USR ≤ 0.1 10Gbase-USR Fiber mode: multimode (OM3) Connector type: LC
OMXD30000 ≤ 0.026 10Gbase-SR Fiber mode: multimode Modal Bandwidth: 160 MHz*km Core diameter: 62.5 μm Connector type: LC
≤ 0.033 Fiber mode: multimode (OM1) Connector type: LC
≤ 0.066 Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC
≤ 0.082 Fiber mode: multimode (OM2) Connector type: LC
≤ 0.3 Fiber mode: multimode (OM3) Connector type: LC
≤ 0.4 Fiber mode: multimode (OM4) Connector type: LC
OSX010000 ≤ 10 10Gbase-LR Fiber mode: single-mode Connector type: LC
SFP-10G-iLR ≤ 1.4 10GBASE-iLR Fiber mode: single-mode Connector type: LC
Operating Temperature 0°C to 70°C (32°F to 158°F)
OSXD22N00(linear) ≤ 0.1 10Gbase-LRM Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC
≤ 0.02 Fiber mode: multimode Modal Bandwidth: 500 MHz*km Core diameter: 62.5 μm Connector type: LC
Fiber mode: multimode (OM1, OM2, OM3) Connector type: LC
Operating Temperature 0°C to 70°C (32°F to 158°F)
OSX040N01 ≤ 40 10Gbase-ER Fiber mode: single-mode Connector type: LC
SFP-10G-ZR(limiting) ≤ 80 10Gbase-ZR
SFP-10G-ZDWT ≤ 80 DWDM
Operating Temperature 0°C to 70°C (32°F to 158°F)
LE2MXSC80FF0(linear) ≤ 40 10Gbase-ZR Fiber mode: single-mode Connector type: LC
Attributes of 10GE bidirectional optical modules
SFP-10G-BXU1 (Single-fiber bidirectional optical module) ≤ 10 10Gbase-BX Fiber mode: single-mode Connector type: LC
SFP-10G-BXD1 (Single-fiber bidirectional optical module)
SFP-10G-ER-SM1330-BIDI (single-fiber bidirectional) ≤ 40 10Gbase-BX
SFP-10G-ER-SM1270-BIDI (single-fiber bidirectional)
Attributes of SFP+ CWDM optical modules
Center Wavelength (nm), Model
1471, CWDM-SFPGE-1471 1491, CWDM-SFPGE-1491 1511, CWDM-SFPGE-1511 1531, CWDM-SFPGE-1531
1551, CWDM-SFPGE-1551 1571, CWDM-SFPGE-1571 1591, CWDM-SFPGE-1591 1611, CWDM-SFPGE-1611
Specifications Encapsulation type: SFP+
Transmission distance: ≤ 70 km
Fiber type: single-mode, LC
Standard: CWDM
Operating temperature: 0°C to 70°C (32°F to 158°F)
Transmit power: 0 dBm to 5.0 dBm Receiver sensitivity: ≤ -21.0 dBm Overload optical power: -9.0 dBm Extinction ratio: ≥ 8.2 dB
Physical specifications
Dimensions(W x D x H): 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight: 2.50 kg (5.51 lb)
Maximum power consumption: 198.1W
Environment parameters
Operating temperature 0°C to 45°C (32°F to 113°F)
Operating relative humidity 5% RH to 95% RH (noncondensing)
Storage temperature -40°C to +70°C (-40°F to +158°F)
Storage relative humidity 5% RH to 95% RH (noncondensing)
