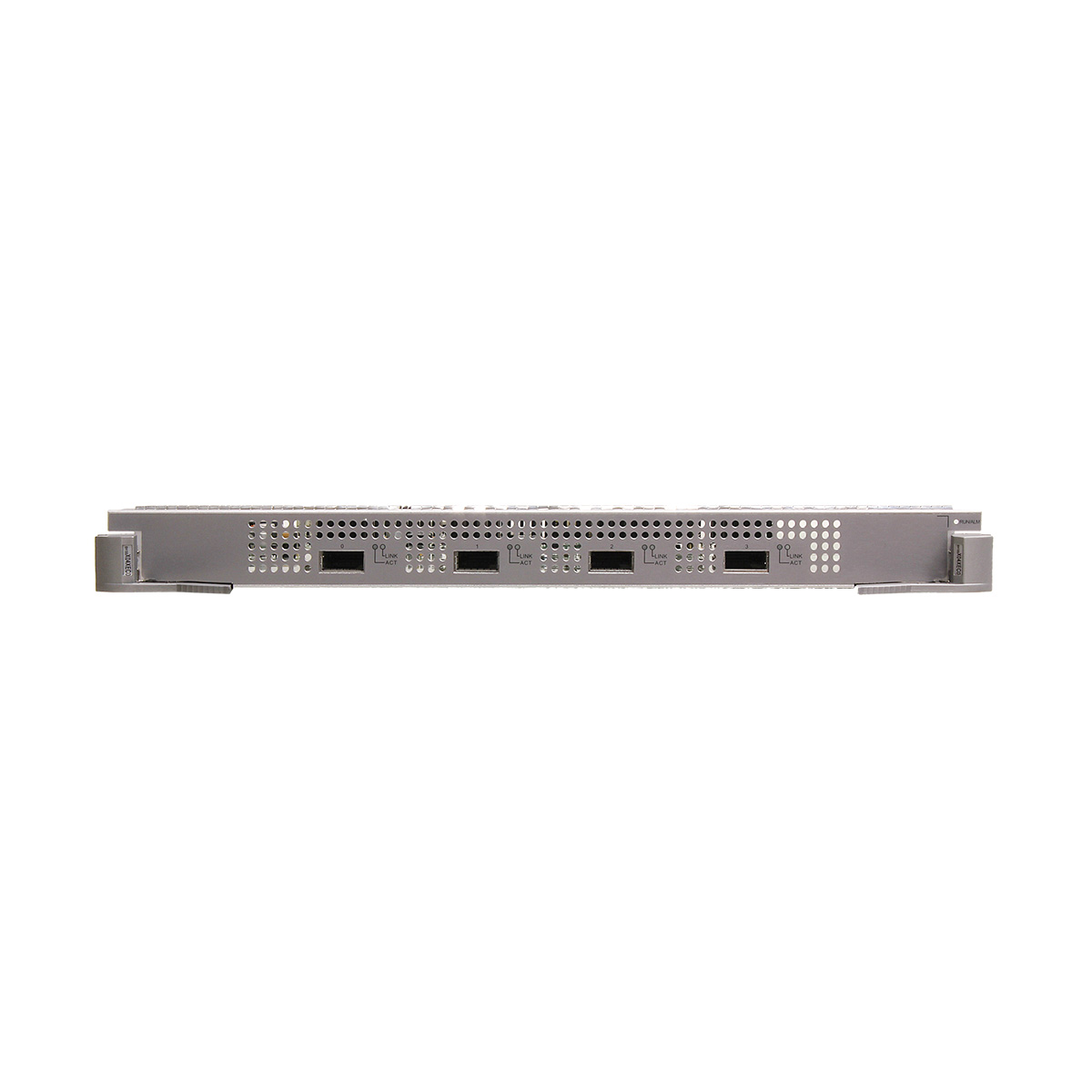

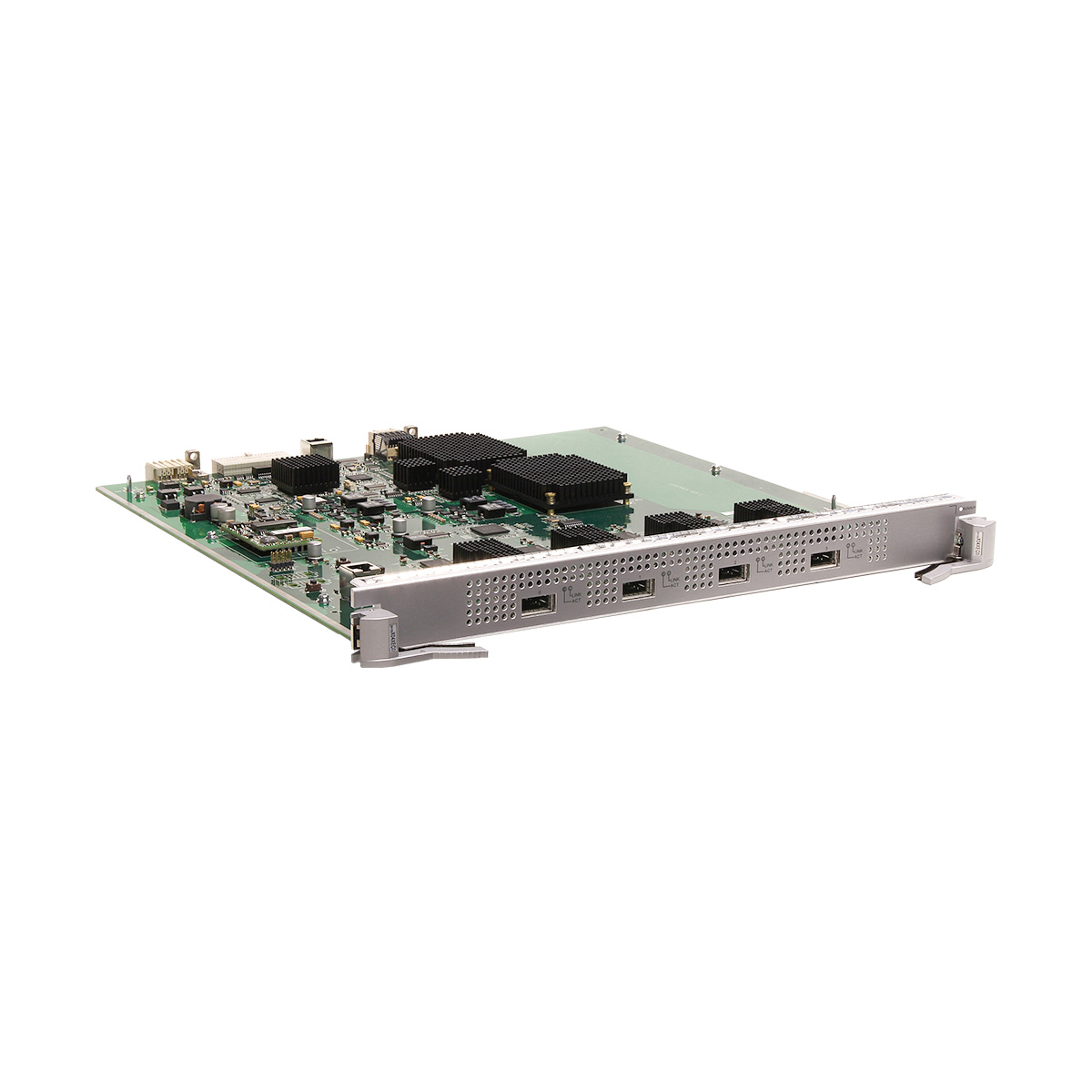

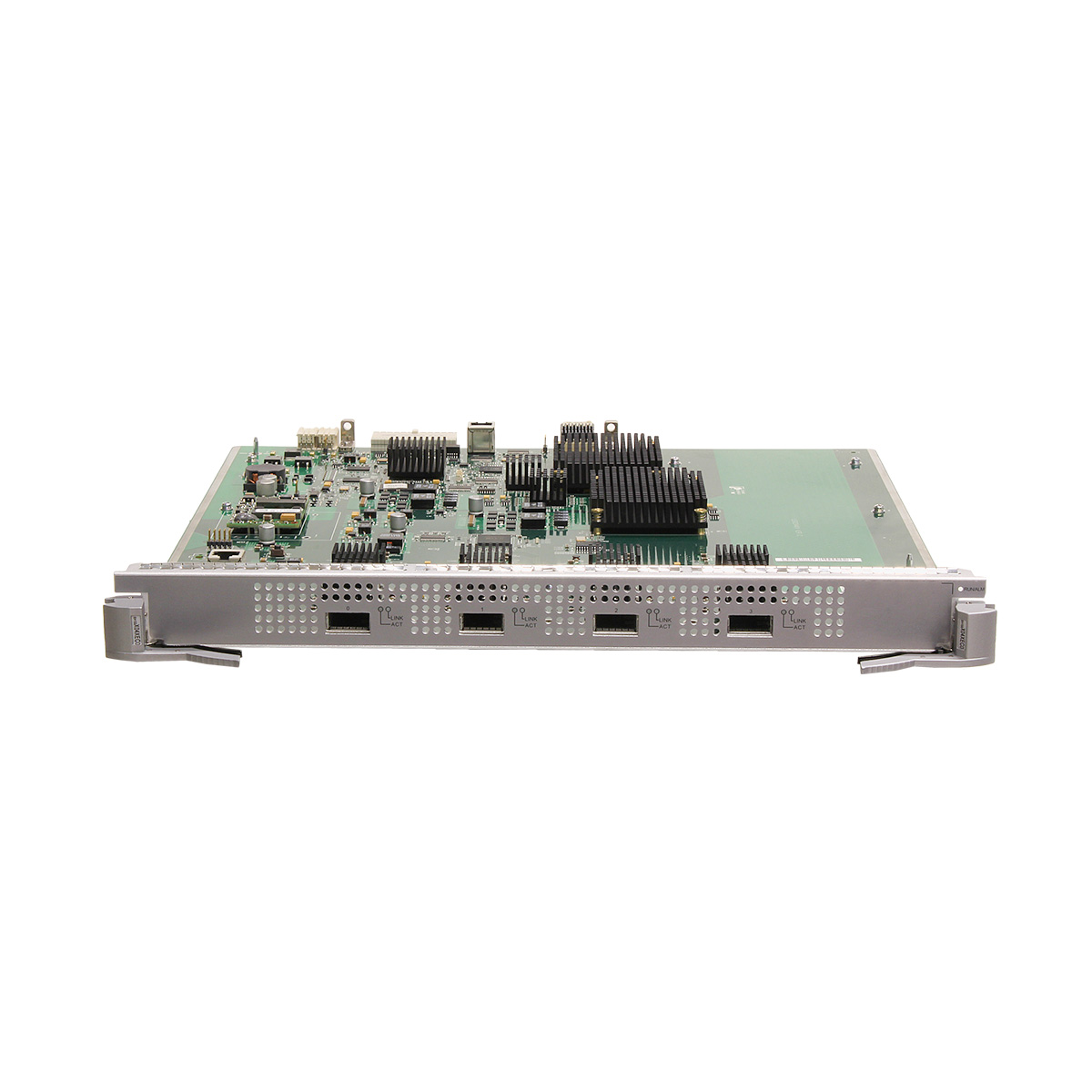

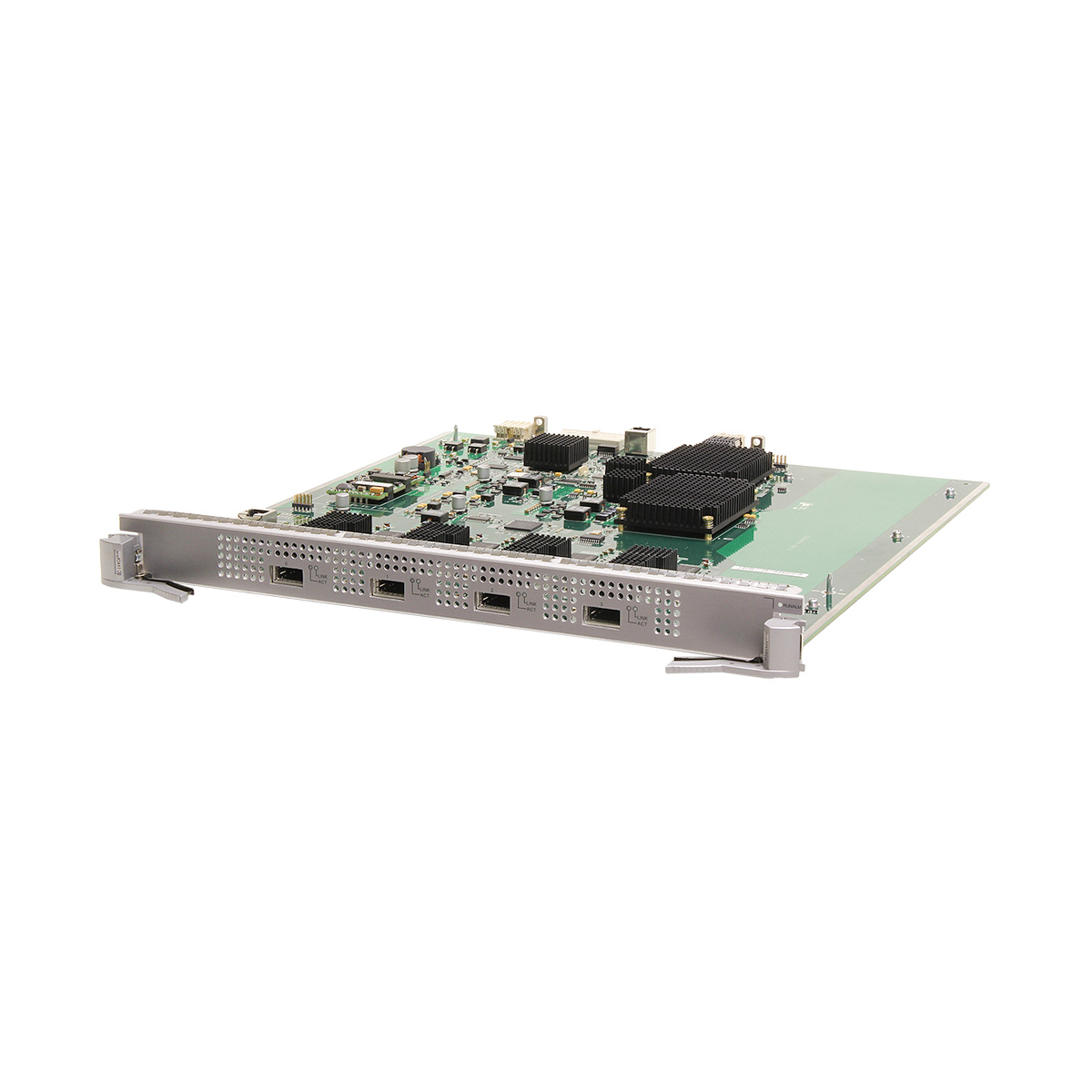

EH1D2X04XEC0 Huawei S9700 switch 4 port 10GBASE-X interface card (EC, XFP)
EH1D2X04XEC0 Huawei S9700 switch 4 port 10GBASE-X interface card (EC, XFP)
| Card Name | S9700 Chassis |
|---|---|
| EH1D2X04XEC0 | Supported in V200R001C00 to V200R013C00 |
| Function | Description |
|---|---|
| Basic function | Provides four 10GE optical ports for data transmission and line-rate switching. |
| Distributed forwarding | Performs concurrent data forwarding using a distributed data plane. |
| Hot swapping | The EH1D2X04XEC0 is hot swappable. |
| Item | EH1D2X04XEC0 | ||
| Apply to S9700 series | |||
| Optical port attributes | |||
| Connector type | XFP | ||
| Optical port attributes | Depend on the XFP optical module used | ||
| Standards compliance | IEEE 802.3ae | ||
| Frame format | Ethernet_II, Ethernet_SAP, Ethernet_SNAP | ||
| Network protocol | IP | ||
| Attributes of 10GE optical modules | |||
| Operating Temperature | 0°C to 70°C (32°F to 158°F) | ||
| Model | Transmission Distance (km) | Standard | Fiber Type |
| XFP-SX-MM850 | ≤ 0.026 | 10Gbase-SR 100base-BX | Fiber mode: multimode Modal Bandwidth: 160 MHz*km Core diameter: 62.5 μm Connector type: LC |
| ≤ 0.033 | Fiber mode: multimode (OM1) Connector type: LC | ||
| S-SFP-FE-LH40-SM1310 | ≤ 0.066 | Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC | |
| S-SFP-FE-LH80-SM1550 | ≤ 0.082 | Fiber mode: multimode (OM2) Connector type: LC | |
| SFP-FE-LX-SM1310-BIDI (Single-fiber bidirectional) | ≤ 0.3 | Fiber mode: multimode (OM3) Connector type: LC | |
| SFP-FE-LX-SM1550-BIDI (Single-fiber bidirectional) | ≤ 0.4 | Fiber mode: multimode (OM4) Connector type: LC | |
| eSFP-GE-SX-MM850 | ≤ 0.22 | 1000base-SX | Fiber mode: multimode Modal Bandwidth: 160 MHz*km Core diameter: 62.5 μm Connector type: LC |
| ≤ 0.275 | Fiber mode: multimode (OM1) Connector type: LC | ||
| ≤ 0.5 | Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC | ||
| ≤ 0.55 | Fiber mode: multimode (OM2) Connector type: LC | ||
| ≤ 1 | Fiber mode: multimode (OM3) Connector type: LC | ||
| SFP-GE-LX-SM1310 | ≤ 10 | 1000base-LX/LH | Fiber mode: single-mode Connector type: LC |
| S-SFP-GE-LH40-SM1310 | ≤ 40 | ||
| S-SFP-GE-LH40-SM1550 | |||
| S-SFP-GE-LH80-SM1550 | ≤ 80 | 1000base-ZX | |
| eSFP-GE-ZX100-SM1550 | ≤ 100 | ||
| SFP-GE-LX-SM1310-BIDI (Single-fiber bidirectional) | ≤ 10 | 1000base-BX | |
| SFP-GE-LX-SM1490-BIDI (Single-fiber bidirectional) | |||
| LE2MGSC40DE0 (Single-fiber bidirectional) | ≤ 40 | ||
| LE2MGSC40ED0 (Single-fiber bidirectional) | |||
| SFP-GE-ZBXD1 (Single-fiber bidirectional)can only be used on switch running V200R008C00 or later version. | ≤ 80 | 1000base-BX | |
| SFP-GE-ZBXU1 (Single-fiber bidirectional)can only be used on switch running V200R008C00 or later version. | |||
| SFP-GE-BXU1-SC (Single-fiber bidirectional) | ≤ 10 | 1000base-BX | Fiber mode: single-mode Connector type: SC |
| Attributes of CWDM optical modules | |||
| Center Wavelength (nm), Model | |||
| 1471, CWDM-SFPGE-1471 | 1491, CWDM-SFPGE-1491 | 1511, CWDM-SFPGE-1511 | 1531, CWDM-SFPGE-1531 |
| 1551, CWDM-SFPGE-1551 | 1571, CWDM-SFPGE-1571 | 1591, CWDM-SFPGE-1591 | 1611, CWDM-SFPGE-1611 |
| Specifications | Encapsulation type: XFP | ||
| Transmission distance: ≤ 70 km | |||
| Fiber type: single-mode, LC | |||
| Standard: CWDM | |||
| Operating temperature: 0°C to 70°C (32°F to 158°F) | |||
| Transmit power: 0 dBm to 5.0 dBm Receiver sensitivity: ≤ -21.0 dBm Overload optical power: -9.0 dBm Extinction ratio: ≥ 8.2 dB | |||
| Attributes of DWDM optical modules | |||
| Center Wavelength (nm), Model | |||
| 1533.47, DWDM-XFP10G-1533-47 | 1534.25, DWDM-XFP10G-1534-25 | 1535.04, DWDM-XFP10G-1535-04 | 1552.52, DWDM-XFP10G-1552-52 |
| 1553.33, DWDM-XFP10G-1553-33 | 1554.13, DWDM-XFP10G-1554-13 | 1530.33, DWDM-XFP10G-1530-33 | 1549.32, DWDM-XFP10G-1549-32 |
| 1535.82, DWDM-SFPGE-1535-82 | 1531.90, DWDM-XFP10G-1531-90 | 1550.12, DWDM-XFP10G-1550-12 | 1550.92, DWDM-XFP10G-1550-92 |
| 1532.68, DWDM-XFP10G-1532-68 | 1551.72, DWDM-XFP10G-1551-72 | 1529.55, DWDM-XFP10G-1529-55 | 1548.51, DWDM-XFP10G-1548-51 |
| Specifications | Encapsulation type: XFP | ||
| Transmission distance: ≤ 80 km | |||
| Fiber type: single-mode, LC | |||
| Standard: DWDM | |||
| Operating temperature: 0°C to 70°C (32°F to 158°F) | |||
| Transmit power: -1.0 dBm to +3.0 dBm Receiver sensitivity: ≤ -24.0 dBmOverload optical power: -9.0 dBm Extinction ratio: ≥ 8.2 dB | |||
| Physical specifications | |||
| Dimensions(W x D x H): | 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.) | ||
| Weight: | 2.28 kg (5.03 lb) | ||
| Maximum power consumption: | 75W | ||
| Environment parameters | |||
| Operating temperature | 0°C to 45°C (32°F to 113°F) | ||
| Operating relative humidity | 5% RH to 95% RH (noncondensing) | ||
| Storage temperature | -40°C to +70°C (-40°F to +158°F) | ||
| Storage relative humidity | 5% RH to 95% RH (noncondensing) | ||
| S9700 | |
|---|---|
| Brand | Huawei |
| Lead Time | 3-5 days |
| Ship From | Shenzhen Warehouse |
| Item | EH1D2X04XEC0 | ||
| Apply to S9700 series | |||
| Optical port attributes | |||
| Connector type | XFP | ||
| Optical port attributes | Depend on the XFP optical module used | ||
| Standards compliance | IEEE 802.3ae | ||
| Frame format | Ethernet_II, Ethernet_SAP, Ethernet_SNAP | ||
| Network protocol | IP | ||
| Attributes of 10GE optical modules | |||
| Operating Temperature | 0°C to 70°C (32°F to 158°F) | ||
| Model | Transmission Distance (km) | Standard | Fiber Type |
| XFP-SX-MM850 | ≤ 0.026 | 10Gbase-SR 100base-BX | Fiber mode: multimode Modal Bandwidth: 160 MHz*km Core diameter: 62.5 μm Connector type: LC |
| ≤ 0.033 | Fiber mode: multimode (OM1) Connector type: LC | ||
| S-SFP-FE-LH40-SM1310 | ≤ 0.066 | Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC | |
| S-SFP-FE-LH80-SM1550 | ≤ 0.082 | Fiber mode: multimode (OM2) Connector type: LC | |
| SFP-FE-LX-SM1310-BIDI (Single-fiber bidirectional) | ≤ 0.3 | Fiber mode: multimode (OM3) Connector type: LC | |
| SFP-FE-LX-SM1550-BIDI (Single-fiber bidirectional) | ≤ 0.4 | Fiber mode: multimode (OM4) Connector type: LC | |
| eSFP-GE-SX-MM850 | ≤ 0.22 | 1000base-SX | Fiber mode: multimode Modal Bandwidth: 160 MHz*km Core diameter: 62.5 μm Connector type: LC |
| ≤ 0.275 | Fiber mode: multimode (OM1) Connector type: LC | ||
| ≤ 0.5 | Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC | ||
| ≤ 0.55 | Fiber mode: multimode (OM2) Connector type: LC | ||
| ≤ 1 | Fiber mode: multimode (OM3) Connector type: LC | ||
| SFP-GE-LX-SM1310 | ≤ 10 | 1000base-LX/LH | Fiber mode: single-mode Connector type: LC |
| S-SFP-GE-LH40-SM1310 | ≤ 40 | ||
| S-SFP-GE-LH40-SM1550 | |||
| S-SFP-GE-LH80-SM1550 | ≤ 80 | 1000base-ZX | |
| eSFP-GE-ZX100-SM1550 | ≤ 100 | ||
| SFP-GE-LX-SM1310-BIDI (Single-fiber bidirectional) | ≤ 10 | 1000base-BX | |
| SFP-GE-LX-SM1490-BIDI (Single-fiber bidirectional) | |||
| LE2MGSC40DE0 (Single-fiber bidirectional) | ≤ 40 | ||
| LE2MGSC40ED0 (Single-fiber bidirectional) | |||
| SFP-GE-ZBXD1 (Single-fiber bidirectional)can only be used on switch running V200R008C00 or later version. | ≤ 80 | 1000base-BX | |
| SFP-GE-ZBXU1 (Single-fiber bidirectional)can only be used on switch running V200R008C00 or later version. | |||
| SFP-GE-BXU1-SC (Single-fiber bidirectional) | ≤ 10 | 1000base-BX | Fiber mode: single-mode Connector type: SC |
| Attributes of CWDM optical modules | |||
| Center Wavelength (nm), Model | |||
| 1471, CWDM-SFPGE-1471 | 1491, CWDM-SFPGE-1491 | 1511, CWDM-SFPGE-1511 | 1531, CWDM-SFPGE-1531 |
| 1551, CWDM-SFPGE-1551 | 1571, CWDM-SFPGE-1571 | 1591, CWDM-SFPGE-1591 | 1611, CWDM-SFPGE-1611 |
| Specifications | Encapsulation type: XFP | ||
| Transmission distance: ≤ 70 km | |||
| Fiber type: single-mode, LC | |||
| Standard: CWDM | |||
| Operating temperature: 0°C to 70°C (32°F to 158°F) | |||
| Transmit power: 0 dBm to 5.0 dBm Receiver sensitivity: ≤ -21.0 dBm Overload optical power: -9.0 dBm Extinction ratio: ≥ 8.2 dB | |||
| Attributes of DWDM optical modules | |||
| Center Wavelength (nm), Model | |||
| 1533.47, DWDM-XFP10G-1533-47 | 1534.25, DWDM-XFP10G-1534-25 | 1535.04, DWDM-XFP10G-1535-04 | 1552.52, DWDM-XFP10G-1552-52 |
| 1553.33, DWDM-XFP10G-1553-33 | 1554.13, DWDM-XFP10G-1554-13 | 1530.33, DWDM-XFP10G-1530-33 | 1549.32, DWDM-XFP10G-1549-32 |
| 1535.82, DWDM-SFPGE-1535-82 | 1531.90, DWDM-XFP10G-1531-90 | 1550.12, DWDM-XFP10G-1550-12 | 1550.92, DWDM-XFP10G-1550-92 |
| 1532.68, DWDM-XFP10G-1532-68 | 1551.72, DWDM-XFP10G-1551-72 | 1529.55, DWDM-XFP10G-1529-55 | 1548.51, DWDM-XFP10G-1548-51 |
| Specifications | Encapsulation type: XFP | ||
| Transmission distance: ≤ 80 km | |||
| Fiber type: single-mode, LC | |||
| Standard: DWDM | |||
| Operating temperature: 0°C to 70°C (32°F to 158°F) | |||
| Transmit power: -1.0 dBm to +3.0 dBm Receiver sensitivity: ≤ -24.0 dBmOverload optical power: -9.0 dBm Extinction ratio: ≥ 8.2 dB | |||
| Physical specifications | |||
| Dimensions(W x D x H): | 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.) | ||
| Weight: | 2.28 kg (5.03 lb) | ||
| Maximum power consumption: | 75W | ||
| Environment parameters | |||
| Operating temperature | 0°C to 45°C (32°F to 113°F) | ||
| Operating relative humidity | 5% RH to 95% RH (noncondensing) | ||
| Storage temperature | -40°C to +70°C (-40°F to +158°F) | ||
| Storage relative humidity | 5% RH to 95% RH (noncondensing) | ||
