S9700 10GE Card

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

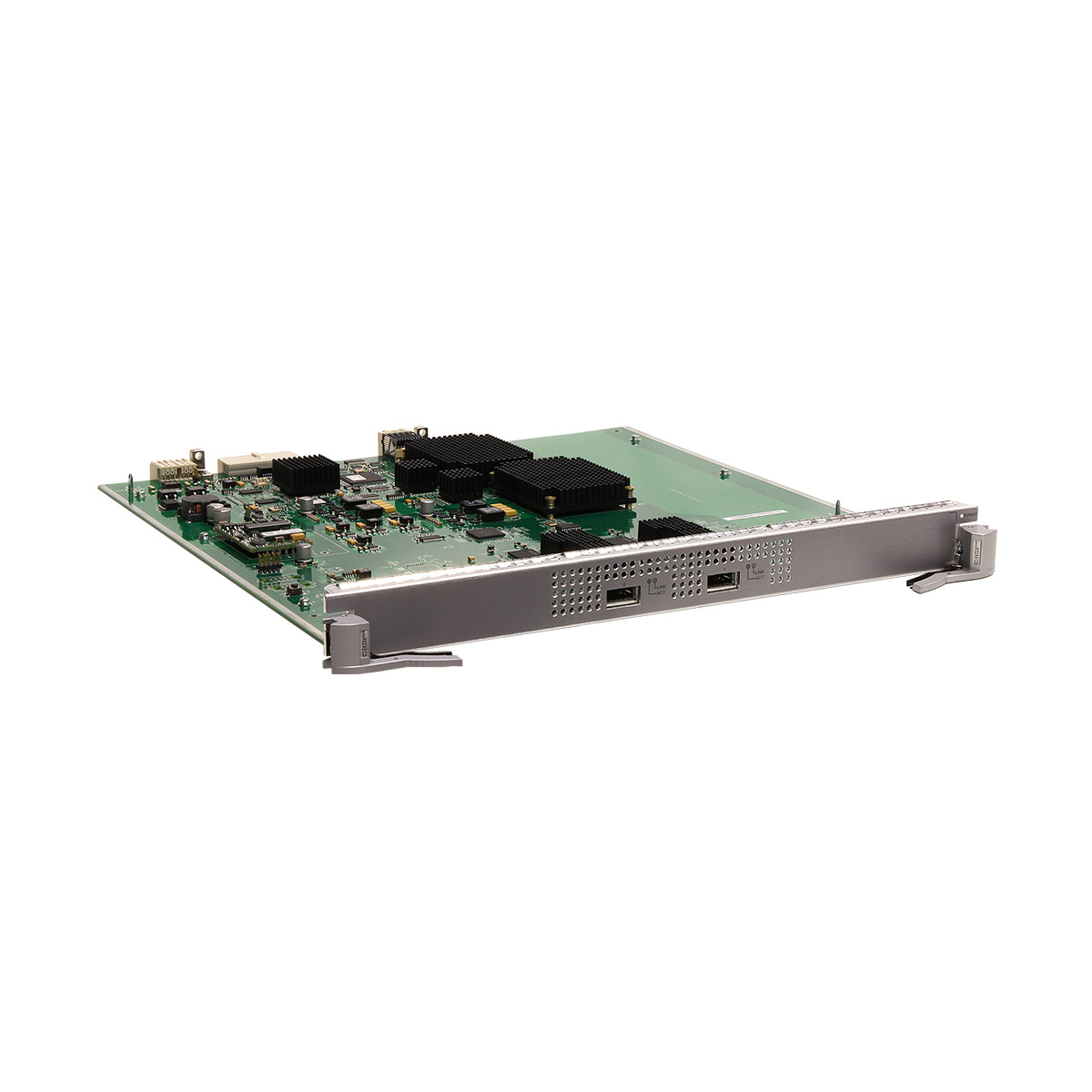

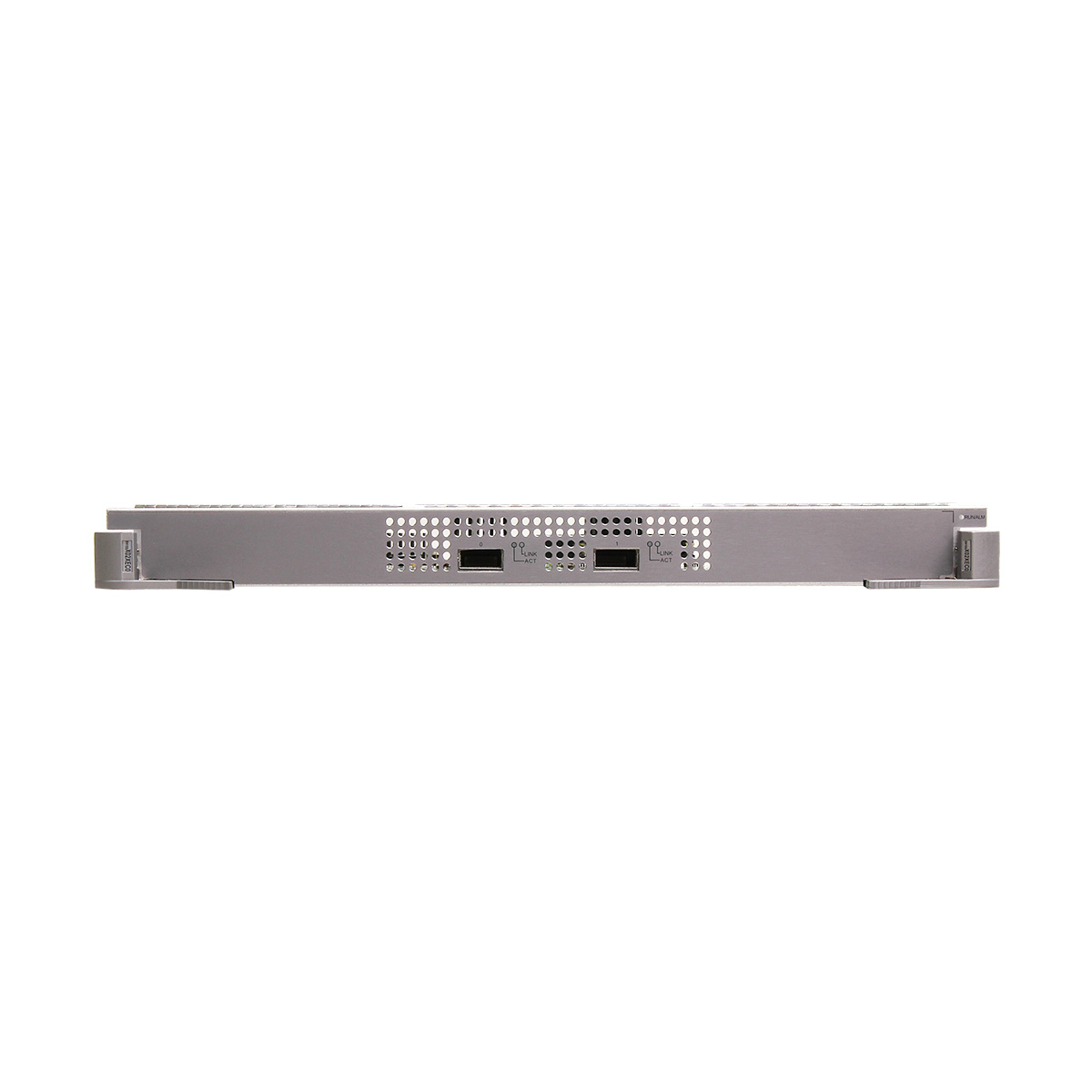

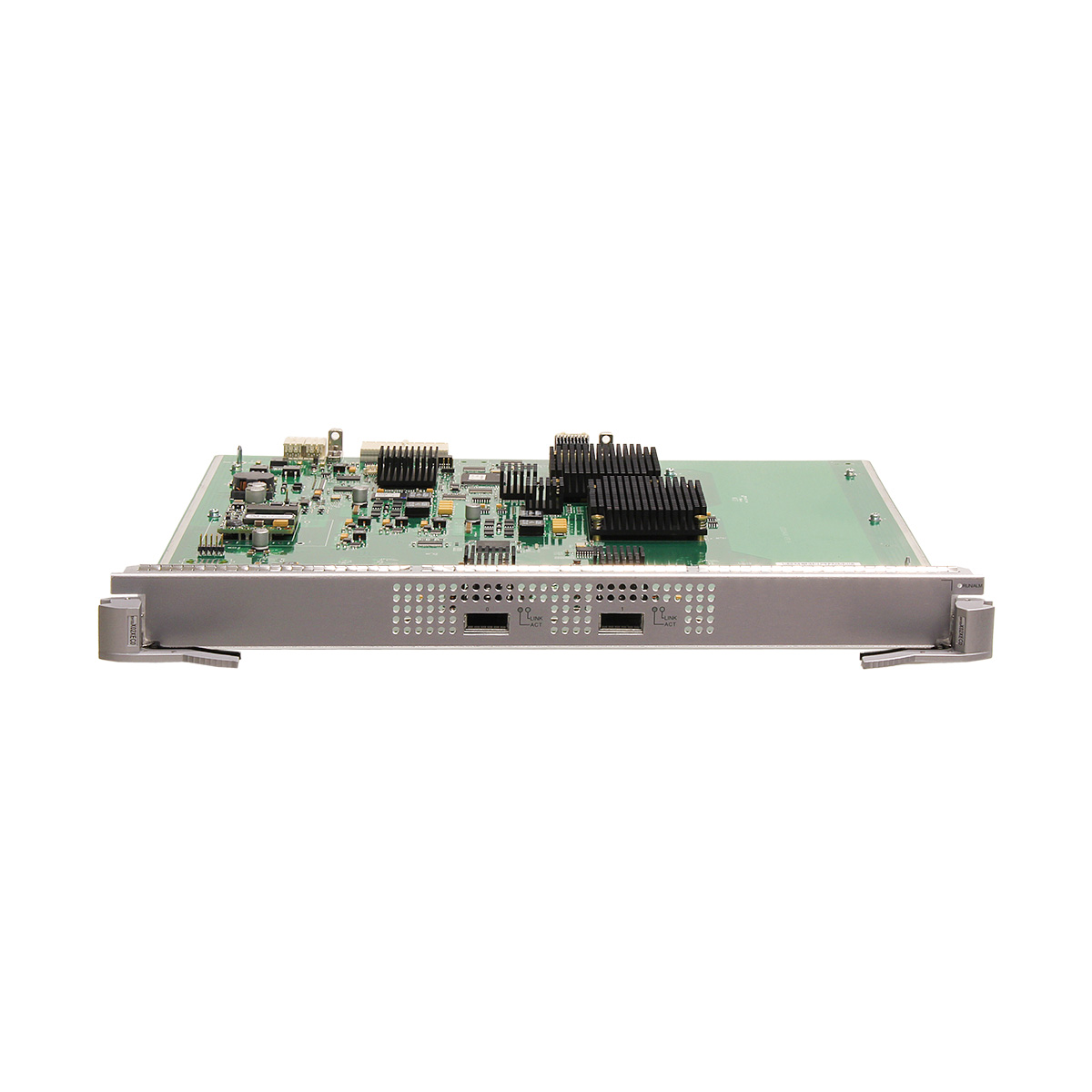

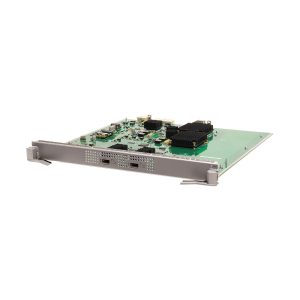

EH1D2X02XEC1 Huawei S9700 switch 2 port 10GBASE-X interface card (EC, XFP) FCC

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

EH1D2X02XEC1 overview

EH1D2X02XEC1 Huawei S9700 switch 2 port 10GBASE-X interface card (EC, XFP) FCC

EH1D2X02XEC1 application

Card Name	S9700 Chassis
EH1D2X02XEC1	Supported in V200R003C00 to V200R013C00

EH1D2X02XEC1 function and feature

Function	Description
Basic function	Provides two 10GE optical ports for data transmission and line-rate switching.
Distributed forwarding	Performs concurrent data forwarding using a distributed data plane.
Hot swapping	The EH1D2X02XEC1 is hot swappable.

Item		EH1D2X02XEC1
Apply to S9700 series
Attributes of 10GBASE XFP optical port
Connector type	XFP
Standards compliance	IEEE 802.3ae
Frame format	Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol	IP
Attributes of CWDM optical modules
Center Wavelength (nm), Model
1471, CWDM-SFPGE-1471	1491, CWDM-SFPGE-1491	1511, CWDM-SFPGE-1511	1531, CWDM-SFPGE-1531
1551, CWDM-SFPGE-1551	1571, CWDM-SFPGE-1571	1591, CWDM-SFPGE-1591	1611, CWDM-SFPGE-1611
Specifications	Encapsulation type: eSFP
	Transmission distance: ≤ 80 km
	Fiber type: single-mode, LC
	Standard: CWDM
	Operating temperature: 0°C to 70°C (32°F to 158°F)
	Transmit power: 0 dBm to 5.0 dBm Receiver sensitivity: ≤ -28.0 dBm Overload optical power: -9.0 dBm Extinction ratio: ≥ 8.5 dB
Attributes of DWDM optical modules
Center Wavelength (nm), Model
1533.47, DWDM-XFP10G-1533-47	1534.25, DWDM-XFP10G-1534-25	1535.04, DWDM-XFP10G-1535-04	1552.52, DWDM-XFP10G-1552-52
1532.68, DWDM-SFPGE-1532-68	1554.13, DWDM-XFP10G-1554-13	1530.33, DWDM-XFP10G-1530-33	1549.32, DWDM-XFP10G-1549-32
1531.12, DWDM-XFP10G-1531-12	1531.90, DWDM-XFP10G-1531-90	1550.12, DWDM-XFP10G-1550-12	1550.92, DWDM-XFP10G-1550-92
1532.68, DWDM-XFP10G-1532-68	1551.72, DWDM-XFP10G-1551-72	1529.55, DWDM-XFP10G-1529-55	1548.51, DWDM-XFP10G-1548-51
Specifications	Encapsulation type: XFP
	Transmission distance: ≤ 80 km
	Fiber type: single-mode, LC
	Standard: DWDM
	Operating temperature: 0°C to 70°C (32°F to 158°F)
	Transmit power: -1.0 dBm to +3.0 dBm Receiver sensitivity: ≤ -24.0 dBm Overload optical power: -9.0 dBm Extinction ratio: ≥ 8.2 dB
Attributes of a 10GE Optical module
XFP-SX-MM850	≤ 0.026	10Gbase-SR	Fiber mode: multimode Modal Bandwidth: 160 MHz*km Core diameter: 62.5 μm Connector type: LC
	≤ 0.033		Fiber mode: multimode (OM1) Connector type: LC
	≤ 0.066		Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC
	≤ 0.082		Fiber mode: multimode (OM2) Connector type: LC
	≤ 0.3		Fiber mode: multimode (OM3) Connector type: LC
	≤ 0.4		Fiber mode: multimode (OM4) Connector type: LC
XFP-STM64-LX-SM1310	≤ 10	10Gbase-LR	Fiber mode: single-mode Connector type: LC
XFP-STM64-LH40-SM1550	≤ 40	10Gbase-ER
XFP-STM64-SM1550-80km	≤ 80	10Gbase-ZR
Physical specifications
Dimensions(W x D x H):	394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight:	2.26 kg (4.98 lb)
Maximum power consumption:	61W
Environment parameters
Operating temperature	0°C to 45°C (32°F to 113°F)
Operating relative humidity	5% RH to 95% RH (noncondensing)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Storage relative humidity	5% RH to 95% RH (noncondensing)

Item		EH1D2X02XEC1
Apply to S9700 series
Attributes of 10GBASE XFP optical port
Connector type	XFP
Standards compliance	IEEE 802.3ae
Frame format	Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol	IP
Attributes of CWDM optical modules
Center Wavelength (nm), Model
1471, CWDM-SFPGE-1471	1491, CWDM-SFPGE-1491	1511, CWDM-SFPGE-1511	1531, CWDM-SFPGE-1531
1551, CWDM-SFPGE-1551	1571, CWDM-SFPGE-1571	1591, CWDM-SFPGE-1591	1611, CWDM-SFPGE-1611
Specifications	Encapsulation type: eSFP
	Transmission distance: ≤ 80 km
	Fiber type: single-mode, LC
	Standard: CWDM
	Operating temperature: 0°C to 70°C (32°F to 158°F)
	Transmit power: 0 dBm to 5.0 dBm Receiver sensitivity: ≤ -28.0 dBm Overload optical power: -9.0 dBm Extinction ratio: ≥ 8.5 dB
Attributes of DWDM optical modules
Center Wavelength (nm), Model
1533.47, DWDM-XFP10G-1533-47	1534.25, DWDM-XFP10G-1534-25	1535.04, DWDM-XFP10G-1535-04	1552.52, DWDM-XFP10G-1552-52
1532.68, DWDM-SFPGE-1532-68	1554.13, DWDM-XFP10G-1554-13	1530.33, DWDM-XFP10G-1530-33	1549.32, DWDM-XFP10G-1549-32
1531.12, DWDM-XFP10G-1531-12	1531.90, DWDM-XFP10G-1531-90	1550.12, DWDM-XFP10G-1550-12	1550.92, DWDM-XFP10G-1550-92
1532.68, DWDM-XFP10G-1532-68	1551.72, DWDM-XFP10G-1551-72	1529.55, DWDM-XFP10G-1529-55	1548.51, DWDM-XFP10G-1548-51
Specifications	Encapsulation type: XFP
	Transmission distance: ≤ 80 km
	Fiber type: single-mode, LC
	Standard: DWDM
	Operating temperature: 0°C to 70°C (32°F to 158°F)
	Transmit power: -1.0 dBm to +3.0 dBm Receiver sensitivity: ≤ -24.0 dBm Overload optical power: -9.0 dBm Extinction ratio: ≥ 8.2 dB
Attributes of a 10GE Optical module
XFP-SX-MM850	≤ 0.026	10Gbase-SR	Fiber mode: multimode Modal Bandwidth: 160 MHz*km Core diameter: 62.5 μm Connector type: LC
	≤ 0.033		Fiber mode: multimode (OM1) Connector type: LC
	≤ 0.066		Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC
	≤ 0.082		Fiber mode: multimode (OM2) Connector type: LC
	≤ 0.3		Fiber mode: multimode (OM3) Connector type: LC
	≤ 0.4		Fiber mode: multimode (OM4) Connector type: LC
XFP-STM64-LX-SM1310	≤ 10	10Gbase-LR	Fiber mode: single-mode Connector type: LC
XFP-STM64-LH40-SM1550	≤ 40	10Gbase-ER
XFP-STM64-SM1550-80km	≤ 80	10Gbase-ZR
Physical specifications
Dimensions(W x D x H):	394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight:	2.26 kg (4.98 lb)
Maximum power consumption:	61W
Environment parameters
Operating temperature	0°C to 45°C (32°F to 113°F)
Operating relative humidity	5% RH to 95% RH (noncondensing)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Storage relative humidity	5% RH to 95% RH (noncondensing)

S9700	10GE Card
Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse
