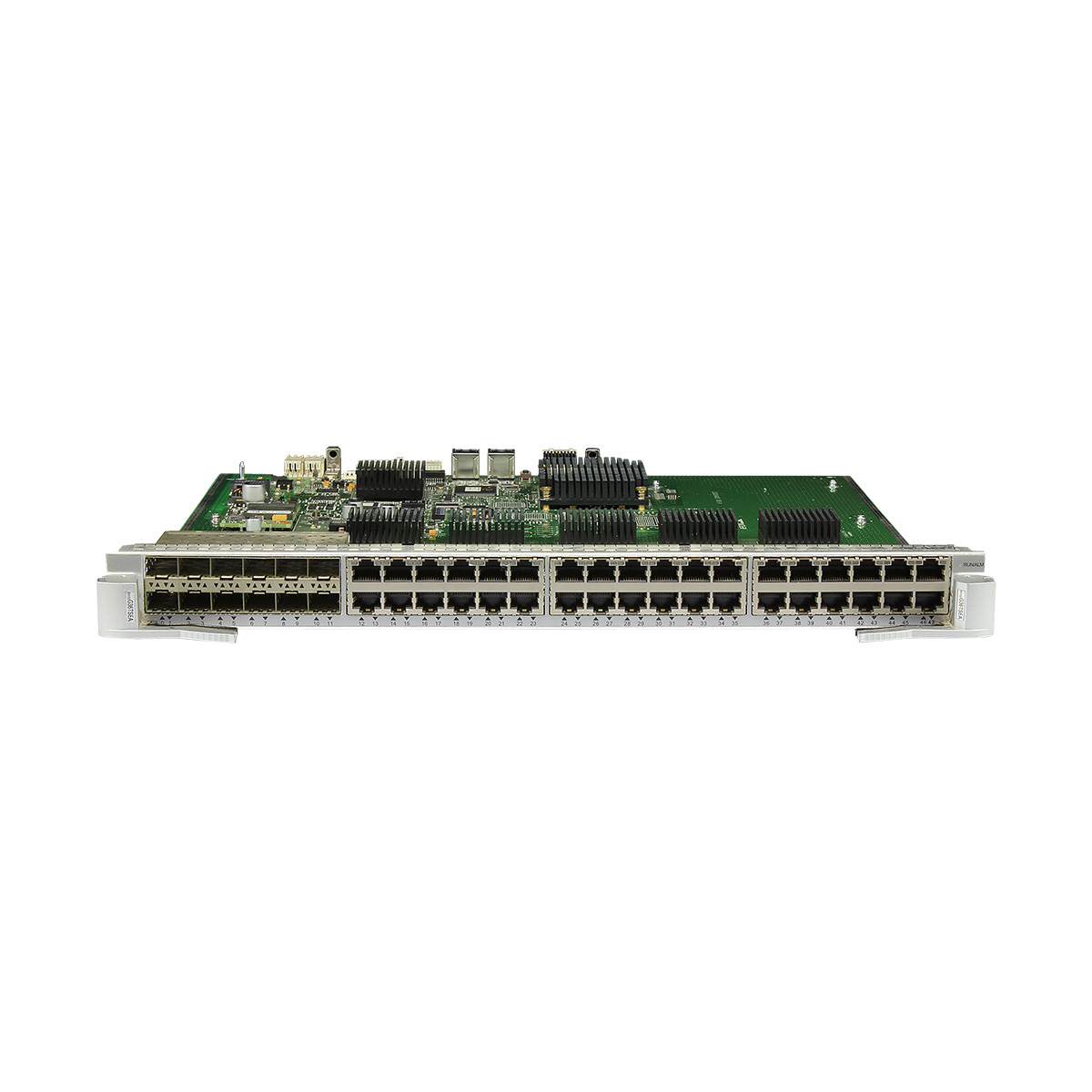

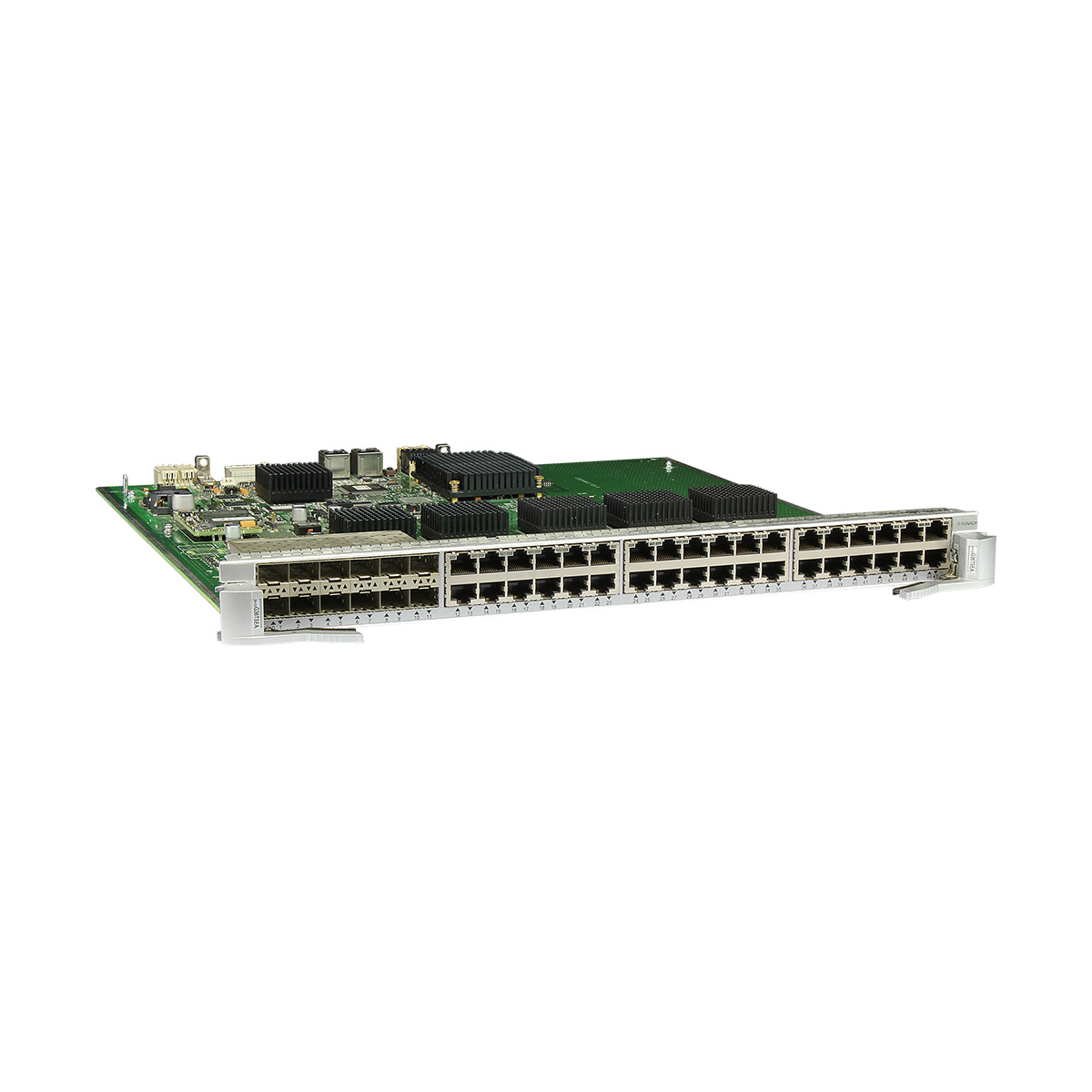

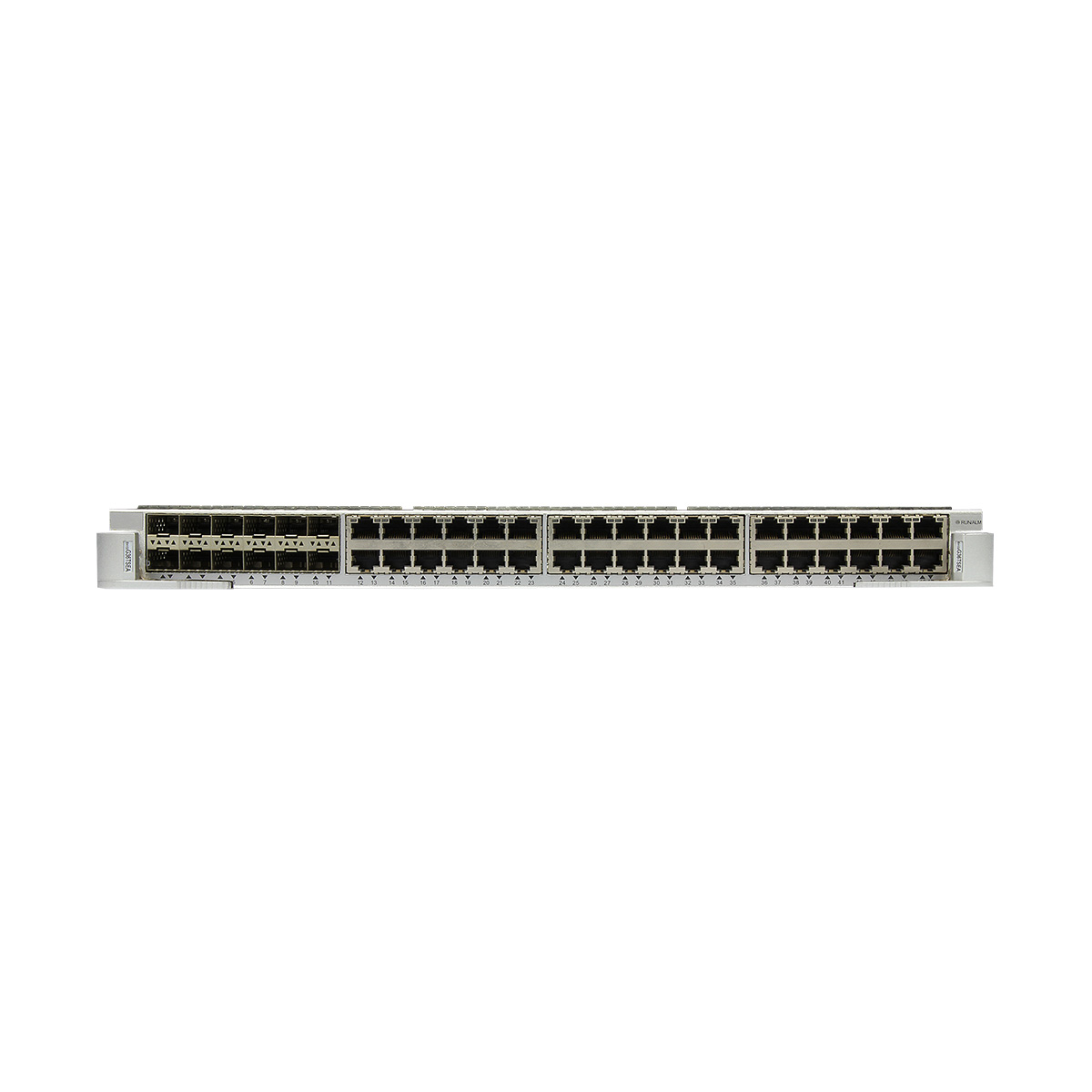

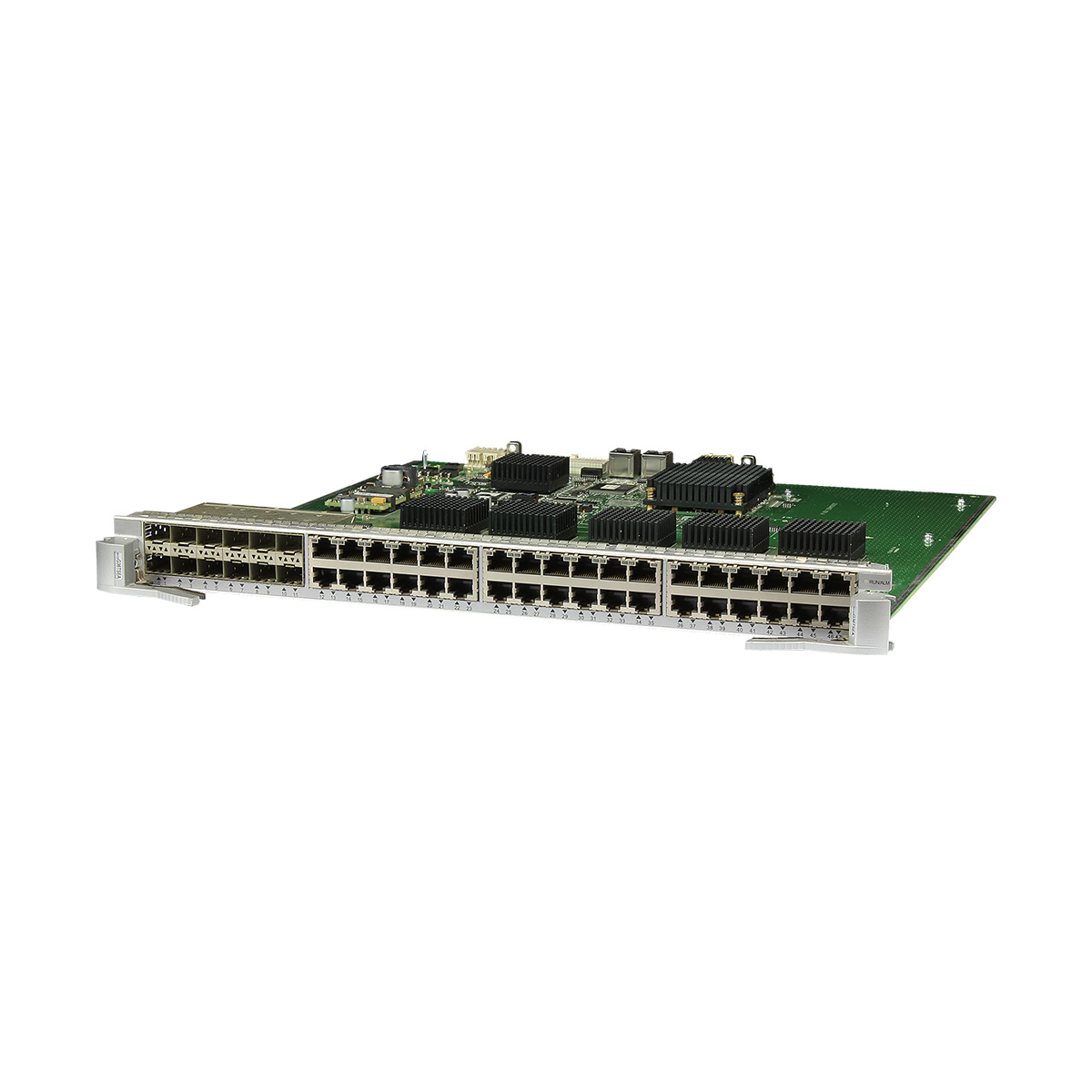

EH1D2T36SEA0 overview

EH1D2T36SEA0 Huawei S9700 switch 36 Port 10/100/1000BASE-T and 12 Port 100/1000BASE-X Interface Card (EA, RJ45/SFP)

EH1D2T36SEA0 application

Card Name	S9700 Chassis
EH1D2T36SEA0	Supported in V200R001C00 to V200R013C00

EH1D2T36SEA0 function and feature

Function	Description
Basic function	Provides thirty-six 10M/100M/1000M Ethernet electrical ports and twelve 100M/1000M Ethernet optical ports for data transmission and line-rate switching.
Distributed forwarding	Performs concurrent data forwarding using a distributed data plane.
Hot Swap	The EH1D2T36SEA0 is hot swappable.

Item		EH1D2T36SEA0
Apply to S9700 series
Attributes of 100/1000BASE-X optical port
Connector type	SFP
Optical port attributes	Depend on the SFP optical module used.
Standards compliance	IEEE 802.3ab
Frame format	Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol	IP
Attributes of 100/1000BASE-T optical port
Connector type	RJ45
Standards compliance	IEEE 802.3ab
Frame format	Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol	IP
Attributes of FE optical modules
Operating Temperature	0°C to 70°C (32°F to 158°F)
Model	Transmission Distance (km)	Standard	Fiber Type
SFP-FE-SX-MM1310 (SFP optical module)	≤ 2	100base-FX	Fiber mode: multimode Core diameter: 50 μm or 62.5 μm Connector type: LC
eSFP-FE-LX-SM1310	≤ 15	100base-LX	Fiber mode: single-mode Connector type: LC
S-SFP-FE-LH40-SM1310	≤ 40
S-SFP-FE-LH80-SM1550	≤ 80
SFP-FE-LX-SM1310-BIDI (Single-fiber bidirectional)	≤ 15	100base-BX
SFP-FE-LX-SM1550-BIDI (Single-fiber bidirectional)
Attributes of GE optical modules
eSFP-GE-SX-MM850	≤ 0.22	1000base-SX	Fiber mode: multimode Modal Bandwidth: 160 MHz*km Core diameter: 62.5 μm Connector type: LC
	≤ 0.275		Fiber mode: multimode (OM1) Connector type: LC
	≤ 0.5		Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC
	≤ 0.55		Fiber mode: multimode (OM2) Connector type: LC
	≤ 1		Fiber mode: multimode (OM3) Connector type: LC
SFP-GE-LX-SM1310	≤ 10	1000base-LX/LH	Fiber mode: single-mode Connector type: LC
S-SFP-GE-LH40-SM1310	≤ 40
S-SFP-GE-LH40-SM1550
S-SFP-GE-LH80-SM1550	≤ 80	1000base-ZX
eSFP-GE-ZX100-SM1550	≤ 100
SFP-GE-LX-SM1310-BIDI (Single-fiber bidirectional)	≤ 10	1000base-BX
SFP-GE-LX-SM1490-BIDI (Single-fiber bidirectional)
LE2MGSC40DE0 (Single-fiber bidirectional)	≤ 40
LE2MGSC40ED0 (Single-fiber bidirectional)
SFP-GE-ZBXD1 (Single-fiber bidirectional)can only be used on switch running V200R008C00 or later version.	≤ 80	1000base-BX
SFP-GE-ZBXU1 (Single-fiber bidirectional)can only be used on switch running V200R008C00 or later version.
SFP-GE-BXU1-SC (Single-fiber bidirectional)	≤ 10	1000base-BX	Fiber mode: single-mode Connector type: SC
Attributes of eSFP CWDM optical modules
Center Wavelength (nm), Model
1471, CWDM-SFPGE-1471	1491, CWDM-SFPGE-1491	1511, CWDM-SFPGE-1511	1531, CWDM-SFPGE-1531
1551, CWDM-SFPGE-1551	1571, CWDM-SFPGE-1571	1591, CWDM-SFPGE-1591	1611, CWDM-SFPGE-1611
Specifications	Encapsulation type: eSFP
	Transmission distance: ≤ 80 km
	Fiber type: single-mode, LC
	Standard: CWDM
	Operating temperature: 0°C to 70°C (32°F to 158°F)
	Transmit power: 0 dBm to 5.0 dBm Receiver sensitivity: ≤ -28.0 dBm Overload optical power: -9.0 dBm Extinction ratio: ≥ 8.5 dB
Attributes of eSFP DWDM optical modules
Center Wavelength (nm), Model
1529.55, DWDM-SFPGE-1529-55	1530.33, DWDM-SFPGE-1530-33	1531.12, DWDM-SFPGE-1531-12	1531.90, DWDM-SFPGE-1531-90
1532.68, DWDM-SFPGE-1532-68	1533.47, DWDM-SFPGE-1533-47	1534.25, DWDM-SFPGE-1534-25	1535.04, DWDM-SFPGE-1535-04
1535.82, DWDM-SFPGE-1535-82	1536.61, DWDM-SFPGE-1536-61	1537.40, DWDM-SFPGE-1537-40	1538.19, DWDM-SFPGE-1538-19
1538.98, DWDM-SFPGE-1538-98	1539.77, DWDM-SFPGE-1539-77	1540.56, DWDM-SFPGE-1540-56	1541.35, DWDM-SFPGE-1541-35
1542.14, DWDM-SFPGE-1542-14	1542.94, DWDM-SFPGE-1542-94	1543.73, DWDM-SFPGE-1543-73	1544.53, DWDM-SFPGE-1544-53
1545.32, DWDM-SFPGE-1545-32	1546.12, DWDM-SFPGE-1546-12	1546.92, DWDM-SFPGE-1546-92	1547.72, DWDM-SFPGE-1547-72
1548.51, DWDM-SFPGE-1548-51	1549.32, DWDM-SFPGE-1549-32	1550.12, DWDM-SFPGE-1550-12	1550.92, DWDM-SFPGE-1550-92
1551.72, DWDM-SFPGE-1551-72	1552.52, DWDM-SFPGE-1552-52	1553.33, DWDM-SFPGE-1553-33	1554.13, DWDM-SFPGE-1554-13
1554.94, DWDM-SFPGE-1554-94	1555.75, DWDM-SFPGE-1555-75	1556.55, DWDM-SFPGE-1556-55	1557.36, DWDM-SFPGE-1557-36
1558.17, DWDM-SFPGE-1558-17	1558.98, DWDM-SFPGE-1558-98	1559.79, DWDM-SFPGE-1559-79	1560.61, DWDM-SFPGE-1560-61
Specifications	Encapsulation type: eSFP
	Transmission distance: ≤ 120 km
	Fiber type: single-mode, LC
	Standard: DWDM
	Operating temperature: 0°C to 45°C (32°F to 113°F)
	Transmit power: 0 dBm to 4.0 dBm Receiver sensitivity: ≤ -28.0 dBm Overload optical power: -8.0 dBm Extinction ratio: ≥ 8.2 dB
Attributes of a GE SFP copper module
Model	Transmission Distance (km)	Standard	Connector Type
SFP-1000BaseT	≤ 0.1	1000Base-T	RJ45
Attributes of CWDM optical modules
Center Wavelength (nm), Model
1471,CWDMXFP10G 1471	1491, CWDM-XFP10G-1491	1511, CWDM-XFP10G-1511	1531, CWDM-XFP10G-1531
1551, CWDM-XFP10G-1551	1571, CWDM-XFP10G-1571	1591, CWDM-XFP10G-1591	1611, CWDM-XFP10G-1611
Specifications	Encapsulation type: XFP
	Transmission distance: ≤ 70 km
	Fiber type: single-mode, LC
	Standard: CWDM
	Operating temperature: 0°C to 70°C (32°F to 158°F)
	Transmit power: 0 dBm to 3.0 dBm Receiver sensitivity: ≤ -21.0 dBm Overload optical power: -9.0 dBm Extinction ratio: ≥ 8.2 dB
Attributes of DWDM optical modules
Center Wavelength (nm), Model
1533.47, DWDM-XFP10G-1533-47	1534.25, DWDM-XFP10G-1534-25	1535.04, DWDM-XFP10G-1535-04	1552.52, DWDM-XFP10G-1552-52
1553.33, DWDM-XFP10G-1553-33	1554.13, DWDM-XFP10G-1554-13	1530.33, DWDM-XFP10G-1530-33	1549.32, DWDM-XFP10G-1549-32
1531.12, DWDM-XFP10G-1531-12	1531.90, DWDM-XFP10G-1531-90	1550.12, DWDM-XFP10G-1550-12	1550.92, DWDM-XFP10G-1550-92
1532.68, DWDM-XFP10G-1532-68	1551.72, DWDM-XFP10G-1551-72	1529.55, DWDM-XFP10G-1529-55	1548.51, DWDM-XFP10G-1548-51
Specifications	Encapsulation type: XFP
	Transmission distance: ≤ 80 km
	Fiber type: single-mode, LC
	Standard: DWDM
	Operating temperature: 0°C to 70°C (32°F to 158°F)
	Transmit power: -1.0 dBm to +3.0 dBm Receiver sensitivity: ≤ -24.0 dBm Overload optical power: -9.0 dBm Extinction ratio: ≥ 8.2 dB
Physical specifications
Dimensions(W x D x H):	394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight:	2.50 kg (5.51 lb)
Maximum power consumption:	62 W
Environment parameters
Operating temperature	0°C to 45°C (32°F to 113°F)
Operating relative humidity	5% RH to 95% RH (noncondensing)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Storage relative humidity	5% RH to 95% RH (noncondensing)

Item		EH1D2T36SEA0
Apply to S9700 series
Attributes of 100/1000BASE-X optical port
Connector type	SFP
Optical port attributes	Depend on the SFP optical module used.
Standards compliance	IEEE 802.3ab
Frame format	Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol	IP
Attributes of 100/1000BASE-T optical port
Connector type	RJ45
Standards compliance	IEEE 802.3ab
Frame format	Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol	IP
Attributes of FE optical modules
Operating Temperature	0°C to 70°C (32°F to 158°F)
Model	Transmission Distance (km)	Standard	Fiber Type
SFP-FE-SX-MM1310 (SFP optical module)	≤ 2	100base-FX	Fiber mode: multimode Core diameter: 50 μm or 62.5 μm Connector type: LC
eSFP-FE-LX-SM1310	≤ 15	100base-LX	Fiber mode: single-mode Connector type: LC
S-SFP-FE-LH40-SM1310	≤ 40
S-SFP-FE-LH80-SM1550	≤ 80
SFP-FE-LX-SM1310-BIDI (Single-fiber bidirectional)	≤ 15	100base-BX
SFP-FE-LX-SM1550-BIDI (Single-fiber bidirectional)
Attributes of GE optical modules
eSFP-GE-SX-MM850	≤ 0.22	1000base-SX	Fiber mode: multimode Modal Bandwidth: 160 MHz*km Core diameter: 62.5 μm Connector type: LC
	≤ 0.275		Fiber mode: multimode (OM1) Connector type: LC
	≤ 0.5		Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC
	≤ 0.55		Fiber mode: multimode (OM2) Connector type: LC
	≤ 1		Fiber mode: multimode (OM3) Connector type: LC
SFP-GE-LX-SM1310	≤ 10	1000base-LX/LH	Fiber mode: single-mode Connector type: LC
S-SFP-GE-LH40-SM1310	≤ 40
S-SFP-GE-LH40-SM1550
S-SFP-GE-LH80-SM1550	≤ 80	1000base-ZX
eSFP-GE-ZX100-SM1550	≤ 100
SFP-GE-LX-SM1310-BIDI (Single-fiber bidirectional)	≤ 10	1000base-BX
SFP-GE-LX-SM1490-BIDI (Single-fiber bidirectional)
LE2MGSC40DE0 (Single-fiber bidirectional)	≤ 40
LE2MGSC40ED0 (Single-fiber bidirectional)
SFP-GE-ZBXD1 (Single-fiber bidirectional)can only be used on switch running V200R008C00 or later version.	≤ 80	1000base-BX
SFP-GE-ZBXU1 (Single-fiber bidirectional)can only be used on switch running V200R008C00 or later version.
SFP-GE-BXU1-SC (Single-fiber bidirectional)	≤ 10	1000base-BX	Fiber mode: single-mode Connector type: SC
Attributes of eSFP CWDM optical modules
Center Wavelength (nm), Model
1471, CWDM-SFPGE-1471	1491, CWDM-SFPGE-1491	1511, CWDM-SFPGE-1511	1531, CWDM-SFPGE-1531
1551, CWDM-SFPGE-1551	1571, CWDM-SFPGE-1571	1591, CWDM-SFPGE-1591	1611, CWDM-SFPGE-1611
Specifications	Encapsulation type: eSFP
	Transmission distance: ≤ 80 km
	Fiber type: single-mode, LC
	Standard: CWDM
	Operating temperature: 0°C to 70°C (32°F to 158°F)
	Transmit power: 0 dBm to 5.0 dBm Receiver sensitivity: ≤ -28.0 dBm Overload optical power: -9.0 dBm Extinction ratio: ≥ 8.5 dB
Attributes of eSFP DWDM optical modules
Center Wavelength (nm), Model
1529.55, DWDM-SFPGE-1529-55	1530.33, DWDM-SFPGE-1530-33	1531.12, DWDM-SFPGE-1531-12	1531.90, DWDM-SFPGE-1531-90
1532.68, DWDM-SFPGE-1532-68	1533.47, DWDM-SFPGE-1533-47	1534.25, DWDM-SFPGE-1534-25	1535.04, DWDM-SFPGE-1535-04
1535.82, DWDM-SFPGE-1535-82	1536.61, DWDM-SFPGE-1536-61	1537.40, DWDM-SFPGE-1537-40	1538.19, DWDM-SFPGE-1538-19
1538.98, DWDM-SFPGE-1538-98	1539.77, DWDM-SFPGE-1539-77	1540.56, DWDM-SFPGE-1540-56	1541.35, DWDM-SFPGE-1541-35
1542.14, DWDM-SFPGE-1542-14	1542.94, DWDM-SFPGE-1542-94	1543.73, DWDM-SFPGE-1543-73	1544.53, DWDM-SFPGE-1544-53
1545.32, DWDM-SFPGE-1545-32	1546.12, DWDM-SFPGE-1546-12	1546.92, DWDM-SFPGE-1546-92	1547.72, DWDM-SFPGE-1547-72
1548.51, DWDM-SFPGE-1548-51	1549.32, DWDM-SFPGE-1549-32	1550.12, DWDM-SFPGE-1550-12	1550.92, DWDM-SFPGE-1550-92
1551.72, DWDM-SFPGE-1551-72	1552.52, DWDM-SFPGE-1552-52	1553.33, DWDM-SFPGE-1553-33	1554.13, DWDM-SFPGE-1554-13
1554.94, DWDM-SFPGE-1554-94	1555.75, DWDM-SFPGE-1555-75	1556.55, DWDM-SFPGE-1556-55	1557.36, DWDM-SFPGE-1557-36
1558.17, DWDM-SFPGE-1558-17	1558.98, DWDM-SFPGE-1558-98	1559.79, DWDM-SFPGE-1559-79	1560.61, DWDM-SFPGE-1560-61
Specifications	Encapsulation type: eSFP
	Transmission distance: ≤ 120 km
	Fiber type: single-mode, LC
	Standard: DWDM
	Operating temperature: 0°C to 45°C (32°F to 113°F)
	Transmit power: 0 dBm to 4.0 dBm Receiver sensitivity: ≤ -28.0 dBm Overload optical power: -8.0 dBm Extinction ratio: ≥ 8.2 dB
Attributes of a GE SFP copper module
Model	Transmission Distance (km)	Standard	Connector Type
SFP-1000BaseT	≤ 0.1	1000Base-T	RJ45
Attributes of CWDM optical modules
Center Wavelength (nm), Model
1471,CWDMXFP10G 1471	1491, CWDM-XFP10G-1491	1511, CWDM-XFP10G-1511	1531, CWDM-XFP10G-1531
1551, CWDM-XFP10G-1551	1571, CWDM-XFP10G-1571	1591, CWDM-XFP10G-1591	1611, CWDM-XFP10G-1611
Specifications	Encapsulation type: XFP
	Transmission distance: ≤ 70 km
	Fiber type: single-mode, LC
	Standard: CWDM
	Operating temperature: 0°C to 70°C (32°F to 158°F)
	Transmit power: 0 dBm to 3.0 dBm Receiver sensitivity: ≤ -21.0 dBm Overload optical power: -9.0 dBm Extinction ratio: ≥ 8.2 dB
Attributes of DWDM optical modules
Center Wavelength (nm), Model
1533.47, DWDM-XFP10G-1533-47	1534.25, DWDM-XFP10G-1534-25	1535.04, DWDM-XFP10G-1535-04	1552.52, DWDM-XFP10G-1552-52
1553.33, DWDM-XFP10G-1553-33	1554.13, DWDM-XFP10G-1554-13	1530.33, DWDM-XFP10G-1530-33	1549.32, DWDM-XFP10G-1549-32
1531.12, DWDM-XFP10G-1531-12	1531.90, DWDM-XFP10G-1531-90	1550.12, DWDM-XFP10G-1550-12	1550.92, DWDM-XFP10G-1550-92
1532.68, DWDM-XFP10G-1532-68	1551.72, DWDM-XFP10G-1551-72	1529.55, DWDM-XFP10G-1529-55	1548.51, DWDM-XFP10G-1548-51
Specifications	Encapsulation type: XFP
	Transmission distance: ≤ 80 km
	Fiber type: single-mode, LC
	Standard: DWDM
	Operating temperature: 0°C to 70°C (32°F to 158°F)
	Transmit power: -1.0 dBm to +3.0 dBm Receiver sensitivity: ≤ -24.0 dBm Overload optical power: -9.0 dBm Extinction ratio: ≥ 8.2 dB
Physical specifications
Dimensions(W x D x H):	394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight:	2.50 kg (5.51 lb)
Maximum power consumption:	62 W
Environment parameters
Operating temperature	0°C to 45°C (32°F to 113°F)
Operating relative humidity	5% RH to 95% RH (noncondensing)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Storage relative humidity	5% RH to 95% RH (noncondensing)

S9700	1000M Card
Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse

Huawei Datacenter Switch

ZTE Switch

Cisco Switch

Aruba Switch

H3C Switch

Juniper Swtich

ZTE GPON

FiberHome GPON

Alcatel & Lucent GPON

Huawei Transport Network

OSN 9800 Series

OSN 8800 Series

Selected models

OSN 8800 Series

Up to 6.4 Tbit/s cross-connect capacity

Huawei Router

NE8000 Series

ZTE Router

Juniper Router

Selected models

H3C Router

NE 8000 Series

Designed for the cloud era

ME60 Series

Full service, large capacity, high reliability

Huawei Optical Transceiver

Huawei Embeded Power

ZTE telecom Power

Energy Storage

Emerson Vertiv Power

EH1D2T36SEA0

Description

EH1D2T36SEA0 overview

EH1D2T36SEA0 application

EH1D2T36SEA0 function and feature

Additional information

Reviews

Related products

Main Menu

Huawei Datacenter Switch

ZTE Switch

Cisco Switch

Aruba Switch

H3C Switch

Juniper Swtich

ZTE GPON

FiberHome GPON

Alcatel & Lucent GPON

Huawei Transport Network

OSN 9800 Series

OSN 8800 Series

Selected models

OSN 8800 Series

Up to 6.4 Tbit/s cross-connect capacity

Huawei Router

NE8000 Series

ZTE Router

Juniper Router

Selected models

H3C Router

NE 8000 Series

Designed for the cloud era

ME60 Series

Full service, large capacity, high reliability

Huawei Optical Transceiver

Huawei Embeded Power

ZTE telecom Power

Energy Storage

Emerson Vertiv Power

Search For Products

Popular

Up to 6.4 Tbit/s
cross-connect capacity

Full service, large capacity,
high reliability

Up to 6.4 Tbit/s
cross-connect capacity

Full service, large capacity,
high reliability
