S9700 GE/10GE Card

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

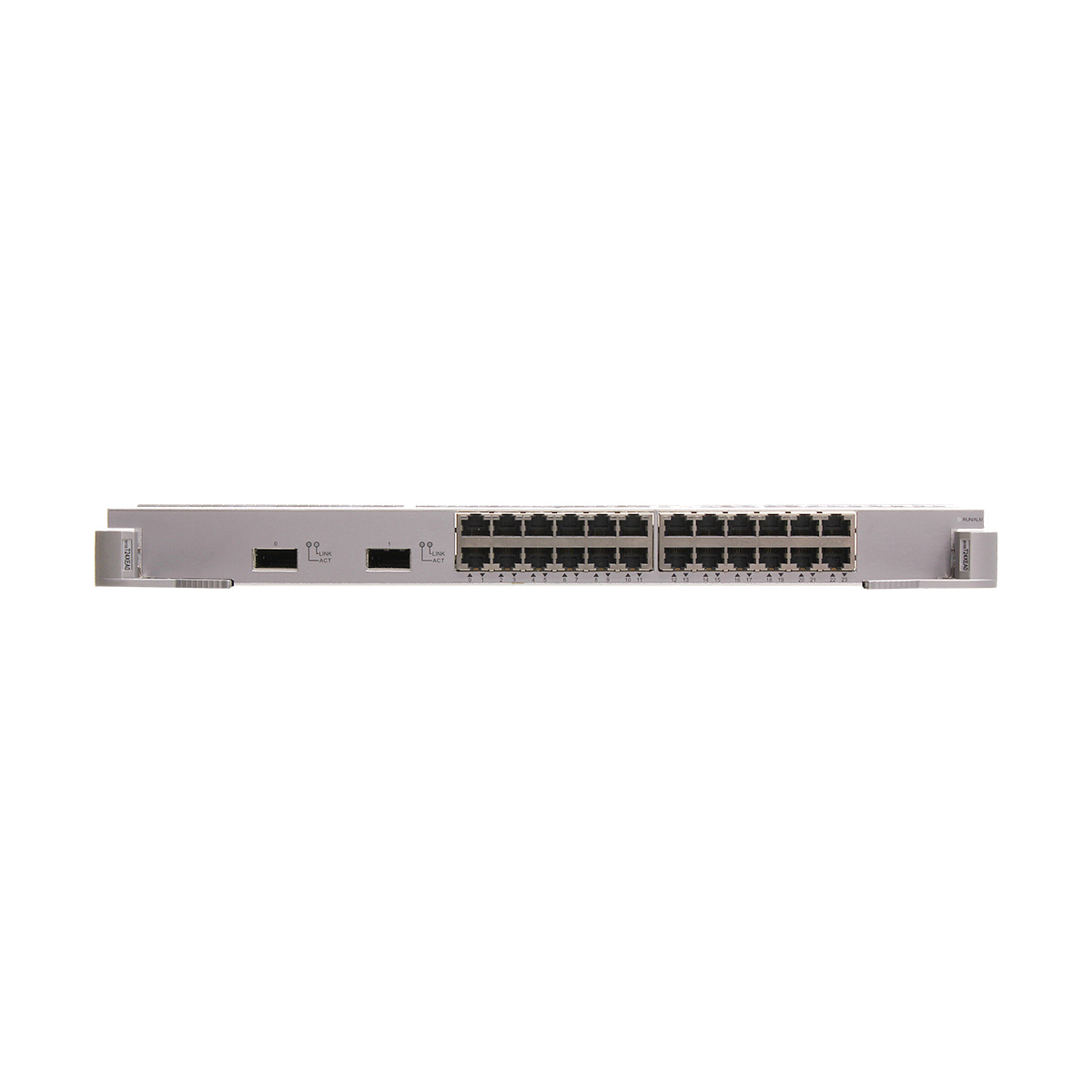

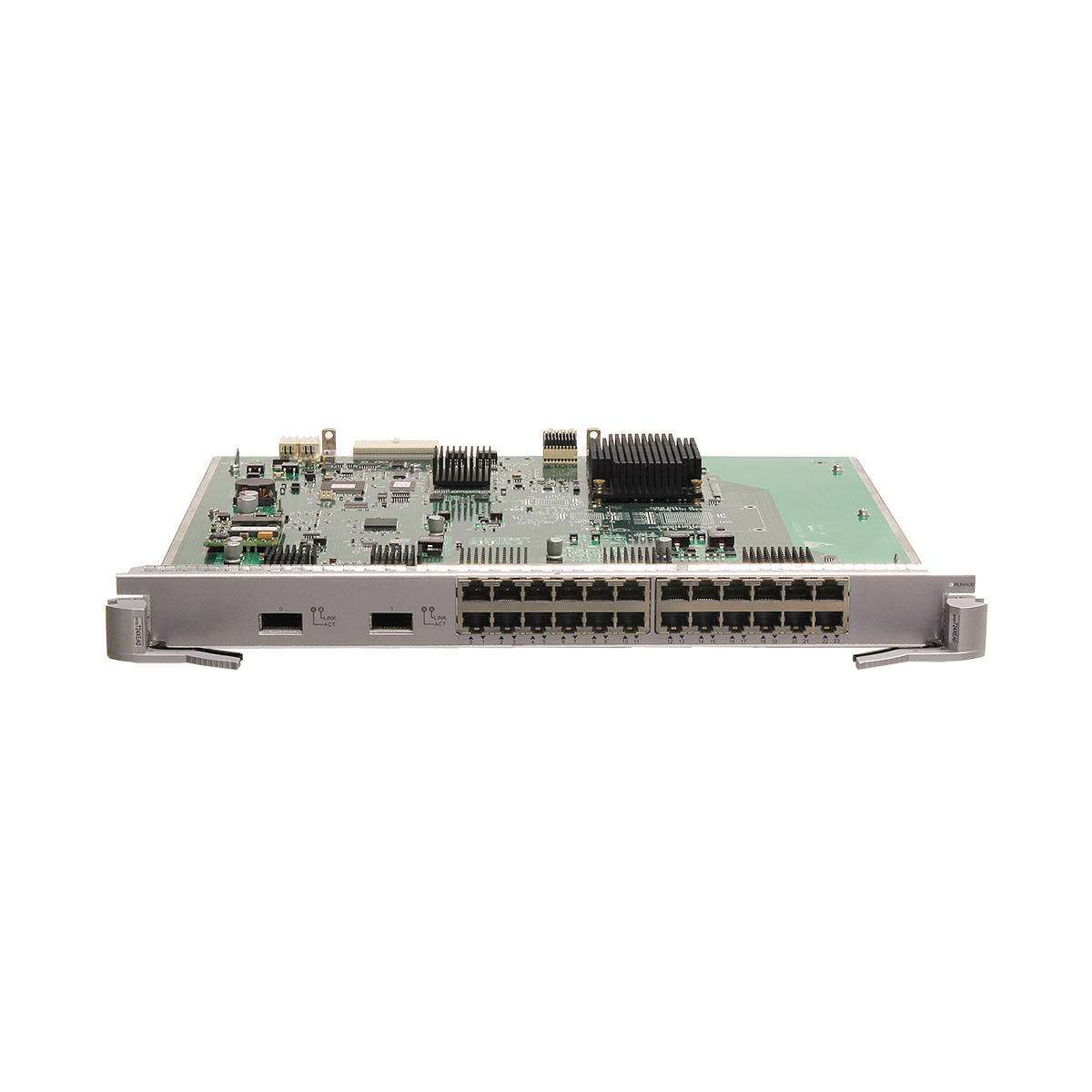

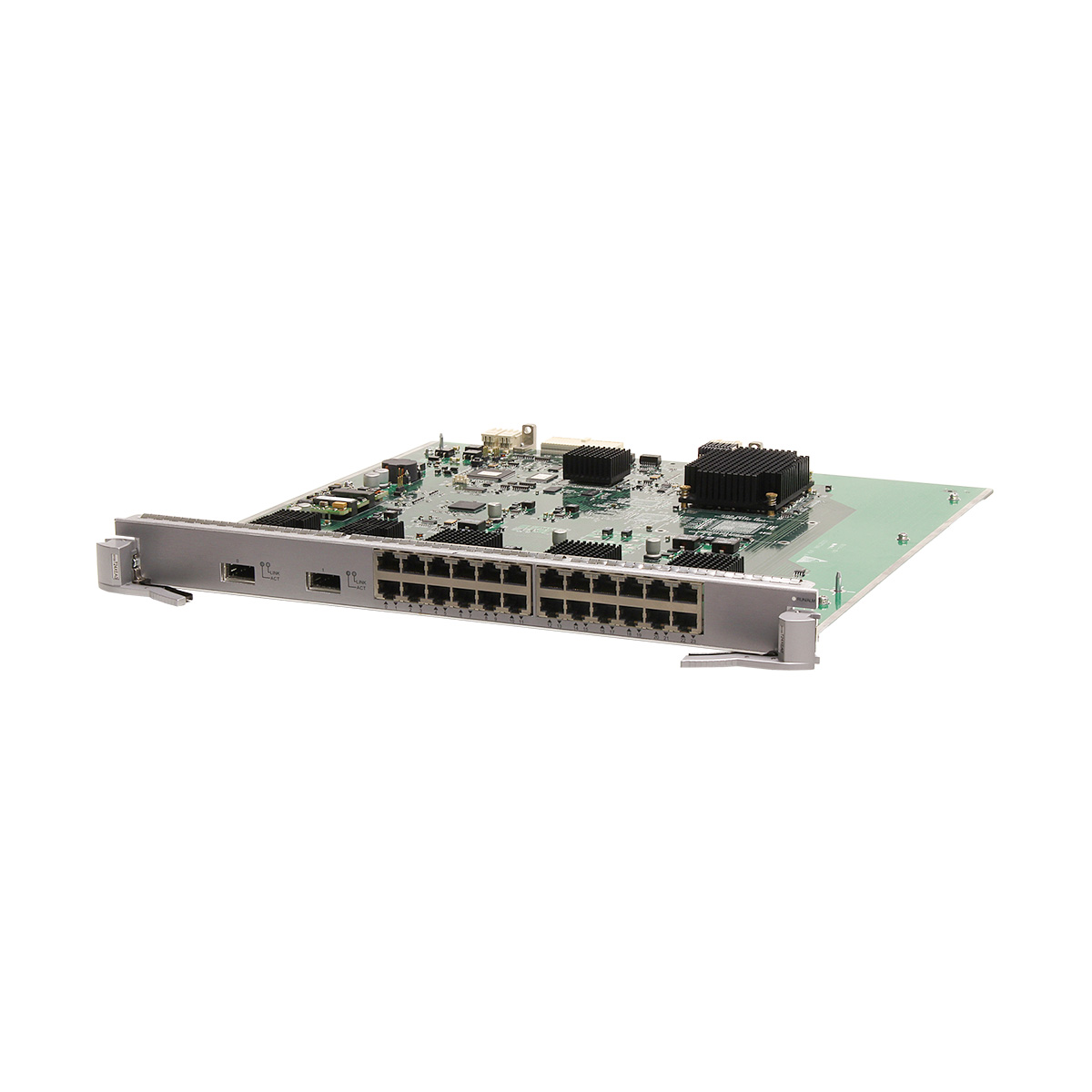

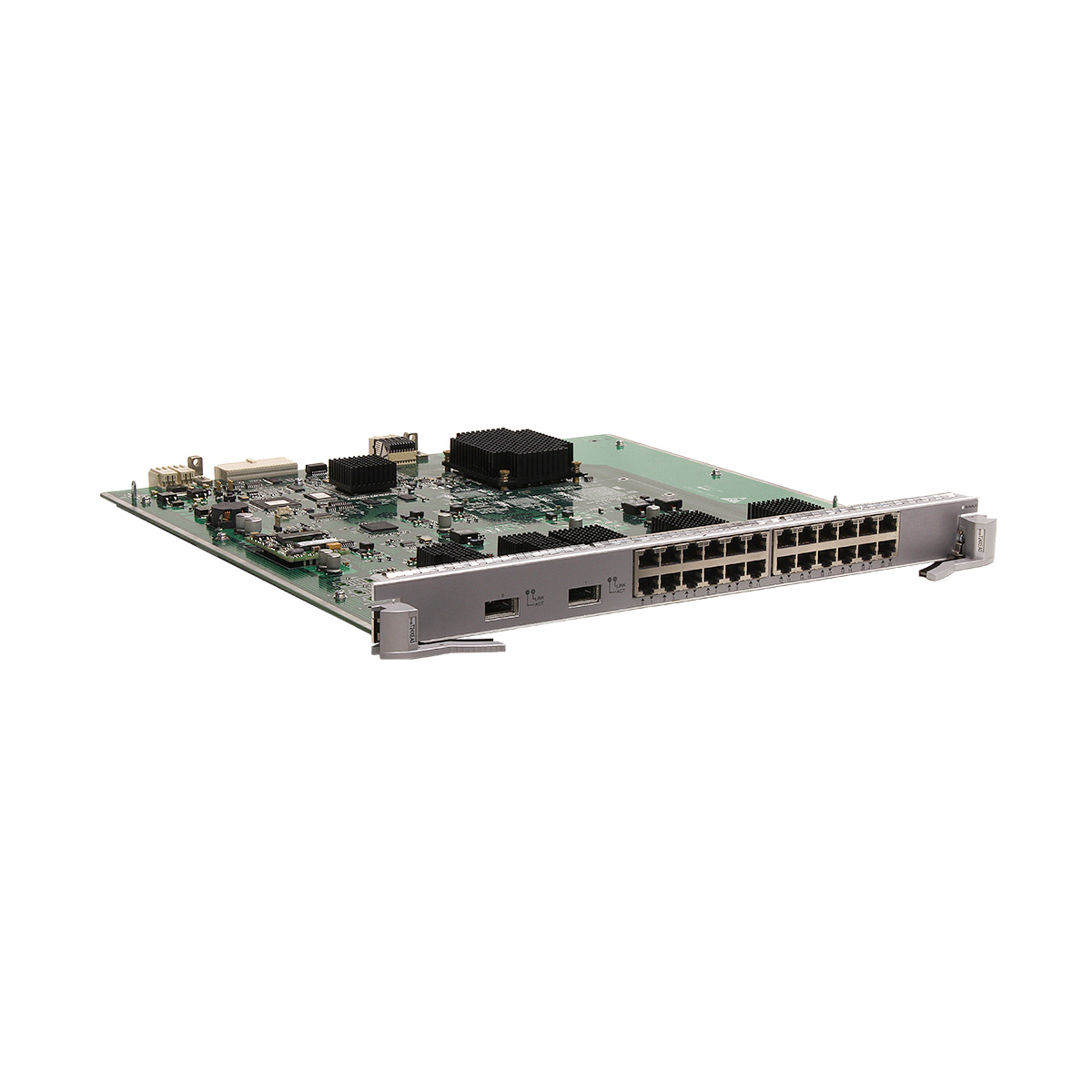

EH1D2T24XEA0 Huawei S9700 switch 24 Port 10/100/1000BASE-T and 2 Port 10GBASE-X Interface Card (EA, RJ45/XFP)

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

EH1D2T24XEA0 overview

EH1D2T24XEA0 Huawei S9700 switch 24 Port 10/100/1000BASE-T and 2 Port 10GBASE-X Interface Card (EA, RJ45/XFP)

EH1D2T24XEA0 application

Card Name	S9700 Chassis
EH1D2T24XEA0	Supported in V200R001C00 to V200R013C00

EH1D2T24XEA0 functions and features20

Function	Description
Basic function	Provides twenty-four GE electrical ports and two 10GE optical ports for data transmission and line-rate switching.
Distributed forwarding	Performs concurrent data forwarding using a distributed data plane.
Software feature	LAN/WAN switching
Hot swapping	The EH1D2T24XEA0 is hot swappable.

Item		EH1D2T24XEA0
Apply to S9710 series
Attributes of 10/100/1000BASE-T electrical port
Connector type	RJ45
Optical port attributes	Depend on the SFP optical module used
Frame format	Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol	IP
Attributes of CWDM optical modules
Center Wavelength (nm), Model
1471, CWDM-SFPGE-1471	1491, CWDM-SFPGE-1491	1511, CWDM-SFPGE-1511	1531, CWDM-SFPGE-1531
1551, CWDM-SFPGE-1551	1571, CWDM-SFPGE-1571	1591, CWDM-SFPGE-1591	1611, CWDM-SFPGE-1611
Specifications	Encapsulation type: eSFP
	Transmission distance: ≤ 80 km
	Fiber type: single-mode, LC
	Standard: CWDM
	Operating temperature: 0°C to 70°C (32°F to 158°F)
	Transmit power: 0 dBm to 5.0 dBm Receiver sensitivity: ≤ -28.0 dBm Overload optical power: -9.0 dBm Extinction ratio: ≥ 8.5 dB
Attributes of DWDM optical modules
Center Wavelength (nm), Model
1533.47, DWDM-XFP10G-1533-47	1534.25, DWDM-XFP10G-1534-25	1535.04, DWDM-XFP10G-1535-04	1552.52, DWDM-XFP10G-1552-52
1532.68, DWDM-SFPGE-1532-68	1554.13, DWDM-XFP10G-1554-13	1530.33, DWDM-XFP10G-1530-33	1549.32, DWDM-XFP10G-1549-32
1531.12, DWDM-XFP10G-1531-12	1531.90, DWDM-XFP10G-1531-90	1550.12, DWDM-XFP10G-1550-12	1550.92, DWDM-XFP10G-1550-92
1532.68, DWDM-XFP10G-1532-68	1551.72, DWDM-XFP10G-1551-72	1529.55, DWDM-XFP10G-1529-55	1548.51, DWDM-XFP10G-1548-51
Specifications	Encapsulation type: XFP
	Transmission distance: ≤ 80 km
	Fiber type: single-mode, LC
	Standard: DWDM
	Operating temperature: 0°C to 70°C (32°F to 158°F)
	Transmit power: -1.0 dBm to +3.0 dBm Receiver sensitivity: ≤ -24.0 dBm Overload optical power: -9.0 dBm Extinction ratio: ≥ 8.2 dB
Attributes of a 10GE Optical module
XFP-SX-MM850	≤ 0.026	10Gbase-SR	Fiber mode: multimode Modal Bandwidth: 160 MHz*km Core diameter: 62.5 μm Connector type: LC
	≤ 0.033		Fiber mode: multimode (OM1) Connector type: LC
	≤ 0.066		Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC
	≤ 0.082		Fiber mode: multimode (OM2) Connector type: LC
	≤ 0.3		Fiber mode: multimode (OM3) Connector type: LC
	≤ 0.4		Fiber mode: multimode (OM4) Connector type: LC
XFP-STM64-LX-SM1310	≤ 10	10Gbase-LR	Fiber mode: single-mode Connector type: LC
XFP-STM64-LH40-SM1550	≤ 40	10Gbase-ER
XFP-STM64-SM1550-80km	≤ 80	10Gbase-ZR
Physical specifications
Dimensions(W x D x H):	394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight:	2.14 kg (4.71 lb)
Maximum power consumption:	52W
Environment parameters
Operating temperature	0°C to 45°C (32°F to 113°F)
Operating relative humidity	5% RH to 95% RH (noncondensing)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Storage relative humidity	5% RH to 95% RH (noncondensing)

Item		EH1D2T24XEA0
Apply to S9710 series
Attributes of 10/100/1000BASE-T electrical port
Connector type	RJ45
Optical port attributes	Depend on the SFP optical module used
Frame format	Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol	IP
Attributes of CWDM optical modules
Center Wavelength (nm), Model
1471, CWDM-SFPGE-1471	1491, CWDM-SFPGE-1491	1511, CWDM-SFPGE-1511	1531, CWDM-SFPGE-1531
1551, CWDM-SFPGE-1551	1571, CWDM-SFPGE-1571	1591, CWDM-SFPGE-1591	1611, CWDM-SFPGE-1611
Specifications	Encapsulation type: eSFP
	Transmission distance: ≤ 80 km
	Fiber type: single-mode, LC
	Standard: CWDM
	Operating temperature: 0°C to 70°C (32°F to 158°F)
	Transmit power: 0 dBm to 5.0 dBm Receiver sensitivity: ≤ -28.0 dBm Overload optical power: -9.0 dBm Extinction ratio: ≥ 8.5 dB
Attributes of DWDM optical modules
Center Wavelength (nm), Model
1533.47, DWDM-XFP10G-1533-47	1534.25, DWDM-XFP10G-1534-25	1535.04, DWDM-XFP10G-1535-04	1552.52, DWDM-XFP10G-1552-52
1532.68, DWDM-SFPGE-1532-68	1554.13, DWDM-XFP10G-1554-13	1530.33, DWDM-XFP10G-1530-33	1549.32, DWDM-XFP10G-1549-32
1531.12, DWDM-XFP10G-1531-12	1531.90, DWDM-XFP10G-1531-90	1550.12, DWDM-XFP10G-1550-12	1550.92, DWDM-XFP10G-1550-92
1532.68, DWDM-XFP10G-1532-68	1551.72, DWDM-XFP10G-1551-72	1529.55, DWDM-XFP10G-1529-55	1548.51, DWDM-XFP10G-1548-51
Specifications	Encapsulation type: XFP
	Transmission distance: ≤ 80 km
	Fiber type: single-mode, LC
	Standard: DWDM
	Operating temperature: 0°C to 70°C (32°F to 158°F)
	Transmit power: -1.0 dBm to +3.0 dBm Receiver sensitivity: ≤ -24.0 dBm Overload optical power: -9.0 dBm Extinction ratio: ≥ 8.2 dB
Attributes of a 10GE Optical module
XFP-SX-MM850	≤ 0.026	10Gbase-SR	Fiber mode: multimode Modal Bandwidth: 160 MHz*km Core diameter: 62.5 μm Connector type: LC
	≤ 0.033		Fiber mode: multimode (OM1) Connector type: LC
	≤ 0.066		Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC
	≤ 0.082		Fiber mode: multimode (OM2) Connector type: LC
	≤ 0.3		Fiber mode: multimode (OM3) Connector type: LC
	≤ 0.4		Fiber mode: multimode (OM4) Connector type: LC
XFP-STM64-LX-SM1310	≤ 10	10Gbase-LR	Fiber mode: single-mode Connector type: LC
XFP-STM64-LH40-SM1550	≤ 40	10Gbase-ER
XFP-STM64-SM1550-80km	≤ 80	10Gbase-ZR
Physical specifications
Dimensions(W x D x H):	394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight:	2.14 kg (4.71 lb)
Maximum power consumption:	52W
Environment parameters
Operating temperature	0°C to 45°C (32°F to 113°F)
Operating relative humidity	5% RH to 95% RH (noncondensing)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Storage relative humidity	5% RH to 95% RH (noncondensing)

Weight	6.0000 kg
Dimensions	50.2000 × 46.8000 × 11.8000 cm
S9700	GE/10GE Card
