Description

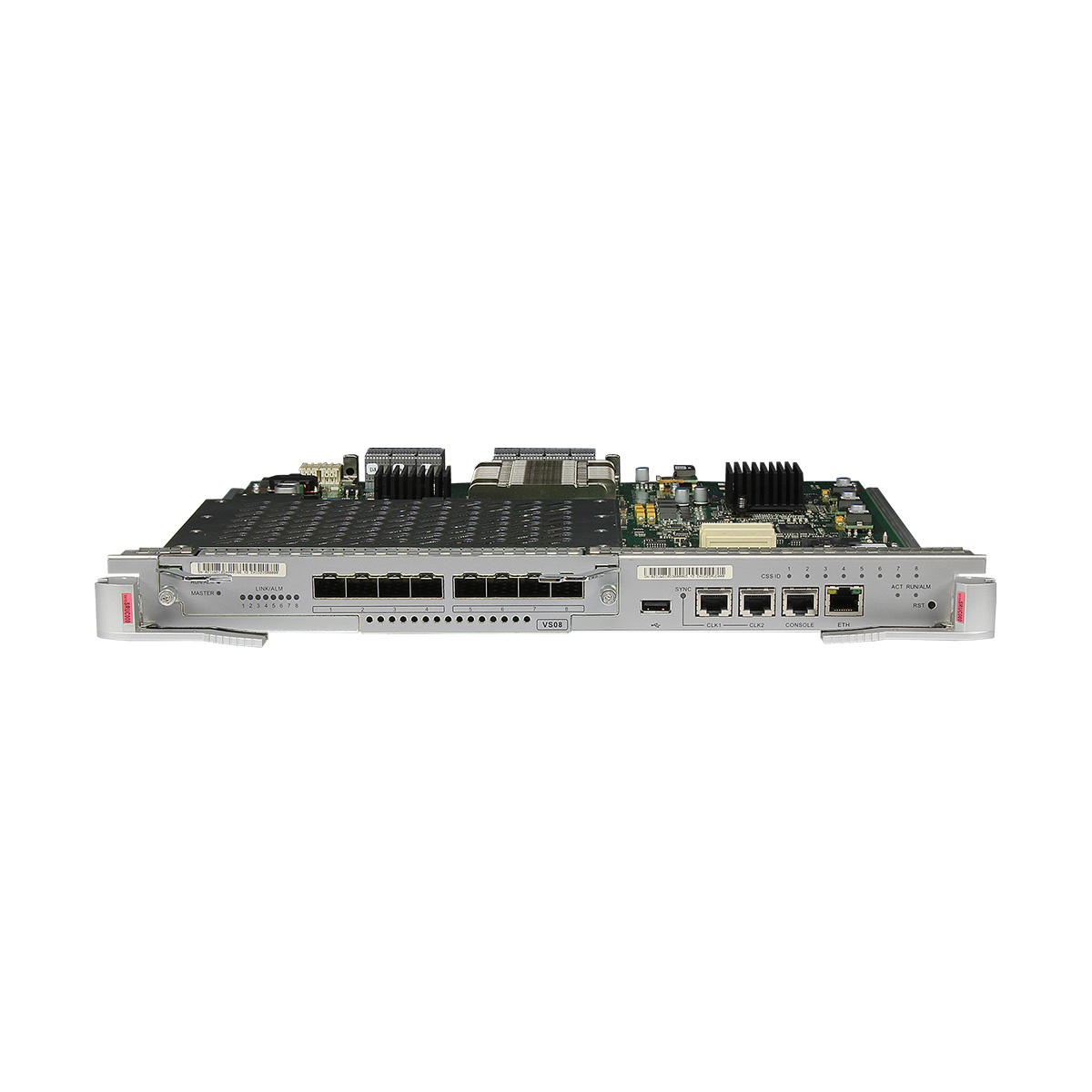

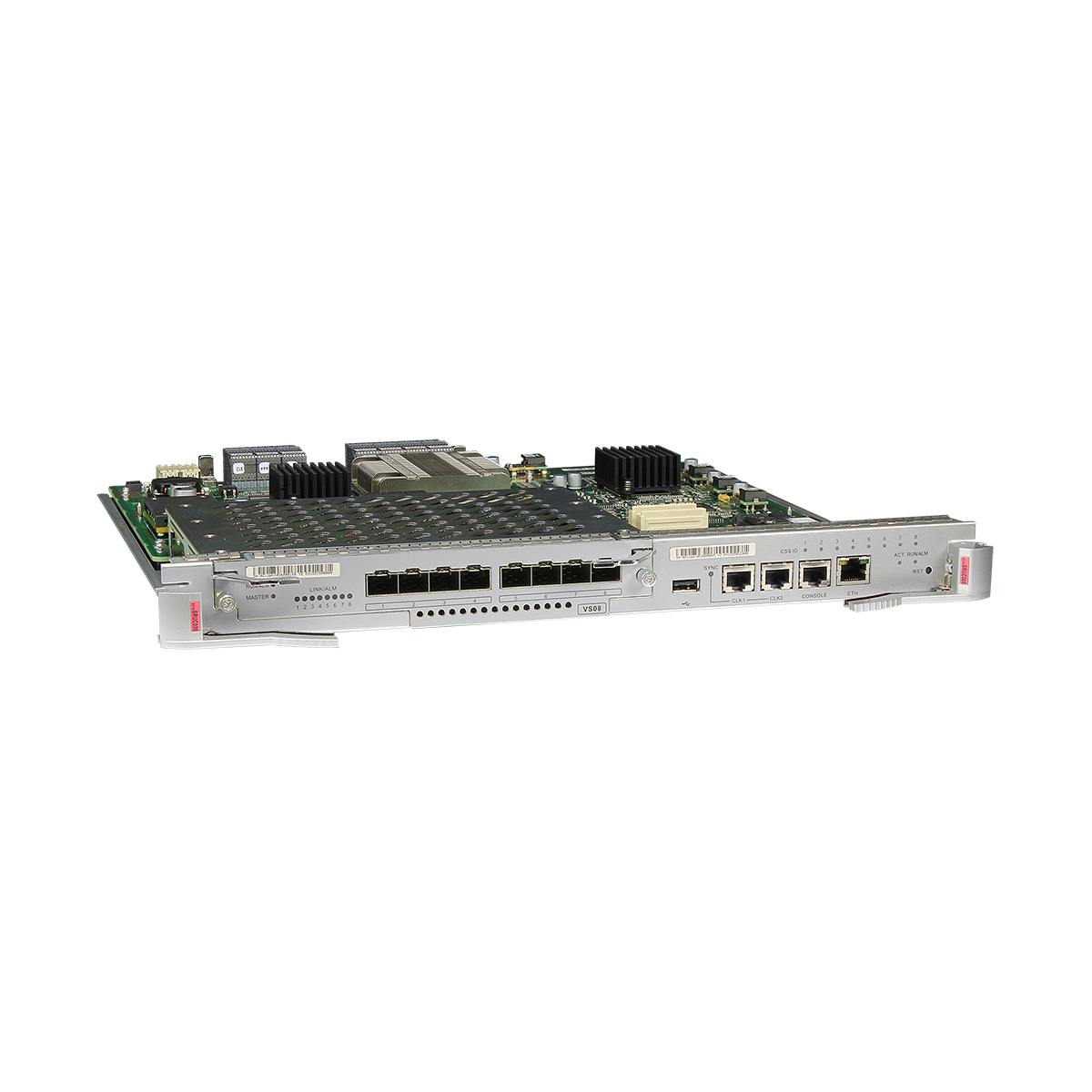

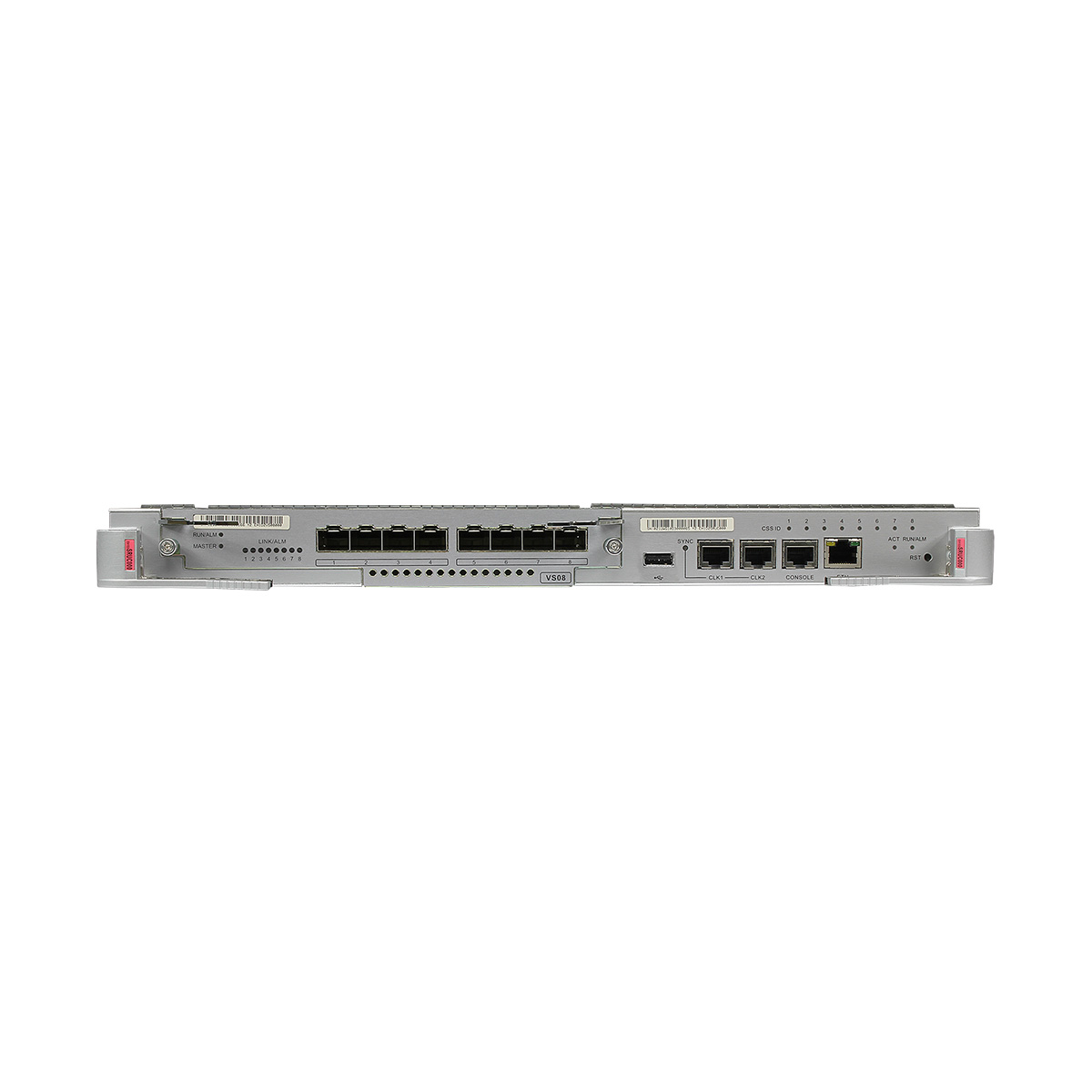

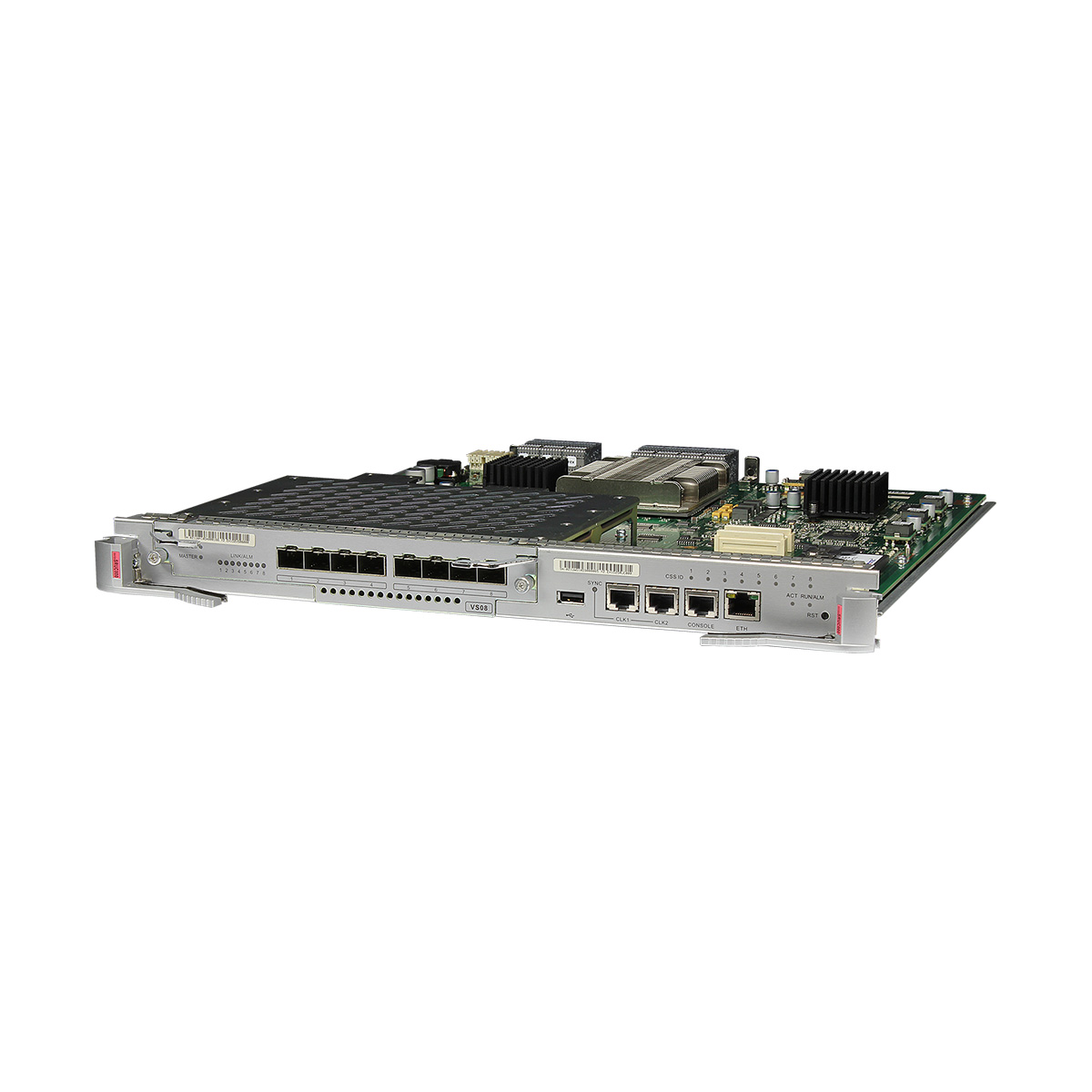

| Item | EH1D2SRUC000 |
| Apply to S9700 series | |
| Attribute of a ETH management port | |
| Connector type | RJ45 |
| Standards compliance | IEEE802.3 |
| Working mode | 10/100 Mbit/s auto-sensing
Full-duplex |
| Maximum transmission distance | 100m |
| Attribute of a console manangement port | |
| Connector type | RJ45 |
| Working mode | Duplex Universal Asynchronous Receiver/Transmitter (UART) |
| Standards compliance | RS232 |
| Baud rate | 9600 bit/s to 115200 bit/s
Default value: 9600 bit/s |
| Attribute of BITS port | |
| Connector type | RJ45 |
| Working mode | Clock synchronization mode: full-duplex
Time synchronization mode: half-duplex |
| Frame format | 1 pps + Time of Day (ToD)
DC Level Shifter (DCLS) 2 MHz 2 Mbit/s: HDB3 code 1.544 Mbit/s: B8ZS code |
| Standards compliance | 1 pps + ToD
NMEA-0183 ToD standard of China Mobile DCLS: standard of DCLS signals 2 MHz: G.703 2 Mbit/s: G.703 1.544 Mbit/s: G.703 |
| Cable used | Time synchronization mode: straight through network cable (RS422 signal)
Clock synchronization mode: E1/T1 cable (120-ohm balanced cable) |
| Attribute of USB port | |
| Connector type | USB A |
| Standards compliance | USB2.0 |
| Physical specification | |
| Dimensions (mm) | 394.7 mm x 426.8 mm x 35.1 mm (5.7 in. x 7.3 in. x 0.8 in.) |
| Weight (kg) | 3.30 kg (7.28 lb) |
| Maximum power consumption | 132 W |
| Environment parameters | |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Operating relative humidity | 5% RH to 95% RH (noncondensing) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Storage relative humidity | 5% RH to 95% RH (noncondensing) |
