EH1D2S24CSA0

0 Reviews Write a review
PN03030NWW
Brands
AvailabilityIn Stock
S9700 1000M Card
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

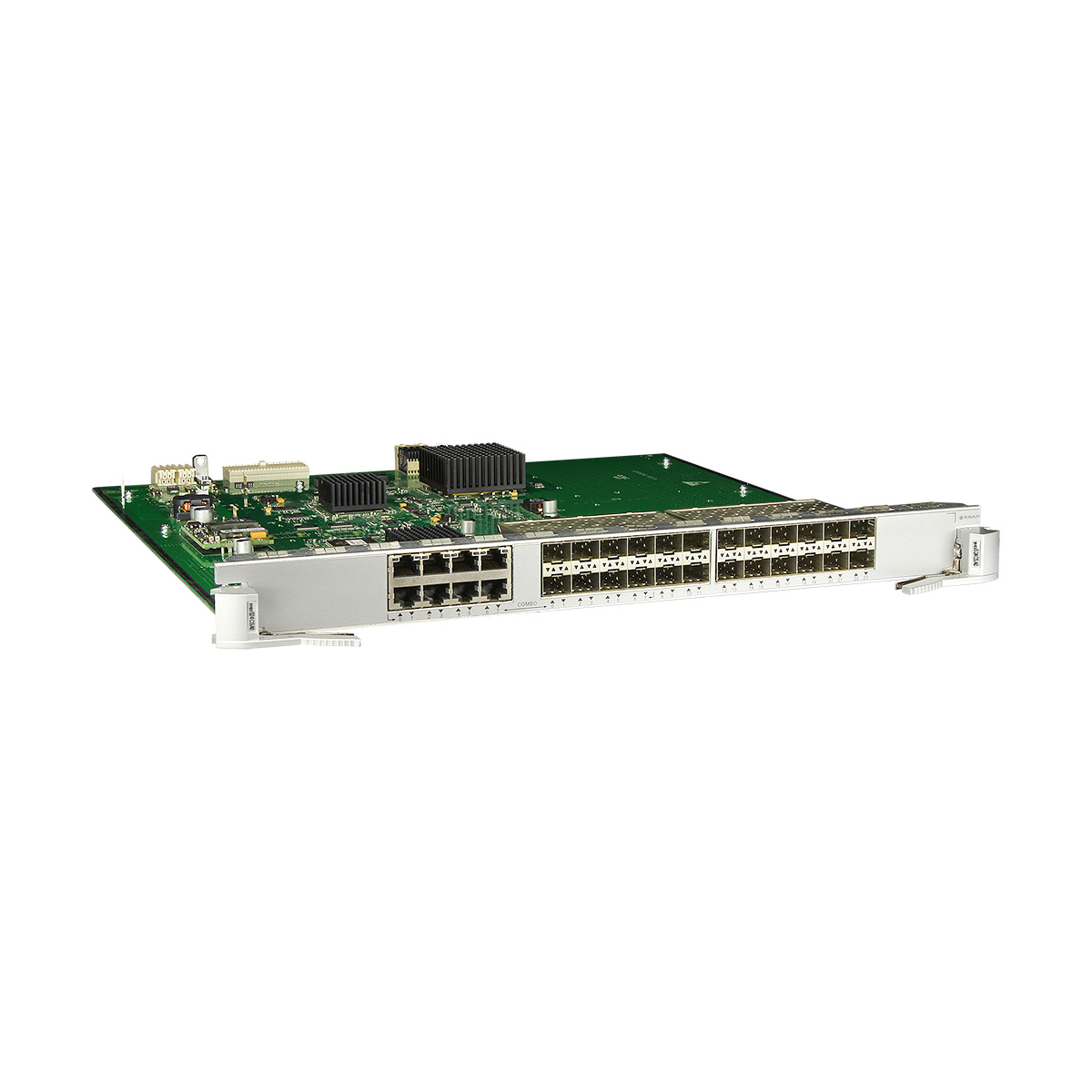

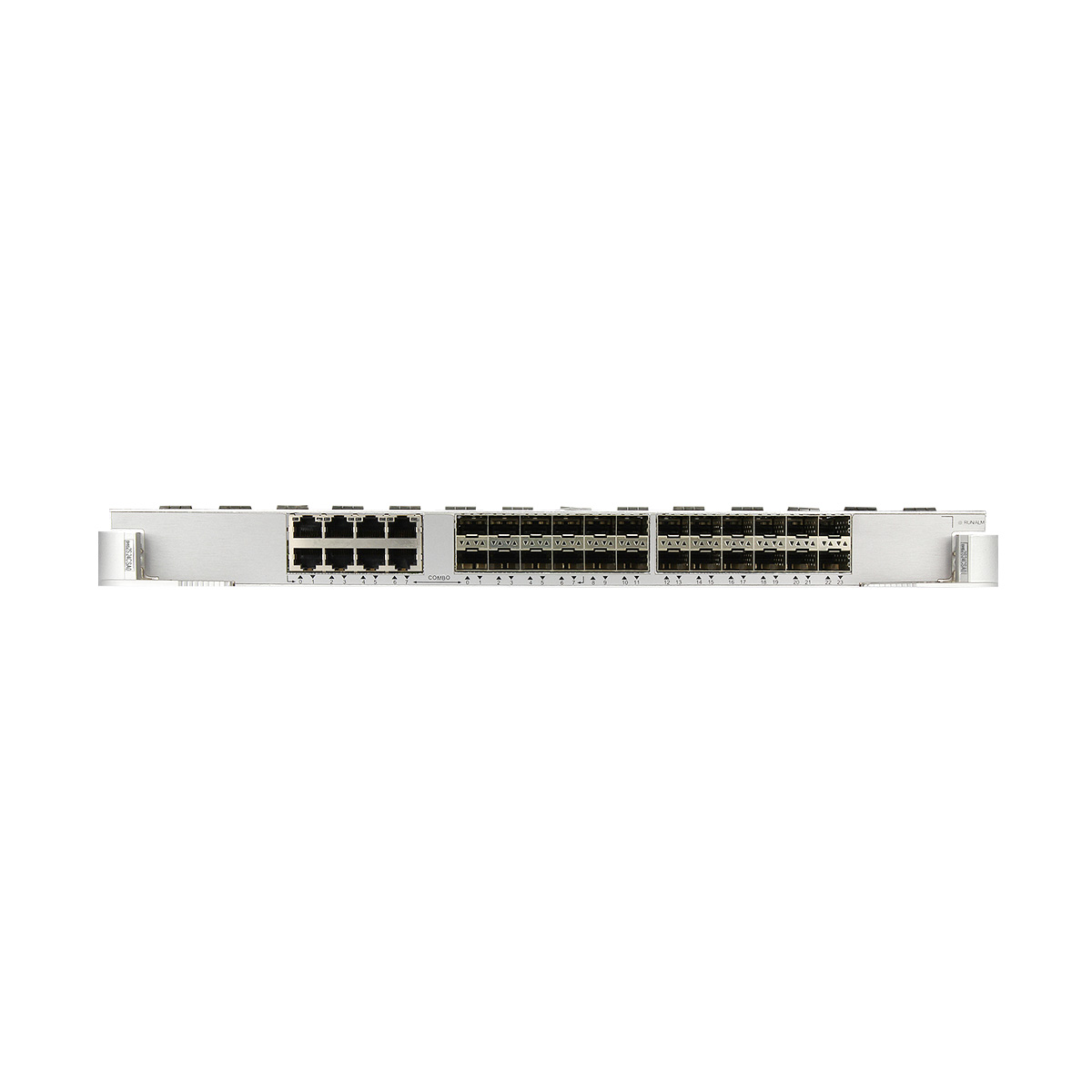

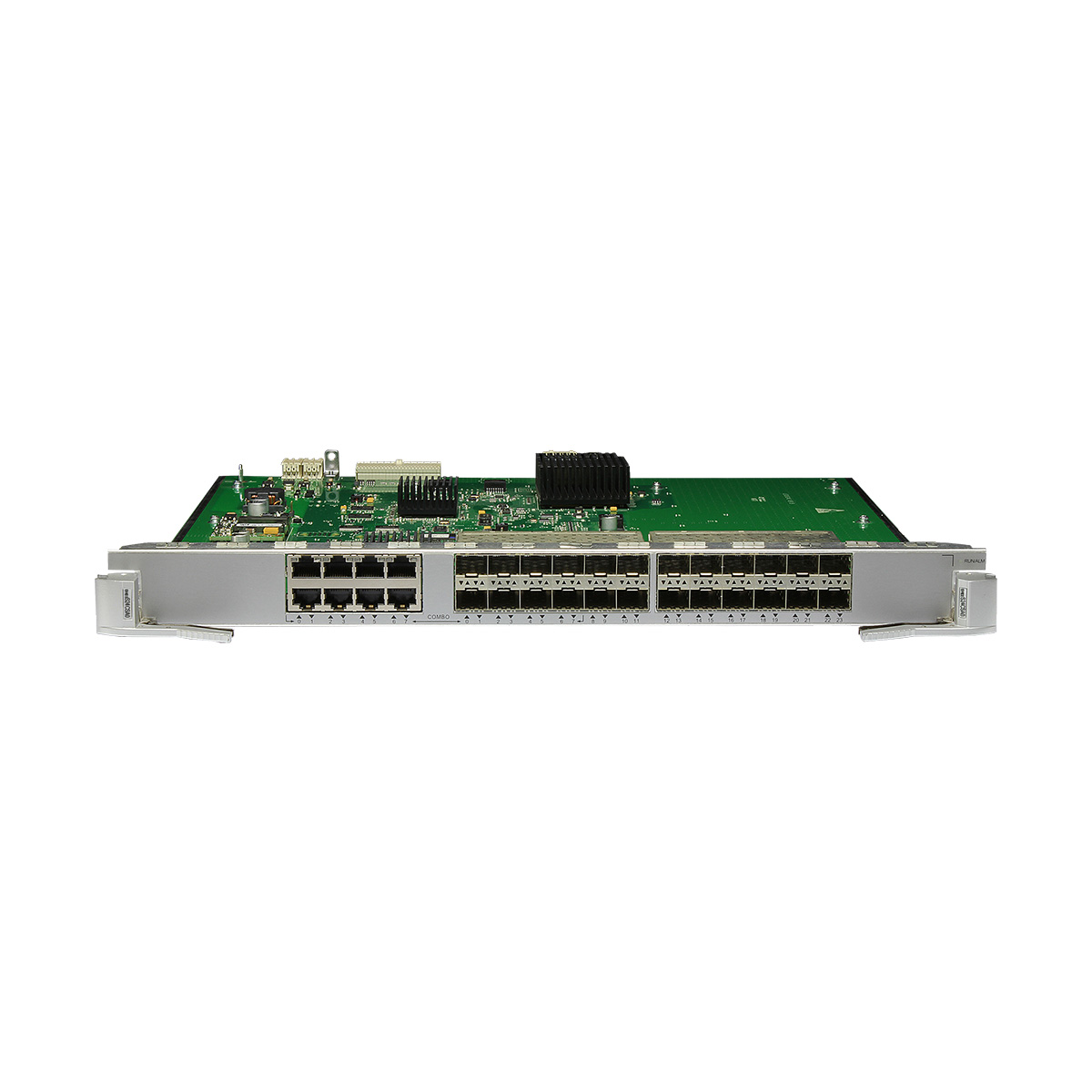

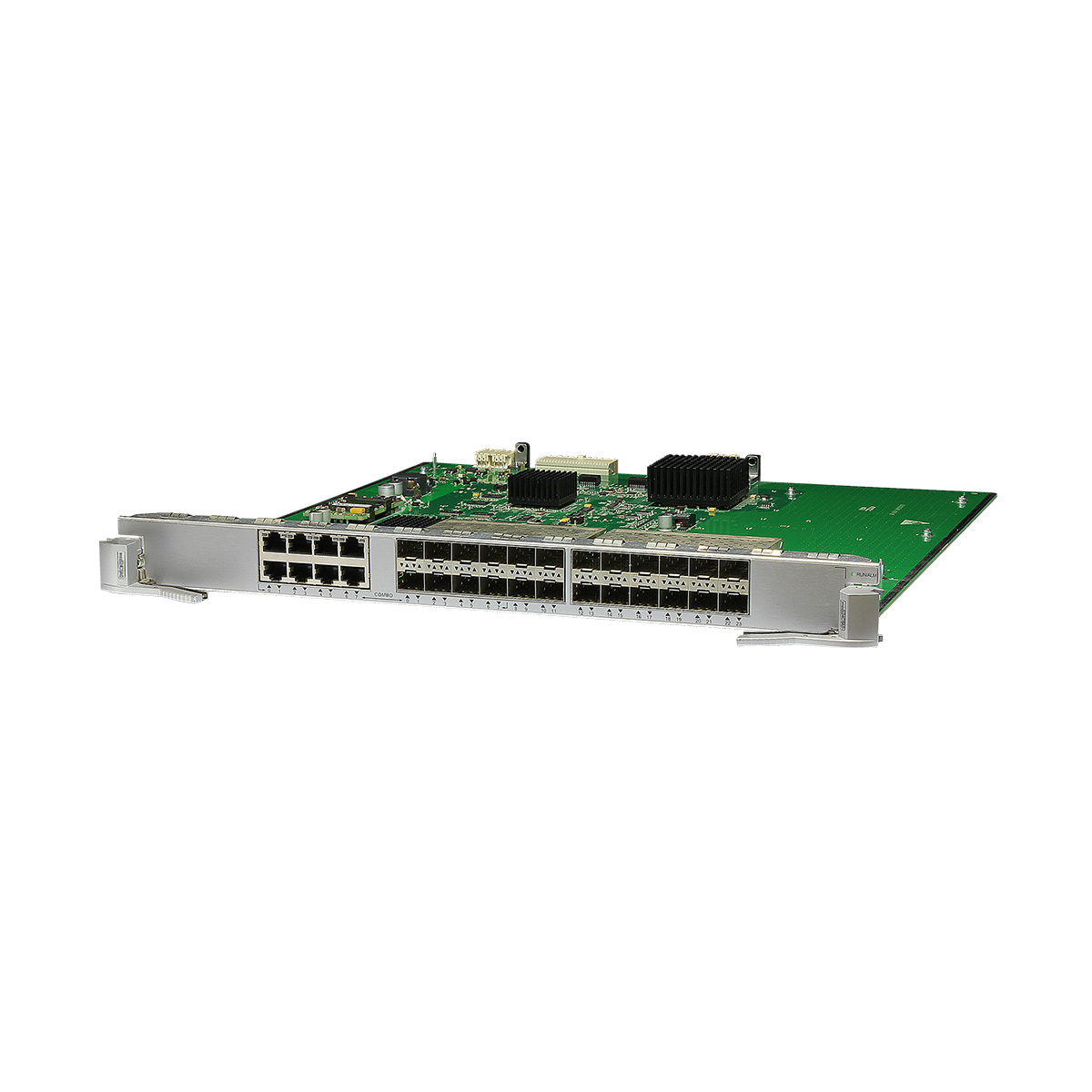

EH1D2S24CSA0 Huawei S9700 switch 24 Port 100/1000BASE-X and 8 Port 10/100/1000BASE-T Combo Interface Card (SA, SFP/RJ45)

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

EH1D2S24CSA0 overview

EH1D2S24CSA0 Huawei S9700 switch 24 Port 100/1000BASE-X and 8 Port 10/100/1000BASE-T Combo Interface Card (SA, SFP/RJ45)

EH1D2S24CSA0 application

Card Name

S9700 Chassis
EH1D2S24CSA0 Supported only in V200R001C00, V200R002C00, and V200R003C00
EH1D2S24CSA0 functions and features
Function Description
Basic function Provides line-rate switching on sixteen GE optical ports and eight combo ports. The combo ports can be configured as either optical ports or electrical ports.

NOTE:

A maximum of twenty-four ports, that is, sixteen GE optical ports and eight combo ports, can work at the same time on the EH1D2S24CSA0.
Distributed forwarding Performs concurrent data forwarding using a distributed data plane.
Hot swapping The EH1D2S24CSA0 is hot swappable.
Item EH1D2S24CSA0
Apply to S9706 series
Attribute of 10/100/1000BASE-T electrical port
Connector type RJ45
Standards compliance IEEE 802.3ab
Frame format Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol IP
Attribute of 100/1000BASE-X optical
Connector type SFP
Optical port attributes Depend on the SFP copper module used.
Standards compliance IEEE 802.3z
Frame format Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol IP
Attribute of  100/1000BASE-X optical port
Connector type SFP
Optical port attributes Depend on the SFP optical module used.
Standards compliance IEEE 802.3z
Frame format Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol IP
Physical specification
Dimensions (mm) 394.7 mm x 426.8 mm x 35.1 mm
Weight (kg) 2.26kg (5.86 lb)
Maximum power consumption 67 W
Environment parameters
Operating temperature 0°C to 45°C (32°F to 113°F)
Operating relative humidity 5% RH to 95% RH (noncondensing)
Storage temperature -40°C to +70°C (-40°F to +158°F)
Storage relative humidity 5% RH to 95% RH (noncondensing)

Additional information

Weight 7.0000 kg
Dimensions 55.0000 × 49.5000 × 12.0000 cm
S9700

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item EH1D2S24CSA0
Apply to S9706 series
Attribute of 10/100/1000BASE-T electrical port
Connector type RJ45
Standards compliance IEEE 802.3ab
Frame format Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol IP
Attribute of 100/1000BASE-X optical
Connector type SFP
Optical port attributes Depend on the SFP copper module used.
Standards compliance IEEE 802.3z
Frame format Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol IP
Attribute of  100/1000BASE-X optical port
Connector type SFP
Optical port attributes Depend on the SFP optical module used.
Standards compliance IEEE 802.3z
Frame format Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol IP
Physical specification
Dimensions (mm) 394.7 mm x 426.8 mm x 35.1 mm
Weight (kg) 2.26kg (5.86 lb)
Maximum power consumption 67 W
Environment parameters
Operating temperature 0°C to 45°C (32°F to 113°F)
Operating relative humidity 5% RH to 95% RH (noncondensing)
Storage temperature -40°C to +70°C (-40°F to +158°F)
Storage relative humidity 5% RH to 95% RH (noncondensing)
