EH1D2S08SX1E

0 Reviews Write a review
PN03030RPM
Brands
AvailabilityIn Stock
S9700 GE/10GE Card
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

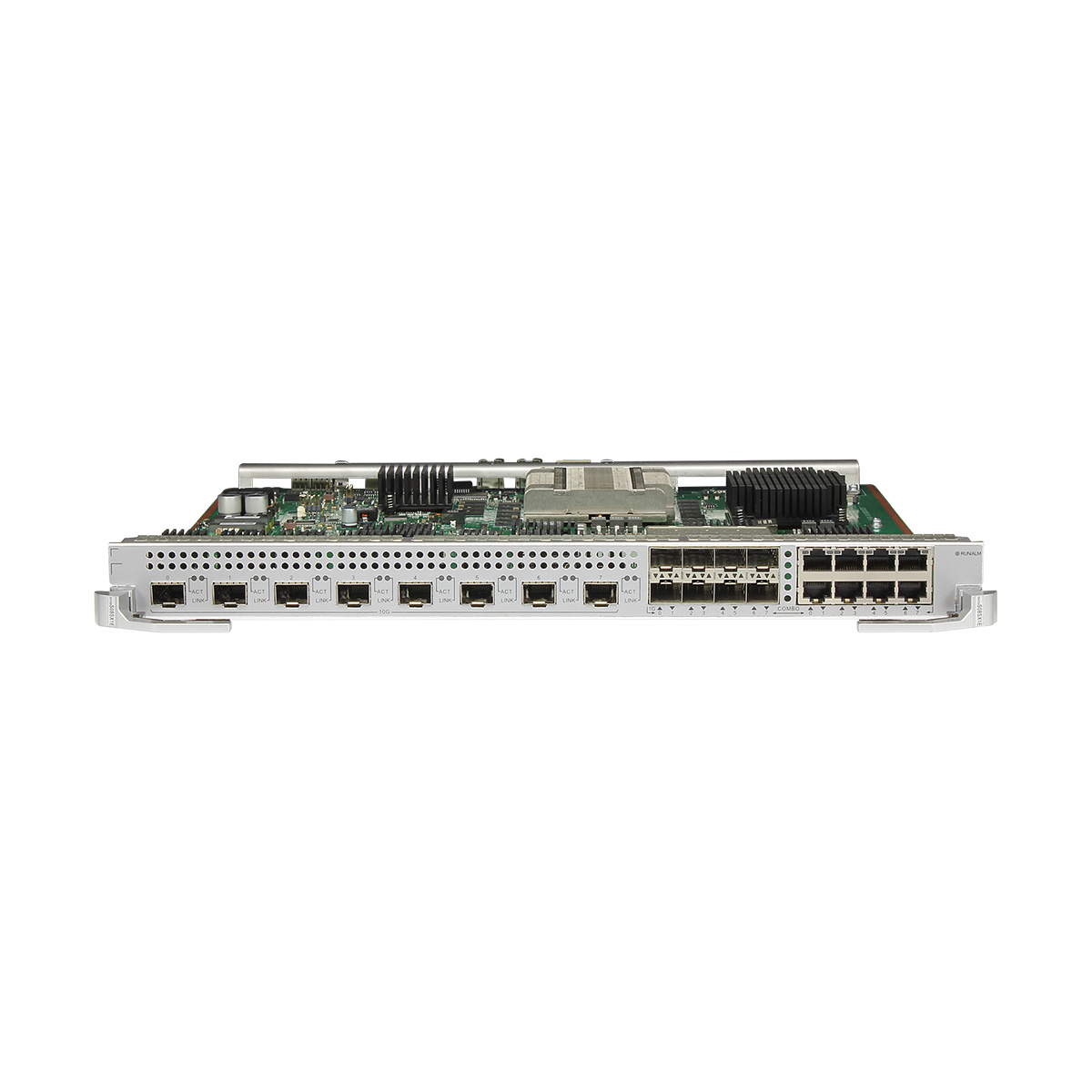

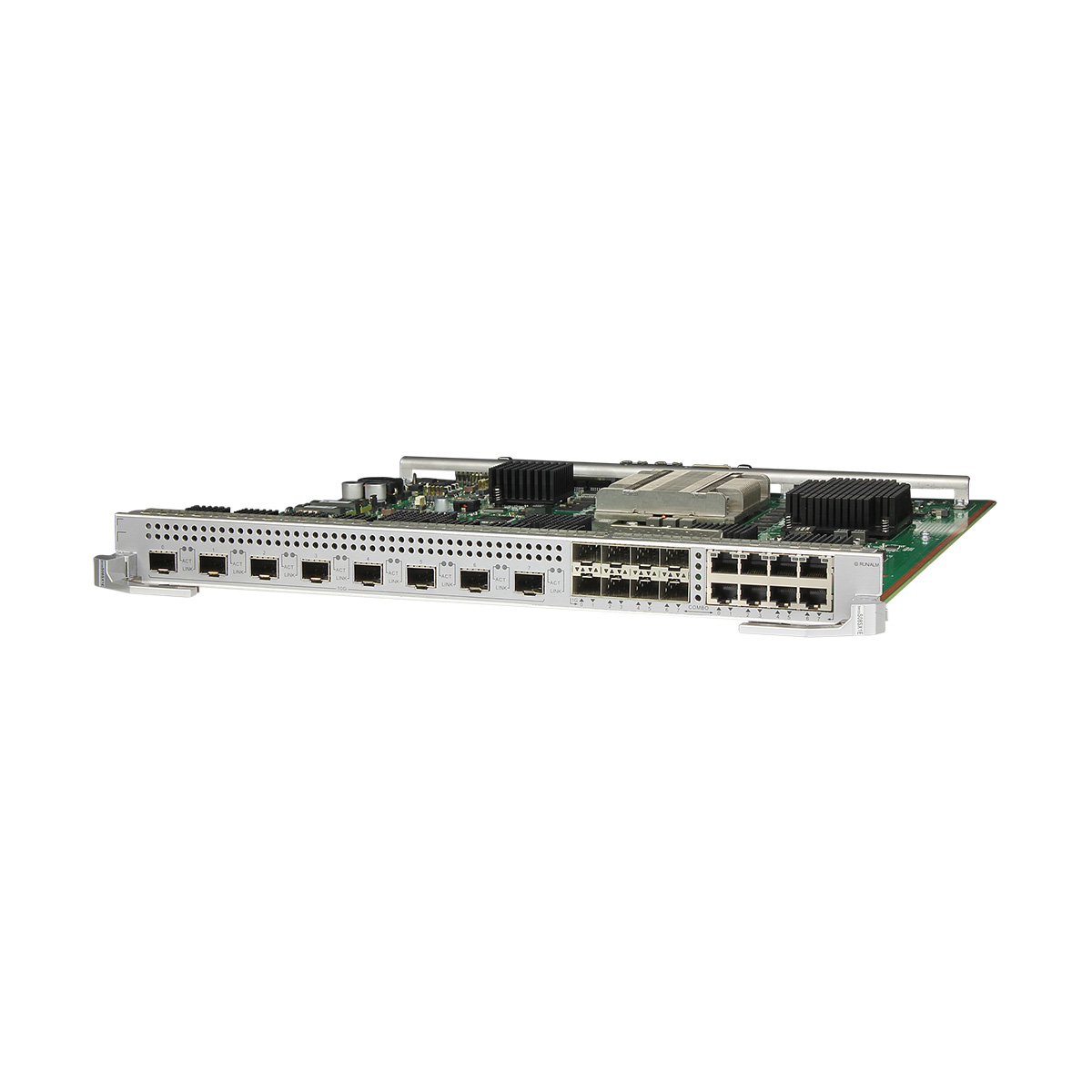

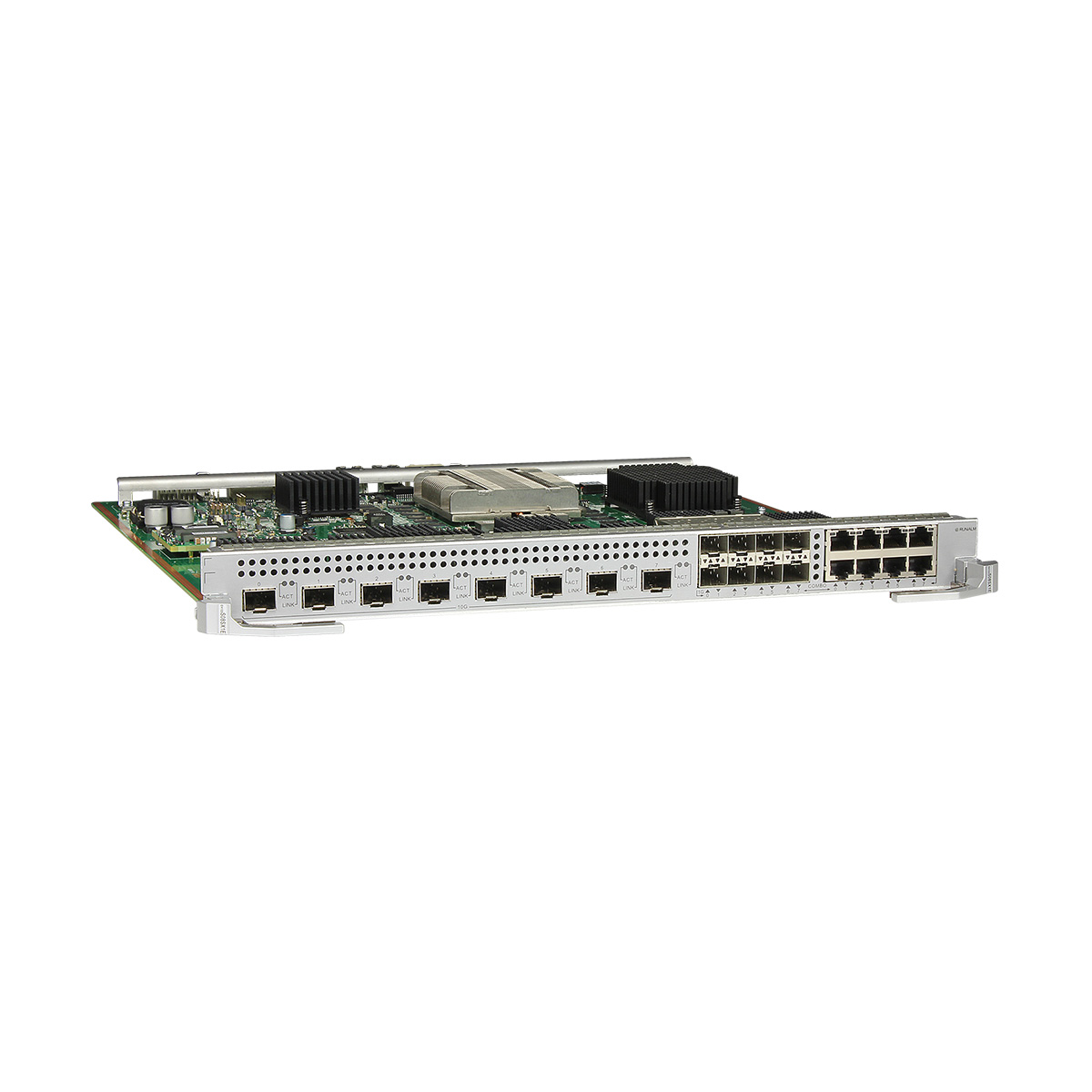

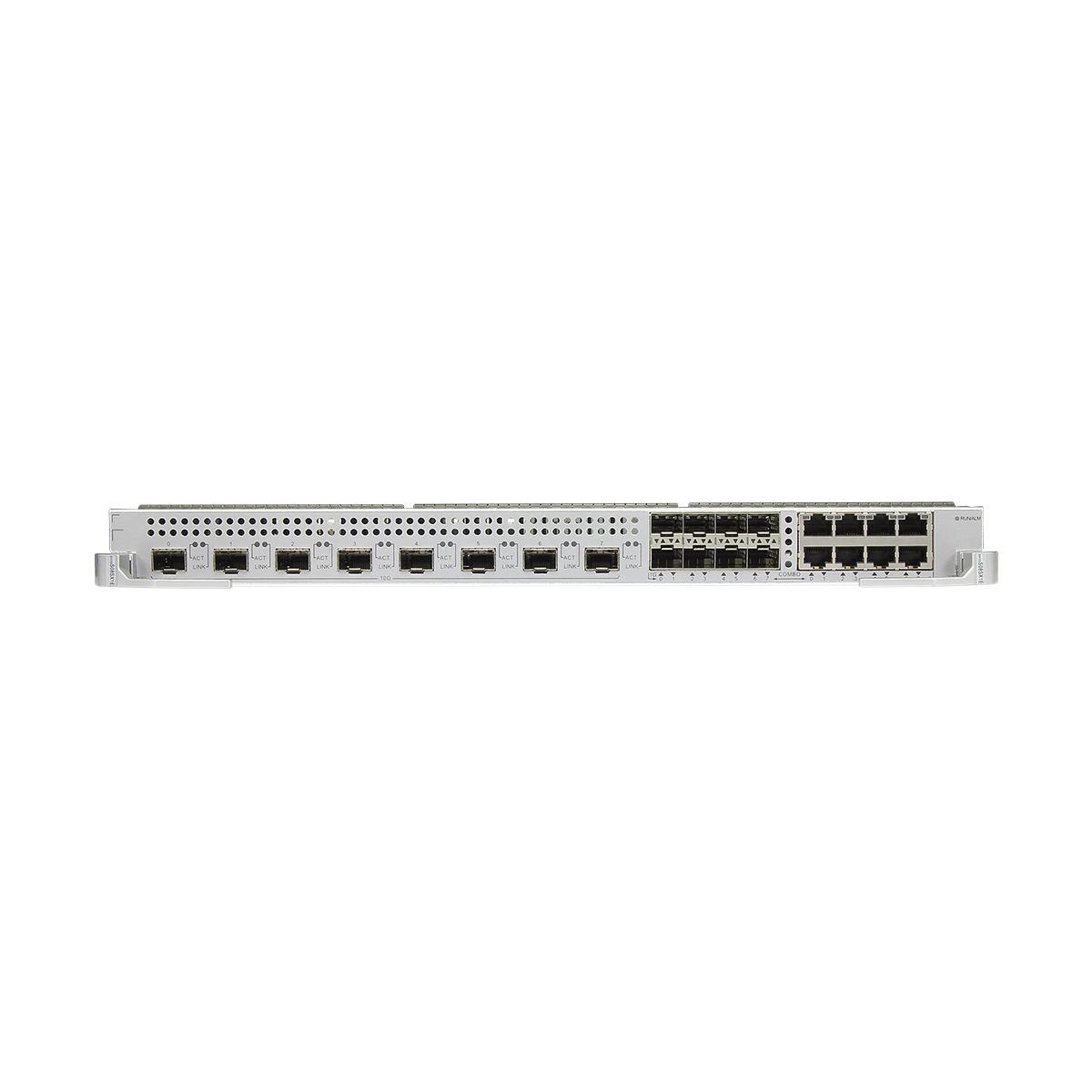

EH1D2S08SX1E Huawei S9700 switch 8-Port 10GBASE-X and 8-Port 100/1000BASE-X and 8-Port 10/100/1000BASE-T Combo Interface Card (X1E, RJ45/SFP/SFP+)

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

EH1D2S08SX1E overview

EH1D2S08SX1E Huawei S9700 switch 8-Port 10GBASE-X and 8-Port 100/1000BASE-X and 8-Port 10/100/1000BASE-T Combo Interface Card (X1E, RJ45/SFP/SFP+)

EH1D2S08SX1E application
Card Name S9700 Chassis
EH1D2S08SX1E Supported in V200R005C00 to V200R013C00
EH1D2S08SX1E functions and features
Function Description
Basic functions Provides eight 10GBASE-X ports and eight 10/100/1000M combo ports for data access and line-rate switching.
Forwarding speed 88 Gbit/s
Distributed forwarding Performs concurrent data forwarding using a distributed data plane.
Hot swapping The EH1D2S08SX1E is hot swappable.
Item

EH1D2S08SX1E
Apply to S9700 series
 Attributes of a 10GBASE SFP+ port
Connector type SFP+
Standards compliance IEEE 802.3ae
Frame format Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol IP
Attributes of a 100/1000BASE-X port
Connector Type SFP
Standards compliance IEEE 802.3z
Frame format Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol IP
Attributes of a 100/1000BASE-T port
Connector Type RJ45
Standards compliance IEEE 802.3ab
Frame format Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol IP
Physical specifications
Dimensions(W x D x H): 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight: 2.84 kg (6.26 lb)
Maximum power consumption: 130W
Environment parameters
Operating temperature 0°C to 45°C (32°F to 113°F)
Operating relative humidity 5% RH to 95% RH (noncondensing)
Storage temperature -40°C to +70°C (-40°F to +158°F)
Storage relative humidity 5% RH to 95% RH (noncondensing)

Additional information

Weight 7.0000 kg
Dimensions 55.0000 × 49.5000 × 12.0000 cm
S9700

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item

EH1D2S08SX1E
Apply to S9700 series
 Attributes of a 10GBASE SFP+ port
Connector type SFP+
Standards compliance IEEE 802.3ae
Frame format Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol IP
Attributes of a 100/1000BASE-X port
Connector Type SFP
Standards compliance IEEE 802.3z
Frame format Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol IP
Attributes of a 100/1000BASE-T port
Connector Type RJ45
Standards compliance IEEE 802.3ab
Frame format Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol IP
Physical specifications
Dimensions(W x D x H): 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight: 2.84 kg (6.26 lb)
Maximum power consumption: 130W
Environment parameters
Operating temperature 0°C to 45°C (32°F to 113°F)
Operating relative humidity 5% RH to 95% RH (noncondensing)
Storage temperature -40°C to +70°C (-40°F to +158°F)
Storage relative humidity 5% RH to 95% RH (noncondensing)
