Categories:S7700/S9700 Series

EH1D2S04SX1E

0 Reviews Write a review

PN03030RPL

BrandsHuawei

AvailabilityIn Stock

S9700 GE/10GE Card

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

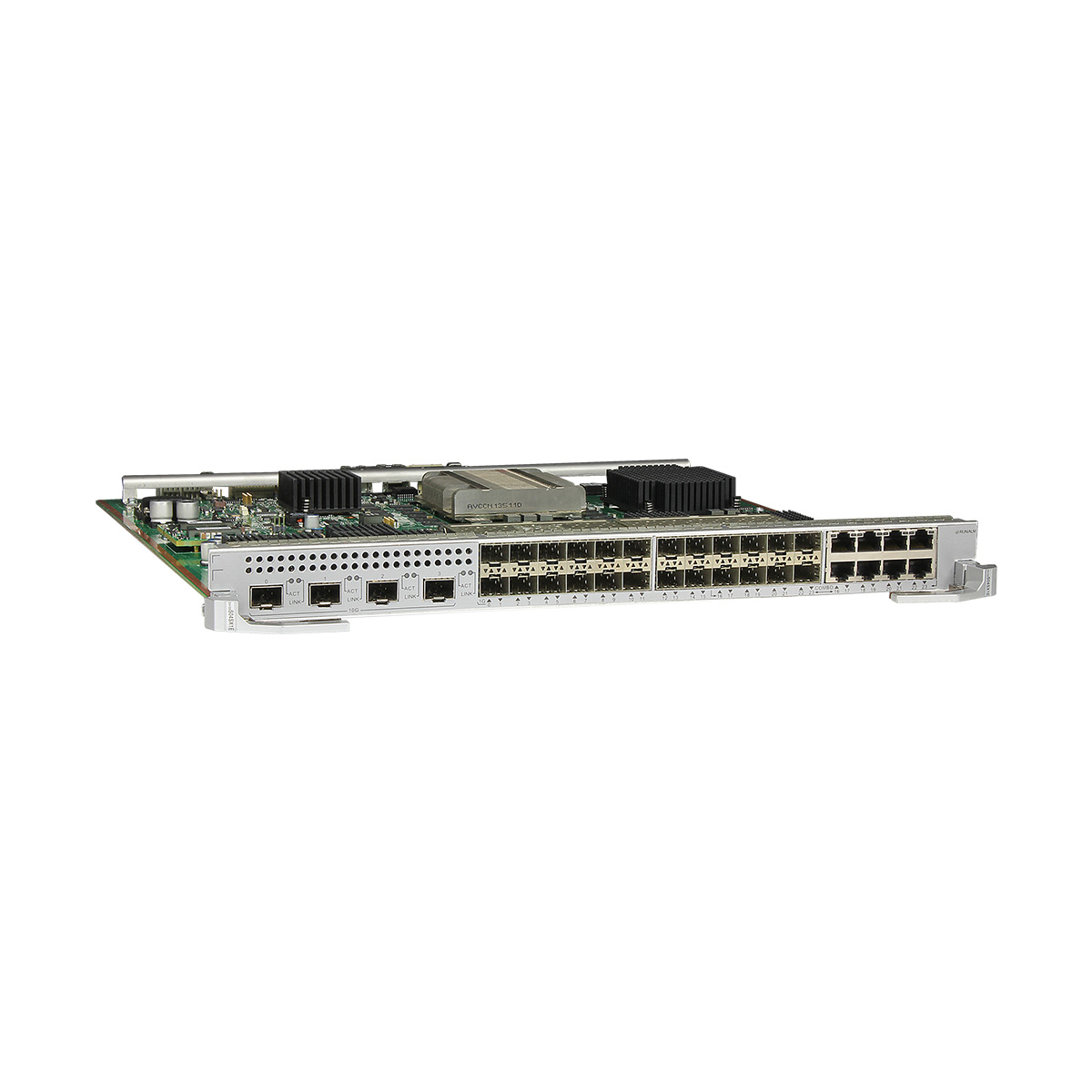

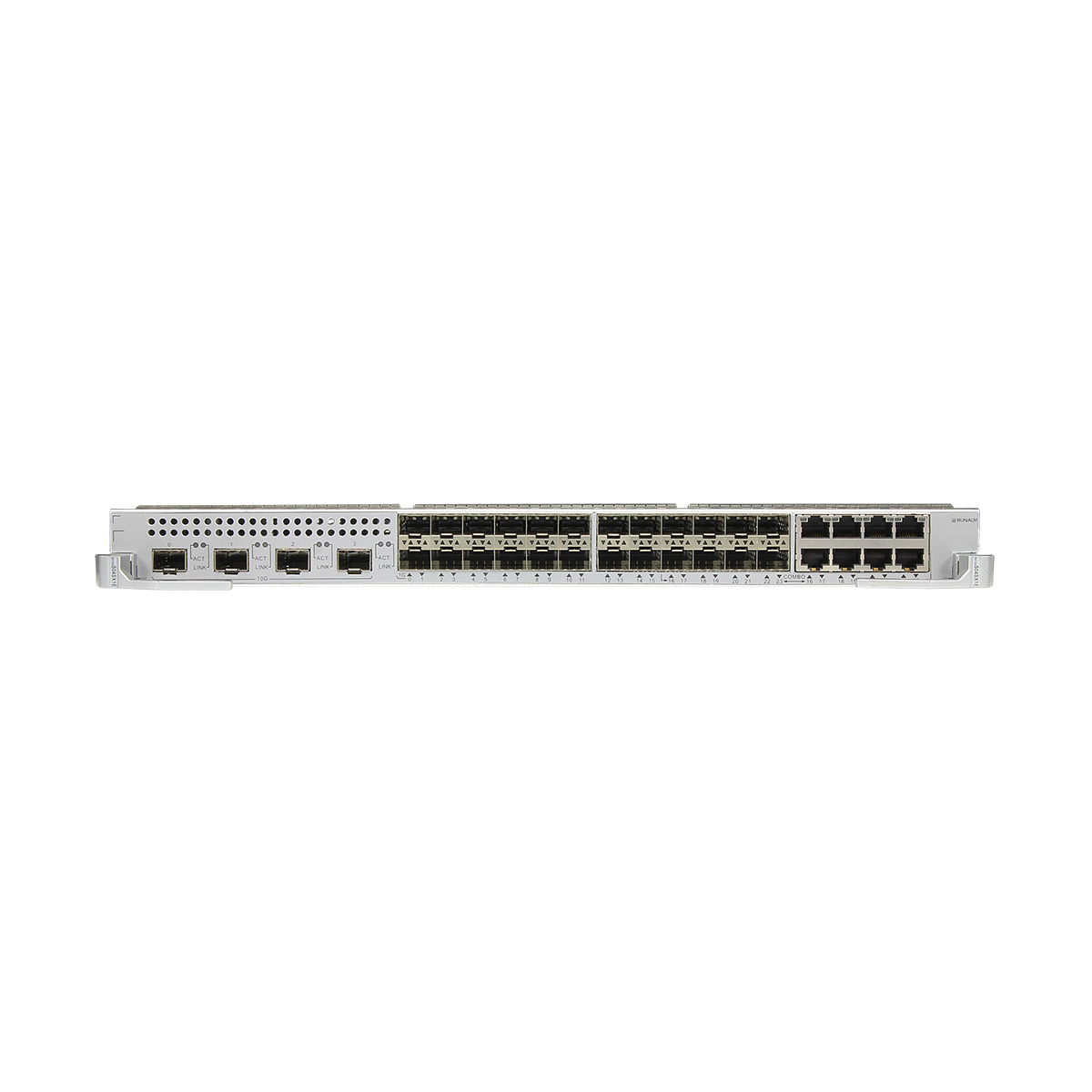

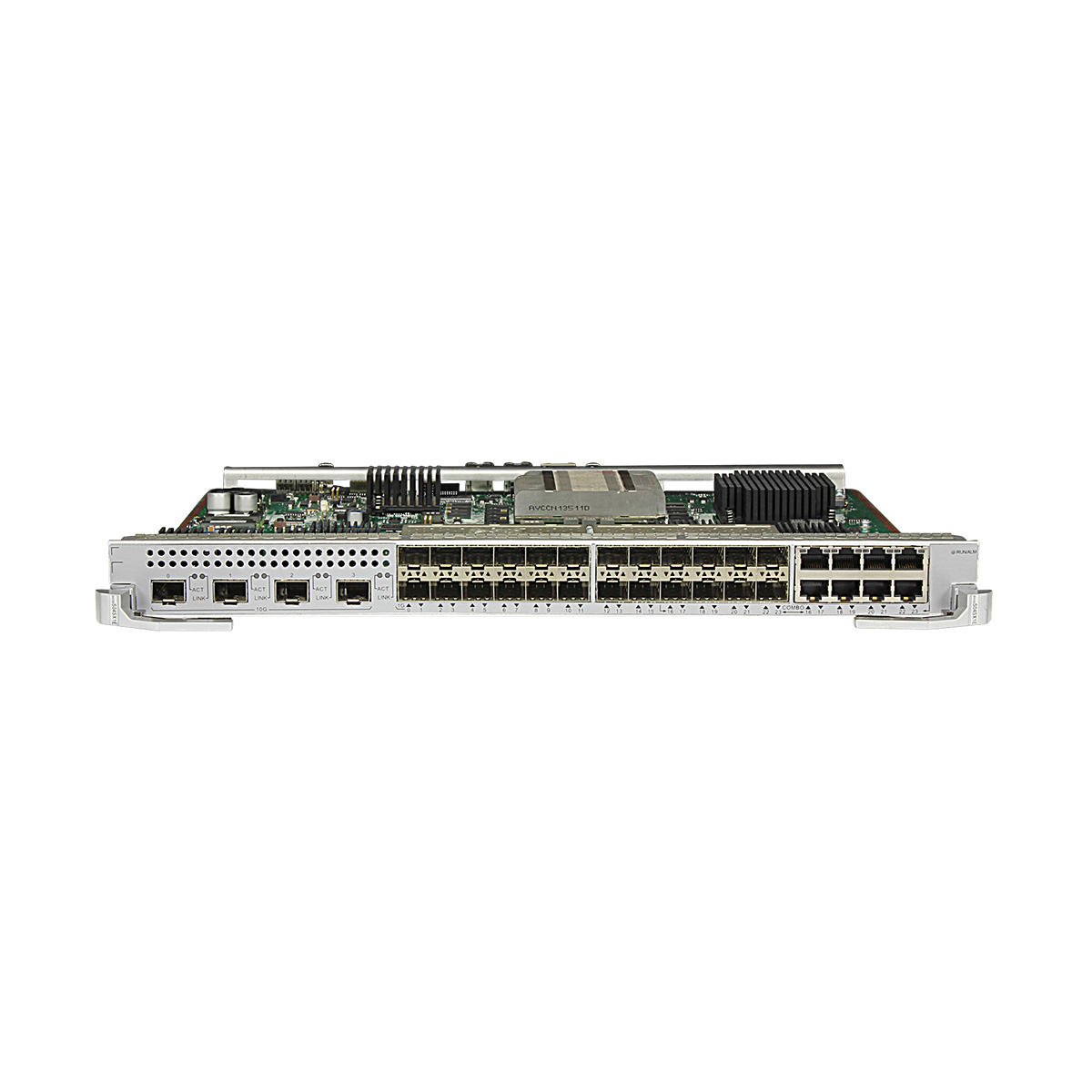

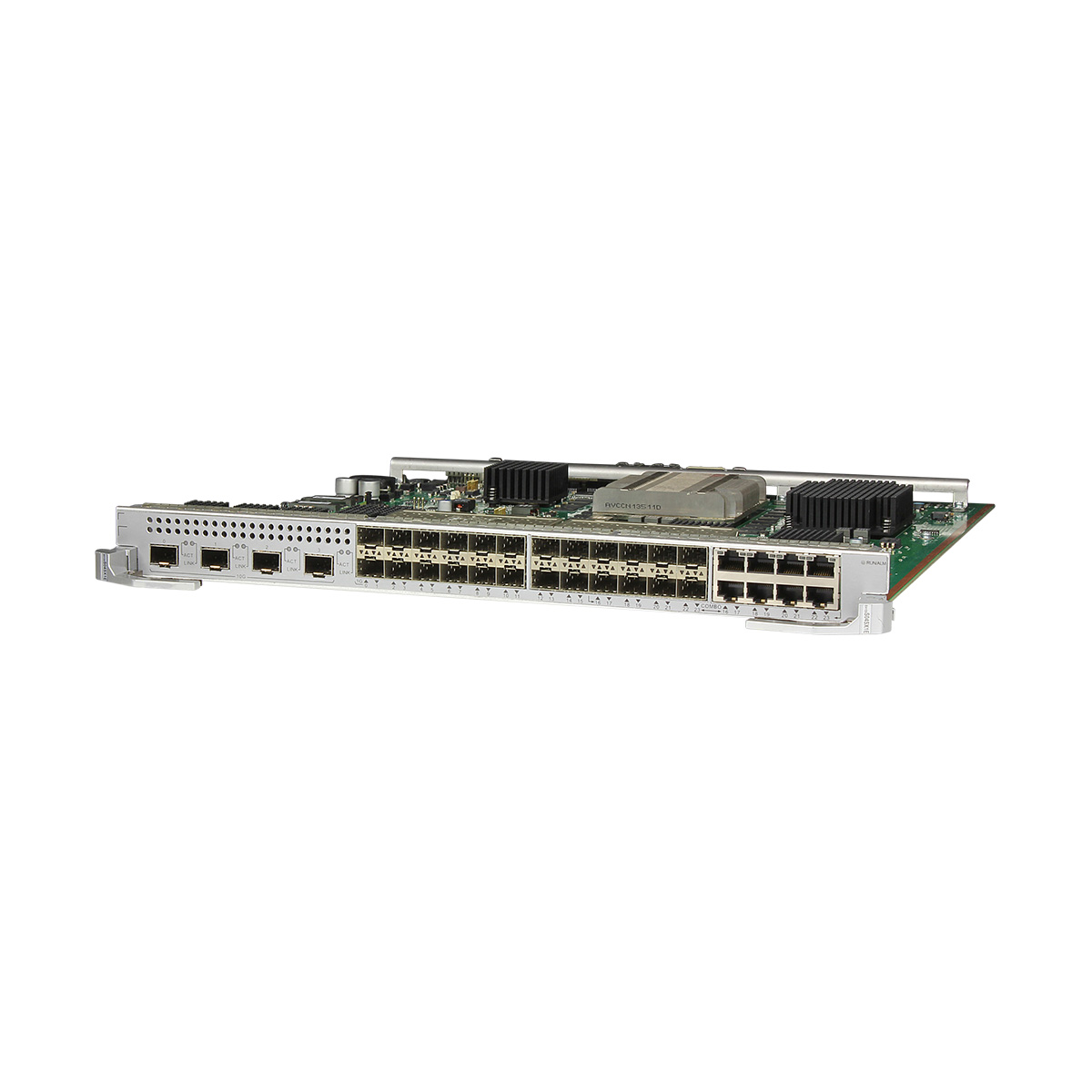

EH1D2S04SX1E Huawei S9700 switch 4 Port 10GBASE-X and 24 Port 100/1000BASE-X and 8 Port 10/100/1000BASE-T Combo Interface Card (X1E, RJ45/SFP/SFP+)

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

EH1D2G48TX1E overview

EH1D2S04SX1E Huawei S9700 switch 4 Port 10GBASE-X and 24 Port 100/1000BASE-X and 8 Port 10/100/1000BASE-T Combo Interface Card (X1E, RJ45/SFP/SFP+)

EH1D2G48TX1E application

Card Name	S9700 Chassis
EH1D2S04SX1E	Supported in V200R005C00 to V200R013C00

EH1D2S04SX1E functions and features

Function	Description
Basic functions	Provides four 10G Ethernet optical ports, sixteen 100/1000M Ethernet optical ports, and eight 10/100/1000M combo ports for data access and line-rate switching.
Forwarding speed	64 Gbit/s
Distributed forwarding	Performs concurrent data forwarding using a distributed data plane.
Software feature	LAN/WAN switchover
Hot swapping	The EH1D2S04SX1E is hot swappable.

Item		EH1D2S04SX1E
Apply to S9700 series
Attributes of a 10GBASE SFP+ port
Connector type	SFP+
Standards compliance	IEEE 802.3ae
Frame format	Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol	IP
Attributes of a 100/1000BASE-X port
Connector Type	SFP
Standards compliance	IEEE 802.3z
Frame format	Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol	IP
Attributes of a 100/1000BASE-T port
Connector Type	RJ45
Standards compliance	IEEE 802.3ab
Frame format	Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol	IP
Attributes of a 100/1000BASE-X port
Connector Type	SFP
Standards compliance	IEEE 802.3z
Frame format	Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol	IP
Physical specifications
Dimensions(W x D x H):	394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight:	2.88 kg (6.35 lb)
Maximum power consumption:	130W
Environment parameters
Operating temperature	0°C to 45°C (32°F to 113°F)
Operating relative humidity	5% RH to 95% RH (noncondensing)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Storage relative humidity	5% RH to 95% RH (noncondensing)

Weight	7.0000 kg
Dimensions	55.0000 × 49.5000 × 12.0000 cm
S9700	GE/10GE Card
Brand	Huawei
Lead Time	3-5 days
Ship From	Shenzhen Warehouse

Item		EH1D2S04SX1E
Apply to S9700 series
Attributes of a 10GBASE SFP+ port
Connector type	SFP+
Standards compliance	IEEE 802.3ae
Frame format	Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol	IP
Attributes of a 100/1000BASE-X port
Connector Type	SFP
Standards compliance	IEEE 802.3z
Frame format	Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol	IP
Attributes of a 100/1000BASE-T port
Connector Type	RJ45
Standards compliance	IEEE 802.3ab
Frame format	Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol	IP
Attributes of a 100/1000BASE-X port
Connector Type	SFP
Standards compliance	IEEE 802.3z
Frame format	Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol	IP
Physical specifications
Dimensions(W x D x H):	394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight:	2.88 kg (6.35 lb)
Maximum power consumption:	130W
Environment parameters
Operating temperature	0°C to 45°C (32°F to 113°F)
Operating relative humidity	5% RH to 95% RH (noncondensing)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Storage relative humidity	5% RH to 95% RH (noncondensing)
