Description

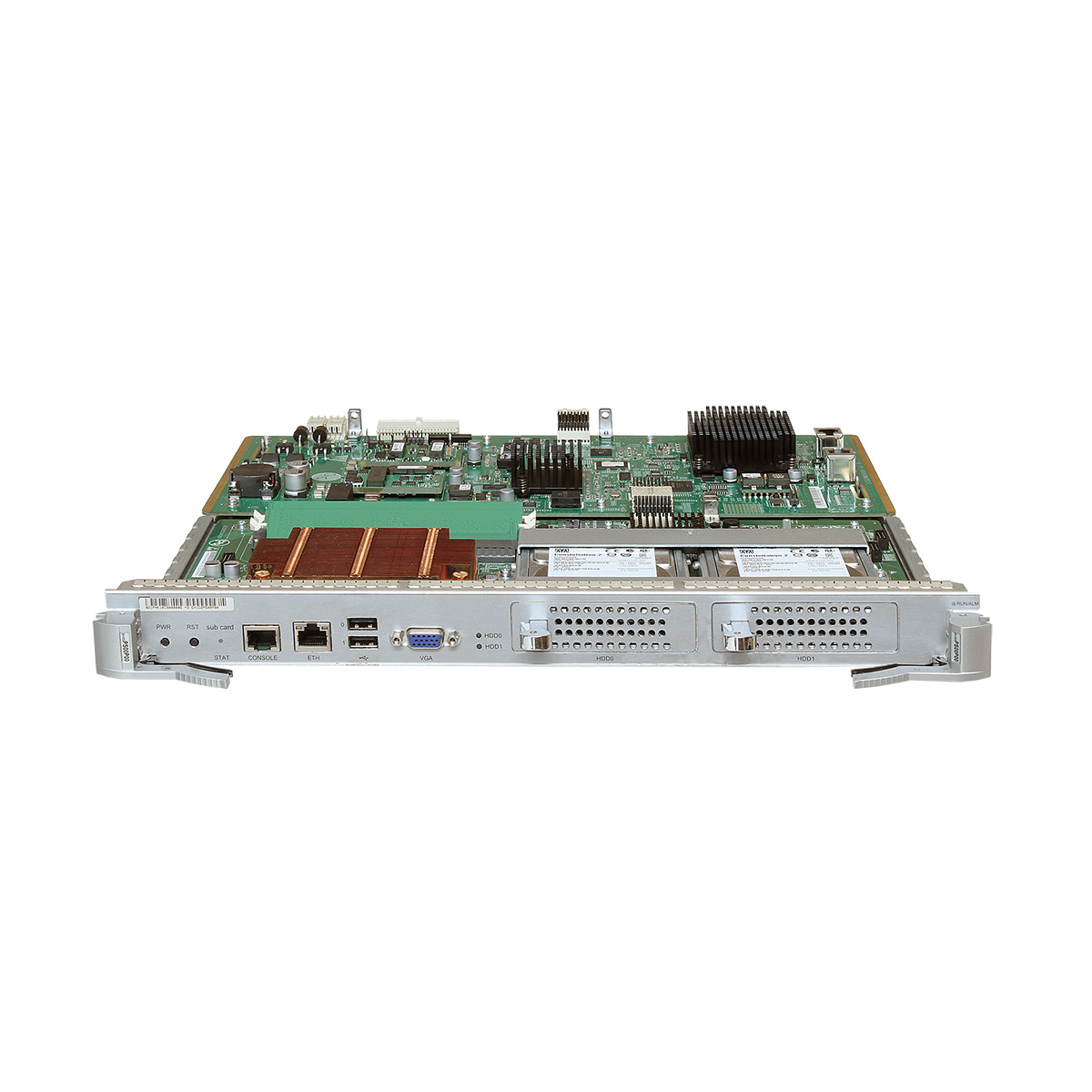

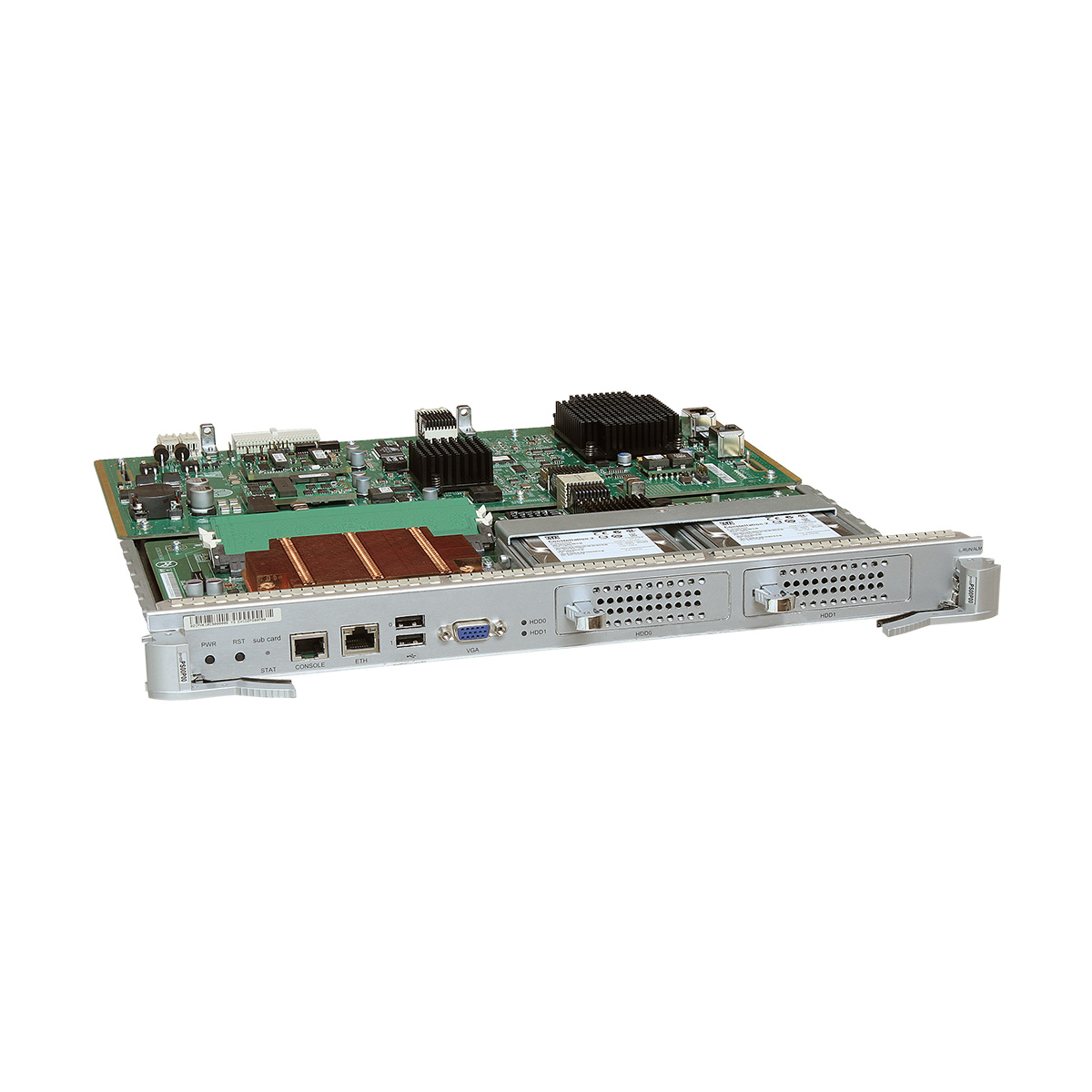

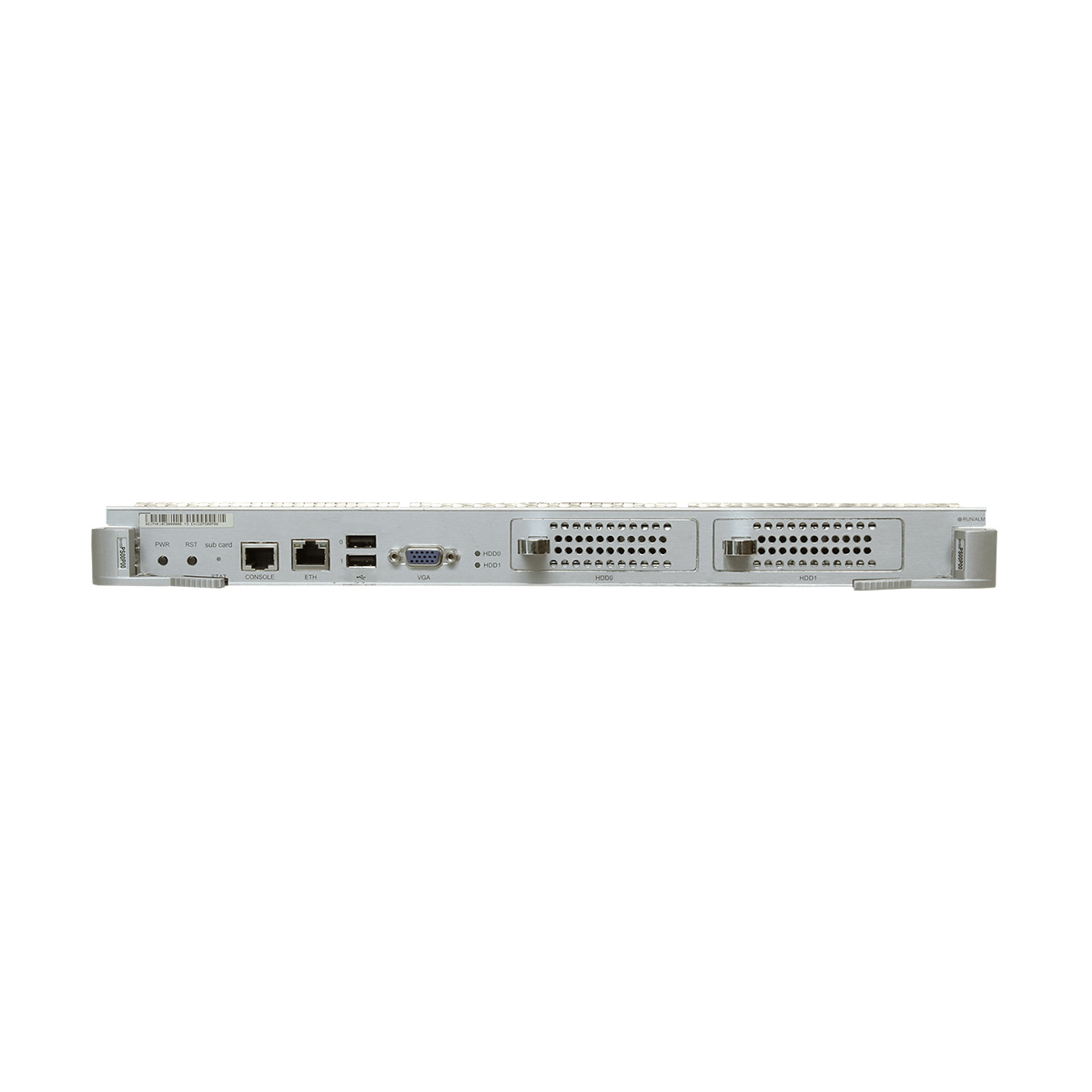

| Item | EH1D2PS00P00 |
| Apply to S9700 series | |
| Attribute of a ETH management port | |
| Connector type | RJ45 |
| Standards compliance | IEEE802.3 |
| Working mode | 10/100 Mbit/s auto-sensing Full-duplex |
| Maximum transmission distance | 100m |
| Attribute of a console manangement port | |
| Connector type | RJ45 |
| Working mode | Duplex Universal Asynchronous Receiver/Transmitter (UART) |
| Standards compliance | RS232 |
| Baud rate | 9600 bit/s to 115200 bit/s Default value: 9600 bit/s |
| Physical specification | |
| Dimensions (W x D x H) | 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.) |
| Weight (kg) | 5.50 kg (12.13 lb) |
| Maximum power consumption | 137.5 W |
| Environment parameters | |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Operating relative humidity | 5% RH to 95% RH (noncondensing) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Storage relative humidity | 5% RH to 95% RH (noncondensing) |
