Description
EH1D2L08QX2E overview

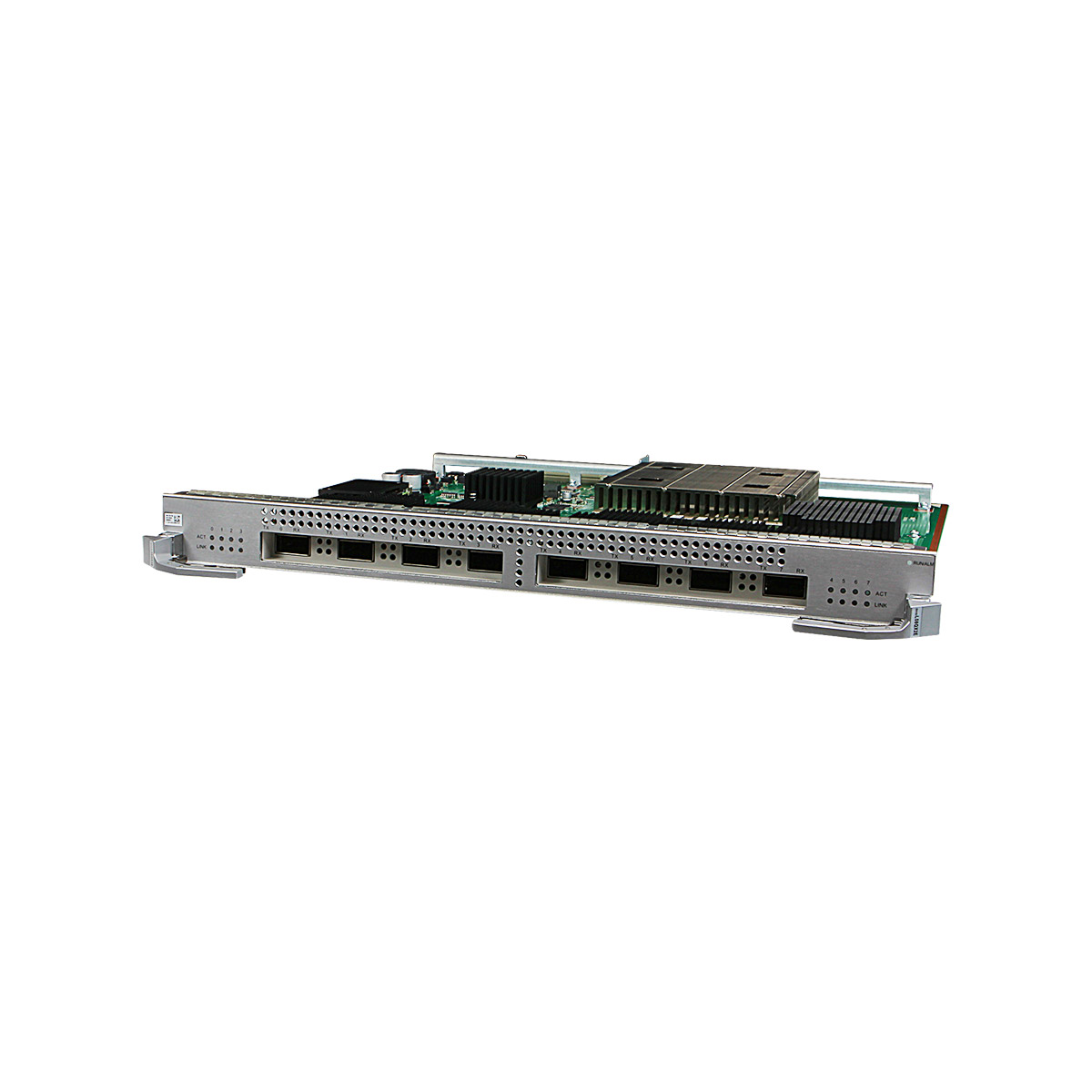

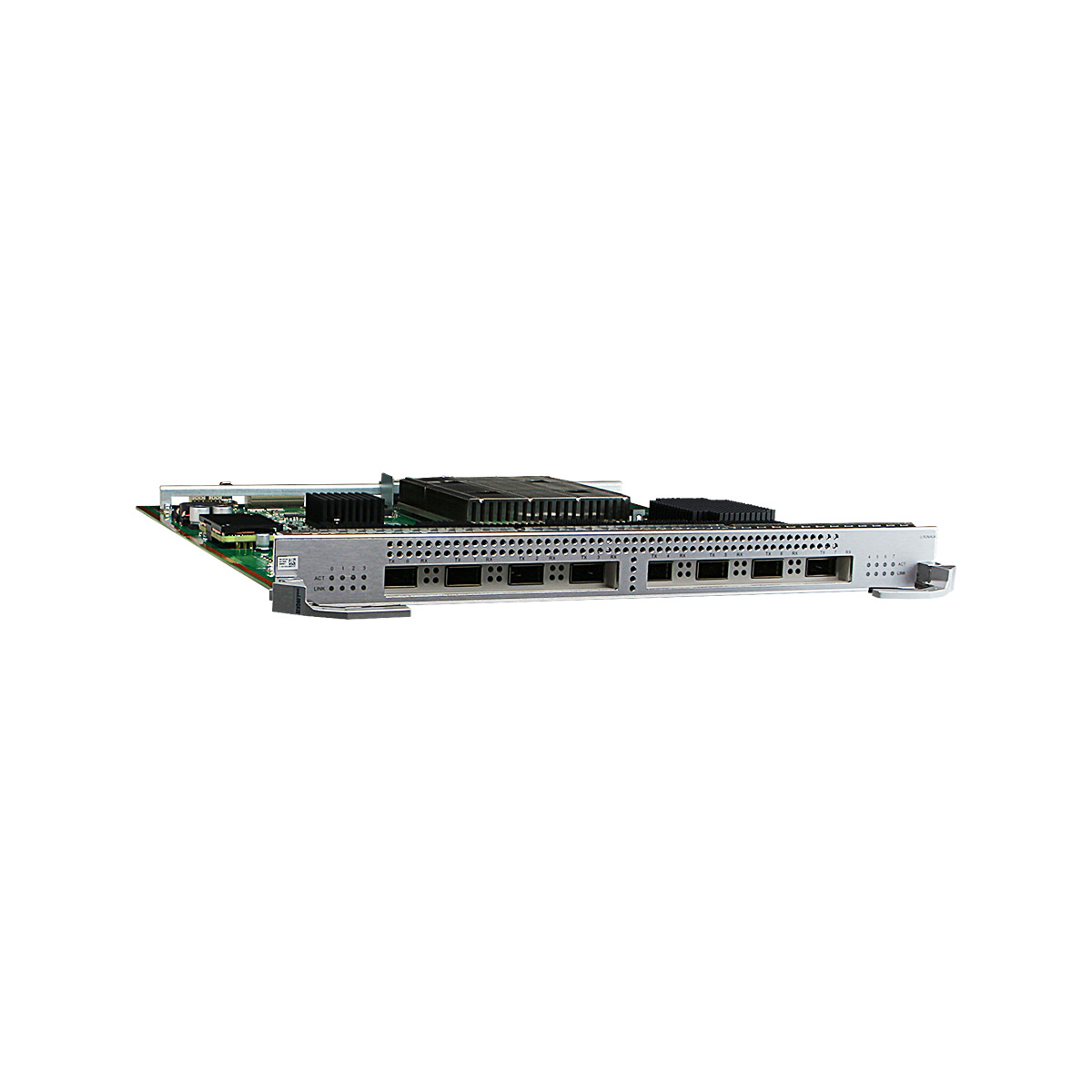

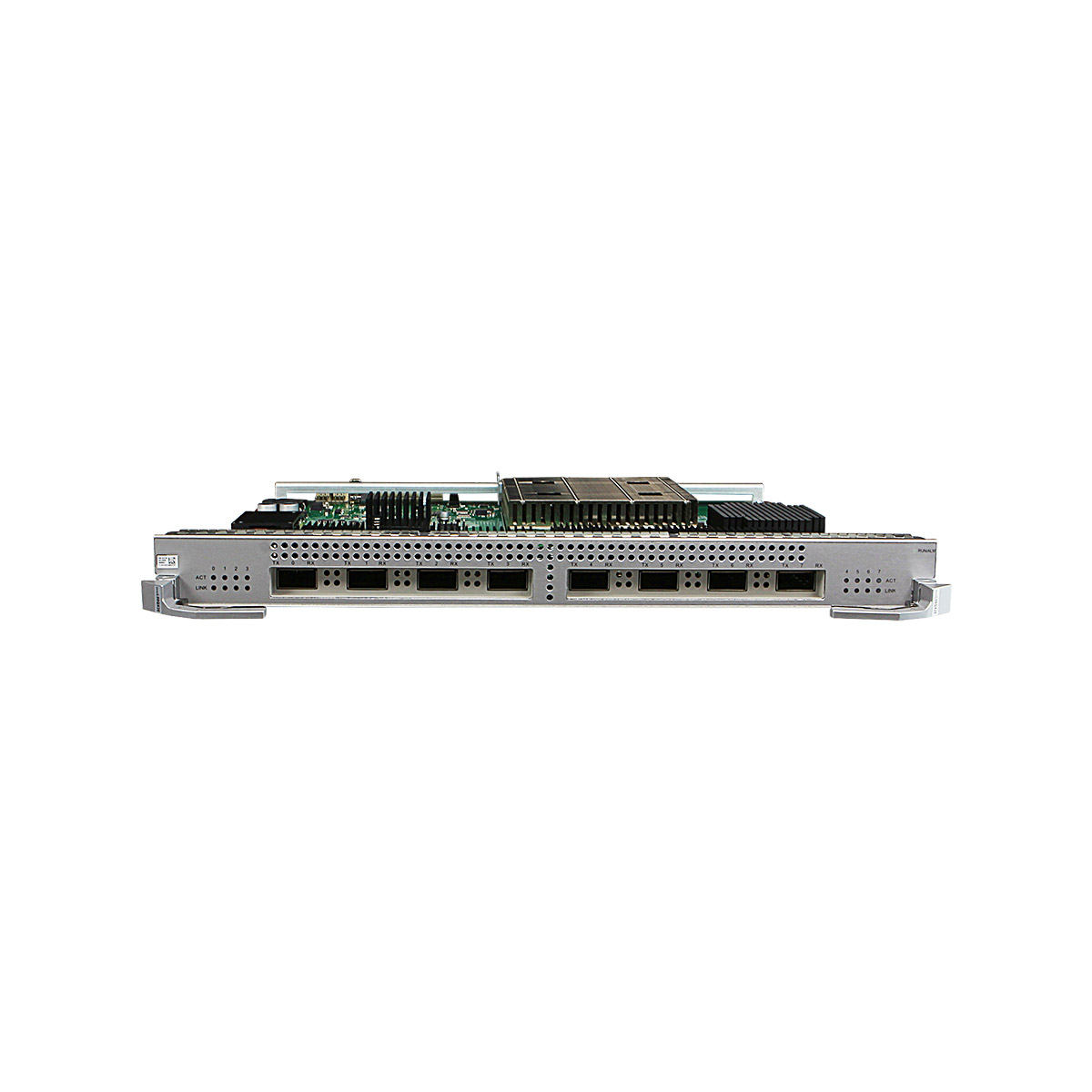

EH1D2L08QX2E Huawei S9700/S12700 switch 8-Port 40GBASE-X Interface Card (X2E, QSFP+)
Switch chassis and software versions matching the card (S12700)
| Card Name | S12700 Chassis |
|---|---|
| EH1D2L08QX2E | Supported in V200R010C00 and later versions |
Switch chassis and software versions matching the card (S12700E)
| Card Name | S12700E Chassis |
|---|---|
| EH1D2L08QX2E | Not supported |
The EH1D2L08QX2E can be installed in:
Slots 01 to 04 in an S12704 chassis.
Slots 01 to 08 in an S12708 chassis.
Slots 01 to 10 in an S12710 chassis.
Slots 01 to 12 in an S12712 chassis.

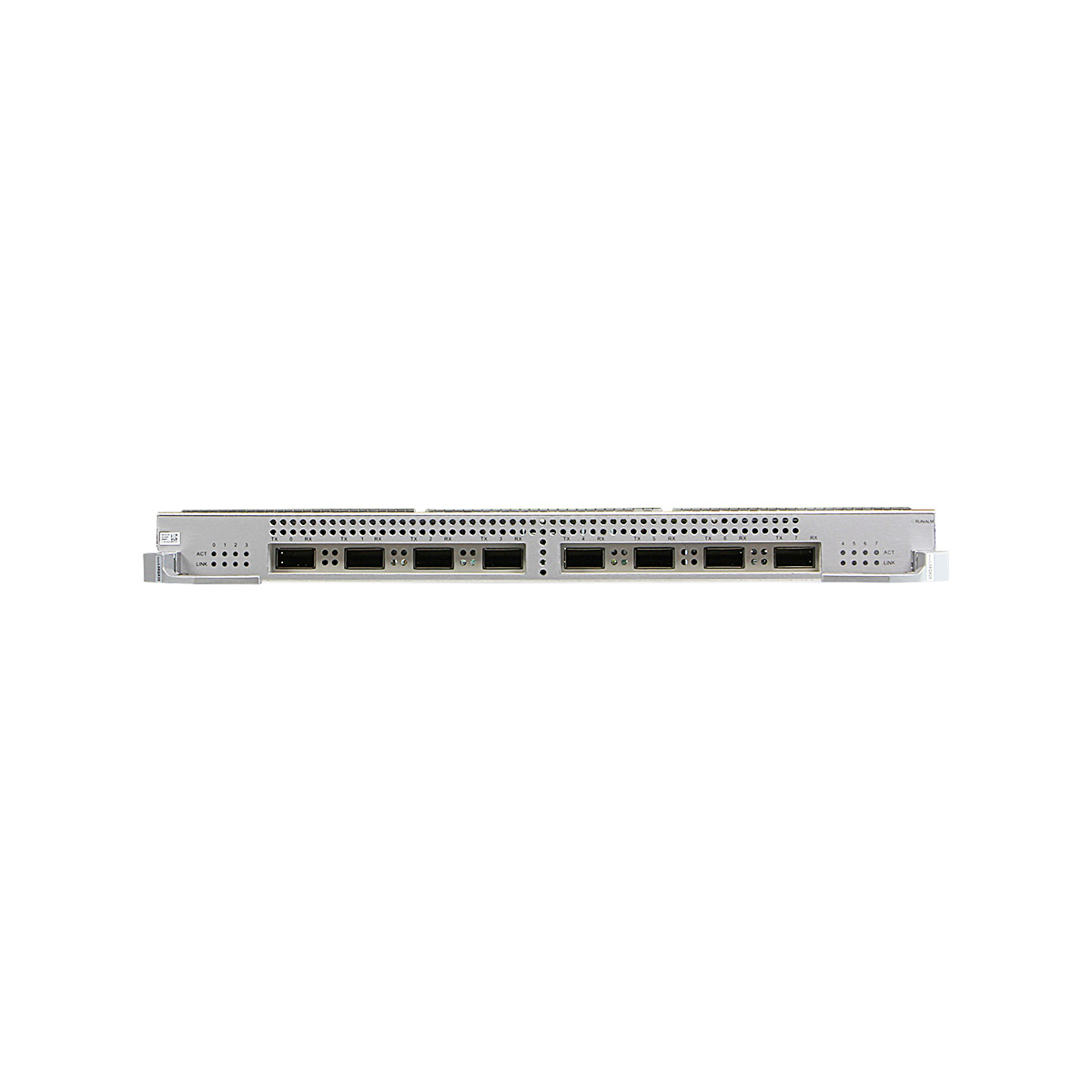

Front Panel
| 1 | Eight 40GBASE-X ports |
40GBASE-X port
40GE BASE-X optical port attributes
|
Attribute |
Description |
|---|---|
|
Connector type |
QSFP+ |
|
Optical port attributes |
Depend on the QSFP+ high-speed cable (1 m, 3 m, 5 m), QSFP+ AOC cable, or 40GE QSFP+ Optical Modules used. |
|
Applicable cable |
QSFP+ optical module and LC optical fiber QSFP+ optical module and MPO optical fiber (MPO-MPO or MPO-4*DLC optical fiber) QSFP+ high-speed copper cable (QSFP+ to QSFP+ or QSFP+ to 4*SFP+) QSFP+ AOC cable (QSFP+ to QSFP+ or QSFP+ to 4*SFP+) |
Vernie –
The delivered goods are brand-new and sealed. The SN on the label of the interface card is consistent with the data on the white label on the carton.
