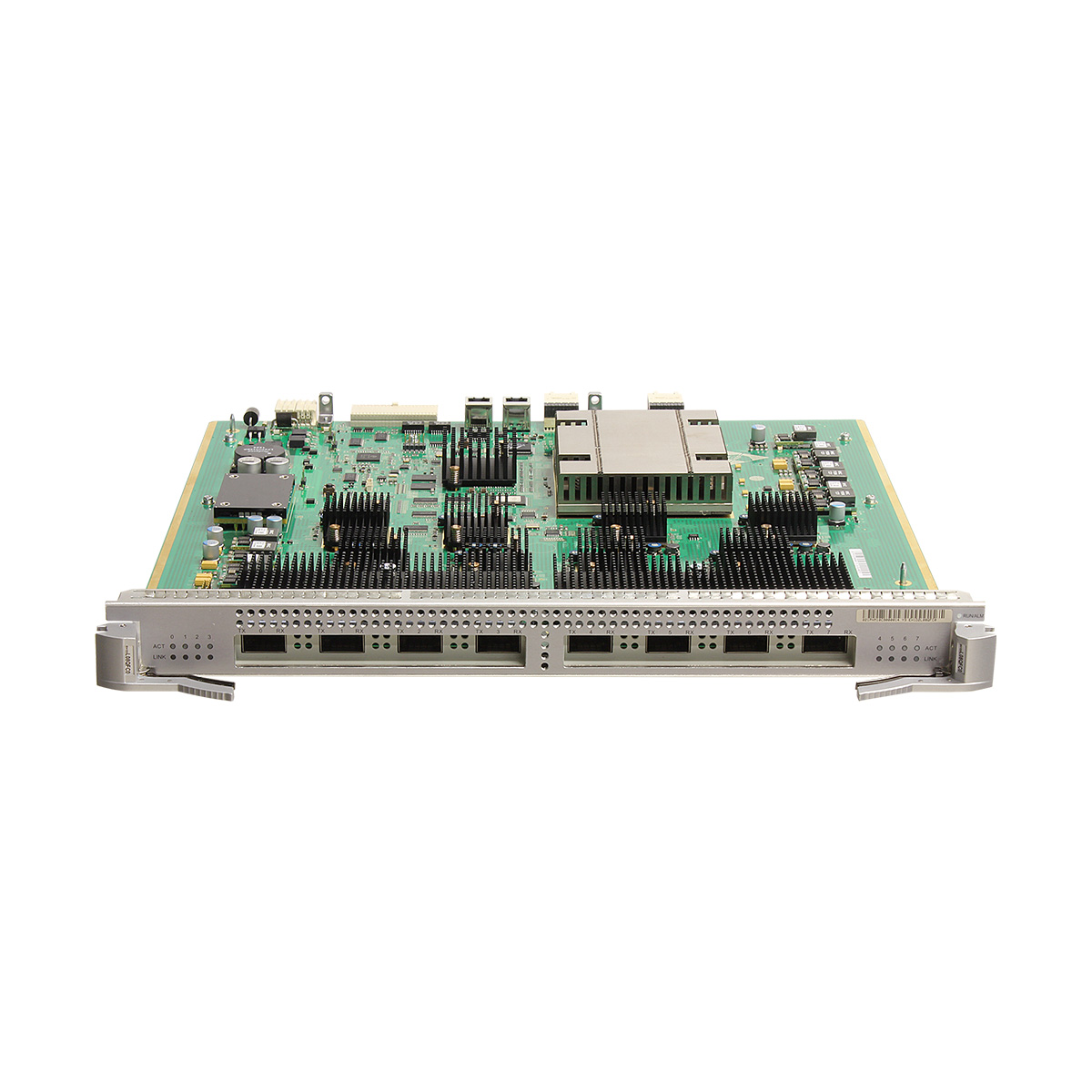

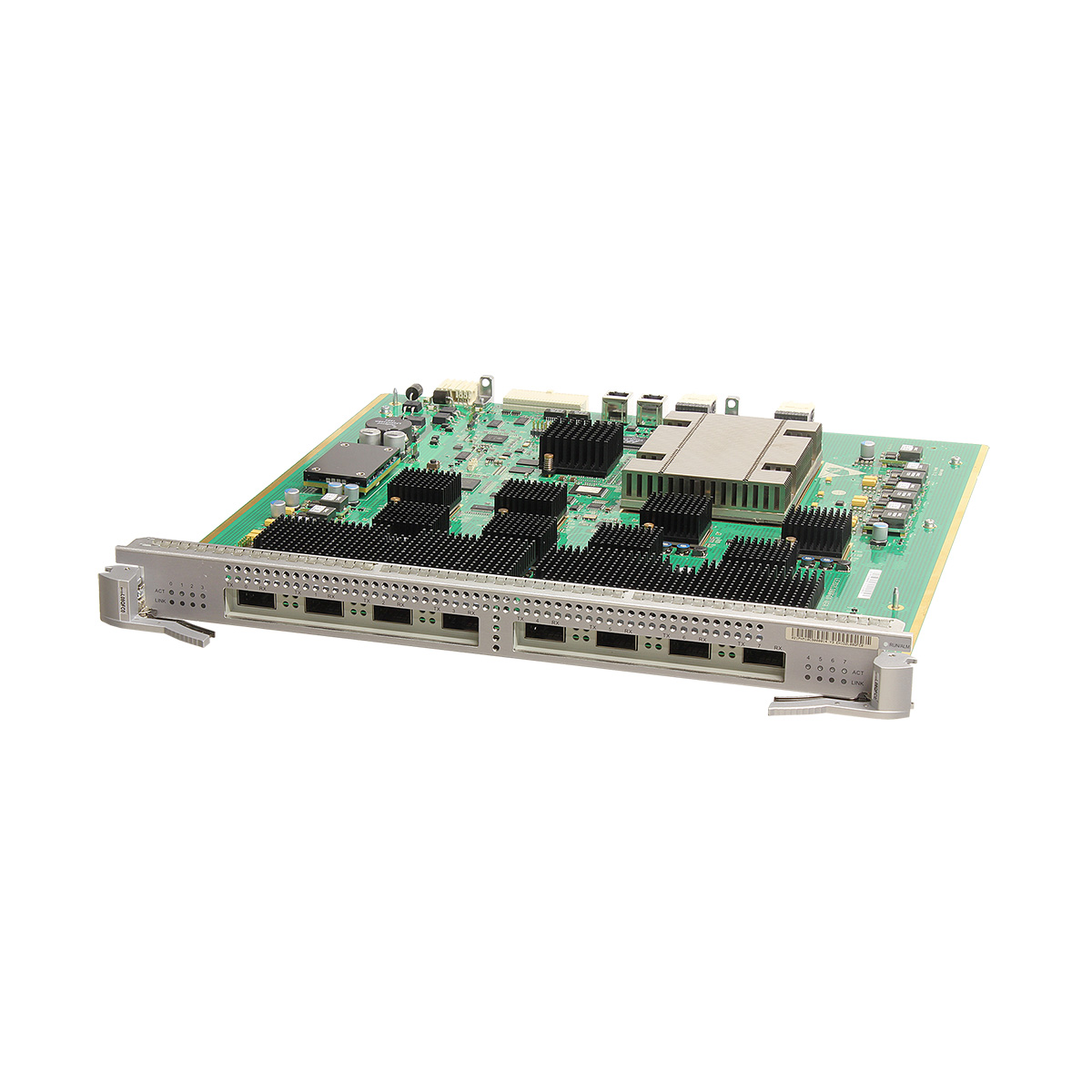

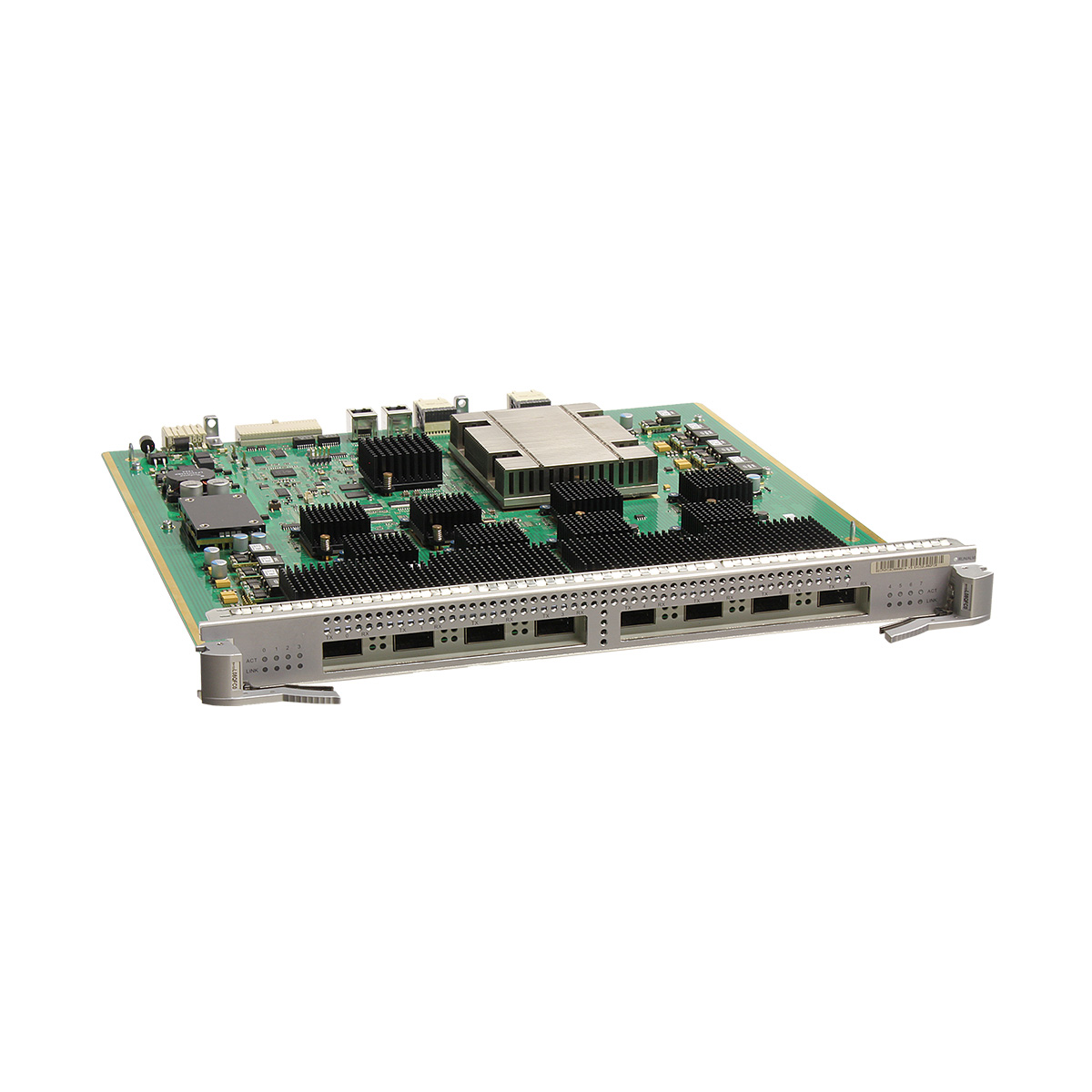

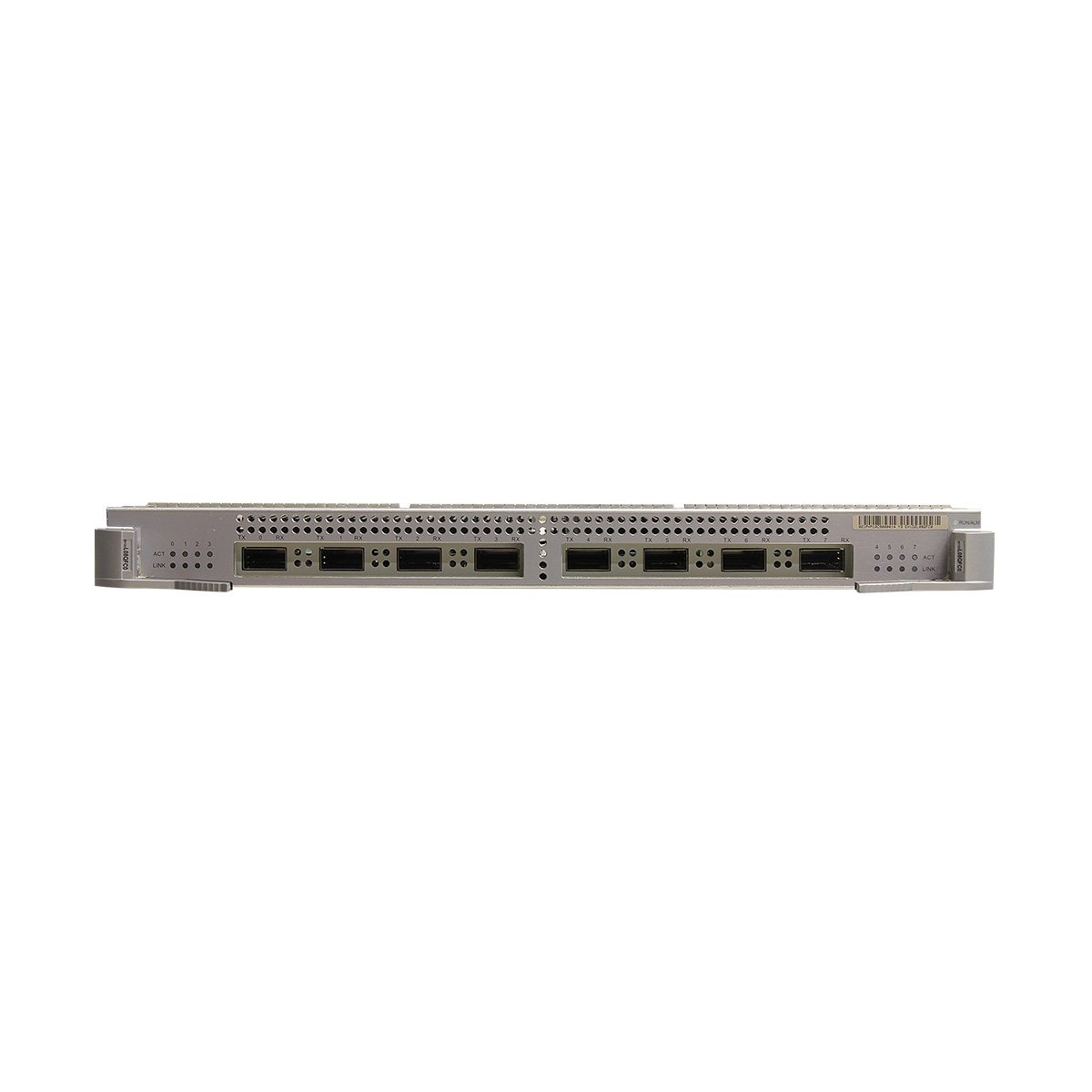

EH1D2L08QFC0 Huawei S9700 switch 8 Port 40G BASE-X Interface Card (FC, QSFP+)
EH1D2L08QFC0 Huawei S9700 switch 8 Port 40G BASE-X Interface Card (FC, QSFP+)
| Card Name | S9700 Chassis |
|---|---|
| EH1D2L08QFC0 | Supported in V200R002C00 to V200R013C00 |
| Function | Description |
|---|---|
| Basic function |
|
| Distributed forwarding | Performs concurrent data forwarding using a distributed data plane. |
| Software feature | Service port clustering |
| Hot swapping | The EH1D2L08QFC0 is hot swappable. |
| Item | EH1D2L08QFC0 | ||
| Apply to S9700 series | |||
| Optical port attributes | |||
| Connector type | QSFP+ | ||
| Optical port attributes | Depend on the QSFP+ optical module used | ||
| Standards compliance | IEEE802.3ba | ||
| Frame format | Ethernet_II, Ethernet_SAP, Ethernet_SNAP | ||
| Network protocol | IP | ||
| Physical specifications | |||
| Dimensions(W x D x H): | 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.) | ||
| Weight: | 2.8 kg (6.17 lb) | ||
| Maximum power consumption: | 157.2W | ||
| Environment parameters | |||
| Operating temperature | 0°C to 45°C (32°F to 113°F) | ||
| Operating relative humidity | 5% RH to 95% RH (noncondensing) | ||
| Storage temperature | -40°C to +70°C (-40°F to +158°F) | ||
| Storage relative humidity | 5% RH to 95% RH (noncondensing) | ||
| S9700 | |
|---|---|
| Brand | Huawei |
| Lead Time | 3-5 days |
| Ship From | Shenzhen Warehouse |
| Item | EH1D2L08QFC0 | ||
| Apply to S9700 series | |||
| Optical port attributes | |||
| Connector type | QSFP+ | ||
| Optical port attributes | Depend on the QSFP+ optical module used | ||
| Standards compliance | IEEE802.3ba | ||
| Frame format | Ethernet_II, Ethernet_SAP, Ethernet_SNAP | ||
| Network protocol | IP | ||
| Physical specifications | |||
| Dimensions(W x D x H): | 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.) | ||
| Weight: | 2.8 kg (6.17 lb) | ||
| Maximum power consumption: | 157.2W | ||
| Environment parameters | |||
| Operating temperature | 0°C to 45°C (32°F to 113°F) | ||
| Operating relative humidity | 5% RH to 95% RH (noncondensing) | ||
| Storage temperature | -40°C to +70°C (-40°F to +158°F) | ||
| Storage relative humidity | 5% RH to 95% RH (noncondensing) | ||
