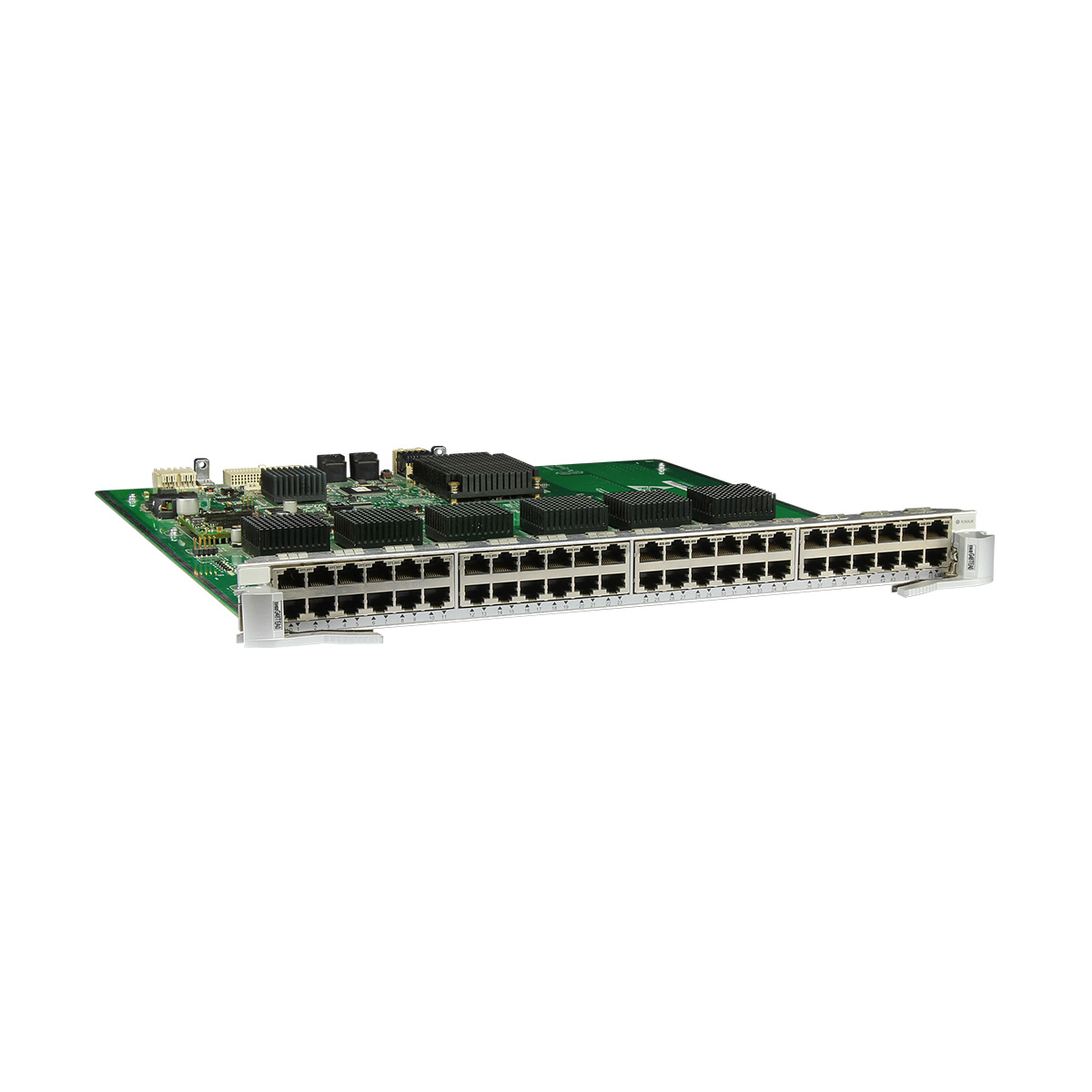

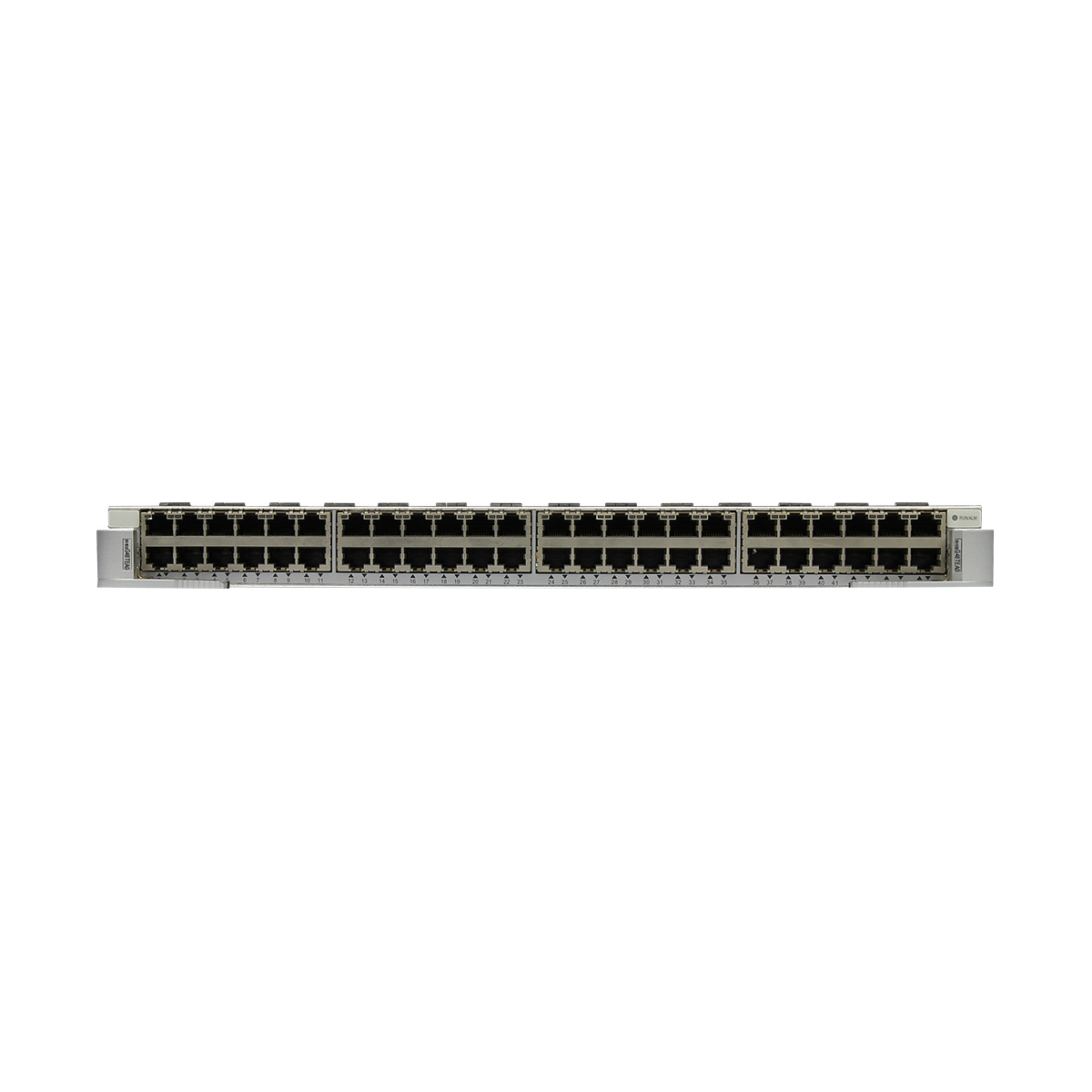

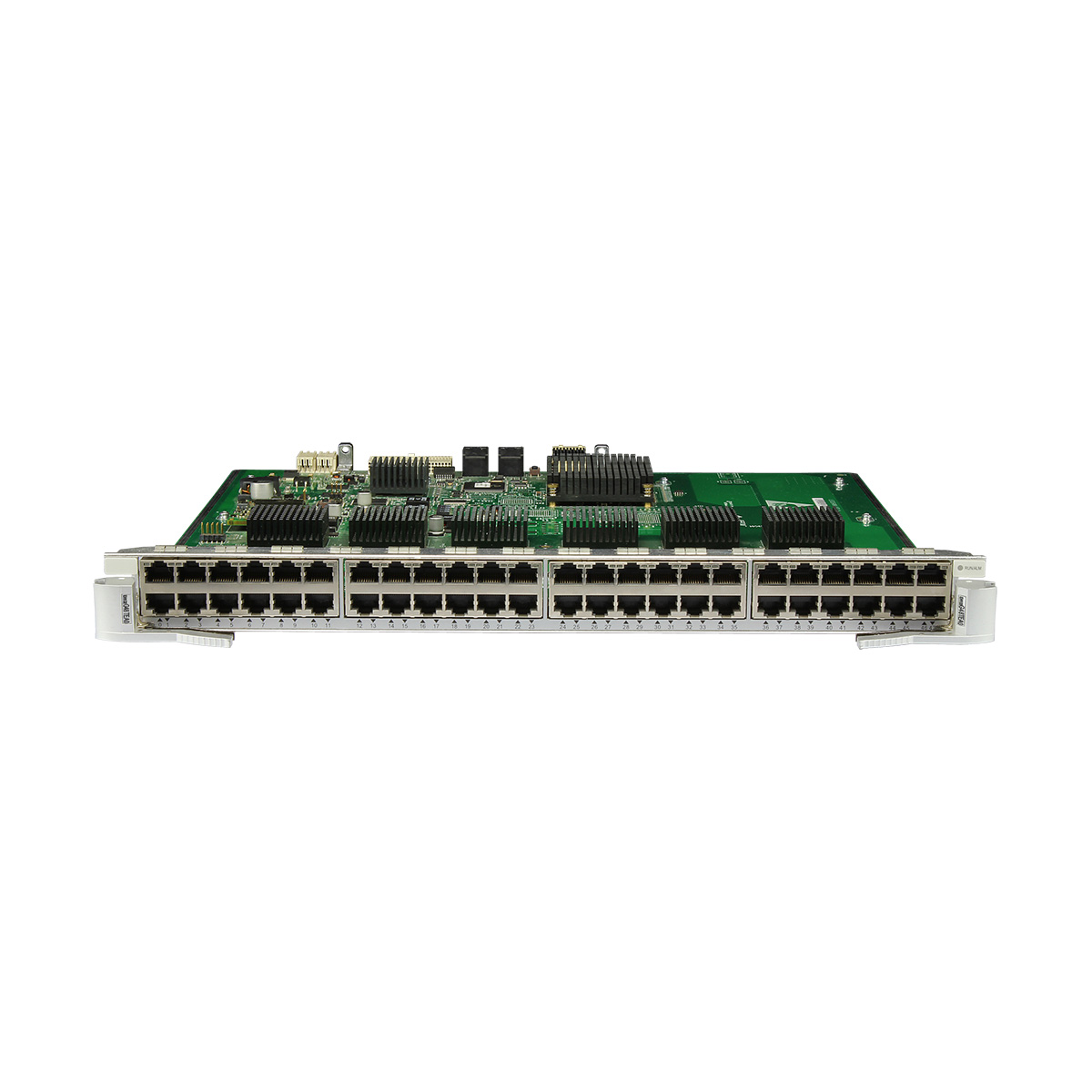

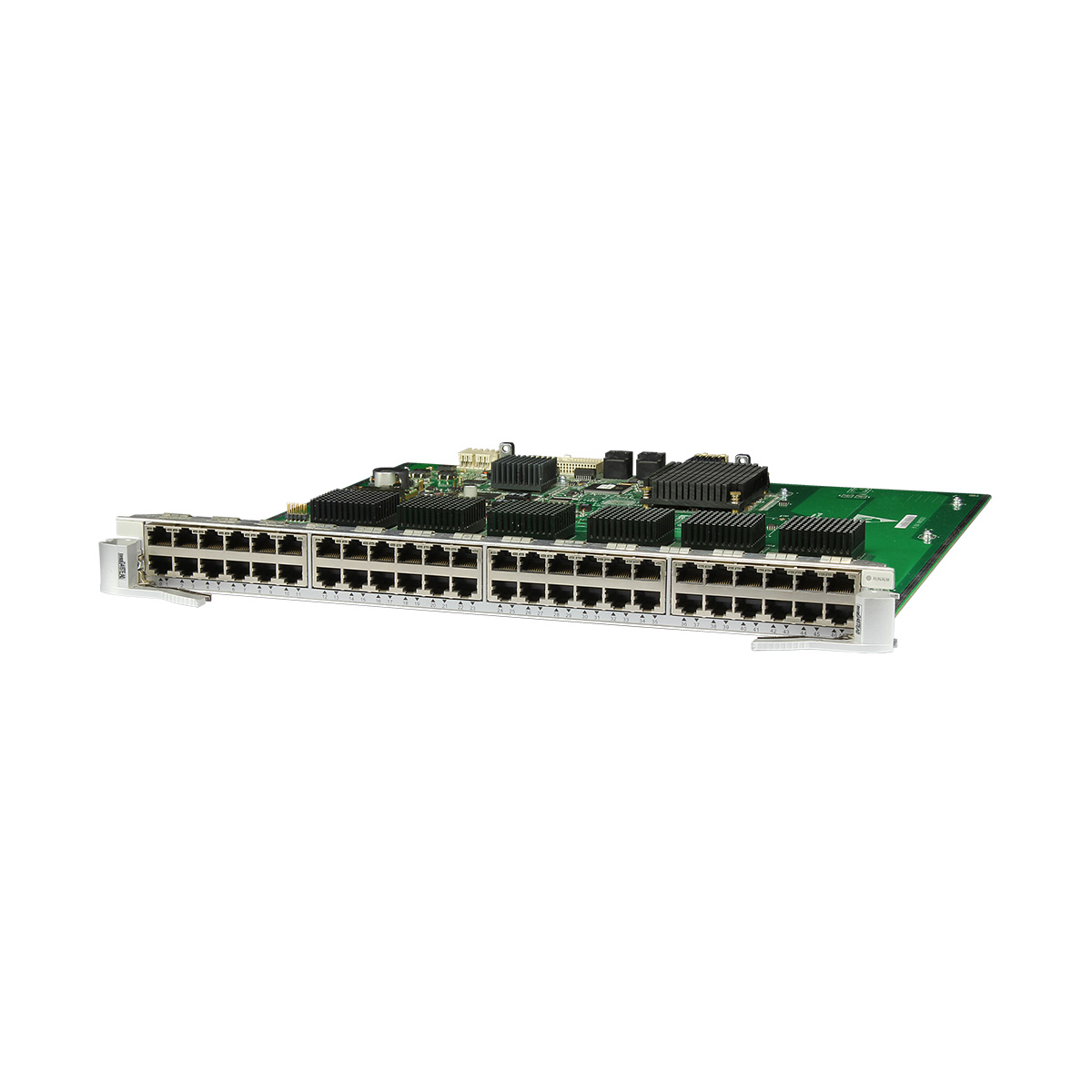

EH1D2G48TEA0 Huawei S9700 switch 48 port 10/100/1000BASE-T interface card (EA, RJ45)

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

EH1D2G24SSA0 overview

EH1D2G48TEA0 Huawei S9700 switch 48 port 10/100/1000BASE-T interface card (EA, RJ45)

EH1D2G24SSA0 application
Card Name S9700 Chassis
EH1D2G48TEA0 Supported in V200R001C00 to V200R013C00
EH1D2G24SSA0 functions and features
Function Description
Basic function Provides forty-eight GE electrical ports for data transmission and line-rate switching.
Distributed forwarding Performs concurrent data forwarding using a distributed data plane.
Hot swapping The EH1D2G48TEA0 is hot swappable.
Item EH1D2G48TEA0
Apply on S9700 series
Attribute of 10/100/1000BASE-T electrical port
Connector type RJ45
Standards compliance IEEE802.3ab and IEEE802.3az
Frame format Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol IP
Physical specification
Dimensions (mm) 394.7 mm x 426.8 mm x 35.1 mm
Weight (kg) 2.50kg (5.51 lb)
Maximum power consumption 62 W
Environment parameters
Operating temperature 0°C to 45°C (32°F to 113°F)
Operating relative humidity 5% RH to 95% RH (noncondensing)
Storage temperature -40°C to +70°C (-40°F to +158°F)
Storage relative humidity 5% RH to 95% RH (noncondensing)

Additional information

Weight 6.0000 kg
Dimensions 50.2000 × 46.8000 × 11.8000 cm
S9700

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item EH1D2G48TEA0
Apply on S9700 series
Attribute of 10/100/1000BASE-T electrical port
Connector type RJ45
Standards compliance IEEE802.3ab and IEEE802.3az
Frame format Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol IP
Physical specification
Dimensions (mm) 394.7 mm x 426.8 mm x 35.1 mm
Weight (kg) 2.50kg (5.51 lb)
Maximum power consumption 62 W
Environment parameters
Operating temperature 0°C to 45°C (32°F to 113°F)
Operating relative humidity 5% RH to 95% RH (noncondensing)
Storage temperature -40°C to +70°C (-40°F to +158°F)
Storage relative humidity 5% RH to 95% RH (noncondensing)
