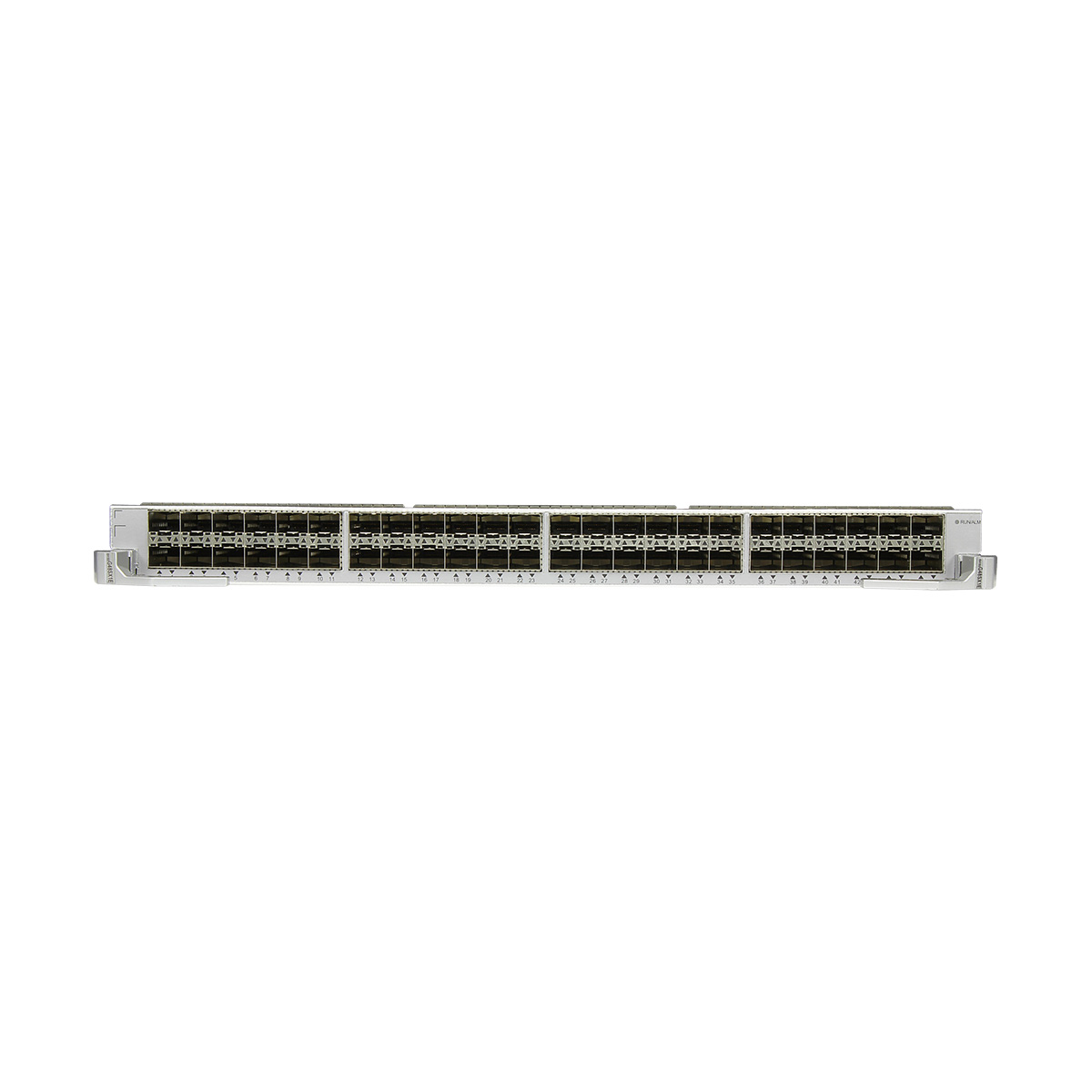

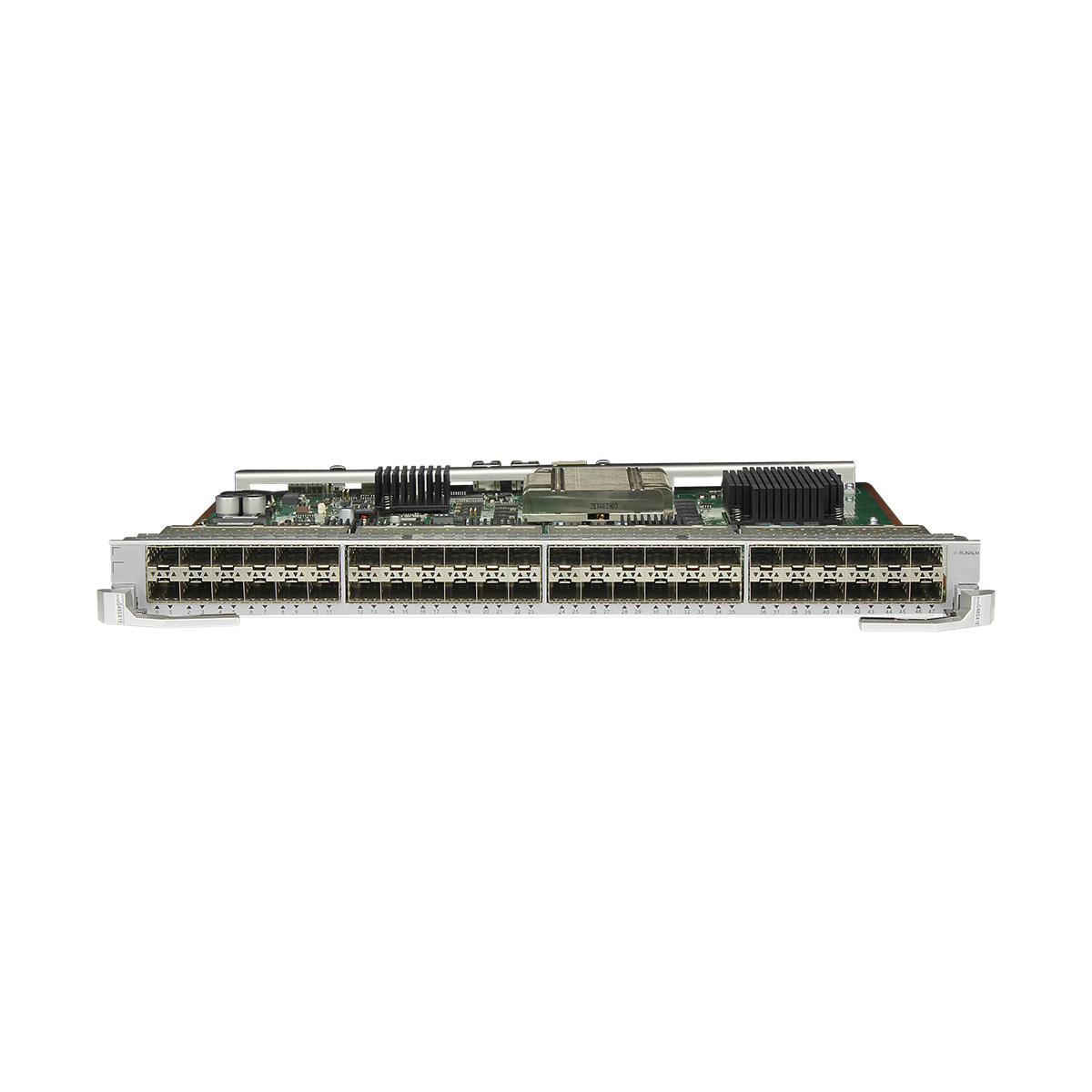

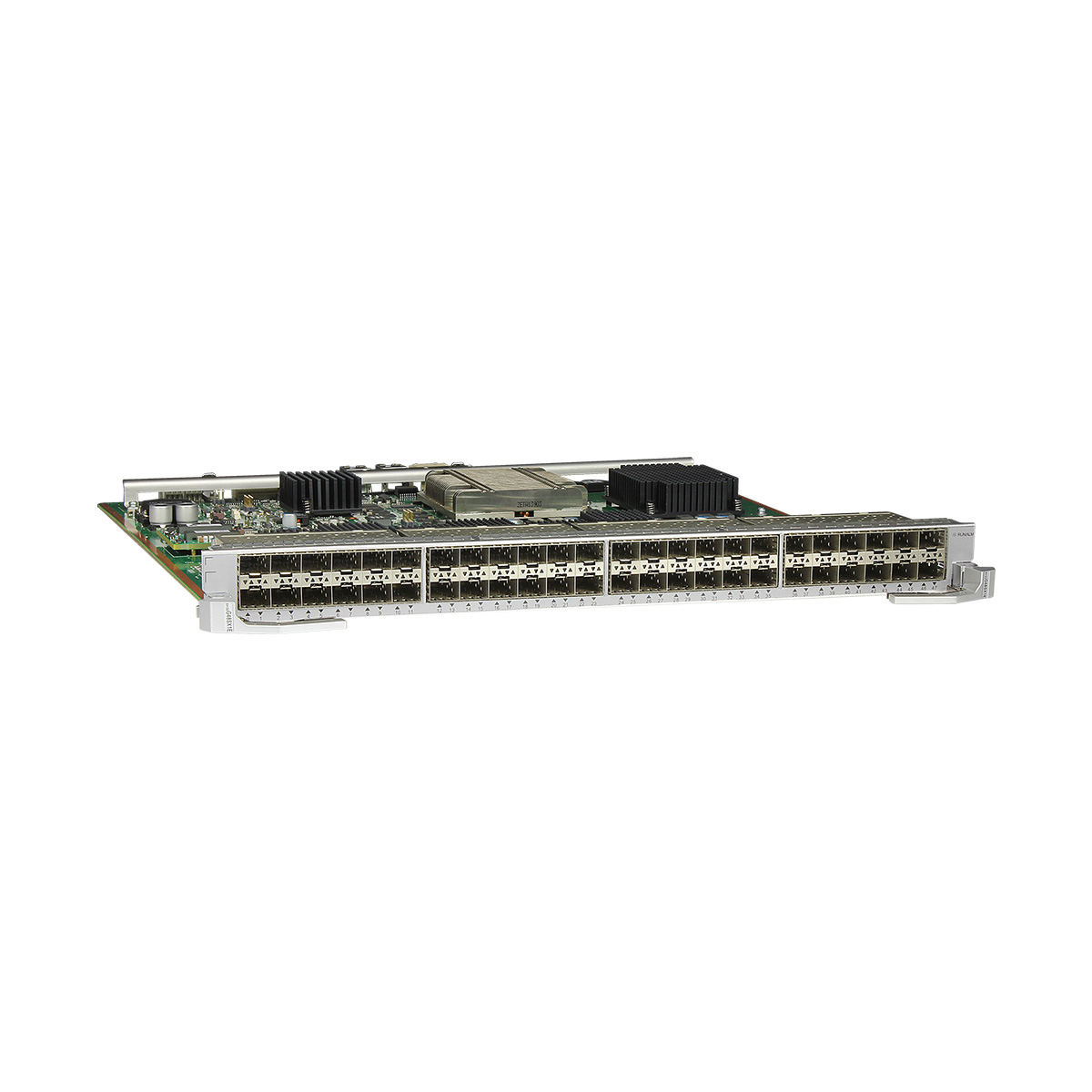

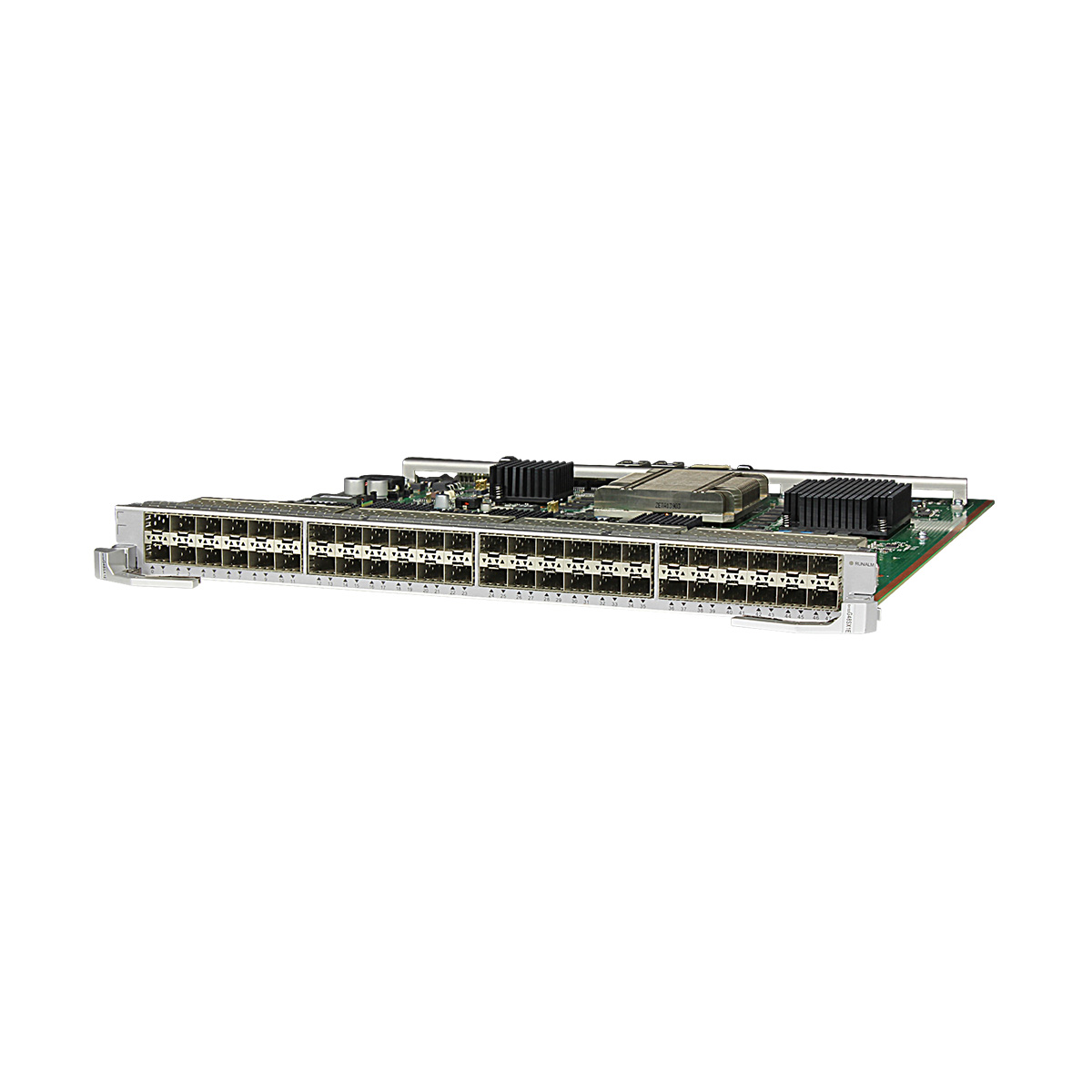

EH1D2G48SX1E Huawei S9700 switch 48 Port 100/1000BASE-X Interface Card (X1E, SFP)

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

EH1D2G48SX1E overview

EH1D2G48SX1E Huawei S9700 switch 48 Port 100/1000BASE-X Interface Card (X1E, SFP)

EH1D2G48SX1E application
Card Name S9700 Chassis
EH1D2G48SX1E Supported in V200R005C00 to V200R013C00
EH1D2G48SX1E functions and features
Function Description
Basic functions Provides forty-eight GE optical ports for data access and line-rate switching.
Forwarding speed 48 Gbit/s
Distributed forwarding Performs concurrent data forwarding using a distributed data plane.
Hot swapping The EH1D2G48SX1E is hot swappable.
Item EH1D2G48SX1E
Apply to S9700 series
Optical port attributes
Connector type SFP
Optical port attributes Depend on the SFP optical module used
Standards compliance IEEE 802.3z
Frame format Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol IP
Attributes of FE optical modules
Operating Temperature 0°C to 70°C (32°F to 158°F)
Model Transmission Distance (km) Standard Fiber Type
SFP-FE-SX-MM1310 (SFP optical module) ≤ 2 100base-FX Fiber mode: multimode Core diameter: 50 μm or 62.5 μm Connector type: LC
eSFP-FE-LX-SM1310 ≤ 15 100base-LX Fiber mode: single-mode Connector type: LC
S-SFP-FE-LH40-SM1310 ≤ 40
S-SFP-FE-LH80-SM1550 ≤ 80
SFP-FE-LX-SM1310-BIDI (Single-fiber bidirectional) ≤ 15 100base-BX
SFP-FE-LX-SM1550-BIDI (Single-fiber bidirectional)
Attributes of GE optical modules
eSFP-GE-SX-MM850 ≤ 0.22 1000base-SX Fiber mode: multimode Modal Bandwidth: 160 MHz*km Core diameter: 62.5 μm Connector type: LC
≤ 0.275 Fiber mode: multimode (OM1) Connector type: LC
≤ 0.5 Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC
≤ 0.55 Fiber mode: multimode (OM2) Connector type: LC
≤ 1 Fiber mode: multimode (OM3) Connector type: LC
SFP-GE-LX-SM1310 ≤ 10 1000base-LX/LH Fiber mode: single-mode Connector type: LC
S-SFP-GE-LH40-SM1310 ≤ 40
S-SFP-GE-LH40-SM1550
S-SFP-GE-LH80-SM1550 ≤ 80 1000base-ZX
eSFP-GE-ZX100-SM1550 ≤ 100
SFP-GE-LX-SM1310-BIDI (Single-fiber bidirectional) ≤ 10 1000base-BX
SFP-GE-LX-SM1490-BIDI (Single-fiber bidirectional)
LE2MGSC40DE0 (Single-fiber bidirectional) ≤ 40
LE2MGSC40ED0 (Single-fiber bidirectional)
SFP-GE-ZBXD1 (Single-fiber bidirectional)can only be used on switch running V200R008C00 or later version. ≤ 80 1000base-BX
SFP-GE-ZBXU1 (Single-fiber bidirectional)can only be used on switch running V200R008C00 or later version.
SFP-GE-BXU1-SC (Single-fiber bidirectional) ≤ 10 1000base-BX Fiber mode: single-mode Connector type: SC
Attributes of eSFP CWDM optical modules
Center Wavelength (nm), Model
1471, CWDM-SFPGE-1471 1491, CWDM-SFPGE-1491 1511, CWDM-SFPGE-1511 1531, CWDM-SFPGE-1531
1551, CWDM-SFPGE-1551 1571, CWDM-SFPGE-1571 1591, CWDM-SFPGE-1591 1611, CWDM-SFPGE-1611
Specifications Encapsulation type: eSFP
Transmission distance: ≤ 80 km
Fiber type: single-mode, LC
Standard: CWDM
Operating temperature: 0°C to 70°C (32°F to 158°F)
Transmit power: 0 dBm to 5.0 dBm Receiver sensitivity: ≤ -28.0 dBm Overload optical power: -9.0 dBm Extinction ratio: ≥ 8.5 dB
Attributes of eSFP DWDM optical modules
Center Wavelength (nm), Model
1529.55, DWDM-SFPGE-1529-55 1530.33, DWDM-SFPGE-1530-33 1531.12, DWDM-SFPGE-1531-12 1531.90, DWDM-SFPGE-1531-90
1532.68, DWDM-SFPGE-1532-68 1533.47, DWDM-SFPGE-1533-47 1534.25, DWDM-SFPGE-1534-25 1535.04, DWDM-SFPGE-1535-04
1535.82, DWDM-SFPGE-1535-82 1536.61, DWDM-SFPGE-1536-61 1537.40, DWDM-SFPGE-1537-40 1538.19, DWDM-SFPGE-1538-19
1538.98, DWDM-SFPGE-1538-98 1539.77, DWDM-SFPGE-1539-77 1540.56, DWDM-SFPGE-1540-56 1541.35, DWDM-SFPGE-1541-35
1542.14, DWDM-SFPGE-1542-14 1542.94, DWDM-SFPGE-1542-94 1543.73, DWDM-SFPGE-1543-73 1544.53, DWDM-SFPGE-1544-53
1545.32, DWDM-SFPGE-1545-32 1546.12, DWDM-SFPGE-1546-12 1546.92, DWDM-SFPGE-1546-92 1547.72, DWDM-SFPGE-1547-72
1548.51, DWDM-SFPGE-1548-51 1549.32, DWDM-SFPGE-1549-32 1550.12, DWDM-SFPGE-1550-12 1550.92, DWDM-SFPGE-1550-92
1551.72, DWDM-SFPGE-1551-72 1552.52, DWDM-SFPGE-1552-52 1553.33, DWDM-SFPGE-1553-33 1554.13, DWDM-SFPGE-1554-13
1554.94, DWDM-SFPGE-1554-94 1555.75, DWDM-SFPGE-1555-75 1556.55, DWDM-SFPGE-1556-55 1557.36, DWDM-SFPGE-1557-36
1558.17, DWDM-SFPGE-1558-17 1558.98, DWDM-SFPGE-1558-98 1559.79, DWDM-SFPGE-1559-79 1560.61, DWDM-SFPGE-1560-61
Specifications Encapsulation type: eSFP
Transmission distance: ≤ 120 km
Fiber type: single-mode, LC
Standard: DWDM
Operating temperature: 0°C to 45°C (32°F to 113°F)
Transmit power: 0 dBm to 4.0 dBm Receiver sensitivity: ≤ -28.0 dBm Overload optical power: -8.0 dBm Extinction ratio: ≥ 8.2 dB
Attributes of a GE SFP copper module
SFP-1000BaseT ≤ 0.1 RJ45(1000Base-T) -40°C to +85°C (-40°F to 185°F)
Physical specifications
Dimensions(W x D x H): 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight: 3.04 kg (6.70 lb)
Maximum power consumption: 140W
Environment parameters
Operating temperature 0°C to 45°C (32°F to 113°F)
Operating relative humidity 5% RH to 95% RH (noncondensing)
Storage temperature -40°C to +70°C (-40°F to +158°F)
Storage relative humidity 5% RH to 95% RH (noncondensing)

Additional information

Weight 7.0000 kg
Dimensions 55.0000 × 49.5000 × 12.0000 cm
S9700

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item EH1D2G48SX1E
Apply to S9700 series
Optical port attributes
Connector type SFP
Optical port attributes Depend on the SFP optical module used
Standards compliance IEEE 802.3z
Frame format Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol IP
Attributes of FE optical modules
Operating Temperature 0°C to 70°C (32°F to 158°F)
Model Transmission Distance (km) Standard Fiber Type
SFP-FE-SX-MM1310 (SFP optical module) ≤ 2 100base-FX Fiber mode: multimode Core diameter: 50 μm or 62.5 μm Connector type: LC
eSFP-FE-LX-SM1310 ≤ 15 100base-LX Fiber mode: single-mode Connector type: LC
S-SFP-FE-LH40-SM1310 ≤ 40
S-SFP-FE-LH80-SM1550 ≤ 80
SFP-FE-LX-SM1310-BIDI (Single-fiber bidirectional) ≤ 15 100base-BX
SFP-FE-LX-SM1550-BIDI (Single-fiber bidirectional)
Attributes of GE optical modules
eSFP-GE-SX-MM850 ≤ 0.22 1000base-SX Fiber mode: multimode Modal Bandwidth: 160 MHz*km Core diameter: 62.5 μm Connector type: LC
≤ 0.275 Fiber mode: multimode (OM1) Connector type: LC
≤ 0.5 Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC
≤ 0.55 Fiber mode: multimode (OM2) Connector type: LC
≤ 1 Fiber mode: multimode (OM3) Connector type: LC
SFP-GE-LX-SM1310 ≤ 10 1000base-LX/LH Fiber mode: single-mode Connector type: LC
S-SFP-GE-LH40-SM1310 ≤ 40
S-SFP-GE-LH40-SM1550
S-SFP-GE-LH80-SM1550 ≤ 80 1000base-ZX
eSFP-GE-ZX100-SM1550 ≤ 100
SFP-GE-LX-SM1310-BIDI (Single-fiber bidirectional) ≤ 10 1000base-BX
SFP-GE-LX-SM1490-BIDI (Single-fiber bidirectional)
LE2MGSC40DE0 (Single-fiber bidirectional) ≤ 40
LE2MGSC40ED0 (Single-fiber bidirectional)
SFP-GE-ZBXD1 (Single-fiber bidirectional)can only be used on switch running V200R008C00 or later version. ≤ 80 1000base-BX
SFP-GE-ZBXU1 (Single-fiber bidirectional)can only be used on switch running V200R008C00 or later version.
SFP-GE-BXU1-SC (Single-fiber bidirectional) ≤ 10 1000base-BX Fiber mode: single-mode Connector type: SC
Attributes of eSFP CWDM optical modules
Center Wavelength (nm), Model
1471, CWDM-SFPGE-1471 1491, CWDM-SFPGE-1491 1511, CWDM-SFPGE-1511 1531, CWDM-SFPGE-1531
1551, CWDM-SFPGE-1551 1571, CWDM-SFPGE-1571 1591, CWDM-SFPGE-1591 1611, CWDM-SFPGE-1611
Specifications Encapsulation type: eSFP
Transmission distance: ≤ 80 km
Fiber type: single-mode, LC
Standard: CWDM
Operating temperature: 0°C to 70°C (32°F to 158°F)
Transmit power: 0 dBm to 5.0 dBm Receiver sensitivity: ≤ -28.0 dBm Overload optical power: -9.0 dBm Extinction ratio: ≥ 8.5 dB
Attributes of eSFP DWDM optical modules
Center Wavelength (nm), Model
1529.55, DWDM-SFPGE-1529-55 1530.33, DWDM-SFPGE-1530-33 1531.12, DWDM-SFPGE-1531-12 1531.90, DWDM-SFPGE-1531-90
1532.68, DWDM-SFPGE-1532-68 1533.47, DWDM-SFPGE-1533-47 1534.25, DWDM-SFPGE-1534-25 1535.04, DWDM-SFPGE-1535-04
1535.82, DWDM-SFPGE-1535-82 1536.61, DWDM-SFPGE-1536-61 1537.40, DWDM-SFPGE-1537-40 1538.19, DWDM-SFPGE-1538-19
1538.98, DWDM-SFPGE-1538-98 1539.77, DWDM-SFPGE-1539-77 1540.56, DWDM-SFPGE-1540-56 1541.35, DWDM-SFPGE-1541-35
1542.14, DWDM-SFPGE-1542-14 1542.94, DWDM-SFPGE-1542-94 1543.73, DWDM-SFPGE-1543-73 1544.53, DWDM-SFPGE-1544-53
1545.32, DWDM-SFPGE-1545-32 1546.12, DWDM-SFPGE-1546-12 1546.92, DWDM-SFPGE-1546-92 1547.72, DWDM-SFPGE-1547-72
1548.51, DWDM-SFPGE-1548-51 1549.32, DWDM-SFPGE-1549-32 1550.12, DWDM-SFPGE-1550-12 1550.92, DWDM-SFPGE-1550-92
1551.72, DWDM-SFPGE-1551-72 1552.52, DWDM-SFPGE-1552-52 1553.33, DWDM-SFPGE-1553-33 1554.13, DWDM-SFPGE-1554-13
1554.94, DWDM-SFPGE-1554-94 1555.75, DWDM-SFPGE-1555-75 1556.55, DWDM-SFPGE-1556-55 1557.36, DWDM-SFPGE-1557-36
1558.17, DWDM-SFPGE-1558-17 1558.98, DWDM-SFPGE-1558-98 1559.79, DWDM-SFPGE-1559-79 1560.61, DWDM-SFPGE-1560-61
Specifications Encapsulation type: eSFP
Transmission distance: ≤ 120 km
Fiber type: single-mode, LC
Standard: DWDM
Operating temperature: 0°C to 45°C (32°F to 113°F)
Transmit power: 0 dBm to 4.0 dBm Receiver sensitivity: ≤ -28.0 dBm Overload optical power: -8.0 dBm Extinction ratio: ≥ 8.2 dB
Attributes of a GE SFP copper module
SFP-1000BaseT ≤ 0.1 RJ45(1000Base-T) -40°C to +85°C (-40°F to 185°F)
Physical specifications
Dimensions(W x D x H): 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight: 3.04 kg (6.70 lb)
Maximum power consumption: 140W
Environment parameters
Operating temperature 0°C to 45°C (32°F to 113°F)
Operating relative humidity 5% RH to 95% RH (noncondensing)
Storage temperature -40°C to +70°C (-40°F to +158°F)
Storage relative humidity 5% RH to 95% RH (noncondensing)
