Description

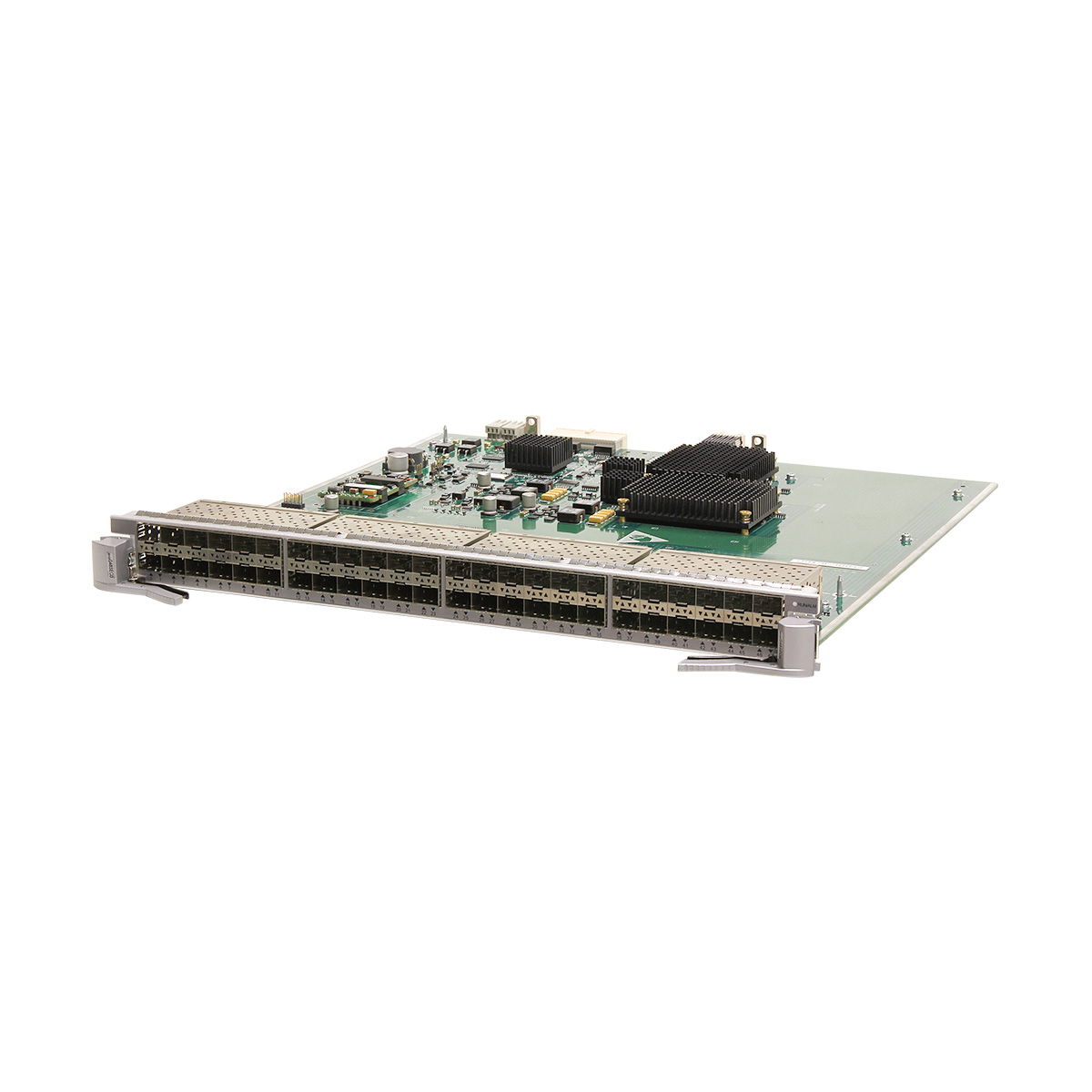

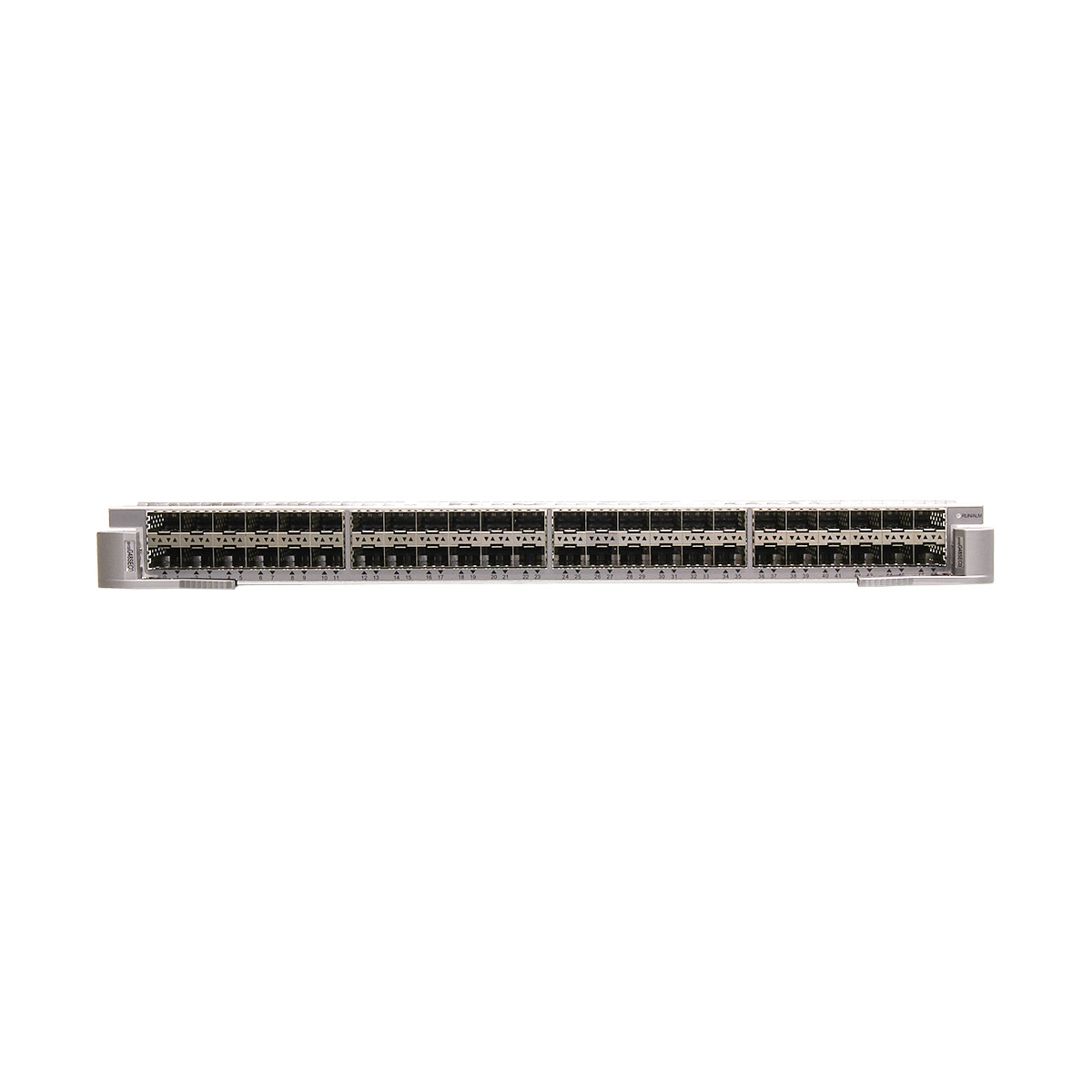

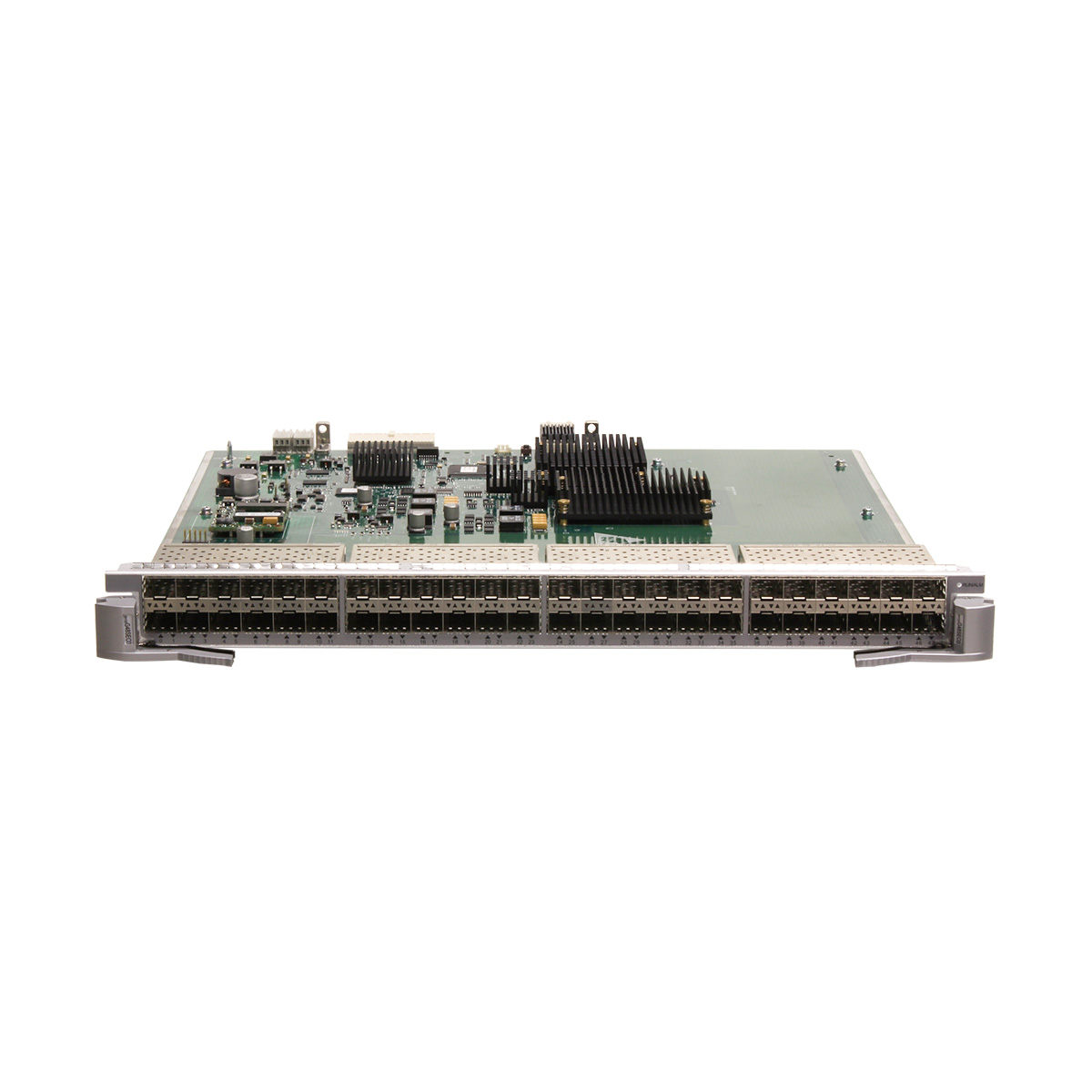

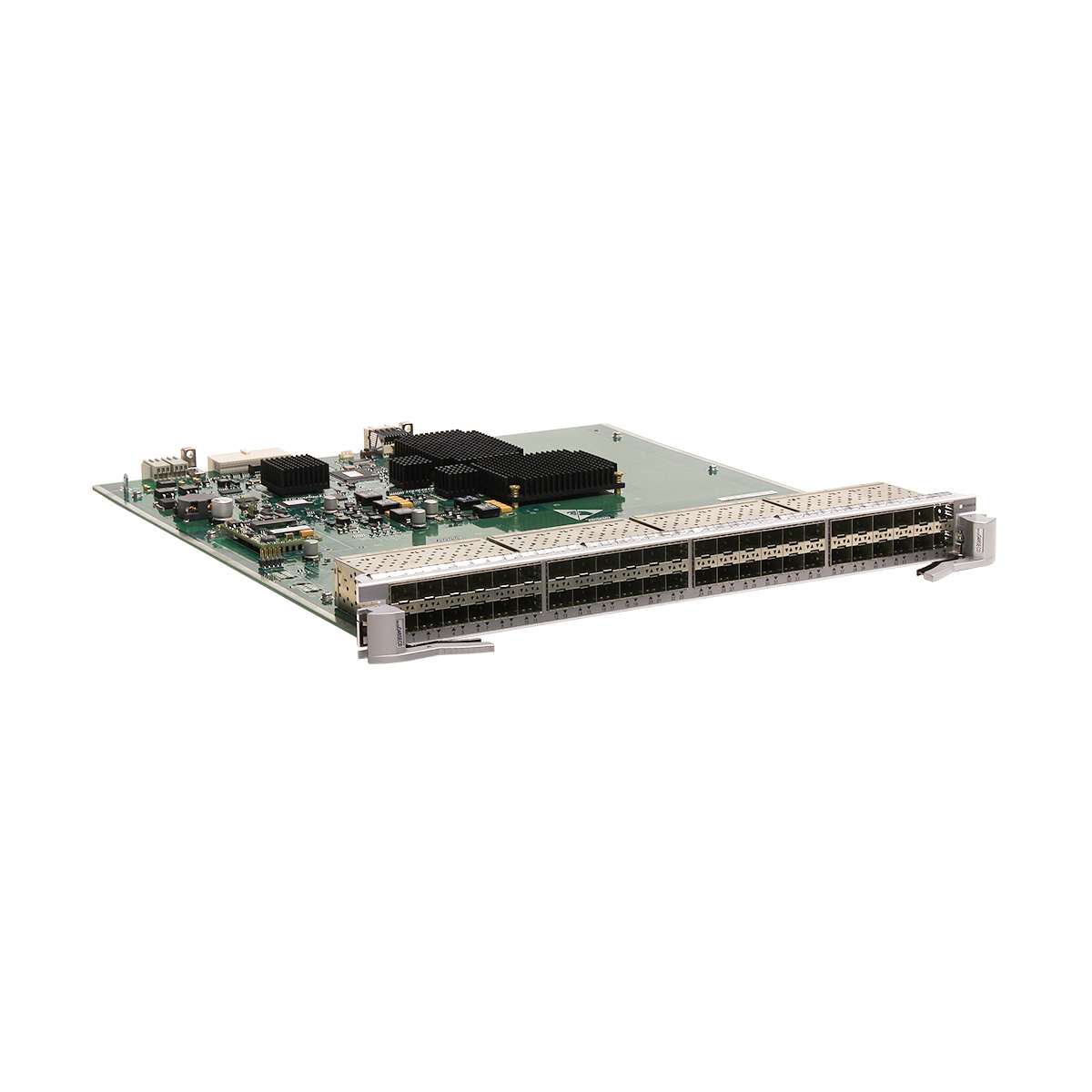

| Item | EH1D2G48SEC0 | ||
| Apply to S9700 series | |||
| Optical port attributes | |||
| Connector type | SFP | ||
| Optical port attributes | Depend on the SFP optical module used | ||
| Standards compliance | IEEE 802.3z | ||
| Frame format | Ethernet_II, Ethernet_SAP, Ethernet_SNAP | ||
| Network protocol | IP | ||
| Attributes of FE optical modules | |||
| Operating Temperature | 0°C to 70°C (32°F to 158°F) | ||
| Model | Transmission Distance (km) | Standard | Fiber Type |
| SFP-FE-SX-MM1310 (SFP optical module) |
≤ 2 | 100base-FX | Fiber mode: multimode Core diameter: 50 μm or 62.5 μm Connector type: LC |
| eSFP-FE-LX-SM1310 | ≤ 15 | 100base-LX | Fiber mode: single-mode Connector type: LC |
| S-SFP-FE-LH40-SM1310 | ≤ 40 | ||
| S-SFP-FE-LH80-SM1550 | ≤ 80 | ||
| SFP-FE-LX-SM1310-BIDI (Single-fiber bidirectional) |
≤ 15 | 100base-BX | |
| SFP-FE-LX-SM1550-BIDI (Single-fiber bidirectional) |
|||
| Attributes of GE optical modules | |||
| eSFP-GE-SX-MM850 | ≤ 0.22 | 1000base-SX | Fiber mode: multimode Modal Bandwidth: 160 MHz*km Core diameter: 62.5 μm Connector type: LC |
| ≤ 0.275 | Fiber mode: multimode (OM1) Connector type: LC |
||
| ≤ 0.5 | Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC |
||
| ≤ 0.55 | Fiber mode: multimode (OM2) Connector type: LC |
||
| ≤ 1 | Fiber mode: multimode (OM3) Connector type: LC |
||
| SFP-GE-LX-SM1310 | ≤ 10 | 1000base-LX/LH | Fiber mode: single-mode Connector type: LC |
| S-SFP-GE-LH40-SM1310 | ≤ 40 | ||
| S-SFP-GE-LH40-SM1550 | |||
| S-SFP-GE-LH80-SM1550 | ≤ 80 | 1000base-ZX | |
| eSFP-GE-ZX100-SM1550 | ≤ 100 | ||
| SFP-GE-LX-SM1310-BIDI (Single-fiber bidirectional) |
≤ 10 | 1000base-BX | |
| SFP-GE-LX-SM1490-BIDI (Single-fiber bidirectional) |
|||
| LE2MGSC40DE0 (Single-fiber bidirectional) |
≤ 40 | ||
| LE2MGSC40ED0 (Single-fiber bidirectional) |
|||
| SFP-GE-ZBXD1 (Single-fiber bidirectional)can only be used on switch running V200R008C00 or later version. |
≤ 80 | 1000base-BX | |
| SFP-GE-ZBXU1 (Single-fiber bidirectional)can only be used on switch running V200R008C00 or later version. |
|||
| SFP-GE-BXU1-SC (Single-fiber bidirectional) |
≤ 10 | 1000base-BX | Fiber mode: single-mode Connector type: SC |
| Attributes of eSFP CWDM optical modules | |||
| Center Wavelength (nm), Model | |||
| 1471, CWDM-SFPGE-1471 | 1491, CWDM-SFPGE-1491 | 1511, CWDM-SFPGE-1511 | 1531, CWDM-SFPGE-1531 |
| 1551, CWDM-SFPGE-1551 | 1571, CWDM-SFPGE-1571 | 1591, CWDM-SFPGE-1591 | 1611, CWDM-SFPGE-1611 |
| Specifications | Encapsulation type: eSFP | ||
| Transmission distance: ≤ 80 km | |||
| Fiber type: single-mode, LC | |||
| Standard: CWDM | |||
| Operating temperature: 0°C to 70°C (32°F to 158°F) | |||
| Transmit power: 0 dBm to 5.0 dBm Receiver sensitivity: ≤ -28.0 dBm Overload optical power: -9.0 dBm Extinction ratio: ≥ 8.5 dB |
|||
| Attributes of eSFP DWDM optical modules | |||
| Center Wavelength (nm), Model | |||
| 1529.55, DWDM-SFPGE-1529-55 | 1530.33, DWDM-SFPGE-1530-33 | 1531.12, DWDM-SFPGE-1531-12 | 1531.90, DWDM-SFPGE-1531-90 |
| 1532.68, DWDM-SFPGE-1532-68 | 1533.47, DWDM-SFPGE-1533-47 | 1534.25, DWDM-SFPGE-1534-25 | 1535.04, DWDM-SFPGE-1535-04 |
| 1535.82, DWDM-SFPGE-1535-82 | 1536.61, DWDM-SFPGE-1536-61 | 1537.40, DWDM-SFPGE-1537-40 | 1538.19, DWDM-SFPGE-1538-19 |
| 1538.98, DWDM-SFPGE-1538-98 | 1539.77, DWDM-SFPGE-1539-77 | 1540.56, DWDM-SFPGE-1540-56 | 1541.35, DWDM-SFPGE-1541-35 |
| 1542.14, DWDM-SFPGE-1542-14 | 1542.94, DWDM-SFPGE-1542-94 | 1543.73, DWDM-SFPGE-1543-73 | 1544.53, DWDM-SFPGE-1544-53 |
| 1545.32, DWDM-SFPGE-1545-32 | 1546.12, DWDM-SFPGE-1546-12 | 1546.92, DWDM-SFPGE-1546-92 | 1547.72, DWDM-SFPGE-1547-72 |
| 1548.51, DWDM-SFPGE-1548-51 | 1549.32, DWDM-SFPGE-1549-32 | 1550.12, DWDM-SFPGE-1550-12 | 1550.92, DWDM-SFPGE-1550-92 |
| 1551.72, DWDM-SFPGE-1551-72 | 1552.52, DWDM-SFPGE-1552-52 | 1553.33, DWDM-SFPGE-1553-33 | 1554.13, DWDM-SFPGE-1554-13 |
| 1554.94, DWDM-SFPGE-1554-94 | 1555.75, DWDM-SFPGE-1555-75 | 1556.55, DWDM-SFPGE-1556-55 | 1557.36, DWDM-SFPGE-1557-36 |
| 1558.17, DWDM-SFPGE-1558-17 | 1558.98, DWDM-SFPGE-1558-98 | 1559.79, DWDM-SFPGE-1559-79 | 1560.61, DWDM-SFPGE-1560-61 |
| Specifications | Encapsulation type: eSFP | ||
| Transmission distance: ≤ 120 km | |||
| Fiber type: single-mode, LC | |||
| Standard: DWDM | |||
| Operating temperature: 0°C to 45°C (32°F to 113°F) | |||
| Transmit power: 0 dBm to 4.0 dBm Receiver sensitivity: ≤ -28.0 dBm Overload optical power: -8.0 dBm Extinction ratio: ≥ 8.2 dB |
|||
| Attributes of a GE SFP copper module | |||
| SFP-1000BaseT | ≤ 0.1 | RJ45(1000Base-T) | -40°C to +85°C (-40°F to 185°F) |
| Physical specifications | |||
| Dimensions(W x D x H): | 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.) | ||
| Weight: | 2.66 kg (5.86 lb) | ||
| Maximum power consumption: | 92 W | ||
| Environment parameters | |||
| Operating temperature | 0°C to 45°C (32°F to 113°F) | ||
| Operating relative humidity | 5% RH to 95% RH (noncondensing) | ||
| Storage temperature | -40°C to +70°C (-40°F to +158°F) | ||
| Storage relative humidity | 5% RH to 95% RH (noncondensing) | ||
