Description
EH1D2G24SED0 overview

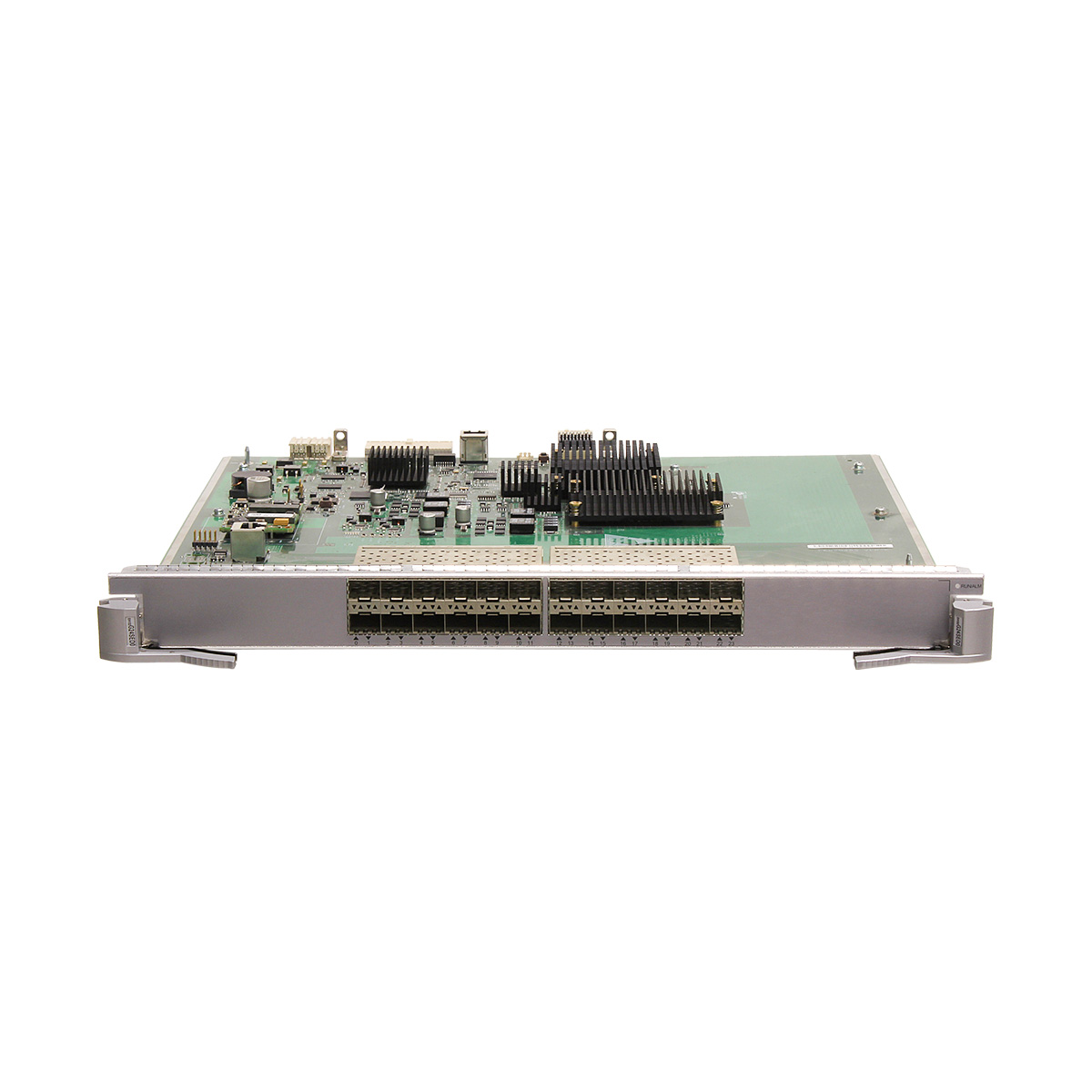

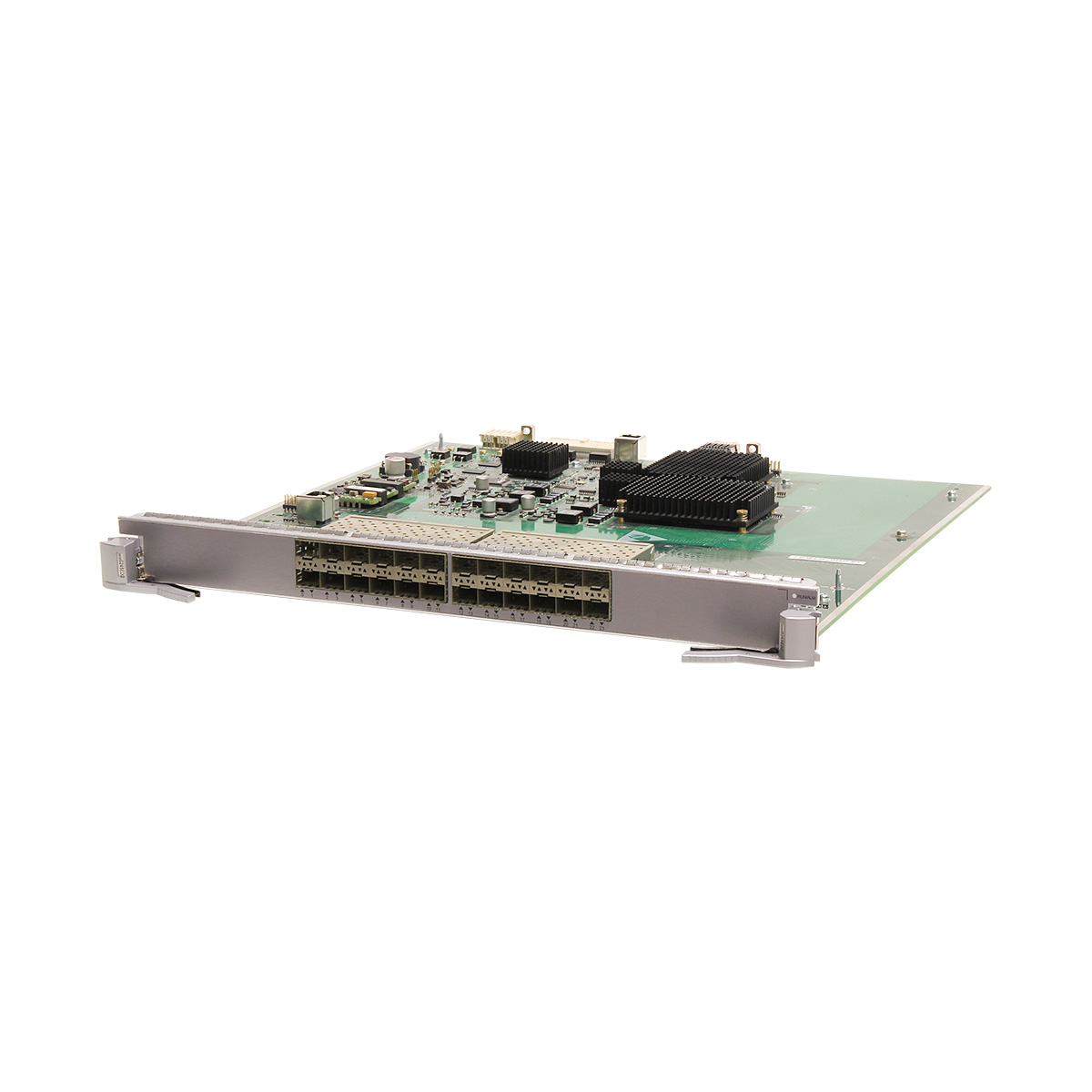

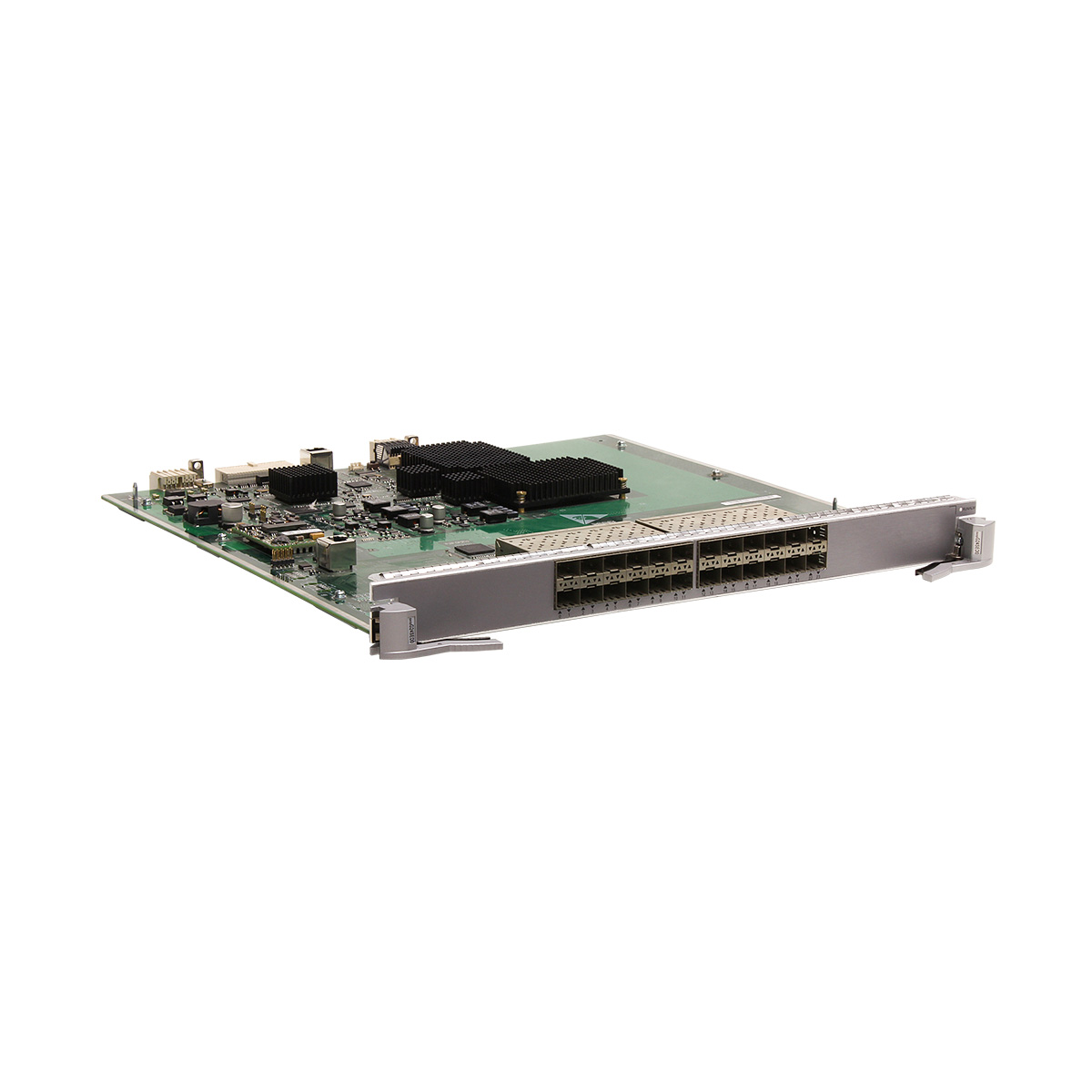

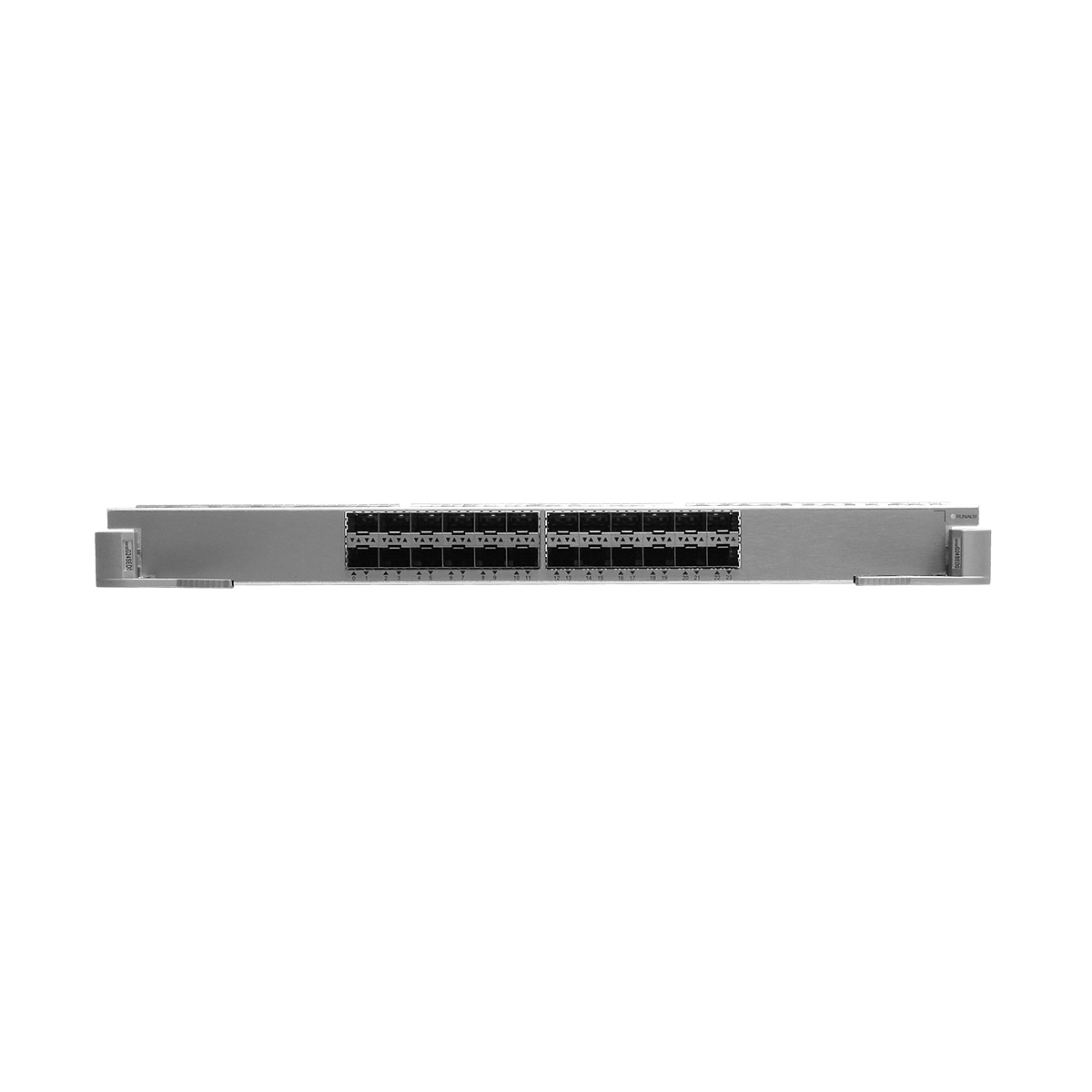

EH1D2G24SED0 Huawei S9700 switch 24-port 100/1000BASE-X interface cards(ED, SFP)
EH1D2G24SED0 application
| Card Name | S9700 Chassis |
| EH1D2G24SED0 | Supported in V200R001C00 to V200R013C00 |
Categories:S7700/S9700 Series
EH1D2G24SED0
BrandsHuawei
AvailabilityIn Stock
S9700
1000M Card
WarrantyUp to 36 months
Original price was: $0.00.Current price is: $0.00.
EH1D2G24SED0 Huawei S9700 switch 24-port 100/1000BASE-X interface cards(ED, SFP)
| Item | EH1D2G24SED0 |
| Apply to S9700 series | |
| Connector type | SFP |
| Optical port attributes | Depend on the SFP optical module used. |
| Standards compliance | IEEE 802.3z |
| Frame format | Ethernet_II, Ethernet_SAP, Ethernet_SNAP |
| Network protocol | IP |
| Attribute of optical port (copper module) | |
| Connector type | SFP |
| Optical port attributes | Depend on the SFP copper module used. |
| Standards compliance | IEEE 802.3ab |
| Frame format | Ethernet_II, Ethernet_SAP, Ethernet_SNAP |
| Network protocol | IP |
| Physical specification | |
| Dimensions (mm) | 394.7 mm x 426.8 mm x 35.1 mm |
| Weight (kg) | 2.66kg (5.86 lb) |
| Maximum power consumption | 75 W |
| Environment parameters | |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Operating relative humidity | 5% RH to 95% RH (noncondensing) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Storage relative humidity | 5% RH to 95% RH (noncondensing) |
Additional information
| Weight | 6.0000 kg |
|---|---|
| Dimensions | 50.2000 × 46.8000 × 11.8000 cm |
| S9700 | |
| Brand | Huawei |
| Lead Time | 3-5 days |
| Ship From | Shenzhen Warehouse |
| Item | EH1D2G24SED0 |
| Apply to S9700 series | |
| Connector type | SFP |
| Optical port attributes | Depend on the SFP optical module used. |
| Standards compliance | IEEE 802.3z |
| Frame format | Ethernet_II, Ethernet_SAP, Ethernet_SNAP |
| Network protocol | IP |
| Attribute of optical port (copper module) | |
| Connector type | SFP |
| Optical port attributes | Depend on the SFP copper module used. |
| Standards compliance | IEEE 802.3ab |
| Frame format | Ethernet_II, Ethernet_SAP, Ethernet_SNAP |
| Network protocol | IP |
| Physical specification | |
| Dimensions (mm) | 394.7 mm x 426.8 mm x 35.1 mm |
| Weight (kg) | 2.66kg (5.86 lb) |
| Maximum power consumption | 75 W |
| Environment parameters | |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Operating relative humidity | 5% RH to 95% RH (noncondensing) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Storage relative humidity | 5% RH to 95% RH (noncondensing) |
