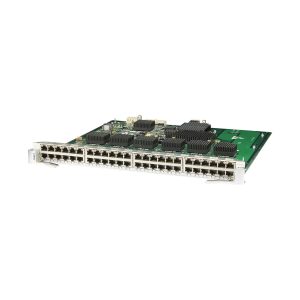

EH1D2F48TEC0 Huawei S9700 switch 48 Port 10/100BASE-T interface card (EC, RJ45)

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

EH1D2F48TEC0 overview

EH1D2F48TEC0 Huawei S9700 switch 48 Port 10/100BASE-T interface card (EC, RJ45)



EH1D2F48TEC0 application
Card Name S9700 Chassis
EH1D2F48TEC0 Supported in V200R001C00 to V200R013C00
EH1D2F48TEC0 function and feature
Function Description
Basic function Provides forty-eight FE electrical ports for data transmission and line-rate switching.
Distributed forwarding Performs concurrent data forwarding using a distributed data plane.
Hot swapping The EH1D2F48TEC0 is hot swappable.
Item EH1D2F48TEC0
Apply to S9700 series
Attribute of 10M/100M BASE-T electrical port
Connector type RJ45
Standards compliance IEEE802.3
Working mode Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol IP
Physical specification
Dimensions (mm) 394.7 mm x 426.8 mm x 35.1 mm (5.7 in. x 7.3 in. x 0.8 in.)
Weight (kg) 2.66 kg (7.28 lb)
Maximum power consumption 70 W
Environment parameters
Operating temperature 0°C to 45°C (32°F to 113°F)
Operating relative humidity 5% RH to 95% RH (noncondensing)
Storage temperature -40°C to +70°C (-40°F to +158°F)
Storage relative humidity 5% RH to 95% RH (noncondensing)

Additional information

S9700

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item EH1D2F48TEC0
Apply to S9700 series
Attribute of 10M/100M BASE-T electrical port
Connector type RJ45
Standards compliance IEEE802.3
Working mode Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol IP
Physical specification
Dimensions (mm) 394.7 mm x 426.8 mm x 35.1 mm (5.7 in. x 7.3 in. x 0.8 in.)
Weight (kg) 2.66 kg (7.28 lb)
Maximum power consumption 70 W
Environment parameters
Operating temperature 0°C to 45°C (32°F to 113°F)
Operating relative humidity 5% RH to 95% RH (noncondensing)
Storage temperature -40°C to +70°C (-40°F to +158°F)
Storage relative humidity 5% RH to 95% RH (noncondensing)

Reviews

  1. MateuszBlaze –

    They helped me to install it, and it works well now. It’s just a trial order, and everything goes well.
